TID1500_MeasurementReport Class Reference

Implementation of DCMR Template: TID 1500 - Measurement Report (and included templates 1204, 1001, 1600, 1411). More...

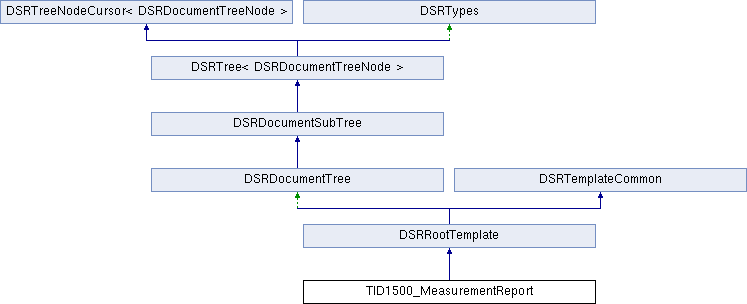

Inheritance diagram for TID1500_MeasurementReport:

Public Member Functions
	TID1500_MeasurementReport (const CID7021_MeasurementReportDocumentTitles &title=CID7021_MeasurementReportDocumentTitles())
	(default) constructor. More...
virtual void	clear ()
	clear internal member variables. More...
virtual OFBool	isValid () const
	check whether the current internal state is valid. More...
OFBool	hasProcedureReported () const
	check whether there are any 'Procedure reported' content items (TID 1500 - Row 4) in this measurement report. More...
OFBool	hasVolumetricROIMeasurements (const OFBool checkChildren=OFFalse) const
	check whether there is an included 'Volumetric ROI Measurements' template (TID 1500 - Row 8) in this measurement report. More...
OFBool	hasImagingMeasurements (const OFBool checkChildren=OFFalse) const
	check whether there is an 'Imaging Measurements' content item (TID 1500 - Row 6) in this measurement report. More...
OFBool	hasQualitativeEvaluations (const OFBool checkChildren=OFFalse) const
	check whether there is an 'Qualitative Evaluations' content item (TID 1500 - Row 12) in this measurement report More...
TID1204_LanguageOfContentItemAndDescendants &	getLanguage () const
	get language of this report as defined by TID 1204 (Language of Content Item and Descendants). More...
TID1001_ObservationContext &	getObservationContext () const
	get observation context of this report as defined by TID 1001 (Observation Context). More...
TID1600_ImageLibrary &	getImageLibrary () const
	get image library of this report as defined by TID 1600 (Image Library). More...
TID1411_Measurements &	getVolumetricROIMeasurements () const
	get volumetric ROI measurements of this report as defined by TID 1411 (Volumetric ROI Measurements), i.e. the current instance of TID 1500 - Row 8. More...
OFCondition	getDocumentTitle (DSRCodedEntryValue &titleCode)
	get document title of this report, i.e. the concept name of the root node More...
OFCondition	createNewMeasurementReport (const CID7021_MeasurementReportDocumentTitles &title)
	create a new measurement report. More...
OFCondition	setLanguage (const CID5000_Languages &language, const CID5001_Countries &country=CID5001_Countries(), const OFBool check=OFTrue)
	set language of this report as defined by TID 1204 (Language of Content Item and Descendants) More...
OFCondition	addProcedureReported (const CID100_QuantitativeDiagnosticImagingProcedures &procedure, const OFBool check=OFTrue)
	add the imaging procedure whose results are reported (TID 1500 - Row 4). More...
OFCondition	addVolumetricROIMeasurements ()
	create another instance of TID 1411 (Volumetric ROI Measurements) and add it as an included template to this report (TID 1500 - Row 8). More...
OFCondition	addQualitativeEvaluation (const DSRCodedEntryValue &conceptName, const DSRCodedEntryValue &codeValue, const OFBool check=OFTrue)
	add a qualitative evaluation related to the entire subject of the report as a coded entry (TID 1500 - Row 13). More...
OFCondition	addQualitativeEvaluation (const DSRCodedEntryValue &conceptName, const OFString &stringValue, const OFBool check=OFTrue)
	add a qualitative evaluation related to the entire subject of the report in text form (TID 1500 - Row 14). More...
Public Member Functions inherited from DSRRootTemplate
	DSRRootTemplate (const E_DocumentType documentType, const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="")
	constructor More...
	DSRRootTemplate (const DSRRootTemplate &rootTemplate)
	copy constructor. More...
virtual	~DSRRootTemplate ()
	destructor
virtual DSRRootTemplate *	clone () const
	clone this template. More...
virtual DSRDocumentTree *	cloneTree () const
	clone the internally stored document tree of this template. More...
OFBool	isRootTemplate () const
	check whether this template is a root template, i.e. describes a complete SR document tree starting from the root node More...
virtual const DSRDocumentTree &	getTree ()
	get read-only access to internally stored document tree. More...
virtual OFCondition	insertTemplate (const DSRSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown)
	insert tree from given template to internally stored document tree. More...
Public Member Functions inherited from DSRTemplateCommon
virtual OFBool	hasTemplateIdentification () const
	check whether template identification is set More...
virtual OFBool	isTemplateIdentificationValid (const OFBool check=OFTrue) const
	check whether template identification is valid More...
virtual OFBool	isExtensible () const
	check whether template is extensible More...
virtual OFBool	compareTemplateIdentication (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const
	compare template identification with given values More...
const OFString &	getTemplateIdentifier () const
	get template identifier More...
const OFString &	getMappingResource () const
	get mapping resource More...
const OFString &	getMappingResourceUID () const
	get optional mapping resource UID More...
virtual void	setExtensible (const OFBool mode=OFTrue)
	change mode specifying whether the template is extensible or non-extensible More...

Protected Member Functions
OFCondition	createMeasurementReport (const CID7021_MeasurementReportDocumentTitles &title)
	create the mandatory (and other supported) content items of this template, i.e. TID 1500 - Row 1 to 6 and 8. More...
OFCondition	createQualitativeEvaluations ()
	create the 'Qualitative Evaluations' content item (TID 1500 - Row 12) if not existing yet More...
Protected Member Functions inherited from DSRRootTemplate
virtual OFCondition	read (DcmItem &dataset, const E_DocumentType documentType, const size_t flags=0)
	read SR document tree from DICOM dataset More...
virtual OFCondition	readXML (const DSRXMLDocument &doc, DSRXMLCursor cursor, const size_t flags)
	read XML document tree More...
virtual void	updateTreeForOutput ()
	update the tree for subsequent output, e.g. for being printed or added to an SR document. More...
Protected Member Functions inherited from DSRDocumentTree
void	swap (DSRDocumentTree &tree)
	fast, non-throwing swap function. More...
virtual OFCondition	print (STD_NAMESPACE ostream &stream, const size_t flags, const DSRPositionCounter *posCounter)
	print current SR document tree to specified output stream. More...
	DSRDocumentTree (const E_DocumentType documentType)
	constructor More...
	DSRDocumentTree (const DSRDocumentTree &tree)
	copy constructor. More...
virtual	~DSRDocumentTree ()
	destructor
DSRDocumentTree &	operator= (DSRDocumentTree tree)
	assignment operator. More...
virtual OFCondition	print (STD_NAMESPACE ostream &stream, const size_t flags=0)
	print current SR document tree to specified output stream More...
virtual OFCondition	write (DcmItem &dataset, DcmStack *markedItems=NULL)
	write current SR document tree to DICOM dataset. More...
virtual OFCondition	renderHTML (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t flags=0)
	render current SR document tree in HTML/XHTML format. More...
E_DocumentType	getDocumentType () const
	get document type More...
virtual OFCondition	changeDocumentType (const E_DocumentType documentType, const OFBool deleteTree)
	change document type. More...
virtual OFBool	canAddContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) const
	check whether specified content item can be added to the current one. More...
virtual OFBool	canInsertSubTree (const DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) const
	check whether specified subtree can be inserted at the current position, i.e. added to the current content item. More...
virtual OFCondition	checkDocumentTreeConstraints (DSRIODConstraintChecker *checker)
	check whether the document tree complies with the constraints of the given checker. More...
void	unmarkAllContentItems ()
	unmark all content items in the document tree. More...
void	removeSignatures ()
	remove digital signatures from the document tree. More...
Protected Member Functions inherited from DSRDocumentSubTree
	DSRDocumentSubTree (DSRDocumentTreeNode *rootNode)
	special constructor that receives a pointer to the root node. More...
	DSRDocumentSubTree (const DSRDocumentTreeNodeCursor &startCursor, size_t stopAfterNodeID)
	special copy constructor that clones a particular subtree only More...
void	swap (DSRDocumentSubTree &tree)
	fast, non-throwing swap function. More...
virtual DSRDocumentTreeNode *	getNode () const
	get pointer to current node. More...
virtual size_t	addNode (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent)
	add new node to the current one. More...
virtual size_t	replaceNode (DSRDocumentTreeNode *node)
	replace current node by the given one. More...
virtual DSRDocumentTreeNode *	extractNode ()
	extract current node from tree. More...
virtual DSRDocumentTreeNode *	getAndRemoveRootNode ()
	get pointer to root node and "forget" the internal reference to this node. More...
virtual size_t	removeNode ()
	remove current node from tree. More...
virtual OFCondition	includeTemplate (const DSRSharedSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown)
	include specified sub-template, i.e. add a new DSRIncludedTemplateTreeNode, which references this template, to the current content item. More...
virtual OFCondition	expandIncludedTemplates (DSRDocumentSubTree *tree) const
	expand all "included template" content items in a given (sub)tree. More...
template<typename T_Cursor >
OFCondition	checkByReferenceRelationships (const size_t mode=0, const size_t flags=0)
	check the by-reference relationships (if any) for validity. More...
virtual void	resetReferenceTargetFlag ()
	reset flag for all content items whether they are target of a by-reference relationship. More...
virtual OFCondition	checkSubTreeConstraints (const DSRDocumentSubTree *tree, const DSRIODConstraintChecker *checker) const
	check whether the given subtree complies with the constraints of the given checker More...
	DSRDocumentSubTree ()
	default constructor
	DSRDocumentSubTree (const DSRDocumentSubTree &tree)
	copy constructor. More...
virtual	~DSRDocumentSubTree ()
	destructor
DSRDocumentSubTree &	operator= (DSRDocumentSubTree tree)
	assignment operator. More...
virtual OFBool	isCursorValid () const
	check whether the internal cursor, which points to the current content item, is valid More...
virtual OFBool	isValidDocumentTree (const E_RelationshipType defaultRelType=RT_unknown) const
	check whether this subtree is a valid document tree. More...
virtual OFBool	isExpandedDocumentTree () const
	check whether this subtree is an expanded document tree. More...
virtual OFBool	hasTemplateIdentification () const
	check whether template identification is set More...
virtual OFBool	canUseTemplateIdentification () const
	check whether template identification is possible at all. More...
virtual OFCondition	writeXML (STD_NAMESPACE ostream &stream, const size_t flags=0)
	write current SR document tree in XML format More...
virtual DSRContentItem &	getCurrentContentItem ()
	get reference to current content item. More...
virtual const DSRDocumentTreeNode *	getCurrentNode () const
	get read-only access to current node (content item) More...
virtual OFBool	getCursorToRootNode (DSRDocumentTreeNodeCursor &cursor) const
	get a cursor to the root node of this document tree. More...
virtual OFBool	getCursorToRootNode (DSRIncludedTemplateNodeCursor &cursor) const
	get a cursor to the root node of this document tree. More...
size_t	countNodes (const OFBool searchIntoSubTemplates=OFFalse, const OFBool countIncludedTemplateNodes=OFTrue) const
	count number of content items (nodes) in the document tree. More...
virtual size_t	gotoNamedNode (const DSRCodedEntryValue &conceptName, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue)
	set internal cursor to a named node. More...
virtual size_t	gotoNamedChildNode (const DSRCodedEntryValue &conceptName)
	set internal cursor to a named node (starting from the first child of the current node and searching on this level only). More...
virtual size_t	gotoNamedNodeInSubTree (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue)
	set internal cursor to a named node in the subtree below the current node. More...
virtual size_t	gotoNextNamedNode (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue)
	set internal cursor to the next named node. More...
virtual size_t	gotoAnnotatedNode (const OFString &annotationText, const OFBool startFromRoot=OFTrue)
	set internal cursor to an annotated node. More...
virtual size_t	gotoNextAnnotatedNode (const OFString &annotationText)
	set internal cursor to the next annotated node. More...
virtual OFBool	canAddByReferenceRelationship (const E_RelationshipType relationshipType, const E_ValueType targetValueType) const
	check whether specified by-reference relationship can be added to the current content item. More...
virtual size_t	addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent)
	add specified content item to the current one. More...
virtual OFCondition	addContentItem (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent, const OFBool deleteIfFail=OFFalse)
	add specified content item to the current one. More...
virtual OFCondition	addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue)
	add specified content item after the current one. More...
virtual OFCondition	addChildContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue)
	add specified content item below the current one. More...
virtual size_t	addByReferenceRelationship (const E_RelationshipType relationshipType, const size_t referencedNodeID)
	add specified by-reference relationship to the current content item. More...
virtual OFCondition	updateByReferenceRelationships (const OFBool updateIncludedTemplates=OFFalse)
	update the position strings used to encode by-reference relationships (if any). More...
virtual OFCondition	insertSubTree (DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown, const OFBool deleteIfFail=OFFalse)
	insert specified subtree to this tree, i.e. add it to the current content item. More...
virtual DSRDocumentSubTree *	extractSubTree ()
	extract a subtree i.e. a fragment from this tree. More...
virtual size_t	removeCurrentContentItem ()
	remove current content item from tree. More...
virtual OFCondition	removeSubTree (const size_t searchID=0)
	remove a subtree from this tree. More...
virtual DSRDocumentTreeNode *	cloneCurrentTreeNode () const
	clone the current tree node. More...
virtual DSRDocumentSubTree *	cloneSubTree (const size_t stopAfterNodeID=0) const
	clone a subtree i.e. a fragment of this tree. More...
virtual OFCondition	createExpandedSubTree (DSRDocumentSubTree *&tree) const
	created an expanded version of this (sub)tree. More...
virtual OFBool	compareTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const
	compare template identification of the root node with given values. More...
virtual OFCondition	getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource) const
	get template identifier and mapping resource from the root node of this tree. More...
virtual OFCondition	getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource, OFString &mappingResourceUID) const
	get template identifier, mapping resource and optional mapping resource UID from the root node of this tree. More...
virtual OFCondition	setTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="", const OFBool check=OFTrue)
	set template identifier and mapping resource to the root node of this tree. More...
Protected Member Functions inherited from DSRTree< DSRDocumentTreeNode >
	DSRTree (DSRDocumentTreeNode *rootNode)
	special constructor that receives a pointer to the root node. More...
	DSRTree (const DSRTreeNodeCursor< DSRDocumentTreeNode > &startCursor, size_t stopAfterNodeID)
	special copy constructor that clones a particular subtree only More...
void	swap (DSRTree< DSRDocumentTreeNode > &tree)
	fast, non-throwing swap function. More...
virtual DSRDocumentTreeNode *	getRoot () const
	get pointer to root node More...
virtual void	deleteTreeFromRootNode (DSRDocumentTreeNode *rootNode)
	delete a tree given by its root node. More...
	DSRTree ()
	default constructor
	DSRTree (const DSRTree< DSRDocumentTreeNode > &tree)
	copy constructor. More...
virtual	~DSRTree ()
	destructor
DSRTree &	operator= (DSRTree< DSRDocumentTreeNode > tree)
	assignment operator. More...
void	clearAnnotations ()
	clear annotations of all tree nodes
OFBool	isEmpty () const
	check whether tree has any nodes More...
size_t	countNodes () const
	count number of nodes in the tree. More...
size_t	getNextNodeID () const
	get ID of the next node to be created. More...
size_t	gotoRoot ()
	set internal cursor to root node More...
size_t	gotoNode (const size_t searchID, const OFBool startFromRoot=OFTrue)
	set internal cursor to specified node More...
size_t	gotoNode (const OFString &reference, const OFBool startFromRoot=OFTrue)
	set internal cursor to specified node More...
size_t	gotoNode (const DSRTreeNodeAnnotation &annotation, const OFBool startFromRoot=OFTrue)
	set cursor to specified node. More...
Protected Member Functions inherited from DSRTreeNodeCursor< DSRDocumentTreeNode >
void	clearNodeCursorStack ()
	clear the internal node cursor stack
const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &	getCursor () const
	get cursor More...
void	setCursor (const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &cursor)
	set cursor to specified object More...
size_t	setCursor (DSRDocumentTreeNode *node)
	set cursor to specified node. More...
DSRDocumentTreeNode *	getChild () const
	get pointer to first child node More...
	DSRTreeNodeCursor ()
	default constructor
	DSRTreeNodeCursor (const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &cursor)
	copy constructor More...
	DSRTreeNodeCursor (DSRDocumentTreeNode *node, const DSRPositionCounter *position=NULL)
	constructor. More...
virtual	~DSRTreeNodeCursor ()
	destructor
DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &	operator= (const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &cursor)
	assignment operator More...
DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &	operator= (DSRDocumentTreeNode *node)
	assignment operator. More...
size_t	countChildNodes (const OFBool searchIntoSub=OFTrue) const
	count number of children of the current node. More...
OFBool	hasParentNode () const
	check whether the current node has a parent More...
OFBool	hasChildNodes () const
	check whether the current node has any children More...
OFBool	hasPreviousNode () const
	check whether the current node has a preceding sibling More...
OFBool	hasNextNode () const
	check whether the current node has a following sibling More...
OFBool	hasSiblingNodes () const
	check whether the current node has any siblings More...
virtual const DSRDocumentTreeNode *	getParentNode () const
	get pointer to parent node. More...
virtual const DSRDocumentTreeNode *	getChildNode () const
	get pointer to first child node. More...
virtual const DSRDocumentTreeNode *	getPreviousNode () const
	get pointer to previous node. More...
virtual const DSRDocumentTreeNode *	getNextNode () const
	get pointer to next node. More...
size_t	gotoFirst ()
	goto first node on the same level (first sibling). More...
size_t	gotoLast ()
	goto last node on the same level (last sibling). More...
size_t	gotoPrevious ()
	goto previous node on the same level (preceding sibling) More...
size_t	gotoNext ()
	goto next node on the same level (following sibling) More...
size_t	goUp ()
	goto parent node (one level up) More...
size_t	goDown ()
	goto first child node (one level down) More...
size_t	gotoParent ()
	goto parent node (one level up) More...
size_t	gotoChild ()
	goto first child node (one level down) More...
size_t	iterate (const OFBool searchIntoSub=OFTrue)
	iterate over all nodes. More...
size_t	gotoNode (const size_t searchID)
	set cursor to specified node. More...
size_t	gotoNode (const OFString &position, const char separator='.')
	set cursor to specified node. More...
size_t	gotoNode (const DSRTreeNodeAnnotation &annotation)
	set cursor to specified node. More...
size_t	getNodeID () const
	get current node ID. More...
size_t	getLevel () const
	get current level. More...
DSRPositionCounter &	getPositionCounter ()
	get reference to internal position counter. More...
const OFString &	getPosition (OFString &position, const char separator='.') const
	get position string of the current node. More...
Protected Member Functions inherited from DSRTypes
virtual	~DSRTypes ()
	destructor. More...
Protected Member Functions inherited from DSRTemplateCommon
	DSRTemplateCommon (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="")
	constructor More...
virtual	~DSRTemplateCommon ()
	destructor
void	clearEntriesInNodeList ()
	clear all entries in the list of node IDs, i.e. set them to their initial value, which is 0
void	reserveEntriesInNodeList (const size_t count, const OFBool initialize=OFFalse)
	reserve a certain number of entries in the list of node IDs. More...
void	storeEntryInNodeList (const size_t pos, const size_t nodeID)
	store given entry at a certain position in the list of node IDs More...
size_t	getEntryFromNodeList (const size_t pos) const
	get a particular entry from the list of node IDs More...
size_t	gotoEntryFromNodeList (DSRDocumentTreeNodeCursor &cursor, const size_t pos) const
	set given cursor to a specific node More...
size_t	gotoEntryFromNodeList (DSRDocumentSubTree *tree, const size_t pos)
	set internal cursor of a given document tree to a specific node More...
size_t	gotoLastEntryFromNodeList (DSRDocumentSubTree *tree, const size_t lastPos, const size_t firstPos=0)
	set internal cursor of a given document tree to a particular node. More...
virtual OFBool	hasTemplateIdentification () const
	check whether template identification is set More...
virtual OFBool	isTemplateIdentificationValid (const OFBool check=OFTrue) const
	check whether template identification is valid More...
virtual OFBool	isExtensible () const
	check whether template is extensible More...
virtual OFBool	compareTemplateIdentication (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const
	compare template identification with given values More...
const OFString &	getTemplateIdentifier () const
	get template identifier More...
const OFString &	getMappingResource () const
	get mapping resource More...
const OFString &	getMappingResourceUID () const
	get optional mapping resource UID More...
virtual void	setExtensible (const OFBool mode=OFTrue)
	change mode specifying whether the template is extensible or non-extensible More...

Additional Inherited Members
Protected Types inherited from DSRTypes
enum	E_DocumentType {   DT_invalid, DT_unknown = DT_invalid, DT_BasicTextSR, DT_EnhancedSR,   DT_ComprehensiveSR, DT_KeyObjectSelectionDocument, DT_MammographyCadSR, DT_ChestCadSR,   DT_ColonCadSR, DT_ProcedureLog, DT_XRayRadiationDoseSR, DT_SpectaclePrescriptionReport,   DT_MacularGridThicknessAndVolumeReport, DT_ImplantationPlanSRDocument, DT_Comprehensive3DSR, DT_RadiopharmaceuticalRadiationDoseSR,   DT_ExtensibleSR, DT_AcquisitionContextSR, DT_SimplifiedAdultEchoSR, DT_PatientRadiationDoseSR,   DT_last = DT_PatientRadiationDoseSR }
	SR document types. More...
enum	E_RelationshipType {   RT_invalid, RT_unknown, RT_isRoot, RT_contains,   RT_hasObsContext, RT_hasAcqContext, RT_hasConceptMod, RT_hasProperties,   RT_inferredFrom, RT_selectedFrom, RT_last = RT_selectedFrom }
	SR relationship types. More...
enum	E_ValueType {   VT_invalid, VT_Text, VT_Code, VT_Num,   VT_DateTime, VT_Date, VT_Time, VT_UIDRef,   VT_PName, VT_SCoord, VT_SCoord3D, VT_TCoord,   VT_Composite, VT_Image, VT_Waveform, VT_Container,   VT_byReference, VT_includedTemplate, VT_last = VT_includedTemplate }
	SR value types. More...
enum	E_PresentationStateType {   PT_invalid, PT_unknown = PT_invalid, PT_Grayscale, PT_Color,   PT_PseudoColor, PT_Blending, PT_XAXRFGrayscale, PT_GrayscalePlanarMPR,   PT_CompositingPlanarMPR, PT_AdvancedBlending, PT_VolumeRendering, PT_SegmentedVolumeRendering,   PT_MultipleVolumeRendering, PT_last = PT_MultipleVolumeRendering }
	Softcopy presentation state types. More...
enum	E_GraphicType {   GT_invalid, GT_unknown = GT_invalid, GT_Point, GT_Multipoint,   GT_Polyline, GT_Circle, GT_Ellipse, GT_last = GT_Ellipse }
	SR graphic types. More...
enum	E_GraphicType3D {   GT3_invalid, GT3_unknown = GT3_invalid, GT3_Point, GT3_Multipoint,   GT3_Polyline, GT3_Polygon, GT3_Ellipse, GT3_Ellipsoid,   GT3_last = GT3_Ellipsoid }
	SR graphic types (3D). More...
enum	E_TemporalRangeType {   TRT_invalid, TRT_unknown = TRT_invalid, TRT_Point, TRT_Multipoint,   TRT_Segment, TRT_Multisegment, TRT_Begin, TRT_End,   TRT_last = TRT_End }
	SR temporal range types. More...
enum	E_ContinuityOfContent { COC_invalid, COC_Separate, COC_Continuous, COC_last = COC_Continuous }
	SR continuity of content flag. More...
enum	E_PreliminaryFlag { PF_invalid, PF_Preliminary, PF_Final, PF_last = PF_Final }
	SR document preliminary flag. More...
enum	E_CompletionFlag { CF_invalid, CF_Partial, CF_Complete, CF_last = CF_Complete }
	SR document completion flag. More...
enum	E_VerificationFlag { VF_invalid, VF_Unverified, VF_Verified, VF_last = VF_Verified }
	SR document verification flag. More...
enum	E_CharacterSet {   CS_invalid, CS_unknown = CS_invalid, CS_ASCII, CS_default = CS_ASCII,   CS_Latin1, CS_Latin2, CS_Latin3, CS_Latin4,   CS_Cyrillic, CS_Arabic, CS_Greek, CS_Hebrew,   CS_Latin5, CS_Thai, CS_Japanese, CS_Korean,   CS_ChineseISO, CS_ChineseGB18030, CS_ChineseGBK, CS_UTF8,   CS_last = CS_UTF8 }
	Specific character set. More...
enum	E_CodeValueType { CVT_auto, CVT_Short, CVT_Long, CVT_URN }
	Code value type. More...
enum	E_AddMode { AM_afterCurrent, AM_beforeCurrent, AM_belowCurrent, AM_belowCurrentBeforeFirstChild }
	Add node mode. More...
Static Protected Member Functions inherited from DSRTypes
static const char *	documentTypeToSOPClassUID (const E_DocumentType documentType)
	convert SR document type to SOP class UID More...
static const char *	documentTypeToModality (const E_DocumentType documentType)
	convert SR document type to modality More...
static const char *	documentTypeToReadableName (const E_DocumentType documentType)
	convert SR document type to readable name. More...
static const char *	documentTypeToDocumentTitle (const E_DocumentType documentType, OFString &documentTitle)
	convert SR document type to document title. More...
static OFBool	requiresEnhancedEquipmentModule (const E_DocumentType documentType)
	check whether SR document type requires Enhanced General Equipment Module More...
static OFBool	requiresTimezoneModule (const E_DocumentType documentType)
	check whether SR document type requires Timezone Module More...
static const char *	relationshipTypeToDefinedTerm (const E_RelationshipType relationshipType)
	convert relationship type to DICOM defined term More...
static const char *	relationshipTypeToReadableName (const E_RelationshipType relationshipType)
	convert relationship type to readable name. More...
static const char *	valueTypeToDefinedTerm (const E_ValueType valueType)
	convert value type to DICOM defined term More...
static const char *	valueTypeToXMLTagName (const E_ValueType valueType)
	convert value type to XML tag name More...
static const char *	valueTypeToReadableName (const E_ValueType valueType)
	convert value type to readable name. More...
static const char *	presentationStateTypeToShortName (const E_PresentationStateType pstateType)
	convert presentation state type to short name. More...
static const char *	graphicTypeToEnumeratedValue (const E_GraphicType graphicType)
	convert graphic type to DICOM enumerated value More...
static const char *	graphicTypeToReadableName (const E_GraphicType graphicType)
	convert graphic type to readable name. More...
static const char *	graphicType3DToEnumeratedValue (const E_GraphicType3D graphicType)
	convert graphic type (3D) to DICOM enumerated value More...
static const char *	graphicType3DToReadableName (const E_GraphicType3D graphicType)
	convert graphic type (3D) to readable name. More...
static const char *	temporalRangeTypeToEnumeratedValue (const E_TemporalRangeType temporalRangeType)
	convert temporal range type to DICOM enumerated value More...
static const char *	temporalRangeTypeToReadableName (const E_TemporalRangeType temporalRangeType)
	convert temporal range type to readable name. More...
static const char *	continuityOfContentToEnumeratedValue (const E_ContinuityOfContent continuityOfContent)
	convert continuity of content flag to DICOM enumerated value More...
static const char *	preliminaryFlagToEnumeratedValue (const E_PreliminaryFlag preliminaryFlag)
	convert preliminary flag to DICOM enumerated value More...
static const char *	completionFlagToEnumeratedValue (const E_CompletionFlag completionFlag)
	convert completion flag to DICOM enumerated value More...
static const char *	verificationFlagToEnumeratedValue (const E_VerificationFlag verificationFlag)
	convert verification flag to DICOM enumerated value More...
static const char *	characterSetToDefinedTerm (const E_CharacterSet characterSet)
	convert character set to DICOM defined term More...
static const char *	characterSetToHTMLName (const E_CharacterSet characterSet)
	convert character set to HTML name. More...
static const char *	characterSetToXMLName (const E_CharacterSet characterSet)
	convert character set to XML name. More...
static E_DocumentType	sopClassUIDToDocumentType (const OFString &sopClassUID)
	convert SOP class UID to SR document type More...
static E_RelationshipType	definedTermToRelationshipType (const OFString &definedTerm)
	convert DICOM defined term to relationship type More...
static E_ValueType	definedTermToValueType (const OFString &definedTerm)
	convert DICOM defined term to value type More...
static E_PresentationStateType	sopClassUIDToPresentationStateType (const OFString &sopClassUID)
	convert SOP class UID to presentation state type More...
static E_ValueType	xmlTagNameToValueType (const OFString &xmlTagName)
	convert XML tag name to value type More...
static E_GraphicType	enumeratedValueToGraphicType (const OFString &enumeratedValue)
	convert DICOM enumerated value to graphic type More...
static E_GraphicType3D	enumeratedValueToGraphicType3D (const OFString &enumeratedValue)
	convert DICOM enumerated value to graphic type (3D) More...
static E_TemporalRangeType	enumeratedValueToTemporalRangeType (const OFString &enumeratedValue)
	convert DICOM enumerated value to temporal range type More...
static E_ContinuityOfContent	enumeratedValueToContinuityOfContent (const OFString &enumeratedValue)
	convert DICOM enumerated value to continuity of content flag More...
static E_PreliminaryFlag	enumeratedValueToPreliminaryFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to preliminary flag More...
static E_CompletionFlag	enumeratedValueToCompletionFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to completion flag More...
static E_VerificationFlag	enumeratedValueToVerificationFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to verification flag More...
static E_CharacterSet	definedTermToCharacterSet (const OFString &definedTerm)
	convert DICOM defined term to character set. More...
static OFBool	isDocumentTypeSupported (const E_DocumentType documentType)
	check whether specified SR document type is supported by this library More...
static const OFString &	currentDate (OFString &dateString)
	get current date in DICOM 'DA' format. More...
static const OFString &	currentTime (OFString &timeString)
	get current time in DICOM 'TM' format. More...
static const OFString &	currentDateTime (OFString &dateTimeString)
	get current date and time in DICOM 'DT' format. More...
static const OFString &	localTimezone (OFString &timezoneString)
	get local timezone in DICOM format. More...
static const OFString &	dicomToReadableDate (const OFString &dicomDate, OFString &readableDate)
	convert DICOM date string to readable format. More...
static const OFString &	dicomToReadableTime (const OFString &dicomTime, OFString &readableTime)
	convert DICOM time string to readable format. More...
static const OFString &	dicomToReadableDateTime (const OFString &dicomDateTime, OFString &readableDateTime)
	convert DICOM date time string to readable format. More...
static const OFString &	dicomToReadablePersonName (const OFString &dicomPersonName, OFString &readablePersonName)
	convert DICOM person name to readable format. More...
static const OFString &	dicomToXMLPersonName (const OFString &dicomPersonName, OFString &xmlPersonName, const OFBool writeEmptyValue=OFFalse)
	convert DICOM person name to XML format. More...
static const char *	numberToString (const size_t number, char *stringValue)
	convert unsigned integer number to character string More...
static size_t	stringToNumber (const char *stringValue)
	convert string to unsigned integer number More...
static const OFString &	convertToPrintString (const OFString &sourceString, OFString &printString)
	convert character string to print string. More...
static const OFString &	convertToHTMLString (const OFString &sourceString, OFString &markupString, const size_t flags=0, const OFBool newlineAllowed=OFFalse)
	convert character string to HTML mnenonic string. More...
static const OFString &	convertToXMLString (const OFString &sourceString, OFString &markupString)
	convert character string to XML mnenonic string. More...
static OFBool	checkForValidReference (const OFString &stringValue)
	check string for valid reference (as used for by-reference relationships). More...
static DSRIODConstraintChecker *	createIODConstraintChecker (const E_DocumentType documentType)
	create specified SR IOD content relationship constraint checker object. More...
static DSRDocumentTreeNode *	createDocumentTreeNode (const E_RelationshipType relationshipType, const E_ValueType valueType)
	create specified document tree node. More...
static OFCondition	addElementToDataset (OFCondition &result, DcmItem &dataset, DcmElement *delem, const OFString &vm, const OFString &type, const char *moduleName=NULL)
	add given element to the dataset. More...
static void	removeAttributeFromSequence (DcmSequenceOfItems &sequence, const DcmTagKey &tagKey)
	remove given attribute from the sequence. More...
static OFCondition	getElementFromDataset (DcmItem &dataset, DcmElement &delem)
	get element from dataset More...
static const char *	getStringValueFromElement (const DcmElement &delem)
	get string value from element More...
static const OFString &	getStringValueFromElement (const DcmElement &delem, OFString &stringValue)
	get string value from element. More...
static OFCondition	getStringValueFromElement (const DcmElement &delem, OFString &stringValue, const signed long pos)
	get string value from element More...
static const OFString &	getPrintStringFromElement (const DcmElement &delem, OFString &stringValue)
	get string value from element and convert to "print" format. More...
static const OFString &	getMarkupStringFromElement (const DcmElement &delem, OFString &stringValue, const OFBool convertNonASCII=OFFalse)
	get string value from element and convert to HTML/XML. More...
static OFCondition	getStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const signed long pos=0)
	get string value from dataset More...
static OFCondition	putStringValueToDataset (DcmItem &dataset, const DcmTag &tag, const OFString &stringValue, const OFBool allowEmpty=OFTrue)
	put string value to dataset More...
static OFBool	checkElementValue (DcmElement *delem, const DcmTagKey &tagKey, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	check element value for correct value multiplicity and type. More...
static OFBool	checkElementValue (DcmElement &delem, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	check element value for correct value multiplicity and type. More...
static OFCondition	getAndCheckElementFromDataset (DcmItem &dataset, DcmElement &delem, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	get element from dataset and check it for correct value multiplicity and type. More...
static OFCondition	getAndCheckStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	get string value from dataset and check it for correct value multiplicity and type. More...
static void	printInvalidContentItemMessage (const char *action, const DSRDocumentTreeNode *node, const char *location=NULL)
	print the warning message that the current content item is invalid/incomplete. More...
static void	printContentItemErrorMessage (const char *action, const OFCondition &result, const DSRDocumentTreeNode *node, const char *location=NULL)
	print an error message for the current content item. More...
static void	printUnknownValueWarningMessage (const char *valueName, const char *readValue=NULL, const char *action="Reading")
	print a warning message that an unknown/unsupported value has been determined More...
static OFBool	writeStringValueToXML (STD_NAMESPACE ostream &stream, const OFString &stringValue, const OFString &tagName, const OFBool writeEmptyValue=OFFalse)
	write string value to XML output stream. More...
static OFBool	writeStringFromElementToXML (STD_NAMESPACE ostream &stream, DcmElement &delem, const OFString &tagName, const OFBool writeEmptyValue=OFFalse)
	write string value from DICOM element to XML output stream. More...
static size_t	createHTMLAnnexEntry (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const OFString &referenceText, size_t &annexNumber, const size_t flags=0)
	create an HTML annex entry with hyperlinks. More...
static size_t	createHTMLFootnote (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &footnoteStream, size_t &footnoteNumber, const size_t nodeID, const size_t flags=0)
	create an HTML footnote with hyperlinks More...
static OFCondition	appendStream (STD_NAMESPACE ostream &mainStream, OFOStringStream &tempStream, const char *heading=NULL)
	append one output stream to another. More...
Protected Attributes inherited from DSRDocumentSubTree
DSRIODConstraintChecker *	ConstraintChecker
	check relationship content constraints of the associated IOD
Protected Attributes inherited from DSRTreeNodeCursor< DSRDocumentTreeNode >
DSRDocumentTreeNode *	NodeCursor
	pointer to current node
OFStack< DSRDocumentTreeNode *>	NodeCursorStack
	stack of node pointers. Used to store the cursor position of upper levels.
DSRPositionCounter	Position
	counter for the current position within the current level and on upper levels
Static Protected Attributes inherited from DSRTypes
static const size_t	RF_readDigitalSignatures
	read digital signatures from dataset
static const size_t	RF_acceptUnknownRelationshipType
	accept unknown/missing relationship type
static const size_t	RF_acceptInvalidContentItemValue
	accept invalid content item value (e.g. violation of VR or VM definition)
static const size_t	RF_ignoreRelationshipConstraints
	ignore relationship constraints for this document class
static const size_t	RF_ignoreContentItemErrors
	do not abort on content item errors (e.g. missing value type specific attributes)
static const size_t	RF_skipInvalidContentItems
	do not abort when detecting an invalid content item, skip invalid sub-tree instead
static const size_t	RF_showCurrentlyProcessedItem
	show the currently processed content item (e.g. "1.2.3")
static const size_t	HF_neverExpandChildrenInline
	external: never expand child nodes inline
static const size_t	HF_alwaysExpandChildrenInline
	external: always expand child nodes inline
static const size_t	HF_renderInlineCodes
	external: render codes even if they appear inline
static const size_t	HF_useCodeDetailsTooltip
	external: render code details as a tooltip (not with HTML 3.2)
static const size_t	HF_renderConceptNameCodes
	external: render concept name codes (default: code meaning only)
static const size_t	HF_renderNumericUnitCodes
	external: render the code of the numeric measurement unit
static const size_t	HF_useCodeMeaningAsUnit
	external: use code meaning for the numeric measurement unit (default: code value)
static const size_t	HF_renderPatientTitle
	external: use patient information as document title (default: document type)
static const size_t	HF_renderNoDocumentHeader
	external: render no general document information (header)
static const size_t	HF_renderDcmtkFootnote
	external: render dcmtk/dcmsr comment at the end of the document
static const size_t	HF_renderFullData
	external: render the full data of all content items
static const size_t	HF_renderSectionTitlesInline
	external: render section titles inline (default: separate paragraph)
static const size_t	HF_copyStyleSheetContent
	external: copy Cascading Style Sheet (CSS) content to HTML file
static const size_t	HF_HTML32Compatibility
	external: output compatible to HTML version 3.2 (default: 4.01)
static const size_t	HF_XHTML11Compatibility
	external: output compatible to XHTML version 1.1 (default: HTML 4.01)
static const size_t	HF_addDocumentTypeReference
	external: add explicit reference to HTML document type (DTD)
static const size_t	HF_omitGeneratorMetaElement
	external: omit generator meta element referring to the DCMTK
static const size_t	HF_renderItemsSeparately
	internal: render items separately (for container with SEPARATE flag)
static const size_t	HF_renderItemInline
	internal: expand items inline when they are short and have no child nodes
static const size_t	HF_currentlyInsideAnnex
	internal: content item is rendered fully inside the annex
static const size_t	HF_createFootnoteReferences
	internal: create footnote references
static const size_t	HF_convertNonASCIICharacters
	internal: convert non-ASCII characters (> #127) to &#nnn;
static const size_t	HF_renderAllCodes
	shortcut: render all codes
static const size_t	HF_internalUseOnly
	shortcut: filter all flags that are only used internally
static const size_t	XF_writeEmptyTags
	write: write all tags even if their value is empty
static const size_t	XF_writeTemplateIdentification
	write: write template identification information (TID and mapping resource)
static const size_t	XF_alwaysWriteItemIdentifier
	write: always write item identifier "id", not only when item is referenced
static const size_t	XF_codeComponentsAsAttribute
	write: encode code value, coding scheme designator and coding scheme version as attribute instead of element text
static const size_t	XF_relationshipTypeAsAttribute
	write: encode relationship type as attribute instead of element text
static const size_t	XF_valueTypeAsAttribute
	write: encode value type as attribute instead of element text
static const size_t	XF_templateIdentifierAsAttribute
	write: encode template identifier as attribute instead of element text
static const size_t	XF_useDcmsrNamespace
	write: add DCMSR namespace declaration to the XML output
static const size_t	XF_addSchemaReference
	write: add Schema reference to XML document
static const size_t	XF_validateSchema
	read: validate content of XML document against Schema
static const size_t	XF_templateElementEnclosesItems
	read/write: template identification element encloses content items
static const size_t	XF_addCommentsForIncludedTemplate
	write: add comments with details at beginning/end of included template (might be useful for debugging purposes)
static const size_t	XF_acceptEmptyStudySeriesInstanceUID
	read: accept empty Study/Series/SOP Instance UID attribute values (must be filled later)
static const size_t	XF_encodeEverythingAsAttribute
	shortcut: combines all XF_xxxAsAttribute write flags (see above)
static const size_t	PF_printItemPosition
	print item position ("1.2.3") instead of line indentation
static const size_t	PF_shortenLongItemValues
	shorten long item value (e.g. long texts)
static const size_t	PF_printSOPInstanceUID
	print SOP instance UID of referenced objects
static const size_t	PF_printConceptNameCodes
	print coding scheme designator/version and code value of concept names
static const size_t	PF_printNoDocumentHeader
	print no general document information (header)
static const size_t	PF_printTemplateIdentification
	print template identification (TID and mapping resource)
static const size_t	PF_useANSIEscapeCodes
	use ANSI escape codes for output
static const size_t	PF_printLongSOPClassName
	print long SOP class name of referenced objects (default: short name for images)
static const size_t	PF_printSOPClassUID
	print SOP class UID of referenced objects (instead of the name)
static const size_t	PF_printInvalidCodes
	print code triple for invalid codes (instead of the text "invalid code")
static const size_t	PF_printNodeID
	print node ID at the beginning of each line (might be useful for debugging purposes)
static const size_t	PF_indicateEnhancedEncodingMode
	indicate with a "*" that the "enhanced encoding mode" is used for codes
static const size_t	PF_printAnnotation
	print annotation of a content item (optional, e.g. user-defined information)
static const size_t	PF_hideIncludedTemplateNodes
	do not print internal "included template" nodes (position counter is still increased)
static const size_t	PF_dontCountIncludedTemplateNodes
	do not count internal "included template" nodes (only with PF_hideIncludedTemplateNodes)
static const size_t	PF_printAllCodes
	shortcut: print all codes (combines all PF_printXxxCodes flags, see above)
static const size_t	CM_updatePositionString
	update the position string using the node ID
static const size_t	CM_updateNodeID
	update the node ID using the position string
static const size_t	CM_resetReferenceTargetFlag
	reset the reference target flag for all nodes
static const size_t	CB_maskPrintFlags
	bit mask (filter) for valid print flags (see PF_xxx)
static const size_t	CB_maskReadFlags
	bit mask (filter) for valid read flags (see RF_xxx)

Detailed Description

Implementation of DCMR Template: TID 1500 - Measurement Report (and included templates 1204, 1001, 1600, 1411).

All added content items are annotated with a text in the format "TID 1500 - Row [n]".

Note

Please note that currently only the mandatory (and some optional/conditional) content items and included templates are supported.

Constructor & Destructor Documentation

TID1500_MeasurementReport()

TID1500_MeasurementReport::TID1500_MeasurementReport

(

const CID7021_MeasurementReportDocumentTitles &

title = CID7021_MeasurementReportDocumentTitles()

)

(default) constructor.

Also creates an initial, almost empty measurement report by calling createNewMeasurementReport(), but only if a non-empty 'title' is passed.

Parameters

title

optional document title to be set (from CID 7021 - Measurement Report Document Titles), i.e. the concept name of the root node

Member Function Documentation

addProcedureReported()

OFCondition TID1500_MeasurementReport::addProcedureReported	(	const CID100_QuantitativeDiagnosticImagingProcedures &	procedure,
		const OFBool	check = OFTrue
	)

add the imaging procedure whose results are reported (TID 1500 - Row 4).

There should be at least a single instance of the associated content item.

Parameters

procedure	coded entry that describes the imaging procedure to be added (from CID 100 - Quantitative Diagnostic Imaging Procedures)
check	if enabled, check value for validity before setting it

Returns

status, EC_Normal if successful, an error code otherwise

addQualitativeEvaluation() [1/2]

OFCondition TID1500_MeasurementReport::addQualitativeEvaluation	(	const DSRCodedEntryValue &	conceptName,
		const DSRCodedEntryValue &	codeValue,
		const OFBool	check = OFTrue
	)

add a qualitative evaluation related to the entire subject of the report as a coded entry (TID 1500 - Row 13).

The higher-level CONTAINER (Row 12) is created automatically (if none is present).

Parameters

conceptName	coded entry to be set as the concept name
codeValue	coded entry to be set as the value of the new content item
check	if enabled, check values for validity before setting them

Returns

status, EC_Normal if successful, an error code otherwise

addQualitativeEvaluation() [2/2]

OFCondition TID1500_MeasurementReport::addQualitativeEvaluation	(	const DSRCodedEntryValue &	conceptName,
		const OFString &	stringValue,
		const OFBool	check = OFTrue
	)

add a qualitative evaluation related to the entire subject of the report in text form (TID 1500 - Row 14).

The higher-level CONTAINER (Row 12) is created automatically (if none is present).

Parameters

conceptName	coded entry to be set as the concept name
stringValue	character string to be set as the value of the content item
check	if enabled, check values for validity before setting them

Returns

status, EC_Normal if successful, an error code otherwise

addVolumetricROIMeasurements()

OFCondition TID1500_MeasurementReport::addVolumetricROIMeasurements

(

)

create another instance of TID 1411 (Volumetric ROI Measurements) and add it as an included template to this report (TID 1500 - Row 8).

A first instance of TID 1411 is created and added by calling createNewMeasurementReport(). Access to the current instance is available through getVolumetricROIMeasurements().

Returns

status, EC_Normal if successful, an error code otherwise

clear()

virtual void TID1500_MeasurementReport::clear ( )

virtual

clear internal member variables.

Also see notes on the clear() method of the base class.

Reimplemented from DSRRootTemplate.

createMeasurementReport()

OFCondition TID1500_MeasurementReport::createMeasurementReport ( const CID7021_MeasurementReportDocumentTitles &  title )

protected

create the mandatory (and other supported) content items of this template, i.e. TID 1500 - Row 1 to 6 and 8.

It is expected that the tree is currently empty.

Parameters

title

coded entry that specifies the document title to be set

Returns

status, EC_Normal if successful, an error code otherwise

createNewMeasurementReport()

OFCondition TID1500_MeasurementReport::createNewMeasurementReport

(

const CID7021_MeasurementReportDocumentTitles &

title

)

create a new measurement report.

Clear the report and create the mandatory (and other supported) content items of this template, i.e. TID 1500 - Row 1 to 6 and 8.

Parameters

title

document title to be set (from CID 7021 - Measurement Report Document Titles), i.e. the concept name of the root node

Returns

status, EC_Normal if successful, an error code otherwise

createQualitativeEvaluations()

OFCondition TID1500_MeasurementReport::createQualitativeEvaluations ( )

protected

create the 'Qualitative Evaluations' content item (TID 1500 - Row 12) if not existing yet

Returns

status, EC_Normal if successful, an error code otherwise

getDocumentTitle()

OFCondition TID1500_MeasurementReport::getDocumentTitle

(

DSRCodedEntryValue &

titleCode

)

get document title of this report, i.e. the concept name of the root node

Parameters

titleCode

coded entry that specifies the document title of this report

Returns

status, EC_Normal if successful, an error code otherwise

getImageLibrary()

TID1600_ImageLibrary& TID1500_MeasurementReport::getImageLibrary ( ) const

inline

get image library of this report as defined by TID 1600 (Image Library).

This included template is mandatory, i.e. should not be empty.

Returns

reference to internally managed SR template

getLanguage()

TID1204_LanguageOfContentItemAndDescendants& TID1500_MeasurementReport::getLanguage ( ) const

inline

get language of this report as defined by TID 1204 (Language of Content Item and Descendants).

This included template is mandatory, i.e. should not be empty.

Returns

reference to internally managed SR template

getObservationContext()

TID1001_ObservationContext& TID1500_MeasurementReport::getObservationContext ( ) const

inline

get observation context of this report as defined by TID 1001 (Observation Context).

This included template is mandatory, i.e. should not be empty.

Returns

reference to internally managed SR template

getVolumetricROIMeasurements()

TID1411_Measurements& TID1500_MeasurementReport::getVolumetricROIMeasurements ( ) const

inline

get volumetric ROI measurements of this report as defined by TID 1411 (Volumetric ROI Measurements), i.e. the current instance of TID 1500 - Row 8.

This included template is optional, i.e. might be empty (but not absent). Further instances can be added by calling addVolumetricROIMeasurements().

Returns

reference to internally managed SR template (current instance)

hasImagingMeasurements()

OFBool TID1500_MeasurementReport::hasImagingMeasurements

(

const OFBool

checkChildren = OFFalse

)

const

check whether there is an 'Imaging Measurements' content item (TID 1500 - Row 6) in this measurement report.

Initially, this conditional content item is created by the constructor of this class. After clear() has been called or no document title is passed to the constructor, it can be created again by calling createNewMeasurementReport().

Parameters

checkChildren

optional flag indicating whether to also check for any children, i.e. whether the respective content item has child nodes. By default, the presence of the higher-level CONTAINER is checked only.

Returns

OFTrue if imaging measurements are present, OFFalse otherwise

hasProcedureReported()

OFBool TID1500_MeasurementReport::hasProcedureReported

(

)

const

check whether there are any 'Procedure reported' content items (TID 1500 - Row 4) in this measurement report.

This content item is mandatory, i.e. one or more instances of the associated content item should be present.

Returns

OFTrue if at least one procedure reported is present, OFFalse otherwise

hasQualitativeEvaluations()

OFBool TID1500_MeasurementReport::hasQualitativeEvaluations

(

const OFBool

checkChildren = OFFalse

)

const

check whether there is an 'Qualitative Evaluations' content item (TID 1500 - Row 12) in this measurement report

Parameters

checkChildren

optional flag indicating whether to also check for any children, i.e. whether the respective content item has child nodes. By default, the presence of the higher-level CONTAINER is checked only.

Returns

OFTrue if qualitative evaluations are present, OFFalse otherwise

hasVolumetricROIMeasurements()

OFBool TID1500_MeasurementReport::hasVolumetricROIMeasurements

(

const OFBool

checkChildren = OFFalse

)

const

check whether there is an included 'Volumetric ROI Measurements' template (TID 1500 - Row 8) in this measurement report.

Initially, this optional sub-template is created and included by the constructor of this class. After clear() has been called or no document title is passed to the constructor, it can be created again by calling createNewMeasurementReport().

Parameters

checkChildren

optional flag indicating whether to also check for any children, i.e. whether the respective sub-template has any content (child nodes). By default, the presence of the "included template" content item is checked only.

Returns

OFTrue if volumetric ROI measurements are present, OFFalse otherwise

isValid()

virtual OFBool TID1500_MeasurementReport::isValid ( ) const

virtual

check whether the current internal state is valid.

That means, check whether the base class is valid, the mandatory included templates TID 1204, 1001 and 1600 are valid, and whether hasProcedureReported() as well as hasImagingMeasurements() or hasQualitativeEvaluations() return true.

Returns

OFTrue if valid, OFFalse otherwise

Reimplemented from DSRRootTemplate.

setLanguage()

OFCondition TID1500_MeasurementReport::setLanguage	(	const CID5000_Languages &	language,
		const CID5001_Countries &	country = CID5001_Countries(),
		const OFBool	check = OFTrue
	)

set language of this report as defined by TID 1204 (Language of Content Item and Descendants)

Parameters

language	language of the report, being a language that is primarily used for human communication (from CID 5000 - Languages)
country	coded entry that describes the country-specific variant of 'language' (optional, from CID 5001 - Countries)
check	if enabled, check values for validity before setting them

Returns

status, EC_Normal if successful, an error code otherwise

---

The documentation for this class was generated from the following file:

• dcmsr/include/dcmtk/dcmsr/cmr/tid1500.h
