Implementation of DCMR Template: TID 1411 - Volumetric ROI Measurements (and included templates 1502 and 1419). More...

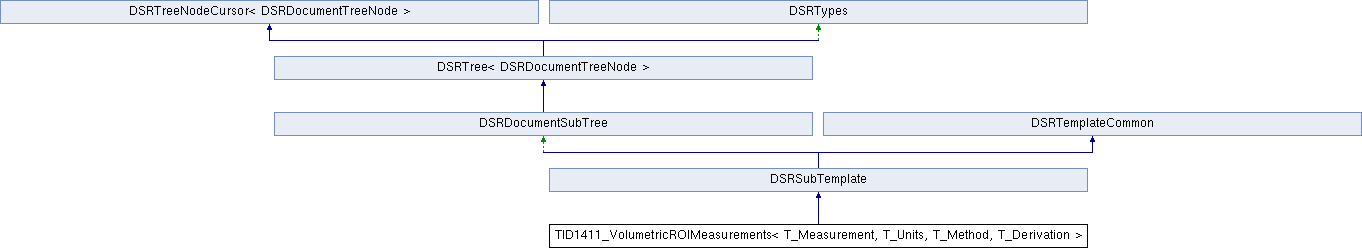

Inheritance diagram for TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >:
Public Member Functions | |
| TID1411_VolumetricROIMeasurements (const OFBool createGroup=OFFalse) | |
| (default) constructor More... | |
| OFBool | isValid () const |
| check whether the current internal state is valid. More... | |
| OFBool | hasMeasurementGroup (const OFBool checkChildren=OFFalse) const |
| check whether the 'Measurement Group' content item (TID 1411 - Row 1) is present. More... | |
| OFBool | hasTrackingIdentifier () const |
| check whether the 'Tracking Identifier' content item (TID 1411 - Row 2) is present. More... | |
| OFBool | hasTrackingUniqueIdentifier () const |
| check whether the 'Tracking Unique Identifier' content item (TID 1411 - Row 3) is present. More... | |
| OFBool | hasReferencedSegment () const |
| check whether the 'Referenced Segment' content item (TID 1411 - Row 7) is present. More... | |
| OFBool | hasSourceSeriesForSegmentation () const |
| check whether the 'Source Series for Segmentation' content item (TID 1411 - Row 12) is present. More... | |
| OFBool | hasROIMeasurements () const |
| check whether there is an included 'ROI Measurements' template (TID 1411 - Row 15) in this measurement template. More... | |
| OFCondition | setActivitySession (const OFString &session, const OFBool check=OFTrue) |
| set the value of the 'Activity Session' content item (TID 1411 - Row 1b). More... | |
| OFCondition | setTrackingIdentifier (const OFString &trackingID, const OFBool check=OFTrue) |
| set the value of the 'Tracking Identifier' content item (TID 1411 - Row 2). More... | |
| OFCondition | setTrackingUniqueIdentifier (const OFString &trackingUID, const OFBool check=OFTrue) |
| set the value of the 'Tracking Unique Identifier' content item (TID 1411 - Row 3). More... | |
| OFCondition | setFinding (const DSRCodedEntryValue &finding, const OFBool check=OFTrue) |
| set the value of the 'Finding' content item (TID 1411 - Row 3b). More... | |
| OFCondition | setTimePoint (const OFString &timePoint, const OFBool check=OFTrue) |
| set the value of the 'Time Point' content item (TID 1502 - Row 3). More... | |
| OFCondition | setReferencedSegment (const DSRImageReferenceValue &segment, const OFBool check=OFTrue) |
| set the value of the 'Referenced Segment' content item (TID 1411 - Row 7). More... | |
| OFCondition | setReferencedSegment (DcmItem &dataset, const Uint16 segmentNumber, const OFBool copyTracking=OFTrue, const OFBool check=OFTrue) |
| set the value of the 'Referenced Segment' content item (TID 1411 - Row 7). More... | |
| OFCondition | setSourceSeriesForSegmentation (const OFString &seriesUID, const OFBool check=OFTrue) |
| set the value of the 'Source series for segmentation' content item (TID 1411 - Row 12). More... | |
| OFCondition | setRealWorldValueMap (const DSRCompositeReferenceValue &valueMap, const OFBool check=OFTrue) |
| set the value of the 'Real World Value Map used for measurement' content item (TID 1411 - Row 14). More... | |
| OFCondition | setRealWorldValueMap (DcmItem &dataset, const OFBool check=OFTrue) |
| set the value of the 'Real World Value Map used for measurement' content item (TID 1411 - Row 14). More... | |
| OFCondition | setMeasurementMethod (const T_Method &method, const OFBool check=OFTrue) |
| set the value of the 'Measurement Method' content item (TID 1419 - Row 1). More... | |
| OFCondition | setFindingSite (const DSRCodedEntryValue &site, const OFBool check=OFTrue) |
| set the value of the 'Finding Site' content item (TID 1419 - Row 2). More... | |
| OFCondition | addMeasurement (const T_Measurement &conceptName, const MeasurementValue &numericValue, const T_Method &method=T_Method(), const T_Derivation &derivation=T_Derivation(), const OFBool check=OFTrue) |
| add a measurement as defined in 'ROI Measurements' (TID 1419 - Row 5, 7 and 8). More... | |
| Public Member Functions inherited from DSRSubTemplate | |
| DSRSubTemplate (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") | |
| constructor More... | |
| DSRSubTemplate (const DSRSubTemplate &subTemplate) | |
| copy constructor. More... | |
| virtual | ~DSRSubTemplate () |
| destructor | |
| virtual DSRSubTemplate * | clone () const |
| clone this template. More... | |
| virtual DSRDocumentSubTree * | cloneTree () const |
| clone the internally stored subtree of this template. More... | |
| virtual void | clear () |
| clear internal member variables. More... | |
| OFBool | isRootTemplate () const |
| check whether this template is a root template, i.e. describes a complete SR document tree starting from the root node More... | |
| virtual const DSRDocumentSubTree & | getTree () |
| get read-only access to internally stored subtree. More... | |
| virtual OFCondition | insertTemplate (const DSRSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) |
| insert tree from given template to internally stored subtree. More... | |
| Public Member Functions inherited from DSRTemplateCommon | |
| virtual OFBool | hasTemplateIdentification () const |
| check whether template identification is set More... | |
| virtual OFBool | isTemplateIdentificationValid (const OFBool check=OFTrue) const |
| check whether template identification is valid More... | |
| virtual OFBool | isExtensible () const |
| check whether template is extensible More... | |
| virtual OFBool | compareTemplateIdentication (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
| compare template identification with given values More... | |
| const OFString & | getTemplateIdentifier () const |
| get template identifier More... | |
| const OFString & | getMappingResource () const |
| get mapping resource More... | |
| const OFString & | getMappingResourceUID () const |
| get optional mapping resource UID More... | |
| virtual void | setExtensible (const OFBool mode=OFTrue) |
| change mode specifying whether the template is extensible or non-extensible More... | |
Protected Member Functions | |
| OFCondition | createMeasurementGroup () |
| create the mandatory root content item of this template, i.e. TID 1411 - Row 1. More... | |
| OFCondition | addOrReplaceContentItem (const size_t nodePos, const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFString &annotationText, const OFBool check) |
| add a new or replace an existing content item with a given node ID. More... | |
| Protected Member Functions inherited from DSRSubTemplate | |
| virtual void | updateTreeForOutput () |
| update the tree for subsequent output, e.g. for being printed or added to an SR document. More... | |
| Protected Member Functions inherited from DSRDocumentSubTree | |
| DSRDocumentSubTree (DSRDocumentTreeNode *rootNode) | |
| special constructor that receives a pointer to the root node. More... | |
| DSRDocumentSubTree (const DSRDocumentTreeNodeCursor &startCursor, size_t stopAfterNodeID) | |
| special copy constructor that clones a particular subtree only More... | |
| void | swap (DSRDocumentSubTree &tree) |
| fast, non-throwing swap function. More... | |
| virtual DSRDocumentTreeNode * | getNode () const |
| get pointer to current node. More... | |
| virtual size_t | addNode (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent) |
| add new node to the current one. More... | |
| virtual size_t | replaceNode (DSRDocumentTreeNode *node) |
| replace current node by the given one. More... | |
| virtual DSRDocumentTreeNode * | extractNode () |
| extract current node from tree. More... | |
| virtual DSRDocumentTreeNode * | getAndRemoveRootNode () |
| get pointer to root node and "forget" the internal reference to this node. More... | |
| virtual size_t | removeNode () |
| remove current node from tree. More... | |
| virtual OFCondition | includeTemplate (const DSRSharedSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) |
| include specified sub-template, i.e. add a new DSRIncludedTemplateTreeNode, which references this template, to the current content item. More... | |
| virtual OFCondition | expandIncludedTemplates (DSRDocumentSubTree *tree) const |
| expand all "included template" content items in a given (sub)tree. More... | |
| template<typename T_Cursor > | |
| OFCondition | checkByReferenceRelationships (const size_t mode=0, const size_t flags=0) |
| check the by-reference relationships (if any) for validity. More... | |
| virtual void | resetReferenceTargetFlag () |
| reset flag for all content items whether they are target of a by-reference relationship. More... | |
| virtual OFCondition | checkSubTreeConstraints (const DSRDocumentSubTree *tree, const DSRIODConstraintChecker *checker) const |
| check whether the given subtree complies with the constraints of the given checker More... | |
| DSRDocumentSubTree () | |
| default constructor | |
| DSRDocumentSubTree (const DSRDocumentSubTree &tree) | |
| copy constructor. More... | |
| virtual | ~DSRDocumentSubTree () |
| destructor | |
| DSRDocumentSubTree & | operator= (DSRDocumentSubTree tree) |
| assignment operator. More... | |
| virtual OFBool | isCursorValid () const |
| check whether the internal cursor, which points to the current content item, is valid More... | |
| virtual OFBool | isValidDocumentTree (const E_RelationshipType defaultRelType=RT_unknown) const |
| check whether this subtree is a valid document tree. More... | |
| virtual OFBool | isExpandedDocumentTree () const |
| check whether this subtree is an expanded document tree. More... | |
| virtual OFBool | hasTemplateIdentification () const |
| check whether template identification is set More... | |
| virtual OFBool | canUseTemplateIdentification () const |
| check whether template identification is possible at all. More... | |
| virtual OFCondition | print (STD_NAMESPACE ostream &stream, const size_t flags=0, const DSRPositionCounter *posCounter=NULL) |
| print current SR document tree to specified output stream More... | |
| virtual OFCondition | writeXML (STD_NAMESPACE ostream &stream, const size_t flags=0) |
| write current SR document tree in XML format More... | |
| virtual DSRContentItem & | getCurrentContentItem () |
| get reference to current content item. More... | |
| virtual const DSRDocumentTreeNode * | getCurrentNode () const |
| get read-only access to current node (content item) More... | |
| virtual OFBool | getCursorToRootNode (DSRDocumentTreeNodeCursor &cursor) const |
| get a cursor to the root node of this document tree. More... | |
| virtual OFBool | getCursorToRootNode (DSRIncludedTemplateNodeCursor &cursor) const |
| get a cursor to the root node of this document tree. More... | |
| size_t | countNodes (const OFBool searchIntoSubTemplates=OFFalse, const OFBool countIncludedTemplateNodes=OFTrue) const |
| count number of content items (nodes) in the document tree. More... | |
| virtual size_t | gotoNamedNode (const DSRCodedEntryValue &conceptName, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to a named node. More... | |
| virtual size_t | gotoNamedChildNode (const DSRCodedEntryValue &conceptName) |
| set internal cursor to a named node (starting from the first child of the current node and searching on this level only). More... | |
| virtual size_t | gotoNamedNodeInSubTree (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to a named node in the subtree below the current node. More... | |
| virtual size_t | gotoNextNamedNode (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to the next named node. More... | |
| virtual size_t | gotoAnnotatedNode (const OFString &annotationText, const OFBool startFromRoot=OFTrue) |
| set internal cursor to an annotated node. More... | |
| virtual size_t | gotoNextAnnotatedNode (const OFString &annotationText) |
| set internal cursor to the next annotated node. More... | |
| virtual OFBool | canAddContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) const |
| check whether specified content item can be added to the current one. More... | |
| virtual OFBool | canAddByReferenceRelationship (const E_RelationshipType relationshipType, const E_ValueType targetValueType) const |
| check whether specified by-reference relationship can be added to the current content item. More... | |
| virtual size_t | addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) |
| add specified content item to the current one. More... | |
| virtual OFCondition | addContentItem (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent, const OFBool deleteIfFail=OFFalse) |
| add specified content item to the current one. More... | |
| virtual OFCondition | addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue) |
| add specified content item after the current one. More... | |
| virtual OFCondition | addChildContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue) |
| add specified content item below the current one. More... | |
| virtual size_t | addByReferenceRelationship (const E_RelationshipType relationshipType, const size_t referencedNodeID) |
| add specified by-reference relationship to the current content item. More... | |
| virtual OFCondition | updateByReferenceRelationships (const OFBool updateIncludedTemplates=OFFalse) |
| update the position strings used to encode by-reference relationships (if any). More... | |
| virtual OFBool | canInsertSubTree (const DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) const |
| check whether specified subtree can be inserted at the current position, i.e. added to the current content item. More... | |
| virtual OFCondition | insertSubTree (DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown, const OFBool deleteIfFail=OFFalse) |
| insert specified subtree to this tree, i.e. add it to the current content item. More... | |
| virtual DSRDocumentSubTree * | extractSubTree () |
| extract a subtree i.e. a fragment from this tree. More... | |
| virtual size_t | removeCurrentContentItem () |
| remove current content item from tree. More... | |
| virtual OFCondition | removeSubTree (const size_t searchID=0) |
| remove a subtree from this tree. More... | |
| virtual DSRDocumentTreeNode * | cloneCurrentTreeNode () const |
| clone the current tree node. More... | |
| virtual DSRDocumentSubTree * | cloneSubTree (const size_t stopAfterNodeID=0) const |
| clone a subtree i.e. a fragment of this tree. More... | |
| virtual OFCondition | createExpandedSubTree (DSRDocumentSubTree *&tree) const |
| created an expanded version of this (sub)tree. More... | |
| virtual OFBool | compareTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
| compare template identification of the root node with given values. More... | |
| virtual OFCondition | getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource) const |
| get template identifier and mapping resource from the root node of this tree. More... | |
| virtual OFCondition | getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource, OFString &mappingResourceUID) const |
| get template identifier, mapping resource and optional mapping resource UID from the root node of this tree. More... | |
| virtual OFCondition | setTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="", const OFBool check=OFTrue) |
| set template identifier and mapping resource to the root node of this tree. More... | |
| Protected Member Functions inherited from DSRTree< DSRDocumentTreeNode > | |
| DSRTree (DSRDocumentTreeNode *rootNode) | |
| special constructor that receives a pointer to the root node. More... | |
| DSRTree (const DSRTreeNodeCursor< DSRDocumentTreeNode > &startCursor, size_t stopAfterNodeID) | |
| special copy constructor that clones a particular subtree only More... | |
| void | swap (DSRTree< DSRDocumentTreeNode > &tree) |
| fast, non-throwing swap function. More... | |
| virtual DSRDocumentTreeNode * | getRoot () const |
| get pointer to root node More... | |
| virtual void | deleteTreeFromRootNode (DSRDocumentTreeNode *rootNode) |
| delete a tree given by its root node. More... | |
| DSRTree () | |
| default constructor | |
| DSRTree (const DSRTree< DSRDocumentTreeNode > &tree) | |
| copy constructor. More... | |
| virtual | ~DSRTree () |
| destructor | |
| DSRTree & | operator= (DSRTree< DSRDocumentTreeNode > tree) |
| assignment operator. More... | |
| void | clearAnnotations () |
| clear annotations of all tree nodes | |
| OFBool | isEmpty () const |
| check whether tree has any nodes More... | |
| size_t | countNodes () const |
| count number of nodes in the tree. More... | |
| size_t | getNextNodeID () const |
| get ID of the next node to be created. More... | |
| size_t | gotoRoot () |
| set internal cursor to root node More... | |
| size_t | gotoNode (const size_t searchID, const OFBool startFromRoot=OFTrue) |
| set internal cursor to specified node More... | |
| size_t | gotoNode (const OFString &reference, const OFBool startFromRoot=OFTrue) |
| set internal cursor to specified node More... | |
| size_t | gotoNode (const DSRTreeNodeAnnotation &annotation, const OFBool startFromRoot=OFTrue) |
| set cursor to specified node. More... | |
| Protected Member Functions inherited from DSRTreeNodeCursor< DSRDocumentTreeNode > | |
| void | clearNodeCursorStack () |
| clear the internal node cursor stack | |
| const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > & | getCursor () const |
| get cursor More... | |
| void | setCursor (const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &cursor) |
| set cursor to specified object More... | |
| size_t | setCursor (DSRDocumentTreeNode *node) |
| set cursor to specified node. More... | |
| DSRDocumentTreeNode * | getChild () const |
| get pointer to first child node More... | |
| DSRTreeNodeCursor () | |
| default constructor | |
| DSRTreeNodeCursor (const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &cursor) | |
| copy constructor More... | |
| DSRTreeNodeCursor (DSRDocumentTreeNode *node, const DSRPositionCounter *position=NULL) | |
| constructor. More... | |
| virtual | ~DSRTreeNodeCursor () |
| destructor | |
| DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > & | operator= (const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &cursor) |
| assignment operator More... | |
| DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > & | operator= (DSRDocumentTreeNode *node) |
| assignment operator. More... | |
| size_t | countChildNodes (const OFBool searchIntoSub=OFTrue) const |
| count number of children of the current node. More... | |
| OFBool | hasParentNode () const |
| check whether the current node has a parent More... | |
| OFBool | hasChildNodes () const |
| check whether the current node has any children More... | |
| OFBool | hasPreviousNode () const |
| check whether the current node has a preceding sibling More... | |
| OFBool | hasNextNode () const |
| check whether the current node has a following sibling More... | |
| OFBool | hasSiblingNodes () const |
| check whether the current node has any siblings More... | |
| virtual const DSRDocumentTreeNode * | getParentNode () const |
| get pointer to parent node. More... | |
| virtual const DSRDocumentTreeNode * | getChildNode () const |
| get pointer to first child node. More... | |
| virtual const DSRDocumentTreeNode * | getPreviousNode () const |
| get pointer to previous node. More... | |
| virtual const DSRDocumentTreeNode * | getNextNode () const |
| get pointer to next node. More... | |
| size_t | gotoFirst () |
| goto first node on the same level (first sibling). More... | |
| size_t | gotoLast () |
| goto last node on the same level (last sibling). More... | |
| size_t | gotoPrevious () |
| goto previous node on the same level (preceding sibling) More... | |
| size_t | gotoNext () |
| goto next node on the same level (following sibling) More... | |
| size_t | goUp () |
| goto parent node (one level up) More... | |
| size_t | goDown () |
| goto first child node (one level down) More... | |
| size_t | gotoParent () |
| goto parent node (one level up) More... | |
| size_t | gotoChild () |
| goto first child node (one level down) More... | |
| size_t | iterate (const OFBool searchIntoSub=OFTrue) |
| iterate over all nodes. More... | |
| size_t | gotoNode (const size_t searchID) |
| set cursor to specified node. More... | |
| size_t | gotoNode (const OFString &position, const char separator='.') |
| set cursor to specified node. More... | |
| size_t | gotoNode (const DSRTreeNodeAnnotation &annotation) |
| set cursor to specified node. More... | |
| size_t | getNodeID () const |
| get current node ID. More... | |
| size_t | getLevel () const |
| get current level. More... | |
| DSRPositionCounter & | getPositionCounter () |
| get reference to internal position counter. More... | |
| const OFString & | getPosition (OFString &position, const char separator='.') const |
| get position string of the current node. More... | |
| Protected Member Functions inherited from DSRTypes | |
| virtual | ~DSRTypes () |
| destructor. More... | |
| Protected Member Functions inherited from DSRTemplateCommon | |
| DSRTemplateCommon (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") | |
| constructor More... | |
| virtual | ~DSRTemplateCommon () |
| destructor | |
| void | clearEntriesInNodeList () |
| clear all entries in the list of node IDs, i.e. set them to their initial value, which is 0 | |
| void | reserveEntriesInNodeList (const size_t count, const OFBool initialize=OFFalse) |
| reserve a certain number of entries in the list of node IDs. More... | |
| void | storeEntryInNodeList (const size_t pos, const size_t nodeID) |
| store given entry at a certain position in the list of node IDs More... | |
| size_t | getEntryFromNodeList (const size_t pos) const |
| get a particular entry from the list of node IDs More... | |
| size_t | gotoEntryFromNodeList (DSRDocumentTreeNodeCursor &cursor, const size_t pos) const |
| set given cursor to a specific node More... | |
| size_t | gotoEntryFromNodeList (DSRDocumentSubTree *tree, const size_t pos) |
| set internal cursor of a given document tree to a specific node More... | |
| size_t | gotoLastEntryFromNodeList (DSRDocumentSubTree *tree, const size_t lastPos, const size_t firstPos=0) |
| set internal cursor of a given document tree to a particular node. More... | |
| virtual OFBool | hasTemplateIdentification () const |
| check whether template identification is set More... | |
| virtual OFBool | isTemplateIdentificationValid (const OFBool check=OFTrue) const |
| check whether template identification is valid More... | |
| virtual OFBool | isExtensible () const |
| check whether template is extensible More... | |
| virtual OFBool | compareTemplateIdentication (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
| compare template identification with given values More... | |
| const OFString & | getTemplateIdentifier () const |
| get template identifier More... | |
| const OFString & | getMappingResource () const |
| get mapping resource More... | |
| const OFString & | getMappingResourceUID () const |
| get optional mapping resource UID More... | |
| virtual void | setExtensible (const OFBool mode=OFTrue) |
| change mode specifying whether the template is extensible or non-extensible More... | |
Additional Inherited Members | |
| Protected Types inherited from DSRTypes | |
| enum | E_DocumentType { DT_invalid, DT_unknown = DT_invalid, DT_BasicTextSR, DT_EnhancedSR, DT_ComprehensiveSR, DT_KeyObjectSelectionDocument, DT_MammographyCadSR, DT_ChestCadSR, DT_ColonCadSR, DT_ProcedureLog, DT_XRayRadiationDoseSR, DT_SpectaclePrescriptionReport, DT_MacularGridThicknessAndVolumeReport, DT_ImplantationPlanSRDocument, DT_Comprehensive3DSR, DT_RadiopharmaceuticalRadiationDoseSR, DT_ExtensibleSR, DT_AcquisitionContextSR, DT_SimplifiedAdultEchoSR, DT_PatientRadiationDoseSR, DT_last = DT_PatientRadiationDoseSR } |
| SR document types. More... | |
| enum | E_RelationshipType { RT_invalid, RT_unknown, RT_isRoot, RT_contains, RT_hasObsContext, RT_hasAcqContext, RT_hasConceptMod, RT_hasProperties, RT_inferredFrom, RT_selectedFrom, RT_last = RT_selectedFrom } |
| SR relationship types. More... | |
| enum | E_ValueType { VT_invalid, VT_Text, VT_Code, VT_Num, VT_DateTime, VT_Date, VT_Time, VT_UIDRef, VT_PName, VT_SCoord, VT_SCoord3D, VT_TCoord, VT_Composite, VT_Image, VT_Waveform, VT_Container, VT_byReference, VT_includedTemplate, VT_last = VT_includedTemplate } |
| SR value types. More... | |
| enum | E_PresentationStateType { PT_invalid, PT_unknown = PT_invalid, PT_Grayscale, PT_Color, PT_PseudoColor, PT_Blending, PT_XAXRFGrayscale, PT_GrayscalePlanarMPR, PT_CompositingPlanarMPR, PT_AdvancedBlending, PT_VolumeRendering, PT_SegmentedVolumeRendering, PT_MultipleVolumeRendering, PT_last = PT_MultipleVolumeRendering } |
| Softcopy presentation state types. More... | |
| enum | E_GraphicType { GT_invalid, GT_unknown = GT_invalid, GT_Point, GT_Multipoint, GT_Polyline, GT_Circle, GT_Ellipse, GT_last = GT_Ellipse } |
| SR graphic types. More... | |
| enum | E_GraphicType3D { GT3_invalid, GT3_unknown = GT3_invalid, GT3_Point, GT3_Multipoint, GT3_Polyline, GT3_Polygon, GT3_Ellipse, GT3_Ellipsoid, GT3_last = GT3_Ellipsoid } |
| SR graphic types (3D). More... | |
| enum | E_TemporalRangeType { TRT_invalid, TRT_unknown = TRT_invalid, TRT_Point, TRT_Multipoint, TRT_Segment, TRT_Multisegment, TRT_Begin, TRT_End, TRT_last = TRT_End } |
| SR temporal range types. More... | |
| enum | E_ContinuityOfContent { COC_invalid, COC_Separate, COC_Continuous, COC_last = COC_Continuous } |
| SR continuity of content flag. More... | |
| enum | E_PreliminaryFlag { PF_invalid, PF_Preliminary, PF_Final, PF_last = PF_Final } |
| SR document preliminary flag. More... | |
| enum | E_CompletionFlag { CF_invalid, CF_Partial, CF_Complete, CF_last = CF_Complete } |
| SR document completion flag. More... | |
| enum | E_VerificationFlag { VF_invalid, VF_Unverified, VF_Verified, VF_last = VF_Verified } |
| SR document verification flag. More... | |
| enum | E_CharacterSet { CS_invalid, CS_unknown = CS_invalid, CS_ASCII, CS_default = CS_ASCII, CS_Latin1, CS_Latin2, CS_Latin3, CS_Latin4, CS_Cyrillic, CS_Arabic, CS_Greek, CS_Hebrew, CS_Latin5, CS_Thai, CS_Japanese, CS_Korean, CS_ChineseISO, CS_ChineseGB18030, CS_ChineseGBK, CS_UTF8, CS_last = CS_UTF8 } |
| Specific character set. More... | |
| enum | E_CodeValueType { CVT_auto, CVT_Short, CVT_Long, CVT_URN } |
| Code value type. More... | |
| enum | E_AddMode { AM_afterCurrent, AM_beforeCurrent, AM_belowCurrent, AM_belowCurrentBeforeFirstChild } |
| Add node mode. More... | |
| Static Protected Member Functions inherited from DSRTypes | |
| static const char * | documentTypeToSOPClassUID (const E_DocumentType documentType) |
| convert SR document type to SOP class UID More... | |
| static const char * | documentTypeToModality (const E_DocumentType documentType) |
| convert SR document type to modality More... | |
| static const char * | documentTypeToReadableName (const E_DocumentType documentType) |
| convert SR document type to readable name. More... | |
| static const char * | documentTypeToDocumentTitle (const E_DocumentType documentType, OFString &documentTitle) |
| convert SR document type to document title. More... | |
| static OFBool | requiresEnhancedEquipmentModule (const E_DocumentType documentType) |
| check whether SR document type requires Enhanced General Equipment Module More... | |
| static OFBool | requiresTimezoneModule (const E_DocumentType documentType) |
| check whether SR document type requires Timezone Module More... | |
| static const char * | relationshipTypeToDefinedTerm (const E_RelationshipType relationshipType) |
| convert relationship type to DICOM defined term More... | |
| static const char * | relationshipTypeToReadableName (const E_RelationshipType relationshipType) |
| convert relationship type to readable name. More... | |
| static const char * | valueTypeToDefinedTerm (const E_ValueType valueType) |
| convert value type to DICOM defined term More... | |
| static const char * | valueTypeToXMLTagName (const E_ValueType valueType) |
| convert value type to XML tag name More... | |
| static const char * | valueTypeToReadableName (const E_ValueType valueType) |
| convert value type to readable name. More... | |
| static const char * | presentationStateTypeToShortName (const E_PresentationStateType pstateType) |
| convert presentation state type to short name. More... | |
| static const char * | graphicTypeToEnumeratedValue (const E_GraphicType graphicType) |
| convert graphic type to DICOM enumerated value More... | |
| static const char * | graphicTypeToReadableName (const E_GraphicType graphicType) |
| convert graphic type to readable name. More... | |
| static const char * | graphicType3DToEnumeratedValue (const E_GraphicType3D graphicType) |
| convert graphic type (3D) to DICOM enumerated value More... | |
| static const char * | graphicType3DToReadableName (const E_GraphicType3D graphicType) |
| convert graphic type (3D) to readable name. More... | |
| static const char * | temporalRangeTypeToEnumeratedValue (const E_TemporalRangeType temporalRangeType) |
| convert temporal range type to DICOM enumerated value More... | |
| static const char * | temporalRangeTypeToReadableName (const E_TemporalRangeType temporalRangeType) |
| convert temporal range type to readable name. More... | |
| static const char * | continuityOfContentToEnumeratedValue (const E_ContinuityOfContent continuityOfContent) |
| convert continuity of content flag to DICOM enumerated value More... | |
| static const char * | preliminaryFlagToEnumeratedValue (const E_PreliminaryFlag preliminaryFlag) |
| convert preliminary flag to DICOM enumerated value More... | |
| static const char * | completionFlagToEnumeratedValue (const E_CompletionFlag completionFlag) |
| convert completion flag to DICOM enumerated value More... | |
| static const char * | verificationFlagToEnumeratedValue (const E_VerificationFlag verificationFlag) |
| convert verification flag to DICOM enumerated value More... | |
| static const char * | characterSetToDefinedTerm (const E_CharacterSet characterSet) |
| convert character set to DICOM defined term More... | |
| static const char * | characterSetToHTMLName (const E_CharacterSet characterSet) |
| convert character set to HTML name. More... | |
| static const char * | characterSetToXMLName (const E_CharacterSet characterSet) |
| convert character set to XML name. More... | |
| static E_DocumentType | sopClassUIDToDocumentType (const OFString &sopClassUID) |
| convert SOP class UID to SR document type More... | |
| static E_RelationshipType | definedTermToRelationshipType (const OFString &definedTerm) |
| convert DICOM defined term to relationship type More... | |
| static E_ValueType | definedTermToValueType (const OFString &definedTerm) |
| convert DICOM defined term to value type More... | |
| static E_PresentationStateType | sopClassUIDToPresentationStateType (const OFString &sopClassUID) |
| convert SOP class UID to presentation state type More... | |
| static E_ValueType | xmlTagNameToValueType (const OFString &xmlTagName) |
| convert XML tag name to value type More... | |
| static E_GraphicType | enumeratedValueToGraphicType (const OFString &enumeratedValue) |
| convert DICOM enumerated value to graphic type More... | |
| static E_GraphicType3D | enumeratedValueToGraphicType3D (const OFString &enumeratedValue) |
| convert DICOM enumerated value to graphic type (3D) More... | |
| static E_TemporalRangeType | enumeratedValueToTemporalRangeType (const OFString &enumeratedValue) |
| convert DICOM enumerated value to temporal range type More... | |
| static E_ContinuityOfContent | enumeratedValueToContinuityOfContent (const OFString &enumeratedValue) |
| convert DICOM enumerated value to continuity of content flag More... | |
| static E_PreliminaryFlag | enumeratedValueToPreliminaryFlag (const OFString &enumeratedValue) |
| convert DICOM enumerated value to preliminary flag More... | |
| static E_CompletionFlag | enumeratedValueToCompletionFlag (const OFString &enumeratedValue) |
| convert DICOM enumerated value to completion flag More... | |
| static E_VerificationFlag | enumeratedValueToVerificationFlag (const OFString &enumeratedValue) |
| convert DICOM enumerated value to verification flag More... | |
| static E_CharacterSet | definedTermToCharacterSet (const OFString &definedTerm) |
| convert DICOM defined term to character set. More... | |
| static OFBool | isDocumentTypeSupported (const E_DocumentType documentType) |
| check whether specified SR document type is supported by this library More... | |
| static const OFString & | currentDate (OFString &dateString) |
| get current date in DICOM 'DA' format. More... | |
| static const OFString & | currentTime (OFString &timeString) |
| get current time in DICOM 'TM' format. More... | |
| static const OFString & | currentDateTime (OFString &dateTimeString) |
| get current date and time in DICOM 'DT' format. More... | |
| static const OFString & | localTimezone (OFString &timezoneString) |
| get local timezone in DICOM format. More... | |
| static const OFString & | dicomToReadableDate (const OFString &dicomDate, OFString &readableDate) |
| convert DICOM date string to readable format. More... | |
| static const OFString & | dicomToReadableTime (const OFString &dicomTime, OFString &readableTime) |
| convert DICOM time string to readable format. More... | |
| static const OFString & | dicomToReadableDateTime (const OFString &dicomDateTime, OFString &readableDateTime) |
| convert DICOM date time string to readable format. More... | |
| static const OFString & | dicomToReadablePersonName (const OFString &dicomPersonName, OFString &readablePersonName) |
| convert DICOM person name to readable format. More... | |
| static const OFString & | dicomToXMLPersonName (const OFString &dicomPersonName, OFString &xmlPersonName, const OFBool writeEmptyValue=OFFalse) |
| convert DICOM person name to XML format. More... | |
| static const char * | numberToString (const size_t number, char *stringValue) |
| convert unsigned integer number to character string More... | |
| static size_t | stringToNumber (const char *stringValue) |
| convert string to unsigned integer number More... | |
| static const OFString & | convertToPrintString (const OFString &sourceString, OFString &printString) |
| convert character string to print string. More... | |
| static const OFString & | convertToHTMLString (const OFString &sourceString, OFString &markupString, const size_t flags=0, const OFBool newlineAllowed=OFFalse) |
| convert character string to HTML mnenonic string. More... | |
| static const OFString & | convertToXMLString (const OFString &sourceString, OFString &markupString) |
| convert character string to XML mnenonic string. More... | |
| static OFBool | checkForValidReference (const OFString &stringValue) |
| check string for valid reference (as used for by-reference relationships). More... | |
| static DSRIODConstraintChecker * | createIODConstraintChecker (const E_DocumentType documentType) |
| create specified SR IOD content relationship constraint checker object. More... | |
| static DSRDocumentTreeNode * | createDocumentTreeNode (const E_RelationshipType relationshipType, const E_ValueType valueType) |
| create specified document tree node. More... | |
| static OFCondition | addElementToDataset (OFCondition &result, DcmItem &dataset, DcmElement *delem, const OFString &vm, const OFString &type, const char *moduleName=NULL) |
| add given element to the dataset. More... | |
| static void | removeAttributeFromSequence (DcmSequenceOfItems &sequence, const DcmTagKey &tagKey) |
| remove given attribute from the sequence. More... | |
| static OFCondition | getElementFromDataset (DcmItem &dataset, DcmElement &delem) |
| get element from dataset More... | |
| static const char * | getStringValueFromElement (const DcmElement &delem) |
| get string value from element More... | |
| static const OFString & | getStringValueFromElement (const DcmElement &delem, OFString &stringValue) |
| get string value from element. More... | |
| static OFCondition | getStringValueFromElement (const DcmElement &delem, OFString &stringValue, const signed long pos) |
| get string value from element More... | |
| static const OFString & | getPrintStringFromElement (const DcmElement &delem, OFString &stringValue) |
| get string value from element and convert to "print" format. More... | |
| static const OFString & | getMarkupStringFromElement (const DcmElement &delem, OFString &stringValue, const OFBool convertNonASCII=OFFalse) |
| get string value from element and convert to HTML/XML. More... | |
| static OFCondition | getStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const signed long pos=0) |
| get string value from dataset More... | |
| static OFCondition | putStringValueToDataset (DcmItem &dataset, const DcmTag &tag, const OFString &stringValue, const OFBool allowEmpty=OFTrue) |
| put string value to dataset More... | |
| static OFBool | checkElementValue (DcmElement *delem, const DcmTagKey &tagKey, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
| check element value for correct value multiplicity and type. More... | |
| static OFBool | checkElementValue (DcmElement &delem, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
| check element value for correct value multiplicity and type. More... | |
| static OFCondition | getAndCheckElementFromDataset (DcmItem &dataset, DcmElement &delem, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
| get element from dataset and check it for correct value multiplicity and type. More... | |
| static OFCondition | getAndCheckStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
| get string value from dataset and check it for correct value multiplicity and type. More... | |
| static void | printInvalidContentItemMessage (const char *action, const DSRDocumentTreeNode *node, const char *location=NULL) |
| print the warning message that the current content item is invalid/incomplete. More... | |
| static void | printContentItemErrorMessage (const char *action, const OFCondition &result, const DSRDocumentTreeNode *node, const char *location=NULL) |
| print an error message for the current content item. More... | |
| static void | printUnknownValueWarningMessage (const char *valueName, const char *readValue=NULL, const char *action="Reading") |
| print a warning message that an unknown/unsupported value has been determined More... | |
| static OFBool | writeStringValueToXML (STD_NAMESPACE ostream &stream, const OFString &stringValue, const OFString &tagName, const OFBool writeEmptyValue=OFFalse) |
| write string value to XML output stream. More... | |
| static OFBool | writeStringFromElementToXML (STD_NAMESPACE ostream &stream, DcmElement &delem, const OFString &tagName, const OFBool writeEmptyValue=OFFalse) |
| write string value from DICOM element to XML output stream. More... | |
| static size_t | createHTMLAnnexEntry (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const OFString &referenceText, size_t &annexNumber, const size_t flags=0) |
| create an HTML annex entry with hyperlinks. More... | |
| static size_t | createHTMLFootnote (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &footnoteStream, size_t &footnoteNumber, const size_t nodeID, const size_t flags=0) |
| create an HTML footnote with hyperlinks More... | |
| static OFCondition | appendStream (STD_NAMESPACE ostream &mainStream, OFOStringStream &tempStream, const char *heading=NULL) |
| append one output stream to another. More... | |
| Protected Attributes inherited from DSRDocumentSubTree | |
| DSRIODConstraintChecker * | ConstraintChecker |
| check relationship content constraints of the associated IOD | |
| Protected Attributes inherited from DSRTreeNodeCursor< DSRDocumentTreeNode > | |
| DSRDocumentTreeNode * | NodeCursor |
| pointer to current node | |
| OFStack< DSRDocumentTreeNode *> | NodeCursorStack |
| stack of node pointers. Used to store the cursor position of upper levels. | |
| DSRPositionCounter | Position |
| counter for the current position within the current level and on upper levels | |
| Static Protected Attributes inherited from DSRTypes | |
| static const size_t | RF_readDigitalSignatures |
| read digital signatures from dataset | |
| static const size_t | RF_acceptUnknownRelationshipType |
| accept unknown/missing relationship type | |
| static const size_t | RF_acceptInvalidContentItemValue |
| accept invalid content item value (e.g. violation of VR or VM definition) | |
| static const size_t | RF_ignoreRelationshipConstraints |
| ignore relationship constraints for this document class | |
| static const size_t | RF_ignoreContentItemErrors |
| do not abort on content item errors (e.g. missing value type specific attributes) | |
| static const size_t | RF_skipInvalidContentItems |
| do not abort when detecting an invalid content item, skip invalid sub-tree instead | |
| static const size_t | RF_showCurrentlyProcessedItem |
| show the currently processed content item (e.g. "1.2.3") | |
| static const size_t | HF_neverExpandChildrenInline |
| external: never expand child nodes inline | |
| static const size_t | HF_alwaysExpandChildrenInline |
| external: always expand child nodes inline | |
| static const size_t | HF_renderInlineCodes |
| external: render codes even if they appear inline | |
| static const size_t | HF_useCodeDetailsTooltip |
| external: render code details as a tooltip (not with HTML 3.2) | |
| static const size_t | HF_renderConceptNameCodes |
| external: render concept name codes (default: code meaning only) | |
| static const size_t | HF_renderNumericUnitCodes |
| external: render the code of the numeric measurement unit | |
| static const size_t | HF_useCodeMeaningAsUnit |
| external: use code meaning for the numeric measurement unit (default: code value) | |
| static const size_t | HF_renderPatientTitle |
| external: use patient information as document title (default: document type) | |
| static const size_t | HF_renderNoDocumentHeader |
| external: render no general document information (header) | |
| static const size_t | HF_renderDcmtkFootnote |
| external: render dcmtk/dcmsr comment at the end of the document | |
| static const size_t | HF_renderFullData |
| external: render the full data of all content items | |
| static const size_t | HF_renderSectionTitlesInline |
| external: render section titles inline (default: separate paragraph) | |
| static const size_t | HF_copyStyleSheetContent |
| external: copy Cascading Style Sheet (CSS) content to HTML file | |
| static const size_t | HF_HTML32Compatibility |
| external: output compatible to HTML version 3.2 (default: 4.01) | |
| static const size_t | HF_XHTML11Compatibility |
| external: output compatible to XHTML version 1.1 (default: HTML 4.01) | |
| static const size_t | HF_addDocumentTypeReference |
| external: add explicit reference to HTML document type (DTD) | |
| static const size_t | HF_omitGeneratorMetaElement |
| external: omit generator meta element referring to the DCMTK | |
| static const size_t | HF_renderItemsSeparately |
| internal: render items separately (for container with SEPARATE flag) | |
| static const size_t | HF_renderItemInline |
| internal: expand items inline when they are short and have no child nodes | |
| static const size_t | HF_currentlyInsideAnnex |
| internal: content item is rendered fully inside the annex | |
| static const size_t | HF_createFootnoteReferences |
| internal: create footnote references | |
| static const size_t | HF_convertNonASCIICharacters |
| internal: convert non-ASCII characters (> #127) to &#nnn; | |
| static const size_t | HF_renderAllCodes |
| shortcut: render all codes | |
| static const size_t | HF_internalUseOnly |
| shortcut: filter all flags that are only used internally | |
| static const size_t | XF_writeEmptyTags |
| write: write all tags even if their value is empty | |
| static const size_t | XF_writeTemplateIdentification |
| write: write template identification information (TID and mapping resource) | |
| static const size_t | XF_alwaysWriteItemIdentifier |
| write: always write item identifier "id", not only when item is referenced | |
| static const size_t | XF_codeComponentsAsAttribute |
| write: encode code value, coding scheme designator and coding scheme version as attribute instead of element text | |
| static const size_t | XF_relationshipTypeAsAttribute |
| write: encode relationship type as attribute instead of element text | |
| static const size_t | XF_valueTypeAsAttribute |
| write: encode value type as attribute instead of element text | |
| static const size_t | XF_templateIdentifierAsAttribute |
| write: encode template identifier as attribute instead of element text | |
| static const size_t | XF_useDcmsrNamespace |
| write: add DCMSR namespace declaration to the XML output | |
| static const size_t | XF_addSchemaReference |
| write: add Schema reference to XML document | |
| static const size_t | XF_validateSchema |
| read: validate content of XML document against Schema | |
| static const size_t | XF_templateElementEnclosesItems |
| read/write: template identification element encloses content items | |
| static const size_t | XF_addCommentsForIncludedTemplate |
| write: add comments with details at beginning/end of included template (might be useful for debugging purposes) | |
| static const size_t | XF_acceptEmptyStudySeriesInstanceUID |
| read: accept empty Study/Series/SOP Instance UID attribute values (must be filled later) | |
| static const size_t | XF_encodeEverythingAsAttribute |
| shortcut: combines all XF_xxxAsAttribute write flags (see above) | |
| static const size_t | PF_printItemPosition |
| print item position ("1.2.3") instead of line indentation | |
| static const size_t | PF_shortenLongItemValues |
| shorten long item value (e.g. long texts) | |
| static const size_t | PF_printSOPInstanceUID |
| print SOP instance UID of referenced objects | |
| static const size_t | PF_printConceptNameCodes |
| print coding scheme designator/version and code value of concept names | |
| static const size_t | PF_printNoDocumentHeader |
| print no general document information (header) | |
| static const size_t | PF_printTemplateIdentification |
| print template identification (TID and mapping resource) | |
| static const size_t | PF_useANSIEscapeCodes |
| use ANSI escape codes for output | |
| static const size_t | PF_printLongSOPClassName |
| print long SOP class name of referenced objects (default: short name for images) | |
| static const size_t | PF_printSOPClassUID |
| print SOP class UID of referenced objects (instead of the name) | |
| static const size_t | PF_printInvalidCodes |
| print code triple for invalid codes (instead of the text "invalid code") | |
| static const size_t | PF_printNodeID |
| print node ID at the beginning of each line (might be useful for debugging purposes) | |
| static const size_t | PF_indicateEnhancedEncodingMode |
| indicate with a "*" that the "enhanced encoding mode" is used for codes | |
| static const size_t | PF_printAnnotation |
| print annotation of a content item (optional, e.g. user-defined information) | |
| static const size_t | PF_hideIncludedTemplateNodes |
| do not print internal "included template" nodes (position counter is still increased) | |
| static const size_t | PF_dontCountIncludedTemplateNodes |
| do not count internal "included template" nodes (only with PF_hideIncludedTemplateNodes) | |
| static const size_t | PF_printAllCodes |
| shortcut: print all codes (combines all PF_printXxxCodes flags, see above) | |
| static const size_t | CM_updatePositionString |
| update the position string using the node ID | |
| static const size_t | CM_updateNodeID |
| update the node ID using the position string | |
| static const size_t | CM_resetReferenceTargetFlag |
| reset the reference target flag for all nodes | |
| static const size_t | CB_maskPrintFlags |
| bit mask (filter) for valid print flags (see PF_xxx) | |
| static const size_t | CB_maskReadFlags |
| bit mask (filter) for valid read flags (see RF_xxx) | |
Detailed Description
template<typename T_Measurement, typename T_Units, typename T_Method, typename T_Derivation>
class TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >
Implementation of DCMR Template: TID 1411 - Volumetric ROI Measurements (and included templates 1502 and 1419).
All added content items are annotated with a text in the format "TID 1411 - Row [n]".
- Template Parameters
-
T_Measurement concept names for the numeric measurements (context group) T_Units units of the numeric measurement values (context group) T_Method methods used for measuring the values (context group) T_Derivation methods of deriving or calculating the values (context group)
- Note
- Please note that currently only the mandatory (and some optional/conditional) content items and included templates are supported.
- Also note that this template class requires explicit instantiation for those combinations of the template parameters that are actually used. This is because the implementation is "hidden" in a separate source file, which has some advantages over the usual header-only approach.
Constructor & Destructor Documentation
◆ TID1411_VolumetricROIMeasurements()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::TID1411_VolumetricROIMeasurements | ( | const OFBool | createGroup = OFFalse | ) |
(default) constructor
- Parameters
-
createGroup flag indicating whether to create an empty measurement group by calling createMeasurementGroup() during startup
Member Function Documentation
◆ addMeasurement()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::addMeasurement | ( | const T_Measurement & | conceptName, |
| const MeasurementValue & | numericValue, | ||
| const T_Method & | method = T_Method(), |
||
| const T_Derivation & | derivation = T_Derivation(), |
||
| const OFBool | check = OFTrue |
||
| ) |
add a measurement as defined in 'ROI Measurements' (TID 1419 - Row 5, 7 and 8).
There should be at least a single instance of the associated template.
- Parameters
-
conceptName coded entry specifying the concept name of the measurement (e.g. from the given context group 'T_Measurement') numericValue numeric measurement value to be set. The measurement unit could be taken from the baseline context group 'T_Units'. method optional method used for measuring the value (e.g. from the given context group 'T_Method') derivation optional method of deriving or calculating the value (e.g. from the context group 'T_Derivation') check if enabled, check value for validity before setting it
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ addOrReplaceContentItem()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
|
protected |
add a new or replace an existing content item with a given node ID.
If the content item does not exist, it is added to the measurement group, i.e. below the root node. If it does exist, both the 'valueType' and 'conceptName' are checked before replacing the value. However, the value is not replaced by this method. This is up to the caller after this method returned with success.
- Parameters
-
nodePos index of the list entry that stores the ID of the node to search for relationshipType relationship type of the content item to be added/replaced valueType value type of the content item to be added/replaced conceptName concept name of the content item to be added/replaced annotationText optional text used to annotate the content item check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ createMeasurementGroup()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
|
protected |
create the mandatory root content item of this template, i.e. TID 1411 - Row 1.
It is expected that the tree is currently empty.
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ hasMeasurementGroup()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFBool TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::hasMeasurementGroup | ( | const OFBool | checkChildren = OFFalse | ) | const |
check whether the 'Measurement Group' content item (TID 1411 - Row 1) is present.
Initially, this mandatory content item is created by the constructor of this class (if not disabled). After clear() has been called, it can be created again by calling createMeasurementGroup().
- Parameters
-
checkChildren optional flag indicating whether to also check for any children, i.e. whether the respective content item has child nodes. By default, the presence of the higher-level CONTAINER is checked only.
- Returns
- OFTrue if the measurement group is present, OFFalse otherwise
◆ hasReferencedSegment()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFBool TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::hasReferencedSegment | ( | ) | const |
check whether the 'Referenced Segment' content item (TID 1411 - Row 7) is present.
This content item is conditional, but should be present to meet the conditions.
- Returns
- OFTrue if the referenced segment is present, OFFalse otherwise
◆ hasROIMeasurements()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFBool TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::hasROIMeasurements | ( | ) | const |
check whether there is an included 'ROI Measurements' template (TID 1411 - Row 15) in this measurement template.
This included template is mandatory.
- Returns
- OFTrue if ROI measurements are present, OFFalse otherwise
◆ hasSourceSeriesForSegmentation()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFBool TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::hasSourceSeriesForSegmentation | ( | ) | const |
check whether the 'Source Series for Segmentation' content item (TID 1411 - Row 12) is present.
This content item is conditional, but should be present to meet the conditions.
- Returns
- OFTrue if source series for segmentation is present, OFFalse otherwise
◆ hasTrackingIdentifier()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFBool TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::hasTrackingIdentifier | ( | ) | const |
check whether the 'Tracking Identifier' content item (TID 1411 - Row 2) is present.
This content item is mandatory, i.e. should be present with a value.
- Returns
- OFTrue if the tracking identifier is present, OFFalse otherwise
◆ hasTrackingUniqueIdentifier()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFBool TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::hasTrackingUniqueIdentifier | ( | ) | const |
check whether the 'Tracking Unique Identifier' content item (TID 1411 - Row 3) is present.
This content item is mandatory, i.e. should be present with a value.
- Returns
- OFTrue if the tracking unique identifier is present, OFFalse otherwise
◆ isValid()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
|
virtual |
check whether the current internal state is valid.
That means, whether the base class is valid and whether all mandatory content items and included templates are valid, i.e. hasMeasurementGroup(), hasTrackingIdentifier(), hasTrackingUniqueIdentifier(), hasReferencedSegment(), hasSourceSeriesForSegmentation() and hasROIMeasurements() return true.
- Returns
- OFTrue if valid, OFFalse otherwise
Reimplemented from DSRSubTemplate.
◆ setActivitySession()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setActivitySession | ( | const OFString & | session, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Activity Session' content item (TID 1411 - Row 1b).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
session identifier of the session during which the measurements were made check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setFinding()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setFinding | ( | const DSRCodedEntryValue & | finding, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Finding' content item (TID 1411 - Row 3b).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
finding coded entry that describes the type of the finding check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setFindingSite()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setFindingSite | ( | const DSRCodedEntryValue & | site, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Finding Site' content item (TID 1419 - Row 2).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
site coded entry describing the anatomic location of the measurements check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setMeasurementMethod()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setMeasurementMethod | ( | const T_Method & | method, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Measurement Method' content item (TID 1419 - Row 1).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
method coded entry describing the method used for measuring the values (e.g. from the given context group 'T_Method') check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setRealWorldValueMap() [1/2]
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setRealWorldValueMap | ( | const DSRCompositeReferenceValue & | valueMap, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Real World Value Map used for measurement' content item (TID 1411 - Row 14).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
valueMap reference to a real world value mapping object applied to the stored image pixel values before their use for a measurement check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setRealWorldValueMap() [2/2]
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setRealWorldValueMap | ( | DcmItem & | dataset, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Real World Value Map used for measurement' content item (TID 1411 - Row 14).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
dataset DICOM dataset from which the values for the reference to a real world value mapping object (SOP class UID and SOP instance UID) should be retrieved check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setReferencedSegment() [1/2]
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setReferencedSegment | ( | const DSRImageReferenceValue & | segment, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Referenced Segment' content item (TID 1411 - Row 7).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
segment reference to a segmentation object with a single selected segment; specifically the pixels or voxels identified as belonging to the classification of the identified segment check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setReferencedSegment() [2/2]
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setReferencedSegment | ( | DcmItem & | dataset, |
| const Uint16 | segmentNumber, | ||
| const OFBool | copyTracking = OFTrue, |
||
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Referenced Segment' content item (TID 1411 - Row 7).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten. If 'copyTracking' is enabled and the 'dataset' contains appropriate tracking information for the given 'segmentNumber', setTrackingIdentifier() and setTrackingUniqueIdentifier() are also called by this method.
- Parameters
-
dataset DICOM dataset from which the values for the referenced segment (e.g. SOP class UID and SOP instance UID) should be retrieved segmentNumber number of the segment that should be referenced. The value is only checked when 'copyTracking' is enabled. copyTracking flag indicating whether to copy tracking information (tracking ID and UID) from the 'dataset', if available check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setSourceSeriesForSegmentation()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setSourceSeriesForSegmentation | ( | const OFString & | seriesUID, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Source series for segmentation' content item (TID 1411 - Row 12).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
seriesUID the unique identifier of the source series of images that were segmented to identify the ROI (associated DICOM VR=UI) check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setTimePoint()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setTimePoint | ( | const OFString & | timePoint, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Time Point' content item (TID 1502 - Row 3).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
timePoint a short pre-defined label that is human-readable check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setTrackingIdentifier()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setTrackingIdentifier | ( | const OFString & | trackingID, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Tracking Identifier' content item (TID 1411 - Row 2).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
trackingID a text label used for tracking a finding or feature check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setTrackingUniqueIdentifier()
template<typename T_Measurement , typename T_Units , typename T_Method , typename T_Derivation >
| OFCondition TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >::setTrackingUniqueIdentifier | ( | const OFString & | trackingUID, |
| const OFBool | check = OFTrue |
||
| ) |
set the value of the 'Tracking Unique Identifier' content item (TID 1411 - Row 3).
A measurement group is created automatically (if none is present). If the content item already exists, its value is overwritten.
- Parameters
-
trackingUID a unique identifier used for tracking a finding or feature (associated DICOM VR=UI) check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
The documentation for this class was generated from the following file:
- dcmsr/include/dcmtk/dcmsr/cmr/tid1411.h
