Class managing a SR document subtree. More...

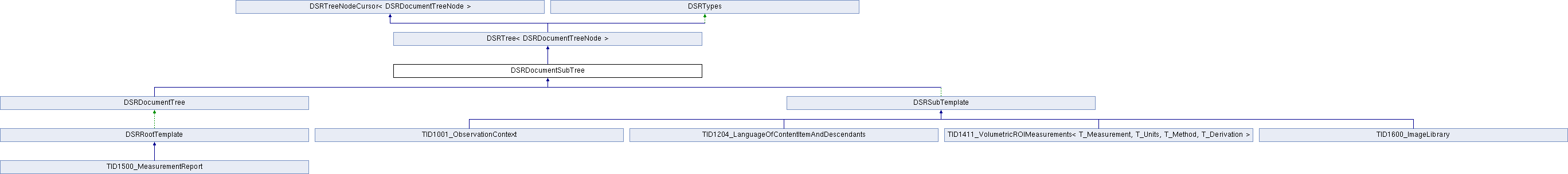

Inheritance diagram for DSRDocumentSubTree:

Public Member Functions
	DSRDocumentSubTree ()
	default constructor

	DSRDocumentSubTree (const DSRDocumentSubTree &tree)
	copy constructor. More...

virtual	~DSRDocumentSubTree ()
	destructor

DSRDocumentSubTree &	operator= (DSRDocumentSubTree tree)
	assignment operator. More...

virtual DSRDocumentSubTree *	clone () const
	clone this subtree. More...

virtual void	clear ()
	clear internal member variables

virtual OFBool	isValid () const
	check whether the current internal state is valid. More...

virtual OFBool	isCursorValid () const
	check whether the internal cursor, which points to the current content item, is valid More...

virtual OFBool	isValidDocumentTree (const E_RelationshipType defaultRelType=RT_unknown) const
	check whether this subtree is a valid document tree. More...

virtual OFBool	isExpandedDocumentTree () const
	check whether this subtree is an expanded document tree. More...

virtual OFBool	hasTemplateIdentification () const
	check whether template identification is set More...

virtual OFBool	canUseTemplateIdentification () const
	check whether template identification is possible at all. More...

virtual OFCondition	print (STD_NAMESPACE ostream &stream, const size_t flags=0, const DSRPositionCounter *posCounter=NULL)
	print current SR document tree to specified output stream More...

virtual OFCondition	writeXML (STD_NAMESPACE ostream &stream, const size_t flags=0)
	write current SR document tree in XML format More...

virtual DSRContentItem &	getCurrentContentItem ()
	get reference to current content item. More...

virtual const DSRDocumentTreeNode *	getCurrentNode () const
	get read-only access to current node (content item) More...

virtual OFBool	getCursorToRootNode (DSRDocumentTreeNodeCursor &cursor) const
	get a cursor to the root node of this document tree. More...

virtual OFBool	getCursorToRootNode (DSRIncludedTemplateNodeCursor &cursor) const
	get a cursor to the root node of this document tree. More...

size_t	countNodes (const OFBool searchIntoSubTemplates=OFFalse, const OFBool countIncludedTemplateNodes=OFTrue) const
	count number of content items (nodes) in the document tree. More...

virtual size_t	gotoNamedNode (const DSRCodedEntryValue &conceptName, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue)
	set internal cursor to a named node. More...

virtual size_t	gotoNamedChildNode (const DSRCodedEntryValue &conceptName)
	set internal cursor to a named node (starting from the first child of the current node and searching on this level only). More...

virtual size_t	gotoNamedNodeInSubTree (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue)
	set internal cursor to a named node in the subtree below the current node. More...

virtual size_t	gotoNextNamedNode (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue)
	set internal cursor to the next named node. More...

virtual size_t	gotoAnnotatedNode (const OFString &annotationText, const OFBool startFromRoot=OFTrue)
	set internal cursor to an annotated node. More...

virtual size_t	gotoNextAnnotatedNode (const OFString &annotationText)
	set internal cursor to the next annotated node. More...

virtual OFBool	canAddContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) const
	check whether specified content item can be added to the current one. More...

virtual OFBool	canAddByReferenceRelationship (const E_RelationshipType relationshipType, const E_ValueType targetValueType) const
	check whether specified by-reference relationship can be added to the current content item. More...

virtual size_t	addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent)
	add specified content item to the current one. More...

virtual OFCondition	addContentItem (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent, const OFBool deleteIfFail=OFFalse)
	add specified content item to the current one. More...

virtual OFCondition	addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue)
	add specified content item after the current one. More...

virtual OFCondition	addChildContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue)
	add specified content item below the current one. More...

virtual size_t	addByReferenceRelationship (const E_RelationshipType relationshipType, const size_t referencedNodeID)
	add specified by-reference relationship to the current content item. More...

virtual OFCondition	updateByReferenceRelationships (const OFBool updateIncludedTemplates=OFFalse)
	update the position strings used to encode by-reference relationships (if any). More...

virtual OFBool	canInsertSubTree (const DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) const
	check whether specified subtree can be inserted at the current position, i.e. added to the current content item. More...

virtual OFCondition	insertSubTree (DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown, const OFBool deleteIfFail=OFFalse)
	insert specified subtree to this tree, i.e. add it to the current content item. More...

virtual DSRDocumentSubTree *	extractSubTree ()
	extract a subtree i.e. a fragment from this tree. More...

virtual size_t	removeCurrentContentItem ()
	remove current content item from tree. More...

virtual OFCondition	removeSubTree (const size_t searchID=0)
	remove a subtree from this tree. More...

virtual DSRDocumentTreeNode *	cloneCurrentTreeNode () const
	clone the current tree node. More...

virtual DSRDocumentSubTree *	cloneSubTree (const size_t stopAfterNodeID=0) const
	clone a subtree i.e. a fragment of this tree. More...

virtual OFCondition	createExpandedSubTree (DSRDocumentSubTree *&tree) const
	created an expanded version of this (sub)tree. More...

virtual OFBool	compareTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const
	compare template identification of the root node with given values. More...

virtual OFCondition	getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource) const
	get template identifier and mapping resource from the root node of this tree. More...

virtual OFCondition	getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource, OFString &mappingResourceUID) const
	get template identifier, mapping resource and optional mapping resource UID from the root node of this tree. More...

virtual OFCondition	setTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="", const OFBool check=OFTrue)
	set template identifier and mapping resource to the root node of this tree. More...

Public Member Functions inherited from DSRTree< DSRDocumentTreeNode >
	DSRTree ()
	default constructor

	DSRTree (const DSRTree< DSRDocumentTreeNode > &tree)
	copy constructor. More...

virtual	~DSRTree ()
	destructor

DSRTree &	operator= (DSRTree< DSRDocumentTreeNode > tree)
	assignment operator. More...

void	clearAnnotations ()
	clear annotations of all tree nodes

OFBool	isEmpty () const
	check whether tree has any nodes More...

size_t	countNodes () const
	count number of nodes in the tree. More...

size_t	getNextNodeID () const
	get ID of the next node to be created. More...

size_t	gotoRoot ()
	set internal cursor to root node More...

size_t	gotoNode (const size_t searchID, const OFBool startFromRoot=OFTrue)
	set internal cursor to specified node More...

size_t	gotoNode (const OFString &reference, const OFBool startFromRoot=OFTrue)
	set internal cursor to specified node More...

size_t	gotoNode (const DSRTreeNodeAnnotation &annotation, const OFBool startFromRoot=OFTrue)
	set cursor to specified node. More...

Public Member Functions inherited from DSRTreeNodeCursor< DSRDocumentTreeNode >
	DSRTreeNodeCursor ()
	default constructor

	DSRTreeNodeCursor (const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &cursor)
	copy constructor More...

	DSRTreeNodeCursor (DSRDocumentTreeNode node, const DSRPositionCounter position=NULL)
	constructor. More...

virtual	~DSRTreeNodeCursor ()
	destructor

DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &	operator= (const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &cursor)
	assignment operator More...

DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &	operator= (DSRDocumentTreeNode *node)
	assignment operator. More...

size_t	countChildNodes (const OFBool searchIntoSub=OFTrue) const
	count number of children of the current node. More...

OFBool	hasParentNode () const
	check whether the current node has a parent More...

OFBool	hasChildNodes () const
	check whether the current node has any children More...

OFBool	hasPreviousNode () const
	check whether the current node has a preceding sibling More...

OFBool	hasNextNode () const
	check whether the current node has a following sibling More...

OFBool	hasSiblingNodes () const
	check whether the current node has any siblings More...

virtual const DSRDocumentTreeNode *	getParentNode () const
	get pointer to parent node. More...

virtual const DSRDocumentTreeNode *	getChildNode () const
	get pointer to first child node. More...

virtual const DSRDocumentTreeNode *	getPreviousNode () const
	get pointer to previous node. More...

virtual const DSRDocumentTreeNode *	getNextNode () const
	get pointer to next node. More...

size_t	gotoFirst ()
	goto first node on the same level (first sibling). More...

size_t	gotoLast ()
	goto last node on the same level (last sibling). More...

size_t	gotoPrevious ()
	goto previous node on the same level (preceding sibling) More...

size_t	gotoNext ()
	goto next node on the same level (following sibling) More...

size_t	goUp ()
	goto parent node (one level up) More...

size_t	goDown ()
	goto first child node (one level down) More...

size_t	gotoParent ()
	goto parent node (one level up) More...

size_t	gotoChild ()
	goto first child node (one level down) More...

size_t	iterate (const OFBool searchIntoSub=OFTrue)
	iterate over all nodes. More...

size_t	gotoNode (const size_t searchID)
	set cursor to specified node. More...

size_t	gotoNode (const OFString &position, const char separator='.')
	set cursor to specified node. More...

size_t	gotoNode (const DSRTreeNodeAnnotation &annotation)
	set cursor to specified node. More...

size_t	getNodeID () const
	get current node ID. More...

size_t	getLevel () const
	get current level. More...

DSRPositionCounter &	getPositionCounter ()
	get reference to internal position counter. More...

const OFString &	getPosition (OFString &position, const char separator='.') const
	get position string of the current node. More...

Protected Member Functions
	DSRDocumentSubTree (DSRDocumentTreeNode *rootNode)
	special constructor that receives a pointer to the root node. More...

	DSRDocumentSubTree (const DSRDocumentTreeNodeCursor &startCursor, size_t stopAfterNodeID)
	special copy constructor that clones a particular subtree only More...

void	swap (DSRDocumentSubTree &tree)
	fast, non-throwing swap function. More...

virtual DSRDocumentTreeNode *	getNode () const
	get pointer to current node. More...

virtual size_t	addNode (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent)
	add new node to the current one. More...

virtual size_t	replaceNode (DSRDocumentTreeNode *node)
	replace current node by the given one. More...

virtual DSRDocumentTreeNode *	extractNode ()
	extract current node from tree. More...

virtual DSRDocumentTreeNode *	getAndRemoveRootNode ()
	get pointer to root node and "forget" the internal reference to this node. More...

virtual size_t	removeNode ()
	remove current node from tree. More...

virtual OFCondition	includeTemplate (const DSRSharedSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown)
	include specified sub-template, i.e. add a new DSRIncludedTemplateTreeNode, which references this template, to the current content item. More...

virtual OFCondition	expandIncludedTemplates (DSRDocumentSubTree *tree) const
	expand all "included template" content items in a given (sub)tree. More...

template<typename T_Cursor >
OFCondition	checkByReferenceRelationships (const size_t mode=0, const size_t flags=0)
	check the by-reference relationships (if any) for validity. More...

virtual void	resetReferenceTargetFlag ()
	reset flag for all content items whether they are target of a by-reference relationship. More...

virtual void	updateTreeForOutput ()
	update the tree for subsequent output, e.g. for being printed or added to an SR document. More...

virtual OFCondition	checkSubTreeConstraints (const DSRDocumentSubTree tree, const DSRIODConstraintChecker checker) const
	check whether the given subtree complies with the constraints of the given checker More...

Protected Member Functions inherited from DSRTree< DSRDocumentTreeNode >
	DSRTree (DSRDocumentTreeNode *rootNode)
	special constructor that receives a pointer to the root node. More...

	DSRTree (const DSRTreeNodeCursor< DSRDocumentTreeNode > &startCursor, size_t stopAfterNodeID)
	special copy constructor that clones a particular subtree only More...

void	swap (DSRTree< DSRDocumentTreeNode > &tree)
	fast, non-throwing swap function. More...

virtual DSRDocumentTreeNode *	getRoot () const
	get pointer to root node More...

virtual void	deleteTreeFromRootNode (DSRDocumentTreeNode *rootNode)
	delete a tree given by its root node. More...

Protected Member Functions inherited from DSRTreeNodeCursor< DSRDocumentTreeNode >
void	clearNodeCursorStack ()
	clear the internal node cursor stack

const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &	getCursor () const
	get cursor More...

void	setCursor (const DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > &cursor)
	set cursor to specified object More...

size_t	setCursor (DSRDocumentTreeNode *node)
	set cursor to specified node. More...

DSRDocumentTreeNode *	getChild () const
	get pointer to first child node More...

Protected Member Functions inherited from DSRTypes
virtual	~DSRTypes ()
	destructor. More...

Protected Attributes
DSRIODConstraintChecker *	ConstraintChecker
	check relationship content constraints of the associated IOD

Protected Attributes inherited from DSRTreeNodeCursor< DSRDocumentTreeNode >
DSRDocumentTreeNode *	NodeCursor
	pointer to current node

OFStack< DSRDocumentTreeNode *>	NodeCursorStack
	stack of node pointers. Used to store the cursor position of upper levels.

DSRPositionCounter	Position
	counter for the current position within the current level and on upper levels

Private Attributes
DSRContentItem	CurrentContentItem
	current content item. Introduced to avoid the external use of pointers.

Additional Inherited Members
Protected Types inherited from DSRTypes
enum	E_DocumentType { DT_invalid, DT_unknown = DT_invalid, DT_BasicTextSR, DT_EnhancedSR, DT_ComprehensiveSR, DT_KeyObjectSelectionDocument, DT_MammographyCadSR, DT_ChestCadSR, DT_ColonCadSR, DT_ProcedureLog, DT_XRayRadiationDoseSR, DT_SpectaclePrescriptionReport, DT_MacularGridThicknessAndVolumeReport, DT_ImplantationPlanSRDocument, DT_Comprehensive3DSR, DT_RadiopharmaceuticalRadiationDoseSR, DT_ExtensibleSR, DT_AcquisitionContextSR, DT_SimplifiedAdultEchoSR, DT_PatientRadiationDoseSR, DT_last = DT_PatientRadiationDoseSR }
	SR document types. More...

enum	E_RelationshipType { RT_invalid, RT_unknown, RT_isRoot, RT_contains, RT_hasObsContext, RT_hasAcqContext, RT_hasConceptMod, RT_hasProperties, RT_inferredFrom, RT_selectedFrom, RT_last = RT_selectedFrom }
	SR relationship types. More...

enum	E_ValueType { VT_invalid, VT_Text, VT_Code, VT_Num, VT_DateTime, VT_Date, VT_Time, VT_UIDRef, VT_PName, VT_SCoord, VT_SCoord3D, VT_TCoord, VT_Composite, VT_Image, VT_Waveform, VT_Container, VT_byReference, VT_includedTemplate, VT_last = VT_includedTemplate }
	SR value types. More...

enum	E_PresentationStateType { PT_invalid, PT_unknown = PT_invalid, PT_Grayscale, PT_Color, PT_PseudoColor, PT_Blending, PT_XAXRFGrayscale, PT_GrayscalePlanarMPR, PT_CompositingPlanarMPR, PT_AdvancedBlending, PT_VolumeRendering, PT_SegmentedVolumeRendering, PT_MultipleVolumeRendering, PT_last = PT_MultipleVolumeRendering }
	Softcopy presentation state types. More...

enum	E_GraphicType { GT_invalid, GT_unknown = GT_invalid, GT_Point, GT_Multipoint, GT_Polyline, GT_Circle, GT_Ellipse, GT_last = GT_Ellipse }
	SR graphic types. More...

enum	E_GraphicType3D { GT3_invalid, GT3_unknown = GT3_invalid, GT3_Point, GT3_Multipoint, GT3_Polyline, GT3_Polygon, GT3_Ellipse, GT3_Ellipsoid, GT3_last = GT3_Ellipsoid }
	SR graphic types (3D). More...

enum	E_TemporalRangeType { TRT_invalid, TRT_unknown = TRT_invalid, TRT_Point, TRT_Multipoint, TRT_Segment, TRT_Multisegment, TRT_Begin, TRT_End, TRT_last = TRT_End }
	SR temporal range types. More...

enum	E_ContinuityOfContent { COC_invalid, COC_Separate, COC_Continuous, COC_last = COC_Continuous }
	SR continuity of content flag. More...

enum	E_PreliminaryFlag { PF_invalid, PF_Preliminary, PF_Final, PF_last = PF_Final }
	SR document preliminary flag. More...

enum	E_CompletionFlag { CF_invalid, CF_Partial, CF_Complete, CF_last = CF_Complete }
	SR document completion flag. More...

enum	E_VerificationFlag { VF_invalid, VF_Unverified, VF_Verified, VF_last = VF_Verified }
	SR document verification flag. More...

enum	E_CharacterSet { CS_invalid, CS_unknown = CS_invalid, CS_ASCII, CS_default = CS_ASCII, CS_Latin1, CS_Latin2, CS_Latin3, CS_Latin4, CS_Cyrillic, CS_Arabic, CS_Greek, CS_Hebrew, CS_Latin5, CS_Thai, CS_Japanese, CS_Korean, CS_ChineseISO, CS_ChineseGB18030, CS_ChineseGBK, CS_UTF8, CS_last = CS_UTF8 }
	Specific character set. More...

enum	E_CodeValueType { CVT_auto, CVT_Short, CVT_Long, CVT_URN }
	Code value type. More...

enum	E_AddMode { AM_afterCurrent, AM_beforeCurrent, AM_belowCurrent, AM_belowCurrentBeforeFirstChild }
	Add node mode. More...

Static Protected Member Functions inherited from DSRTypes
static const char *	documentTypeToSOPClassUID (const E_DocumentType documentType)
	convert SR document type to SOP class UID More...

static const char *	documentTypeToModality (const E_DocumentType documentType)
	convert SR document type to modality More...

static const char *	documentTypeToReadableName (const E_DocumentType documentType)
	convert SR document type to readable name. More...

static const char *	documentTypeToDocumentTitle (const E_DocumentType documentType, OFString &documentTitle)
	convert SR document type to document title. More...

static OFBool	requiresEnhancedEquipmentModule (const E_DocumentType documentType)
	check whether SR document type requires Enhanced General Equipment Module More...

static OFBool	requiresTimezoneModule (const E_DocumentType documentType)
	check whether SR document type requires Timezone Module More...

static const char *	relationshipTypeToDefinedTerm (const E_RelationshipType relationshipType)
	convert relationship type to DICOM defined term More...

static const char *	relationshipTypeToReadableName (const E_RelationshipType relationshipType)
	convert relationship type to readable name. More...

static const char *	valueTypeToDefinedTerm (const E_ValueType valueType)
	convert value type to DICOM defined term More...

static const char *	valueTypeToXMLTagName (const E_ValueType valueType)
	convert value type to XML tag name More...

static const char *	valueTypeToReadableName (const E_ValueType valueType)
	convert value type to readable name. More...

static const char *	presentationStateTypeToShortName (const E_PresentationStateType pstateType)
	convert presentation state type to short name. More...

static const char *	graphicTypeToEnumeratedValue (const E_GraphicType graphicType)
	convert graphic type to DICOM enumerated value More...

static const char *	graphicTypeToReadableName (const E_GraphicType graphicType)
	convert graphic type to readable name. More...

static const char *	graphicType3DToEnumeratedValue (const E_GraphicType3D graphicType)
	convert graphic type (3D) to DICOM enumerated value More...

static const char *	graphicType3DToReadableName (const E_GraphicType3D graphicType)
	convert graphic type (3D) to readable name. More...

static const char *	temporalRangeTypeToEnumeratedValue (const E_TemporalRangeType temporalRangeType)
	convert temporal range type to DICOM enumerated value More...

static const char *	temporalRangeTypeToReadableName (const E_TemporalRangeType temporalRangeType)
	convert temporal range type to readable name. More...

static const char *	continuityOfContentToEnumeratedValue (const E_ContinuityOfContent continuityOfContent)
	convert continuity of content flag to DICOM enumerated value More...

static const char *	preliminaryFlagToEnumeratedValue (const E_PreliminaryFlag preliminaryFlag)
	convert preliminary flag to DICOM enumerated value More...

static const char *	completionFlagToEnumeratedValue (const E_CompletionFlag completionFlag)
	convert completion flag to DICOM enumerated value More...

static const char *	verificationFlagToEnumeratedValue (const E_VerificationFlag verificationFlag)
	convert verification flag to DICOM enumerated value More...

static const char *	characterSetToDefinedTerm (const E_CharacterSet characterSet)
	convert character set to DICOM defined term More...

static const char *	characterSetToHTMLName (const E_CharacterSet characterSet)
	convert character set to HTML name. More...

static const char *	characterSetToXMLName (const E_CharacterSet characterSet)
	convert character set to XML name. More...

static E_DocumentType	sopClassUIDToDocumentType (const OFString &sopClassUID)
	convert SOP class UID to SR document type More...

static E_RelationshipType	definedTermToRelationshipType (const OFString &definedTerm)
	convert DICOM defined term to relationship type More...

static E_ValueType	definedTermToValueType (const OFString &definedTerm)
	convert DICOM defined term to value type More...

static E_PresentationStateType	sopClassUIDToPresentationStateType (const OFString &sopClassUID)
	convert SOP class UID to presentation state type More...

static E_ValueType	xmlTagNameToValueType (const OFString &xmlTagName)
	convert XML tag name to value type More...

static E_GraphicType	enumeratedValueToGraphicType (const OFString &enumeratedValue)
	convert DICOM enumerated value to graphic type More...

static E_GraphicType3D	enumeratedValueToGraphicType3D (const OFString &enumeratedValue)
	convert DICOM enumerated value to graphic type (3D) More...

static E_TemporalRangeType	enumeratedValueToTemporalRangeType (const OFString &enumeratedValue)
	convert DICOM enumerated value to temporal range type More...

static E_ContinuityOfContent	enumeratedValueToContinuityOfContent (const OFString &enumeratedValue)
	convert DICOM enumerated value to continuity of content flag More...

static E_PreliminaryFlag	enumeratedValueToPreliminaryFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to preliminary flag More...

static E_CompletionFlag	enumeratedValueToCompletionFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to completion flag More...

static E_VerificationFlag	enumeratedValueToVerificationFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to verification flag More...

static E_CharacterSet	definedTermToCharacterSet (const OFString &definedTerm)
	convert DICOM defined term to character set. More...

static OFBool	isDocumentTypeSupported (const E_DocumentType documentType)
	check whether specified SR document type is supported by this library More...

static const OFString &	currentDate (OFString &dateString)
	get current date in DICOM 'DA' format. More...

static const OFString &	currentTime (OFString &timeString)
	get current time in DICOM 'TM' format. More...

static const OFString &	currentDateTime (OFString &dateTimeString)
	get current date and time in DICOM 'DT' format. More...

static const OFString &	localTimezone (OFString &timezoneString)
	get local timezone in DICOM format. More...

static const OFString &	dicomToReadableDate (const OFString &dicomDate, OFString &readableDate)
	convert DICOM date string to readable format. More...

static const OFString &	dicomToReadableTime (const OFString &dicomTime, OFString &readableTime)
	convert DICOM time string to readable format. More...

static const OFString &	dicomToReadableDateTime (const OFString &dicomDateTime, OFString &readableDateTime)
	convert DICOM date time string to readable format. More...

static const OFString &	dicomToReadablePersonName (const OFString &dicomPersonName, OFString &readablePersonName)
	convert DICOM person name to readable format. More...

static const OFString &	dicomToXMLPersonName (const OFString &dicomPersonName, OFString &xmlPersonName, const OFBool writeEmptyValue=OFFalse)
	convert DICOM person name to XML format. More...

static const char *	numberToString (const size_t number, char *stringValue)
	convert unsigned integer number to character string More...

static size_t	stringToNumber (const char *stringValue)
	convert string to unsigned integer number More...

static const OFString &	convertToPrintString (const OFString &sourceString, OFString &printString)
	convert character string to print string. More...

static const OFString &	convertToHTMLString (const OFString &sourceString, OFString &markupString, const size_t flags=0, const OFBool newlineAllowed=OFFalse)
	convert character string to HTML mnenonic string. More...

static const OFString &	convertToXMLString (const OFString &sourceString, OFString &markupString)
	convert character string to XML mnenonic string. More...

static OFBool	checkForValidReference (const OFString &stringValue)
	check string for valid reference (as used for by-reference relationships). More...

static DSRIODConstraintChecker *	createIODConstraintChecker (const E_DocumentType documentType)
	create specified SR IOD content relationship constraint checker object. More...

static DSRDocumentTreeNode *	createDocumentTreeNode (const E_RelationshipType relationshipType, const E_ValueType valueType)
	create specified document tree node. More...

static OFCondition	addElementToDataset (OFCondition &result, DcmItem &dataset, DcmElement delem, const OFString &vm, const OFString &type, const char moduleName=NULL)
	add given element to the dataset. More...

static void	removeAttributeFromSequence (DcmSequenceOfItems &sequence, const DcmTagKey &tagKey)
	remove given attribute from the sequence. More...

static OFCondition	getElementFromDataset (DcmItem &dataset, DcmElement &delem)
	get element from dataset More...

static const char *	getStringValueFromElement (const DcmElement &delem)
	get string value from element More...

static const OFString &	getStringValueFromElement (const DcmElement &delem, OFString &stringValue)
	get string value from element. More...

static OFCondition	getStringValueFromElement (const DcmElement &delem, OFString &stringValue, const signed long pos)
	get string value from element More...

static const OFString &	getPrintStringFromElement (const DcmElement &delem, OFString &stringValue)
	get string value from element and convert to "print" format. More...

static const OFString &	getMarkupStringFromElement (const DcmElement &delem, OFString &stringValue, const OFBool convertNonASCII=OFFalse)
	get string value from element and convert to HTML/XML. More...

static OFCondition	getStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const signed long pos=0)
	get string value from dataset More...

static OFCondition	putStringValueToDataset (DcmItem &dataset, const DcmTag &tag, const OFString &stringValue, const OFBool allowEmpty=OFTrue)
	put string value to dataset More...

static OFBool	checkElementValue (DcmElement delem, const DcmTagKey &tagKey, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char moduleName=NULL, const OFBool acceptViolation=OFFalse)
	check element value for correct value multiplicity and type. More...

static OFBool	checkElementValue (DcmElement &delem, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	check element value for correct value multiplicity and type. More...

static OFCondition	getAndCheckElementFromDataset (DcmItem &dataset, DcmElement &delem, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	get element from dataset and check it for correct value multiplicity and type. More...

static OFCondition	getAndCheckStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	get string value from dataset and check it for correct value multiplicity and type. More...

static void	printInvalidContentItemMessage (const char action, const DSRDocumentTreeNode node, const char *location=NULL)
	print the warning message that the current content item is invalid/incomplete. More...

static void	printContentItemErrorMessage (const char action, const OFCondition &result, const DSRDocumentTreeNode node, const char *location=NULL)
	print an error message for the current content item. More...

static void	printUnknownValueWarningMessage (const char valueName, const char readValue=NULL, const char *action="Reading")
	print a warning message that an unknown/unsupported value has been determined More...

static OFBool	writeStringValueToXML (STD_NAMESPACE ostream &stream, const OFString &stringValue, const OFString &tagName, const OFBool writeEmptyValue=OFFalse)
	write string value to XML output stream. More...

static OFBool	writeStringFromElementToXML (STD_NAMESPACE ostream &stream, DcmElement &delem, const OFString &tagName, const OFBool writeEmptyValue=OFFalse)
	write string value from DICOM element to XML output stream. More...

static size_t	createHTMLAnnexEntry (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const OFString &referenceText, size_t &annexNumber, const size_t flags=0)
	create an HTML annex entry with hyperlinks. More...

static size_t	createHTMLFootnote (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &footnoteStream, size_t &footnoteNumber, const size_t nodeID, const size_t flags=0)
	create an HTML footnote with hyperlinks More...

static OFCondition	appendStream (STD_NAMESPACE ostream &mainStream, OFOStringStream &tempStream, const char *heading=NULL)
	append one output stream to another. More...

Static Protected Attributes inherited from DSRTypes
static const size_t	RF_readDigitalSignatures
	read digital signatures from dataset

static const size_t	RF_acceptUnknownRelationshipType
	accept unknown/missing relationship type

static const size_t	RF_acceptInvalidContentItemValue
	accept invalid content item value (e.g. violation of VR or VM definition)

static const size_t	RF_ignoreRelationshipConstraints
	ignore relationship constraints for this document class

static const size_t	RF_ignoreContentItemErrors
	do not abort on content item errors (e.g. missing value type specific attributes)

static const size_t	RF_skipInvalidContentItems
	do not abort when detecting an invalid content item, skip invalid sub-tree instead

static const size_t	RF_showCurrentlyProcessedItem
	show the currently processed content item (e.g. "1.2.3")

static const size_t	HF_neverExpandChildrenInline
	external: never expand child nodes inline

static const size_t	HF_alwaysExpandChildrenInline
	external: always expand child nodes inline

static const size_t	HF_renderInlineCodes
	external: render codes even if they appear inline

static const size_t	HF_useCodeDetailsTooltip
	external: render code details as a tooltip (not with HTML 3.2)

static const size_t	HF_renderConceptNameCodes
	external: render concept name codes (default: code meaning only)

static const size_t	HF_renderNumericUnitCodes
	external: render the code of the numeric measurement unit

static const size_t	HF_useCodeMeaningAsUnit
	external: use code meaning for the numeric measurement unit (default: code value)

static const size_t	HF_renderPatientTitle
	external: use patient information as document title (default: document type)

static const size_t	HF_renderNoDocumentHeader
	external: render no general document information (header)

static const size_t	HF_renderDcmtkFootnote
	external: render dcmtk/dcmsr comment at the end of the document

static const size_t	HF_renderFullData
	external: render the full data of all content items

static const size_t	HF_renderSectionTitlesInline
	external: render section titles inline (default: separate paragraph)

static const size_t	HF_copyStyleSheetContent
	external: copy Cascading Style Sheet (CSS) content to HTML file

static const size_t	HF_HTML32Compatibility
	external: output compatible to HTML version 3.2 (default: 4.01)

static const size_t	HF_XHTML11Compatibility
	external: output compatible to XHTML version 1.1 (default: HTML 4.01)

static const size_t	HF_addDocumentTypeReference
	external: add explicit reference to HTML document type (DTD)

static const size_t	HF_omitGeneratorMetaElement
	external: omit generator meta element referring to the DCMTK

static const size_t	HF_renderItemsSeparately
	internal: render items separately (for container with SEPARATE flag)

static const size_t	HF_renderItemInline
	internal: expand items inline when they are short and have no child nodes

static const size_t	HF_currentlyInsideAnnex
	internal: content item is rendered fully inside the annex

static const size_t	HF_createFootnoteReferences
	internal: create footnote references

static const size_t	HF_convertNonASCIICharacters
	internal: convert non-ASCII characters (> #127) to &#nnn;

static const size_t	HF_renderAllCodes
	shortcut: render all codes

static const size_t	HF_internalUseOnly
	shortcut: filter all flags that are only used internally

static const size_t	XF_writeEmptyTags
	write: write all tags even if their value is empty

static const size_t	XF_writeTemplateIdentification
	write: write template identification information (TID and mapping resource)

static const size_t	XF_alwaysWriteItemIdentifier
	write: always write item identifier "id", not only when item is referenced

static const size_t	XF_codeComponentsAsAttribute
	write: encode code value, coding scheme designator and coding scheme version as attribute instead of element text

static const size_t	XF_relationshipTypeAsAttribute
	write: encode relationship type as attribute instead of element text

static const size_t	XF_valueTypeAsAttribute
	write: encode value type as attribute instead of element text

static const size_t	XF_templateIdentifierAsAttribute
	write: encode template identifier as attribute instead of element text

static const size_t	XF_useDcmsrNamespace
	write: add DCMSR namespace declaration to the XML output

static const size_t	XF_addSchemaReference
	write: add Schema reference to XML document

static const size_t	XF_validateSchema
	read: validate content of XML document against Schema

static const size_t	XF_templateElementEnclosesItems
	read/write: template identification element encloses content items

static const size_t	XF_addCommentsForIncludedTemplate
	write: add comments with details at beginning/end of included template (might be useful for debugging purposes)

static const size_t	XF_acceptEmptyStudySeriesInstanceUID
	read: accept empty Study/Series/SOP Instance UID attribute values (must be filled later)

static const size_t	XF_encodeEverythingAsAttribute
	shortcut: combines all XF_xxxAsAttribute write flags (see above)

static const size_t	PF_printItemPosition
	print item position ("1.2.3") instead of line indentation

static const size_t	PF_shortenLongItemValues
	shorten long item value (e.g. long texts)

static const size_t	PF_printSOPInstanceUID
	print SOP instance UID of referenced objects

static const size_t	PF_printConceptNameCodes
	print coding scheme designator/version and code value of concept names

static const size_t	PF_printNoDocumentHeader
	print no general document information (header)

static const size_t	PF_printTemplateIdentification
	print template identification (TID and mapping resource)

static const size_t	PF_useANSIEscapeCodes
	use ANSI escape codes for output

static const size_t	PF_printLongSOPClassName
	print long SOP class name of referenced objects (default: short name for images)

static const size_t	PF_printSOPClassUID
	print SOP class UID of referenced objects (instead of the name)

static const size_t	PF_printInvalidCodes
	print code triple for invalid codes (instead of the text "invalid code")

static const size_t	PF_printNodeID
	print node ID at the beginning of each line (might be useful for debugging purposes)

static const size_t	PF_indicateEnhancedEncodingMode
	indicate with a "*" that the "enhanced encoding mode" is used for codes

static const size_t	PF_printAnnotation
	print annotation of a content item (optional, e.g. user-defined information)

static const size_t	PF_hideIncludedTemplateNodes
	do not print internal "included template" nodes (position counter is still increased)

static const size_t	PF_dontCountIncludedTemplateNodes
	do not count internal "included template" nodes (only with PF_hideIncludedTemplateNodes)

static const size_t	PF_printAllCodes
	shortcut: print all codes (combines all PF_printXxxCodes flags, see above)

static const size_t	CM_updatePositionString
	update the position string using the node ID

static const size_t	CM_updateNodeID
	update the node ID using the position string

static const size_t	CM_resetReferenceTargetFlag
	reset the reference target flag for all nodes

static const size_t	CB_maskPrintFlags
	bit mask (filter) for valid print flags (see PF_xxx)

static const size_t	CB_maskReadFlags
	bit mask (filter) for valid read flags (see RF_xxx)

Detailed Description

Class managing a SR document subtree.

A subtree represents an extract of an SR document tree. Compared to the "SR Document Content Tree" that is defined in the DICOM standard, there are almost no restrictions regarding the value and relationship types. It is also possible to have multiple nodes on the top-level, i.e. no dedicated root, or to use "unknown" relationship types.

Constructor & Destructor Documentation

◆ DSRDocumentSubTree() [1/3]

DSRDocumentSubTree::DSRDocumentSubTree ( const DSRDocumentSubTree & tree )

copy constructor.

Please note that the internal cursor is not copied but reset, i.e. set to the root node. Also the IOD constraint checker is not copied by this class but recreated by the derived class DSRDocumentTree (based on the corresponding document type). This constructor also updates any by-reference relationships, i.e. translates the references from the source 'tree' (based on the position string) to the IDs of the newly created nodes.

Parameters

tree	subtree to be copied

◆ DSRDocumentSubTree() [2/3]

DSRDocumentSubTree::DSRDocumentSubTree ( DSRDocumentTreeNode * rootNode )

protected

special constructor that receives a pointer to the root node.

Please note that the 'rootNode' and the associated tree is not copied!

Parameters

rootNode pointer to the root node of the "new" tree

◆ DSRDocumentSubTree() [3/3]

DSRDocumentSubTree::DSRDocumentSubTree	(	const DSRDocumentTreeNodeCursor &	startCursor,
		size_t	stopAfterNodeID
	)

protected

special copy constructor that clones a particular subtree only

Parameters

startCursor	first node of the subtree to be copied
stopAfterNodeID	ID of the node after which the cloning should stop

Member Function Documentation

◆ addByReferenceRelationship()

virtual size_t DSRDocumentSubTree::addByReferenceRelationship	(	const E_RelationshipType	relationshipType,
		const size_t	referencedNodeID
	)

virtual

add specified by-reference relationship to the current content item.

If possible, this method creates a new pseudo-node (relationship) and adds it to the current one. The method canAddByReferenceRelationship() is called internally to check parameters first. The internal cursor is automatically re-set to the current node.

Parameters

relationshipType	relationship type between current and referenced node
referencedNodeID	ID of the referenced node (target content item)

Returns: ID of new pseudo-node if successful, 0 otherwise

◆ addChildContentItem()

virtual OFCondition DSRDocumentSubTree::addChildContentItem	(	const E_RelationshipType	relationshipType,
		const E_ValueType	valueType,
		const DSRCodedEntryValue &	conceptName,
		const OFBool	check = `OFTrue`
	)

virtual

add specified content item below the current one.

If possible, this method creates a new node as specified and adds it below the current one, i.e. as a child. Internally, the first variant of the addContentItem() method is called with the third parameter being DSRTypes::AM_belowCurrent. If successful, the given concept name is set for the new node, and the cursor is updated.

Note: This is a convenience function that avoids calling several other functions.

Parameters

relationshipType	relationship type of node to be added with regard to the current one
valueType	value type of node to be added
conceptName	concept name of the node to be added
check	if enabled, check 'conceptName for validity before setting it

Returns: status, EC_Normal if successful, an error code otherwise

◆ addContentItem() [1/3]

virtual size_t DSRDocumentSubTree::addContentItem	(	const E_RelationshipType	relationshipType,
		const E_ValueType	valueType,
		const E_AddMode	addMode = `AM_afterCurrent`
	)

virtual

add specified content item to the current one.

If possible, this method creates a new node as specified and adds it to the current one. The method canAddContentItem() is called internally to check parameters first. If the node could be added successfully, the cursor is set to it automatically.

Parameters

relationshipType	relationship type of node to be added with regard to the current one
valueType	value type of node to be added
addMode	flag specifying at which position to add the new node (e.g. after or below the current node)

Returns: ID of new node if successful, 0 otherwise

◆ addContentItem() [2/3]

virtual OFCondition DSRDocumentSubTree::addContentItem	(	DSRDocumentTreeNode *	node,
		const E_AddMode	addMode = `AM_afterCurrent`,
		const OFBool	deleteIfFail = `OFFalse`
	)

virtual

add specified content item to the current one.

If possible, this method adds a given new node to the current one. The method canAddContentItem() is called internally to check parameters first. If the node could be added successfully, the cursor is set to it automatically. Please note that no copy of the given node is created. Therefore, the node has to be created with new() or with DSRTypes::createDocumentTreeNode() - do not use a reference to a local variable and do not delete it a second time.

Parameters

node	pointer to the new node to be added (should not be empty). Reference remains valid after successful insertion.
addMode	flag specifying at which position to add the new node (e.g. after or below the current node)
deleteIfFail	flag specifying whether to delete the given 'node' if adding fails. By default, the item is not deleted, i.e. in case of error it has to be deleted by the caller.

Returns: status, EC_Normal if successful, an error code otherwise

◆ addContentItem() [3/3]

virtual OFCondition DSRDocumentSubTree::addContentItem	(	const E_RelationshipType	relationshipType,
		const E_ValueType	valueType,
		const DSRCodedEntryValue &	conceptName,
		const OFBool	check = `OFTrue`
	)

virtual

add specified content item after the current one.

If possible, this method creates a new node as specified and adds it after the current one, i.e. on the same level. Internally, the first variant of the addContentItem() method is called with the third parameter being DSRTypes::AM_afterCurrent. If successful, the given concept name is set for the new node, and the cursor is updated.

Note: This is a convenience function that avoids calling several other functions.

Parameters

relationshipType	relationship type of node to be added with regard to the current one
valueType	value type of node to be added
conceptName	concept name of the node to be added
check	if enabled, check 'conceptName for validity before setting it

Returns: status, EC_Normal if successful, an error code otherwise

◆ addNode()

virtual size_t DSRDocumentSubTree::addNode	(	DSRDocumentTreeNode *	node,
		const E_AddMode	addMode = `AM_afterCurrent`
	)

protectedvirtual

add new node to the current one.

Please note that no copy of the given node is created. Therefore, the node has to be created with new() - do not use a reference to a local variable. If the node could be added successfully, the cursor is set to it automatically.

Parameters

node	pointer to the new node to be added
addMode	flag specifying at which position to add the new node (e.g. after or below the current node)

Returns: ID of the new node if successful, 0 otherwise

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ canAddByReferenceRelationship()

virtual OFBool DSRDocumentSubTree::canAddByReferenceRelationship	(	const E_RelationshipType	relationshipType,
		const E_ValueType	targetValueType
	)		const

virtual

check whether specified by-reference relationship can be added to the current content item.

Always returns true if no constraint checker is available but 'relationshipType' and 'targetValueType' have valid values. The value type DSRTypes::VT_includedTemplate is never allowed for the target content item.

Parameters

relationshipType	type of relationship between current and target node
targetValueType	value type of the referenced node (target content item)

Returns: OFTrue if specified by-reference relationship can be added, OFFalse otherwise

◆ canAddContentItem()

virtual OFBool DSRDocumentSubTree::canAddContentItem	(	const E_RelationshipType	relationshipType,
		const E_ValueType	valueType,
		const E_AddMode	addMode = `AM_afterCurrent`
	)		const

virtual

check whether specified content item can be added to the current one.

This method can be used to decide which type of content items can be added prior to really doing so. Please note that only by-value relationships are supported. Always returns true if no constraint checker is available but 'relationshipType' and 'valueType' have valid values.

Parameters

relationshipType	relationship type of node to be checked with regard to the current one
valueType	value type of node to be checked
addMode	flag specifying at which position the new node would be added (e.g. after or below the current node)

Returns: OFTrue if specified node can be added, OFFalse otherwise

Reimplemented in DSRDocumentTree.

Referenced by DSRDocumentTree::getDocumentType().

◆ canInsertSubTree()

virtual OFBool DSRDocumentSubTree::canInsertSubTree	(	const DSRDocumentSubTree *	tree,
		const E_AddMode	addMode = `AM_belowCurrent`,
		const E_RelationshipType	defaultRelType = `RT_unknown`
	)		const

virtual

check whether specified subtree can be inserted at the current position, i.e. added to the current content item.

Internally, the method canAddContentItem() is used for all top-level nodes of the document subtree. In addition, if a constraint checker is available, the remaining nodes of the given subtree are also checked for their compliance with the relationship content constraints of the underlying SR IOD.

Parameters

tree	pointer to new subtree to be inserted (should not be empty)
addMode	flag specifying at which position the new subtree would be added (e.g. after or below the current node)
defaultRelType	default relationship type between the top-level nodes of the given subtree and the current node. This relationship type is used if the one of a top-level node is "unknown".

Returns: OFTrue if specified subtree can be inserted, OFFalse otherwise

Reimplemented in DSRDocumentTree.

Referenced by DSRDocumentTree::getDocumentType().

◆ canUseTemplateIdentification()

virtual OFBool DSRDocumentSubTree::canUseTemplateIdentification ( ) const

virtual

check whether template identification is possible at all.

According to the DICOM standard, it can be used if "the template consists of a single CONTAINER with nested content, and it is the outermost invocation of a set of nested templates that start with the same CONTAINER." With other words, the tree should have a single root node with value type "CONTAINER".

Returns: OFTrue if template identification is possible, OFFalse otherwise

◆ checkByReferenceRelationships()

template<typename T_Cursor >

OFCondition DSRDocumentSubTree::checkByReferenceRelationships	(	const size_t	mode = `0`,
		const size_t	flags = `0`
	)

protected

check the by-reference relationships (if any) for validity.

This function checks whether all by-reference relationships possibly contained in the document tree are valid according to the following restrictions: source and target node are not identical and the target node is not an ancestor of the source node (requirement from the DICOM standard to prevent loops -> directed acyclic graph, though this is not 100% true - see "reportlp.dcm" example). In addition, the position strings (used to encode by-reference relationships according to the DICOM standard) OR the node IDs (used internally to uniquely identify nodes) can be updated. Please note that the checking modes DSRTypes::CM_updatePositionString and DSRTypes::CM_updateNodeID are mutually exclusive.

Template Parameters

T_Cursor template type used for the cursor iterating the document (sub)tree

Parameters

mode	mode used to customize the checking process (see DSRTypes::CM_xxx)
flags	flag used to customize the reading (see DSRTypes::RF_xxx) and/or printing process (see DSRTypes::PF_xxx). Conflicting definitions are avoided using the appropriate bit mask (see DSRTypes::CB_xxx).

Returns: status, EC_Normal if successful, an error code otherwise

◆ checkSubTreeConstraints()

virtual OFCondition DSRDocumentSubTree::checkSubTreeConstraints	(	const DSRDocumentSubTree *	tree,
		const DSRIODConstraintChecker *	checker
	)		const

protectedvirtual

check whether the given subtree complies with the constraints of the given checker

Parameters

tree	pointer to subtree that should be checked
checker	pointer to relationship content constraints checker to be used. If NULL, no checks are performed by this method.

Returns: status, EC_Normal if successful, an error code otherwise

◆ clone()

virtual DSRDocumentSubTree* DSRDocumentSubTree::clone ( ) const

virtual

clone this subtree.

Internally, the copy constructor is used, so the corresponding comments apply.

Returns: copy of this subtree

Reimplemented in DSRRootTemplate, DSRDocumentTree, and DSRSubTemplate.

◆ cloneCurrentTreeNode()

virtual DSRDocumentTreeNode* DSRDocumentSubTree::cloneCurrentTreeNode ( ) const

virtual

clone the current tree node.

Internally, the copy constructor of the respective tree node class is used, so the corresponding comments apply. Please note that the returned tree node has to be deleted by the caller if it is not added to the document tree using addContentItem().

Returns: pointer to a copy of the current tree node, NULL in case of error

◆ cloneSubTree()

virtual DSRDocumentSubTree* DSRDocumentSubTree::cloneSubTree ( const size_t stopAfterNodeID = 0 ) const

virtual

clone a subtree i.e. a fragment of this tree.

The cloning starts with the current node and ends with the given node. Please note that the returned subtree has to be deleted by the caller if it is not inserted into the document tree using insertSubTree().

Parameters

stopAfterNodeID ID of the node after which the cloning should stop. By default (0), the process ends after cloning the current node with all of its child nodes (if any).

Returns: pointer to a copy of the specified subtree, NULL in case of error

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ compareTemplateIdentification()

virtual OFBool DSRDocumentSubTree::compareTemplateIdentification	(	const OFString &	templateIdentifier,
		const OFString &	mappingResource,
		const OFString &	mappingResourceUID = `""`
	)		const

virtual

compare template identification of the root node with given values.

Please note that the comparison only takes place if there is a single node at the root of the tree and its value type is CONTAINER.

Parameters

templateIdentifier	template identifier to compare with
mappingResource	mapping resource that defines the template
mappingResourceUID	uniquely identifies the mapping resource (optional). Not used for comparison if the value is empty.

Returns: OFTrue if template identification can be compared and the values are identical, OFFalse otherwise

◆ countNodes()

size_t DSRDocumentSubTree::countNodes	(	const OFBool	searchIntoSubTemplates = `OFFalse`,
		const OFBool	countIncludedTemplateNodes = `OFTrue`
	)		const

count number of content items (nodes) in the document tree.

This method iterates over all nodes that are stored in the document tree. By default, included sub-templates are counted as a single node (see options).

Parameters

searchIntoSubTemplates	optional flag indicating whether to also count the content of included sub-templates (i.e. the nodes of the managed subtrees)
countIncludedTemplateNodes	optional flag indicating whether to count the DSRIncludedTemplateTreeNode instances as nodes. See includeTemplate() for details.

Returns: number of nodes, 0 if document tree is empty

◆ createExpandedSubTree()

virtual OFCondition DSRDocumentSubTree::createExpandedSubTree ( DSRDocumentSubTree *& tree ) const

virtual

created an expanded version of this (sub)tree.

Expanded means that no instance of DSRIncludedTemplateTreeNode will exist in the new document tree, i.e. all of them are replaced by their content (subtree). Please note that the returned subtree has to be deleted by the caller if it is not inserted into the document tree using insertSubTree().

Parameters

tree	variable that will store the pointer to the new subtree

Returns: status, EC_Normal if successful, an error code otherwise

◆ expandIncludedTemplates()

virtual OFCondition DSRDocumentSubTree::expandIncludedTemplates ( DSRDocumentSubTree * tree ) const

protectedvirtual

expand all "included template" content items in a given (sub)tree.

Expanding means that all instances of DSRIncludedTemplateTreeNode are replaced by their content (subtree). Please note that the internal cursor of the given 'tree' is set to the root node if no error occurred. Otherwise, the cursor points to the content item that caused the problem.

Parameters

tree	pointer to the subtree that should be expanded

Returns: status, EC_Normal if successful, an error code otherwise

◆ extractNode()

virtual DSRDocumentTreeNode* DSRDocumentSubTree::extractNode ( )

protectedvirtual

extract current node from tree.

Please note that not only the specified node but also all of its child nodes are extracted from the tree. The cursor is set automatically to a new valid position.

Returns: pointer to extracted node, NULL in case of error (or the tree was empty)

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ extractSubTree()

virtual DSRDocumentSubTree* DSRDocumentSubTree::extractSubTree ( )

virtual

extract a subtree i.e. a fragment from this tree.

The subtree is specified by the current node, which becomes the root of the subtree. In contrast to cloneSubTree(), this method also makes sure that the by-reference relationships are preserved (as long as both source and target node are contained in the same tree). Please note that the returned subtree has to be deleted by the caller if it is not inserted into the document tree using insertSubTree().

Returns: pointer to the extracted subtree, NULL in case of error

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ getAndRemoveRootNode()

virtual DSRDocumentTreeNode* DSRDocumentSubTree::getAndRemoveRootNode ( )

protectedvirtual

get pointer to root node and "forget" the internal reference to this node.

In other words: after calling this method, the stored tree will be empty. This also means that the caller is responsible for deleting the allocated memory.

Returns: pointer to root node, might be NULL (empty tree)

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ getCurrentContentItem()

virtual DSRContentItem& DSRDocumentSubTree::getCurrentContentItem ( )

virtual

get reference to current content item.

This mechanism allows to access all content items without using pointers.

Returns: reference to current content item (might be invalid)

◆ getCurrentNode()

virtual const DSRDocumentTreeNode* DSRDocumentSubTree::getCurrentNode ( ) const

virtual

get read-only access to current node (content item)

Returns: pointer to current node (might be NULL)

◆ getCursorToRootNode() [1/2]

virtual OFBool DSRDocumentSubTree::getCursorToRootNode ( DSRDocumentTreeNodeCursor & cursor ) const

virtual

get a cursor to the root node of this document tree.

This cursor can be used to iterate over the nodes of the document tree without changing the internal cursor. Please note that the cursor might become invalid, e.g. by pointing to a non-existing node if the content of the document tree is modified after the cursor has been retrieved. Included sub-templates are not supported by this type of cursor, i.e. the subtree that is managed by an instance of DSRIncludedTemplateTreeNode is not iterated.

Parameters

cursor reference to variable where the cursor is stored

Returns: OFTrue is the returned 'cursor' is valid, OFFalse otherwise

◆ getCursorToRootNode() [2/2]

virtual OFBool DSRDocumentSubTree::getCursorToRootNode ( DSRIncludedTemplateNodeCursor & cursor ) const

virtual

get a cursor to the root node of this document tree.

This cursor can be used to iterate over the nodes of the document tree without changing the internal cursor. Please note that the cursor might become invalid, e.g. by pointing to a non-existing node if the content of the document tree is modified after the cursor has been retrieved. This type of cursor also supports included sub-templates, i.e. the subtree that is managed by an instance of DSRIncludedTemplateTreeNode is also iterated.

Parameters

cursor reference to variable where the cursor is stored

Returns: OFTrue is the returned 'cursor' is valid, OFFalse otherwise

◆ getNode()

virtual DSRDocumentTreeNode* DSRDocumentSubTree::getNode ( ) const

protectedvirtual

get pointer to current node.

Hide this inherited method from the public interface.

Returns: pointer to current node (might be NULL)

Reimplemented from DSRTreeNodeCursor< DSRDocumentTreeNode >.

◆ getTemplateIdentification() [1/2]

virtual OFCondition DSRDocumentSubTree::getTemplateIdentification	(	OFString &	templateIdentifier,
		OFString &	mappingResource
	)		const

virtual

get template identifier and mapping resource from the root node of this tree.

See DSRDocumentTreeNode::getTemplateIdentification() for details on template identification. Please note that the template identification is only retrieved if there is a single node at the root of the tree and its value type is CONTAINER.

Parameters

templateIdentifier	identifier of the template (might be empty)
mappingResource	mapping resource that defines the template (might be empty)

Returns: status, EC_Normal if successful, an error code otherwise

◆ getTemplateIdentification() [2/2]

virtual OFCondition DSRDocumentSubTree::getTemplateIdentification	(	OFString &	templateIdentifier,
		OFString &	mappingResource,
		OFString &	mappingResourceUID
	)		const

virtual

get template identifier, mapping resource and optional mapping resource UID from the root node of this tree.

See DSRDocumentTreeNode::getTemplateIdentification() for details on template identification. Please note that the template identification is only retrieved if there is a single node at the root of the tree and its value type is CONTAINER.

Parameters

templateIdentifier	identifier of the template (might be empty)
mappingResource	mapping resource that defines the template (might be empty)
mappingResourceUID	uniquely identifies the mapping resource (might be empty)

Returns: status, EC_Normal if successful, an error code otherwise

◆ gotoAnnotatedNode()

virtual size_t DSRDocumentSubTree::gotoAnnotatedNode	(	const OFString &	annotationText,
		const OFBool	startFromRoot = `OFTrue`
	)

virtual

set internal cursor to an annotated node.

If more than one node exists with the given annotation text, the first one will be selected. Use gotoNextAnnotatedNode() in order to go to the next matching node. In contrast to gotoNamedNode(), a "deep search" is always performed.

Parameters

annotationText	annotation text of the node to be searched for
startFromRoot	flag indicating whether to start from the root node or the current one

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNamedChildNode()

virtual size_t DSRDocumentSubTree::gotoNamedChildNode ( const DSRCodedEntryValue & conceptName )

virtual

set internal cursor to a named node (starting from the first child of the current node and searching on this level only).

This is just a shortcut for calling gotoChild() followed by gotoNamedNode() with 'searchIntoSub' being OFFalse, i.e. only the first sub-level is checked. If more than one node exists with the given concept name, the first one will be selected.

Parameters

conceptName concept name of the node to be searched for

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNamedNode()

virtual size_t DSRDocumentSubTree::gotoNamedNode	(	const DSRCodedEntryValue &	conceptName,
		const OFBool	startFromRoot = `OFTrue`,
		const OFBool	searchIntoSub = `OFTrue`
	)

virtual

set internal cursor to a named node.

If more than one node exists with the given concept name, the first one will be selected. Use gotoNextNamedNode() in order to go to the next matching node.

Parameters

conceptName	concept name of the node to be searched for
startFromRoot	flag indicating whether to start from the root node or the current one
searchIntoSub	flag indicating whether to search into sub-trees ("deep search") or on the current level only

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNamedNodeInSubTree()

virtual size_t DSRDocumentSubTree::gotoNamedNodeInSubTree	(	const DSRCodedEntryValue &	conceptName,
		const OFBool	searchIntoSub = `OFTrue`
	)

virtual

set internal cursor to a named node in the subtree below the current node.

If more than one node exists with the given concept name, the first one will be selected. If the current node has no children, the cursor is not moved.

Parameters

conceptName	concept name of the node to be searched for
searchIntoSub	flag indicating whether to search into sub-trees ("deep search") or on the first sub-level only

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNextAnnotatedNode()

virtual size_t DSRDocumentSubTree::gotoNextAnnotatedNode ( const OFString & annotationText )

virtual

set internal cursor to the next annotated node.

Starts from "next" node, i.e. either the first child of the current node or the first sibling following the current node.

Parameters

annotationText annotation text of the node to be searched for

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNextNamedNode()

virtual size_t DSRDocumentSubTree::gotoNextNamedNode	(	const DSRCodedEntryValue &	conceptName,
		const OFBool	searchIntoSub = `OFTrue`
	)

virtual

set internal cursor to the next named node.

Starts from "next" node, i.e. either the first child of the current node or the first sibling following the current node.

Parameters

conceptName	concept name of the node to be searched for
searchIntoSub	flag indicating whether to search into sub-trees ("deep search") or on the current level only

Returns: ID of the new current node if successful, 0 otherwise

◆ hasTemplateIdentification()

virtual OFBool DSRDocumentSubTree::hasTemplateIdentification ( ) const

virtual

check whether template identification is set

Returns: OFTrue if template identification is set, OFFalse otherwise

◆ includeTemplate()

virtual OFCondition DSRDocumentSubTree::includeTemplate	(	const DSRSharedSubTemplate &	subTemplate,
		const E_AddMode	addMode = `AM_belowCurrent`,
		const E_RelationshipType	defaultRelType = `RT_unknown`
	)

protectedvirtual

include specified sub-template, i.e. add a new DSRIncludedTemplateTreeNode, which references this template, to the current content item.

Please note that no checks are performed that would make sure that the template with its top-level nodes can actually be added, e.g. by using an IOD constraint checker. This is also the reason why this method is "protected" and not "public", i.e. it can only be used by derived classes, e.g. DSRSubTemplate and its children.

Parameters

subTemplate	shared pointer to a sub-template that should be included into this tree (at the current position)
addMode	flag specifying at which position to add the 'subTemplate' (e.g. after or below the current node)
defaultRelType	default relationship type that will be used when the subtree that is managed by the 'subTemplate' is inserted into this tree and the relationship type of one of the top-level nodes is "unknown". Also see documentation of createExpandedSubTree().

Returns: status, EC_Normal if successful, an error code otherwise

◆ insertSubTree()

virtual OFCondition DSRDocumentSubTree::insertSubTree	(	DSRDocumentSubTree *	tree,
		const E_AddMode	addMode = `AM_belowCurrent`,
		const E_RelationshipType	defaultRelType = `RT_unknown`,
		const OFBool	deleteIfFail = `OFFalse`
	)

virtual

insert specified subtree to this tree, i.e. add it to the current content item.

If possible, this method adds a given new subtree to the current content item. The method canInsertSubTree() is called internally to check the parameters first. Please note that no copy of the given subtree is created. Therefore, the subtree has to be created with new() or with cloneSubTree() - do not use a reference to a local variable and do not delete it a second time.

Parameters

tree	pointer to new subtree to be inserted (should not be empty). Reference becomes invalid after successful insertion!
addMode	flag specifying at which position to add the new subtree (e.g. after or below the current node)
defaultRelType	default relationship type between the top-level nodes of the given subtree and the current node. This relationship type is used if the one of a top-level node is "unknown".
deleteIfFail	flag specifying whether to delete the given 'tree' if adding fails. By default, the tree is not deleted, i.e. in case of error it has to be deleted by the caller.

Returns: status, EC_Normal if successful, an error code otherwise

◆ isCursorValid()

virtual OFBool DSRDocumentSubTree::isCursorValid ( ) const

virtual

check whether the internal cursor, which points to the current content item, is valid

Returns: OFTrue if cursor is valid, OFFalse otherwise

◆ isExpandedDocumentTree()

virtual OFBool DSRDocumentSubTree::isExpandedDocumentTree ( ) const

virtual

check whether this subtree is an expanded document tree.

Expanded means that no instances of DSRIncludedTemplateTreeNode exist in the document tree, i.e. no templates were included or all of them were replaced by their content (subtree).

Returns: OFTrue if subtree is an expanded document tree, OFFalse otherwise

◆ isValid()

virtual OFBool DSRDocumentSubTree::isValid ( ) const

virtual

check whether the current internal state is valid.

A subtree is valid if it is not empty.

Returns: OFTrue if valid, OFFalse otherwise

Reimplemented from DSRTreeNodeCursor< DSRDocumentTreeNode >.

Reimplemented in DSRRootTemplate, TID1500_MeasurementReport, DSRSubTemplate, TID1600_ImageLibrary, TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >, and DSRDocumentTree.

◆ isValidDocumentTree()

virtual OFBool DSRDocumentSubTree::isValidDocumentTree ( const E_RelationshipType defaultRelType = RT_unknown ) const

virtual

check whether this subtree is a valid document tree.

In order to be a valid document tree, there should be a single root node only, with the value type "CONTAINER", and the internal relationship type of this node should be DSRTypes::RT_isRoot.

Parameters

defaultRelType default relationship type that is used if the one of the top-level node (root node) is "unknown"

Returns: OFTrue if subtree is a valid document tree, OFFalse otherwise

◆ operator=()

DSRDocumentSubTree& DSRDocumentSubTree::operator= ( DSRDocumentSubTree tree )

assignment operator.

Please note that internally the copy constructor is used, so the same comments apply.

Parameters

tree	subtree to be copied

Returns: reference to this subtree after copying

◆ print()

virtual OFCondition DSRDocumentSubTree::print	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags = `0`,
		const DSRPositionCounter *	posCounter = `NULL`
	)

virtual

print current SR document tree to specified output stream

Parameters

stream	output stream
flags	optional flag used to customize the output (see DSRTypes::PF_xxx)
posCounter	optional pointer to position counter that should be used to initialize the counter for line indentation or numbering of nested content items

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRDocumentTree.

Referenced by DSRDocumentTree::getDocumentType().

◆ removeCurrentContentItem()

virtual size_t DSRDocumentSubTree::removeCurrentContentItem ( )

virtual

remove current content item from tree.

Please note that not only the specified node but also all of its child nodes are removed from the tree and then deleted. The internal cursor is set automatically to a new valid position.

Returns: ID of the node which became the current one after deletion, 0 if an error occurred or the tree is now empty.

◆ removeNode()

virtual size_t DSRDocumentSubTree::removeNode ( )

protectedvirtual

remove current node from tree.

Please note that not only the specified node but also all of his child nodes are removed from the tree and deleted afterwards. The cursor is set automatically to a new valid position.

Returns: ID of the node which became the current one after deletion, 0 if an error occurred or the tree is now empty.

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ removeSubTree()

virtual OFCondition DSRDocumentSubTree::removeSubTree ( const size_t searchID = 0 )

virtual

remove a subtree from this tree.

The subtree to be removed (and deleted) is either specified by the current node or by the node with the given ID. Afterwards, the internal cursor is set automatically to a new valid position. It would be an error to remove a subtree from an empty tree.

Parameters

searchID ID of the root node specifying the subtree to be removed. By default (0), the current node is used.

Returns: status, EC_Normal if successful, an error code otherwise

◆ replaceNode()

virtual size_t DSRDocumentSubTree::replaceNode ( DSRDocumentTreeNode * node )

protectedvirtual

replace current node by the given one.

Please note that no copy of the given node is created. Therefore, the node should be created with new() - do not use a reference to a local variable. If the node could be replaced successfully, the "old" node (and all of its child nodes) are deleted, and the cursor is set to the new one.

Parameters

node	pointer to the new node to replace the current one

Returns: ID of the new node if successful, 0 otherwise

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ resetReferenceTargetFlag()

virtual void DSRDocumentSubTree::resetReferenceTargetFlag ( )

protectedvirtual

reset flag for all content items whether they are target of a by-reference relationship.

This function calls 'setReferenceTarget(OFFalse)' for all content items in the tree.

◆ setTemplateIdentification()

virtual OFCondition DSRDocumentSubTree::setTemplateIdentification	(	const OFString &	templateIdentifier,
		const OFString &	mappingResource,
		const OFString &	mappingResourceUID = `""`,
		const OFBool	check = `OFTrue`
	)

virtual

set template identifier and mapping resource to the root node of this tree.

The identification is valid if the first two values are either present (non-empty) or all three values are absent (empty). See DSRDocumentTreeNode::getTemplateIdentification() for details. Please note that the template identification is only set if there is a single node at the root of the tree and its value type is CONTAINER.

Parameters

templateIdentifier	identifier of the template to be set
mappingResource	mapping resource that defines the template
mappingResourceUID	uniquely identifies the mapping resource (optional)
check	check 'templateIdentifier', 'mappingResource' and 'mappingResourceUID' for conformance with VR (CS,UI) and VM (1) if enabled

Returns: status, EC_Normal if successful, an error code otherwise

◆ swap()

void DSRDocumentSubTree::swap ( DSRDocumentSubTree & tree )

protected

fast, non-throwing swap function.

The time complexity of this function is constant.

Parameters

tree	subtree to swap with

Referenced by DSRDocumentTree::getDocumentType(), and DSRContentItem::setTreeNode().

◆ updateByReferenceRelationships()

virtual OFCondition DSRDocumentSubTree::updateByReferenceRelationships ( const OFBool updateIncludedTemplates = OFFalse )

virtual

update the position strings used to encode by-reference relationships (if any).

Internally, this method calls checkByReferenceRelationships() with the 'mode' parameter being DSRTypes::CM_updatePositionString. It should be called before this subtree is cloned in order to make sure that the by-reference relationships (if any) still work on the cloned subtree. This method should also be called before accessing the position string of a referenced content item, see DSRByReferenceTreeNode::getReferencedContentItem().

Parameters

updateIncludedTemplates optional flag indicating whether to also update the subtrees managed by included sub-templates

Returns: status, EC_Normal if successful, an error code otherwise

◆ updateTreeForOutput()

virtual void DSRDocumentSubTree::updateTreeForOutput ( )

protectedvirtual

update the tree for subsequent output, e.g. for being printed or added to an SR document.

By default, this virtual function does nothing but is called automatically by the affected output methods and should be overwritten in derived classes.

Reimplemented in DSRRootTemplate, and DSRSubTemplate.

◆ writeXML()

virtual OFCondition DSRDocumentSubTree::writeXML	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags = `0`
	)

virtual

write current SR document tree in XML format

Parameters

stream	output stream to which the XML document is written
flags	optional flag used to customize the output (see DSRTypes::XF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

The documentation for this class was generated from the following file:

dcmsr/include/dcmtk/dcmsr/dsrdocst.h

Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DSRDocumentSubTree() [1/3]

◆ DSRDocumentSubTree() [2/3]

◆ DSRDocumentSubTree() [3/3]

Member Function Documentation

◆ addByReferenceRelationship()

◆ addChildContentItem()

◆ addContentItem() [1/3]

◆ addContentItem() [2/3]

◆ addContentItem() [3/3]

◆ addNode()

◆ canAddByReferenceRelationship()

◆ canAddContentItem()

◆ canInsertSubTree()

◆ canUseTemplateIdentification()

◆ checkByReferenceRelationships()

◆ checkSubTreeConstraints()

◆ clone()

◆ cloneCurrentTreeNode()

◆ cloneSubTree()

◆ compareTemplateIdentification()

◆ countNodes()

◆ createExpandedSubTree()

◆ expandIncludedTemplates()

◆ extractNode()

◆ extractSubTree()

◆ getAndRemoveRootNode()

◆ getCurrentContentItem()

◆ getCurrentNode()

◆ getCursorToRootNode() [1/2]

◆ getCursorToRootNode() [2/2]

◆ getNode()

◆ getTemplateIdentification() [1/2]

◆ getTemplateIdentification() [2/2]

◆ gotoAnnotatedNode()

◆ gotoNamedChildNode()

◆ gotoNamedNode()

◆ gotoNamedNodeInSubTree()

◆ gotoNextAnnotatedNode()

◆ gotoNextNamedNode()

◆ hasTemplateIdentification()

◆ includeTemplate()

◆ insertSubTree()

◆ isCursorValid()

◆ isExpandedDocumentTree()

◆ isValid()

◆ isValidDocumentTree()

◆ operator=()

◆ print()

◆ removeCurrentContentItem()

◆ removeNode()

◆ removeSubTree()

◆ replaceNode()

◆ resetReferenceTargetFlag()

◆ setTemplateIdentification()

◆ swap()

◆ updateByReferenceRelationships()

◆ updateTreeForOutput()

◆ writeXML()
