Base class for content items. More...

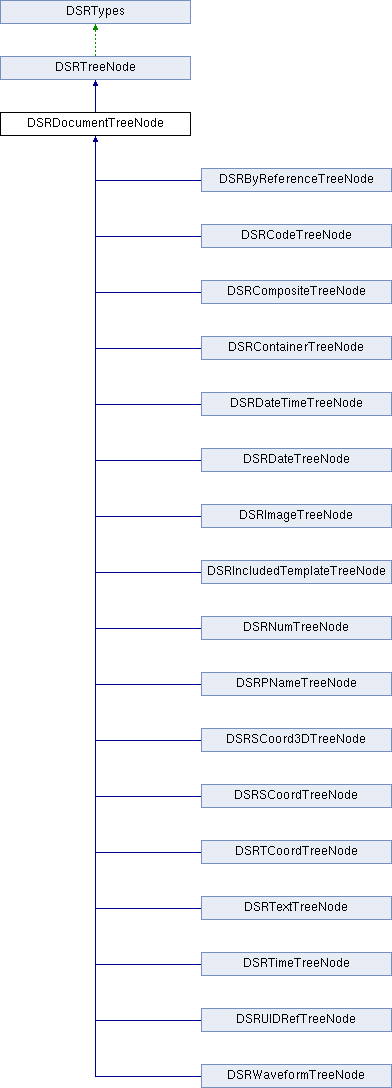

Inheritance diagram for DSRDocumentTreeNode:
Public Member Functions | |
| DSRDocumentTreeNode (const E_RelationshipType relationshipType, const E_ValueType valueType) | |
| constructor. More... | |
| DSRDocumentTreeNode (const DSRDocumentTreeNode &node) | |
| copy constructor. More... | |
| virtual | ~DSRDocumentTreeNode () |
| destructor | |
| virtual DSRDocumentTreeNode * | clone () const =0 |
| clone this tree node (abstract). More... | |
| virtual void | clear () |
| clear all member variables. More... | |
| virtual OFBool | isValid () const |
| check whether the content item is valid. More... | |
| virtual OFBool | hasValidValue () const |
| check whether the value of the content item is valid. More... | |
| virtual OFBool | isShort (const size_t flags) const |
| check whether the content is short. More... | |
| virtual OFBool | hasTemplateIdentification () const |
| check whether template identification is set More... | |
| virtual OFCondition | print (STD_NAMESPACE ostream &stream, const size_t flags) const |
| print content item. More... | |
| virtual OFCondition | printExtended (STD_NAMESPACE ostream &stream, const size_t flags) const |
| print extended information on the content item. More... | |
| virtual OFCondition | read (DcmItem &dataset, const DSRIODConstraintChecker *constraintChecker, const size_t flags) |
| read content item from dataset. More... | |
| virtual OFCondition | write (DcmItem &dataset, DcmStack *markedItems=NULL) |
| write content item to dataset. More... | |
| virtual OFCondition | readXML (const DSRXMLDocument &doc, DSRXMLCursor cursor, const E_DocumentType documentType, const size_t flags) |
| read general XML document tree node data More... | |
| virtual OFCondition | writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const |
| write content item in XML format More... | |
| virtual OFCondition | renderHTML (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags) const |
| render content item in HTML/XHTML format. More... | |
| OFBool | isSigned () |
| check whether content item is digitally signed. More... | |
| OFBool | isMarked () const |
| check whether content item is marked. More... | |
| void | setMark (const OFBool flag) |
| mark/unmark the current content item. More... | |
| OFBool | isReferenceTarget () const |
| check whether the current content item is target of a by-reference relationship More... | |
| void | setReferenceTarget (const OFBool isTarget=OFTrue) |
| specify whether the current content item is target of a by-reference relationship More... | |
| OFBool | hasChildNodes () const |
| check whether the current content item has any children More... | |
| OFBool | hasSiblingNodes () const |
| check whether the current content item has any siblings More... | |
| size_t | getNodeID () const |
| get ID of the current tree node More... | |
| E_RelationshipType | getRelationshipType () const |
| get relationship type of the current content item More... | |
| virtual OFCondition | setRelationshipType (const E_RelationshipType relationshipType) |
| set relationship type of the current content item (if previously unknown). More... | |
| E_ValueType | getValueType () const |
| get value type of the current content item More... | |
| const DSRCodedEntryValue & | getConceptName () const |
| get reference to the concept name More... | |
| virtual OFCondition | getConceptName (DSRCodedEntryValue &conceptName) const |
| get copy of the concept name. More... | |
| virtual OFCondition | setConceptName (const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue) |
| set the concept name. More... | |
| const OFString & | getObservationDateTime () const |
| get observation date/time. More... | |
| virtual OFCondition | setObservationDateTime (const OFString &observationDateTime, const OFBool check=OFTrue) |
| set observation date/time. More... | |
| virtual OFCondition | setObservationDateTime (const DcmElement &delem, const unsigned long pos=0, const OFBool check=OFTrue) |
| set observation date/time from element. More... | |
| virtual OFCondition | setObservationDateTime (DcmItem &dataset, const DcmTagKey &tagKey, const unsigned long pos=0, const OFBool check=OFTrue) |
| set observation date/time from dataset. More... | |
| const OFString & | getObservationUID () const |
| get observation unique identifier. More... | |
| virtual OFCondition | setObservationUID (const OFString &observationUID, const OFBool check=OFTrue) |
| set observation unique identifier. More... | |
| virtual OFBool | compareTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
| compare template identification with given values More... | |
| virtual OFCondition | getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource) const |
| get template identifier and mapping resource. More... | |
| virtual OFCondition | getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource, OFString &mappingResourceUID) const |
| get template identifier, mapping resource and optional mapping resource UID. More... | |
| virtual OFCondition | setTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="", const OFBool check=OFTrue) |
| set template identifier and mapping resource. More... | |
| void | removeSignatures () |
| remove digital signatures from content item. More... | |
| Public Member Functions inherited from DSRTreeNode | |
| DSRTreeNode (const DSRTreeNodeAnnotation &annotation=DSRTreeNodeAnnotation()) | |
| (default) constructor More... | |
| virtual | ~DSRTreeNode () |
| destructor | |
| DSRTreeNode * | getPrev () const |
| get pointer to previous tree node More... | |
| DSRTreeNode * | getNext () const |
| get pointer to next tree node More... | |
| DSRTreeNode * | getDown () const |
| get pointer to first child node More... | |
| size_t | getIdent () const |
| get unique identifier of this node More... | |
| OFBool | hasAnnotation () const |
| check whether this node has a (non-empty) annotation More... | |
| void | clearAnnotation () |
| clear annotation of this node | |
| const DSRTreeNodeAnnotation & | getAnnotation () const |
| get annotation of this node (optional) More... | |
| void | setAnnotation (const DSRTreeNodeAnnotation &annotation) |
| set annotation of this node (optional) More... | |
Protected Member Functions | |
| DSRCodedEntryValue * | getConceptNamePtr () |
| get pointer to the concept name More... | |
| DSRDocumentTreeNode * | getPrev () const |
| get pointer to previous tree node More... | |
| DSRDocumentTreeNode * | getNext () const |
| get pointer to next tree node More... | |
| DSRDocumentTreeNode * | getDown () const |
| get pointer to first child node More... | |
| size_t | getIdent () const |
| get unique identifier of this node More... | |
| OFCondition | createAndAppendNewNode (DSRDocumentTreeNode *&previousNode, const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRIODConstraintChecker *constraintChecker=NULL) |
| create a new node and append it to the current one More... | |
| virtual OFCondition | readContentItem (DcmItem &dataset, const size_t flags) |
| read content item (value) from dataset. More... | |
| virtual OFCondition | writeContentItem (DcmItem &dataset) const |
| write content item (value) to dataset. More... | |
| virtual OFCondition | readXMLContentItem (const DSRXMLDocument &doc, DSRXMLCursor cursor, const size_t flags) |
| read content item specific XML data. More... | |
| virtual OFCondition | renderHTMLContentItem (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags) const |
| render content item (value) in HTML/XHTML format. More... | |
| void | writeXMLItemStart (STD_NAMESPACE ostream &stream, const size_t flags, const OFBool closingBracket=OFTrue) const |
| write common item start (XML tag) More... | |
| void | writeXMLItemEnd (STD_NAMESPACE ostream &stream, const size_t flags) const |
| write common item start (XML tag) More... | |
| OFCondition | readSRDocumentContentModule (DcmItem &dataset, const DSRIODConstraintChecker *constraintChecker, const size_t flags) |
| read SR document content module More... | |
| OFCondition | writeSRDocumentContentModule (DcmItem &dataset, DcmStack *markedItems) |
| write SR document content module More... | |
| OFCondition | readDocumentRelationshipMacro (DcmItem &dataset, const DSRIODConstraintChecker *constraintChecker, const OFString &posString, const size_t flags) |
| read document relationship macro More... | |
| OFCondition | writeDocumentRelationshipMacro (DcmItem &dataset, DcmStack *markedItems) |
| write document relationship macro More... | |
| OFCondition | readDocumentContentMacro (DcmItem &dataset, const OFString &posString, const size_t flags) |
| read document content macro More... | |
| OFCondition | writeDocumentContentMacro (DcmItem &dataset) const |
| write document content macro More... | |
| OFCondition | readContentSequence (DcmItem &dataset, const DSRIODConstraintChecker *constraintChecker, const OFString &posString, const size_t flags) |
| read content sequence More... | |
| OFCondition | writeContentSequence (DcmItem &dataset, DcmStack *markedItems) const |
| write content sequence More... | |
| OFCondition | renderHTMLConceptName (STD_NAMESPACE ostream &docStream, const size_t flags) const |
| render concept name in HTML/XHTML format. More... | |
| OFCondition | renderHTMLChildNodes (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags) const |
| render child nodes in HTML/XHTML format More... | |
| Protected Member Functions inherited from DSRTypes | |
| virtual | ~DSRTypes () |
| destructor. More... | |
Static Protected Member Functions | |
| static const OFString & | getRelationshipText (const E_RelationshipType relationshipType, OFString &relationshipText, const size_t flags) |
| convert relationship type into a text used for HTML rendering More... | |
| static OFBool | checkTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID) |
| check the specified template identification values for validity. More... | |
| Static Protected Member Functions inherited from DSRTreeNode | |
| static size_t | getIdentCounter () |
| get current value of global node counter More... | |
| Static Protected Member Functions inherited from DSRTypes | |
| static const char * | documentTypeToSOPClassUID (const E_DocumentType documentType) |
| convert SR document type to SOP class UID More... | |
| static const char * | documentTypeToModality (const E_DocumentType documentType) |
| convert SR document type to modality More... | |
| static const char * | documentTypeToReadableName (const E_DocumentType documentType) |
| convert SR document type to readable name. More... | |
| static const char * | documentTypeToDocumentTitle (const E_DocumentType documentType, OFString &documentTitle) |
| convert SR document type to document title. More... | |
| static OFBool | requiresEnhancedEquipmentModule (const E_DocumentType documentType) |
| check whether SR document type requires Enhanced General Equipment Module More... | |
| static OFBool | requiresTimezoneModule (const E_DocumentType documentType) |
| check whether SR document type requires Timezone Module More... | |
| static const char * | relationshipTypeToDefinedTerm (const E_RelationshipType relationshipType) |
| convert relationship type to DICOM defined term More... | |
| static const char * | relationshipTypeToReadableName (const E_RelationshipType relationshipType) |
| convert relationship type to readable name. More... | |
| static const char * | valueTypeToDefinedTerm (const E_ValueType valueType) |
| convert value type to DICOM defined term More... | |
| static const char * | valueTypeToXMLTagName (const E_ValueType valueType) |
| convert value type to XML tag name More... | |
| static const char * | valueTypeToReadableName (const E_ValueType valueType) |
| convert value type to readable name. More... | |
| static const char * | presentationStateTypeToShortName (const E_PresentationStateType pstateType) |
| convert presentation state type to short name. More... | |
| static const char * | graphicTypeToEnumeratedValue (const E_GraphicType graphicType) |
| convert graphic type to DICOM enumerated value More... | |
| static const char * | graphicTypeToReadableName (const E_GraphicType graphicType) |
| convert graphic type to readable name. More... | |
| static const char * | graphicType3DToEnumeratedValue (const E_GraphicType3D graphicType) |
| convert graphic type (3D) to DICOM enumerated value More... | |
| static const char * | graphicType3DToReadableName (const E_GraphicType3D graphicType) |
| convert graphic type (3D) to readable name. More... | |
| static const char * | temporalRangeTypeToEnumeratedValue (const E_TemporalRangeType temporalRangeType) |
| convert temporal range type to DICOM enumerated value More... | |
| static const char * | temporalRangeTypeToReadableName (const E_TemporalRangeType temporalRangeType) |
| convert temporal range type to readable name. More... | |
| static const char * | continuityOfContentToEnumeratedValue (const E_ContinuityOfContent continuityOfContent) |
| convert continuity of content flag to DICOM enumerated value More... | |
| static const char * | preliminaryFlagToEnumeratedValue (const E_PreliminaryFlag preliminaryFlag) |
| convert preliminary flag to DICOM enumerated value More... | |
| static const char * | completionFlagToEnumeratedValue (const E_CompletionFlag completionFlag) |
| convert completion flag to DICOM enumerated value More... | |
| static const char * | verificationFlagToEnumeratedValue (const E_VerificationFlag verificationFlag) |
| convert verification flag to DICOM enumerated value More... | |
| static const char * | characterSetToDefinedTerm (const E_CharacterSet characterSet) |
| convert character set to DICOM defined term More... | |
| static const char * | characterSetToHTMLName (const E_CharacterSet characterSet) |
| convert character set to HTML name. More... | |
| static const char * | characterSetToXMLName (const E_CharacterSet characterSet) |
| convert character set to XML name. More... | |
| static E_DocumentType | sopClassUIDToDocumentType (const OFString &sopClassUID) |
| convert SOP class UID to SR document type More... | |
| static E_RelationshipType | definedTermToRelationshipType (const OFString &definedTerm) |
| convert DICOM defined term to relationship type More... | |
| static E_ValueType | definedTermToValueType (const OFString &definedTerm) |
| convert DICOM defined term to value type More... | |
| static E_PresentationStateType | sopClassUIDToPresentationStateType (const OFString &sopClassUID) |
| convert SOP class UID to presentation state type More... | |
| static E_ValueType | xmlTagNameToValueType (const OFString &xmlTagName) |
| convert XML tag name to value type More... | |
| static E_GraphicType | enumeratedValueToGraphicType (const OFString &enumeratedValue) |
| convert DICOM enumerated value to graphic type More... | |
| static E_GraphicType3D | enumeratedValueToGraphicType3D (const OFString &enumeratedValue) |
| convert DICOM enumerated value to graphic type (3D) More... | |
| static E_TemporalRangeType | enumeratedValueToTemporalRangeType (const OFString &enumeratedValue) |
| convert DICOM enumerated value to temporal range type More... | |
| static E_ContinuityOfContent | enumeratedValueToContinuityOfContent (const OFString &enumeratedValue) |
| convert DICOM enumerated value to continuity of content flag More... | |
| static E_PreliminaryFlag | enumeratedValueToPreliminaryFlag (const OFString &enumeratedValue) |
| convert DICOM enumerated value to preliminary flag More... | |
| static E_CompletionFlag | enumeratedValueToCompletionFlag (const OFString &enumeratedValue) |
| convert DICOM enumerated value to completion flag More... | |
| static E_VerificationFlag | enumeratedValueToVerificationFlag (const OFString &enumeratedValue) |
| convert DICOM enumerated value to verification flag More... | |
| static E_CharacterSet | definedTermToCharacterSet (const OFString &definedTerm) |
| convert DICOM defined term to character set. More... | |
| static OFBool | isDocumentTypeSupported (const E_DocumentType documentType) |
| check whether specified SR document type is supported by this library More... | |
| static const OFString & | currentDate (OFString &dateString) |
| get current date in DICOM 'DA' format. More... | |
| static const OFString & | currentTime (OFString &timeString) |
| get current time in DICOM 'TM' format. More... | |
| static const OFString & | currentDateTime (OFString &dateTimeString) |
| get current date and time in DICOM 'DT' format. More... | |
| static const OFString & | localTimezone (OFString &timezoneString) |
| get local timezone in DICOM format. More... | |
| static const OFString & | dicomToReadableDate (const OFString &dicomDate, OFString &readableDate) |
| convert DICOM date string to readable format. More... | |
| static const OFString & | dicomToReadableTime (const OFString &dicomTime, OFString &readableTime) |
| convert DICOM time string to readable format. More... | |
| static const OFString & | dicomToReadableDateTime (const OFString &dicomDateTime, OFString &readableDateTime) |
| convert DICOM date time string to readable format. More... | |
| static const OFString & | dicomToReadablePersonName (const OFString &dicomPersonName, OFString &readablePersonName) |
| convert DICOM person name to readable format. More... | |
| static const OFString & | dicomToXMLPersonName (const OFString &dicomPersonName, OFString &xmlPersonName, const OFBool writeEmptyValue=OFFalse) |
| convert DICOM person name to XML format. More... | |
| static const char * | numberToString (const size_t number, char *stringValue) |
| convert unsigned integer number to character string More... | |
| static size_t | stringToNumber (const char *stringValue) |
| convert string to unsigned integer number More... | |
| static const OFString & | convertToPrintString (const OFString &sourceString, OFString &printString) |
| convert character string to print string. More... | |
| static const OFString & | convertToHTMLString (const OFString &sourceString, OFString &markupString, const size_t flags=0, const OFBool newlineAllowed=OFFalse) |
| convert character string to HTML mnenonic string. More... | |
| static const OFString & | convertToXMLString (const OFString &sourceString, OFString &markupString) |
| convert character string to XML mnenonic string. More... | |
| static OFBool | checkForValidReference (const OFString &stringValue) |
| check string for valid reference (as used for by-reference relationships). More... | |
| static DSRIODConstraintChecker * | createIODConstraintChecker (const E_DocumentType documentType) |
| create specified SR IOD content relationship constraint checker object. More... | |
| static DSRDocumentTreeNode * | createDocumentTreeNode (const E_RelationshipType relationshipType, const E_ValueType valueType) |
| create specified document tree node. More... | |
| static OFCondition | addElementToDataset (OFCondition &result, DcmItem &dataset, DcmElement *delem, const OFString &vm, const OFString &type, const char *moduleName=NULL) |
| add given element to the dataset. More... | |
| static void | removeAttributeFromSequence (DcmSequenceOfItems &sequence, const DcmTagKey &tagKey) |
| remove given attribute from the sequence. More... | |
| static OFCondition | getElementFromDataset (DcmItem &dataset, DcmElement &delem) |
| get element from dataset More... | |
| static const char * | getStringValueFromElement (const DcmElement &delem) |
| get string value from element More... | |
| static const OFString & | getStringValueFromElement (const DcmElement &delem, OFString &stringValue) |
| get string value from element. More... | |
| static OFCondition | getStringValueFromElement (const DcmElement &delem, OFString &stringValue, const signed long pos) |
| get string value from element More... | |
| static const OFString & | getPrintStringFromElement (const DcmElement &delem, OFString &stringValue) |
| get string value from element and convert to "print" format. More... | |
| static const OFString & | getMarkupStringFromElement (const DcmElement &delem, OFString &stringValue, const OFBool convertNonASCII=OFFalse) |
| get string value from element and convert to HTML/XML. More... | |
| static OFCondition | getStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const signed long pos=0) |
| get string value from dataset More... | |
| static OFCondition | putStringValueToDataset (DcmItem &dataset, const DcmTag &tag, const OFString &stringValue, const OFBool allowEmpty=OFTrue) |
| put string value to dataset More... | |
| static OFBool | checkElementValue (DcmElement *delem, const DcmTagKey &tagKey, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
| check element value for correct value multiplicity and type. More... | |
| static OFBool | checkElementValue (DcmElement &delem, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
| check element value for correct value multiplicity and type. More... | |
| static OFCondition | getAndCheckElementFromDataset (DcmItem &dataset, DcmElement &delem, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
| get element from dataset and check it for correct value multiplicity and type. More... | |
| static OFCondition | getAndCheckStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
| get string value from dataset and check it for correct value multiplicity and type. More... | |
| static void | printInvalidContentItemMessage (const char *action, const DSRDocumentTreeNode *node, const char *location=NULL) |
| print the warning message that the current content item is invalid/incomplete. More... | |
| static void | printContentItemErrorMessage (const char *action, const OFCondition &result, const DSRDocumentTreeNode *node, const char *location=NULL) |
| print an error message for the current content item. More... | |
| static void | printUnknownValueWarningMessage (const char *valueName, const char *readValue=NULL, const char *action="Reading") |
| print a warning message that an unknown/unsupported value has been determined More... | |
| static OFBool | writeStringValueToXML (STD_NAMESPACE ostream &stream, const OFString &stringValue, const OFString &tagName, const OFBool writeEmptyValue=OFFalse) |
| write string value to XML output stream. More... | |
| static OFBool | writeStringFromElementToXML (STD_NAMESPACE ostream &stream, DcmElement &delem, const OFString &tagName, const OFBool writeEmptyValue=OFFalse) |
| write string value from DICOM element to XML output stream. More... | |
| static size_t | createHTMLAnnexEntry (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const OFString &referenceText, size_t &annexNumber, const size_t flags=0) |
| create an HTML annex entry with hyperlinks. More... | |
| static size_t | createHTMLFootnote (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &footnoteStream, size_t &footnoteNumber, const size_t nodeID, const size_t flags=0) |
| create an HTML footnote with hyperlinks More... | |
| static OFCondition | appendStream (STD_NAMESPACE ostream &mainStream, OFOStringStream &tempStream, const char *heading=NULL) |
| append one output stream to another. More... | |
Private Attributes | |
| OFBool | MarkFlag |
| flag indicating whether the content item is marked (e.g. used for digital signatures). More... | |
| OFBool | ReferenceTarget |
| flag indicating whether the content item is referenced (by-reference relationship). More... | |
| E_RelationshipType | RelationshipType |
| relationship type to the parent node (associated DICOM VR=CS, mandatory) | |
| const E_ValueType | ValueType |
| value type (associated DICOM VR=CS, mandatory) | |
| DSRCodedEntryValue | ConceptName |
| concept name (VR=SQ, conditional) | |
| OFString | ObservationDateTime |
| observation date/time (VR=DT, conditional) | |
| OFString | ObservationUID |
| observation unique identifier (VR=UI, optional) | |
| OFString | TemplateIdentifier |
| template identifier (VR=CS, mandatory in ContentTemplateSequence) | |
| OFString | MappingResource |
| mapping resource (VR=CS, mandatory in ContentTemplateSequence) | |
| OFString | MappingResourceUID |
| mapping resource UID (VR=UI, optional in ContentTemplateSequence) | |
| DcmSequenceOfItems | MACParameters |
| MAC parameters sequence (VR=SQ, optional) | |
| DcmSequenceOfItems | DigitalSignatures |
| digital signatures sequence (VR=SQ, optional) | |
Friends | |
| class | DSRTree< DSRDocumentTreeNode > |
| class | DSRTreeNodeCursor< DSRDocumentTreeNode, OFFalse > |
| class | DSRTreeNodeCursor< DSRDocumentTreeNode, OFTrue > |
| class | DSRContentItem |
Additional Inherited Members | |
| Protected Types inherited from DSRTypes | |
| enum | E_DocumentType { DT_invalid, DT_unknown = DT_invalid, DT_BasicTextSR, DT_EnhancedSR, DT_ComprehensiveSR, DT_KeyObjectSelectionDocument, DT_MammographyCadSR, DT_ChestCadSR, DT_ColonCadSR, DT_ProcedureLog, DT_XRayRadiationDoseSR, DT_SpectaclePrescriptionReport, DT_MacularGridThicknessAndVolumeReport, DT_ImplantationPlanSRDocument, DT_Comprehensive3DSR, DT_RadiopharmaceuticalRadiationDoseSR, DT_ExtensibleSR, DT_AcquisitionContextSR, DT_SimplifiedAdultEchoSR, DT_PatientRadiationDoseSR, DT_last = DT_PatientRadiationDoseSR } |
| SR document types. More... | |
| enum | E_RelationshipType { RT_invalid, RT_unknown, RT_isRoot, RT_contains, RT_hasObsContext, RT_hasAcqContext, RT_hasConceptMod, RT_hasProperties, RT_inferredFrom, RT_selectedFrom, RT_last = RT_selectedFrom } |
| SR relationship types. More... | |
| enum | E_ValueType { VT_invalid, VT_Text, VT_Code, VT_Num, VT_DateTime, VT_Date, VT_Time, VT_UIDRef, VT_PName, VT_SCoord, VT_SCoord3D, VT_TCoord, VT_Composite, VT_Image, VT_Waveform, VT_Container, VT_byReference, VT_includedTemplate, VT_last = VT_includedTemplate } |
| SR value types. More... | |
| enum | E_PresentationStateType { PT_invalid, PT_unknown = PT_invalid, PT_Grayscale, PT_Color, PT_PseudoColor, PT_Blending, PT_XAXRFGrayscale, PT_GrayscalePlanarMPR, PT_CompositingPlanarMPR, PT_AdvancedBlending, PT_VolumeRendering, PT_SegmentedVolumeRendering, PT_MultipleVolumeRendering, PT_last = PT_MultipleVolumeRendering } |
| Softcopy presentation state types. More... | |
| enum | E_GraphicType { GT_invalid, GT_unknown = GT_invalid, GT_Point, GT_Multipoint, GT_Polyline, GT_Circle, GT_Ellipse, GT_last = GT_Ellipse } |
| SR graphic types. More... | |
| enum | E_GraphicType3D { GT3_invalid, GT3_unknown = GT3_invalid, GT3_Point, GT3_Multipoint, GT3_Polyline, GT3_Polygon, GT3_Ellipse, GT3_Ellipsoid, GT3_last = GT3_Ellipsoid } |
| SR graphic types (3D). More... | |
| enum | E_TemporalRangeType { TRT_invalid, TRT_unknown = TRT_invalid, TRT_Point, TRT_Multipoint, TRT_Segment, TRT_Multisegment, TRT_Begin, TRT_End, TRT_last = TRT_End } |
| SR temporal range types. More... | |
| enum | E_ContinuityOfContent { COC_invalid, COC_Separate, COC_Continuous, COC_last = COC_Continuous } |
| SR continuity of content flag. More... | |
| enum | E_PreliminaryFlag { PF_invalid, PF_Preliminary, PF_Final, PF_last = PF_Final } |
| SR document preliminary flag. More... | |
| enum | E_CompletionFlag { CF_invalid, CF_Partial, CF_Complete, CF_last = CF_Complete } |
| SR document completion flag. More... | |
| enum | E_VerificationFlag { VF_invalid, VF_Unverified, VF_Verified, VF_last = VF_Verified } |
| SR document verification flag. More... | |
| enum | E_CharacterSet { CS_invalid, CS_unknown = CS_invalid, CS_ASCII, CS_default = CS_ASCII, CS_Latin1, CS_Latin2, CS_Latin3, CS_Latin4, CS_Cyrillic, CS_Arabic, CS_Greek, CS_Hebrew, CS_Latin5, CS_Thai, CS_Japanese, CS_Korean, CS_ChineseISO, CS_ChineseGB18030, CS_ChineseGBK, CS_UTF8, CS_last = CS_UTF8 } |
| Specific character set. More... | |
| enum | E_CodeValueType { CVT_auto, CVT_Short, CVT_Long, CVT_URN } |
| Code value type. More... | |
| enum | E_AddMode { AM_afterCurrent, AM_beforeCurrent, AM_belowCurrent, AM_belowCurrentBeforeFirstChild } |
| Add node mode. More... | |
| Protected Attributes inherited from DSRTreeNode | |
| DSRTreeNode * | Prev |
| pointer to previous tree node (if any) | |
| DSRTreeNode * | Next |
| pointer to next tree node (if any) | |
| DSRTreeNode * | Down |
| pointer to first child node (if any) | |
| DSRTreeNodeAnnotation | Annotation |
| annotation of the tree node (optional) | |
| Static Protected Attributes inherited from DSRTypes | |
| static const size_t | RF_readDigitalSignatures |
| read digital signatures from dataset | |
| static const size_t | RF_acceptUnknownRelationshipType |
| accept unknown/missing relationship type | |
| static const size_t | RF_acceptInvalidContentItemValue |
| accept invalid content item value (e.g. violation of VR or VM definition) | |
| static const size_t | RF_ignoreRelationshipConstraints |
| ignore relationship constraints for this document class | |
| static const size_t | RF_ignoreContentItemErrors |
| do not abort on content item errors (e.g. missing value type specific attributes) | |
| static const size_t | RF_skipInvalidContentItems |
| do not abort when detecting an invalid content item, skip invalid sub-tree instead | |
| static const size_t | RF_showCurrentlyProcessedItem |
| show the currently processed content item (e.g. "1.2.3") | |
| static const size_t | HF_neverExpandChildrenInline |
| external: never expand child nodes inline | |
| static const size_t | HF_alwaysExpandChildrenInline |
| external: always expand child nodes inline | |
| static const size_t | HF_renderInlineCodes |
| external: render codes even if they appear inline | |
| static const size_t | HF_useCodeDetailsTooltip |
| external: render code details as a tooltip (not with HTML 3.2) | |
| static const size_t | HF_renderConceptNameCodes |
| external: render concept name codes (default: code meaning only) | |
| static const size_t | HF_renderNumericUnitCodes |
| external: render the code of the numeric measurement unit | |
| static const size_t | HF_useCodeMeaningAsUnit |
| external: use code meaning for the numeric measurement unit (default: code value) | |
| static const size_t | HF_renderPatientTitle |
| external: use patient information as document title (default: document type) | |
| static const size_t | HF_renderNoDocumentHeader |
| external: render no general document information (header) | |
| static const size_t | HF_renderDcmtkFootnote |
| external: render dcmtk/dcmsr comment at the end of the document | |
| static const size_t | HF_renderFullData |
| external: render the full data of all content items | |
| static const size_t | HF_renderSectionTitlesInline |
| external: render section titles inline (default: separate paragraph) | |
| static const size_t | HF_copyStyleSheetContent |
| external: copy Cascading Style Sheet (CSS) content to HTML file | |
| static const size_t | HF_HTML32Compatibility |
| external: output compatible to HTML version 3.2 (default: 4.01) | |
| static const size_t | HF_XHTML11Compatibility |
| external: output compatible to XHTML version 1.1 (default: HTML 4.01) | |
| static const size_t | HF_addDocumentTypeReference |
| external: add explicit reference to HTML document type (DTD) | |
| static const size_t | HF_omitGeneratorMetaElement |
| external: omit generator meta element referring to the DCMTK | |
| static const size_t | HF_renderItemsSeparately |
| internal: render items separately (for container with SEPARATE flag) | |
| static const size_t | HF_renderItemInline |
| internal: expand items inline when they are short and have no child nodes | |
| static const size_t | HF_currentlyInsideAnnex |
| internal: content item is rendered fully inside the annex | |
| static const size_t | HF_createFootnoteReferences |
| internal: create footnote references | |
| static const size_t | HF_convertNonASCIICharacters |
| internal: convert non-ASCII characters (> #127) to &#nnn; | |
| static const size_t | HF_renderAllCodes |
| shortcut: render all codes | |
| static const size_t | HF_internalUseOnly |
| shortcut: filter all flags that are only used internally | |
| static const size_t | XF_writeEmptyTags |
| write: write all tags even if their value is empty | |
| static const size_t | XF_writeTemplateIdentification |
| write: write template identification information (TID and mapping resource) | |
| static const size_t | XF_alwaysWriteItemIdentifier |
| write: always write item identifier "id", not only when item is referenced | |
| static const size_t | XF_codeComponentsAsAttribute |
| write: encode code value, coding scheme designator and coding scheme version as attribute instead of element text | |
| static const size_t | XF_relationshipTypeAsAttribute |
| write: encode relationship type as attribute instead of element text | |
| static const size_t | XF_valueTypeAsAttribute |
| write: encode value type as attribute instead of element text | |
| static const size_t | XF_templateIdentifierAsAttribute |
| write: encode template identifier as attribute instead of element text | |
| static const size_t | XF_useDcmsrNamespace |
| write: add DCMSR namespace declaration to the XML output | |
| static const size_t | XF_addSchemaReference |
| write: add Schema reference to XML document | |
| static const size_t | XF_validateSchema |
| read: validate content of XML document against Schema | |
| static const size_t | XF_templateElementEnclosesItems |
| read/write: template identification element encloses content items | |
| static const size_t | XF_addCommentsForIncludedTemplate |
| write: add comments with details at beginning/end of included template (might be useful for debugging purposes) | |
| static const size_t | XF_acceptEmptyStudySeriesInstanceUID |
| read: accept empty Study/Series/SOP Instance UID attribute values (must be filled later) | |
| static const size_t | XF_encodeEverythingAsAttribute |
| shortcut: combines all XF_xxxAsAttribute write flags (see above) | |
| static const size_t | PF_printItemPosition |
| print item position ("1.2.3") instead of line indentation | |
| static const size_t | PF_shortenLongItemValues |
| shorten long item value (e.g. long texts) | |
| static const size_t | PF_printSOPInstanceUID |
| print SOP instance UID of referenced objects | |
| static const size_t | PF_printConceptNameCodes |
| print coding scheme designator/version and code value of concept names | |
| static const size_t | PF_printNoDocumentHeader |
| print no general document information (header) | |
| static const size_t | PF_printTemplateIdentification |
| print template identification (TID and mapping resource) | |
| static const size_t | PF_useANSIEscapeCodes |
| use ANSI escape codes for output | |
| static const size_t | PF_printLongSOPClassName |
| print long SOP class name of referenced objects (default: short name for images) | |
| static const size_t | PF_printSOPClassUID |
| print SOP class UID of referenced objects (instead of the name) | |
| static const size_t | PF_printInvalidCodes |
| print code triple for invalid codes (instead of the text "invalid code") | |
| static const size_t | PF_printNodeID |
| print node ID at the beginning of each line (might be useful for debugging purposes) | |
| static const size_t | PF_indicateEnhancedEncodingMode |
| indicate with a "*" that the "enhanced encoding mode" is used for codes | |
| static const size_t | PF_printAnnotation |
| print annotation of a content item (optional, e.g. user-defined information) | |
| static const size_t | PF_hideIncludedTemplateNodes |
| do not print internal "included template" nodes (position counter is still increased) | |
| static const size_t | PF_dontCountIncludedTemplateNodes |
| do not count internal "included template" nodes (only with PF_hideIncludedTemplateNodes) | |
| static const size_t | PF_printAllCodes |
| shortcut: print all codes (combines all PF_printXxxCodes flags, see above) | |
| static const size_t | CM_updatePositionString |
| update the position string using the node ID | |
| static const size_t | CM_updateNodeID |
| update the node ID using the position string | |
| static const size_t | CM_resetReferenceTargetFlag |
| reset the reference target flag for all nodes | |
| static const size_t | CB_maskPrintFlags |
| bit mask (filter) for valid print flags (see PF_xxx) | |
| static const size_t | CB_maskReadFlags |
| bit mask (filter) for valid read flags (see RF_xxx) | |
Detailed Description
Base class for content items.
Constructor & Destructor Documentation
◆ DSRDocumentTreeNode() [1/2]
| DSRDocumentTreeNode::DSRDocumentTreeNode | ( | const E_RelationshipType | relationshipType, |
| const E_ValueType | valueType | ||
| ) |
constructor.
The 'valueType' can never be changed after the tree node has been created (therefore, the corresponding member variable is declared "const").
- Parameters
-
relationshipType type of relationship to the parent tree node. Should not be DSRTypes::RT_invalid, and DSRTypes::RT_isRoot only for the root node. valueType value type of the associated content item. Should not be DSRTypes::VT_invalid.
◆ DSRDocumentTreeNode() [2/2]
| DSRDocumentTreeNode::DSRDocumentTreeNode | ( | const DSRDocumentTreeNode & | node | ) |
copy constructor.
Please note that the member variables of the base class DSRTreeNode are not copied because the new tree node is not (yet) part of a document tree. Furthermore, the following member variables of this class are also not copied but initialized with their respective default values:
- ReferenceTarget
- MACParameters
- DigitalSignatures
- Parameters
-
node tree node to be copied
Member Function Documentation
◆ checkTemplateIdentification()
|
staticprotected |
check the specified template identification values for validity.
The identification is valid if the first two values are either present (non-empty) or absent (empty). In the latter case, the third (optional) parameter also has to be empty.
- Parameters
-
templateIdentifier identifier of the template mappingResource mapping resource that defines the template mappingResourceUID uniquely identifies the mapping resource (optional)
- Returns
- OFTrue if template identification is valid, OFFalse otherwise
◆ clear()
|
virtual |
clear all member variables.
This does not apply to the relationship and value type since they are never changed.
Reimplemented in DSRByReferenceTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRPNameTreeNode, DSRTextTreeNode, DSRTimeTreeNode, DSRUIDRefTreeNode, DSRContainerTreeNode, DSRIncludedTemplateTreeNode, DSRCodeTreeNode, DSRCompositeTreeNode, DSRImageTreeNode, DSRNumTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, and DSRWaveformTreeNode.
◆ clone()
|
pure virtual |
clone this tree node (abstract).
Internally, the copy constructor is used, so the corresponding comments apply.
- Returns
- copy of this tree node
Reimplemented from DSRTreeNode.
Implemented in DSRByReferenceTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRTextTreeNode, DSRTimeTreeNode, DSRUIDRefTreeNode, DSRPNameTreeNode, DSRContainerTreeNode, DSRIncludedTemplateTreeNode, DSRCodeTreeNode, DSRCompositeTreeNode, DSRImageTreeNode, DSRNumTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, and DSRWaveformTreeNode.
◆ compareTemplateIdentification()
|
virtual |
compare template identification with given values
- Parameters
-
templateIdentifier template identifier to compare with mappingResource mapping resource that defines the template mappingResourceUID uniquely identifies the mapping resource (optional). Not used for comparison if the value is empty.
- Returns
- OFTrue if template identification is identical, OFFalse otherwise
◆ createAndAppendNewNode()
|
protected |
create a new node and append it to the current one
- Parameters
-
previousNode reference to the pointer to the previous node (sibling). Used to decide whether the new node is a child (value=NULL) or a sibling (!=NULL). NB: The value might be modified inside this method (to store a reference to the previous node). relationshipType relationship type of the new node with regard to the current one valueType value type of node to be added constraintChecker checks relationship content constraints of the associated IOD
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ getConceptName() [1/2]
|
inline |
get reference to the concept name
- Returns
- reference to the concept name (code, might be empty/invalid)
References DSRContentItem::getConceptName(), and DSRContentItem::setConceptName().
◆ getConceptName() [2/2]
|
virtual |
get copy of the concept name.
Code describing the concept represented by this content item. Also conveys the value of document title and section headings in documents.
- Parameters
-
conceptName reference to a variable where the code should be stored
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ getConceptNamePtr()
|
inlineprotected |
get pointer to the concept name
- Returns
- pointer to the concept name (never NULL)
◆ getDown()
|
inlineprotected |
get pointer to first child node
- Returns
- pointer to first child node (might be NULL)
◆ getIdent()
|
inlineprotected |
get unique identifier of this node
- Returns
- unique identifier of this node
References DSRTreeNode::getIdent().
◆ getNext()
|
inlineprotected |
get pointer to next tree node
- Returns
- pointer to next tree node (might be NULL)
◆ getNodeID()
|
inline |
get ID of the current tree node
- Returns
- ID of the current tree node (should never be 0)
References DSRTreeNode::getIdent().
◆ getObservationDateTime()
|
inline |
get observation date/time.
This is the date and time on which this content item was completed. Might be empty if the date and time do not differ from the content date and time, see DSRDocument.
- Returns
- observation date/time of current content item (might be empty/invalid)
References DSRContentItem::setObservationDateTime().
◆ getObservationUID()
|
inline |
get observation unique identifier.
The UID represents the semantic content of the observation; an encoding of the same observation with the same context into another representation may use the same UID.
- Returns
- observation unique identifier of current content item (might be empty/invalid)
References DSRContentItem::getTemplateIdentification(), DSRContentItem::setObservationUID(), and DSRContentItem::setTemplateIdentification().
◆ getPrev()
|
inlineprotected |
get pointer to previous tree node
- Returns
- pointer to previous tree node (might be NULL)
◆ getRelationshipText()
|
staticprotected |
convert relationship type into a text used for HTML rendering
- Parameters
-
relationshipType type of relationship to be converted relationshipText reference to string variable where the resulting text should be stored. Value is cleared if 'relationshipType' is invalid or not supported. flags flag used to customize the output (see DSRTypes::HF_xxx)
- Returns
- reference to the 'relationshipText' string (might be empty)
◆ getRelationshipType()
|
inline |
get relationship type of the current content item
- Returns
- relationship type of the current content item (might be DSRTypes::RT_invalid)
◆ getTemplateIdentification() [1/2]
|
virtual |
get template identifier and mapping resource.
This value pair identifies the template that was used to create this content item (and its children). According to the DICOM standard, it is "required if a template was used to define the content of this Item, and the template consists of a single CONTAINER with nested content, and it is the outermost invocation of a set of nested templates that start with the same CONTAINER." The identification is valid if both values are either present (non-empty) or absent (empty).
- Parameters
-
templateIdentifier identifier of the template (might be empty) mappingResource mapping resource that defines the template (might be empty)
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ getTemplateIdentification() [2/2]
|
virtual |
get template identifier, mapping resource and optional mapping resource UID.
This value triple identifies the template that was used to create this content item (and its children). According to the DICOM standard, it is "required if a template was used to define the content of this Item, and the template consists of a single CONTAINER with nested content, and it is the outermost invocation of a set of nested templates that start with the same CONTAINER." The identification is valid if the first two values are either present (non-empty) or all three are absent (empty).
- Parameters
-
templateIdentifier identifier of the template (might be empty) mappingResource mapping resource that defines the template (might be empty) mappingResourceUID uniquely identifies the mapping resource (might be empty)
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ getValueType()
|
inline |
get value type of the current content item
- Returns
- value type of the current content item (might be DSRTypes::VT_invalid)
◆ hasChildNodes()
|
inline |
check whether the current content item has any children
- Returns
- OFTrue if there are any child nodes, OFFalse otherwise
References DSRTreeNode::getDown().
◆ hasSiblingNodes()
|
inline |
check whether the current content item has any siblings
- Returns
- OFTrue if there are any sibling nodes, OFFalse otherwise
References DSRTreeNode::getNext(), and DSRTreeNode::getPrev().
◆ hasTemplateIdentification()
|
virtual |
check whether template identification is set
- Returns
- OFTrue if template identification is set, OFFalse otherwise
◆ hasValidValue()
|
virtual |
check whether the value of the content item is valid.
See derived classes for details.
- Returns
- OFTrue if the value is valid, OFFalse otherwise
Reimplemented in DSRByReferenceTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRPNameTreeNode, DSRTextTreeNode, DSRTimeTreeNode, DSRUIDRefTreeNode, DSRIncludedTemplateTreeNode, DSRCodeTreeNode, DSRContainerTreeNode, DSRNumTreeNode, DSRCompositeTreeNode, DSRImageTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, and DSRWaveformTreeNode.
◆ isMarked()
|
inline |
check whether content item is marked.
Use method setMark() to mark and unmark the current content item. Pointers to the DICOM dataset/item of marked content items are added to the optional stack when calling the DSRDocument::write() method. This mechanism can e.g. be used to digitally sign particular content items.
- Returns
- OFTrue if content item is marked, OFFalse otherwise
◆ isReferenceTarget()
|
inline |
check whether the current content item is target of a by-reference relationship
- Returns
- OFTrue if the content item is target, OFFalse otherwise
◆ isShort()
|
virtual |
check whether the content is short.
This method is used to check whether the rendered output of this content item can be expanded inline or not (used for renderHTML()). This base class always returns OFTrue.
- Parameters
-
flags flag used to customize the output (see DSRTypes::HF_xxx)
- Returns
- OFTrue if the content is short, OFFalse otherwise
Reimplemented in DSRTextTreeNode, DSRIncludedTemplateTreeNode, DSRContainerTreeNode, DSRImageTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, and DSRWaveformTreeNode.
◆ isSigned()
|
inline |
check whether content item is digitally signed.
A content item is signed if the DigitalSignaturesSequence exists. This sequence is read from the dataset if present and the 'signature' flag for the 'read' method is turned on.
- Returns
- OFTrue if content item is signed, OFFalse otherwise
◆ isValid()
|
virtual |
check whether the content item is valid.
The content item is valid if the relationship type and the value type are both not invalid.
- Returns
- OFTrue if tree node is valid, OFFalse otherwise
Reimplemented in DSRByReferenceTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRPNameTreeNode, DSRTextTreeNode, DSRTimeTreeNode, DSRUIDRefTreeNode, DSRCodeTreeNode, DSRContainerTreeNode, DSRNumTreeNode, DSRIncludedTemplateTreeNode, DSRCompositeTreeNode, DSRImageTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, and DSRWaveformTreeNode.
◆ print()
|
virtual |
print content item.
The output of a content item depends on its value type. This general method prints only those parts which all derived classes (= value types) do have in common, i.e. the type of relationship, the value type and the (optional) concept name. A typical output looks like this: has concept mod CODE: (,,"Concept")
- Parameters
-
stream output stream to which the content item should be printed flags flag used to customize the output (see DSRTypes::PF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRTextTreeNode, DSRByReferenceTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRPNameTreeNode, DSRTimeTreeNode, DSRUIDRefTreeNode, DSRImageTreeNode, DSRIncludedTemplateTreeNode, DSRContainerTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, DSRWaveformTreeNode, DSRCodeTreeNode, DSRNumTreeNode, and DSRCompositeTreeNode.
◆ printExtended()
|
virtual |
print extended information on the content item.
The following details are printed (if present and output is enabled): observation date/time (in curly brackets), annotation text (in quotation marks) and template identification (after a hash mark). This method is intended to be called after the general print() method, e.g. like it is done by DSRDocumentSubTree::print().
- Parameters
-
stream output stream to which the extended information should be printed flags flag used to customize the output (see DSRTypes::PF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ read()
|
virtual |
read content item from dataset.
A number of readXXX() methods are called (see "protected" part) in order to retrieve all possibly nested content items from the dataset.
- Parameters
-
dataset DICOM dataset from which the content item should be read constraintChecker checks relationship content constraints of the associated IOD flags flag used to customize the reading process (see DSRTypes::RF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRIncludedTemplateTreeNode.
Referenced by DSRIncludedTemplateTreeNode::getValue().
◆ readContentItem()
|
protectedvirtual |
read content item (value) from dataset.
This method does nothing for this base class, but derived classes overwrite it to read the contents according to their value type.
- Parameters
-
dataset DICOM dataset from which the content item should be read flags flag used to customize the reading process (see DSRTypes::RF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, DSRContainerTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRTimeTreeNode, DSRPNameTreeNode, DSRTextTreeNode, DSRUIDRefTreeNode, DSRImageTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, DSRWaveformTreeNode, DSRCodeTreeNode, DSRNumTreeNode, and DSRCompositeTreeNode.
Referenced by DSRByReferenceTreeNode::getTargetValueType().
◆ readContentSequence()
|
protected |
read content sequence
- Parameters
-
dataset DICOM dataset from which the data should be read constraintChecker checks relationship content constraints of the associated IOD posString location of the current content item (e.g. "1.2.3") flags flag used to customize the reading process (see DSRTypes::RF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ readDocumentContentMacro()
|
protected |
read document content macro
- Parameters
-
dataset DICOM dataset from which the data should be read posString location of the current content item (e.g. "1.2.3") flags flag used to customize the reading process (see DSRTypes::RF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ readDocumentRelationshipMacro()
|
protected |
read document relationship macro
- Parameters
-
dataset DICOM dataset from which the data should be read constraintChecker checks relationship content constraints of the associated IOD posString location of the current content item (e.g. "1.2.3") flags flag used to customize the reading process (see DSRTypes::RF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ readSRDocumentContentModule()
|
protected |
read SR document content module
- Parameters
-
dataset DICOM dataset from which the data should be read constraintChecker checks relationship content constraints of the associated IOD flags flag used to customize the reading process (see DSRTypes::RF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ readXML()
|
virtual |
read general XML document tree node data
- Parameters
-
doc document containing the XML file content cursor cursor pointing to the starting node documentType type of the document to be read (used for debug output only) flags flag used to customize the reading process (see DSRTypes::XF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRIncludedTemplateTreeNode.
Referenced by DSRIncludedTemplateTreeNode::getValue().
◆ readXMLContentItem()
|
protectedvirtual |
read content item specific XML data.
This method does nothing for this base class, but derived classes overwrite it to read the contents according to their value type.
- Parameters
-
doc document containing the XML file content cursor cursor pointing to the starting node flags flag used to customize the output (see DSRTypes::XF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, DSRContainerTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRTimeTreeNode, DSRPNameTreeNode, DSRTextTreeNode, DSRUIDRefTreeNode, DSRImageTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, DSRWaveformTreeNode, DSRCodeTreeNode, DSRNumTreeNode, and DSRCompositeTreeNode.
Referenced by DSRByReferenceTreeNode::getTargetValueType().
◆ removeSignatures()
| void DSRDocumentTreeNode::removeSignatures | ( | ) |
remove digital signatures from content item.
This method clears the MACParametersSequence and the DigitalSignaturesSequence for the current content item which have been filled during reading.
◆ renderHTML()
|
virtual |
render content item in HTML/XHTML format.
After rendering the current content item all child nodes (if any) are also rendered (see renderHTMLChildNodes() for details).
- Parameters
-
docStream output stream to which the main HTML/XHTML document is written annexStream output stream to which the HTML/XHTML document annex is written nestingLevel current nesting level. Used to render section headings. annexNumber reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added. flags flag used to customize the output (see DSRTypes::HF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRIncludedTemplateTreeNode, and DSRContainerTreeNode.
Referenced by DSRIncludedTemplateTreeNode::getValue().
◆ renderHTMLChildNodes()
|
protected |
render child nodes in HTML/XHTML format
- Parameters
-
docStream output stream to which the main HTML/XHTML document is written annexStream output stream to which the HTML/XHTML document annex is written nestingLevel current nesting level. Used to render section headings. annexNumber reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added. flags flag used to customize the output (see DSRTypes::HF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ renderHTMLConceptName()
|
protected |
render concept name in HTML/XHTML format.
If the optional observation date/time field is non-empty, it is also rendered.
- Parameters
-
docStream output stream to which the main HTML/XHTML document is written flags flag used to customize the output (see DSRTypes::HF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ renderHTMLContentItem()
|
protectedvirtual |
render content item (value) in HTML/XHTML format.
This method does nothing for this base class, but derived classes overwrite it to render the contents according to their value type.
- Parameters
-
docStream output stream to which the main HTML/XHTML document is written annexStream output stream to which the HTML/XHTML document annex is written nestingLevel current nesting level. Used to render section headings. annexNumber reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added. flags flag used to customize the output (see DSRTypes::HF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, DSRContainerTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRTimeTreeNode, DSRPNameTreeNode, DSRTextTreeNode, DSRUIDRefTreeNode, DSRImageTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, DSRWaveformTreeNode, DSRCodeTreeNode, DSRNumTreeNode, and DSRCompositeTreeNode.
Referenced by DSRByReferenceTreeNode::getTargetValueType().
◆ setConceptName()
|
virtual |
set the concept name.
Code describing the concept represented by this content item. Also conveys the value of document title and section headings in documents. If the new code is invalid the current one is not replaced. An empty code can be used to clear the current concept name.
- Parameters
-
conceptName code to be set as the new concept name (checked before set) check check 'conceptName' for validity if enabled. See DSRCodedEntryValue::checkCode() for details.
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, and DSRIncludedTemplateTreeNode.
Referenced by DSRByReferenceTreeNode::getTargetValueType(), and DSRIncludedTemplateTreeNode::getValue().
◆ setMark()
|
inline |
mark/unmark the current content item.
See explanation for method isMarked() for details.
- Parameters
-
flag mark item if OFTrue, unmark otherwise
◆ setObservationDateTime() [1/3]
|
virtual |
set observation date/time.
This is the date and time on which this content item was completed. Might be empty if the date and time do not differ from the content date and time, see DSRDocument.
- Parameters
-
observationDateTime value to be set (might be an empty string) check check 'observationDateTime' for conformance with VR (DT) and VM (1) if enabled
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, and DSRIncludedTemplateTreeNode.
◆ setObservationDateTime() [2/3]
|
virtual |
set observation date/time from element.
This is the date and time on which this content item was completed. Might be empty if the date and time do not differ from the content date and time, see DSRDocument.
- Parameters
-
delem DICOM element from which the date/time value should be retrieved pos index of the value in case of multi-valued elements (0..vm-1) check check date/time value for conformance with VR (DT) and VM (1) if enabled
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, and DSRIncludedTemplateTreeNode.
◆ setObservationDateTime() [3/3]
|
virtual |
set observation date/time from dataset.
This is the date and time on which this content item was completed. Might be empty if the date and time do not differ from the content date and time, see DSRDocument.
- Parameters
-
dataset DICOM dataset from which the date/time value should be retrieved tagKey DICOM tag specifying the attribute from which the value should be retrieved. The search is limited to the top-level of the dataset. pos index of the value in case of multi-valued elements (0..vm-1) check check date/time value for conformance with VR (DT) and VM (1) if enabled
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, and DSRIncludedTemplateTreeNode.
◆ setObservationUID()
|
virtual |
set observation unique identifier.
The UID represents the semantic content of the observation; an encoding of the same observation with the same context into another representation may use the same UID.
- Parameters
-
observationUID value to be set (might be an empty string) check check 'observationUID' for conformance with VR (UI) and VM (1) if enabled
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, and DSRIncludedTemplateTreeNode.
◆ setReferenceTarget()
|
inline |
specify whether the current content item is target of a by-reference relationship
- Parameters
-
isTarget OFTrue if the content item is target (default), OFFalse otherwise
◆ setRelationshipType()
|
virtual |
set relationship type of the current content item (if previously unknown).
Please note that changing the relationship type (which was originally passed to the constructor of this class) only works if the current value is DSRTypes::RT_unknown. This is needed for inserting document subtrees where the top-level nodes might have an "unknown" relationship to the parent node (see DSRDocumentSubTree::insertSubTree()).
- Parameters
-
relationshipType type of relationship to the parent tree node. Should not be DSRTypes::RT_invalid or DSRTypes::RT_unknown. Be careful with DSRTypes::RT_isRoot, use it for root nodes only.
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ setTemplateIdentification()
|
virtual |
set template identifier and mapping resource.
The identification is valid if the first two values are either present (non-empty) or all three values are absent (empty). See getTemplateIdentification() for details. A warning message is reported to the logger if a template identification is specified for a content item that is not a CONTAINER.
- Parameters
-
templateIdentifier identifier of the template to be set mappingResource mapping resource that defines the template mappingResourceUID uniquely identifies the mapping resource (optional) check check 'templateIdentifier', 'mappingResource' and 'mappingResourceUID' for conformance with VR (CS,UI) and VM (1) if enabled
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, and DSRIncludedTemplateTreeNode.
◆ write()
|
virtual |
write content item to dataset.
A number of writeXXX() methods are called (see "protected" part) in order to write all possibly nested content items to the dataset.
- Parameters
-
dataset DICOM dataset to which the content item should be written markedItems optional stack where pointers to all 'marked' content items (DICOM datasets/items) are added to during the write process. Can be used to digitally sign parts of the document tree.
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRIncludedTemplateTreeNode.
Referenced by DSRIncludedTemplateTreeNode::getValue().
◆ writeContentItem()
|
protectedvirtual |
write content item (value) to dataset.
This method does nothing for this base class, but derived classes overwrite it to write the contents according to their value type.
- Parameters
-
dataset DICOM dataset to which the content item should be written
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRByReferenceTreeNode, DSRContainerTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRTimeTreeNode, DSRPNameTreeNode, DSRTextTreeNode, DSRUIDRefTreeNode, DSRImageTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, DSRWaveformTreeNode, DSRCodeTreeNode, DSRNumTreeNode, and DSRCompositeTreeNode.
Referenced by DSRByReferenceTreeNode::getTargetValueType().
◆ writeContentSequence()
|
protected |
write content sequence
- Parameters
-
dataset DICOM dataset to which the data should be written markedItems optional stack where pointers to all 'marked' content items (DICOM datasets/items) are added to during the write process.
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ writeDocumentContentMacro()
|
protected |
write document content macro
- Parameters
-
dataset DICOM dataset to which the data should be written
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ writeDocumentRelationshipMacro()
|
protected |
write document relationship macro
- Parameters
-
dataset DICOM dataset to which the data should be written markedItems optional stack where pointers to all 'marked' content items (DICOM datasets/items) are added to during the write process.
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ writeSRDocumentContentModule()
|
protected |
write SR document content module
- Parameters
-
dataset DICOM dataset to which the data should be written markedItems optional stack where pointers to all 'marked' content items (DICOM datasets/items) are added to during the write process.
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ writeXML()
|
virtual |
write content item in XML format
- Parameters
-
stream output stream to which the XML document is written flags flag used to customize the output (see DSRTypes::XF_xxx)
- Returns
- status, EC_Normal if successful, an error code otherwise
Reimplemented in DSRTextTreeNode, DSRByReferenceTreeNode, DSRDateTreeNode, DSRDateTimeTreeNode, DSRPNameTreeNode, DSRTimeTreeNode, DSRUIDRefTreeNode, DSRImageTreeNode, DSRIncludedTemplateTreeNode, DSRContainerTreeNode, DSRSCoord3DTreeNode, DSRSCoordTreeNode, DSRTCoordTreeNode, DSRWaveformTreeNode, DSRCodeTreeNode, DSRNumTreeNode, and DSRCompositeTreeNode.
◆ writeXMLItemEnd()
|
protected |
write common item start (XML tag)
- Parameters
-
stream output stream to which the XML document is written flags flag used to customize the output (see DSRTypes::XF_xxx)
◆ writeXMLItemStart()
|
protected |
write common item start (XML tag)
- Parameters
-
stream output stream to which the XML document is written flags flag used to customize the output (see DSRTypes::XF_xxx) closingBracket write closing bracket of XML start tag if OFTrue, otherwise the bracket has to be closed in the calling method
Member Data Documentation
◆ MarkFlag
|
private |
flag indicating whether the content item is marked (e.g. used for digital signatures).
The default value is OFFalse.
◆ ReferenceTarget
|
private |
flag indicating whether the content item is referenced (by-reference relationship).
The default value is OFFalse.
The documentation for this class was generated from the following file:
- dcmsr/include/dcmtk/dcmsr/dsrdoctn.h
