Interface class to those modules and data attributes are common for many DICOM IODs. More...

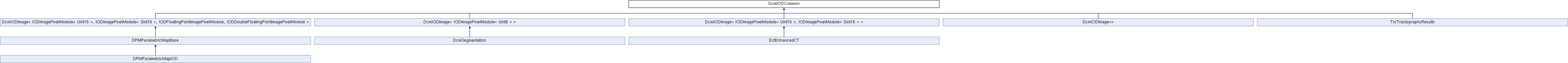

Inheritance diagram for DcmIODCommon:

Public Member Functions
	DcmIODCommon ()
	Constructor.

	DcmIODCommon (const DcmIODCommon &rhs)
	Copy Constructor. More...

OFshared_ptr< IODRules >	getRules ()
	Get rules handled by this IOD. More...

OFshared_ptr< DcmItem >	getData ()
	Get item managed by this IOD. More...

IODPatientModule &	getPatient ()
	Get Patient Module. More...

IODPatientStudyModule &	getPatientStudy ()
	Get Patient Study Module. More...

IODGeneralStudyModule &	getStudy ()
	Get General Study Module. More...

IODGeneralEquipmentModule &	getEquipment ()
	Get General Equipment Module. More...

IODGeneralSeriesModule &	getSeries ()
	Get Series Module. More...

IODFoRModule &	getFrameOfReference ()
	Get Frame of Reference Module. More...

IODSOPCommonModule &	getSOPCommon ()
	Get SOP Common Module. More...

IODCommonInstanceReferenceModule &	getCommonInstanceReference ()
	Get Common Instance Reference Module. More...

virtual	~DcmIODCommon ()
	Destructor.

virtual void	clearData ()
	Clear (removes) all attributes handled by the modules of this IOD. More...

virtual void	createNewStudy (const OFBool clearEquipment=OFTrue)
	Create new study. More...

virtual void	createNewSeries (const OFBool clearFoR=OFTrue)
	Create a new series. More...

virtual void	createNewSOPInstance ()
	Create a new SOP instance. More...

virtual void	ensureInstanceUIDs (const OFBool correctInvalid=OFFalse)
	Make sure that the IOD contains a SOP Instance, Series Instance and Study Instance UID. More...

virtual OFCondition	read (DcmItem &dataset)
	Read data into this class. More...

virtual OFCondition	importHierarchy (DcmItem &dataset, const OFBool readPatient, const OFBool readStudy, const OFBool readFoR=OFFalse, const OFBool readSeries=OFFalse, const OFBool takeOverCharset=OFTrue)
	Import common module attributes from dataset but only read Patient, Study, Series and/or Frame of Reference level portions. More...

virtual OFCondition	importHierarchy (const OFString &filename, const OFBool readPatient, const OFBool readStudy, const OFBool readFoR=OFFalse, const OFBool readSeries=OFFalse, const OFBool takeOverCharset=OFTrue)
	CAUTION: Parameter order (readFoR and readSeries) changed compared to the old import() function. More...

virtual OFCondition	write (DcmItem &dataset)
	Write the attributes managed by this class to DICOM dataset. More...

Private Member Functions
DcmIODCommon &	operator= (const DcmIODCommon &rhs)
	Copy assignment disabled. More...

Private Attributes
OFshared_ptr< DcmItem >	m_Item
	The data hold by this class (shared with modules below)

OFshared_ptr< IODRules >	m_Rules
	The rules hold by this class (shared with modules below)

IODPatientModule	m_Patient
	Patient Module.

IODPatientStudyModule	m_PatientStudy
	Patient Study Module.

IODGeneralStudyModule	m_Study
	General Study Module.

IODGeneralEquipmentModule	m_Equipment
	General Equipment Module.

IODGeneralSeriesModule	m_Series
	General Series Module.

IODFoRModule	m_FrameOfReference
	Frame of Reference Module.

IODSOPCommonModule	m_SOPCommon
	SOP Common Module.

IODCommonInstanceReferenceModule	m_CommonInstanceReferenceModule
	Common Instance Reference Module.

OFVector< IODModule * >	m_Modules
	Collects all modules of this class for convenience (iteration)

Detailed Description

Interface class to those modules and data attributes are common for many DICOM IODs.

The class offers a dedicated API for getting and settings those attributes. Modules included: Patient Module, General Study Module, General Equipment Module, General Series Module, Frame of Reference Module, SOP Common Module.

Constructor & Destructor Documentation

◆ DcmIODCommon()

DcmIODCommon::DcmIODCommon ( const DcmIODCommon & rhs )

Copy Constructor.

Parameters

rhs	The object to copy from

Member Function Documentation

◆ clearData()

virtual void DcmIODCommon::clearData ( )

virtual

Clear (removes) all attributes handled by the modules of this IOD.

IOD Rules are not reset.

Reimplemented in DcmIODImage<>, DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >, DcmIODImage< IODImagePixelModule< Uint8 > >, DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 > >, DPMParametricMapBase, DcmSegmentation, and TrcTractographyResults.

Referenced by DcmIODImage<>::clearData().

◆ createNewSeries()

virtual void DcmIODCommon::createNewSeries ( const OFBool clearFoR = OFTrue )

virtual

Create a new series.

After generating a new Series Instance UID the method createNewSOPInstance() is called, i.e. Series-related attributes managed by the series-level modules of this class are cleared, as well as instance-level data.

Parameters

clearFoR If OFTrue (default), also the frame of reference is cleared (FoR Module)

◆ createNewSOPInstance()

virtual void DcmIODCommon::createNewSOPInstance ( )

virtual

Create a new SOP instance.

Generate a new SOP Instance UID and set the Instance Creation Date/Time to the current date and time. It could be used explicitly from the calling application if a new UID should be created (this is the case if the Study Instance UID or Series Instance UID has changed as well as any other attribute on the instance level, e.g. image pixel data). Also clears other instance related data.

◆ createNewStudy()

virtual void DcmIODCommon::createNewStudy ( const OFBool clearEquipment = OFTrue )

virtual

Create new study.

After generating a new Study Instance UID the method createNewSeries() is called, i.e. also a new Series Instance UID and SOP instance UID are generated. This is a requirement of the DICOM standard. All other study-related attributes from the study-level modules managed by this class are cleared (as well as Series and Instance level attributes).

Parameters

clearEquipment If OFTrue (default), also the equipment information is cleared (General Equipment Module))

◆ ensureInstanceUIDs()

virtual void DcmIODCommon::ensureInstanceUIDs ( const OFBool correctInvalid = OFFalse )

virtual

Make sure that the IOD contains a SOP Instance, Series Instance and Study Instance UID.

They are created if empty. Invalid UIDs are corrected if desired.

Parameters

correctInvalid If OFTrue, invalid instance UIDs will be replaced by new ones

◆ getCommonInstanceReference()

IODCommonInstanceReferenceModule & DcmIODCommon::getCommonInstanceReference ( )

Get Common Instance Reference Module.

Returns: Common Instance Reference Module

◆ getData()

OFshared_ptr< DcmItem > DcmIODCommon::getData ( )

Get item managed by this IOD.

Returns: The item

◆ getEquipment()

IODGeneralEquipmentModule & DcmIODCommon::getEquipment ( )

Get General Equipment Module.

Returns: Reference to General Equipment Module

◆ getFrameOfReference()

IODFoRModule & DcmIODCommon::getFrameOfReference ( )

Get Frame of Reference Module.

Returns: Reference to Frame of Reference Module

◆ getPatient()

IODPatientModule & DcmIODCommon::getPatient ( )

Get Patient Module.

Returns: Reference to Patient Module

◆ getPatientStudy()

IODPatientStudyModule & DcmIODCommon::getPatientStudy ( )

Get Patient Study Module.

Returns: Reference to Patient Study Module

◆ getRules()

OFshared_ptr< IODRules > DcmIODCommon::getRules ( )

Get rules handled by this IOD.

Returns: The rules

◆ getSeries()

IODGeneralSeriesModule & DcmIODCommon::getSeries ( )

Get Series Module.

Returns: Reference to General Series Module

◆ getSOPCommon()

IODSOPCommonModule & DcmIODCommon::getSOPCommon ( )

Get SOP Common Module.

Returns: Reference to SOP Common Module

◆ getStudy()

IODGeneralStudyModule & DcmIODCommon::getStudy ( )

Get General Study Module.

Returns: Reference to General Study Module

◆ importHierarchy() [1/2]

virtual OFCondition DcmIODCommon::importHierarchy	(	const OFString &	filename,
		const OFBool	readPatient,
		const OFBool	readStudy,
		const OFBool	readFoR = `OFFalse`,
		const OFBool	readSeries = `OFFalse`,
		const OFBool	takeOverCharset = `OFTrue`
	)

virtual

CAUTION: Parameter order (readFoR and readSeries) changed compared to the old import() function.

Import common module attributes from DICOM file but only read Patient, Study, Series and/or Frame of Reference level portions. The current content is not deleted before reading. If the log stream is set and valid the reason for any error might be obtained from the error/warning output.

Parameters

filename	The filename to read from.
readPatient	Read Patient-level information if OFTrue
readStudy	Read Study-level information if OFTrue, including equipment module
readFoR	Read Frame of Reference information if OFTrue. See also readSeries parameter.
readSeries	Read Series-level information if OFTrue, always includes Frame of Reference, i.e. readFoR is considered to be OFTrue
takeOverCharset	If OFTrue (default), Specific Character Set is taken over from imported dataset. If it's not present or empty (invalid), the attribute will not be present in this class either.

Returns: EC_Normal if reading was successful (i.e. if any information could be read), otherwise an error is returned

◆ importHierarchy() [2/2]

virtual OFCondition DcmIODCommon::importHierarchy	(	DcmItem &	dataset,
		const OFBool	readPatient,
		const OFBool	readStudy,
		const OFBool	readFoR = `OFFalse`,
		const OFBool	readSeries = `OFFalse`,
		const OFBool	takeOverCharset = `OFTrue`
	)

virtual

Import common module attributes from dataset but only read Patient, Study, Series and/or Frame of Reference level portions.

The current content is not deleted before reading. If the log stream is set and valid the reason for any error might be obtained from the error/warning output.

Parameters

dataset	Reference to DICOM dataset from which the document should be read
readPatient	Read Patient-level information if OFTrue
readStudy	Read Study-level information if OFTrue, including equipment module
readFoR	Read Frame of Reference information if OFTrue. See also readSeries parameter.
readSeries	Read Series-level information if OFTrue, always includes Frame of Reference, i.e. readFoR is considered to be OFTrue
takeOverCharset	If OFTrue (default), Specific Character Set is taken over from imported dataset. If it's not present or empty (invalid), the attribute will not be present in this class either.

Returns: EC_Normal if successful, an error code otherwise

◆ operator=()

DcmIODCommon & DcmIODCommon::operator= ( const DcmIODCommon & rhs )

private

Copy assignment disabled.

Parameters

rhs	Object to copy from

Returns: Reference to "this" object

◆ read()

virtual OFCondition DcmIODCommon::read ( DcmItem & dataset )

virtual

Read data into this class.

Please note that the current content is also deleted if the reading process fails. If the log stream is set and valid the reason for any error might be obtained from the error/warning output. The reading process will ignore missing attributes or values as possible in order to read as as much as possible.

Parameters

dataset DICOM dataset from which the document should be read

Returns: EC_Normal if successful, an error code otherwise

Reimplemented in EctEnhancedCT, DcmIODImage<>, DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >, DcmIODImage< IODImagePixelModule< Uint8 > >, DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 > >, DPMParametricMapBase, DPMParametricMapIOD, DcmSegmentation, and TrcTractographyResults.

Referenced by DcmIODImage<>::read().

◆ write()

virtual OFCondition DcmIODCommon::write ( DcmItem & dataset )

virtual

Write the attributes managed by this class to DICOM dataset.

Parameters

dataset Reference to DICOM dataset to which the current document should be written. The dataset is not cleared before writing to it.

Returns: EC_Normal if successful, an error code otherwise

Reimplemented in EctEnhancedCT, DcmIODImage<>, DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >, DcmIODImage< IODImagePixelModule< Uint8 > >, DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 > >, DPMParametricMapBase, DPMParametricMapIOD, and TrcTractographyResults.

Referenced by DcmIODImage<>::write().

The documentation for this class was generated from the following file:

dcmiod/include/dcmtk/dcmiod/iodcommn.h
