Class for managing the Parametric Map IOD attributes. More...

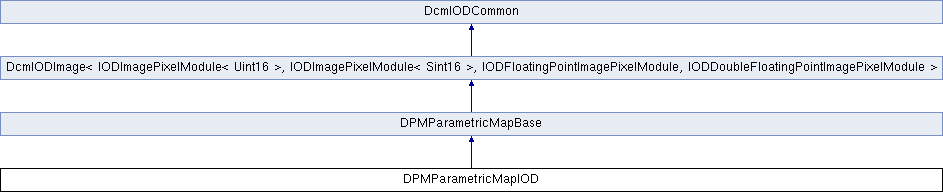

Inheritance diagram for DPMParametricMapIOD:

Classes
class	Frames
	Inner class that offers typed interface to bulk data. More...

class	GetPixelDataVisitor

Public Types
typedef OFvariant< OFCondition, Frames< Uint16 >, Frames< Sint16 >, Frames< Float32 >, Frames< Float64 > >	FramesType
	Frames can contain Uint16, Sint16, Float32 or Float64 data, or nothing at all (in that case OFCondition denotes a corresponding error)

Public Types inherited from DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >
typedef DcmIODImage	IODImage
	typedef for old compilers that do not define the type 'DcmIODImage' in derived classes.

typedef IODImagePixelVariant< OFVARIADIC_TEMPLATE_PARAMETER_PACK(T)>	IODImagePixelModuleType
	A good comment would be nice, but I have nothing in mind.

Public Member Functions
virtual	~DPMParametricMapIOD ()
	Virtual Destructor, frees memory.

virtual OFCondition	setRecognizableVisualFeatures (const DPMTypes::RecognizableVisibleFeatures yesOrNo)
	Indicates whether or not the image contains sufficiently recognizable visual features to allow the image or a reconstruction from a set of images to identify the patient. More...

virtual OFCondition	addForAllFrames (const FGBase &group)
	Add a functional group for all frames. More...

virtual OFCondition	read (DcmItem &dataset)
	Read Parametric Map attributes (all those handled by this class) from given item. More...

virtual OFCondition	write (DcmItem &dataset)
	Write current Parametric Map's attributes to DICOM dataset. More...

virtual DPMTypes::RecognizableVisibleFeatures	getRecognizableVisualFeatures ()
	Get Recognizable Visual Features. More...

virtual DPMTypes::ContentQualification	getContentQualification ()
	Get Content Qualification. More...

virtual OFCondition	getRows (Uint16 &rows)
	Get number of rows. More...

virtual OFCondition	getColumns (Uint16 &cols)
	Get number of cols. More...

virtual OFBool	check ()
	Perform some basic checking. More...

size_t	getNumberOfFrames () const
	Get number of frames, based on the number of items in the shared functional functional groups sequence (i.e. the attribute Number of Frames) is not trusted after reading. More...

FramesType	getFrames ()
	Get access to frame data. More...

Public Member Functions inherited from DPMParametricMapBase
virtual	~DPMParametricMapBase ()
	Virtual Destructor.

virtual OFCondition	saveFile (const OFString &filename, const E_TransferSyntax writeXfer=EXS_LittleEndianExplicit)
	Save current object to given filename. More...

OFCondition	writeDataset (DcmItem &dataset)
	Write current object to given item. More...

virtual OFBool	check ()
	Perform some basic checking. More...

virtual FGInterface &	getFunctionalGroups ()
	Get access to functional groups. More...

virtual IODPatientModule &	getIODPatientModule ()
	Get Patient Module. More...

virtual IODGeneralStudyModule &	getIODGeneralStudyModule ()
	Get General Study Module. More...

virtual IODPatientStudyModule &	getIODPatientStudyModule ()
	Get Patient Study Module. More...

virtual IODGeneralSeriesModule &	getIODGeneralSeriesModule ()
	Get General Series Module. More...

virtual DPMParametricMapSeriesModule &	getDPMParametricMapSeriesModule ()
	Get Parametric Map Series Module. More...

virtual IODGeneralEquipmentModule &	getIODGeneralEquipmentModule ()
	Get General Equipment Module. More...

virtual IODEnhGeneralEquipmentModule &	getIODEnhGeneralEquipmentModule ()
	Get Enhanced General Equipment Module. More...

virtual IODGeneralImageModule &	getIODGeneralImageModule ()
	Get General Image Module. More...

virtual DPMParametricMapImageModule &	getDPMParametricMapImageModule ()
	Get Parametric Map Image Module. More...

virtual IODMultiFrameFGModule &	getIODMultiFrameFGModule ()
	Get Multi-frame Functional Groups Module. More...

virtual IODMultiframeDimensionModule &	getIODMultiframeDimensionModule ()
	Get Multi-frame Dimension Module. More...

virtual IODAcquisitionContextModule &	getIODAcquisitionContextModule ()
	Get Acquisition Context Module. More...

virtual IODCommonInstanceReferenceModule &	getIODCommonInstanceReferenceModule ()
	Get Common Instance Reference Module. More...

virtual IODSOPCommonModule &	getIODSOPCommonModule ()
	Get SOP Common Module. More...

Public Member Functions inherited from DcmIODImage< IODImagePixelModule< Uint16 >, IODImagePixelModule< Sint16 >, IODFloatingPointImagePixelModule, IODDoubleFloatingPointImagePixelModule >
	DcmIODImage ()
	Constructor, creates new DcmIODImage instance with integer-based pixel data.

	DcmIODImage (OFin_place_type_t(ImagePixel))
	Constructor, constructs new DcmIODImage instance with integer, float or double based Image Pixel Module (i. More...

virtual	~DcmIODImage ()
	Virtual Destructor.

IODGeneralImageModule &	getGeneralImage ()
	Get General Image Module. More...

IODImagePixelModuleType &	getImagePixel ()
	Get Image Pixel Module (variant) More...

virtual void	clearData ()
	Clear (removes) all attributes handled by the modules of this IOD. More...

virtual OFCondition	read (DcmItem &dataset)
	Read common image module attributes (all those handled by this class) from given item. More...

virtual OFCondition	write (DcmItem &dataset)
	Write current common image module's attributes to DICOM dataset. More...

Public Member Functions inherited from DcmIODCommon
	DcmIODCommon ()
	Constructor.

	DcmIODCommon (const DcmIODCommon &rhs)
	Copy Constructor. More...

OFshared_ptr< IODRules >	getRules ()
	Get rules handled by this IOD. More...

OFshared_ptr< DcmItem >	getData ()
	Get item managed by this IOD. More...

IODPatientModule &	getPatient ()
	Get Patient Module. More...

IODPatientStudyModule &	getPatientStudy ()
	Get Patient Study Module. More...

IODGeneralStudyModule &	getStudy ()
	Get General Study Module. More...

IODGeneralEquipmentModule &	getEquipment ()
	Get General Equipment Module. More...

IODGeneralSeriesModule &	getSeries ()
	Get Series Module. More...

IODFoRModule &	getFrameOfReference ()
	Get Frame of Reference Module. More...

IODSOPCommonModule &	getSOPCommon ()
	Get SOP Common Module. More...

IODCommonInstanceReferenceModule &	getCommonInstanceReference ()
	Get Common Instance Reference Module. More...

virtual	~DcmIODCommon ()
	Destructor.

virtual void	clearData ()
	Clear (removes) all attributes handled by the modules of this IOD. More...

virtual void	createNewStudy (const OFBool clearEquipment=OFTrue)
	Create new study. More...

virtual void	createNewSeries (const OFBool clearFoR=OFTrue)
	Create a new series. More...

virtual void	createNewSOPInstance ()
	Create a new SOP instance. More...

virtual void	ensureInstanceUIDs (const OFBool correctInvalid=OFFalse)
	Make sure that the IOD contains a SOP Instance, Series Instance and Study Instance UID. More...

virtual OFCondition	read (DcmItem &dataset)
	Read data into this class. More...

virtual OFCondition	importHierarchy (DcmItem &dataset, const OFBool readPatient, const OFBool readStudy, const OFBool readFoR=OFFalse, const OFBool readSeries=OFFalse, const OFBool takeOverCharset=OFTrue)
	Import common module attributes from dataset but only read Patient, Study, Series and/or Frame of Reference level portions. More...

virtual OFCondition	importHierarchy (const OFString &filename, const OFBool readPatient, const OFBool readStudy, const OFBool readFoR=OFFalse, const OFBool readSeries=OFFalse, const OFBool takeOverCharset=OFTrue)
	CAUTION: Parameter order (readFoR and readSeries) changed compared to the old import() function. More...

virtual OFCondition	write (DcmItem &dataset)
	Write the attributes managed by this class to DICOM dataset. More...

Static Public Member Functions
template<typename ImagePixel >
static OFvariant< OFCondition, DPMParametricMapIOD >	create (const OFString &modality, const OFString &seriesNumber, const OFString &instanceNumber, const Uint16 rows, const Uint16 columns, const IODEnhGeneralEquipmentModule::EquipmentInfo &equipmentInfo, const ContentIdentificationMacro &contentIdentification, const OFString &imageFlavor, const OFString &derivedPixelContrast, const DPMTypes::ContentQualification &contentQualification)
	Create new Parametric Map object. More...

static OFvariant< OFCondition, DPMParametricMapIOD * >	loadFile (const OFString &filename)
	Load Parametric Map object from file. More...

static OFvariant< OFCondition, DPMParametricMapIOD * >	loadDataset (DcmDataset &dataset)
	Load Parametric Map object from dataset object. More...

Protected Member Functions
virtual OFCondition	writeGeneric (DcmItem &dataset)
	Write current generic Parametric Map's attributes to DICOM dataset, i.e. More...

virtual OFCondition	readGeneric (DcmItem &dataset)
	Read Parametric Map's generic (not directly pixel-data related) attributes from DICOM dataset. More...

	DPMParametricMapIOD ()
	Constructor.

template<typename ImagePixel >
	DPMParametricMapIOD (OFin_place_type_t(ImagePixel))
	Constructor, anonymous parameter is the image pixel module to be used.

Protected Member Functions inherited from DPMParametricMapBase
	DPMParametricMapBase ()
	Constructor; not public since object should be create via factory method in derived class.

template<typename ImagePixel >
	DPMParametricMapBase (OFin_place_type_t(ImagePixel))
	Constructor; not public since object should be create via factory method in derived class.

virtual OFCondition	read (DcmItem &dataset)
	Read Parametric Map attributes (all those handled by this class) from given item. More...

virtual OFCondition	write (DcmItem &dataset)
	Write current Parametric Map's attributes to DICOM dataset. More...

virtual void	clearData ()
	Clear (removes) all attributes handled by the modules of this IOD. More...

Static Protected Member Functions
static OFCondition	decompress (DcmDataset &dset)
	Decompress the given dataset if required. More...

Static Protected Member Functions inherited from DPMParametricMapBase
static OFCondition	loadFile (DcmFileFormat &dcmff, const OFString &filename, DcmDataset *&dset)
	Loads file. More...

Private Member Functions
OFCondition	init (const OFString &modality, const OFString &seriesNumber, const OFString &instanceNumber, const IODEnhGeneralEquipmentModule::EquipmentInfo &equipmentInfo, const ContentIdentificationMacro &contentIdentification, const OFString &imageFlavor, const OFString &derivedPixelContrast, const DPMTypes::ContentQualification &contentQualification)
	Initialize new Parametric Map object except directly pixel-related data. More...

Private Attributes
ContentIdentificationMacro	m_ContentIdentification
	Parametric Map Image Module's Content Identification.

OFVector< DcmIODTypes::Frame * >	m_Frames
	Binary frame data.

Additional Inherited Members
Protected Attributes inherited from DPMParametricMapBase
FGInterface	m_FGInterface
	Multi-frame Functional Groups high level interface.

DPMParametricMapSeriesModule	m_DPMParametricMapSeriesModule
	Parametric Map Series Module.

IODEnhGeneralEquipmentModule	m_IODEnhGeneralEquipmentModule
	Enhanced General Equipment Module.

DPMParametricMapImageModule	m_DPMParametricMapImageModule
	Parametric Map Image Module.

IODMultiFrameFGModule	m_IODMultiFrameFGModule
	Multi-frame Functional Groups Module.

IODMultiframeDimensionModule	m_IODMultiframeDimensionModule
	Multi-frame Dimension Module.

IODAcquisitionContextModule	m_IODAcquisitionContextModule
	Acquisition Context Module.

IODCommonInstanceReferenceModule	m_IODCommonInstanceReferenceModule
	Common Instance Reference Module.

Detailed Description

Class for managing the Parametric Map IOD attributes.

Class Documentation

◆ DPMParametricMapIOD::GetPixelDataVisitor

class DPMParametricMapIOD::GetPixelDataVisitor

template<typename PixelType>
class DPMParametricMapIOD::GetPixelDataVisitor< PixelType >

Member Function Documentation

◆ addForAllFrames()

virtual OFCondition DPMParametricMapIOD::addForAllFrames ( const FGBase & group )

virtual

Add a functional group for all frames.

Parameters

group The group to be added as shared functional group

Returns: EC_Normal if adding was successful, error otherwise

◆ check()

virtual OFBool DPMParametricMapIOD::check ( )

virtual

Perform some basic checking.

This method is also invoked when writing the object to a DICOM dataset or file.

Returns: OFTrue, if no errors were found, OFFalse otherwise.

Reimplemented from DPMParametricMapBase.

◆ create()

template<typename ImagePixel >

static OFvariant< OFCondition, DPMParametricMapIOD > DPMParametricMapIOD::create	(	const OFString &	modality,
		const OFString &	seriesNumber,
		const OFString &	instanceNumber,
		const Uint16	rows,
		const Uint16	columns,
		const IODEnhGeneralEquipmentModule::EquipmentInfo &	equipmentInfo,
		const ContentIdentificationMacro &	contentIdentification,
		const OFString &	imageFlavor,
		const OFString &	derivedPixelContrast,
		const DPMTypes::ContentQualification &	contentQualification
	)

static

Create new Parametric Map object.

Takes the minimum of required parameters. Afterwards, additional setters() can be used to set optional data. Frames and their related per-frame functional groups should be added using addFrame(). Shared functional groups should be added using addForAllFrames().

Parameters

modality	The modality of this Parametric Map (series level attribute). A list of Defined Terms can be found in the standard. Very often "MR" is the right choice. Only if a mix of different modalities has been use for creation "OT" should be used.
seriesNumber	A number identifying this series. If importHierarchy() is called later in order to put this Parametric Map into an existing Series, the Series Number will be taken over from the existing series instead.
instanceNumber	A number identifying this image
rows	The number of rows of all frames of the Parametric Map
columns	The number of columns of all frames of the Parametric Map
equipmentInfo	Information about the equipment creating thing Parametric Map
contentIdentification	General information about this content
imageFlavor	3rd value of attribute Image Type. See standard for list of applicable Defined Terms.
derivedPixelContrast	4th value of attribute Image Type. See standard for list of applicable Defined Terms.
contentQualification	Either one of CQ_PRODUCT, CQ_RESEARCH, CQ_SERVICE

Returns: Variant, either OFCondition with error code in case of error, Parametric Map object in case of success

◆ decompress()

static OFCondition DPMParametricMapIOD::decompress ( DcmDataset & dset )

staticprotected

Decompress the given dataset if required.

Only RLE compression is accepted and decompressed by this tool. A warning is printed if the dataset has been compressed before with another compression scheme and is handed into this method in uncompressed format. Handing in any other compression but RLE will lead to an error.

Parameters

dset	The dataset to be decompressed

Returns: EC_Normal if decompression worked (or dataset is already in uncompressed format) IOD_EC_CannotDecompress otherwise

◆ getColumns()

virtual OFCondition DPMParametricMapIOD::getColumns ( Uint16 & cols )

virtual

Get number of cols.

Parameters

cols	The number of columns (output)

Returns: EC_Normal if getting was successful, error otherwise

◆ getContentQualification()

virtual DPMTypes::ContentQualification DPMParametricMapIOD::getContentQualification ( )

virtual

Get Content Qualification.

Returns: Returns either one of CQ_PRODUCT, CQ_RESEARCH, CQ_SERVICE or CQ_UNKNOWN

◆ getFrames()

FramesType DPMParametricMapIOD::getFrames ( )

Get access to frame data.

Returns: Class managing the frame data

◆ getNumberOfFrames()

size_t DPMParametricMapIOD::getNumberOfFrames ( ) const

Get number of frames, based on the number of items in the shared functional functional groups sequence (i.e. the attribute Number of Frames) is not trusted after reading.

Returns: The number of frames handled by this object

◆ getRecognizableVisualFeatures()

virtual DPMTypes::RecognizableVisibleFeatures DPMParametricMapIOD::getRecognizableVisualFeatures ( )

virtual

Get Recognizable Visual Features.

Returns: Returns related YES or NO data type

◆ getRows()

virtual OFCondition DPMParametricMapIOD::getRows ( Uint16 & rows )

virtual

Get number of rows.

Parameters

rows	The number of rows (output)

Returns: EC_Normal if getting was successful, error otherwise

◆ init()

OFCondition DPMParametricMapIOD::init	(	const OFString &	modality,
		const OFString &	seriesNumber,
		const OFString &	instanceNumber,
		const IODEnhGeneralEquipmentModule::EquipmentInfo &	equipmentInfo,
		const ContentIdentificationMacro &	contentIdentification,
		const OFString &	imageFlavor,
		const OFString &	derivedPixelContrast,
		const DPMTypes::ContentQualification &	contentQualification
	)

private

Initialize new Parametric Map object except directly pixel-related data.

Parameters

modality	The modality of this Parametric Map (series level attribute). A list of Defined Terms can be found in the standard. Very often "MR" is the right choice. Only if a mix of different modalities has been use for creation "OT" should be used.
seriesNumber	A number identifying this series. If importHierarchy() is called later in order to put this Parametric Map into an existing Series, the Series Number will be taken over from the existing series instead.
instanceNumber	A number identifying this image
equipmentInfo	Information about the equipment creating thing Parametric Map
contentIdentification	General information about this content
imageFlavor	3rd value of attribute Image Type. See standard for list of applicable Defined Terms.
derivedPixelContrast	4th value of attribute Image Type. See standard for list of applicable Defined Terms.
contentQualification	Either one of CQ_PRODUCT, CQ_RESEARCH, CQ_SERVICE

Returns: EC_Normal in case of success, error otherwise

◆ loadDataset()

static OFvariant< OFCondition, DPMParametricMapIOD * > DPMParametricMapIOD::loadDataset ( DcmDataset & dataset )

static

Load Parametric Map object from dataset object.

Parameters

dataset The dataset to read from

Returns: Variant, either the resulting Parametric Map object in case of success, an OFCondition error code otherwise

◆ loadFile()

static OFvariant< OFCondition, DPMParametricMapIOD * > DPMParametricMapIOD::loadFile ( const OFString & filename )

static

Load Parametric Map object from file.

Parameters

filename The file to read from

Returns: Variant, either the resulting Parametric Map object in case of success, an OFCondition error code otherwise

◆ read()

virtual OFCondition DPMParametricMapIOD::read ( DcmItem & dataset )

virtual

Read Parametric Map attributes (all those handled by this class) from given item.

Reads attributes from base class DcmIODCommon before. The current content is deleted even if the reading process fails. If the log stream is set and valid the reason for any error might be obtained from the error/warning output.

Parameters

dataset Reference to DICOM dataset from which the document should be read

Returns: EC_Normal if successful, an error code otherwise

Reimplemented from DPMParametricMapBase.

◆ readGeneric()

virtual OFCondition DPMParametricMapIOD::readGeneric ( DcmItem & dataset )

protectedvirtual

Read Parametric Map's generic (not directly pixel-data related) attributes from DICOM dataset.

Parameters

dataset Reference to DICOM dataset to read from.

Returns: EC_Normal if successful, an error code otherwise

◆ setRecognizableVisualFeatures()

virtual OFCondition DPMParametricMapIOD::setRecognizableVisualFeatures ( const DPMTypes::RecognizableVisibleFeatures yesOrNo )

virtual

Indicates whether or not the image contains sufficiently recognizable visual features to allow the image or a reconstruction from a set of images to identify the patient.

Parameters

yesOrNo Must be related "YES" or "NO" types

Returns: EC_Normal if setting was successful, error otherwise

◆ write()

virtual OFCondition DPMParametricMapIOD::write ( DcmItem & dataset )

virtual

Write current Parametric Map's attributes to DICOM dataset.

Parameters

dataset Reference to DICOM dataset to which the current document should be written. The dataset is not cleared before writing to it!

Returns: EC_Normal if successful, an error code otherwise

Reimplemented from DPMParametricMapBase.

◆ writeGeneric()

virtual OFCondition DPMParametricMapIOD::writeGeneric ( DcmItem & dataset )

protectedvirtual

Write current generic Parametric Map's attributes to DICOM dataset, i.e.

those that are not directly pixel-related

Parameters

dataset Reference to DICOM dataset to which the current document should be written. The dataset is not cleared before writing to it.

Returns: EC_Normal if successful, an error code otherwise

The documentation for this class was generated from the following file:

dcmpmap/include/dcmtk/dcmpmap/dpmparametricmapiod.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Class Documentation

◆ DPMParametricMapIOD::GetPixelDataVisitor

Member Function Documentation

◆ addForAllFrames()

◆ check()

◆ create()

◆ decompress()

◆ getColumns()

◆ getContentQualification()

◆ getFrames()

◆ getNumberOfFrames()

◆ getRecognizableVisualFeatures()

◆ getRows()

◆ init()

◆ loadDataset()

◆ loadFile()

◆ read()

◆ readGeneric()

◆ setRecognizableVisualFeatures()

◆ write()

◆ writeGeneric()
