Class representing the Common Instance Reference Module: More...

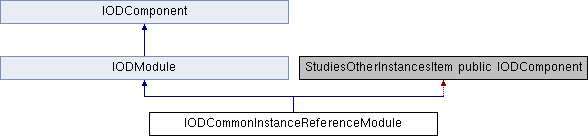

Inheritance diagram for IODCommonInstanceReferenceModule:

Public Member Functions
	IODCommonInstanceReferenceModule (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules)
	Constructor. More...

	IODCommonInstanceReferenceModule ()
	Constructor.

virtual void	clearData ()
	Clears all data belonging to this module (rules are kept)

virtual	~IODCommonInstanceReferenceModule ()
	Destructor.

virtual size_t	addReferences (const IODReferences &references, const OFString &studyInstanceUID="", const OFBool clearOldData=OFTrue)
	Add references. More...

virtual OFCondition	read (DcmItem &source, const OFBool clearOldData=OFTrue)
	Read data of this module from given source item. More...

virtual OFCondition	write (DcmItem &destination)
	Write data of this module into given destination item. More...

virtual void	resetRules ()
	Resets rules to their original values.

virtual OFString	getName () const
	Get name of module ("CommonInstanceReferenceModule") More...

OFVector< IODSeriesAndInstanceReferenceMacro::ReferencedSeriesItem * > &	getReferencedSeriesItems ()
	Return reference to list of Referenced Series items. More...

OFVector< StudiesOtherInstancesItem * > &	getStudiesContainingOtherReferences ()
	Return reference to content of Studies Containing Other Referenced Instances Sequence. More...

	StudiesOtherInstancesItem (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules, IODComponent *parent=NULL)
	Constructor. More...

	StudiesOtherInstancesItem (IODComponent *parent=NULL)
	Constructor. More...

virtual	~StudiesOtherInstancesItem ()
	Destructor.

virtual void	clearData ()
	Clear (removes) all attributes handled by the modules of this component. More...

virtual OFCondition	read (DcmItem &source, const OFBool clearOldData=OFTrue)
	Read data from source item into this module. More...

virtual OFCondition	write (DcmItem &destination)
	Write this module's data into given destination item. More...

virtual void	resetRules ()
	Resets rules to their original values.

virtual OFString	getName () const
	Get name of module ("StudiesContainingOtherReferencedInstancesSequence") More...

virtual OFCondition	getStudyInstanceUID (OFString &value, const signed long pos=0) const
	Get Study Instance UID. More...

virtual OFCondition	setStudyInstanceUID (const OFString &value, const OFBool checkValue=OFTrue)
	Set Study Instance UID. More...

virtual IODSeriesAndInstanceReferenceMacro &	getReferencedSeriesAndInstanceReferences ()
	Get Series And Instance Reference Macro. More...

Public Member Functions inherited from IODModule
	IODModule (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules)
	Constructor. More...

	IODModule ()
	Constructor. More...

	IODModule (const IODModule &rhs)
	Copy constructor, creates shallow copy. More...

IODModule &	operator= (const IODModule &rhs)
	Assignment operator, creates shallow copy. More...

	~IODModule ()
	Destructor.

Public Member Functions inherited from IODComponent
	IODComponent (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules, IODComponent *parent=NULL)
	Constructor. More...

	IODComponent (IODComponent *parent=NULL)
	Constructor, creates rules and item from scratch. More...

IODComponent &	operator= (const IODComponent &rhs)
	Assignment operator, copies contained item and rule set from rhs to "this" attribute set. More...

	IODComponent (const IODComponent &rhs)
	Copy constructor, copies reference to contained item and rule set to "this" attribute set. More...

virtual	~IODComponent ()
	Virtual Destructor.

void	clearData ()
	Clear all attributes from the data that are handled by this module. More...

virtual void	inventMissing ()
	Set missing values by inventing "default values". More...

virtual void	resetRules ()=0
	Resets rules to their original values.

OFshared_ptr< IODRules >	getRules ()
	Get rules handled by this module. More...

virtual void	makeOptional ()
	Make component optional by turning all attributes requirement types of it to type 3. More...

virtual OFString	getName () const =0
	Get name of component. More...

DcmItem &	getData ()
	Get the data handled by this module. More...

virtual OFCondition	read (DcmItem &source, const OFBool clearOldData=OFTrue)
	Read attributes from given item into this class. More...

virtual OFCondition	write (DcmItem &destination)
	Write attributes from this class into given item. More...

virtual OFCondition	check (const OFBool quiet=OFFalse)
	Check whether this component's data satisfies the underlying rules. More...

virtual int	compare (const IODComponent &rhs) const
	Comparison operator for IOD Components. More...

Private Attributes
OFVector< IODSeriesAndInstanceReferenceMacro::ReferencedSeriesItem * >	m_ReferenceSeriesItems
	Vector with all items of the Referenced Series Sequence.

OFVector< StudiesOtherInstancesItem * >	m_StudiesContainingOtherReferencedInstancesSequence
	Items of Studies Containing Other Referenced Instances Sequence.

IODSeriesAndInstanceReferenceMacro	m_ReferencedSeriesAndInstance
	The Series and Instance Reference Macro used in this item.

Static Private Attributes
static const OFString	m_ComponentName
	Name of this component ("CommonInstanceReferenceModule") More...

Additional Inherited Members
Static Public Member Functions inherited from IODComponent
static OFCondition	read (DcmItem &source, IODRules &rules, DcmItem &destination, const OFString &componentName)
	Static helper function that reads attributes from given item into destination item, as determined by the provided rules and component name. More...

static OFCondition	write (DcmItem &source, IODRules &rules, DcmItem &destination, const OFString &componentName)
	Static helper function that writes attributes from given item into destination item, as determined by the provided rules and component name. More...

Protected Attributes inherited from IODComponent
OFshared_ptr< DcmItem >	m_Item
	Shared pointer to the data handled by this class. More...

OFshared_ptr< IODRules >	m_Rules
	Rules describing the attributes governed by this class.

IODComponent *	m_Parent
	The parent component (may be NULL) of this class.

Detailed Description

Class representing the Common Instance Reference Module:

Class representing items from the Studies Containing Other Referenced Instances Sequence, as used within the Common Instance Reference Module.

Referenced Series Sequence: (SQ, VM 1-n, Type 1C)

‍Series Instance UID: (UI, 1, 1) Referenced Instance Sequence: (SQ, 1-n, 1)

‍SOP Instance Reference Macro

Studies Containing Other Referenced Instances Sequence: (SQ, 1-n, 1C)

‍Study Instance UID (UI, 1, 1) Series and Instance Reference Macro

Thus the Common Instance Reference Module lists references to other SOP instances and divides them between those instances that are in the same study, and those that are inside another study.

Studies Containing Other Referenced Instances Sequence: (SQ, 1-n, 1C)

‍Study Instance UID (UI, 1, 1) Series and Instance Reference Macro

Constructor & Destructor Documentation

◆ IODCommonInstanceReferenceModule()

IODCommonInstanceReferenceModule::IODCommonInstanceReferenceModule	(	OFshared_ptr< DcmItem >	item,
		OFshared_ptr< IODRules >	rules
	)

Constructor.

Parameters

item	The item to be used for data storage. If NULL, the class creates an empty data container.
rules	The rule set for this class. If NULL, the class creates one from scratch and adds its values.

Member Function Documentation

◆ addReferences()

virtual size_t IODCommonInstanceReferenceModule::addReferences	(	const IODReferences &	references,
		const OFString &	studyInstanceUID = `""`,
		const OFBool	clearOldData = `OFTrue`
	)

virtual

Add references.

Parameters

references	The references to be added
studyInstanceUID	The Study Instance UID of "this" object instance. It's used to decide whether the provided instances (with their own Study Instance UIDs) will go into the Referenced Series Sequence or into the Studies Containing Other Referenced Instances Sequence. If it is left empty, then the method tries to find "this" instances Study Instance UID in the internal item container which may be shared with other modules and thus may already provide the Study Instance UID (e.g. via General Study Module).
clearOldData	Delete any old references if OFTrue, otherwise keep them

Returns: EC_Normal if successful, error otherwise

◆ clearData()

virtual void IODCommonInstanceReferenceModule::clearData ( )

virtual

Clear (removes) all attributes handled by the modules of this component.

Rules are not reset.

◆ getName() [1/2]

virtual OFString IODCommonInstanceReferenceModule::getName ( ) const

virtual

Get name of module ("CommonInstanceReferenceModule")

Returns: Name of the module ("CommonInstanceReferenceModule")

Implements IODComponent.

◆ getName() [2/2]

virtual OFString IODCommonInstanceReferenceModule::getName ( ) const

virtual

Get name of module ("StudiesContainingOtherReferencedInstancesSequence")

Returns: Name of the module ("StudiesContainingOtherReferencedInstancesSequence")

Implements IODComponent.

◆ getReferencedSeriesAndInstanceReferences()

virtual IODSeriesAndInstanceReferenceMacro & IODCommonInstanceReferenceModule::getReferencedSeriesAndInstanceReferences ( )

virtual

Get Series And Instance Reference Macro.

Returns: Reference to the Series And Instance Reference Macro structure

◆ getReferencedSeriesItems()

OFVector< IODSeriesAndInstanceReferenceMacro::ReferencedSeriesItem * > & IODCommonInstanceReferenceModule::getReferencedSeriesItems ( )

Return reference to list of Referenced Series items.

Returns: Reference to list of Reference Series Items

◆ getStudiesContainingOtherReferences()

OFVector< StudiesOtherInstancesItem * > & IODCommonInstanceReferenceModule::getStudiesContainingOtherReferences ( )

Return reference to content of Studies Containing Other Referenced Instances Sequence.

Returns: Reference to content of Studies Containing Other Referenced Instances Sequence

◆ getStudyInstanceUID()

virtual OFCondition IODCommonInstanceReferenceModule::getStudyInstanceUID	(	OFString &	value,
		const signed long	pos = `0`
	)		const

virtual

Get Study Instance UID.

Parameters

value	Reference to variable in which the value should be stored
pos	Index of the value to get (0..vm-1), -1 for all components

Returns: EC_Normal if successful, an error code otherwise

◆ read() [1/2]

virtual OFCondition IODCommonInstanceReferenceModule::read	(	DcmItem &	source,
		const OFBool	clearOldData = `OFTrue`
	)

virtual

Read data of this module from given source item.

Parameters

source	The item to read from
clearOldData	If OFTrue, old data is cleared before reading, otherwise it is overwritten/amended.

Returns: EC_Normal if successful, error otherwise

Reimplemented from IODComponent.

◆ read() [2/2]

virtual OFCondition IODCommonInstanceReferenceModule::read	(	DcmItem &	source,
		const OFBool	clearOldData = `OFTrue`
	)

virtual

Read data from source item into this module.

Parameters

source	The item to read from
clearOldData	If OFTrue, old data is cleared first, otherwise it is overwritten/amended

Returns: EC_Normal if successful, error otherwise

Reimplemented from IODComponent.

◆ setStudyInstanceUID()

virtual OFCondition IODCommonInstanceReferenceModule::setStudyInstanceUID	(	const OFString &	value,
		const OFBool	checkValue = `OFTrue`
	)

virtual

Set Study Instance UID.

Parameters

value	Value to be set (single value only) or "" for no value
checkValue	Check 'value' for conformance with VR (PN) and VM (1) if enabled

Returns: EC_Normal if successful, an error code otherwise

◆ StudiesOtherInstancesItem() [1/2]

IODCommonInstanceReferenceModule::StudiesOtherInstancesItem ( IODComponent * parent = NULL )

Constructor.

Parameters

parent The parent component of this module, might be NULL

◆ StudiesOtherInstancesItem() [2/2]

IODCommonInstanceReferenceModule::StudiesOtherInstancesItem	(	OFshared_ptr< DcmItem >	item,
		OFshared_ptr< IODRules >	rules,
		IODComponent *	parent = `NULL`
	)

Constructor.

Parameters

item	The item to be used for data storage. If NULL, the class creates an empty data container.
rules	The rule set for this class. If NULL, the class creates one from scratch and adds its values.
parent	The parent of the IOD component (NULL if none or unknown)

◆ write() [1/2]

virtual OFCondition IODCommonInstanceReferenceModule::write ( DcmItem & destination )

virtual

Write data of this module into given destination item.

Parameters

destination The item to write to

Returns: EC_Normal if successful, error otherwise

Reimplemented from IODComponent.

◆ write() [2/2]

virtual OFCondition IODCommonInstanceReferenceModule::write ( DcmItem & destination )

virtual

Write this module's data into given destination item.

Parameters

destination Item to write to

Returns: EC_Normal if successful, error otherwise

Reimplemented from IODComponent.

Member Data Documentation

◆ m_ComponentName

static const OFString IODCommonInstanceReferenceModule::m_ComponentName

staticprivate

Name of this component ("CommonInstanceReferenceModule")

The name of this component ("StudiesContainingOtherReferencedInstancesSequence")

The documentation for this class was generated from the following file:

dcmiod/include/dcmtk/dcmiod/modcommoninstanceref.h

Public Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IODCommonInstanceReferenceModule()

Member Function Documentation

◆ addReferences()

◆ clearData()

◆ getName() [1/2]

◆ getName() [2/2]

◆ getReferencedSeriesAndInstanceReferences()

◆ getReferencedSeriesItems()

◆ getStudiesContainingOtherReferences()

◆ getStudyInstanceUID()

◆ read() [1/2]

◆ read() [2/2]

◆ setStudyInstanceUID()

◆ StudiesOtherInstancesItem() [1/2]

◆ StudiesOtherInstancesItem() [2/2]

◆ write() [1/2]

◆ write() [2/2]

Member Data Documentation

◆ m_ComponentName
