Implementation of DCMR Template: TID 1001 - Observation Context (and included templates 1002-1004). More...

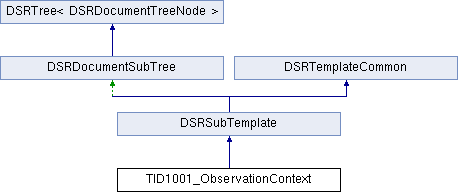

Inheritance diagram for TID1001_ObservationContext:
Public Types | |
| typedef OFList< CID7445_DeviceParticipatingRoles > | DeviceParticipatingRolesList |
| type used for storing and managing a list of device participating roles | |
Public Member Functions | |
| TID1001_ObservationContext () | |
| default constructor | |
| OFCondition | addPersonObserver (const OFString &personName, const OFString &organizationName="", const CID7452_OrganizationalRoles &organizationRole=CID7452_OrganizationalRoles(), const CID7453_PerformingRoles &procedureRole=CID7453_PerformingRoles(), const OFBool check=OFTrue) |
| add content items for TID 1002 (Observer Context) with Observer Type being "Person". More... | |
| OFCondition | addDeviceObserver (const OFString &deviceUID, const OFString &deviceName="", const OFString &manufacturer="", const OFString &modelName="", const OFString &serialNumber="", const OFString &physicalLocation="", const DeviceParticipatingRolesList &procedureRoles=DeviceParticipatingRolesList(), const OFString &stationAEtitle="", const OFBool check=OFTrue) |
| add content items for TID 1002 (Observer Context) with Observer Type being "Device". More... | |
| OFCondition | addProcedureContext () |
| add content items for TID 1005 (Procedure Context) More... | |
| OFCondition | addSubjectContext () |
| add content items for TID 1006 (Subject Context), and included TID 1007-1010 More... | |
| Public Member Functions inherited from DSRSubTemplate | |
| DSRSubTemplate (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") | |
| constructor More... | |
| DSRSubTemplate (const DSRSubTemplate &subTemplate) | |
| copy constructor. More... | |
| virtual | ~DSRSubTemplate () |
| destructor | |
| virtual DSRSubTemplate * | clone () const |
| clone this template. More... | |
| virtual DSRDocumentSubTree * | cloneTree () const |
| clone the internally stored subtree of this template. More... | |
| virtual void | clear () |
| clear internal member variables. More... | |
| virtual OFBool | isValid () const |
| check whether the current internal state is valid. More... | |
| OFBool | isRootTemplate () const |
| check whether this template is a root template, i.e. describes a complete SR document tree starting from the root node More... | |
| virtual const DSRDocumentSubTree & | getTree () |
| get read-only access to internally stored subtree. More... | |
| virtual OFCondition | addExtraContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) |
| add extra content item to the current one (if the template is extensible). More... | |
| virtual OFCondition | insertExtraTemplate (const DSRSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) |
| insert tree from given extra template to internally stored subtree. More... | |
| virtual OFBool | isCursorValid () const |
| check whether the internal cursor, which points to the current content item, is valid More... | |
| virtual OFCondition | print (STD_NAMESPACE ostream &stream, const size_t flags=0, const DSRPositionCounter *posCounter=NULL) |
| print current SR document tree to specified output stream More... | |
| virtual OFCondition | writeXML (STD_NAMESPACE ostream &stream, const size_t flags=0) |
| write current SR document tree in XML format More... | |
| size_t | countNodes (const OFBool searchIntoSubTemplates=OFFalse, const OFBool countIncludedTemplateNodes=OFTrue) const |
| count number of content items (nodes) in the document tree. More... | |
| virtual size_t | gotoNamedNode (const DSRCodedEntryValue &conceptName, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to a named node. More... | |
| virtual size_t | gotoNextNamedNode (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to the next named node. More... | |
| virtual size_t | gotoAnnotatedNode (const OFString &annotationText, const OFBool startFromRoot=OFTrue) |
| set internal cursor to an annotated node. More... | |
| virtual size_t | gotoNextAnnotatedNode (const OFString &annotationText) |
| set internal cursor to the next annotated node. More... | |
| virtual DSRContentItem & | getCurrentContentItem () |
| get reference to current content item. More... | |
| virtual OFCondition | updateByReferenceRelationships (const OFBool updateIncludedTemplates=OFFalse) |
| update the position strings used to encode by-reference relationships (if any). More... | |
| Public Member Functions inherited from DSRTemplateCommon | |
| virtual OFBool | hasTemplateIdentification () const |
| check whether template identification is set More... | |
| virtual OFBool | isTemplateIdentificationValid (const OFBool check=OFTrue) const |
| check whether template identification is valid More... | |
| virtual OFBool | isExtensible () const |
| check whether template is extensible More... | |
| virtual OFBool | isOrderSignificant () const |
| check whether the order of content items in this template is significant More... | |
| virtual OFBool | compareTemplateIdentication (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
| compare template identification with given values More... | |
| const OFString & | getTemplateIdentifier () const |
| get template identifier More... | |
| const OFString & | getMappingResource () const |
| get mapping resource More... | |
| const OFString & | getMappingResourceUID () const |
| get optional mapping resource UID More... | |
| virtual void | setExtensible (const OFBool mode=OFTrue) |
| change mode specifying whether the template is extensible or non-extensible More... | |
| virtual void | setOrderSignificant (const OFBool mode=OFTrue) |
| change mode specifying whether the order of content items in this template is significant or non-significant More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from DSRSubTemplate | |
| virtual void | updateTreeForOutput () |
| update the tree for subsequent output, e.g. for being printed or added to an SR document. More... | |
| Protected Member Functions inherited from DSRDocumentSubTree | |
| DSRDocumentSubTree (DSRDocumentTreeNode *rootNode) | |
| special constructor that receives a pointer to the root node. More... | |
| DSRDocumentSubTree (const DSRDocumentTreeNodeCursor &startCursor, size_t stopAfterNodeID) | |
| special copy constructor that clones a particular subtree only More... | |
| void | swap (DSRDocumentSubTree &tree) |
| fast, non-throwing swap function. More... | |
| virtual DSRDocumentTreeNode * | getNode () const |
| get pointer to current node. More... | |
| virtual size_t | addNode (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent) |
| add new node to the current one. More... | |
| virtual size_t | replaceNode (DSRDocumentTreeNode *node) |
| replace current node by the given one. More... | |
| virtual DSRDocumentTreeNode * | extractNode () |
| extract current node from tree. More... | |
| virtual DSRDocumentTreeNode * | getAndRemoveRootNode () |
| get pointer to root node and "forget" the internal reference to this node. More... | |
| virtual size_t | removeNode () |
| remove current node from tree. More... | |
| virtual OFCondition | includeTemplate (const DSRSharedSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) |
| include specified sub-template, i.e. add a new DSRIncludedTemplateTreeNode, which references this template, to the current content item. More... | |
| virtual OFCondition | expandIncludedTemplates (DSRDocumentSubTree *tree) const |
| expand all "included template" content items in a given (sub)tree. More... | |
| template<typename T_Cursor > | |
| OFCondition | checkByReferenceRelationships (const size_t mode=0, const size_t flags=0) |
| check the by-reference relationships (if any) for validity. More... | |
| virtual void | resetReferenceTargetFlag () |
| reset flag for all content items whether they are target of a by-reference relationship. More... | |
| virtual OFCondition | checkSubTreeConstraints (const DSRDocumentSubTree *tree, const DSRIODConstraintChecker *checker) const |
| check whether the given subtree complies with the constraints of the given checker More... | |
| virtual OFBool | validByReferenceRelationship (const OFString &sourcePosition, const OFString &targetPosition) |
| check whether a by-reference relationship from a given source to a target node (specified by the position strings) is valid, i.e. is allowed according to the DICOM standard. More... | |
| DSRDocumentSubTree () | |
| default constructor | |
| DSRDocumentSubTree (const DSRDocumentSubTree &tree) | |
| copy constructor. More... | |
| virtual | ~DSRDocumentSubTree () |
| destructor | |
| DSRDocumentSubTree & | operator= (DSRDocumentSubTree tree) |
| assignment operator. More... | |
| virtual OFBool | isCursorValid () const |
| check whether the internal cursor, which points to the current content item, is valid More... | |
| virtual OFBool | isValidDocumentTree (const E_RelationshipType defaultRelType=RT_unknown) const |
| check whether this subtree is a valid document tree. More... | |
| virtual OFBool | isExpandedDocumentTree () const |
| check whether this subtree is an expanded document tree. More... | |
| virtual OFBool | hasTemplateIdentification () const |
| check whether template identification is set More... | |
| virtual OFBool | canUseTemplateIdentification () const |
| check whether template identification is possible at all. More... | |
| virtual OFCondition | print (STD_NAMESPACE ostream &stream, const size_t flags=0, const DSRPositionCounter *posCounter=NULL) |
| print current SR document tree to specified output stream More... | |
| virtual OFCondition | writeXML (STD_NAMESPACE ostream &stream, const size_t flags=0) |
| write current SR document tree in XML format More... | |
| virtual DSRContentItem & | getCurrentContentItem () |
| get reference to current content item. More... | |
| virtual const DSRDocumentTreeNode * | getCurrentNode () const |
| get read-only access to current node (content item) More... | |
| virtual OFBool | getCursorToRootNode (DSRDocumentTreeNodeCursor &cursor) const |
| get a cursor to the root node of this document tree. More... | |
| virtual OFBool | getCursorToRootNode (DSRIncludedTemplateNodeCursor &cursor) const |
| get a cursor to the root node of this document tree. More... | |
| virtual OFBool | getCursorToCurrentNode (DSRDocumentTreeNodeCursor &cursor) const |
| get a cursor to the current node of this document tree. More... | |
| virtual OFBool | getCursorToSubTree (DSRDocumentTreeNodeCursor &cursor) const |
| get a cursor to the subtree below the current node. More... | |
| size_t | countNodes (const OFBool searchIntoSubTemplates=OFFalse, const OFBool countIncludedTemplateNodes=OFTrue) const |
| count number of content items (nodes) in the document tree. More... | |
| virtual size_t | gotoMatchingNode (const DSRDocumentTreeNodeFilter &filter, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to a matching node. More... | |
| virtual size_t | gotoNextMatchingNode (const DSRDocumentTreeNodeFilter &filter, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to the next matching node. More... | |
| virtual size_t | gotoNamedNode (const DSRCodedEntryValue &conceptName, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to a named node. More... | |
| virtual size_t | gotoNamedChildNode (const DSRCodedEntryValue &conceptName) |
| set internal cursor to a named node (starting from the first child of the current node and searching on this level only). More... | |
| virtual size_t | gotoNamedNodeInSubTree (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to a named node in the subtree below the current node. More... | |
| virtual size_t | gotoNextNamedNode (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue) |
| set internal cursor to the next named node. More... | |
| virtual size_t | gotoAnnotatedNode (const OFString &annotationText, const OFBool startFromRoot=OFTrue) |
| set internal cursor to an annotated node. More... | |
| virtual size_t | gotoNextAnnotatedNode (const OFString &annotationText) |
| set internal cursor to the next annotated node. More... | |
| virtual OFBool | canAddContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) const |
| check whether specified content item can be added to the current one. More... | |
| virtual OFBool | canAddByReferenceRelationship (const E_RelationshipType relationshipType, const E_ValueType targetValueType) const |
| check whether specified by-reference relationship can be added to the current content item. More... | |
| virtual size_t | addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) |
| add specified content item to the current one. More... | |
| virtual OFCondition | addContentItem (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent, const OFBool deleteIfFail=OFFalse) |
| add specified content item to the current one. More... | |
| virtual OFCondition | addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue) |
| add specified content item after the current one. More... | |
| virtual OFCondition | addChildContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue) |
| add specified content item below the current one. More... | |
| virtual size_t | addByReferenceRelationship (const E_RelationshipType relationshipType, const size_t referencedNodeID) |
| add specified by-reference relationship to the current content item. More... | |
| virtual OFCondition | updateByReferenceRelationships (const OFBool updateIncludedTemplates=OFFalse) |
| update the position strings used to encode by-reference relationships (if any). More... | |
| virtual OFBool | canInsertSubTree (const DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) const |
| check whether specified subtree can be inserted at the current position, i.e. added to the current content item. More... | |
| virtual OFCondition | insertSubTree (DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown, const OFBool deleteIfFail=OFFalse) |
| insert specified subtree to this tree, i.e. add it to the current content item. More... | |
| virtual DSRDocumentSubTree * | extractSubTree () |
| extract a subtree, i.e. a fragment from this tree. More... | |
| virtual size_t | removeCurrentContentItem () |
| remove current content item from tree. More... | |
| virtual OFCondition | removeSubTree (const size_t searchID=0) |
| remove a subtree from this tree. More... | |
| virtual DSRDocumentTreeNode * | cloneCurrentTreeNode () const |
| clone the current tree node. More... | |
| virtual DSRDocumentSubTree * | cloneSubTree (const size_t stopAfterNodeID=0) const |
| clone a subtree, i.e. a fragment of this tree. More... | |
| virtual OFCondition | createExpandedSubTree (DSRDocumentSubTree *&tree) const |
| created an expanded version of this (sub)tree. More... | |
| virtual OFCondition | setObservationDateTime (const OFString &observationDateTime, const OFBool check=OFTrue) |
| set observation date/time for all content items in the document tree. More... | |
| virtual OFBool | compareTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
| compare template identification of the root node with given values. More... | |
| virtual OFCondition | getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource) const |
| get template identifier and mapping resource from the root node of this tree. More... | |
| virtual OFCondition | getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource, OFString &mappingResourceUID) const |
| get template identifier, mapping resource and optional mapping resource UID from the root node of this tree. More... | |
| virtual OFCondition | setTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="", const OFBool check=OFTrue) |
| set template identifier and mapping resource to the root node of this tree. More... | |
| Protected Member Functions inherited from DSRTree< DSRDocumentTreeNode > | |
| DSRTree (DSRDocumentTreeNode *rootNode) | |
| special constructor that receives a pointer to the root node. More... | |
| DSRTree (const DSRTreeNodeCursor< DSRDocumentTreeNode > &startCursor, size_t stopAfterNodeID) | |
| special copy constructor that clones a particular subtree only More... | |
| void | swap (DSRTree< DSRDocumentTreeNode > &tree) |
| fast, non-throwing swap function. More... | |
| virtual DSRDocumentTreeNode * | getRoot () const |
| get pointer to root node More... | |
| virtual void | deleteTreeFromRootNode (DSRDocumentTreeNode *rootNode) |
| delete a tree given by its root node. More... | |
| DSRTree () | |
| default constructor | |
| DSRTree (const DSRTree< DSRDocumentTreeNode > &tree) | |
| copy constructor. More... | |
| virtual | ~DSRTree () |
| destructor | |
| DSRTree & | operator= (DSRTree< DSRDocumentTreeNode > tree) |
| assignment operator. More... | |
| void | clearAnnotations () |
| clear annotations of all tree nodes | |
| OFBool | isEmpty () const |
| check whether tree has any nodes More... | |
| size_t | countNodes () const |
| count number of nodes in the tree. More... | |
| size_t | getNextNodeID () const |
| get ID of the next node to be created. More... | |
| size_t | gotoRoot () |
| set internal cursor to root node More... | |
| size_t | gotoNode (const size_t searchID, const OFBool startFromRoot=OFTrue) |
| set internal cursor to specified node More... | |
| size_t | gotoNode (const OFString &reference, const OFBool startFromRoot=OFTrue) |
| set internal cursor to specified node More... | |
| size_t | gotoNode (const DSRTreeNodeAnnotation &annotation, const OFBool startFromRoot=OFTrue) |
| set internal cursor to specified node More... | |
| size_t | gotoNode (const DSRDocumentTreeNode &nodeValue, const OFBool startFromRoot=OFTrue) |
| set internal cursor to specified node (given by its value). More... | |
| Protected Member Functions inherited from DSRTemplateCommon | |
| DSRTemplateCommon (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") | |
| constructor More... | |
| virtual | ~DSRTemplateCommon () |
| destructor | |
| void | clearEntriesInNodeList () |
| clear all entries in the list of node IDs, i.e. set them to their initial value, which is 0 | |
| void | reserveEntriesInNodeList (const size_t count, const OFBool initialize=OFFalse) |
| reserve a certain number of entries in the list of node IDs. More... | |
| void | storeEntryInNodeList (const size_t pos, const size_t nodeID) |
| store given entry at a certain position in the list of node IDs More... | |
| size_t | getEntryFromNodeList (const size_t pos) const |
| get a particular entry from the list of node IDs More... | |
| size_t | gotoEntryFromNodeList (DSRDocumentTreeNodeCursor &cursor, const size_t pos) const |
| set given cursor to a specific node More... | |
| size_t | gotoEntryFromNodeList (DSRDocumentSubTree *tree, const size_t pos) |
| set internal cursor of a given document tree to a specific node More... | |
| size_t | gotoLastEntryFromNodeList (DSRDocumentSubTree *tree, const size_t lastPos, const size_t firstPos=0) |
| set internal cursor of a given document tree to a particular node. More... | |
| virtual OFBool | hasTemplateIdentification () const |
| check whether template identification is set More... | |
| virtual OFBool | isTemplateIdentificationValid (const OFBool check=OFTrue) const |
| check whether template identification is valid More... | |
| virtual OFBool | isExtensible () const |
| check whether template is extensible More... | |
| virtual OFBool | isOrderSignificant () const |
| check whether the order of content items in this template is significant More... | |
| virtual OFBool | compareTemplateIdentication (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
| compare template identification with given values More... | |
| const OFString & | getTemplateIdentifier () const |
| get template identifier More... | |
| const OFString & | getMappingResource () const |
| get mapping resource More... | |
| const OFString & | getMappingResourceUID () const |
| get optional mapping resource UID More... | |
| virtual void | setExtensible (const OFBool mode=OFTrue) |
| change mode specifying whether the template is extensible or non-extensible More... | |
| virtual void | setOrderSignificant (const OFBool mode=OFTrue) |
| change mode specifying whether the order of content items in this template is significant or non-significant More... | |
| Static Protected Member Functions inherited from DSRDocumentSubTree | |
| static DSRDocumentSubTree * | cloneSubTree (const DSRDocumentTreeNodeCursor &startCursor, const size_t stopAfterNodeID=0) |
| clone a particular subtree, i.e. a fragment of a tree More... | |
| Protected Attributes inherited from DSRDocumentSubTree | |
| DSRIODConstraintChecker * | ConstraintChecker |
| check relationship content constraints of the associated IOD | |
Detailed Description
Implementation of DCMR Template: TID 1001 - Observation Context (and included templates 1002-1004).
All added content items are annotated with a text in the format "TID 1001 - Row [n]".
- Note
- Please note that the included templates 1005-1010 are not yet supported.
Member Function Documentation
◆ addDeviceObserver()
| OFCondition TID1001_ObservationContext::addDeviceObserver | ( | const OFString & | deviceUID, |
| const OFString & | deviceName = "", |
||
| const OFString & | manufacturer = "", |
||
| const OFString & | modelName = "", |
||
| const OFString & | serialNumber = "", |
||
| const OFString & | physicalLocation = "", |
||
| const DeviceParticipatingRolesList & | procedureRoles = DeviceParticipatingRolesList(), |
||
| const OFString & | stationAEtitle = "", |
||
| const OFBool | check = OFTrue |
||
| ) |
add content items for TID 1002 (Observer Context) with Observer Type being "Device".
This also includes the content items from TID 1004 (Device Observer Identifying Attributes).
- Parameters
-
deviceUID unique identifier of automated device that created the observations (mandatory) deviceName institution-provided identifier of automated device that created the observations (optional) manufacturer manufacturer of automated device that created the observations (optional) modelName manufacturer-provided model name of automated device that created the observations (optional) serialNumber manufacturer-provided serial number of automated device that created the observations (optional) physicalLocation location of automated device that created the observations whilst the observations were being made (optional) procedureRoles the roles played by a device in a procedure (optional, multiple values allowed) stationAEtitle application entity title of the device (optional) check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ addPersonObserver()
| OFCondition TID1001_ObservationContext::addPersonObserver | ( | const OFString & | personName, |
| const OFString & | organizationName = "", |
||
| const CID7452_OrganizationalRoles & | organizationRole = CID7452_OrganizationalRoles(), |
||
| const CID7453_PerformingRoles & | procedureRole = CID7453_PerformingRoles(), |
||
| const OFBool | check = OFTrue |
||
| ) |
add content items for TID 1002 (Observer Context) with Observer Type being "Person".
This also includes the content items from TID 1003 (Person Observer Identifying Attributes).
- Parameters
-
personName name of human observer that created the observations (mandatory) organizationName organization or institution with which the human observer is affiliated for the context of the current observation (optional) organizationRole organizational role of human observer for the context of the current observation (optional) procedureRole procedural role of human observer for the context of the current observation (optional) check if enabled, check values for validity before setting them
- Returns
- status, EC_Normal if successful, an error code otherwise
◆ addProcedureContext()
| OFCondition TID1001_ObservationContext::addProcedureContext | ( | ) |
add content items for TID 1005 (Procedure Context)
- Returns
- always returns EC_NotYetImplemented since this methods has not been implemented yet
◆ addSubjectContext()
| OFCondition TID1001_ObservationContext::addSubjectContext | ( | ) |
add content items for TID 1006 (Subject Context), and included TID 1007-1010
- Returns
- always returns EC_NotYetImplemented since this methods has not been implemented yet
The documentation for this class was generated from the following file:
- dcmsr/include/dcmtk/dcmsr/cmr/tid1001.h
