Class managing common information on an SR template. More...

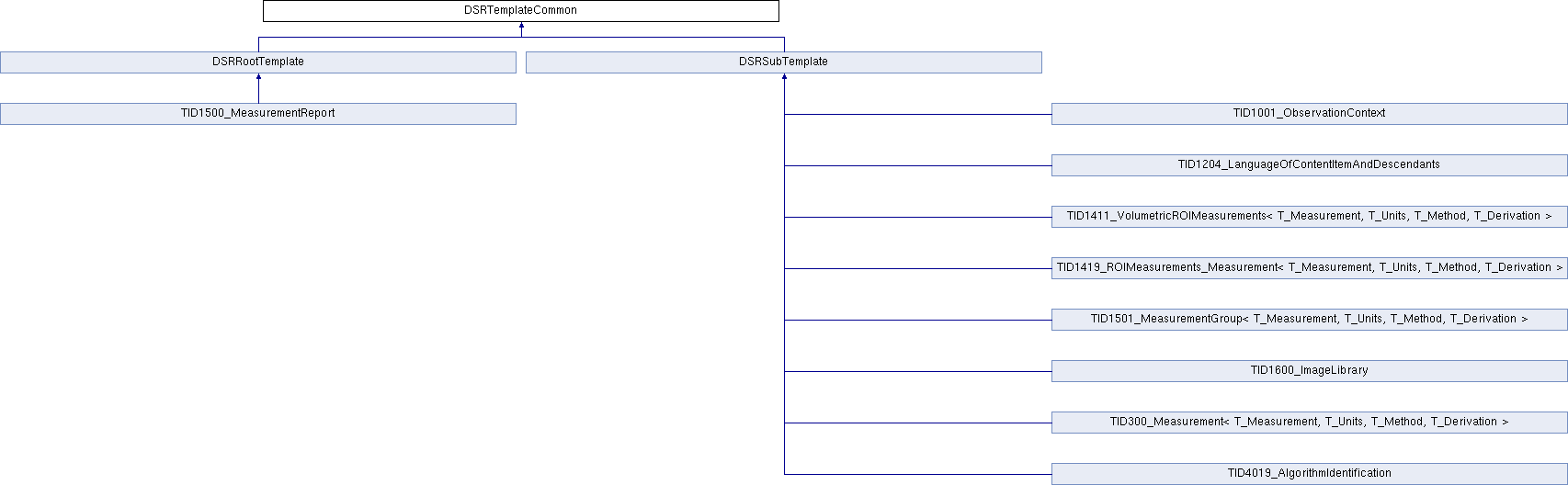

Inheritance diagram for DSRTemplateCommon:

Public Member Functions
virtual void	clear ()
	clear non-static member variables

virtual OFBool	hasTemplateIdentification () const
	check whether template identification is set More...

virtual OFBool	isTemplateIdentificationValid (const OFBool check=OFTrue) const
	check whether template identification is valid More...

virtual OFBool	isExtensible () const
	check whether template is extensible More...

virtual OFBool	isOrderSignificant () const
	check whether the order of content items in this template is significant More...

virtual OFBool	compareTemplateIdentication (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const
	compare template identification with given values More...

const OFString &	getTemplateIdentifier () const
	get template identifier More...

const OFString &	getMappingResource () const
	get mapping resource More...

const OFString &	getMappingResourceUID () const
	get optional mapping resource UID More...

virtual void	setExtensible (const OFBool mode=OFTrue)
	change mode specifying whether the template is extensible or non-extensible More...

virtual void	setOrderSignificant (const OFBool mode=OFTrue)
	change mode specifying whether the order of content items in this template is significant or non-significant More...

Protected Member Functions
	DSRTemplateCommon (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="")
	constructor More...

virtual	~DSRTemplateCommon ()
	destructor

void	clearEntriesInNodeList ()
	clear all entries in the list of node IDs, i.e. set them to their initial value, which is 0

void	reserveEntriesInNodeList (const size_t count, const OFBool initialize=OFFalse)
	reserve a certain number of entries in the list of node IDs. More...

void	storeEntryInNodeList (const size_t pos, const size_t nodeID)
	store given entry at a certain position in the list of node IDs More...

size_t	getEntryFromNodeList (const size_t pos) const
	get a particular entry from the list of node IDs More...

size_t	gotoEntryFromNodeList (DSRDocumentTreeNodeCursor &cursor, const size_t pos) const
	set given cursor to a specific node More...

size_t	gotoEntryFromNodeList (DSRDocumentSubTree *tree, const size_t pos)
	set internal cursor of a given document tree to a specific node More...

size_t	gotoLastEntryFromNodeList (DSRDocumentSubTree *tree, const size_t lastPos, const size_t firstPos=0)
	set internal cursor of a given document tree to a particular node. More...

Private Attributes
const OFString	TemplateIdentifier
	template identifier (VR=CS, mandatory)

const OFString	MappingResource
	mapping resource (VR=CS, mandatory)

const OFString	MappingResourceUID
	mapping resource UID (VR=UI, optional)

OFBool	ExtensibleMode
	mode indicating whether template is extensible (default: false)

OFBool	OrderSignificantMode
	mode indicating whether the order of content items in this template is significant (default: false)

OFVector< size_t >	NodeList
	list of node IDs used to remember certain positions in the template

Detailed Description

Class managing common information on an SR template.

This class is used as a base class only.

Constructor & Destructor Documentation

◆ DSRTemplateCommon()

DSRTemplateCommon::DSRTemplateCommon	(	const OFString &	templateIdentifier,
		const OFString &	mappingResource,
		const OFString &	mappingResourceUID = `""`
	)

protected

constructor

Parameters

templateIdentifier	identifier of the template
mappingResource	mapping resource that defines the template
mappingResourceUID	uniquely identifies the mapping resource (optional)

Member Function Documentation

◆ compareTemplateIdentication()

virtual OFBool DSRTemplateCommon::compareTemplateIdentication	(	const OFString &	templateIdentifier,
		const OFString &	mappingResource,
		const OFString &	mappingResourceUID = `""`
	)		const

virtual

compare template identification with given values

Parameters

templateIdentifier	template identifier to compare with
mappingResource	mapping resource that defines the template
mappingResourceUID	uniquely identifies the mapping resource (optional). Not used for comparison if the value is empty.

Returns: OFTrue if template identification is identical, OFFalse otherwise

◆ getEntryFromNodeList()

size_t DSRTemplateCommon::getEntryFromNodeList ( const size_t pos ) const

protected

get a particular entry from the list of node IDs

Parameters

pos	index of the list entry to retrieve (starting from 0)

Returns: node ID that is stored at the given position, 0 if not found or set

◆ getMappingResource()

const OFString& DSRTemplateCommon::getMappingResource ( ) const

inline

get mapping resource

Returns: mapping resource that defines the template

◆ getMappingResourceUID()

const OFString& DSRTemplateCommon::getMappingResourceUID ( ) const

inline

get optional mapping resource UID

Returns: unique identifier of the mapping resource (might be empty)

◆ getTemplateIdentifier()

const OFString& DSRTemplateCommon::getTemplateIdentifier ( ) const

inline

get template identifier

Returns: identifier of the template

◆ gotoEntryFromNodeList() [1/2]

size_t DSRTemplateCommon::gotoEntryFromNodeList	(	DSRDocumentSubTree *	tree,
		const size_t	pos
	)

protected

set internal cursor of a given document tree to a specific node

Parameters

tree	pointer to document tree where nodes and cursor are stored
pos	index of the list entry that stores the ID of the node

Returns: ID of the new current node within the tree if successful, 0 otherwise

◆ gotoEntryFromNodeList() [2/2]

size_t DSRTemplateCommon::gotoEntryFromNodeList	(	DSRDocumentTreeNodeCursor &	cursor,
		const size_t	pos
	)		const

protected

set given cursor to a specific node

Parameters

cursor	reference to document tree node cursor that is used to start searching the node from and that is set afterwards
pos	index of the list entry that stores the ID of the node

Returns: ID of the new current node within the tree if successful, 0 otherwise

◆ gotoLastEntryFromNodeList()

size_t DSRTemplateCommon::gotoLastEntryFromNodeList	(	DSRDocumentSubTree *	tree,
		const size_t	lastPos,
		const size_t	firstPos = `0`
	)

protected

set internal cursor of a given document tree to a particular node.

The node is determined from the list of node IDs, starting from the entry specified by the parameter 'lastPos'. The reverse search stops if either an entry with a non-zero value (valid node ID) is found or the first list entry is reached. This approach in particular supports handling of template tables where the order of content items is significant.

Parameters

tree	pointer to document tree where nodes and cursor are stored
lastPos	index of the last node list entry to start searching from
firstPos	optional index of the node list entry to stop searching

Returns: ID of the new current node within the tree if successful, 0 otherwise

◆ hasTemplateIdentification()

virtual OFBool DSRTemplateCommon::hasTemplateIdentification ( ) const

virtual

check whether template identification is set

Returns: OFTrue if set, OFFalse otherwise

◆ isExtensible()

virtual OFBool DSRTemplateCommon::isExtensible ( ) const

inlinevirtual

check whether template is extensible

Returns: OFTrue if extensible, OFFalse otherwise

◆ isOrderSignificant()

virtual OFBool DSRTemplateCommon::isOrderSignificant ( ) const

inlinevirtual

check whether the order of content items in this template is significant

Returns: OFTrue if order is significant, OFFalse otherwise

◆ isTemplateIdentificationValid()

virtual OFBool DSRTemplateCommon::isTemplateIdentificationValid ( const OFBool check = OFTrue ) const

virtual

check whether template identification is valid

Parameters

check check internally stored values for conformance with VR and VM if enabled

Returns: OFTrue if valid, OFFalse otherwise

◆ reserveEntriesInNodeList()

void DSRTemplateCommon::reserveEntriesInNodeList	(	const size_t	count,
		const OFBool	initialize = `OFFalse`
	)

protected

reserve a certain number of entries in the list of node IDs.

Using this method can help to avoid unwanted memory allocations and copying of list entries.

Parameters

count	number of entries to be reserved (for later use)
initialize	initialize all entries with a value of 0 if OFTrue, just reserve but do not create them otherwise (default)

◆ setExtensible()

virtual void DSRTemplateCommon::setExtensible ( const OFBool mode = OFTrue )

inlinevirtual

change mode specifying whether the template is extensible or non-extensible

Parameters

mode	set template type to extensible if OFTrue (default)

◆ setOrderSignificant()

virtual void DSRTemplateCommon::setOrderSignificant ( const OFBool mode = OFTrue )

inlinevirtual

change mode specifying whether the order of content items in this template is significant or non-significant

Parameters

mode	set order of content items to significant if OFTrue (default)

◆ storeEntryInNodeList()

void DSRTemplateCommon::storeEntryInNodeList	(	const size_t	pos,
		const size_t	nodeID
	)

protected

store given entry at a certain position in the list of node IDs

Parameters

pos	index of the list entry to use for storage (starting from 0)
nodeID	ID of the node that should be stored at the given position

The documentation for this class was generated from the following file:

dcmsr/include/dcmtk/dcmsr/dsrctpl.h
