Class managing a SR document subtree. More...

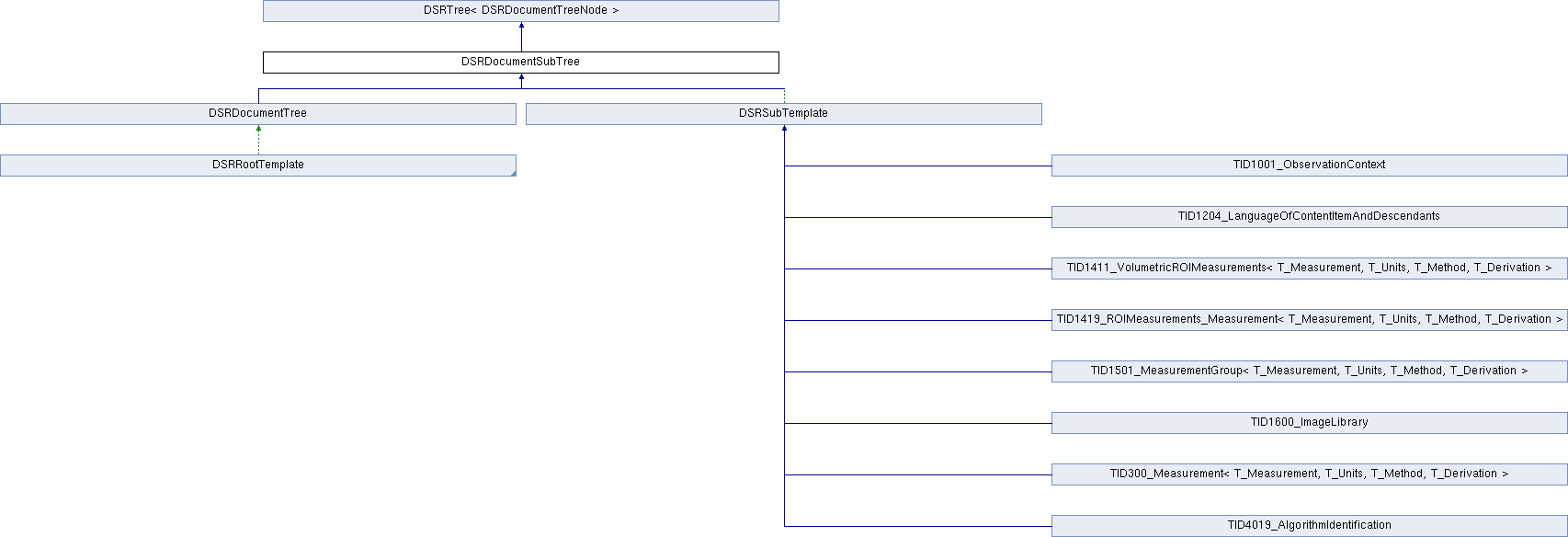

Inheritance diagram for DSRDocumentSubTree:

Public Member Functions
	DSRDocumentSubTree ()
	default constructor

	DSRDocumentSubTree (const DSRDocumentSubTree &tree)
	copy constructor. More...

virtual	~DSRDocumentSubTree ()
	destructor

DSRDocumentSubTree &	operator= (DSRDocumentSubTree tree)
	assignment operator. More...

virtual DSRDocumentSubTree *	clone () const
	clone this subtree. More...

virtual void	clear ()
	clear internal member variables

virtual OFBool	isValid () const
	check whether the current internal state is valid. More...

virtual OFBool	isCursorValid () const
	check whether the internal cursor, which points to the current content item, is valid More...

virtual OFBool	isValidDocumentTree (const E_RelationshipType defaultRelType=RT_unknown) const
	check whether this subtree is a valid document tree. More...

virtual OFBool	isExpandedDocumentTree () const
	check whether this subtree is an expanded document tree. More...

virtual OFBool	hasTemplateIdentification () const
	check whether template identification is set More...

virtual OFBool	canUseTemplateIdentification () const
	check whether template identification is possible at all. More...

virtual OFCondition	print (STD_NAMESPACE ostream &stream, const size_t flags=0, const DSRPositionCounter *posCounter=NULL)
	print current SR document tree to specified output stream More...

virtual OFCondition	writeXML (STD_NAMESPACE ostream &stream, const size_t flags=0)
	write current SR document tree in XML format More...

virtual DSRContentItem &	getCurrentContentItem ()
	get reference to current content item. More...

virtual const DSRDocumentTreeNode *	getCurrentNode () const
	get read-only access to current node (content item) More...

virtual OFBool	getCursorToRootNode (DSRDocumentTreeNodeCursor &cursor) const
	get a cursor to the root node of this document tree. More...

virtual OFBool	getCursorToRootNode (DSRIncludedTemplateNodeCursor &cursor) const
	get a cursor to the root node of this document tree. More...

virtual OFBool	getCursorToCurrentNode (DSRDocumentTreeNodeCursor &cursor) const
	get a cursor to the current node of this document tree. More...

virtual OFBool	getCursorToSubTree (DSRDocumentTreeNodeCursor &cursor) const
	get a cursor to the subtree below the current node. More...

size_t	countNodes (const OFBool searchIntoSubTemplates=OFFalse, const OFBool countIncludedTemplateNodes=OFTrue) const
	count number of content items (nodes) in the document tree. More...

virtual size_t	gotoMatchingNode (const DSRDocumentTreeNodeFilter &filter, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue)
	set internal cursor to a matching node. More...

virtual size_t	gotoNextMatchingNode (const DSRDocumentTreeNodeFilter &filter, const OFBool searchIntoSub=OFTrue)
	set internal cursor to the next matching node. More...

virtual size_t	gotoNamedNode (const DSRCodedEntryValue &conceptName, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue)
	set internal cursor to a named node. More...

virtual size_t	gotoNamedChildNode (const DSRCodedEntryValue &conceptName)
	set internal cursor to a named node (starting from the first child of the current node and searching on this level only). More...

virtual size_t	gotoNamedNodeInSubTree (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue)
	set internal cursor to a named node in the subtree below the current node. More...

virtual size_t	gotoNextNamedNode (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue)
	set internal cursor to the next named node. More...

virtual size_t	gotoAnnotatedNode (const OFString &annotationText, const OFBool startFromRoot=OFTrue)
	set internal cursor to an annotated node. More...

virtual size_t	gotoNextAnnotatedNode (const OFString &annotationText)
	set internal cursor to the next annotated node. More...

virtual OFBool	canAddContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) const
	check whether specified content item can be added to the current one. More...

virtual OFBool	canAddByReferenceRelationship (const E_RelationshipType relationshipType, const E_ValueType targetValueType) const
	check whether specified by-reference relationship can be added to the current content item. More...

virtual size_t	addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent)
	add specified content item to the current one. More...

virtual OFCondition	addContentItem (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent, const OFBool deleteIfFail=OFFalse)
	add specified content item to the current one. More...

virtual OFCondition	addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue)
	add specified content item after the current one. More...

virtual OFCondition	addChildContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue)
	add specified content item below the current one. More...

virtual size_t	addByReferenceRelationship (const E_RelationshipType relationshipType, const size_t referencedNodeID)
	add specified by-reference relationship to the current content item. More...

virtual OFCondition	updateByReferenceRelationships (const OFBool updateIncludedTemplates=OFFalse)
	update the position strings used to encode by-reference relationships (if any). More...

virtual OFBool	canInsertSubTree (const DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) const
	check whether specified subtree can be inserted at the current position, i.e. added to the current content item. More...

virtual OFCondition	insertSubTree (DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown, const OFBool deleteIfFail=OFFalse)
	insert specified subtree to this tree, i.e. add it to the current content item. More...

virtual DSRDocumentSubTree *	extractSubTree ()
	extract a subtree, i.e. a fragment from this tree. More...

virtual size_t	removeCurrentContentItem ()
	remove current content item from tree. More...

virtual OFCondition	removeSubTree (const size_t searchID=0)
	remove a subtree from this tree. More...

virtual DSRDocumentTreeNode *	cloneCurrentTreeNode () const
	clone the current tree node. More...

virtual DSRDocumentSubTree *	cloneSubTree (const size_t stopAfterNodeID=0) const
	clone a subtree, i.e. a fragment of this tree. More...

virtual OFCondition	createExpandedSubTree (DSRDocumentSubTree *&tree) const
	created an expanded version of this (sub)tree. More...

virtual OFCondition	setObservationDateTime (const OFString &observationDateTime, const OFBool check=OFTrue)
	set observation date/time for all content items in the document tree. More...

virtual OFBool	compareTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const
	compare template identification of the root node with given values. More...

virtual OFCondition	getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource) const
	get template identifier and mapping resource from the root node of this tree. More...

virtual OFCondition	getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource, OFString &mappingResourceUID) const
	get template identifier, mapping resource and optional mapping resource UID from the root node of this tree. More...

virtual OFCondition	setTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="", const OFBool check=OFTrue)
	set template identifier and mapping resource to the root node of this tree. More...

Public Member Functions inherited from DSRTree< DSRDocumentTreeNode >
	DSRTree ()
	default constructor

	DSRTree (const DSRTree< DSRDocumentTreeNode > &tree)
	copy constructor. More...

virtual	~DSRTree ()
	destructor

DSRTree &	operator= (DSRTree< DSRDocumentTreeNode > tree)
	assignment operator. More...

void	clearAnnotations ()
	clear annotations of all tree nodes

OFBool	isEmpty () const
	check whether tree has any nodes More...

size_t	countNodes () const
	count number of nodes in the tree. More...

size_t	getNextNodeID () const
	get ID of the next node to be created. More...

size_t	gotoRoot ()
	set internal cursor to root node More...

size_t	gotoNode (const size_t searchID, const OFBool startFromRoot=OFTrue)
	set internal cursor to specified node More...

size_t	gotoNode (const OFString &reference, const OFBool startFromRoot=OFTrue)
	set internal cursor to specified node More...

size_t	gotoNode (const DSRTreeNodeAnnotation &annotation, const OFBool startFromRoot=OFTrue)
	set internal cursor to specified node More...

size_t	gotoNode (const DSRDocumentTreeNode &nodeValue, const OFBool startFromRoot=OFTrue)
	set internal cursor to specified node (given by its value). More...

Protected Member Functions
	DSRDocumentSubTree (DSRDocumentTreeNode *rootNode)
	special constructor that receives a pointer to the root node. More...

	DSRDocumentSubTree (const DSRDocumentTreeNodeCursor &startCursor, size_t stopAfterNodeID)
	special copy constructor that clones a particular subtree only More...

void	swap (DSRDocumentSubTree &tree)
	fast, non-throwing swap function. More...

virtual DSRDocumentTreeNode *	getNode () const
	get pointer to current node. More...

virtual size_t	addNode (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent)
	add new node to the current one. More...

virtual size_t	replaceNode (DSRDocumentTreeNode *node)
	replace current node by the given one. More...

virtual DSRDocumentTreeNode *	extractNode ()
	extract current node from tree. More...

virtual DSRDocumentTreeNode *	getAndRemoveRootNode ()
	get pointer to root node and "forget" the internal reference to this node. More...

virtual size_t	removeNode ()
	remove current node from tree. More...

virtual OFCondition	includeTemplate (const DSRSharedSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown)
	include specified sub-template, i.e. add a new DSRIncludedTemplateTreeNode, which references this template, to the current content item. More...

virtual OFCondition	expandIncludedTemplates (DSRDocumentSubTree *tree) const
	expand all "included template" content items in a given (sub)tree. More...

template<typename T_Cursor >
OFCondition	checkByReferenceRelationships (const size_t mode=0, const size_t flags=0)
	check the by-reference relationships (if any) for validity. More...

virtual void	resetReferenceTargetFlag ()
	reset flag for all content items whether they are target of a by-reference relationship. More...

virtual void	updateTreeForOutput ()
	update the tree for subsequent output, e.g. for being printed or added to an SR document. More...

virtual OFCondition	checkSubTreeConstraints (const DSRDocumentSubTree tree, const DSRIODConstraintChecker checker) const
	check whether the given subtree complies with the constraints of the given checker More...

virtual OFBool	validByReferenceRelationship (const OFString &sourcePosition, const OFString &targetPosition)
	check whether a by-reference relationship from a given source to a target node (specified by the position strings) is valid, i.e. is allowed according to the DICOM standard. More...

Protected Member Functions inherited from DSRTree< DSRDocumentTreeNode >
	DSRTree (DSRDocumentTreeNode *rootNode)
	special constructor that receives a pointer to the root node. More...

	DSRTree (const DSRTreeNodeCursor< DSRDocumentTreeNode > &startCursor, size_t stopAfterNodeID)
	special copy constructor that clones a particular subtree only More...

void	swap (DSRTree< DSRDocumentTreeNode > &tree)
	fast, non-throwing swap function. More...

virtual DSRDocumentTreeNode *	getRoot () const
	get pointer to root node More...

virtual void	deleteTreeFromRootNode (DSRDocumentTreeNode *rootNode)
	delete a tree given by its root node. More...

Static Protected Member Functions
static DSRDocumentSubTree *	cloneSubTree (const DSRDocumentTreeNodeCursor &startCursor, const size_t stopAfterNodeID=0)
	clone a particular subtree, i.e. a fragment of a tree More...

Protected Attributes
DSRIODConstraintChecker *	ConstraintChecker
	check relationship content constraints of the associated IOD

Private Attributes
DSRContentItem	CurrentContentItem
	current content item. Introduced to avoid the external use of pointers.

Detailed Description

Class managing a SR document subtree.

A subtree represents an extract of an SR document tree. Compared to the "SR Document Content Tree" that is defined in the DICOM standard, there are almost no restrictions regarding the value and relationship types. It is also possible to have multiple nodes on the top-level, i.e. no dedicated root, or to use "unknown" relationship types.

Constructor & Destructor Documentation

◆ DSRDocumentSubTree() [1/3]

DSRDocumentSubTree::DSRDocumentSubTree ( const DSRDocumentSubTree & tree )

copy constructor.

Please note that the internal cursor is not copied but reset, i.e. set to the root node. Also the IOD constraint checker is not copied by this class but recreated by the derived class DSRDocumentTree (based on the corresponding document type). This constructor also updates any by-reference relationships, i.e. translates the references from the source 'tree' (based on the position string) to the IDs of the newly created nodes.

Parameters

tree	subtree to be copied

◆ DSRDocumentSubTree() [2/3]

DSRDocumentSubTree::DSRDocumentSubTree ( DSRDocumentTreeNode * rootNode )

protected

special constructor that receives a pointer to the root node.

Please note that the 'rootNode' and the associated tree is not copied!

Parameters

rootNode pointer to the root node of the "new" tree

◆ DSRDocumentSubTree() [3/3]

DSRDocumentSubTree::DSRDocumentSubTree	(	const DSRDocumentTreeNodeCursor &	startCursor,
		size_t	stopAfterNodeID
	)

protected

special copy constructor that clones a particular subtree only

Parameters

startCursor	cursor pointing to first node of the subtree to be copied
stopAfterNodeID	ID of the node after which the cloning should stop

Member Function Documentation

◆ addByReferenceRelationship()

virtual size_t DSRDocumentSubTree::addByReferenceRelationship	(	const E_RelationshipType	relationshipType,
		const size_t	referencedNodeID
	)

virtual

add specified by-reference relationship to the current content item.

If possible, this method creates a new pseudo-node (relationship) and adds it to the current one. The method canAddByReferenceRelationship() is called internally to check parameters first. The internal cursor is automatically re-set to the current node.

Parameters

relationshipType	relationship type between current and referenced node
referencedNodeID	ID of the referenced node (target content item)

Returns: ID of new pseudo-node if successful, 0 otherwise

◆ addChildContentItem()

virtual OFCondition DSRDocumentSubTree::addChildContentItem	(	const E_RelationshipType	relationshipType,
		const E_ValueType	valueType,
		const DSRCodedEntryValue &	conceptName,
		const OFBool	check = `OFTrue`
	)

virtual

add specified content item below the current one.

If possible, this method creates a new node as specified and adds it below the current one, i.e. as a child. Internally, the first variant of the addContentItem() method is called with the third parameter being DSRTypes::AM_belowCurrent. If successful, the given concept name is set for the new node, and the cursor is updated.

Note: This is a convenience function that avoids calling several other functions.

Parameters

relationshipType	relationship type of node to be added with regard to the current one
valueType	value type of node to be added
conceptName	concept name of the node to be added
check	if enabled, check 'conceptName for validity before setting it

Returns: status, EC_Normal if successful, an error code otherwise

◆ addContentItem() [1/3]

virtual OFCondition DSRDocumentSubTree::addContentItem	(	const E_RelationshipType	relationshipType,
		const E_ValueType	valueType,
		const DSRCodedEntryValue &	conceptName,
		const OFBool	check = `OFTrue`
	)

virtual

add specified content item after the current one.

If possible, this method creates a new node as specified and adds it after the current one, i.e. on the same level. Internally, the first variant of the addContentItem() method is called with the third parameter being DSRTypes::AM_afterCurrent. If successful, the given concept name is set for the new node, and the cursor is updated.

Note: This is a convenience function that avoids calling several other functions.

Parameters

relationshipType	relationship type of node to be added with regard to the current one
valueType	value type of node to be added
conceptName	concept name of the node to be added
check	if enabled, check 'conceptName for validity before setting it

Returns: status, EC_Normal if successful, an error code otherwise

◆ addContentItem() [2/3]

virtual size_t DSRDocumentSubTree::addContentItem	(	const E_RelationshipType	relationshipType,
		const E_ValueType	valueType,
		const E_AddMode	addMode = `AM_afterCurrent`
	)

virtual

add specified content item to the current one.

If possible, this method creates a new node as specified and adds it to the current one. The method canAddContentItem() is called internally to check parameters first. If the node could be added successfully, the cursor is set to it automatically.

Parameters

relationshipType	relationship type of node to be added with regard to the current one
valueType	value type of node to be added
addMode	flag specifying at which position to add the new node (e.g. after or below the current node)

Returns: ID of new node if successful, 0 otherwise

◆ addContentItem() [3/3]

virtual OFCondition DSRDocumentSubTree::addContentItem	(	DSRDocumentTreeNode *	node,
		const E_AddMode	addMode = `AM_afterCurrent`,
		const OFBool	deleteIfFail = `OFFalse`
	)

virtual

add specified content item to the current one.

If possible, this method adds a given new node to the current one. The method canAddContentItem() is called internally to check parameters first. If the node could be added successfully, the cursor is set to it automatically. Please note that no copy of the given node is created. Therefore, the node has to be created with new() or with DSRTypes::createDocumentTreeNode() - do not use a reference to a local variable and do not delete it a second time.

Parameters

node	pointer to the new node to be added (should not be empty). Reference remains valid after successful insertion.
addMode	flag specifying at which position to add the new node (e.g. after or below the current node)
deleteIfFail	flag specifying whether to delete the given 'node' if adding fails. By default, the item is not deleted, i.e. in case of error it has to be deleted by the caller.

Returns: status, EC_Normal if successful, an error code otherwise

◆ addNode()

virtual size_t DSRDocumentSubTree::addNode	(	DSRDocumentTreeNode *	node,
		const E_AddMode	addMode = `AM_afterCurrent`
	)

protectedvirtual

add new node to the current one.

Please note that no copy of the given node is created. Therefore, the node has to be created with new() - do not use a reference to a local variable. If the node could be added successfully, the cursor is set to it automatically.

Parameters

node	pointer to the new node to be added
addMode	flag specifying at which position to add the new node (e.g. after or below the current node)

Returns: ID of the new node if successful, 0 otherwise

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ canAddByReferenceRelationship()

virtual OFBool DSRDocumentSubTree::canAddByReferenceRelationship	(	const E_RelationshipType	relationshipType,
		const E_ValueType	targetValueType
	)		const

virtual

check whether specified by-reference relationship can be added to the current content item.

Always returns true if no constraint checker is available but 'relationshipType' and 'targetValueType' have valid values. The value type DSRTypes::VT_includedTemplate is never allowed for the target content item.

Parameters

relationshipType	type of relationship between current and target node
targetValueType	value type of the referenced node (target content item)

Returns: OFTrue if specified by-reference relationship can be added, OFFalse otherwise

◆ canAddContentItem()

virtual OFBool DSRDocumentSubTree::canAddContentItem	(	const E_RelationshipType	relationshipType,
		const E_ValueType	valueType,
		const E_AddMode	addMode = `AM_afterCurrent`
	)		const

virtual

check whether specified content item can be added to the current one.

This method can be used to decide which type of content items can be added prior to really doing so. Please note that only by-value relationships are supported. Always returns true if no constraint checker is available but 'relationshipType' and 'valueType' have valid values.

Parameters

relationshipType	relationship type of node to be checked with regard to the current one
valueType	value type of node to be checked
addMode	flag specifying at which position the new node would be added (e.g. after or below the current node)

Returns: OFTrue if specified node can be added, OFFalse otherwise

Reimplemented in DSRDocumentTree.

◆ canInsertSubTree()

virtual OFBool DSRDocumentSubTree::canInsertSubTree	(	const DSRDocumentSubTree *	tree,
		const E_AddMode	addMode = `AM_belowCurrent`,
		const E_RelationshipType	defaultRelType = `RT_unknown`
	)		const

virtual

check whether specified subtree can be inserted at the current position, i.e. added to the current content item.

Internally, the method canAddContentItem() is used for all top-level nodes of the document subtree. In addition, if a constraint checker is available, the remaining nodes of the given subtree are also checked for their compliance with the relationship content constraints of the underlying SR IOD.

Parameters

tree	pointer to new subtree to be inserted (should not be empty)
addMode	flag specifying at which position the new subtree would be added (e.g. after or below the current node)
defaultRelType	default relationship type between the top-level nodes of the given subtree and the current node. This relationship type is used if the one of a top-level node is "unknown".

Returns: OFTrue if specified subtree can be inserted, OFFalse otherwise

Reimplemented in DSRDocumentTree.

◆ canUseTemplateIdentification()

virtual OFBool DSRDocumentSubTree::canUseTemplateIdentification ( ) const

virtual

check whether template identification is possible at all.

According to the DICOM standard, it can be used if "the template consists of a single CONTAINER with nested content, and it is the outermost invocation of a set of nested templates that start with the same CONTAINER." With other words, the tree should have a single root node with value type "CONTAINER".

Returns: OFTrue if template identification is possible, OFFalse otherwise

◆ checkByReferenceRelationships()

template<typename T_Cursor >

OFCondition DSRDocumentSubTree::checkByReferenceRelationships	(	const size_t	mode = `0`,
		const size_t	flags = `0`
	)

protected

check the by-reference relationships (if any) for validity.

This function checks whether all by-reference relationships possibly contained in the document tree are valid according to the following restrictions: source and target node are not identical and the target node is not an ancestor of the source node (requirement from the DICOM standard to prevent loops -> directed acyclic graph, though this is not 100% true - see "reportlp.dcm" example). In addition, the position strings (used to encode by-reference relationships according to the DICOM standard) OR the node IDs (used internally to uniquely identify nodes) can be updated. Please note that the checking modes DSRTypes::CM_updatePositionString and DSRTypes::CM_updateNodeID are mutually exclusive.

Template Parameters

T_Cursor template type used for the cursor iterating the document (sub)tree

Parameters

mode	mode used to customize the checking process (see DSRTypes::CM_xxx)
flags	flag used to customize the reading (see DSRTypes::RF_xxx) and/or printing process (see DSRTypes::PF_xxx). Conflicting definitions are avoided using the appropriate bit mask (see DSRTypes::CB_xxx).

Returns: status, EC_Normal if successful, an error code otherwise

◆ checkSubTreeConstraints()

virtual OFCondition DSRDocumentSubTree::checkSubTreeConstraints	(	const DSRDocumentSubTree *	tree,
		const DSRIODConstraintChecker *	checker
	)		const

protectedvirtual

check whether the given subtree complies with the constraints of the given checker

Parameters

tree	pointer to subtree that should be checked
checker	pointer to relationship content constraints checker to be used. If NULL, no checks are performed by this method.

Returns: status, EC_Normal if successful, an error code otherwise

◆ clone()

virtual DSRDocumentSubTree* DSRDocumentSubTree::clone ( ) const

virtual

clone this subtree.

Internally, the copy constructor is used, so the corresponding comments apply.

Returns: copy of this subtree

Reimplemented in DSRRootTemplate, DSRDocumentTree, and DSRSubTemplate.

◆ cloneCurrentTreeNode()

virtual DSRDocumentTreeNode* DSRDocumentSubTree::cloneCurrentTreeNode ( ) const

virtual

clone the current tree node.

Internally, the copy constructor of the respective tree node class is used, so the corresponding comments apply. Please note that the returned tree node has to be deleted by the caller if it is not added to the document tree using addContentItem().

Returns: pointer to a copy of the current tree node, NULL in case of error

◆ cloneSubTree() [1/2]

static DSRDocumentSubTree* DSRDocumentSubTree::cloneSubTree	(	const DSRDocumentTreeNodeCursor &	startCursor,
		const size_t	stopAfterNodeID = `0`
	)

staticprotected

clone a particular subtree, i.e. a fragment of a tree

Parameters

startCursor	cursor pointing to first node of the subtree to be copied
stopAfterNodeID	ID of the node after which the cloning should stop

Returns: pointer to a copy of the specified subtree, NULL in case of error

◆ cloneSubTree() [2/2]

virtual DSRDocumentSubTree* DSRDocumentSubTree::cloneSubTree ( const size_t stopAfterNodeID = 0 ) const

virtual

clone a subtree, i.e. a fragment of this tree.

The cloning starts with the current node and ends with the given node. Please note that the returned subtree has to be deleted by the caller if it is not inserted into the document tree using insertSubTree().

Parameters

stopAfterNodeID ID of the node after which the cloning should stop. By default (0), the process ends after cloning the current node with all of its child nodes (if any).

Returns: pointer to a copy of the specified subtree, NULL in case of error

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ compareTemplateIdentification()

virtual OFBool DSRDocumentSubTree::compareTemplateIdentification	(	const OFString &	templateIdentifier,
		const OFString &	mappingResource,
		const OFString &	mappingResourceUID = `""`
	)		const

virtual

compare template identification of the root node with given values.

Please note that the comparison only takes place if there is a single node at the root of the tree and its value type is CONTAINER.

Parameters

templateIdentifier	template identifier to compare with
mappingResource	mapping resource that defines the template
mappingResourceUID	uniquely identifies the mapping resource (optional). Not used for comparison if the value is empty.

Returns: OFTrue if template identification can be compared and the values are identical, OFFalse otherwise

◆ countNodes()

size_t DSRDocumentSubTree::countNodes	(	const OFBool	searchIntoSubTemplates = `OFFalse`,
		const OFBool	countIncludedTemplateNodes = `OFTrue`
	)		const

count number of content items (nodes) in the document tree.

This method iterates over all nodes that are stored in the document tree. By default, included sub-templates are counted as a single node (see options).

Parameters

searchIntoSubTemplates	optional flag indicating whether to also count the content of included sub-templates (i.e. the nodes of the managed subtrees)
countIncludedTemplateNodes	optional flag indicating whether to count the DSRIncludedTemplateTreeNode instances as nodes. See includeTemplate() for details.

Returns: number of nodes, 0 if document tree is empty

◆ createExpandedSubTree()

virtual OFCondition DSRDocumentSubTree::createExpandedSubTree ( DSRDocumentSubTree *& tree ) const

virtual

created an expanded version of this (sub)tree.

Expanded means that no instance of DSRIncludedTemplateTreeNode will exist in the new document tree, i.e. all of them are replaced by their content (subtree). Please note that the returned subtree has to be deleted by the caller if it is not inserted into the document tree using insertSubTree().

Parameters

tree	variable that will store the pointer to the new subtree

Returns: status, EC_Normal if successful, an error code otherwise

◆ expandIncludedTemplates()

virtual OFCondition DSRDocumentSubTree::expandIncludedTemplates ( DSRDocumentSubTree * tree ) const

protectedvirtual

expand all "included template" content items in a given (sub)tree.

Expanding means that all instances of DSRIncludedTemplateTreeNode are replaced by their content (subtree). Please note that the internal cursor of the given 'tree' is set to the root node if no error occurred. Otherwise, the cursor points to the content item that caused the problem.

Parameters

tree	pointer to the subtree that should be expanded

Returns: status, EC_Normal if successful, an error code otherwise

◆ extractNode()

virtual DSRDocumentTreeNode* DSRDocumentSubTree::extractNode ( )

protectedvirtual

extract current node from tree.

Please note that not only the specified node but also all of its child nodes are extracted from the tree. The cursor is set automatically to a new valid position.

Returns: pointer to extracted node, NULL in case of error (or the tree was empty)

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ extractSubTree()

virtual DSRDocumentSubTree* DSRDocumentSubTree::extractSubTree ( )

virtual

extract a subtree, i.e. a fragment from this tree.

The subtree is specified by the current node, which becomes the root of the subtree. In contrast to cloneSubTree(), this method also makes sure that the by-reference relationships are preserved (as long as both source and target node are contained in the same tree). Please note that the returned subtree has to be deleted by the caller if it is not inserted into the document tree using insertSubTree().

Returns: pointer to the extracted subtree, NULL in case of error

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ getAndRemoveRootNode()

virtual DSRDocumentTreeNode* DSRDocumentSubTree::getAndRemoveRootNode ( )

protectedvirtual

get pointer to root node and "forget" the internal reference to this node.

In other words: after calling this method, the stored tree will be empty. This also means that the caller is responsible for deleting the allocated memory.

Returns: pointer to root node, might be NULL (empty tree)

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ getCurrentContentItem()

virtual DSRContentItem& DSRDocumentSubTree::getCurrentContentItem ( )

virtual

get reference to current content item.

This mechanism allows to access all content items without using pointers.

Returns: reference to current content item (might be invalid)

◆ getCurrentNode()

virtual const DSRDocumentTreeNode* DSRDocumentSubTree::getCurrentNode ( ) const

virtual

get read-only access to current node (content item)

Returns: pointer to current node (might be NULL)

◆ getCursorToCurrentNode()

virtual OFBool DSRDocumentSubTree::getCursorToCurrentNode ( DSRDocumentTreeNodeCursor & cursor ) const

virtual

get a cursor to the current node of this document tree.

This cursor can be used to iterate over the nodes of the document subtree that starts at the current node without changing the internal cursor. Please note that the cursor might become invalid, e.g. by pointing to a non-existing node if the content of the document tree is modified after the cursor has been retrieved. Included sub-templates are not supported by this type of cursor, i.e. the subtree that is managed by an instance of DSRIncludedTemplateTreeNode is not iterated.

Parameters

cursor reference to variable where the cursor is stored

Returns: OFTrue is the returned 'cursor' is valid, OFFalse otherwise

◆ getCursorToRootNode() [1/2]

virtual OFBool DSRDocumentSubTree::getCursorToRootNode ( DSRDocumentTreeNodeCursor & cursor ) const

virtual

get a cursor to the root node of this document tree.

This cursor can be used to iterate over the nodes of the document tree without changing the internal cursor. Please note that the cursor might become invalid, e.g. by pointing to a non-existing node if the content of the document tree is modified after the cursor has been retrieved. Included sub-templates are not supported by this type of cursor, i.e. the subtree that is managed by an instance of DSRIncludedTemplateTreeNode is not iterated.

Parameters

cursor reference to variable where the cursor is stored

Returns: OFTrue is the returned 'cursor' is valid, OFFalse otherwise

◆ getCursorToRootNode() [2/2]

virtual OFBool DSRDocumentSubTree::getCursorToRootNode ( DSRIncludedTemplateNodeCursor & cursor ) const

virtual

get a cursor to the root node of this document tree.

This cursor can be used to iterate over the nodes of the document tree without changing the internal cursor. Please note that the cursor might become invalid, e.g. by pointing to a non-existing node if the content of the document tree is modified after the cursor has been retrieved. This type of cursor also supports included sub-templates, i.e. the subtree that is managed by an instance of DSRIncludedTemplateTreeNode is also iterated.

Parameters

cursor reference to variable where the cursor is stored

Returns: OFTrue is the returned 'cursor' is valid, OFFalse otherwise

◆ getCursorToSubTree()

virtual OFBool DSRDocumentSubTree::getCursorToSubTree ( DSRDocumentTreeNodeCursor & cursor ) const

virtual

get a cursor to the subtree below the current node.

This cursor can be used to iterate over the nodes of the selected subtree without changing the internal cursor. Please note that the cursor might become invalid, e.g. by pointing to a non-existing node if the content of the document tree is modified after the cursor has been retrieved. Included sub-templates are not supported by this type of cursor, i.e. the subtree that is managed by an instance of DSRIncludedTemplateTreeNode is not iterated.

Parameters

cursor reference to variable where the cursor is stored

Returns: OFTrue is the returned 'cursor' is valid, OFFalse otherwise

◆ getNode()

virtual DSRDocumentTreeNode* DSRDocumentSubTree::getNode ( ) const

protectedvirtual

get pointer to current node.

Hide this inherited method from the public interface.

Returns: pointer to current node (might be NULL)

◆ getTemplateIdentification() [1/2]

virtual OFCondition DSRDocumentSubTree::getTemplateIdentification	(	OFString &	templateIdentifier,
		OFString &	mappingResource
	)		const

virtual

get template identifier and mapping resource from the root node of this tree.

See DSRDocumentTreeNode::getTemplateIdentification() for details on template identification. Please note that the template identification is only retrieved if there is a single node at the root of the tree and its value type is CONTAINER.

Parameters

templateIdentifier	identifier of the template (might be empty)
mappingResource	mapping resource that defines the template (might be empty)

Returns: status, EC_Normal if successful, an error code otherwise

◆ getTemplateIdentification() [2/2]

virtual OFCondition DSRDocumentSubTree::getTemplateIdentification	(	OFString &	templateIdentifier,
		OFString &	mappingResource,
		OFString &	mappingResourceUID
	)		const

virtual

get template identifier, mapping resource and optional mapping resource UID from the root node of this tree.

See DSRDocumentTreeNode::getTemplateIdentification() for details on template identification. Please note that the template identification is only retrieved if there is a single node at the root of the tree and its value type is CONTAINER.

Parameters

templateIdentifier	identifier of the template (might be empty)
mappingResource	mapping resource that defines the template (might be empty)
mappingResourceUID	uniquely identifies the mapping resource (might be empty)

Returns: status, EC_Normal if successful, an error code otherwise

◆ gotoAnnotatedNode()

virtual size_t DSRDocumentSubTree::gotoAnnotatedNode	(	const OFString &	annotationText,
		const OFBool	startFromRoot = `OFTrue`
	)

virtual

set internal cursor to an annotated node.

If more than one node exists with the given annotation text, the first one will be selected. Use gotoNextAnnotatedNode() in order to go to the next matching node. In contrast to gotoNamedNode(), a "deep search" is always performed.

Parameters

annotationText	annotation text of the node to be searched for
startFromRoot	flag indicating whether to start from the root node or the current one

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoMatchingNode()

virtual size_t DSRDocumentSubTree::gotoMatchingNode	(	const DSRDocumentTreeNodeFilter &	filter,
		const OFBool	startFromRoot = `OFTrue`,
		const OFBool	searchIntoSub = `OFTrue`
	)

virtual

set internal cursor to a matching node.

If more than one node exists matching the given filter, the first one will be selected. Use gotoNextMatchingNode() in order to go to the next matching node.

Parameters

filter	matching criterion based on a single or multiple filters
startFromRoot	flag indicating whether to start from the root node or the current one
searchIntoSub	flag indicating whether to search into sub-trees ("deep search") or on the current level only

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNamedChildNode()

virtual size_t DSRDocumentSubTree::gotoNamedChildNode ( const DSRCodedEntryValue & conceptName )

virtual

set internal cursor to a named node (starting from the first child of the current node and searching on this level only).

This is just a shortcut for calling gotoChild() followed by gotoNamedNode() with 'searchIntoSub' being OFFalse, i.e. only the first sub-level is checked. If more than one node exists with the given concept name, the first one will be selected.

Parameters

conceptName concept name of the node to be searched for

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNamedNode()

virtual size_t DSRDocumentSubTree::gotoNamedNode	(	const DSRCodedEntryValue &	conceptName,
		const OFBool	startFromRoot = `OFTrue`,
		const OFBool	searchIntoSub = `OFTrue`
	)

virtual

set internal cursor to a named node.

If more than one node exists with the given concept name, the first one will be selected. Use gotoNextNamedNode() in order to go to the next matching node.

Parameters

conceptName	concept name of the node to be searched for
startFromRoot	flag indicating whether to start from the root node or the current one
searchIntoSub	flag indicating whether to search into sub-trees ("deep search") or on the current level only

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNamedNodeInSubTree()

virtual size_t DSRDocumentSubTree::gotoNamedNodeInSubTree	(	const DSRCodedEntryValue &	conceptName,
		const OFBool	searchIntoSub = `OFTrue`
	)

virtual

set internal cursor to a named node in the subtree below the current node.

If more than one node exists with the given concept name, the first one will be selected. If the current node has no children, the cursor is not moved.

Parameters

conceptName	concept name of the node to be searched for
searchIntoSub	flag indicating whether to search into sub-trees ("deep search") or on the first sub-level only

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNextAnnotatedNode()

virtual size_t DSRDocumentSubTree::gotoNextAnnotatedNode ( const OFString & annotationText )

virtual

set internal cursor to the next annotated node.

Starts from "next" node, i.e. either the first child of the current node or the first sibling following the current node.

Parameters

annotationText annotation text of the node to be searched for

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNextMatchingNode()

virtual size_t DSRDocumentSubTree::gotoNextMatchingNode	(	const DSRDocumentTreeNodeFilter &	filter,
		const OFBool	searchIntoSub = `OFTrue`
	)

virtual

set internal cursor to the next matching node.

Starts from "next" node, i.e. either the first child of the current node or the first sibling following the current node.

Parameters

filter	matching criterion based on a single or multiple filters
searchIntoSub	flag indicating whether to search into sub-trees ("deep search") or on the current level only

Returns: ID of the new current node if successful, 0 otherwise

◆ gotoNextNamedNode()

virtual size_t DSRDocumentSubTree::gotoNextNamedNode	(	const DSRCodedEntryValue &	conceptName,
		const OFBool	searchIntoSub = `OFTrue`
	)

virtual

set internal cursor to the next named node.

Starts from "next" node, i.e. either the first child of the current node or the first sibling following the current node.

Parameters

conceptName	concept name of the node to be searched for
searchIntoSub	flag indicating whether to search into sub-trees ("deep search") or on the current level only

Returns: ID of the new current node if successful, 0 otherwise

◆ hasTemplateIdentification()

virtual OFBool DSRDocumentSubTree::hasTemplateIdentification ( ) const

virtual

check whether template identification is set

Returns: OFTrue if template identification is set, OFFalse otherwise

◆ includeTemplate()

virtual OFCondition DSRDocumentSubTree::includeTemplate	(	const DSRSharedSubTemplate &	subTemplate,
		const E_AddMode	addMode = `AM_belowCurrent`,
		const E_RelationshipType	defaultRelType = `RT_unknown`
	)

protectedvirtual

include specified sub-template, i.e. add a new DSRIncludedTemplateTreeNode, which references this template, to the current content item.

Please note that no checks are performed that would make sure that the template with its top-level nodes can actually be added, e.g. by using an IOD constraint checker. This is also the reason why this method is "protected" and not "public", i.e. it can only be used by derived classes, e.g. DSRSubTemplate and its children.

Parameters

subTemplate	shared pointer to a sub-template that should be included into this tree (at the current position)
addMode	flag specifying at which position to add the 'subTemplate' (e.g. after or below the current node)
defaultRelType	default relationship type that will be used when the subtree that is managed by the 'subTemplate' is inserted into this tree and the relationship type of one of the top-level nodes is "unknown". Also see documentation of createExpandedSubTree().

Returns: status, EC_Normal if successful, an error code otherwise

◆ insertSubTree()

virtual OFCondition DSRDocumentSubTree::insertSubTree	(	DSRDocumentSubTree *	tree,
		const E_AddMode	addMode = `AM_belowCurrent`,
		const E_RelationshipType	defaultRelType = `RT_unknown`,
		const OFBool	deleteIfFail = `OFFalse`
	)

virtual

insert specified subtree to this tree, i.e. add it to the current content item.

If possible, this method adds a given new subtree to the current content item. The method canInsertSubTree() is called internally to check the parameters first. Please note that no copy of the given subtree is created. Therefore, the subtree has to be created with new() or with cloneSubTree() - do not use a reference to a local variable and do not delete it a second time.

Parameters

tree	pointer to new subtree to be inserted (should not be empty). Reference becomes invalid after successful insertion!
addMode	flag specifying at which position to add the new subtree (e.g. after or below the current node)
defaultRelType	default relationship type between the top-level nodes of the given subtree and the current node. This relationship type is used if the one of a top-level node is "unknown".
deleteIfFail	flag specifying whether to delete the given 'tree' if adding fails. By default, the tree is not deleted, i.e. in case of error it has to be deleted by the caller.

Returns: status, EC_Normal if successful, an error code otherwise

◆ isCursorValid()

virtual OFBool DSRDocumentSubTree::isCursorValid ( ) const

virtual

check whether the internal cursor, which points to the current content item, is valid

Returns: OFTrue if cursor is valid, OFFalse otherwise

◆ isExpandedDocumentTree()

virtual OFBool DSRDocumentSubTree::isExpandedDocumentTree ( ) const

virtual

check whether this subtree is an expanded document tree.

Expanded means that no instances of DSRIncludedTemplateTreeNode exist in the document tree, i.e. no templates were included or all of them were replaced by their content (subtree).

Returns: OFTrue if subtree is an expanded document tree, OFFalse otherwise

◆ isValid()

virtual OFBool DSRDocumentSubTree::isValid ( ) const

virtual

check whether the current internal state is valid.

A subtree is valid if it is not empty.

Returns: OFTrue if valid, OFFalse otherwise

Reimplemented in TID1500_MeasurementReport, TID1600_ImageLibrary, DSRRootTemplate, DSRSubTemplate, DSRDocumentTree, TID1411_VolumetricROIMeasurements< T_Measurement, T_Units, T_Method, T_Derivation >, TID1419_ROIMeasurements_Measurement< T_Measurement, T_Units, T_Method, T_Derivation >, TID1501_MeasurementGroup< T_Measurement, T_Units, T_Method, T_Derivation >, and TID300_Measurement< T_Measurement, T_Units, T_Method, T_Derivation >.

◆ isValidDocumentTree()

virtual OFBool DSRDocumentSubTree::isValidDocumentTree ( const E_RelationshipType defaultRelType = RT_unknown ) const

virtual

check whether this subtree is a valid document tree.

In order to be a valid document tree, there should be a single root node only, with the value type "CONTAINER", and the internal relationship type of this node should be DSRTypes::RT_isRoot.

Parameters

defaultRelType default relationship type that is used if the one of the top-level node (root node) is "unknown"

Returns: OFTrue if subtree is a valid document tree, OFFalse otherwise

◆ operator=()

DSRDocumentSubTree& DSRDocumentSubTree::operator= ( DSRDocumentSubTree tree )

assignment operator.

Please note that internally the copy constructor is used, so the same comments apply.

Parameters

tree	subtree to be copied

Returns: reference to this subtree after copying

◆ print()

virtual OFCondition DSRDocumentSubTree::print	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags = `0`,
		const DSRPositionCounter *	posCounter = `NULL`
	)

virtual

print current SR document tree to specified output stream

Parameters

stream	output stream
flags	optional flag used to customize the output (see DSRTypes::PF_xxx)
posCounter	optional pointer to position counter that should be used to initialize the counter for line indentation or numbering of nested content items

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRDocumentTree.

◆ removeCurrentContentItem()

virtual size_t DSRDocumentSubTree::removeCurrentContentItem ( )

virtual

remove current content item from tree.

Please note that not only the specified node but also all of its child nodes are removed from the tree and then deleted. The internal cursor is set automatically to a new valid position.

Returns: ID of the node which became the current one after deletion, 0 if an error occurred or the tree is now empty.

◆ removeNode()

virtual size_t DSRDocumentSubTree::removeNode ( )

protectedvirtual

remove current node from tree.

Please note that not only the specified node but also all of his child nodes are removed from the tree and deleted afterwards. The cursor is set automatically to a new valid position.

Returns: ID of the node which became the current one after deletion, 0 if an error occurred or the tree is now empty.

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ removeSubTree()

virtual OFCondition DSRDocumentSubTree::removeSubTree ( const size_t searchID = 0 )

virtual

remove a subtree from this tree.

The subtree to be removed (and deleted) is either specified by the current node or by the node with the given ID. Afterwards, the internal cursor is set automatically to a new valid position. It would be an error to remove a subtree from an empty tree.

Parameters

searchID ID of the root node specifying the subtree to be removed. By default (0), the current node is used.

Returns: status, EC_Normal if successful, an error code otherwise

◆ replaceNode()

virtual size_t DSRDocumentSubTree::replaceNode ( DSRDocumentTreeNode * node )

protectedvirtual

replace current node by the given one.

Please note that no copy of the given node is created. Therefore, the node should be created with new() - do not use a reference to a local variable. If the node could be replaced successfully, the "old" node (and all of its child nodes) are deleted, and the cursor is set to the new one.

Parameters

node	pointer to the new node to replace the current one

Returns: ID of the new node if successful, 0 otherwise

Reimplemented from DSRTree< DSRDocumentTreeNode >.

◆ resetReferenceTargetFlag()

virtual void DSRDocumentSubTree::resetReferenceTargetFlag ( )

protectedvirtual

reset flag for all content items whether they are target of a by-reference relationship.

This function calls 'setReferenceTarget(OFFalse)' for all content items in the tree.

◆ setObservationDateTime()

virtual OFCondition DSRDocumentSubTree::setObservationDateTime	(	const OFString &	observationDateTime,
		const OFBool	check = `OFTrue`
	)

virtual

set observation date/time for all content items in the document tree.

Calling this method might be useful when a (sub)tree is copied into a new document, since content date and time of the new document are likely to be different than the date and time of the original observation.

Parameters

observationDateTime	value to be set (might be an empty string)
check	check 'observationDateTime' for conformance with VR (DT) and VM (1) if enabled

Returns: status, EC_Normal if successful, an error code otherwise

◆ setTemplateIdentification()

virtual OFCondition DSRDocumentSubTree::setTemplateIdentification	(	const OFString &	templateIdentifier,
		const OFString &	mappingResource,
		const OFString &	mappingResourceUID = `""`,
		const OFBool	check = `OFTrue`
	)

virtual

set template identifier and mapping resource to the root node of this tree.

The identification is valid if the first two values are either present (non-empty) or all three values are absent (empty). See DSRDocumentTreeNode::getTemplateIdentification() for details. Please note that the template identification is only set if there is a single node at the root of the tree and its value type is CONTAINER.

Parameters

templateIdentifier	identifier of the template to be set
mappingResource	mapping resource that defines the template
mappingResourceUID	uniquely identifies the mapping resource (optional)
check	check 'templateIdentifier', 'mappingResource' and 'mappingResourceUID' for conformance with VR (CS,UI) and VM (1) if enabled

Returns: status, EC_Normal if successful, an error code otherwise

◆ swap()

void DSRDocumentSubTree::swap ( DSRDocumentSubTree & tree )

protected

fast, non-throwing swap function.

The time complexity of this function is constant.

Parameters

tree	subtree to swap with

◆ updateByReferenceRelationships()

virtual OFCondition DSRDocumentSubTree::updateByReferenceRelationships ( const OFBool updateIncludedTemplates = OFFalse )

virtual

update the position strings used to encode by-reference relationships (if any).

Internally, this method calls checkByReferenceRelationships() with the 'mode' parameter being DSRTypes::CM_updatePositionString. It should be called before this subtree is cloned in order to make sure that the by-reference relationships (if any) still work on the cloned subtree. This method should also be called before accessing the position string of a referenced content item, see DSRByReferenceTreeNode::getReferencedContentItem().

Parameters

updateIncludedTemplates optional flag indicating whether to also update the subtrees managed by included sub-templates

Returns: status, EC_Normal if successful, an error code otherwise

◆ updateTreeForOutput()

virtual void DSRDocumentSubTree::updateTreeForOutput ( )

protectedvirtual

update the tree for subsequent output, e.g. for being printed or added to an SR document.

By default, this virtual function does nothing but is called automatically by the affected output methods and should be overwritten in derived classes.

Reimplemented in DSRRootTemplate, and DSRSubTemplate.

◆ validByReferenceRelationship()

virtual OFBool DSRDocumentSubTree::validByReferenceRelationship	(	const OFString &	sourcePosition,
		const OFString &	targetPosition
	)

protectedvirtual

check whether a by-reference relationship from a given source to a target node (specified by the position strings) is valid, i.e. is allowed according to the DICOM standard.

This check should prevent loops (directed acyclic graphs).

Parameters

sourcePosition	position string of the source content item to be checked
targetPosition	position string of the target content item to be checked

Returns: OFTrue if by-reference relationship is allowed, OFFalse otherwise

◆ writeXML()

virtual OFCondition DSRDocumentSubTree::writeXML	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags = `0`
	)

virtual

write current SR document tree in XML format

Parameters

stream	output stream to which the XML document is written
flags	optional flag used to customize the output (see DSRTypes::XF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

The documentation for this class was generated from the following file:

dcmsr/include/dcmtk/dcmsr/dsrdocst.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DSRDocumentSubTree() [1/3]

◆ DSRDocumentSubTree() [2/3]

◆ DSRDocumentSubTree() [3/3]

Member Function Documentation

◆ addByReferenceRelationship()

◆ addChildContentItem()

◆ addContentItem() [1/3]

◆ addContentItem() [2/3]

◆ addContentItem() [3/3]

◆ addNode()

◆ canAddByReferenceRelationship()

◆ canAddContentItem()

◆ canInsertSubTree()

◆ canUseTemplateIdentification()

◆ checkByReferenceRelationships()

◆ checkSubTreeConstraints()

◆ clone()

◆ cloneCurrentTreeNode()

◆ cloneSubTree() [1/2]

◆ cloneSubTree() [2/2]

◆ compareTemplateIdentification()

◆ countNodes()

◆ createExpandedSubTree()

◆ expandIncludedTemplates()

◆ extractNode()

◆ extractSubTree()

◆ getAndRemoveRootNode()

◆ getCurrentContentItem()

◆ getCurrentNode()

◆ getCursorToCurrentNode()

◆ getCursorToRootNode() [1/2]

◆ getCursorToRootNode() [2/2]

◆ getCursorToSubTree()

◆ getNode()

◆ getTemplateIdentification() [1/2]

◆ getTemplateIdentification() [2/2]

◆ gotoAnnotatedNode()

◆ gotoMatchingNode()

◆ gotoNamedChildNode()

◆ gotoNamedNode()

◆ gotoNamedNodeInSubTree()

◆ gotoNextAnnotatedNode()

◆ gotoNextMatchingNode()

◆ gotoNextNamedNode()

◆ hasTemplateIdentification()

◆ includeTemplate()

◆ insertSubTree()

◆ isCursorValid()

◆ isExpandedDocumentTree()

◆ isValid()

◆ isValidDocumentTree()

◆ operator=()

◆ print()

◆ removeCurrentContentItem()

◆ removeNode()

◆ removeSubTree()

◆ replaceNode()

◆ resetReferenceTargetFlag()

◆ setObservationDateTime()

◆ setTemplateIdentification()

◆ swap()

◆ updateByReferenceRelationships()

◆ updateTreeForOutput()

◆ validByReferenceRelationship()

◆ writeXML()
