DCMTK
Version 3.6.3
OFFIS DICOM Toolkit
|

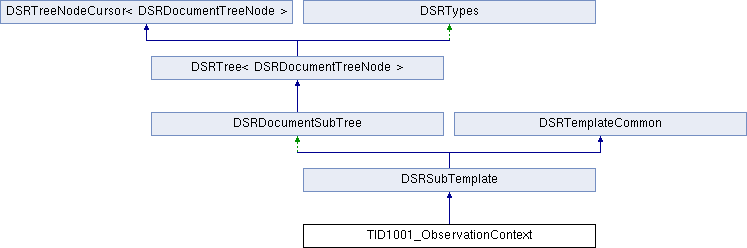

Implementation of DCMR Template: TID 1001 - Observation Context (and included templates 1002-1004). More...
Public Types | |
typedef OFList< CID7445_DeviceParticipatingRoles > | DeviceParticipatingRolesList |
type used for storing and managing a list of device participating roles | |
Public Member Functions | |
TID1001_ObservationContext () | |
default constructor | |
OFCondition | addPersonObserver (const OFString &personName, const OFString &organizationName="", const CID7452_OrganizationalRoles &organizationRole=CID7452_OrganizationalRoles(), const CID7453_PerformingRoles &procedureRole=CID7453_PerformingRoles(), const OFBool check=OFTrue) |
add content items for TID 1002 (Observer Context) with Observer Type being "Person". More... | |
OFCondition | addDeviceObserver (const OFString &deviceUID, const OFString &deviceName="", const OFString &manufacturer="", const OFString &modelName="", const OFString &serialNumber="", const OFString &physicalLocation="", const DeviceParticipatingRolesList &procedureRoles=DeviceParticipatingRolesList(), const OFString &stationAEtitle="", const OFBool check=OFTrue) |
add content items for TID 1002 (Observer Context) with Observer Type being "Device". More... | |
OFCondition | addProcedureContext () |
add content items for TID 1005 (Procedure Context) More... | |
OFCondition | addSubjectContext () |
add content items for TID 1006 (Subject Context), and included TID 1007-1010 More... | |
![]() | |
DSRSubTemplate (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") | |
constructor More... | |
DSRSubTemplate (const DSRSubTemplate &subTemplate) | |
copy constructor. More... | |
virtual | ~DSRSubTemplate () |
destructor | |
virtual DSRSubTemplate * | clone () const |
clone this template. More... | |
virtual DSRDocumentSubTree * | cloneTree () const |
clone the internally stored subtree of this template. More... | |
virtual void | clear () |
clear internal member variables. More... | |
virtual OFBool | isValid () const |
check whether the current internal state is valid. More... | |
OFBool | isRootTemplate () const |
check whether this template is a root template, i.e. describes a complete SR document tree starting from the root node More... | |
virtual const DSRDocumentSubTree & | getTree () |
get read-only access to internally stored subtree. More... | |
virtual OFCondition | addExtraContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) |
add extra content item to the current one (if the template is extensible). More... | |
virtual OFCondition | insertExtraTemplate (const DSRSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) |
insert tree from given extra template to internally stored subtree. More... | |
virtual OFBool | isCursorValid () const |
check whether the internal cursor, which points to the current content item, is valid More... | |
virtual OFCondition | print (STD_NAMESPACE ostream &stream, const size_t flags=0, const DSRPositionCounter *posCounter=NULL) |
print current SR document tree to specified output stream More... | |
virtual OFCondition | writeXML (STD_NAMESPACE ostream &stream, const size_t flags=0) |
write current SR document tree in XML format More... | |
size_t | countNodes (const OFBool searchIntoSubTemplates=OFFalse, const OFBool countIncludedTemplateNodes=OFTrue) const |
count number of content items (nodes) in the document tree. More... | |
virtual size_t | gotoNamedNode (const DSRCodedEntryValue &conceptName, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue) |
set internal cursor to a named node. More... | |
virtual size_t | gotoNextNamedNode (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue) |
set internal cursor to the next named node. More... | |
virtual size_t | gotoAnnotatedNode (const OFString &annotationText, const OFBool startFromRoot=OFTrue) |
set internal cursor to an annotated node. More... | |
virtual size_t | gotoNextAnnotatedNode (const OFString &annotationText) |
set internal cursor to the next annotated node. More... | |
virtual DSRContentItem & | getCurrentContentItem () |
get reference to current content item. More... | |
virtual OFCondition | updateByReferenceRelationships (const OFBool updateIncludedTemplates=OFFalse) |
update the position strings used to encode by-reference relationships (if any). More... | |
![]() | |
virtual OFBool | hasTemplateIdentification () const |
check whether template identification is set More... | |
virtual OFBool | isTemplateIdentificationValid (const OFBool check=OFTrue) const |
check whether template identification is valid More... | |
virtual OFBool | isExtensible () const |
check whether template is extensible More... | |
virtual OFBool | isOrderSignificant () const |
check whether the order of content items in this template is significant More... | |
virtual OFBool | compareTemplateIdentication (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
compare template identification with given values More... | |
const OFString & | getTemplateIdentifier () const |
get template identifier More... | |
const OFString & | getMappingResource () const |
get mapping resource More... | |
const OFString & | getMappingResourceUID () const |
get optional mapping resource UID More... | |
virtual void | setExtensible (const OFBool mode=OFTrue) |
change mode specifying whether the template is extensible or non-extensible More... | |
virtual void | setOrderSignificant (const OFBool mode=OFTrue) |
change mode specifying whether the order of content items in this template is significant or non-significant More... | |
Additional Inherited Members | |
![]() | |
enum | E_DocumentType { DT_invalid, DT_unknown = DT_invalid, DT_BasicTextSR, DT_EnhancedSR, DT_ComprehensiveSR, DT_KeyObjectSelectionDocument, DT_MammographyCadSR, DT_ChestCadSR, DT_ColonCadSR, DT_ProcedureLog, DT_XRayRadiationDoseSR, DT_SpectaclePrescriptionReport, DT_MacularGridThicknessAndVolumeReport, DT_ImplantationPlanSRDocument, DT_Comprehensive3DSR, DT_RadiopharmaceuticalRadiationDoseSR, DT_ExtensibleSR, DT_AcquisitionContextSR, DT_SimplifiedAdultEchoSR, DT_PatientRadiationDoseSR, DT_last = DT_PatientRadiationDoseSR } |
SR document types. More... | |
enum | E_RelationshipType { RT_invalid, RT_unknown, RT_isRoot, RT_contains, RT_hasObsContext, RT_hasAcqContext, RT_hasConceptMod, RT_hasProperties, RT_inferredFrom, RT_selectedFrom, RT_last = RT_selectedFrom } |
SR relationship types. More... | |
enum | E_ValueType { VT_invalid, VT_Text, VT_Code, VT_Num, VT_DateTime, VT_Date, VT_Time, VT_UIDRef, VT_PName, VT_SCoord, VT_SCoord3D, VT_TCoord, VT_Composite, VT_Image, VT_Waveform, VT_Container, VT_byReference, VT_includedTemplate, VT_last = VT_includedTemplate } |
SR value types. More... | |
enum | E_PresentationStateType { PT_invalid, PT_unknown = PT_invalid, PT_Grayscale, PT_Color, PT_PseudoColor, PT_Blending, PT_XAXRFGrayscale, PT_GrayscalePlanarMPR, PT_CompositingPlanarMPR, PT_AdvancedBlending, PT_VolumeRendering, PT_SegmentedVolumeRendering, PT_MultipleVolumeRendering, PT_last = PT_MultipleVolumeRendering } |
Softcopy presentation state types. More... | |
enum | E_GraphicType { GT_invalid, GT_unknown = GT_invalid, GT_Point, GT_Multipoint, GT_Polyline, GT_Circle, GT_Ellipse, GT_last = GT_Ellipse } |
SR graphic types. More... | |
enum | E_GraphicType3D { GT3_invalid, GT3_unknown = GT3_invalid, GT3_Point, GT3_Multipoint, GT3_Polyline, GT3_Polygon, GT3_Ellipse, GT3_Ellipsoid, GT3_last = GT3_Ellipsoid } |
SR graphic types (3D). More... | |
enum | E_TemporalRangeType { TRT_invalid, TRT_unknown = TRT_invalid, TRT_Point, TRT_Multipoint, TRT_Segment, TRT_Multisegment, TRT_Begin, TRT_End, TRT_last = TRT_End } |
SR temporal range types. More... | |
enum | E_ContinuityOfContent { COC_invalid, COC_Separate, COC_Continuous, COC_last = COC_Continuous } |
SR continuity of content flag. More... | |
enum | E_PreliminaryFlag { PF_invalid, PF_Preliminary, PF_Final, PF_last = PF_Final } |
SR document preliminary flag. More... | |
enum | E_CompletionFlag { CF_invalid, CF_Partial, CF_Complete, CF_last = CF_Complete } |
SR document completion flag. More... | |
enum | E_VerificationFlag { VF_invalid, VF_Unverified, VF_Verified, VF_last = VF_Verified } |
SR document verification flag. More... | |
enum | E_CharacterSet { CS_invalid, CS_unknown = CS_invalid, CS_ASCII, CS_default = CS_ASCII, CS_Latin1, CS_Latin2, CS_Latin3, CS_Latin4, CS_Cyrillic, CS_Arabic, CS_Greek, CS_Hebrew, CS_Latin5, CS_Thai, CS_Japanese, CS_Korean, CS_ChineseISO, CS_ChineseGB18030, CS_ChineseGBK, CS_UTF8, CS_last = CS_UTF8 } |
Specific character set. More... | |
enum | E_CodeValueType { CVT_auto, CVT_Short, CVT_Long, CVT_URN } |
Code value type. More... | |
enum | E_AddMode { AM_afterCurrent, AM_beforeCurrent, AM_belowCurrent, AM_belowCurrentBeforeFirstChild } |
Add node mode. More... | |
![]() | |
virtual void | updateTreeForOutput () |
update the tree for subsequent output, e.g. for being printed or added to an SR document. More... | |
![]() | |
DSRDocumentSubTree (DSRDocumentTreeNode *rootNode) | |
special constructor that receives a pointer to the root node. More... | |
DSRDocumentSubTree (const DSRDocumentTreeNodeCursor &startCursor, size_t stopAfterNodeID) | |
special copy constructor that clones a particular subtree only More... | |
void | swap (DSRDocumentSubTree &tree) |
fast, non-throwing swap function. More... | |
virtual DSRDocumentTreeNode * | getNode () const |
get pointer to current node. More... | |
virtual size_t | addNode (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent) |
add new node to the current one. More... | |
virtual size_t | replaceNode (DSRDocumentTreeNode *node) |
replace current node by the given one. More... | |
virtual DSRDocumentTreeNode * | extractNode () |
extract current node from tree. More... | |
virtual DSRDocumentTreeNode * | getAndRemoveRootNode () |
get pointer to root node and "forget" the internal reference to this node. More... | |
virtual size_t | removeNode () |
remove current node from tree. More... | |
virtual OFCondition | includeTemplate (const DSRSharedSubTemplate &subTemplate, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) |
include specified sub-template, i.e. add a new DSRIncludedTemplateTreeNode, which references this template, to the current content item. More... | |
virtual OFCondition | expandIncludedTemplates (DSRDocumentSubTree *tree) const |
expand all "included template" content items in a given (sub)tree. More... | |
template<typename T_Cursor > | |
OFCondition | checkByReferenceRelationships (const size_t mode=0, const size_t flags=0) |
check the by-reference relationships (if any) for validity. More... | |
virtual void | resetReferenceTargetFlag () |
reset flag for all content items whether they are target of a by-reference relationship. More... | |
virtual OFCondition | checkSubTreeConstraints (const DSRDocumentSubTree *tree, const DSRIODConstraintChecker *checker) const |
check whether the given subtree complies with the constraints of the given checker More... | |
DSRDocumentSubTree () | |
default constructor | |
DSRDocumentSubTree (const DSRDocumentSubTree &tree) | |
copy constructor. More... | |
virtual | ~DSRDocumentSubTree () |
destructor | |
DSRDocumentSubTree & | operator= (DSRDocumentSubTree tree) |
assignment operator. More... | |
virtual OFBool | isCursorValid () const |
check whether the internal cursor, which points to the current content item, is valid More... | |
virtual OFBool | isValidDocumentTree (const E_RelationshipType defaultRelType=RT_unknown) const |
check whether this subtree is a valid document tree. More... | |
virtual OFBool | isExpandedDocumentTree () const |
check whether this subtree is an expanded document tree. More... | |
virtual OFBool | hasTemplateIdentification () const |
check whether template identification is set More... | |
virtual OFBool | canUseTemplateIdentification () const |
check whether template identification is possible at all. More... | |
virtual OFCondition | print (STD_NAMESPACE ostream &stream, const size_t flags=0, const DSRPositionCounter *posCounter=NULL) |
print current SR document tree to specified output stream More... | |
virtual OFCondition | writeXML (STD_NAMESPACE ostream &stream, const size_t flags=0) |
write current SR document tree in XML format More... | |
virtual DSRContentItem & | getCurrentContentItem () |
get reference to current content item. More... | |
virtual const DSRDocumentTreeNode * | getCurrentNode () const |
get read-only access to current node (content item) More... | |
virtual OFBool | getCursorToRootNode (DSRDocumentTreeNodeCursor &cursor) const |
get a cursor to the root node of this document tree. More... | |
virtual OFBool | getCursorToRootNode (DSRIncludedTemplateNodeCursor &cursor) const |
get a cursor to the root node of this document tree. More... | |
virtual OFBool | getCursorToCurrentNode (DSRDocumentTreeNodeCursor &cursor) const |
get a cursor to the current node of this document tree. More... | |
virtual OFBool | getCursorToSubTree (DSRDocumentTreeNodeCursor &cursor) const |
get a cursor to the subtree below the current node. More... | |
size_t | countNodes (const OFBool searchIntoSubTemplates=OFFalse, const OFBool countIncludedTemplateNodes=OFTrue) const |
count number of content items (nodes) in the document tree. More... | |
virtual size_t | gotoMatchingNode (const DSRDocumentTreeNodeFilter &filter, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue) |
set internal cursor to a matching node. More... | |
virtual size_t | gotoNextMatchingNode (const DSRDocumentTreeNodeFilter &filter, const OFBool searchIntoSub=OFTrue) |
set internal cursor to the next matching node. More... | |
virtual size_t | gotoNamedNode (const DSRCodedEntryValue &conceptName, const OFBool startFromRoot=OFTrue, const OFBool searchIntoSub=OFTrue) |
set internal cursor to a named node. More... | |
virtual size_t | gotoNamedChildNode (const DSRCodedEntryValue &conceptName) |
set internal cursor to a named node (starting from the first child of the current node and searching on this level only). More... | |
virtual size_t | gotoNamedNodeInSubTree (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue) |
set internal cursor to a named node in the subtree below the current node. More... | |
virtual size_t | gotoNextNamedNode (const DSRCodedEntryValue &conceptName, const OFBool searchIntoSub=OFTrue) |
set internal cursor to the next named node. More... | |
virtual size_t | gotoAnnotatedNode (const OFString &annotationText, const OFBool startFromRoot=OFTrue) |
set internal cursor to an annotated node. More... | |
virtual size_t | gotoNextAnnotatedNode (const OFString &annotationText) |
set internal cursor to the next annotated node. More... | |
virtual OFBool | canAddContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) const |
check whether specified content item can be added to the current one. More... | |
virtual OFBool | canAddByReferenceRelationship (const E_RelationshipType relationshipType, const E_ValueType targetValueType) const |
check whether specified by-reference relationship can be added to the current content item. More... | |
virtual size_t | addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const E_AddMode addMode=AM_afterCurrent) |
add specified content item to the current one. More... | |
virtual OFCondition | addContentItem (DSRDocumentTreeNode *node, const E_AddMode addMode=AM_afterCurrent, const OFBool deleteIfFail=OFFalse) |
add specified content item to the current one. More... | |
virtual OFCondition | addContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue) |
add specified content item after the current one. More... | |
virtual OFCondition | addChildContentItem (const E_RelationshipType relationshipType, const E_ValueType valueType, const DSRCodedEntryValue &conceptName, const OFBool check=OFTrue) |
add specified content item below the current one. More... | |
virtual size_t | addByReferenceRelationship (const E_RelationshipType relationshipType, const size_t referencedNodeID) |
add specified by-reference relationship to the current content item. More... | |
virtual OFCondition | updateByReferenceRelationships (const OFBool updateIncludedTemplates=OFFalse) |
update the position strings used to encode by-reference relationships (if any). More... | |
virtual OFBool | canInsertSubTree (const DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown) const |
check whether specified subtree can be inserted at the current position, i.e. added to the current content item. More... | |
virtual OFCondition | insertSubTree (DSRDocumentSubTree *tree, const E_AddMode addMode=AM_belowCurrent, const E_RelationshipType defaultRelType=RT_unknown, const OFBool deleteIfFail=OFFalse) |
insert specified subtree to this tree, i.e. add it to the current content item. More... | |
virtual DSRDocumentSubTree * | extractSubTree () |
extract a subtree, i.e. a fragment from this tree. More... | |
virtual size_t | removeCurrentContentItem () |
remove current content item from tree. More... | |
virtual OFCondition | removeSubTree (const size_t searchID=0) |
remove a subtree from this tree. More... | |
virtual DSRDocumentTreeNode * | cloneCurrentTreeNode () const |
clone the current tree node. More... | |
virtual DSRDocumentSubTree * | cloneSubTree (const size_t stopAfterNodeID=0) const |
clone a subtree, i.e. a fragment of this tree. More... | |
virtual OFCondition | createExpandedSubTree (DSRDocumentSubTree *&tree) const |
created an expanded version of this (sub)tree. More... | |
virtual OFBool | compareTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
compare template identification of the root node with given values. More... | |
virtual OFCondition | getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource) const |
get template identifier and mapping resource from the root node of this tree. More... | |
virtual OFCondition | getTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource, OFString &mappingResourceUID) const |
get template identifier, mapping resource and optional mapping resource UID from the root node of this tree. More... | |
virtual OFCondition | setTemplateIdentification (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="", const OFBool check=OFTrue) |
set template identifier and mapping resource to the root node of this tree. More... | |
![]() | |
DSRTree (DSRDocumentTreeNode *rootNode) | |
special constructor that receives a pointer to the root node. More... | |
DSRTree (const DSRTreeNodeCursor< DSRDocumentTreeNode > &startCursor, size_t stopAfterNodeID) | |
special copy constructor that clones a particular subtree only More... | |
void | swap (DSRTree< DSRDocumentTreeNode > &tree) |
fast, non-throwing swap function. More... | |
virtual DSRDocumentTreeNode * | getRoot () const |
get pointer to root node More... | |
virtual void | deleteTreeFromRootNode (DSRDocumentTreeNode *rootNode) |
delete a tree given by its root node. More... | |
DSRTree () | |
default constructor | |
DSRTree (const DSRTree< DSRDocumentTreeNode > &tree) | |
copy constructor. More... | |
virtual | ~DSRTree () |
destructor | |
DSRTree & | operator= (DSRTree< DSRDocumentTreeNode > tree) |
assignment operator. More... | |
void | clearAnnotations () |
clear annotations of all tree nodes | |
OFBool | isEmpty () const |
check whether tree has any nodes More... | |
size_t | countNodes () const |
count number of nodes in the tree. More... | |
size_t | getNextNodeID () const |
get ID of the next node to be created. More... | |
size_t | gotoRoot () |
set internal cursor to root node More... | |
size_t | gotoNode (const size_t searchID, const OFBool startFromRoot=OFTrue) |
set internal cursor to specified node More... | |
size_t | gotoNode (const OFString &reference, const OFBool startFromRoot=OFTrue) |
set internal cursor to specified node More... | |
size_t | gotoNode (const DSRTreeNodeAnnotation &annotation, const OFBool startFromRoot=OFTrue) |
set internal cursor to specified node More... | |
size_t | gotoNode (const DSRDocumentTreeNode &nodeValue, const OFBool startFromRoot=OFTrue) |
set internal cursor to specified node (given by its value). More... | |
![]() | |
void | clearNodeCursorStack () |
clear the internal node cursor stack | |
const DSRTreeNodeCursor< DSRDocumentTreeNode > & | getCursor () const |
get cursor More... | |
void | setCursor (const DSRTreeNodeCursor< DSRDocumentTreeNode > &cursor) |
set cursor to specified object More... | |
size_t | setCursor (DSRDocumentTreeNode *node) |
set cursor to specified node. More... | |
DSRDocumentTreeNode * | getChild () const |
get pointer to first child node More... | |
DSRTreeNodeCursor () | |
default constructor | |
DSRTreeNodeCursor (const DSRTreeNodeCursor< DSRDocumentTreeNode > &cursor) | |
copy constructor More... | |
DSRTreeNodeCursor (DSRDocumentTreeNode *node, const DSRPositionCounter *position=NULL) | |
constructor. More... | |
virtual | ~DSRTreeNodeCursor () |
destructor | |
DSRTreeNodeCursor< DSRDocumentTreeNode > & | operator= (const DSRTreeNodeCursor< DSRDocumentTreeNode > &cursor) |
assignment operator More... | |
DSRTreeNodeCursor< DSRDocumentTreeNode > & | operator= (DSRDocumentTreeNode *node) |
assignment operator. More... | |
virtual size_t | countChildNodes (const OFBool searchIntoSub=OFTrue) const |
count number of children of the current node. More... | |
OFBool | hasParentNode () const |
check whether the current node has a parent More... | |
OFBool | hasChildNodes () const |
check whether the current node has any children More... | |
OFBool | hasPreviousNode () const |
check whether the current node has a preceding sibling More... | |
OFBool | hasNextNode () const |
check whether the current node has a following sibling More... | |
OFBool | hasSiblingNodes () const |
check whether the current node has any siblings More... | |
virtual const DSRDocumentTreeNode * | getParentNode () const |
get pointer to parent node. More... | |
virtual const DSRDocumentTreeNode * | getChildNode () const |
get pointer to first child node. More... | |
virtual const DSRDocumentTreeNode * | getPreviousNode () const |
get pointer to previous node. More... | |
virtual const DSRDocumentTreeNode * | getNextNode () const |
get pointer to next node. More... | |
virtual size_t | gotoFirst () |
goto first node on the same level (first sibling). More... | |
virtual size_t | gotoLast () |
goto last node on the same level (last sibling). More... | |
virtual size_t | gotoPrevious () |
goto previous node on the same level (preceding sibling) More... | |
virtual size_t | gotoNext () |
goto next node on the same level (following sibling) More... | |
virtual size_t | goUp () |
goto parent node (one level up) More... | |
virtual size_t | goDown () |
goto first child node (one level down) More... | |
virtual size_t | gotoParent () |
goto parent node (one level up) More... | |
virtual size_t | gotoChild () |
goto first child node (one level down) More... | |
virtual size_t | iterate (const OFBool searchIntoSub=OFTrue) |
iterate over all nodes (starting from current position!) More... | |
size_t | gotoNode (const size_t searchID) |
set cursor to specified node. More... | |
size_t | gotoNode (const OFString &position, const char separator='.') |
set cursor to specified node. More... | |
size_t | gotoNode (const DSRTreeNodeAnnotation &annotation) |
set cursor to specified node. More... | |
size_t | gotoNode (const DSRDocumentTreeNode &nodeValue) |
set cursor to specified node. More... | |
size_t | getNodeID () const |
get current node ID. More... | |
size_t | getLevel () const |
get current level. More... | |
DSRPositionCounter & | getPositionCounter () |
get reference to internal position counter. More... | |
const OFString & | getPosition (OFString &position, const char separator='.') const |
get position string of the current node. More... | |
![]() | |
virtual | ~DSRTypes () |
destructor. More... | |
![]() | |
DSRTemplateCommon (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") | |
constructor More... | |
virtual | ~DSRTemplateCommon () |
destructor | |
void | clearEntriesInNodeList () |
clear all entries in the list of node IDs, i.e. set them to their initial value, which is 0 | |
void | reserveEntriesInNodeList (const size_t count, const OFBool initialize=OFFalse) |
reserve a certain number of entries in the list of node IDs. More... | |
void | storeEntryInNodeList (const size_t pos, const size_t nodeID) |
store given entry at a certain position in the list of node IDs More... | |
size_t | getEntryFromNodeList (const size_t pos) const |
get a particular entry from the list of node IDs More... | |
size_t | gotoEntryFromNodeList (DSRDocumentTreeNodeCursor &cursor, const size_t pos) const |
set given cursor to a specific node More... | |
size_t | gotoEntryFromNodeList (DSRDocumentSubTree *tree, const size_t pos) |
set internal cursor of a given document tree to a specific node More... | |
size_t | gotoLastEntryFromNodeList (DSRDocumentSubTree *tree, const size_t lastPos, const size_t firstPos=0) |
set internal cursor of a given document tree to a particular node. More... | |
virtual OFBool | hasTemplateIdentification () const |
check whether template identification is set More... | |
virtual OFBool | isTemplateIdentificationValid (const OFBool check=OFTrue) const |
check whether template identification is valid More... | |
virtual OFBool | isExtensible () const |
check whether template is extensible More... | |
virtual OFBool | isOrderSignificant () const |
check whether the order of content items in this template is significant More... | |
virtual OFBool | compareTemplateIdentication (const OFString &templateIdentifier, const OFString &mappingResource, const OFString &mappingResourceUID="") const |
compare template identification with given values More... | |
const OFString & | getTemplateIdentifier () const |
get template identifier More... | |
const OFString & | getMappingResource () const |
get mapping resource More... | |
const OFString & | getMappingResourceUID () const |
get optional mapping resource UID More... | |
virtual void | setExtensible (const OFBool mode=OFTrue) |
change mode specifying whether the template is extensible or non-extensible More... | |
virtual void | setOrderSignificant (const OFBool mode=OFTrue) |
change mode specifying whether the order of content items in this template is significant or non-significant More... | |
![]() | |
static DSRDocumentSubTree * | cloneSubTree (const DSRDocumentTreeNodeCursor &startCursor, const size_t stopAfterNodeID=0) |
clone a particular subtree, i.e. a fragment of a tree More... | |
![]() | |
static const char * | documentTypeToSOPClassUID (const E_DocumentType documentType) |
convert SR document type to SOP class UID More... | |
static const char * | documentTypeToModality (const E_DocumentType documentType) |
convert SR document type to modality More... | |
static const char * | documentTypeToReadableName (const E_DocumentType documentType) |
convert SR document type to readable name. More... | |
static const char * | documentTypeToDocumentTitle (const E_DocumentType documentType, OFString &documentTitle) |
convert SR document type to document title. More... | |
static OFBool | requiresEnhancedEquipmentModule (const E_DocumentType documentType) |
check whether SR document type requires Enhanced General Equipment Module More... | |
static OFBool | requiresTimezoneModule (const E_DocumentType documentType) |
check whether SR document type requires Timezone Module More... | |
static const char * | relationshipTypeToDefinedTerm (const E_RelationshipType relationshipType) |
convert relationship type to DICOM defined term More... | |
static const char * | relationshipTypeToReadableName (const E_RelationshipType relationshipType) |
convert relationship type to readable name. More... | |
static const char * | valueTypeToDefinedTerm (const E_ValueType valueType) |
convert value type to DICOM defined term More... | |
static const char * | valueTypeToXMLTagName (const E_ValueType valueType) |
convert value type to XML tag name More... | |
static const char * | valueTypeToReadableName (const E_ValueType valueType) |
convert value type to readable name. More... | |
static const char * | presentationStateTypeToShortName (const E_PresentationStateType pstateType) |
convert presentation state type to short name. More... | |
static const char * | graphicTypeToEnumeratedValue (const E_GraphicType graphicType) |
convert graphic type to DICOM enumerated value More... | |
static const char * | graphicTypeToReadableName (const E_GraphicType graphicType) |
convert graphic type to readable name. More... | |
static const char * | graphicType3DToEnumeratedValue (const E_GraphicType3D graphicType) |
convert graphic type (3D) to DICOM enumerated value More... | |
static const char * | graphicType3DToReadableName (const E_GraphicType3D graphicType) |
convert graphic type (3D) to readable name. More... | |
static const char * | temporalRangeTypeToEnumeratedValue (const E_TemporalRangeType temporalRangeType) |
convert temporal range type to DICOM enumerated value More... | |
static const char * | temporalRangeTypeToReadableName (const E_TemporalRangeType temporalRangeType) |
convert temporal range type to readable name. More... | |
static const char * | continuityOfContentToEnumeratedValue (const E_ContinuityOfContent continuityOfContent) |
convert continuity of content flag to DICOM enumerated value More... | |
static const char * | preliminaryFlagToEnumeratedValue (const E_PreliminaryFlag preliminaryFlag) |
convert preliminary flag to DICOM enumerated value More... | |
static const char * | completionFlagToEnumeratedValue (const E_CompletionFlag completionFlag) |
convert completion flag to DICOM enumerated value More... | |
static const char * | verificationFlagToEnumeratedValue (const E_VerificationFlag verificationFlag) |
convert verification flag to DICOM enumerated value More... | |
static const char * | characterSetToDefinedTerm (const E_CharacterSet characterSet) |
convert character set to DICOM defined term More... | |
static const char * | characterSetToHTMLName (const E_CharacterSet characterSet) |
convert character set to HTML name. More... | |
static const char * | characterSetToXMLName (const E_CharacterSet characterSet) |
convert character set to XML name. More... | |
static E_DocumentType | sopClassUIDToDocumentType (const OFString &sopClassUID) |
convert SOP class UID to SR document type More... | |
static E_RelationshipType | definedTermToRelationshipType (const OFString &definedTerm) |
convert DICOM defined term to relationship type More... | |
static E_ValueType | definedTermToValueType (const OFString &definedTerm) |
convert DICOM defined term to value type More... | |
static E_PresentationStateType | sopClassUIDToPresentationStateType (const OFString &sopClassUID) |
convert SOP class UID to presentation state type More... | |
static E_ValueType | xmlTagNameToValueType (const OFString &xmlTagName) |
convert XML tag name to value type More... | |
static E_GraphicType | enumeratedValueToGraphicType (const OFString &enumeratedValue) |
convert DICOM enumerated value to graphic type More... | |
static E_GraphicType3D | enumeratedValueToGraphicType3D (const OFString &enumeratedValue) |
convert DICOM enumerated value to graphic type (3D) More... | |
static E_TemporalRangeType | enumeratedValueToTemporalRangeType (const OFString &enumeratedValue) |
convert DICOM enumerated value to temporal range type More... | |
static E_ContinuityOfContent | enumeratedValueToContinuityOfContent (const OFString &enumeratedValue) |
convert DICOM enumerated value to continuity of content flag More... | |
static E_PreliminaryFlag | enumeratedValueToPreliminaryFlag (const OFString &enumeratedValue) |
convert DICOM enumerated value to preliminary flag More... | |
static E_CompletionFlag | enumeratedValueToCompletionFlag (const OFString &enumeratedValue) |
convert DICOM enumerated value to completion flag More... | |
static E_VerificationFlag | enumeratedValueToVerificationFlag (const OFString &enumeratedValue) |
convert DICOM enumerated value to verification flag More... | |
static E_CharacterSet | definedTermToCharacterSet (const OFString &definedTerm) |
convert DICOM defined term to character set. More... | |
static OFBool | isDocumentTypeSupported (const E_DocumentType documentType) |
check whether specified SR document type is supported by this library More... | |
static const OFString & | currentDate (OFString &dateString) |
get current date in DICOM 'DA' format. More... | |
static const OFString & | currentTime (OFString &timeString) |
get current time in DICOM 'TM' format. More... | |
static const OFString & | currentDateTime (OFString &dateTimeString) |
get current date and time in DICOM 'DT' format. More... | |
static const OFString & | localTimezone (OFString &timezoneString) |
get local timezone in DICOM format. More... | |
static const OFString & | dicomToReadableDate (const OFString &dicomDate, OFString &readableDate) |
convert DICOM date string to readable format. More... | |
static const OFString & | dicomToReadableTime (const OFString &dicomTime, OFString &readableTime) |
convert DICOM time string to readable format. More... | |
static const OFString & | dicomToReadableDateTime (const OFString &dicomDateTime, OFString &readableDateTime) |
convert DICOM date time string to readable format. More... | |
static const OFString & | dicomToReadablePersonName (const OFString &dicomPersonName, OFString &readablePersonName) |
convert DICOM person name to readable format. More... | |
static const OFString & | dicomToXMLPersonName (const OFString &dicomPersonName, OFString &xmlPersonName, const OFBool writeEmptyValue=OFFalse) |
convert DICOM person name to XML format. More... | |
static const char * | numberToString (const size_t number, char *stringValue) |
convert unsigned integer number to character string More... | |
static size_t | stringToNumber (const char *stringValue) |
convert string to unsigned integer number More... | |
static const OFString & | convertToPrintString (const OFString &sourceString, OFString &printString) |
convert character string to print string. More... | |
static const OFString & | convertToHTMLString (const OFString &sourceString, OFString &markupString, const size_t flags=0, const OFBool newlineAllowed=OFFalse) |
convert character string to HTML mnenonic string. More... | |
static const OFString & | convertToXMLString (const OFString &sourceString, OFString &markupString) |
convert character string to XML mnenonic string. More... | |
static OFBool | checkForValidReference (const OFString &stringValue) |
check string for valid reference (as used for by-reference relationships). More... | |
static DSRIODConstraintChecker * | createIODConstraintChecker (const E_DocumentType documentType) |
create specified SR IOD content relationship constraint checker object. More... | |
static DSRDocumentTreeNode * | createDocumentTreeNode (const E_RelationshipType relationshipType, const E_ValueType valueType) |
create specified document tree node. More... | |
static OFCondition | addElementToDataset (OFCondition &result, DcmItem &dataset, DcmElement *delem, const OFString &vm, const OFString &type, const char *moduleName=NULL) |
add given element to the dataset. More... | |
static void | removeAttributeFromSequence (DcmSequenceOfItems &sequence, const DcmTagKey &tagKey) |
remove given attribute from the sequence. More... | |
static OFCondition | getElementFromDataset (DcmItem &dataset, DcmElement &delem) |
get element from dataset More... | |
static const char * | getStringValueFromElement (const DcmElement &delem) |
get string value from element More... | |
static const OFString & | getStringValueFromElement (const DcmElement &delem, OFString &stringValue) |
get string value from element. More... | |
static OFCondition | getStringValueFromElement (const DcmElement &delem, OFString &stringValue, const signed long pos) |
get string value from element More... | |
static const OFString & | getPrintStringFromElement (const DcmElement &delem, OFString &stringValue) |
get string value from element and convert to "print" format. More... | |
static const OFString & | getMarkupStringFromElement (const DcmElement &delem, OFString &stringValue, const OFBool convertNonASCII=OFFalse) |
get string value from element and convert to HTML/XML. More... | |
static OFCondition | getStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const signed long pos=0) |
get string value from dataset More... | |
static OFCondition | putStringValueToDataset (DcmItem &dataset, const DcmTag &tag, const OFString &stringValue, const OFBool allowEmpty=OFTrue) |
put string value to dataset More... | |
static OFBool | checkElementValue (DcmElement *delem, const DcmTagKey &tagKey, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
check element value for correct value multiplicity and type. More... | |
static OFBool | checkElementValue (DcmElement &delem, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
check element value for correct value multiplicity and type. More... | |
static OFCondition | getAndCheckElementFromDataset (DcmItem &dataset, DcmElement &delem, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
get element from dataset and check it for correct value multiplicity and type. More... | |
static OFCondition | getAndCheckStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse) |
get string value from dataset and check it for correct value multiplicity and type. More... | |
static void | printInvalidContentItemMessage (const char *action, const DSRDocumentTreeNode *node, const char *location=NULL) |
print the warning message that the current content item is invalid/incomplete. More... | |
static void | printContentItemErrorMessage (const char *action, const OFCondition &result, const DSRDocumentTreeNode *node, const char *location=NULL) |
print an error message for the current content item. More... | |
static void | printUnknownValueWarningMessage (const char *valueName, const char *readValue=NULL, const char *action="Reading") |
print a warning message that an unknown/unsupported value has been determined More... | |
static OFBool | writeStringValueToXML (STD_NAMESPACE ostream &stream, const OFString &stringValue, const OFString &tagName, const OFBool writeEmptyValue=OFFalse) |
write string value to XML output stream. More... | |
static OFBool | writeStringFromElementToXML (STD_NAMESPACE ostream &stream, DcmElement &delem, const OFString &tagName, const OFBool writeEmptyValue=OFFalse) |
write string value from DICOM element to XML output stream. More... | |
static size_t | createHTMLAnnexEntry (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const OFString &referenceText, size_t &annexNumber, const size_t flags=0) |
create an HTML annex entry with hyperlinks. More... | |
static size_t | createHTMLFootnote (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &footnoteStream, size_t &footnoteNumber, const size_t nodeID, const size_t flags=0) |
create an HTML footnote with hyperlinks More... | |
static OFCondition | appendStream (STD_NAMESPACE ostream &mainStream, OFOStringStream &tempStream, const char *heading=NULL) |
append one output stream to another. More... | |
![]() | |
DSRIODConstraintChecker * | ConstraintChecker |
check relationship content constraints of the associated IOD | |
![]() | |
DSRDocumentTreeNode * | NodeCursor |
pointer to current node | |
OFStack< DSRDocumentTreeNode *> | NodeCursorStack |
stack of node pointers. Used to store the cursor position of upper levels. | |
DSRPositionCounter | Position |
counter for the current position within the current level and on upper levels | |
![]() | |
static const size_t | RF_readDigitalSignatures |
read digital signatures from dataset | |
static const size_t | RF_acceptUnknownRelationshipType |
accept unknown/missing relationship type | |
static const size_t | RF_acceptInvalidContentItemValue |
accept invalid content item value (e.g. violation of VR or VM definition) | |
static const size_t | RF_ignoreRelationshipConstraints |
ignore relationship constraints for this document class | |
static const size_t | RF_ignoreContentItemErrors |
do not abort on content item errors (e.g. missing value type specific attributes) | |
static const size_t | RF_skipInvalidContentItems |
do not abort when detecting an invalid content item, skip invalid sub-tree instead | |
static const size_t | RF_showCurrentlyProcessedItem |
show the currently processed content item (e.g. "1.2.3") | |
static const size_t | HF_neverExpandChildrenInline |
external: never expand child nodes inline | |
static const size_t | HF_alwaysExpandChildrenInline |
external: always expand child nodes inline | |
static const size_t | HF_renderInlineCodes |
external: render codes even if they appear inline | |
static const size_t | HF_useCodeDetailsTooltip |
external: render code details as a tooltip (not with HTML 3.2) | |
static const size_t | HF_renderConceptNameCodes |
external: render concept name codes (default: code meaning only) | |
static const size_t | HF_renderNumericUnitCodes |
external: render the code of the numeric measurement unit | |
static const size_t | HF_useCodeMeaningAsUnit |
external: use code meaning for the numeric measurement unit (default: code value) | |
static const size_t | HF_renderPatientTitle |
external: use patient information as document title (default: document type) | |
static const size_t | HF_renderNoDocumentHeader |
external: render no general document information (header) | |
static const size_t | HF_renderDcmtkFootnote |
external: render dcmtk/dcmsr comment at the end of the document | |
static const size_t | HF_renderFullData |
external: render the full data of all content items | |
static const size_t | HF_renderSectionTitlesInline |
external: render section titles inline (default: separate paragraph) | |
static const size_t | HF_copyStyleSheetContent |
external: copy Cascading Style Sheet (CSS) content to HTML file | |
static const size_t | HF_HTML32Compatibility |
external: output compatible to HTML version 3.2 (default: 4.01) | |
static const size_t | HF_XHTML11Compatibility |
external: output compatible to XHTML version 1.1 (default: HTML 4.01) | |
static const size_t | HF_addDocumentTypeReference |
external: add explicit reference to HTML document type (DTD) | |
static const size_t | HF_omitGeneratorMetaElement |
external: omit generator meta element referring to the DCMTK | |
static const size_t | HF_renderItemsSeparately |
internal: render items separately (for container with SEPARATE flag) | |
static const size_t | HF_renderItemInline |
internal: expand items inline when they are short and have no child nodes | |
static const size_t | HF_currentlyInsideAnnex |
internal: content item is rendered fully inside the annex | |
static const size_t | HF_createFootnoteReferences |
internal: create footnote references | |
static const size_t | HF_convertNonASCIICharacters |
internal: convert non-ASCII characters (> #127) to &#nnn; | |
static const size_t | HF_renderAllCodes |
shortcut: render all codes | |
static const size_t | HF_internalUseOnly |
shortcut: filter all flags that are only used internally | |
static const size_t | XF_writeEmptyTags |
write: write all tags even if their value is empty | |
static const size_t | XF_writeTemplateIdentification |
write: write template identification information (TID and mapping resource) | |
static const size_t | XF_alwaysWriteItemIdentifier |
write: always write item identifier "id", not only when item is referenced | |
static const size_t | XF_codeComponentsAsAttribute |
write: encode code value, coding scheme designator and coding scheme version as attribute instead of element text | |
static const size_t | XF_relationshipTypeAsAttribute |
write: encode relationship type as attribute instead of element text | |
static const size_t | XF_valueTypeAsAttribute |
write: encode value type as attribute instead of element text | |
static const size_t | XF_templateIdentifierAsAttribute |
write: encode template identifier as attribute instead of element text | |
static const size_t | XF_useDcmsrNamespace |
write: add DCMSR namespace declaration to the XML output | |
static const size_t | XF_addSchemaReference |
write: add Schema reference to XML document | |
static const size_t | XF_validateSchema |
read: validate content of XML document against Schema | |
static const size_t | XF_templateElementEnclosesItems |
read/write: template identification element encloses content items | |
static const size_t | XF_addCommentsForIncludedTemplate |
write: add comments with details at beginning/end of included template (might be useful for debugging purposes) | |
static const size_t | XF_acceptEmptyStudySeriesInstanceUID |
read: accept empty Study/Series/SOP Instance UID attribute values (must be filled later) | |
static const size_t | XF_encodeEverythingAsAttribute |
shortcut: combines all XF_xxxAsAttribute write flags (see above) | |
static const size_t | PF_printItemPosition |
print item position ("1.2.3") instead of line indentation | |
static const size_t | PF_shortenLongItemValues |
shorten long item value (e.g. long texts) | |
static const size_t | PF_printSOPInstanceUID |
print SOP instance UID of referenced objects | |
static const size_t | PF_printConceptNameCodes |
print coding scheme designator/version and code value of concept names | |
static const size_t | PF_printNoDocumentHeader |
print no general document information (header) | |
static const size_t | PF_printTemplateIdentification |
print template identification (TID and mapping resource) | |
static const size_t | PF_useANSIEscapeCodes |
use ANSI escape codes for output | |
static const size_t | PF_printLongSOPClassName |
print long SOP class name of referenced objects (default: short name for images) | |
static const size_t | PF_printSOPClassUID |
print SOP class UID of referenced objects (instead of the name) | |
static const size_t | PF_printInvalidCodes |
print code triple for invalid codes (instead of the text "invalid code") | |
static const size_t | PF_printNodeID |
print node ID at the beginning of each line (might be useful for debugging purposes) | |
static const size_t | PF_indicateEnhancedEncodingMode |
indicate with a "*" that the "enhanced encoding mode" is used for codes | |
static const size_t | PF_printAnnotation |
print annotation of a content item (optional, e.g. user-defined information) | |
static const size_t | PF_hideIncludedTemplateNodes |
do not print internal "included template" nodes (position counter is still increased) | |
static const size_t | PF_dontCountIncludedTemplateNodes |
do not count internal "included template" nodes (only with PF_hideIncludedTemplateNodes) | |
static const size_t | PF_printAllCodes |
shortcut: print all codes (combines all PF_printXxxCodes flags, see above) | |
static const size_t | CM_updatePositionString |
update the position string using the node ID | |
static const size_t | CM_updateNodeID |
update the node ID using the position string | |
static const size_t | CM_resetReferenceTargetFlag |
reset the reference target flag for all nodes | |
static const size_t | CB_maskPrintFlags |
bit mask (filter) for valid print flags (see PF_xxx) | |
static const size_t | CB_maskReadFlags |
bit mask (filter) for valid read flags (see RF_xxx) | |
Implementation of DCMR Template: TID 1001 - Observation Context (and included templates 1002-1004).
All added content items are annotated with a text in the format "TID 1001 - Row [n]".
OFCondition TID1001_ObservationContext::addDeviceObserver | ( | const OFString & | deviceUID, |
const OFString & | deviceName = "" , |
||
const OFString & | manufacturer = "" , |
||
const OFString & | modelName = "" , |
||
const OFString & | serialNumber = "" , |
||
const OFString & | physicalLocation = "" , |
||
const DeviceParticipatingRolesList & | procedureRoles = DeviceParticipatingRolesList() , |
||
const OFString & | stationAEtitle = "" , |
||
const OFBool | check = OFTrue |
||
) |
add content items for TID 1002 (Observer Context) with Observer Type being "Device".
This also includes the content items from TID 1004 (Device Observer Identifying Attributes).
deviceUID | unique identifier of automated device that created the observations (mandatory) |
deviceName | institution-provided identifier of automated device that created the observations (optional) |
manufacturer | manufacturer of automated device that created the observations (optional) |
modelName | manufacturer-provided model name of automated device that created the observations (optional) |
serialNumber | manufacturer-provided serial number of automated device that created the observations (optional) |
physicalLocation | location of automated device that created the observations whilst the observations were being made (optional) |
procedureRoles | the roles played by a device in a procedure (optional, multiple values allowed) |
stationAEtitle | application entity title of the device (optional) |
check | if enabled, check values for validity before setting them |
OFCondition TID1001_ObservationContext::addPersonObserver | ( | const OFString & | personName, |
const OFString & | organizationName = "" , |
||
const CID7452_OrganizationalRoles & | organizationRole = CID7452_OrganizationalRoles() , |
||
const CID7453_PerformingRoles & | procedureRole = CID7453_PerformingRoles() , |
||
const OFBool | check = OFTrue |
||
) |
add content items for TID 1002 (Observer Context) with Observer Type being "Person".
This also includes the content items from TID 1003 (Person Observer Identifying Attributes).
personName | name of human observer that created the observations (mandatory) |
organizationName | organization or institution with which the human observer is affiliated for the context of the current observation (optional) |
organizationRole | organizational role of human observer for the context of the current observation (optional) |
procedureRole | procedural role of human observer for the context of the current observation (optional) |
check | if enabled, check values for validity before setting them |
OFCondition TID1001_ObservationContext::addProcedureContext | ( | ) |
add content items for TID 1005 (Procedure Context)
OFCondition TID1001_ObservationContext::addSubjectContext | ( | ) |
add content items for TID 1006 (Subject Context), and included TID 1007-1010
