General purpose class hiding global functions, constants and types from the global namespace. More...

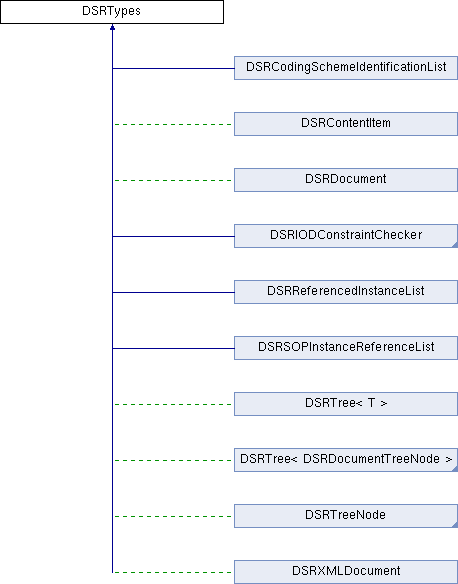

Inheritance diagram for DSRTypes:

Public Types
enum	E_DocumentType { DT_invalid, DT_unknown = DT_invalid, DT_BasicTextSR, DT_EnhancedSR, DT_ComprehensiveSR, DT_KeyObjectSelectionDocument, DT_MammographyCadSR, DT_ChestCadSR, DT_ColonCadSR, DT_ProcedureLog, DT_XRayRadiationDoseSR, DT_SpectaclePrescriptionReport, DT_MacularGridThicknessAndVolumeReport, DT_ImplantationPlanSRDocument, DT_Comprehensive3DSR, DT_RadiopharmaceuticalRadiationDoseSR, DT_ExtensibleSR, DT_AcquisitionContextSR, DT_SimplifiedAdultEchoSR, DT_PatientRadiationDoseSR, DT_last = DT_PatientRadiationDoseSR }
	SR document types. More...

enum	E_RelationshipType { RT_invalid, RT_unknown, RT_isRoot, RT_contains, RT_hasObsContext, RT_hasAcqContext, RT_hasConceptMod, RT_hasProperties, RT_inferredFrom, RT_selectedFrom, RT_last = RT_selectedFrom }
	SR relationship types. More...

enum	E_ValueType { VT_invalid, VT_Text, VT_Code, VT_Num, VT_DateTime, VT_Date, VT_Time, VT_UIDRef, VT_PName, VT_SCoord, VT_SCoord3D, VT_TCoord, VT_Composite, VT_Image, VT_Waveform, VT_Container, VT_byReference, VT_includedTemplate, VT_last = VT_includedTemplate }
	SR value types. More...

enum	E_PresentationStateType { PT_invalid, PT_unknown = PT_invalid, PT_Grayscale, PT_Color, PT_PseudoColor, PT_Blending, PT_XAXRFGrayscale, PT_GrayscalePlanarMPR, PT_CompositingPlanarMPR, PT_AdvancedBlending, PT_VolumeRendering, PT_SegmentedVolumeRendering, PT_MultipleVolumeRendering, PT_last = PT_MultipleVolumeRendering }
	Softcopy presentation state types. More...

enum	E_GraphicType { GT_invalid, GT_unknown = GT_invalid, GT_Point, GT_Multipoint, GT_Polyline, GT_Circle, GT_Ellipse, GT_last = GT_Ellipse }
	SR graphic types. More...

enum	E_GraphicType3D { GT3_invalid, GT3_unknown = GT3_invalid, GT3_Point, GT3_Multipoint, GT3_Polyline, GT3_Polygon, GT3_Ellipse, GT3_Ellipsoid, GT3_last = GT3_Ellipsoid }
	SR graphic types (3D). More...

enum	E_TemporalRangeType { TRT_invalid, TRT_unknown = TRT_invalid, TRT_Point, TRT_Multipoint, TRT_Segment, TRT_Multisegment, TRT_Begin, TRT_End, TRT_last = TRT_End }
	SR temporal range types. More...

enum	E_ContinuityOfContent { COC_invalid, COC_Separate, COC_Continuous, COC_last = COC_Continuous }
	SR continuity of content flag. More...

enum	E_PreliminaryFlag { PF_invalid, PF_Preliminary, PF_Final, PF_last = PF_Final }
	SR document preliminary flag. More...

enum	E_CompletionFlag { CF_invalid, CF_Partial, CF_Complete, CF_last = CF_Complete }
	SR document completion flag. More...

enum	E_VerificationFlag { VF_invalid, VF_Unverified, VF_Verified, VF_last = VF_Verified }
	SR document verification flag. More...

enum	E_CharacterSet { CS_invalid, CS_unknown = CS_invalid, CS_ASCII, CS_default = CS_ASCII, CS_Latin1, CS_Latin2, CS_Latin3, CS_Latin4, CS_Cyrillic, CS_Arabic, CS_Greek, CS_Hebrew, CS_Latin5, CS_Thai, CS_Japanese, CS_Korean, CS_ChineseISO, CS_ChineseGB18030, CS_ChineseGBK, CS_UTF8, CS_last = CS_UTF8 }
	Specific character set. More...

enum	E_CodeValueType { CVT_auto, CVT_Short, CVT_Long, CVT_URN }
	Code value type. More...

enum	E_AddMode { AM_afterCurrent, AM_beforeCurrent, AM_belowCurrent, AM_belowCurrentBeforeFirstChild }
	Add node mode. More...

Public Member Functions
virtual	~DSRTypes ()
	destructor. More...

Static Public Member Functions
static const char *	documentTypeToSOPClassUID (const E_DocumentType documentType)
	convert SR document type to SOP class UID More...

static const char *	documentTypeToModality (const E_DocumentType documentType)
	convert SR document type to modality More...

static const char *	documentTypeToReadableName (const E_DocumentType documentType)
	convert SR document type to readable name. More...

static const char *	documentTypeToDocumentTitle (const E_DocumentType documentType, OFString &documentTitle)
	convert SR document type to document title. More...

static OFBool	requiresEnhancedEquipmentModule (const E_DocumentType documentType)
	check whether SR document type requires Enhanced General Equipment Module More...

static OFBool	requiresTimezoneModule (const E_DocumentType documentType)
	check whether SR document type requires Timezone Module More...

static const char *	relationshipTypeToDefinedTerm (const E_RelationshipType relationshipType)
	convert relationship type to DICOM defined term More...

static const char *	relationshipTypeToReadableName (const E_RelationshipType relationshipType)
	convert relationship type to readable name. More...

static const char *	valueTypeToDefinedTerm (const E_ValueType valueType)
	convert value type to DICOM defined term More...

static const char *	valueTypeToXMLTagName (const E_ValueType valueType)
	convert value type to XML tag name More...

static const char *	valueTypeToReadableName (const E_ValueType valueType)
	convert value type to readable name. More...

static const char *	presentationStateTypeToShortName (const E_PresentationStateType pstateType)
	convert presentation state type to short name. More...

static const char *	graphicTypeToEnumeratedValue (const E_GraphicType graphicType)
	convert graphic type to DICOM enumerated value More...

static const char *	graphicTypeToReadableName (const E_GraphicType graphicType)
	convert graphic type to readable name. More...

static const char *	graphicType3DToEnumeratedValue (const E_GraphicType3D graphicType)
	convert graphic type (3D) to DICOM enumerated value More...

static const char *	graphicType3DToReadableName (const E_GraphicType3D graphicType)
	convert graphic type (3D) to readable name. More...

static const char *	temporalRangeTypeToEnumeratedValue (const E_TemporalRangeType temporalRangeType)
	convert temporal range type to DICOM enumerated value More...

static const char *	temporalRangeTypeToReadableName (const E_TemporalRangeType temporalRangeType)
	convert temporal range type to readable name. More...

static const char *	continuityOfContentToEnumeratedValue (const E_ContinuityOfContent continuityOfContent)
	convert continuity of content flag to DICOM enumerated value More...

static const char *	preliminaryFlagToEnumeratedValue (const E_PreliminaryFlag preliminaryFlag)
	convert preliminary flag to DICOM enumerated value More...

static const char *	completionFlagToEnumeratedValue (const E_CompletionFlag completionFlag)
	convert completion flag to DICOM enumerated value More...

static const char *	verificationFlagToEnumeratedValue (const E_VerificationFlag verificationFlag)
	convert verification flag to DICOM enumerated value More...

static const char *	characterSetToDefinedTerm (const E_CharacterSet characterSet)
	convert character set to DICOM defined term More...

static const char *	characterSetToHTMLName (const E_CharacterSet characterSet)
	convert character set to HTML name. More...

static const char *	characterSetToXMLName (const E_CharacterSet characterSet)
	convert character set to XML name. More...

static E_DocumentType	sopClassUIDToDocumentType (const OFString &sopClassUID)
	convert SOP class UID to SR document type More...

static E_RelationshipType	definedTermToRelationshipType (const OFString &definedTerm)
	convert DICOM defined term to relationship type More...

static E_ValueType	definedTermToValueType (const OFString &definedTerm)
	convert DICOM defined term to value type More...

static E_PresentationStateType	sopClassUIDToPresentationStateType (const OFString &sopClassUID)
	convert SOP class UID to presentation state type More...

static E_ValueType	xmlTagNameToValueType (const OFString &xmlTagName)
	convert XML tag name to value type More...

static E_GraphicType	enumeratedValueToGraphicType (const OFString &enumeratedValue)
	convert DICOM enumerated value to graphic type More...

static E_GraphicType3D	enumeratedValueToGraphicType3D (const OFString &enumeratedValue)
	convert DICOM enumerated value to graphic type (3D) More...

static E_TemporalRangeType	enumeratedValueToTemporalRangeType (const OFString &enumeratedValue)
	convert DICOM enumerated value to temporal range type More...

static E_ContinuityOfContent	enumeratedValueToContinuityOfContent (const OFString &enumeratedValue)
	convert DICOM enumerated value to continuity of content flag More...

static E_PreliminaryFlag	enumeratedValueToPreliminaryFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to preliminary flag More...

static E_CompletionFlag	enumeratedValueToCompletionFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to completion flag More...

static E_VerificationFlag	enumeratedValueToVerificationFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to verification flag More...

static E_CharacterSet	definedTermToCharacterSet (const OFString &definedTerm)
	convert DICOM defined term to character set. More...

static OFBool	isDocumentTypeSupported (const E_DocumentType documentType)
	check whether specified SR document type is supported by this library More...

static const OFString &	currentDate (OFString &dateString)
	get current date in DICOM 'DA' format. More...

static const OFString &	currentTime (OFString &timeString)
	get current time in DICOM 'TM' format. More...

static const OFString &	currentDateTime (OFString &dateTimeString)
	get current date and time in DICOM 'DT' format. More...

static const OFString &	localTimezone (OFString &timezoneString)
	get local timezone in DICOM format. More...

static const OFString &	dicomToReadableDate (const OFString &dicomDate, OFString &readableDate)
	convert DICOM date string to readable format. More...

static const OFString &	dicomToReadableTime (const OFString &dicomTime, OFString &readableTime)
	convert DICOM time string to readable format. More...

static const OFString &	dicomToReadableDateTime (const OFString &dicomDateTime, OFString &readableDateTime)
	convert DICOM date time string to readable format. More...

static const OFString &	dicomToReadablePersonName (const OFString &dicomPersonName, OFString &readablePersonName)
	convert DICOM person name to readable format. More...

static const OFString &	dicomToXMLPersonName (const OFString &dicomPersonName, OFString &xmlPersonName, const OFBool writeEmptyValue=OFFalse)
	convert DICOM person name to XML format. More...

static const char *	numberToString (const size_t number, char *stringValue)
	convert unsigned integer number to character string More...

static size_t	stringToNumber (const char *stringValue)
	convert string to unsigned integer number More...

static const OFString &	convertToPrintString (const OFString &sourceString, OFString &printString)
	convert character string to print string. More...

static const OFString &	convertToHTMLString (const OFString &sourceString, OFString &markupString, const size_t flags=0, const OFBool newlineAllowed=OFFalse)
	convert character string to HTML mnenonic string. More...

static const OFString &	convertToXMLString (const OFString &sourceString, OFString &markupString)
	convert character string to XML mnenonic string. More...

static OFBool	checkForValidReference (const OFString &stringValue)
	check string for valid reference (as used for by-reference relationships). More...

static DSRIODConstraintChecker *	createIODConstraintChecker (const E_DocumentType documentType)
	create specified SR IOD content relationship constraint checker object. More...

static DSRDocumentTreeNode *	createDocumentTreeNode (const E_RelationshipType relationshipType, const E_ValueType valueType)
	create specified document tree node. More...

static OFCondition	addElementToDataset (OFCondition &result, DcmItem &dataset, DcmElement delem, const OFString &vm, const OFString &type, const char moduleName=NULL)
	add given element to the dataset. More...

static void	removeAttributeFromSequence (DcmSequenceOfItems &sequence, const DcmTagKey &tagKey)
	remove given attribute from the sequence. More...

static OFCondition	getElementFromDataset (DcmItem &dataset, DcmElement &delem)
	get element from dataset More...

static const char *	getStringValueFromElement (const DcmElement &delem)
	get string value from element More...

static const OFString &	getStringValueFromElement (const DcmElement &delem, OFString &stringValue)
	get string value from element. More...

static OFCondition	getStringValueFromElement (const DcmElement &delem, OFString &stringValue, const signed long pos)
	get string value from element More...

static const OFString &	getPrintStringFromElement (const DcmElement &delem, OFString &stringValue)
	get string value from element and convert to "print" format. More...

static const OFString &	getMarkupStringFromElement (const DcmElement &delem, OFString &stringValue, const OFBool convertNonASCII=OFFalse)
	get string value from element and convert to HTML/XML. More...

static OFCondition	getStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const signed long pos=0)
	get string value from dataset More...

static OFCondition	putStringValueToDataset (DcmItem &dataset, const DcmTag &tag, const OFString &stringValue, const OFBool allowEmpty=OFTrue)
	put string value to dataset More...

static OFBool	checkElementValue (DcmElement delem, const DcmTagKey &tagKey, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char moduleName=NULL, const OFBool acceptViolation=OFFalse)
	check element value for correct value multiplicity and type. More...

static OFBool	checkElementValue (DcmElement &delem, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	check element value for correct value multiplicity and type. More...

static OFCondition	getAndCheckElementFromDataset (DcmItem &dataset, DcmElement &delem, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	get element from dataset and check it for correct value multiplicity and type. More...

static OFCondition	getAndCheckStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	get string value from dataset and check it for correct value multiplicity and type. More...

static void	printInvalidContentItemMessage (const char action, const DSRDocumentTreeNode node, const char *location=NULL)
	print the warning message that the current content item is invalid/incomplete. More...

static void	printContentItemErrorMessage (const char action, const OFCondition &result, const DSRDocumentTreeNode node, const char *location=NULL)
	print an error message for the current content item. More...

static void	printUnknownValueWarningMessage (const char valueName, const char readValue=NULL, const char *action="Reading")
	print a warning message that an unknown/unsupported value has been determined More...

static OFBool	writeStringValueToXML (STD_NAMESPACE ostream &stream, const OFString &stringValue, const OFString &tagName, const OFBool writeEmptyValue=OFFalse)
	write string value to XML output stream. More...

static OFBool	writeStringFromElementToXML (STD_NAMESPACE ostream &stream, DcmElement &delem, const OFString &tagName, const OFBool writeEmptyValue=OFFalse)
	write string value from DICOM element to XML output stream. More...

static size_t	createHTMLAnnexEntry (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const OFString &referenceText, size_t &annexNumber, const size_t flags=0)
	create an HTML annex entry with hyperlinks. More...

static size_t	createHTMLFootnote (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &footnoteStream, size_t &footnoteNumber, const size_t nodeID, const size_t flags=0)
	create an HTML footnote with hyperlinks More...

static OFCondition	appendStream (STD_NAMESPACE ostream &mainStream, OFOStringStream &tempStream, const char *heading=NULL)
	append one output stream to another. More...

Static Public Attributes
read() flags
These flags can be combined and passed to the read() methods. The 'shortcut' flags can be used for common combinations.
static const size_t	RF_readDigitalSignatures
	read digital signatures from dataset

static const size_t	RF_acceptUnknownRelationshipType
	accept unknown/missing relationship type

static const size_t	RF_acceptInvalidContentItemValue
	accept invalid content item value (e.g. violation of VR or VM definition)

static const size_t	RF_ignoreRelationshipConstraints
	ignore relationship constraints for this document class

static const size_t	RF_ignoreContentItemErrors
	do not abort on content item errors (e.g. missing value type specific attributes)

static const size_t	RF_skipInvalidContentItems
	do not abort when detecting an invalid content item, skip invalid sub-tree instead

static const size_t	RF_showCurrentlyProcessedItem
	show the currently processed content item (e.g. "1.2.3")

renderHTML() flags
These flags can be combined and passed to the renderHMTL() methods. Please note that only the 'external' flags can be used from outside this library. The 'shortcut' flags can be used for common combinations.
static const size_t	HF_neverExpandChildrenInline
	external: never expand child nodes inline

static const size_t	HF_alwaysExpandChildrenInline
	external: always expand child nodes inline

static const size_t	HF_renderInlineCodes
	external: render codes even if they appear inline

static const size_t	HF_useCodeDetailsTooltip
	external: render code details as a tooltip (not with HTML 3.2)

static const size_t	HF_renderConceptNameCodes
	external: render concept name codes (default: code meaning only)

static const size_t	HF_renderNumericUnitCodes
	external: render the code of the numeric measurement unit

static const size_t	HF_useCodeMeaningAsUnit
	external: use code meaning for the numeric measurement unit (default: code value)

static const size_t	HF_renderPatientTitle
	external: use patient information as document title (default: document type)

static const size_t	HF_renderNoDocumentHeader
	external: render no general document information (header)

static const size_t	HF_renderDcmtkFootnote
	external: render dcmtk/dcmsr comment at the end of the document

static const size_t	HF_renderFullData
	external: render the full data of all content items

static const size_t	HF_renderSectionTitlesInline
	external: render section titles inline (default: separate paragraph)

static const size_t	HF_copyStyleSheetContent
	external: copy Cascading Style Sheet (CSS) content to HTML file

static const size_t	HF_HTML32Compatibility
	external: output compatible to HTML version 3.2 (default: 4.01)

static const size_t	HF_XHTML11Compatibility
	external: output compatible to XHTML version 1.1 (default: HTML 4.01)

static const size_t	HF_addDocumentTypeReference
	external: add explicit reference to HTML document type (DTD)

static const size_t	HF_omitGeneratorMetaElement
	external: omit generator meta element referring to the DCMTK

static const size_t	HF_renderItemsSeparately
	internal: render items separately (for container with SEPARATE flag)

static const size_t	HF_renderItemInline
	internal: expand items inline when they are short and have no child nodes

static const size_t	HF_currentlyInsideAnnex
	internal: content item is rendered fully inside the annex

static const size_t	HF_createFootnoteReferences
	internal: create footnote references

static const size_t	HF_convertNonASCIICharacters
	internal: convert non-ASCII characters (> #127) to &#nnn;

static const size_t	HF_renderAllCodes
	shortcut: render all codes

static const size_t	HF_internalUseOnly
	shortcut: filter all flags that are only used internally

read/writeXML() flags
These flags can be combined and passed to the read/writeXML() methods. The 'shortcut' flags can be used for common combinations.
static const size_t	XF_writeEmptyTags
	write: write all tags even if their value is empty

static const size_t	XF_writeTemplateIdentification
	write: write template identification information (TID and mapping resource)

static const size_t	XF_alwaysWriteItemIdentifier
	write: always write item identifier "id", not only when item is referenced

static const size_t	XF_codeComponentsAsAttribute
	write: encode code value, coding scheme designator and coding scheme version as attribute instead of element text

static const size_t	XF_relationshipTypeAsAttribute
	write: encode relationship type as attribute instead of element text

static const size_t	XF_valueTypeAsAttribute
	write: encode value type as attribute instead of element text

static const size_t	XF_templateIdentifierAsAttribute
	write: encode template identifier as attribute instead of element text

static const size_t	XF_useDcmsrNamespace
	write: add DCMSR namespace declaration to the XML output

static const size_t	XF_addSchemaReference
	write: add Schema reference to XML document

static const size_t	XF_validateSchema
	read: validate content of XML document against Schema

static const size_t	XF_templateElementEnclosesItems
	read/write: template identification element encloses content items

static const size_t	XF_addCommentsForIncludedTemplate
	write: add comments with details at beginning/end of included template (might be useful for debugging purposes)

static const size_t	XF_acceptEmptyStudySeriesInstanceUID
	read: accept empty Study/Series/SOP Instance UID attribute values (must be filled later)

static const size_t	XF_encodeEverythingAsAttribute
	shortcut: combines all XF_xxxAsAttribute write flags (see above)

print() flags
These flags can be combined and passed to the print() methods. The 'shortcut' flags can be used for common combinations.
static const size_t	PF_printItemPosition
	print item position ("1.2.3") instead of line indentation

static const size_t	PF_shortenLongItemValues
	shorten long item value (e.g. long texts)

static const size_t	PF_printSOPInstanceUID
	print SOP instance UID of referenced objects

static const size_t	PF_printConceptNameCodes
	print coding scheme designator/version and code value of concept names

static const size_t	PF_printNoDocumentHeader
	print no general document information (header)

static const size_t	PF_printTemplateIdentification
	print template identification (TID and mapping resource)

static const size_t	PF_useANSIEscapeCodes
	use ANSI escape codes for output

static const size_t	PF_printLongSOPClassName
	print long SOP class name of referenced objects (default: short name for images)

static const size_t	PF_printSOPClassUID
	print SOP class UID of referenced objects (instead of the name)

static const size_t	PF_printInvalidCodes
	print code triple for invalid codes (instead of the text "invalid code")

static const size_t	PF_printNodeID
	print node ID at the beginning of each line (might be useful for debugging purposes)

static const size_t	PF_indicateEnhancedEncodingMode
	indicate with a "*" that the "enhanced encoding mode" is used for codes

static const size_t	PF_printAnnotation
	print annotation of a content item (optional, e.g. user-defined information)

static const size_t	PF_hideIncludedTemplateNodes
	do not print internal "included template" nodes (position counter is still increased)

static const size_t	PF_dontCountIncludedTemplateNodes
	do not count internal "included template" nodes (only with PF_hideIncludedTemplateNodes)

static const size_t	PF_printAllCodes
	shortcut: print all codes (combines all PF_printXxxCodes flags, see above)

checkByReferenceRelationships() modes
These modes can be combined and passed to the checkByReferenceRelationships() method.
static const size_t	CM_updatePositionString
	update the position string using the node ID

static const size_t	CM_updateNodeID
	update the node ID using the position string

static const size_t	CM_resetReferenceTargetFlag
	reset the reference target flag for all nodes

checkByReferenceRelationships() bit masks
These bit masks are used to "filter" valid flags passed to checkByReferenceRelationships().
static const size_t	CB_maskPrintFlags
	bit mask (filter) for valid print flags (see PF_xxx)

static const size_t	CB_maskReadFlags
	bit mask (filter) for valid read flags (see RF_xxx)

Detailed Description

General purpose class hiding global functions, constants and types from the global namespace.

Some of them might be moved to 'ofstd' later on. All functions and constants are static and can, therefore, be accessed without creating an instance of this class.

Member Enumeration Documentation

◆ E_AddMode

enum DSRTypes::E_AddMode

Add node mode.

Enumerator
AM_afterCurrent	add new node after current one (sibling)
AM_beforeCurrent	add new node before current one (sibling)
AM_belowCurrent	add new node below current one (after last child)
AM_belowCurrentBeforeFirstChild	add new node below current one (before first child)

◆ E_CharacterSet

enum DSRTypes::E_CharacterSet

Specific character set.

Enumerator
CS_invalid	internal type used to indicate an error
CS_unknown	internal type used to indicate an unknown/unsupported character set
CS_ASCII	ISO 646 (ISO-IR 6): ASCII.
CS_default	internal type used to indicate the default character set
CS_Latin1	ISO-IR 100: Latin alphabet No. 1.
CS_Latin2	ISO-IR 101: Latin alphabet No. 2.
CS_Latin3	ISO-IR 109: Latin alphabet No. 3.
CS_Latin4	ISO-IR 110: Latin alphabet No. 4.
CS_Cyrillic	ISO-IR 144: Cyrillic.
CS_Arabic	ISO-IR 127: Arabic.
CS_Greek	ISO-IR 126: Greek.
CS_Hebrew	ISO-IR 138: Hebrew.
CS_Latin5	ISO-IR 148: Latin alphabet No. 5.
CS_Thai	ISO-IR 166: Thai.
CS_Japanese	ISO-IR 13/87: Japanese (Katakana/Romaji/Kanji)
CS_Korean	ISO-IR 6/149: Korean (Hangul/Hanja)
CS_ChineseISO	ISO-IR 6/58: Chinese.
CS_ChineseGB18030	GB18030: Chinese.
CS_ChineseGBK	GBK: Chinese.
CS_UTF8	UTF-8: Unicode in UTF-8.
CS_last	internal type used to mark the last entry

◆ E_CodeValueType

enum DSRTypes::E_CodeValueType

Code value type.

Enumerator
CVT_auto	determine code value type automatically
CVT_Short	short code value (VR=SH)
CVT_Long	long code value (VR=UC)
CVT_URN	URN code value (VR=UR)

◆ E_CompletionFlag

enum DSRTypes::E_CompletionFlag

SR document completion flag.

Enumerator
CF_invalid	internal type used to indicate an error
CF_Partial	DICOM enumerated value: PARTIAL.
CF_Complete	DICOM enumerated value: COMPLETE.
CF_last	internal type used to mark the last entry

◆ E_ContinuityOfContent

enum DSRTypes::E_ContinuityOfContent

SR continuity of content flag.

Used for content item CONTAINER.

Enumerator
COC_invalid	internal type used to indicate an error
COC_Separate	DICOM enumerated value: SEPARATE.
COC_Continuous	DICOM enumerated value: CONTINUOUS.
COC_last	internal type used to mark the last entry

◆ E_DocumentType

enum DSRTypes::E_DocumentType

SR document types.

Enumerator
DT_invalid	internal type used to indicate an error
DT_unknown	internal type used to indicate an unknown/unsupported document type
DT_BasicTextSR	DICOM IOD: Basic Text SR.
DT_EnhancedSR	DICOM IOD: Enhanced SR.
DT_ComprehensiveSR	DICOM IOD: Comprehensive SR.
DT_KeyObjectSelectionDocument	DICOM IOD: Key Object Selection Document.
DT_MammographyCadSR	DICOM IOD: Mammography CAD SR.
DT_ChestCadSR	DICOM IOD: Chest CAD SR.
DT_ColonCadSR	DICOM IOD: Colon CAD SR.
DT_ProcedureLog	DICOM IOD: Procedure Log.
DT_XRayRadiationDoseSR	DICOM IOD: X-Ray Radiation Dose SR.
DT_SpectaclePrescriptionReport	DICOM IOD: Spectacle Prescription Report.
DT_MacularGridThicknessAndVolumeReport	DICOM IOD: Macular Grid Thickness and Volume Report.
DT_ImplantationPlanSRDocument	DICOM IOD: Implantation Plan SR Document.
DT_Comprehensive3DSR	DICOM IOD: Comprehensive 3D SR.
DT_RadiopharmaceuticalRadiationDoseSR	DICOM IOD: Radiopharmaceutical Radiation Dose SR.
DT_ExtensibleSR	DICOM IOD: Extensible SR (not yet implemented)
DT_AcquisitionContextSR	DICOM IOD: Acquisition Context SR.
DT_SimplifiedAdultEchoSR	DICOM IOD: Simplified Adult Echo SR.
DT_PatientRadiationDoseSR	DICOM IOD: Patient Radiation Dose SR.
DT_last	internal type used to mark the last entry

◆ E_GraphicType

enum DSRTypes::E_GraphicType

SR graphic types.

Used for content item SCOORD.

Enumerator
GT_invalid	internal type used to indicate an error
GT_unknown	internal type used to indicate an unknown graphic type (defined term)
GT_Point	DICOM Graphic Type: POINT.
GT_Multipoint	DICOM Graphic Type: MULTIPOINT.
GT_Polyline	DICOM Graphic Type: POLYLINE.
GT_Circle	DICOM Graphic Type: CIRCLE.
GT_Ellipse	DICOM Graphic Type: ELLIPSE.
GT_last	internal type used to mark the last entry

◆ E_GraphicType3D

enum DSRTypes::E_GraphicType3D

SR graphic types (3D).

Used for content item SCOORD3D.

Enumerator
GT3_invalid	internal type used to indicate an error
GT3_unknown	internal type used to indicate an unknown graphic type (defined term)
GT3_Point	DICOM Graphic Type: POINT.
GT3_Multipoint	DICOM Graphic Type: MULTIPOINT.
GT3_Polyline	DICOM Graphic Type: POLYLINE.
GT3_Polygon	DICOM Graphic Type: POLYGON.
GT3_Ellipse	DICOM Graphic Type: ELLIPSE.
GT3_Ellipsoid	DICOM Graphic Type: ELLIPSOID.
GT3_last	internal type used to mark the last entry

◆ E_PreliminaryFlag

enum DSRTypes::E_PreliminaryFlag

SR document preliminary flag.

Enumerator
PF_invalid	internal type used to indicate an error or the absence of this flag
PF_Preliminary	DICOM enumerated value: PRELIMINARY.
PF_Final	DICOM enumerated value: FINAL.
PF_last	internal type used to mark the last entry

◆ E_PresentationStateType

enum DSRTypes::E_PresentationStateType

Softcopy presentation state types.

Used for content item IMAGE.

Enumerator
PT_invalid	internal type used to indicate an error
PT_unknown	internal type used to indicate an unknown presentation state type (SOP class)
PT_Grayscale	Grayscale Softcopy Presentation State (GSPS)
PT_Color	Color Softcopy Presentation State (CSPS)
PT_PseudoColor	Pseudo-Color Softcopy Presentation State (PCSPS)
PT_Blending	Blending Softcopy Presentation State (BSPS)
PT_XAXRFGrayscale	XA/XRF Grayscale Softcopy Presentation State (XGSPS)
PT_GrayscalePlanarMPR	Grayscale Planar MPR Volumetric Presentation State (GP-VPS)
PT_CompositingPlanarMPR	Compositing Planar MPR Volumetric Presentation State (CP-VPS)
PT_AdvancedBlending	Advanced Blending Presentation State (ABPS)
PT_VolumeRendering	Volume Rendering Volumetric Presentation State (VR-VPS)
PT_SegmentedVolumeRendering	Segmented Volume Rendering Volumetric Presentation State (SVR-VPS)
PT_MultipleVolumeRendering	Multiple Volume Rendering Volumetric Presentation State (MVR-VPS)
PT_last	internal type used to mark the last entry

◆ E_RelationshipType

enum DSRTypes::E_RelationshipType

SR relationship types.

Enumerator
RT_invalid	internal type used to indicate an error
RT_unknown	internal type used to indicate an unknown relationship type (defined term)
RT_isRoot	internal type used for the document root
RT_contains	DICOM Relationship Type: CONTAINS.
RT_hasObsContext	DICOM Relationship Type: HAS OBS CONTEXT.
RT_hasAcqContext	DICOM Relationship Type: HAS ACQ CONTEXT.
RT_hasConceptMod	DICOM Relationship Type: HAS CONCEPT MOD.
RT_hasProperties	DICOM Relationship Type: HAS PROPERTIES.
RT_inferredFrom	DICOM Relationship Type: INFERRED FROM.
RT_selectedFrom	DICOM Relationship Type: SELECTED FROM.
RT_last	internal type used to mark the last entry

◆ E_TemporalRangeType

enum DSRTypes::E_TemporalRangeType

SR temporal range types.

Used for content item TCOORD.

Enumerator
TRT_invalid	internal type used to indicate an error
TRT_unknown	internal type used to indicate an unknown range type (defined term)
TRT_Point	DICOM Temporal Range Type: POINT.
TRT_Multipoint	DICOM Temporal Range Type: MULTIPOINT.
TRT_Segment	DICOM Temporal Range Type: SEGMENT.
TRT_Multisegment	DICOM Temporal Range Type: MULTISEGMENT.
TRT_Begin	DICOM Temporal Range Type: BEGIN.
TRT_End	DICOM Temporal Range Type: END.
TRT_last	internal type used to mark the last entry

◆ E_ValueType

enum DSRTypes::E_ValueType

SR value types.

Enumerator
VT_invalid	internal type used to indicate an error
VT_Text	DICOM Value Type: TEXT.
VT_Code	DICOM Value Type: CODE.
VT_Num	DICOM Value Type: NUM.
VT_DateTime	DICOM Value Type: DATETIME.
VT_Date	DICOM Value Type: DATE.
VT_Time	DICOM Value Type: TIME.
VT_UIDRef	DICOM Value Type: UIDREF.
VT_PName	DICOM Value Type: PNAME.
VT_SCoord	DICOM Value Type: SCOORD.
VT_SCoord3D	DICOM Value Type: SCOORD3D.
VT_TCoord	DICOM Value Type: TCOORD.
VT_Composite	DICOM Value Type: COMPOSITE.
VT_Image	DICOM Value Type: IMAGE.
VT_Waveform	DICOM Value Type: WAVEFORM.
VT_Container	DICOM Value Type: CONTAINER.
VT_byReference	internal type used to indicate by-reference relationships
VT_includedTemplate	internal type used to indicate (enclose) included templates
VT_last	internal type used to mark the last entry

◆ E_VerificationFlag

enum DSRTypes::E_VerificationFlag

SR document verification flag.

Enumerator
VF_invalid	internal type used to indicate an error
VF_Unverified	DICOM enumerated value: UNVERIFIED.
VF_Verified	DICOM enumerated value: VERIFIED.
VF_last	internal type used to mark the last entry

Constructor & Destructor Documentation

◆ ~DSRTypes()

virtual DSRTypes::~DSRTypes ( )

virtual

destructor.

(only needed to avoid compiler warnings)

Member Function Documentation

◆ addElementToDataset()

static OFCondition DSRTypes::addElementToDataset	(	OFCondition &	result,
		DcmItem &	dataset,
		DcmElement *	delem,
		const OFString &	vm,
		const OFString &	type,
		const char *	moduleName = `NULL`
	)

static

add given element to the dataset.

The element is only added if 'result' is EC_Normal and the 'delem' pointer is not NULL.

Parameters

result	reference to status variable (checked before adding and updated afterwards!)
dataset	reference to DICOM dataset to which the element should be added
delem	pointer to DICOM element which should be added. deleted if not inserted.
vm	value multiplicity (according to the data dictionary) to be checked for. (See DcmElement::checkVM() for a list of valid values.) Interpreted as cardinality (number of items) for sequence attributes.
type	value type (valid value: "1", "2" or something else which is not checked)
moduleName	optional module name to be printed (default: "SR document" if NULL)

Returns: current value of 'result', EC_Normal if successful, an error code otherwise

◆ appendStream()

static OFCondition DSRTypes::appendStream	(	STD_NAMESPACE ostream &	mainStream,
		OFOStringStream &	tempStream,
		const char *	heading = `NULL`
	)

static

append one output stream to another.

Parameters

mainStream	stream to which the other should be added
tempStream	(string) stream to be added to the other
heading	(optional) string which is added to the 'mainStream' before the 'tempStream'. This string is only added if 'tempStream' is not empty.

Returns: status, EC_Normal if stream has been added successfully, an error code otherwise

◆ characterSetToDefinedTerm()

static const char* DSRTypes::characterSetToDefinedTerm ( const E_CharacterSet characterSet )

static

convert character set to DICOM defined term

Parameters

characterSet character set to be converted

Returns: defined term if character set is valid, empty string otherwise (never NULL)

◆ characterSetToHTMLName()

static const char* DSRTypes::characterSetToHTMLName ( const E_CharacterSet characterSet )

static

convert character set to HTML name.

This HTML (IANA) name is used to specify the character set in an HTML document.

Parameters

characterSet character set to be converted

Returns: HTML name if character set is valid, empty string or "?" otherwise (never NULL)

◆ characterSetToXMLName()

static const char* DSRTypes::characterSetToXMLName ( const E_CharacterSet characterSet )

static

convert character set to XML name.

This XML name is used to specify the character set in an XML document.

Parameters

characterSet character set to be converted

Returns: XML name if character set is valid, empty string or "?" otherwise (never NULL)

◆ checkElementValue() [1/2]

static OFBool DSRTypes::checkElementValue	(	DcmElement *	delem,
		const DcmTagKey &	tagKey,
		const OFString &	vm,
		const OFString &	type,
		const OFCondition &	searchCond = `EC_Normal`,
		const char *	moduleName = `NULL`,
		const OFBool	acceptViolation = `OFFalse`
	)

static

check element value for correct value multiplicity and type.

Parameters

delem	pointer to DICOM element to be checked (might be NULL)
tagKey	DICOM tag of the DICOM element the parameter 'delem' points to
vm	value multiplicity (according to the data dictionary) to be checked for. (See DcmElement::checkVM() for a list of valid values.) Interpreted as cardinality (number of items) for sequence attributes.
type	value type (valid value: "1", "1C", "2", something else)
searchCond	optional flag indicating the status of a previous search() call
moduleName	optional module name to be printed (default: "SR document" if NULL)
acceptViolation	accept certain violations regarding the VR and VM if OFTrue. A warning message will always be reported if the value in incorrect.

Returns: OFTrue if element value is correct, OFFalse otherwise

◆ checkElementValue() [2/2]

static OFBool DSRTypes::checkElementValue	(	DcmElement &	delem,
		const OFString &	vm,
		const OFString &	type,
		const OFCondition &	searchCond = `EC_Normal`,
		const char *	moduleName = `NULL`,
		const OFBool	acceptViolation = `OFFalse`
	)

static

check element value for correct value multiplicity and type.

Parameters

delem	DICOM element to be checked
vm	value multiplicity (according to the data dictionary) to be checked for. (See DcmElement::checkVM() for a list of valid values.) Interpreted as cardinality (number of items) for sequence attributes.
type	value type (valid value: "1", "1C", "2", something else)
searchCond	optional flag indicating the status of a previous search() call
moduleName	optional module name to be printed (default: "SR document" if NULL)
acceptViolation	accept certain violations regarding the VR and VM if OFTrue. A warning message will always be reported if the value in incorrect.

Returns: OFTrue if element value is correct, OFFalse otherwise

◆ checkForValidReference()

static OFBool DSRTypes::checkForValidReference ( const OFString & stringValue )

static

check string for valid reference (as used for by-reference relationships).

The string should be non-empty and consist of integer numbers only separated by a "." where the first and the last character of the string are always figures (0..9). Example: 1 or 1.2.3. Both the integer number 0 and a leading 0 for the numbers are forbidden.

Parameters

stringValue character string to be checked

Returns: OFTrue if 'string' conforms to UID format, OFFalse otherwise

◆ completionFlagToEnumeratedValue()

static const char* DSRTypes::completionFlagToEnumeratedValue ( const E_CompletionFlag completionFlag )

static

convert completion flag to DICOM enumerated value

Parameters

completionFlag completion flag to be converted

Returns: enumerated value if successful, empty string otherwise (never NULL)

◆ continuityOfContentToEnumeratedValue()

static const char* DSRTypes::continuityOfContentToEnumeratedValue ( const E_ContinuityOfContent continuityOfContent )

static

convert continuity of content flag to DICOM enumerated value

Parameters

continuityOfContent continuity of content flag to be converted

Returns: enumerated value if flag is valid, empty string otherwise (never NULL)

◆ convertToHTMLString()

static const OFString& DSRTypes::convertToHTMLString	(	const OFString &	sourceString,
		OFString &	markupString,
		const size_t	flags = `0`,
		const OFBool	newlineAllowed = `OFFalse`
	)

static

convert character string to HTML mnenonic string.

Characters with special meaning for HTML (e.g. '<' and '&') are replace by the corresponding mnenonics (e.g. "<" and "&"). If flag DSRTypes::HF_convertNonASCIICharacters is set, all characters > #127 are also converted (useful if only HTML 3.2 is supported which does not allow to specify the character set).

Parameters

sourceString	source string to be converted
markupString	reference to variable where the result should be stored
flags	optional flags, only checking DSRTypes::HF_convertNonASCIICharacters, DSRTypes::HF_HTML32Compatibility and DSRTypes::HF_XHTML11Compatibility
newlineAllowed	optional flag indicating whether newlines are allowed or not. If they are allowed the text "<br>" is used, "¶" otherwise. The following combinations are accepted: LF, CR, LF CR, CF LF.

Returns: reference to resulting 'markupString' (might be empty if 'sourceString' was empty)

◆ convertToPrintString()

static const OFString& DSRTypes::convertToPrintString	(	const OFString &	sourceString,
		OFString &	printString
	)

static

convert character string to print string.

This method is used to convert character strings for text "print" output. Newline characters "\n" are replaced by "\\n", return characters "\r" by "\\r", etc.

Parameters

sourceString	source string to be converted
printString	reference to variable where the result should be stored

Returns: reference to resulting 'printString' (might be empty if 'sourceString' was empty)

◆ convertToXMLString()

static const OFString& DSRTypes::convertToXMLString	(	const OFString &	sourceString,
		OFString &	markupString
	)

static

convert character string to XML mnenonic string.

Characters with special meaning for XML (e.g. '<' and '&') are replace by the corresponding mnenonics (e.g. "<" and "&").

Parameters

sourceString	source string to be converted
markupString	reference to variable where the result should be stored

Returns: reference to resulting 'markupString' (might be empty if 'sourceString' was empty)

◆ createDocumentTreeNode()

static DSRDocumentTreeNode* DSRTypes::createDocumentTreeNode	(	const E_RelationshipType	relationshipType,
		const E_ValueType	valueType
	)

static

create specified document tree node.

This is a shortcut and the only location where document tree nodes are created. It facilitates the introduction of new relationship/value types and the maintenance.

Parameters

relationshipType	relationship type of the node to be created
valueType	value type of the node to be created

Returns: pointer to the new document tree node if successful, NULL otherwise

◆ createHTMLAnnexEntry()

static size_t DSRTypes::createHTMLAnnexEntry	(	STD_NAMESPACE ostream &	docStream,
		STD_NAMESPACE ostream &	annexStream,
		const OFString &	referenceText,
		size_t &	annexNumber,
		const size_t	flags = `0`
	)

static

create an HTML annex entry with hyperlinks.

A reference text is added to the main document and a new annex entry to the document annex with HTML hyperlinks between both. Example for a reference: '[for details see Annex 1]'

Parameters

docStream	output stream used for the main document
annexStream	output stream used for the document annex
referenceText	optional text added to the main document (e.g. 'for details see')
annexNumber	reference to the variable where the current annex number is stored. Value is increased automatically by 1 after the new entry has been added.
flags	optional flag used to customize the output (see DSRTypes::HF_xxx)

Returns: current annex number after the new entry has been added

◆ createHTMLFootnote()

static size_t DSRTypes::createHTMLFootnote	(	STD_NAMESPACE ostream &	docStream,
		STD_NAMESPACE ostream &	footnoteStream,
		size_t &	footnoteNumber,
		const size_t	nodeID,
		const size_t	flags = `0`
	)

static

create an HTML footnote with hyperlinks

Parameters

docStream	output stream used for the main document
footnoteStream	output stream used for the footnote text
footnoteNumber	reference to the variable where the current footnote number is stored. Value is increased automatically by 1 after the new entry has been added.
nodeID	unique numerical identifier of the current node for which this footnote is created. Used to create a unique name for the hyperlink.
flags	optional flag used to customize the output (see DSRTypes::HF_xxx)

Returns: current footnote number after the new entry has been added

◆ createIODConstraintChecker()

static DSRIODConstraintChecker* DSRTypes::createIODConstraintChecker ( const E_DocumentType documentType )

static

create specified SR IOD content relationship constraint checker object.

Please note that the created object has to be deleted by the caller.

Parameters

documentType associated SR document type for which the checker object is created

Returns: pointer to new IOD checker object if successful, NULL if document type is not supported

◆ currentDate()

static const OFString& DSRTypes::currentDate ( OFString & dateString )

static

get current date in DICOM 'DA' format.

(YYYYMMDD)

Parameters

dateString string used to store the current date. ('19000101' if current date could not be retrieved)

Returns: resulting character string (see 'dateString')

◆ currentDateTime()

static const OFString& DSRTypes::currentDateTime ( OFString & dateTimeString )

static

get current date and time in DICOM 'DT' format.

(YYYYMMDDHHMMSS) The optional UTC notation (e.g. +0100) as well as the optional fractional second part are currently not supported.

Parameters

dateTimeString string used to store the current date and time ('19000101000000' if current date/time could not be retrieved)

Returns: resulting character string (see 'dateTimeString')

◆ currentTime()

static const OFString& DSRTypes::currentTime ( OFString & timeString )

static

get current time in DICOM 'TM' format.

(HHMMSS)

Parameters

timeString string used to store the current time ('000000' if current time could not be retrieved)

Returns: resulting character string (see 'timeString')

◆ definedTermToCharacterSet()

static E_CharacterSet DSRTypes::definedTermToCharacterSet ( const OFString & definedTerm )

static

convert DICOM defined term to character set.

An empty defined term is mapped to DSRTypes::CS_default (which is ASCII).

Parameters

definedTerm defined term to be converted

Returns: character set if successful, DSRTypes::CS_invalid otherwise

◆ definedTermToRelationshipType()

static E_RelationshipType DSRTypes::definedTermToRelationshipType ( const OFString & definedTerm )

static

convert DICOM defined term to relationship type

Parameters

definedTerm defined term to be converted

Returns: relationship type if successful, DSRTypes::RT_invalid otherwise

◆ definedTermToValueType()

static E_ValueType DSRTypes::definedTermToValueType ( const OFString & definedTerm )

static

convert DICOM defined term to value type

Parameters

definedTerm defined term to be converted

Returns: value type if successful, DSRTypes::VT_invalid otherwise

◆ dicomToReadableDate()

static const OFString& DSRTypes::dicomToReadableDate	(	const OFString &	dicomDate,
		OFString &	readableDate
	)

static

convert DICOM date string to readable format.

The ISO format "YYYY-MM-DD" is used for the readable format.

Parameters

dicomDate	date in DICOM DA format (YYYYMMDD)
readableDate	reference to variable where the resulting string is stored

Returns: reference to resulting string (might be empty)

◆ dicomToReadableDateTime()

static const OFString& DSRTypes::dicomToReadableDateTime	(	const OFString &	dicomDateTime,
		OFString &	readableDateTime
	)

static

convert DICOM date time string to readable format.

The format "YYYY-MM-DD, HH:MM" or "YYYY-MM-DD, HH:MM:SS" is used for the readable format.

Parameters

dicomDateTime	time in DICOM DT format (YYYYMMDDHHMMSS...). Possible suffixes (fractional second or UTC notation) are currently ignored.
readableDateTime	reference to variable where the resulting string is stored

Returns: reference to resulting string (might be empty)

◆ dicomToReadablePersonName()

static const OFString& DSRTypes::dicomToReadablePersonName	(	const OFString &	dicomPersonName,
		OFString &	readablePersonName
	)

static

convert DICOM person name to readable format.

The format "<prefix> <first_name> <middle_name> <last_name>, <suffix>" is used for the readable format. Please note that only the first component group (characters before the first '=') of the DICOM person name is used - see DcmPersonName::getNameComponents() for details.

Parameters

dicomPersonName	person name in DICOM PN format (ln^fn^mn^p^s)
readablePersonName	reference to variable where the resulting string is stored

Returns: reference to resulting string (might be empty)

◆ dicomToReadableTime()

static const OFString& DSRTypes::dicomToReadableTime	(	const OFString &	dicomTime,
		OFString &	readableTime
	)

static

convert DICOM time string to readable format.

The ISO format "HH:MM" or "HH:MM:SS" (if seconds are available) is used for the readable format.

Parameters

dicomTime	time in DICOM TM format (HHMM or HHMMSS...)
readableTime	reference to variable where the resulting string is stored

Returns: reference to resulting string (might be empty)

◆ dicomToXMLPersonName()

static const OFString& DSRTypes::dicomToXMLPersonName	(	const OFString &	dicomPersonName,
		OFString &	xmlPersonName,
		const OFBool	writeEmptyValue = `OFFalse`
	)

static

convert DICOM person name to XML format.

The tags <prefix>, <first>, <middle>, <last> and <suffix> are used for the XML format of a person name. The string is automatically converted to the markup notation (see convertToMarkupString()). Two tags are separated by a newline. Please note that only the first component group (characters before the first '=') of the DICOM person name is used - see DcmPersonName::getNameComponents() for details.

Parameters

dicomPersonName	person name in DICOM PN format (ln^fn^mn^p^s)
xmlPersonName	reference to variable where the resulting string is stored
writeEmptyValue	optional flag indicating whether an empty value should be written

Returns: reference to resulting string (might be empty)

◆ documentTypeToDocumentTitle()

static const char* DSRTypes::documentTypeToDocumentTitle	(	const E_DocumentType	documentType,
		OFString &	documentTitle
	)

static

convert SR document type to document title.

This document title is used for printing/rendering.

Parameters

documentType	SR document type to be converted
documentTitle	reference to variable where the resulting string is stored

Returns: document title if type is valid, empty string otherwise (never NULL)

◆ documentTypeToModality()

static const char* DSRTypes::documentTypeToModality ( const E_DocumentType documentType )

static

convert SR document type to modality

Parameters

documentType SR document type to be converted

Returns: modality if type is valid, empty string otherwise (never NULL)

◆ documentTypeToReadableName()

static const char* DSRTypes::documentTypeToReadableName ( const E_DocumentType documentType )

static

convert SR document type to readable name.

Such a readable name is better suited for printing/rendering.

Parameters

documentType SR document type to be converted

Returns: readable name if type is valid, "invalid ..." string otherwise (never NULL)

◆ documentTypeToSOPClassUID()

static const char* DSRTypes::documentTypeToSOPClassUID ( const E_DocumentType documentType )

static

convert SR document type to SOP class UID

Parameters

documentType SR document type to be converted

Returns: SOP class UID if type is valid, empty string otherwise (never NULL)

◆ enumeratedValueToCompletionFlag()

static E_CompletionFlag DSRTypes::enumeratedValueToCompletionFlag ( const OFString & enumeratedValue )

static

convert DICOM enumerated value to completion flag

Parameters

enumeratedValue enumerated value to be converted

Returns: completion flag type if successful, DSRTypes::CF_invalid otherwise

◆ enumeratedValueToContinuityOfContent()

static E_ContinuityOfContent DSRTypes::enumeratedValueToContinuityOfContent ( const OFString & enumeratedValue )

static

convert DICOM enumerated value to continuity of content flag

Parameters

enumeratedValue enumerated value to be converted

Returns: continuity of content flag type if successful, DSRTypes::COC_invalid otherwise

◆ enumeratedValueToGraphicType()

static E_GraphicType DSRTypes::enumeratedValueToGraphicType ( const OFString & enumeratedValue )

static

convert DICOM enumerated value to graphic type

Parameters

enumeratedValue enumerated value to be converted

Returns: graphic type if successful, DSRTypes::GT_invalid otherwise

◆ enumeratedValueToGraphicType3D()

static E_GraphicType3D DSRTypes::enumeratedValueToGraphicType3D ( const OFString & enumeratedValue )

static

convert DICOM enumerated value to graphic type (3D)

Parameters

enumeratedValue enumerated value to be converted

Returns: graphic type if successful, DSRTypes::GT3_invalid otherwise

◆ enumeratedValueToPreliminaryFlag()

static E_PreliminaryFlag DSRTypes::enumeratedValueToPreliminaryFlag ( const OFString & enumeratedValue )

static

convert DICOM enumerated value to preliminary flag

Parameters

enumeratedValue enumerated value to be converted

Returns: preliminary flag type if successful, DSRTypes::PF_invalid otherwise

◆ enumeratedValueToTemporalRangeType()

static E_TemporalRangeType DSRTypes::enumeratedValueToTemporalRangeType ( const OFString & enumeratedValue )

static

convert DICOM enumerated value to temporal range type

Parameters

enumeratedValue enumerated value to be converted

Returns: temporal range type if successful, DSRTypes::TRT_invalid otherwise

◆ enumeratedValueToVerificationFlag()

static E_VerificationFlag DSRTypes::enumeratedValueToVerificationFlag ( const OFString & enumeratedValue )

static

convert DICOM enumerated value to verification flag

Parameters

enumeratedValue enumerated value to be converted

Returns: verification flag type if successful, DSRTypes::VF_invalid otherwise

◆ getAndCheckElementFromDataset()

static OFCondition DSRTypes::getAndCheckElementFromDataset	(	DcmItem &	dataset,
		DcmElement &	delem,
		const OFString &	vm,
		const OFString &	type,
		const char *	moduleName = `NULL`,
		const OFBool	acceptViolation = `OFFalse`
	)

static

get element from dataset and check it for correct value multiplicity and type.

Parameters

dataset	DICOM dataset from which the element should be retrieved. (Would be 'const' if the methods from 'dcmdata' would also be 'const'.)
delem	DICOM element used to store the value (always creates a copy!)
vm	value multiplicity (according to the data dictionary) to be checked for. (See DcmElement::checkVM() for a list of valid values.) Interpreted as cardinality (number of items) for sequence attributes.
type	value type (valid value: "1", "1C", "2", something else which is not checked)
moduleName	optional module name to be printed (default: "SR document" if NULL)
acceptViolation	accept certain violations regarding the VR and VM if OFTrue. A warning message will always be reported if the value in incorrect.

Returns: status, EC_Normal if element could be retrieved and value is correct, an error code otherwise

◆ getAndCheckStringValueFromDataset()

static OFCondition DSRTypes::getAndCheckStringValueFromDataset	(	DcmItem &	dataset,
		const DcmTagKey &	tagKey,
		OFString &	stringValue,
		const OFString &	vm,
		const OFString &	type,
		const char *	moduleName = `NULL`,
		const OFBool	acceptViolation = `OFFalse`
	)

static

get string value from dataset and check it for correct value multiplicity and type.

Parameters

dataset	DICOM dataset from which the element should be retrieved. (Would be 'const' if the methods from 'dcmdata' would also be 'const'.)
tagKey	DICOM tag specifying the attribute from which the string should be retrieved
stringValue	reference to variable in which the result should be stored. (This parameter is automatically cleared if the tag could not be found. It is not cleared if the retrieved string is invalid, e.g. violates VR or VM definition.)
vm	value multiplicity (according to the data dictionary) to be checked for. (See DcmElement::checkVM() for a list of valid values.) Interpreted as cardinality (number of items) for sequence attributes.
type	value type (valid value: "1", "1C", "2", something else which is not checked)
moduleName	optional module name to be printed (default: "SR document" if NULL)
acceptViolation	accept certain violations regarding the VR and VM if OFTrue. A warning message will always be reported if the value in incorrect.

Returns: status, EC_Normal if element could be retrieved and value is correct, an error code otherwise

◆ getElementFromDataset()

static OFCondition DSRTypes::getElementFromDataset	(	DcmItem &	dataset,
		DcmElement &	delem
	)

static

get element from dataset

Parameters

dataset	reference to DICOM dataset from which the element should be retrieved. (Would be 'const' if the methods from 'dcmdata' would also be 'const'.)
delem	reference to DICOM element which should be retrieved. The return value is also stored in this parameter.

Returns: status, EC_Normal if successful, an error code otherwise

◆ getMarkupStringFromElement()

static const OFString& DSRTypes::getMarkupStringFromElement	(	const DcmElement &	delem,
		OFString &	stringValue,
		const OFBool	convertNonASCII = `OFFalse`
	)

static

get string value from element and convert to HTML/XML.

Please note that only the first element value is retrieved (in case of multiple values).

Parameters

delem	DICOM element from which the string value should be retrieved
stringValue	reference to variable in which the result should be stored
convertNonASCII	convert non-ASCII characters (> #127) to numeric value (&#nnn;) if OFTrue

Returns: reference character string if successful, empty string otherwise

◆ getPrintStringFromElement()

static const OFString& DSRTypes::getPrintStringFromElement	(	const DcmElement &	delem,
		OFString &	stringValue
	)

static

get string value from element and convert to "print" format.

Please note that only the first element value is retrieved (in case of multiple values).

Parameters

delem	DICOM element from which the string value should be retrieved
stringValue	reference to variable in which the result should be stored

Returns: reference character string if successful, empty string otherwise

◆ getStringValueFromDataset()

static OFCondition DSRTypes::getStringValueFromDataset	(	DcmItem &	dataset,
		const DcmTagKey &	tagKey,
		OFString &	stringValue,
		const signed long	pos = `0`
	)

static

get string value from dataset

Parameters

dataset	DICOM dataset from which the string should be retrieved. (Would be 'const' if the methods from 'dcmdata' would also be 'const'.)
tagKey	DICOM tag specifying the attribute from which the string should be retrieved
stringValue	reference to variable in which the result should be stored (This parameter is automatically cleared if the tag could not be found.)
pos	index of the value to get (0..vm-1), -1 for all components

Returns: status, EC_Normal if successful, an error code otherwise

◆ getStringValueFromElement() [1/3]

static const char* DSRTypes::getStringValueFromElement ( const DcmElement & delem )

static

get string value from element

Parameters

delem DICOM element from which the string value should be retrieved

Returns: pointer to character string if successful, NULL otherwise

◆ getStringValueFromElement() [2/3]

static const OFString& DSRTypes::getStringValueFromElement	(	const DcmElement &	delem,
		OFString &	stringValue
	)

static

get string value from element.

Please note that only the first element value is retrieved (in case of multiple values).

Parameters

delem	DICOM element from which the string value should be retrieved
stringValue	reference to variable where the result should be stored

Returns: reference character string if successful, empty string otherwise

◆ getStringValueFromElement() [3/3]

static OFCondition DSRTypes::getStringValueFromElement	(	const DcmElement &	delem,
		OFString &	stringValue,
		const signed long	pos
	)

static

get string value from element

Parameters

delem	DICOM element from which the string value should be retrieved
stringValue	reference to variable in which the result should be stored (This parameter is automatically cleared if an error occurs.)
pos	index of the value to get (0..vm-1), -1 for all components

Returns: status, EC_Normal if successful, an error code otherwise

◆ graphicType3DToEnumeratedValue()

static const char* DSRTypes::graphicType3DToEnumeratedValue ( const E_GraphicType3D graphicType )

static

convert graphic type (3D) to DICOM enumerated value

Parameters

graphicType graphic type (3D) to be converted

Returns: enumerated value if type is valid, empty string otherwise (never NULL)

◆ graphicType3DToReadableName()

static const char* DSRTypes::graphicType3DToReadableName ( const E_GraphicType3D graphicType )

static

convert graphic type (3D) to readable name.

Such a readable name is better suited for printing/rendering.

Parameters

graphicType graphic type (3D) to be converted

Returns: readable name if type is valid, "invalid ..." string otherwise (never NULL)

◆ graphicTypeToEnumeratedValue()

static const char* DSRTypes::graphicTypeToEnumeratedValue ( const E_GraphicType graphicType )

static

convert graphic type to DICOM enumerated value

Parameters

graphicType graphic type to be converted

Returns: enumerated value if type is valid, empty string otherwise (never NULL)

◆ graphicTypeToReadableName()

static const char* DSRTypes::graphicTypeToReadableName ( const E_GraphicType graphicType )

static

convert graphic type to readable name.

Such a readable name is better suited for printing/rendering.

Parameters

graphicType graphic type to be converted

Returns: readable name if type is valid, "invalid ..." string otherwise (never NULL)

◆ isDocumentTypeSupported()

static OFBool DSRTypes::isDocumentTypeSupported ( const E_DocumentType documentType )

static

check whether specified SR document type is supported by this library

Parameters

documentType SR document type to be checked

Returns: status, OFTrue if SR document type is supported, OFFalse otherwise

◆ localTimezone()

static const OFString& DSRTypes::localTimezone ( OFString & timezoneString )

static

get local timezone in DICOM format.

(&ZZXX)

Parameters

timezoneString string used to store the local timezone ('+0000' if timezone could not be retrieved)

Returns: resulting character string (see 'timezoneString')

◆ numberToString()

static const char* DSRTypes::numberToString	(	const size_t	number,
		char *	stringValue
	)

static

convert unsigned integer number to character string

Parameters

number	unsigned integer number to be converted
stringValue	character string used to store the result

Returns: pointer to the first character of the resulting string (may be NULL if 'string' was NULL)

◆ preliminaryFlagToEnumeratedValue()

static const char* DSRTypes::preliminaryFlagToEnumeratedValue ( const E_PreliminaryFlag preliminaryFlag )

static

convert preliminary flag to DICOM enumerated value

Parameters

preliminaryFlag preliminary flag to be converted

Returns: enumerated value if flag is valid, empty string otherwise (never NULL)

◆ presentationStateTypeToShortName()

static const char* DSRTypes::presentationStateTypeToShortName ( const E_PresentationStateType pstateType )

static

convert presentation state type to short name.

Such a short name (e.g. "GSPS") is better suited for printing/rendering than a UID.

Parameters

pstateType presentation state type to be converted

Returns: short name if type is valid, "invalid ..." string otherwise (never NULL)

◆ printContentItemErrorMessage()

static void DSRTypes::printContentItemErrorMessage	(	const char *	action,
		const OFCondition &	result,
		const DSRDocumentTreeNode *	node,
		const char *	location = `NULL`
	)

static

print an error message for the current content item.

The value type (for DEBUG mode also the node ID) is added if the 'node' if specified.

Parameters

action	text describing the current action (e.g. 'Reading'), 'Processing' if NULL
result	status used to print more information on the error (no message if EC_Normal)
node	pointer to document tree node for which the message should be printed
location	position of the affected content item (e.g. '1.2.3', not printed if NULL)

◆ printInvalidContentItemMessage()

static void DSRTypes::printInvalidContentItemMessage	(	const char *	action,
		const DSRDocumentTreeNode *	node,
		const char *	location = `NULL`
	)

static

print the warning message that the current content item is invalid/incomplete.

The value type (for DEBUG mode also the node ID) is added if the 'node' if specified.

Parameters

action	text describing the current action (e.g. 'Reading'), 'Processing' if NULL
node	pointer to document tree node for which the message should be printed
location	position of the affected content item (e.g. '1.2.3', not printed if NULL)

◆ printUnknownValueWarningMessage()

static void DSRTypes::printUnknownValueWarningMessage	(	const char *	valueName,
		const char *	readValue = `NULL`,
		const char *	action = `"Reading"`
	)

static

print a warning message that an unknown/unsupported value has been determined

Parameters

valueName	name of the unknown/unsupported value
readValue	value that has been read (optional)
action	text describing the current action (default: 'Reading'), 'Processing' if NULL

◆ putStringValueToDataset()

static OFCondition DSRTypes::putStringValueToDataset	(	DcmItem &	dataset,
		const DcmTag &	tag,
		const OFString &	stringValue,
		const OFBool	allowEmpty = `OFTrue`
	)

static

put string value to dataset

Parameters

dataset	reference to DICOM dataset to which the string should be put.
tag	DICOM tag specifying the attribute to which the string should be put
stringValue	character string specifying the value to be set
allowEmpty	allow empty element to be inserted if OFTrue. Do not insert empty element otherwise.

Returns: status, EC_Normal if successful, an error code otherwise

◆ relationshipTypeToDefinedTerm()

static const char* DSRTypes::relationshipTypeToDefinedTerm ( const E_RelationshipType relationshipType )

static

convert relationship type to DICOM defined term

Parameters

relationshipType relationship type to be converted

Returns: defined term if type is valid, empty string otherwise (never NULL)

◆ relationshipTypeToReadableName()

static const char* DSRTypes::relationshipTypeToReadableName ( const E_RelationshipType relationshipType )

static

convert relationship type to readable name.

Such a readable name is better suited for printing/rendering.

Parameters

relationshipType relationship type to be converted

Returns: readable name if type is valid, "invalid ..." string otherwise (never NULL)

◆ removeAttributeFromSequence()

static void DSRTypes::removeAttributeFromSequence	(	DcmSequenceOfItems &	sequence,
		const DcmTagKey &	tagKey
	)

static

remove given attribute from the sequence.

All occurrences of the attribute in all items of the sequence are removed.

Parameters

sequence	reference to DICOM sequence from which the attribute should be removed
tagKey	DICOM tag specifying the attribute which should be removed

◆ requiresEnhancedEquipmentModule()

static OFBool DSRTypes::requiresEnhancedEquipmentModule ( const E_DocumentType documentType )

static

check whether SR document type requires Enhanced General Equipment Module

Parameters

documentType SR document type to be checked

Returns: OFTrue if Enhanced General Equipment Module is required, OFFalse otherwise

◆ requiresTimezoneModule()

static OFBool DSRTypes::requiresTimezoneModule ( const E_DocumentType documentType )

static

check whether SR document type requires Timezone Module

Parameters

documentType SR document type to be checked

Returns: OFTrue if Timezone Module is required, OFFalse otherwise

◆ sopClassUIDToDocumentType()

static E_DocumentType DSRTypes::sopClassUIDToDocumentType ( const OFString & sopClassUID )

static

convert SOP class UID to SR document type

Parameters

sopClassUID SOP class UID to be converted

Returns: SR document type if successful, DSRTypes::DT_invalid otherwise

◆ sopClassUIDToPresentationStateType()

static E_PresentationStateType DSRTypes::sopClassUIDToPresentationStateType ( const OFString & sopClassUID )

static

convert SOP class UID to presentation state type

Parameters

sopClassUID SOP class UID to be converted

Returns: presentation state type if successful, DSRTypes::PT_invalid otherwise

◆ stringToNumber()

static size_t DSRTypes::stringToNumber ( const char * stringValue )

static

convert string to unsigned integer number

Parameters

stringValue character string to be converted

Returns: resulting unsigned integer number if successful, 0 otherwise

Referenced by DSRTreeNodeCursor< DSRDocumentTreeNode >::gotoNode().

◆ temporalRangeTypeToEnumeratedValue()

static const char* DSRTypes::temporalRangeTypeToEnumeratedValue ( const E_TemporalRangeType temporalRangeType )

static

convert temporal range type to DICOM enumerated value

Parameters

temporalRangeType temporal range type to be converted

Returns: enumerated value if type is valid, "invalid ..." string otherwise (never NULL)

◆ temporalRangeTypeToReadableName()

static const char* DSRTypes::temporalRangeTypeToReadableName ( const E_TemporalRangeType temporalRangeType )

static

convert temporal range type to readable name.

Such a readable name is better suited for printing/rendering.

Parameters

temporalRangeType temporal range type to be converted

Returns: readable name if type is valid, "invalid ..." string otherwise (never NULL)

◆ valueTypeToDefinedTerm()

static const char* DSRTypes::valueTypeToDefinedTerm ( const E_ValueType valueType )

static

convert value type to DICOM defined term

Parameters

valueType value type to be converted

Returns: defined term if type is valid, empty string otherwise (never NULL)

◆ valueTypeToReadableName()

static const char* DSRTypes::valueTypeToReadableName ( const E_ValueType valueType )

static

convert value type to readable name.

Such a readable name is better suited for printing/rendering.

Parameters

valueType value type to be converted

Returns: readable name if type is valid, "invalid ..." string otherwise (never NULL)

◆ valueTypeToXMLTagName()

static const char* DSRTypes::valueTypeToXMLTagName ( const E_ValueType valueType )

static

convert value type to XML tag name

Parameters

valueType value type to be converted

Returns: XML tag name if type is valid, "item" otherwise (never NULL)

◆ verificationFlagToEnumeratedValue()

static const char* DSRTypes::verificationFlagToEnumeratedValue ( const E_VerificationFlag verificationFlag )

static

convert verification flag to DICOM enumerated value

Parameters

verificationFlag verification flag to be converted

Returns: enumerated value if flag is valid, empty string otherwise (never NULL)

◆ writeStringFromElementToXML()

static OFBool DSRTypes::writeStringFromElementToXML	(	STD_NAMESPACE ostream &	stream,
		DcmElement &	delem,
		const OFString &	tagName,
		const OFBool	writeEmptyValue = `OFFalse`
	)

static

write string value from DICOM element to XML output stream.

The output looks like this: "<" tagName ">" stringValue "</" tagName ">" For elements with DICOM VR=PN the function dicomToXMLPersonName() is used internally.

Parameters

stream	output stream to which the XML document is written
delem	DICOM element from which the value is retrieved
tagName	name of the XML tag used to surround the string value
writeEmptyValue	optional flag indicating whether an empty value should be written

Returns: OFTrue if tag/value has been written, OFFalse otherwise

◆ writeStringValueToXML()

static OFBool DSRTypes::writeStringValueToXML	(	STD_NAMESPACE ostream &	stream,
		const OFString &	stringValue,
		const OFString &	tagName,
		const OFBool	writeEmptyValue = `OFFalse`
	)

static

write string value to XML output stream.

The output looks like this: "<" tagName ">" stringValue "</" tagName ">"

Parameters

stream	output stream to which the XML document is written
stringValue	string value to be written
tagName	name of the XML tag used to surround the string value
writeEmptyValue	optional flag indicating whether an empty value should be written

Returns: OFTrue if tag/value has been written, OFFalse otherwise

◆ xmlTagNameToValueType()

static E_ValueType DSRTypes::xmlTagNameToValueType ( const OFString & xmlTagName )

static

convert XML tag name to value type

Parameters

xmlTagName XML tag name to be converted

Returns: value type if successful, DSRTypes::VT_invalid otherwise

The documentation for this class was generated from the following file:

dcmsr/include/dcmtk/dcmsr/dsrtypes.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Member Enumeration Documentation

◆ E_AddMode

◆ E_CharacterSet

◆ E_CodeValueType

◆ E_CompletionFlag

◆ E_ContinuityOfContent

◆ E_DocumentType

◆ E_GraphicType

◆ E_GraphicType3D

◆ E_PreliminaryFlag

◆ E_PresentationStateType

◆ E_RelationshipType

◆ E_TemporalRangeType

◆ E_ValueType

◆ E_VerificationFlag

Constructor & Destructor Documentation

◆ ~DSRTypes()

Member Function Documentation

◆ addElementToDataset()

◆ appendStream()

◆ characterSetToDefinedTerm()

◆ characterSetToHTMLName()

◆ characterSetToXMLName()

◆ checkElementValue() [1/2]

◆ checkElementValue() [2/2]

◆ checkForValidReference()

◆ completionFlagToEnumeratedValue()

◆ continuityOfContentToEnumeratedValue()

◆ convertToHTMLString()

◆ convertToPrintString()

◆ convertToXMLString()

◆ createDocumentTreeNode()

◆ createHTMLAnnexEntry()

◆ createHTMLFootnote()

◆ createIODConstraintChecker()

◆ currentDate()

◆ currentDateTime()

◆ currentTime()

◆ definedTermToCharacterSet()

◆ definedTermToRelationshipType()

◆ definedTermToValueType()

◆ dicomToReadableDate()

◆ dicomToReadableDateTime()

◆ dicomToReadablePersonName()

◆ dicomToReadableTime()

◆ dicomToXMLPersonName()

◆ documentTypeToDocumentTitle()

◆ documentTypeToModality()

◆ documentTypeToReadableName()

◆ documentTypeToSOPClassUID()

◆ enumeratedValueToCompletionFlag()

◆ enumeratedValueToContinuityOfContent()

◆ enumeratedValueToGraphicType()

◆ enumeratedValueToGraphicType3D()

◆ enumeratedValueToPreliminaryFlag()

◆ enumeratedValueToTemporalRangeType()

◆ enumeratedValueToVerificationFlag()

◆ getAndCheckElementFromDataset()

◆ getAndCheckStringValueFromDataset()

◆ getElementFromDataset()

◆ getMarkupStringFromElement()

◆ getPrintStringFromElement()

◆ getStringValueFromDataset()

◆ getStringValueFromElement() [1/3]

◆ getStringValueFromElement() [2/3]

◆ getStringValueFromElement() [3/3]

◆ graphicType3DToEnumeratedValue()

◆ graphicType3DToReadableName()

◆ graphicTypeToEnumeratedValue()

◆ graphicTypeToReadableName()

◆ isDocumentTypeSupported()

◆ localTimezone()

◆ numberToString()

◆ preliminaryFlagToEnumeratedValue()

◆ presentationStateTypeToShortName()
