DcmItem Class Reference

a class representing a list of DICOM elements in which each element has a different tag and elements are maintained in increasing order of tags. More...

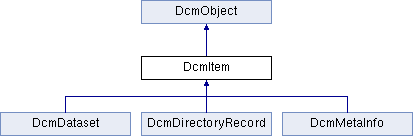

Inheritance diagram for DcmItem:

Public Member Functions
	DcmItem ()
	default constructor
	DcmItem (const DcmTag &tag, const Uint32 len=0)
	constructor. More...
	DcmItem (const DcmItem &old)
	copy constructor More...
DcmItem &	operator= (const DcmItem &obj)
	assignment operator. More...
virtual int	compare (const DcmItem &rhs) const
	comparison operator that compares the value of this object with a given object of the same type. More...
virtual	~DcmItem ()
	destructor
virtual DcmObject *	clone () const
	clone method More...
virtual OFCondition	copyFrom (const DcmObject &rhs)
	Virtual object copying. More...
virtual DcmEVR	ident () const
	get type identifier More...
virtual unsigned long	getVM ()
	get value multiplicity More...
virtual unsigned long	card () const
	get cardinality of this item More...
virtual OFBool	isLeaf () const
	check if this element is a leaf node in a dataset tree. More...
virtual OFBool	isNested () const
	check if this item is nested in a sequence of items, i.e. not a top-level or stand-alone item/dataset More...
virtual void	print (STD_NAMESPACE ostream &out, const size_t flags=0, const int level=0, const char *pixelFileName=NULL, size_t *pixelCounter=NULL)
	print all elements of the item to a stream More...
virtual Uint32	calcElementLength (const E_TransferSyntax xfer, const E_EncodingType enctype)
	calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences. More...
virtual Uint32	getLength (const E_TransferSyntax xfer=EXS_LittleEndianImplicit, const E_EncodingType enctype=EET_UndefinedLength)
	calculate the value length (without attribute tag, VR and length field) of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences. More...
virtual void	transferInit ()
	initialize the transfer state of this object. More...
virtual void	transferEnd ()
	finalize the transfer state of this object. More...
virtual DcmItem *	getParentItem ()
	get parent item of this object, i.e. the item/dataset in which the surrounding sequence element is stored. More...
virtual OFBool	canWriteXfer (const E_TransferSyntax newXfer, const E_TransferSyntax oldXfer)
	check if this DICOM object can be encoded in the given transfer syntax. More...
virtual OFCondition	read (DcmInputStream &inStream, const E_TransferSyntax ixfer, const E_GrpLenEncoding glenc=EGL_noChange, const Uint32 maxReadLength=DCM_MaxReadLength)
	This function reads the information of all attributes which are captured in the input stream and captures this information in elementList. More...
virtual OFCondition	readUntilTag (DcmInputStream &inStream, const E_TransferSyntax ixfer, const E_GrpLenEncoding glenc=EGL_noChange, const Uint32 maxReadLength=DCM_MaxReadLength, const DcmTagKey &stopParsingAtElement=DCM_UndefinedTagKey)
	This function reads the information of all attributes which are captured in the input stream and captures this information in elementList, up to the attribute tag stopParsingAtElement. More...
virtual OFCondition	write (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	write object to a stream More...
virtual OFCondition	writeXML (STD_NAMESPACE ostream &out, const size_t flags=0)
	write object in XML format More...
virtual OFCondition	writeJson (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write object in JSON format More...
virtual OFCondition	writeSignatureFormat (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	special write method for creation of digital signatures More...
virtual OFBool	containsUnknownVR () const
	returns true if the object contains an element with Unknown VR at any nesting level More...
virtual OFBool	containsExtendedCharacters (const OFBool checkAllStrings=OFFalse)
	check if this object contains non-ASCII characters at any nesting level. More...
virtual OFBool	isAffectedBySpecificCharacterSet () const
	check if this object is affected by SpecificCharacterSet at any nesting level. More...
virtual OFBool	checkForSpecificCharacterSet () const
	mode specifying whether the SpecificCharacterSet (0008,0005) element should be checked by convertCharacterSet() or not, i.e. whether this element might be present on this dataset-level. More...
virtual OFCondition	convertCharacterSet (const OFString &fromCharset, const OFString &toCharset, const size_t flags=0, const OFBool updateCharset=OFFalse)
	convert all element values that are contained in this item and that are affected by SpecificCharacterSet from the given source character set to the given destination character set. More...
virtual OFCondition	convertCharacterSet (const OFString &toCharset, const size_t flags=0, const OFBool ignoreCharset=OFFalse)
	convert all element values that are contained in this item and that are affected by SpecificCharacterSet to the given destination character set. More...
virtual OFCondition	convertCharacterSet (DcmSpecificCharacterSet &converter)
	convert all element values that are contained in this item and that are affected by SpecificCharacterSet from the currently selected source character set to the currently selected destination character set More...
virtual OFCondition	convertToUTF8 ()
	convert all element values that are contained in this item and that are affected by SpecificCharacterSet to UTF-8 (Unicode). More...
virtual OFCondition	insert (DcmElement *elem, OFBool replaceOld=OFFalse, OFBool checkInsertOrder=OFFalse)
	insert a new element into the list of elements maintained by this item. More...
virtual DcmElement *	getElement (const unsigned long num)
	access an element from the item. More...
virtual OFCondition	nextObject (DcmStack &stack, const OFBool intoSub)
	this method enables a stack based, depth-first traversal of a complete hierarchical DICOM dataset (that is, classes derived from DcmItem or DcmSequenceOfItems). More...
virtual DcmObject *	nextInContainer (const DcmObject *obj)
	this method is only used in container classes, that is, DcmItem and DcmSequenceOfItems. More...
virtual DcmElement *	remove (const unsigned long num)
	remove element from list. More...
virtual DcmElement *	remove (DcmObject *elem)
	remove element from list. More...
virtual DcmElement *	remove (const DcmTagKey &tag)
	remove element from list. More...
virtual OFBool	isEmpty (const OFBool normalize=OFTrue)
	check if this item is empty More...
virtual OFCondition	clear ()
	clear (remove) all attributes from item and delete them from memory. More...
virtual OFCondition	verify (const OFBool autocorrect=OFFalse)
	check the currently stored element value More...
virtual OFCondition	search (const DcmTagKey &xtag, DcmStack &resultStack, E_SearchMode mode=ESM_fromHere, OFBool searchIntoSub=OFTrue)
	a complex, stack-based, hierarchical search method. More...
virtual OFCondition	loadAllDataIntoMemory ()
	this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory. More...
virtual void	compactElements (const Uint32 maxLength)
	iterate over all elements and remove those element values from memory which exceed a given length and which can be loaded from file when needed again. More...
virtual OFCondition	computeGroupLengthAndPadding (const E_GrpLenEncoding glenc, const E_PaddingEncoding padenc=EPD_noChange, const E_TransferSyntax xfer=EXS_Unknown, const E_EncodingType enctype=EET_ExplicitLength, const Uint32 padlen=0, const Uint32 subPadlen=0, Uint32 instanceLength=0)
	This function takes care of group length and padding elements in the current element list according to what is specified in glenc and padenc. More...
OFBool	tagExists (const DcmTagKey &key, OFBool searchIntoSub=OFFalse)
	check if an element with the given attribute tag exists in the dataset More...
OFBool	tagExistsWithValue (const DcmTagKey &key, OFBool searchIntoSub=OFFalse)
	check if an element with the given attribute tag exists in the dataset and has a non-empty value More...
OFCondition	findAndGetElement (const DcmTagKey &tagKey, DcmElement *&element, const OFBool searchIntoSub=OFFalse, const OFBool createCopy=OFFalse)
	find element and get a pointer to it (or copy it). More...
OFCondition	findAndGetElements (const DcmTagKey &tagKey, DcmStack &resultStack)
	find all elements matching a particular tag and return references to them on a stack. More...
OFCondition	findAndGetString (const DcmTagKey &tagKey, const char *&value, const OFBool searchIntoSub=OFFalse)
	find element and get value as a reference to a C string. More...
OFCondition	findAndGetString (const DcmTagKey &tagKey, const char *&value, Uint32 &length, const OFBool searchIntoSub=OFFalse)
	find element and get value as a reference to a C string. More...
OFCondition	findAndGetOFString (const DcmTagKey &tagKey, OFString &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a C++ string (only one component). More...
OFCondition	findAndGetOFStringArray (const DcmTagKey &tagKey, OFString &value, const OFBool searchIntoSub=OFFalse)
	find element and get value as a C++ string (all components). More...
OFCondition	findAndGetUint8 (const DcmTagKey &tagKey, Uint8 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as an unsigned 8-bit integer. More...
OFCondition	findAndGetUint8Array (const DcmTagKey &tagKey, const Uint8 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of unsigned 8-bit integers. More...
OFCondition	findAndGetUint16 (const DcmTagKey &tagKey, Uint16 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as an unsigned 16-bit integer. More...
OFCondition	findAndGetUint16Array (const DcmTagKey &tagKey, const Uint16 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of unsigned 16-bit integers. More...
OFCondition	findAndGetSint16 (const DcmTagKey &tagKey, Sint16 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a signed 16-bit integer. More...
OFCondition	findAndGetSint16Array (const DcmTagKey &tagKey, const Sint16 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of signed 16-bit integers. More...
OFCondition	findAndGetUint32 (const DcmTagKey &tagKey, Uint32 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as an unsigned 32-bit integer. More...
OFCondition	findAndGetUint32Array (const DcmTagKey &tagKey, const Uint32 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of unsigned 32-bit integers. More...
OFCondition	findAndGetSint32 (const DcmTagKey &tagKey, Sint32 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a signed 32-bit integer. More...
OFCondition	findAndGetSint32Array (const DcmTagKey &tagKey, const Sint32 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of signed 32-bit integers. More...
OFCondition	findAndGetLongInt (const DcmTagKey &tagKey, long int &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a (signed) long integer. More...
OFCondition	findAndGetFloat32 (const DcmTagKey &tagKey, Float32 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a 32-bit floating point. More...
OFCondition	findAndGetFloat32Array (const DcmTagKey &tagKey, const Float32 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of 32-bit floating point values. More...
OFCondition	findAndGetFloat64 (const DcmTagKey &tagKey, Float64 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a 64-bit floating point. More...
OFCondition	findAndGetFloat64Array (const DcmTagKey &tagKey, const Float64 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of 64-bit floating point values. More...
OFCondition	findAndGetSequence (const DcmTagKey &seqTagKey, DcmSequenceOfItems *&sequence, const OFBool searchIntoSub=OFFalse, const OFBool createCopy=OFFalse)
	looks up and returns a given sequence. More...
OFCondition	findAndGetSequenceItem (const DcmTagKey &seqTagKey, DcmItem *&item, const signed long itemNum=0, const OFBool createCopy=OFFalse)
	looks up and returns a given sequence item, if it exists. More...
OFCondition	findOrCreateSequenceItem (const DcmTag &seqTag, DcmItem *&item, const signed long itemNum=0)
	looks up the given sequence in the current dataset and returns the given item. More...
OFCondition	findAndInsertCopyOfElement (const DcmTagKey &tagKey, DcmItem *destItem, const OFBool replaceOld=OFTrue)
	find element, create a copy and insert it into the given destination dataset. More...
OFCondition	findAndDeleteElement (const DcmTagKey &tagKey, const OFBool allOccurrences=OFFalse, const OFBool searchIntoSub=OFFalse)
	find element, remove it from the dataset and free the associated memory. More...
OFCondition	findAndDeleteSequenceItem (const DcmTagKey &seqTagKey, const signed long itemNum)
	looks up the given sequence in the current dataset and deletes the given item. More...
OFCondition	putAndInsertString (const DcmTag &tag, const char *value, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertString (const DcmTag &tag, const char *value, const Uint32 length, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertOFStringArray (const DcmTag &tag, const OFString &value, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertUint8Array (const DcmTag &tag, const Uint8 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertUint16 (const DcmTag &tag, const Uint16 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertUint16Array (const DcmTag &tag, const Uint16 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertSint16 (const DcmTag &tag, const Sint16 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertSint16Array (const DcmTag &tag, const Sint16 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertUint32 (const DcmTag &tag, const Uint32 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertUint32Array (const DcmTag &tag, const Uint32 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertSint32 (const DcmTag &tag, const Sint32 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertFloat32 (const DcmTag &tag, const Float32 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertFloat32Array (const DcmTag &tag, const Float32 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertFloat64 (const DcmTag &tag, const Float64 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertFloat64Array (const DcmTag &tag, const Float64 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	putAndInsertTagKey (const DcmTag &tag, const DcmTagKey &value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item. More...
OFCondition	insertEmptyElement (const DcmTag &tag, const OFBool replaceOld=OFTrue)
	create a new element (with no value) and insert it into the dataset/item. More...
OFCondition	insertSequenceItem (const DcmTag &seqTag, DcmItem *item, const signed long itemNum=-2)
	looks up the given sequence in the current dataset and inserts the given item. More...
Public Member Functions inherited from DcmObject
	DcmObject (const DcmTag &tag, const Uint32 len=0)
	constructor. More...
	DcmObject (const DcmObject &obj)
	copy constructor More...
virtual	~DcmObject ()
	destructor
DcmObject &	operator= (const DcmObject &obj)
	copy assignment operator More...
DcmEVR	getVR () const
	return the value representation assigned to this object. More...
OFBool	isaString () const
	check if this element is a string type, based on the VR. More...
E_TransferState	transferState () const
	return the current transfer (read/write) state of this object. More...
DcmItem *	getRootItem ()
	get root dataset/item (top-level) that contains this object. More...
DcmObject *	getParent ()
	get parent of this object. More...
const DcmObject *	getParent () const
	get parent of this object. More...
void	setParent (DcmObject *parent)
	set parent of this object. More...
Uint16	getGTag () const
	return the group number of the attribute tag for this object More...
Uint16	getETag () const
	return the element number of the attribute tag for this object More...
const DcmTag &	getTag () const
	return const reference to the attribute tag for this object More...
void	setGTag (Uint16 gtag)
	assign group tag (but not element tag) of the attribute tag for this object. More...
virtual OFCondition	setVR (DcmEVR)
	assign a new Value Representation (VR) to this object. More...
virtual OFBool	isSignable () const
	returns true if the current object may be included in a digital signature More...
Uint32	getLengthField () const
	return the current value of the Length field (which is different from the functionality of the public getLength() method). More...

Static Public Member Functions
static DcmElement *	newDicomElement (const DcmTagKey &tag, const char *privateCreator=NULL)
	creates new DICOM element from given attribute tag. More...
static OFCondition	newDicomElement (DcmElement *&newElement, const DcmTagKey &tag, const char *privateCreator=NULL)
	creates new DICOM element from given attribute tag. More...
static OFCondition	newDicomElementWithVR (DcmElement *&newElement, const DcmTag &tag)
	creates new DICOM element from given attribute tag and VR. More...

Protected Member Functions
OFCondition	readTagAndLength (DcmInputStream &inStream, const E_TransferSyntax xfer, DcmTag &tag, Uint32 &length, Uint32 &bytesRead)
	This function reads tag and length information from inStream and returns this information to the caller. More...
OFCondition	readSubElement (DcmInputStream &inStream, DcmTag &newTag, const Uint32 newLength, const E_TransferSyntax xfer, const E_GrpLenEncoding glenc, const Uint32 maxReadLength=DCM_MaxReadLength)
	This function creates a new DcmElement object on the basis of the newTag and newLength information which was passed, inserts this new element into elementList, reads the actual data value which belongs to this element (attribute) from the inStream and also assigns this information to the object which was created at the beginning. More...
E_TransferSyntax	checkTransferSyntax (DcmInputStream &inStream)
	This function reads the first 6 bytes from the input stream and determines the transfer syntax which was used to code the information in the stream. More...
void	checkAndUpdateVR (DcmItem &item, DcmTag &tag)
	check whether the given tag requires some special handling regarding the VR (i.e. in case it is undefined and multiple values are possible). More...
void	updateSpecificCharacterSet (OFCondition &status, const DcmSpecificCharacterSet &converter)
	update the SpecificCharacterSet (0008,0005) element depending on the given parameters. More...
Protected Member Functions inherited from DcmObject
void	printNestingLevel (STD_NAMESPACE ostream &out, const size_t flags, const int level)
	print line indentation, e.g. a couple of spaces for each nesting level. More...
void	printInfoLineStart (STD_NAMESPACE ostream &out, const size_t flags, const int level, DcmTag *tag=NULL)
	print beginning of the info line. More...
void	printInfoLineEnd (STD_NAMESPACE ostream &out, const size_t flags, const unsigned long printedLength=0xffffffff, DcmTag *tag=NULL)
	print end of the info line. More...
virtual void	printInfoLine (STD_NAMESPACE ostream &out, const size_t flags, const int level=0, const char *info=NULL, DcmTag *tag=NULL, const OFBool isInfo=OFTrue)
	print given text with element information. More...
virtual OFCondition	writeTagAndLength (DcmOutputStream &outStream, const E_TransferSyntax oxfer, Uint32 &writtenBytes) const
	write tag, VR and length field to the given output stream More...
virtual Uint32	getTagAndLengthSize (const E_TransferSyntax oxfer) const
	return the number of bytes needed to serialize the tag, VR and length information of the current object using the given transfer syntax. More...
const char *	getTagName ()
	return the DICOM attribute tag name for this object. More...
void	setTagVR (DcmEVR vr)
	set the VR for this attribute More...
E_TransferState	getTransferState () const
	return the current transfer state of this object during serialization/deserialization More...
void	setTransferState (E_TransferState newState)
	set the current transfer state of this object during serialization/deserialization More...
Uint32	getTransferredBytes () const
	return the number of transferred bytes for this object during serialization/deserialization More...
void	setTransferredBytes (Uint32 val)
	set the number of transferred bytes for this object during serialization/deserialization More...
void	incTransferredBytes (Uint32 val)
	add to the number of transferred bytes for this object during serialization/deserialization More...
void	setLengthField (Uint32 val)
	set the current value of the Length field More...

Static Protected Member Functions
static OFCondition	newDicomElement (DcmElement *&newElement, DcmTag &tag, const Uint32 length, DcmPrivateTagCache *privateCreatorCache, OFBool &readAsUN)
	creates new DICOM element from given attribute tag. More...
Static Protected Member Functions inherited from DcmObject
static OFCondition	writeTag (DcmOutputStream &outStream, const DcmTag &tag, const E_TransferSyntax oxfer)
	static helper function that writes a given attribute tag to a binary output stream using the byte order indicated by the transfer syntax. More...

Protected Attributes
DcmList *	elementList
	the list of elements maintained by this object
OFBool	lastElementComplete
	flag used during suspended I/O. More...
offile_off_t	fStartPosition
	used during reading. More...
Protected Attributes inherited from DcmObject
OFCondition	errorFlag
	error flag for this object.

Private Member Functions
OFCondition	searchSubFromHere (const DcmTagKey &tag, DcmStack &resultStack, OFBool searchIntoSub)
	helper function for search(). More...

Static Private Member Functions
static OFBool	foundVR (const Uint8 *atposition)
	helper function that interprets the given pointer as a pointer to an array of two characters and checks whether these two characters form a valid standard DICOM VR. More...

Private Attributes
DcmPrivateTagCache	privateCreatorCache
	cache for private creator tags and names

Friends
OFBool	operator< (const DcmItem &lhs, const DcmItem &rhs)
	Checks whether left hand side item is smaller than right hand side item. More...
OFBool	operator> (const DcmItem &lhs, const DcmItem &rhs)
	Checks whether left hand side item is greater than right hand side item. More...
OFBool	operator<= (const DcmItem &lhs, const DcmItem &rhs)
	Checks whether left hand side item is smaller than or equal to right hand side item. More...
OFBool	operator>= (const DcmItem &lhs, const DcmItem &rhs)
	Checks whether left hand side element is greater than or equal to right hand side element. More...

Detailed Description

a class representing a list of DICOM elements in which each element has a different tag and elements are maintained in increasing order of tags.

In particular, a sequence item.

Constructor & Destructor Documentation

DcmItem() [1/2]

DcmItem::DcmItem	(	const DcmTag &	tag,
		const Uint32	len = 0
	)

constructor.

Create new item from given tag and length.

Parameters

tag	DICOM tag for the new element
len	value length for the new element

DcmItem() [2/2]

DcmItem::DcmItem

(

const DcmItem &

old

)

copy constructor

Parameters

old	item to be copied

Member Function Documentation

calcElementLength()

virtual Uint32 DcmItem::calcElementLength ( const E_TransferSyntax  xfer, const E_EncodingType  enctype  )

virtual

calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.

For elements, the length includes the length of the tag, length field, VR field and the value itself, for items and sequences it returns the length of the complete item or sequence including delimitation tags if applicable. If length encoding is set to be explicit and the total item size is larger than the available 32-bit length field, then undefined length is returned. If "dcmWriteOversizedSeqsAndItemsImplicit" is disabled, also the internal DcmObject errorFlag is set to EC_SeqOrItemContentOverflow in case the item content (excluding tag header etc.) is already too large.

Parameters

xfer	transfer syntax for length calculation
enctype	sequence encoding type for length calculation

Returns

length of DICOM element

Implements DcmObject.

Reimplemented in DcmDataset, and DcmMetaInfo.

canWriteXfer()

virtual OFBool DcmItem::canWriteXfer ( const E_TransferSyntax  newXfer, const E_TransferSyntax  oldXfer  )

virtual

check if this DICOM object can be encoded in the given transfer syntax.

Parameters

newXfer	transfer syntax in which the DICOM object is to be encoded
oldXfer	transfer syntax in which the DICOM object was read or created.

Returns

true if object can be encoded in desired transfer syntax, false otherwise.

Implements DcmObject.

Reimplemented in DcmDataset.

card()

virtual unsigned long DcmItem::card ( ) const

virtual

get cardinality of this item

Returns

number of elements in this item

checkAndUpdateVR()

void DcmItem::checkAndUpdateVR ( DcmItem &  item, DcmTag &  tag  )

protected

check whether the given tag requires some special handling regarding the VR (i.e. in case it is undefined and multiple values are possible).

If required, the VR of the given element tag is then updated according to the DICOM standard, e.g. the VR of PixelPaddingValue (if undefined) is set to 'SS' or 'US' depending on the value of PixelRepresentation.

Parameters

item	dataset or item that can be used to lookup other element values
tag	tag of the element to be checked and updated (if required)

checkForSpecificCharacterSet()

virtual OFBool DcmItem::checkForSpecificCharacterSet ( ) const

inlinevirtual

mode specifying whether the SpecificCharacterSet (0008,0005) element should be checked by convertCharacterSet() or not, i.e. whether this element might be present on this dataset-level.

This method is reimplemented in derived classes.

Returns

always returns OFFalse, i.e. SpecificCharacterSet should not be checked

Reimplemented in DcmDataset, and DcmDirectoryRecord.

checkTransferSyntax()

E_TransferSyntax DcmItem::checkTransferSyntax ( DcmInputStream &  inStream )

protected

This function reads the first 6 bytes from the input stream and determines the transfer syntax which was used to code the information in the stream.

The decision is based on two questions: a) Did we encounter a valid tag? and b) Do the last 2 bytes which were read from the stream represent a valid VR? In certain special cases, where the transfer syntax cannot be determined without doubt, we want to guess the most likely transfer syntax (see code).

Parameters

inStream

The stream which contains the coded information.

Returns

The transfer syntax which was determined.

clear()

virtual OFCondition DcmItem::clear ( )

virtual

clear (remove) all attributes from item and delete them from memory.

Returns

EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDataset.

clone()

virtual DcmObject* DcmItem::clone ( ) const

inlinevirtual

clone method

Returns

deep copy of this object

Implements DcmObject.

Reimplemented in DcmDirectoryRecord, DcmMetaInfo, and DcmDataset.

compactElements()

virtual void DcmItem::compactElements ( const Uint32  maxLength )

virtual

iterate over all elements and remove those element values from memory which exceed a given length and which can be loaded from file when needed again.

For all other elements, nothing is done.

Parameters

maxLength

maximum length (number of bytes) allowed without removing the value

compare()

virtual int DcmItem::compare ( const DcmItem &  rhs ) const

virtual

comparison operator that compares the value of this object with a given object of the same type.

The tag of the element is also considered as the first component that is compared, followed by the object types (VR, i.e. DCMTK'S EVR) and the comparison of all value components of the object, preferably in the order declared in the object (if applicable). For item values that means that all elements within the items are compared to each other in ascending tag order. This may be an expensive operation.

Parameters

rhs	the right hand side of the comparison

Returns

0 if the object values are equal. -1 if this element has fewer components than the rhs element. Also -1 if the value of the first component that does not match is lower in this object than in rhs. Also returned if rhs cannot be casted to this object type or both objects are of different VR (i.e. the DcmEVR returned by the element's ident() call are different). 1 if either this element has more components than the rhs element, or if the first component that does not match is greater in this object than in rhs object.

computeGroupLengthAndPadding()

virtual OFCondition DcmItem::computeGroupLengthAndPadding ( const E_GrpLenEncoding  glenc, const E_PaddingEncoding  padenc = EPD_noChange, const E_TransferSyntax  xfer = EXS_Unknown, const E_EncodingType  enctype = EET_ExplicitLength, const Uint32  padlen = 0, const Uint32  subPadlen = 0, Uint32  instanceLength = 0  )

virtual

This function takes care of group length and padding elements in the current element list according to what is specified in glenc and padenc.

If required, this function does the following two things: a) it calculates the group length of all groups which are contained in this item and sets the calculated values in the corresponding group length elements and b) it inserts a corresponding padding element (or, in case of sequences: padding elements) with a corresponding correct size into the element list.

Parameters

glenc	Encoding type for group length; specifies what shall be done with group length tags.
padenc	Encoding type for padding; specifies what shall be done with padding tags.
xfer	The transfer syntax that shall be used.
enctype	Encoding type for sequences; specifies how sequences will be handled.
padlen	The length up to which the dataset shall be padded, if padding is desired.
subPadlen	For sequences (ie sub elements), the length up to which item shall be padded, if padding is desired.
instanceLength	Number of extra bytes added to the item/dataset length used when computing the padding; this parameter is for instance used to pass the length of the file meta header from the DcmFileFormat to the DcmDataset object.

Returns

status, EC_Normal if successful, an error code otherwise

containsExtendedCharacters()

virtual OFBool DcmItem::containsExtendedCharacters ( const OFBool  checkAllStrings = OFFalse )

virtual

check if this object contains non-ASCII characters at any nesting level.

Please note that this check is pretty simple and only works for single-byte character sets that do include the 7-bit ASCII codes, e.g. for the ISO 8859 family. In other words: All character codes below 128 are considered to be ASCII codes and all others are considered to be non-ASCII.

Parameters

checkAllStrings

if true, also check elements with string values not affected by SpecificCharacterSet (0008,0005). By default, only check PN, LO, LT, SH, ST, UC and UT.

Returns

true if object contains non-ASCII characters, false otherwise

Reimplemented from DcmObject.

containsUnknownVR()

virtual OFBool DcmItem::containsUnknownVR ( ) const

virtual

returns true if the object contains an element with Unknown VR at any nesting level

Returns

true if the object contains an element with Unknown VR, false otherwise

Reimplemented from DcmObject.

convertCharacterSet() [1/3]

virtual OFCondition DcmItem::convertCharacterSet ( const OFString &  fromCharset, const OFString &  toCharset, const size_t  flags = 0, const OFBool  updateCharset = OFFalse  )

virtual

convert all element values that are contained in this item and that are affected by SpecificCharacterSet from the given source character set to the given destination character set.

The defined terms for a particular character set can be found in the DICOM standard, e.g. "ISO_IR 100" for ISO 8859-1 (Latin 1) or "ISO_IR 192" for Unicode in UTF-8. An empty string denotes the default character repertoire, which is ASCII (7-bit). If multiple values are given for 'fromCharset' (separated by a backslash) code extension techniques are used and escape sequences may be encountered in the source string to switch between the specified character sets.

Parameters

fromCharset	name of the source character set(s) used for the conversion
toCharset	name of the destination character set used for the conversion. Only a single value is permitted (i.e. no code extensions).
flags	optional flag used to customize the conversion (see DCMTypes::CF_xxx)
updateCharset	if OFTrue, the SpecificCharacterSet (0008,0005) element is updated, i.e. the current value is either replaced or a new element is inserted or the existing element is deleted. If OFFalse the SpecificCharacterSet element remains unchanged.

Returns

status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmDirectoryRecord.

convertCharacterSet() [2/3]

virtual OFCondition DcmItem::convertCharacterSet ( const OFString &  toCharset, const size_t  flags = 0, const OFBool  ignoreCharset = OFFalse  )

virtual

convert all element values that are contained in this item and that are affected by SpecificCharacterSet to the given destination character set.

If not disabled, the source character set is determined automatically from the value of the SpecificCharacterSet (0008,0005) element. The defined terms for the destination character set can be found in the DICOM standard, e.g. "ISO_IR 100" for ISO 8859-1 (Latin 1) or "ISO_IR 192" for Unicode in UTF-8. An empty string denotes the default character repertoire, which is ASCII (7-bit).

Parameters

toCharset	name of the destination character set used for the conversion. Only a single value is permitted (i.e. no code extensions).
flags	optional flag used to customize the conversion (see DCMTypes::CF_xxx)
ignoreCharset	if OFTrue, the value of SpecificCharacterSet is ignored. Also see checkForSpecificCharacterSet().

Returns

status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmDirectoryRecord.

convertCharacterSet() [3/3]

virtual OFCondition DcmItem::convertCharacterSet ( DcmSpecificCharacterSet &  converter )

virtual

convert all element values that are contained in this item and that are affected by SpecificCharacterSet from the currently selected source character set to the currently selected destination character set

Parameters

converter

character set converter to be used to convert the element values

Returns

status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmObject.

Reimplemented in DcmDirectoryRecord.

convertToUTF8()

virtual OFCondition DcmItem::convertToUTF8 ( )

virtual

convert all element values that are contained in this item and that are affected by SpecificCharacterSet to UTF-8 (Unicode).

The value of the SpecificCharacterSet (0008,0005) element is updated, set or deleted automatically if needed. The transliteration mode is disabled, i.e. the conversion flags are explicitly set to 0 - see convertCharacterSet().

Returns

status, EC_Normal if successful, an error code otherwise

copyFrom()

virtual OFCondition DcmItem::copyFrom ( const DcmObject &  rhs )

virtual

Virtual object copying.

This method can be used for DcmObject and derived classes to get a deep copy of an object. Internally the assignment operator is called if the given DcmObject parameter is of the same type as "this" object instance. If not, an error is returned. This function permits copying an object by value in a virtual way which therefore is different to just calling the assignment operator of DcmElement which could result in slicing the object.

Parameters

rhs	- [in] The instance to copy from. Has to be of the same class type as "this" object

Returns

EC_Normal if copying was successful, error otherwise

Implements DcmObject.

Reimplemented in DcmDirectoryRecord, DcmMetaInfo, and DcmDataset.

findAndDeleteElement()

OFCondition DcmItem::findAndDeleteElement	(	const DcmTagKey &	tagKey,
		const OFBool	allOccurrences = OFFalse,
		const OFBool	searchIntoSub = OFFalse
	)

find element, remove it from the dataset and free the associated memory.

Applicable to all DICOM value representations (VR).

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
allOccurrences	flag indicating whether to delete all occurrences of the attribute tag or the first one only (implies 'searchIntoSub' to be true)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

Referenced by DcmIODUtil::writeSingleItem(), and DcmIODUtil::writeSubSequence().

findAndDeleteSequenceItem()

OFCondition DcmItem::findAndDeleteSequenceItem	(	const DcmTagKey &	seqTagKey,
		const signed long	itemNum
	)

looks up the given sequence in the current dataset and deletes the given item.

Applicable to the following VRs: SQ, (pixelSQ)

Parameters

seqTagKey	DICOM tag specifying the sequence attribute to be searched for
itemNum	number of the item to be deleted (0..n-1, -1 for last)

Returns

EC_Normal upon success, an error otherwise.

Referenced by DcmIODUtil::writeSubSequence().

findAndGetElement()

OFCondition DcmItem::findAndGetElement	(	const DcmTagKey &	tagKey,
		DcmElement *&	element,
		const OFBool	searchIntoSub = OFFalse,
		const OFBool	createCopy = OFFalse
	)

find element and get a pointer to it (or copy it).

Applicable to all DICOM value representations (VR). The result variable 'element' is automatically set to NULL if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
element	variable in which the reference to (or copy of) the element is stored
searchIntoSub	flag indicating whether to search into sequences or not
createCopy	create a copy of the element if true, return a reference otherwise

Returns

EC_Normal upon success, an error code otherwise.

Referenced by I2DOutputPlug::checkAndInventType1Attrib().

findAndGetElements()

OFCondition DcmItem::findAndGetElements	(	const DcmTagKey &	tagKey,
		DcmStack &	resultStack
	)

find all elements matching a particular tag and return references to them on a stack.

This functions always performs a deep search (i.e. searches into sequence of items).

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
resultStack	stack where references to the elements are stored (added to). If no element is found, the stack is not modified (e.g. cleared).

Returns

EC_Normal if at least one matching tag is found, an error code otherwise.

findAndGetFloat32()

OFCondition DcmItem::findAndGetFloat32	(	const DcmTagKey &	tagKey,
		Float32 &	value,
		const unsigned long	pos = 0,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as a 32-bit floating point.

Applicable to the following VRs: FL, OF The result variable 'value' is automatically set to zero if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetFloat32Array()

OFCondition DcmItem::findAndGetFloat32Array	(	const DcmTagKey &	tagKey,
		const Float32 *&	value,
		unsigned long *	count = NULL,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an array of 32-bit floating point values.

Applicable to the following VRs: FL, OF The result variable 'value' is automatically set to NULL if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetFloat64()

OFCondition DcmItem::findAndGetFloat64	(	const DcmTagKey &	tagKey,
		Float64 &	value,
		const unsigned long	pos = 0,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as a 64-bit floating point.

Applicable to the following VRs: DS, FD, OD The result variable 'value' is automatically set to zero if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetFloat64Array()

OFCondition DcmItem::findAndGetFloat64Array	(	const DcmTagKey &	tagKey,
		const Float64 *&	value,
		unsigned long *	count = NULL,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an array of 64-bit floating point values.

Applicable to the following VRs: FD, OD The result variable 'value' is automatically set to NULL if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetLongInt()

OFCondition DcmItem::findAndGetLongInt	(	const DcmTagKey &	tagKey,
		long int &	value,
		const unsigned long	pos = 0,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as a (signed) long integer.

Applicable to the following VRs: IS, OL, SL, SS, UL, US The result variable 'value' is automatically set to zero if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetOFString()

OFCondition DcmItem::findAndGetOFString	(	const DcmTagKey &	tagKey,
		OFString &	value,
		const unsigned long	pos = 0,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as a C++ string (only one component).

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OD, OF, OL, OW, PN, SH, SL, SS, ST, TM, UC, UI, UL, UR, US, UT Since the getOFString() routine is called internally the resulting string is normalized, i.e. leading and/or trailing spaces are removed according to the associated value representation, or the element value is converted to a character string (for non-string VRs) - see documentation in the corresponding header file. In contrast to the above and below function only the specified component (see parameter 'pos') is returned. The result variable 'value' is automatically set to an empty string if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetOFStringArray()

OFCondition DcmItem::findAndGetOFStringArray	(	const DcmTagKey &	tagKey,
		OFString &	value,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as a C++ string (all components).

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OD, OF, OL, OW, PN, SH, SL, SS, ST, TM, UC, UI, UL, UR, US, UT Since the getOFStringArray() routine is called internally the resulting string is normalized, i.e. leading and/or trailing spaces are removed according to the associated value representation or the element values are converted to character strings (for non-string VRs) - see documentation in the corresponding header file. The result variable 'value' is automatically set to an empty string if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetSequence()

OFCondition DcmItem::findAndGetSequence	(	const DcmTagKey &	seqTagKey,
		DcmSequenceOfItems *&	sequence,
		const OFBool	searchIntoSub = OFFalse,
		const OFBool	createCopy = OFFalse
	)

looks up and returns a given sequence.

Applicable to the following VRs: SQ, (pixelSQ) The result variable 'sequence' is automatically set to NULL if an error occurs (e.g. if 'seqTagKey' does not refer to a sequence attribute).

Parameters

seqTagKey	DICOM tag specifying the sequence attribute to be searched for
sequence	variable in which the reference to (or copy of) the sequence is stored
searchIntoSub	flag indicating whether to search into sub-sequences or not
createCopy	create a copy of the sequence if true, return a reference otherwise

Returns

EC_Normal upon success, an error otherwise.

Referenced by DcmIODUtil::readSubSequence().

findAndGetSequenceItem()

OFCondition DcmItem::findAndGetSequenceItem	(	const DcmTagKey &	seqTagKey,
		DcmItem *&	item,
		const signed long	itemNum = 0,
		const OFBool	createCopy = OFFalse
	)

looks up and returns a given sequence item, if it exists.

Otherwise sets 'item' to NULL and returns EC_TagNotFound (specified sequence does not exist) or EC_IllegalParameter (specified item does not exist). Only the top-most level of the dataset/item is examined (i.e. no deep-search is performed). Applicable to the following VRs: SQ, (pixelSQ)

Parameters

seqTagKey	DICOM tag specifying the sequence attribute to be searched for
item	variable in which the reference to (or copy of) the item is stored
itemNum	number of the item to be searched for (0..n-1, -1 for last)
createCopy	create a copy of the item if true, return a reference otherwise

Returns

EC_Normal upon success, an error otherwise.

Referenced by DcmIODUtil::readSingleItem().

findAndGetSint16()

OFCondition DcmItem::findAndGetSint16	(	const DcmTagKey &	tagKey,
		Sint16 &	value,
		const unsigned long	pos = 0,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as a signed 16-bit integer.

Applicable to the following VRs: SS The result variable 'value' is automatically set to zero if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetSint16Array()

OFCondition DcmItem::findAndGetSint16Array	(	const DcmTagKey &	tagKey,
		const Sint16 *&	value,
		unsigned long *	count = NULL,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an array of signed 16-bit integers.

Applicable to the following VRs: SS The result variable 'value' is automatically set to NULL if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetSint32()

OFCondition DcmItem::findAndGetSint32	(	const DcmTagKey &	tagKey,
		Sint32 &	value,
		const unsigned long	pos = 0,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as a signed 32-bit integer.

Applicable to the following VRs: IS, SL The result variable 'value' is automatically set to zero if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetSint32Array()

OFCondition DcmItem::findAndGetSint32Array	(	const DcmTagKey &	tagKey,
		const Sint32 *&	value,
		unsigned long *	count = NULL,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an array of signed 32-bit integers.

Applicable to the following VRs: SL The result variable 'value' is automatically set to NULL if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetString() [1/2]

OFCondition DcmItem::findAndGetString	(	const DcmTagKey &	tagKey,
		const char *&	value,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as a reference to a C string.

NB: The string is not copied! Applicable to the following VRs: AE, AS, CS, DA, DS, DT, IS, LO, LT, PN, SH, ST, TM, UC, UI, UR, UT Since the getString() routine is called internally the resulting string reference represents the (possibly multi-valued) value as stored in the dataset, i.e. no normalization is performed. The result variable 'value' is automatically set to NULL if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored (might be NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetString() [2/2]

OFCondition DcmItem::findAndGetString	(	const DcmTagKey &	tagKey,
		const char *&	value,
		Uint32 &	length,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as a reference to a C string.

NB: The string is not copied! Applicable to the following VRs: AE, AS, CS, DA, DS, DT, IS, LO, LT, PN, SH, ST, TM, UC, UI, UR, UT Since the getString() routine is called internally the resulting string reference represents the (possibly multi-valued) value as stored in the dataset, i.e. no normalization is performed. The result variable 'value' is automatically set to NULL and 'length' is set to 0 if an error occurs. Please note that since the length is returned separately, the string value can contain more than one NULL byte.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored (might be NULL)
length	length of the string (number of characters without the trailing NULL byte)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetUint16()

OFCondition DcmItem::findAndGetUint16	(	const DcmTagKey &	tagKey,
		Uint16 &	value,
		const unsigned long	pos = 0,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an unsigned 16-bit integer.

Applicable to the following VRs: OW, US The result variable 'value' is automatically set to zero if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetUint16Array()

OFCondition DcmItem::findAndGetUint16Array	(	const DcmTagKey &	tagKey,
		const Uint16 *&	value,
		unsigned long *	count = NULL,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an array of unsigned 16-bit integers.

Applicable to the following VRs: AT, OW, US The result variable 'value' is automatically set to NULL if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetUint32()

OFCondition DcmItem::findAndGetUint32	(	const DcmTagKey &	tagKey,
		Uint32 &	value,
		const unsigned long	pos = 0,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an unsigned 32-bit integer.

Applicable to the following VRs: OL, UL The result variable 'value' is automatically set to zero if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetUint32Array()

OFCondition DcmItem::findAndGetUint32Array	(	const DcmTagKey &	tagKey,
		const Uint32 *&	value,
		unsigned long *	count = NULL,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an array of unsigned 32-bit integers.

Applicable to the following VRs: OL, UL The result variable 'value' is automatically set to NULL if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetUint8()

OFCondition DcmItem::findAndGetUint8	(	const DcmTagKey &	tagKey,
		Uint8 &	value,
		const unsigned long	pos = 0,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an unsigned 8-bit integer.

Applicable to the following VRs: OB The result variable 'value' is automatically set to zero if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndGetUint8Array()

OFCondition DcmItem::findAndGetUint8Array	(	const DcmTagKey &	tagKey,
		const Uint8 *&	value,
		unsigned long *	count = NULL,
		const OFBool	searchIntoSub = OFFalse
	)

find element and get value as an array of unsigned 8-bit integers.

Applicable to the following VRs: OB The result variable 'value' is automatically set to NULL if an error occurs.

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns

EC_Normal upon success, an error code otherwise.

findAndInsertCopyOfElement()

OFCondition DcmItem::findAndInsertCopyOfElement	(	const DcmTagKey &	tagKey,
		DcmItem *	destItem,
		const OFBool	replaceOld = OFTrue
	)

find element, create a copy and insert it into the given destination dataset.

This functions never performs a deep search (i.e. does not search into sequence of items). Empty elements are also copied. However, if the given tag is not found in the current dataset, EC_TagNotFound is returned and the destination dataset remains unchanged. Applicable to all DICOM value representations (VR).

Parameters

tagKey	DICOM tag specifying the attribute to be searched for
destItem	destination dataset to which the copied element is inserted
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise

findOrCreateSequenceItem()

OFCondition DcmItem::findOrCreateSequenceItem	(	const DcmTag &	seqTag,
		DcmItem *&	item,
		const signed long	itemNum = 0
	)

looks up the given sequence in the current dataset and returns the given item.

If either the sequence or the item do not exist, they are created. If necessary, multiple empty items are inserted. Only the top-most level of the dataset/item is examined (i.e. no deep-search is performed). Applicable to the following VRs: SQ, (pixelSQ)

Parameters

seqTag	DICOM tag specifying the sequence attribute to be searched for (or to be created)
item	variable in which the reference to the sequence item is stored
itemNum	number of the item to be searched for (0..n-1, -1 for last, -2 for append new)

Returns

EC_Normal upon success, an error otherwise.

Referenced by DcmIODUtil::writeSubSequence().

foundVR()

static OFBool DcmItem::foundVR ( const Uint8 *  atposition )

staticprivate

helper function that interprets the given pointer as a pointer to an array of two characters and checks whether these two characters form a valid standard DICOM VR.

Parameters

atposition

pointer to array of (at least) two bytes interpreted as VR

Returns

true if standard VR, false otherwise

getElement()

virtual DcmElement* DcmItem::getElement ( const unsigned long  num )

virtual

access an element from the item.

This method returns a pointer to one of the elements in the item, and not a copy.

Parameters

num	index number of element, must be < card()

Returns

pointer to element if found, NULL if num >= card()

getLength()

virtual Uint32 DcmItem::getLength ( const E_TransferSyntax  xfer = EXS_LittleEndianImplicit, const E_EncodingType  enctype = EET_UndefinedLength  )

virtual

calculate the value length (without attribute tag, VR and length field) of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.

If length encoding is set to be explicit and the item content is larger than the available 32-bit length field, then undefined length is returned. If "dcmWriteOversizedSeqsAndItemsUndefined" is disabled, also the internal DcmObject errorFlag is set to EC_SeqOrItemContentOverflow.

Parameters

xfer	transfer syntax for length calculation
enctype	sequence encoding type for length calculation

Returns

value length of DICOM element

Implements DcmObject.

getParentItem()

virtual DcmItem* DcmItem::getParentItem ( )

virtual

get parent item of this object, i.e. the item/dataset in which the surrounding sequence element is stored.

Returns

pointer to the parent item of this object (might be NULL)

Reimplemented from DcmObject.

getVM()

virtual unsigned long DcmItem::getVM ( )

virtual

get value multiplicity

Returns

always returns 1 (according to the DICOM standard)

Implements DcmObject.

ident()

virtual DcmEVR DcmItem::ident ( ) const

virtual

get type identifier

Returns

type identifier of this class (EVR_item)

Implements DcmObject.

Reimplemented in DcmDirectoryRecord, DcmMetaInfo, and DcmDataset.

insert()

virtual OFCondition DcmItem::insert ( DcmElement *  elem, OFBool  replaceOld = OFFalse, OFBool  checkInsertOrder = OFFalse  )

virtual

insert a new element into the list of elements maintained by this item.

The list of elements is always kept in ascending tag order.

Parameters

elem	element to be inserted, must not be contained in this or any other item. Will be deleted upon destruction of this item object.
replaceOld	if true, this element replaces any other element with the same tag which may already be contained in the item. If false, insert fails if another element with the same tag is already present.
checkInsertOrder	if true, a warning message is sent to the console if the element is not inserted at the end of the list. This is used in the read() method to detect datasets with out-of-order elements.

Returns

status, EC_Normal if successful, an error code otherwise

insertEmptyElement()

OFCondition DcmItem::insertEmptyElement	(	const DcmTag &	tag,
		const OFBool	replaceOld = OFTrue
	)

create a new element (with no value) and insert it into the dataset/item.

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OD, OF, OL, OW, PN, SH, SL, SQ, SS, ST, TM, UC, UI, UL, UR, US, UT

Parameters

tag	DICOM tag specifying the attribute to be created
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

Referenced by DcmIODUtil::writeSubSequence().

insertSequenceItem()

OFCondition DcmItem::insertSequenceItem	(	const DcmTag &	seqTag,
		DcmItem *	item,
		const signed long	itemNum = -2
	)

looks up the given sequence in the current dataset and inserts the given item.

If the sequence does not exist, it is created. If necessary, multiple empty items are inserted before the specified item position. Only the top-most level of the dataset/item is examined (i.e. no deep-search is performed). Applicable to the following VRs: SQ, (pixelSQ)

Parameters

seqTag	DICOM tag specifying the sequence attribute to be searched for (or to be created)
item	item to be inserted into the sequence, must not be contained in this or any other sequence. Will be deleted upon destruction of the sequence object.
itemNum	position of the item (0..n-1, -1 = before last, -2 = after last)

Returns

EC_Normal upon success, an error otherwise (delete 'item' manually!).

isAffectedBySpecificCharacterSet()

virtual OFBool DcmItem::isAffectedBySpecificCharacterSet ( ) const

virtual

check if this object is affected by SpecificCharacterSet at any nesting level.

In detail, it is checked whether this object contains any data elements that according to their VR are affected by the SpecificCharacterSet (0008,0005) element. This is true for the following VRs: PN, LO, LT, SH, ST, UC and UT

Returns

true if object is affected by SpecificCharacterSet, false otherwise

Reimplemented from DcmObject.

isEmpty()

virtual OFBool DcmItem::isEmpty ( const OFBool  normalize = OFTrue )

virtual

check if this item is empty

Parameters

normalize

not used for this class

Returns

true if item is empty, i.e. has no elements, false otherwise

Reimplemented from DcmObject.

isLeaf()

virtual OFBool DcmItem::isLeaf ( ) const

inlinevirtual

check if this element is a leaf node in a dataset tree.

All subclasses of DcmElement except for DcmSequenceOfItems are leaf nodes, while DcmSequenceOfItems, DcmItem, DcmDataset etc. are not.

Returns

true if leaf node, false otherwise.

Implements DcmObject.

isNested()

virtual OFBool DcmItem::isNested ( ) const

virtual

check if this item is nested in a sequence of items, i.e. not a top-level or stand-alone item/dataset

Returns

true if this item is nested, false otherwise

Reimplemented from DcmObject.

loadAllDataIntoMemory()

virtual OFCondition DcmItem::loadAllDataIntoMemory ( )

virtual

this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory.

After a call to this method, the file from which a dataset was read may safely be deleted or replaced. For large files, this method may obviously allocate large amounts of memory.

Returns

EC_Normal if successful, an error code otherwise

Implements DcmObject.

newDicomElement() [1/3]

static DcmElement* DcmItem::newDicomElement ( const DcmTagKey &  tag, const char *  privateCreator = NULL  )

static

creates new DICOM element from given attribute tag.

Creation of unknown attributes (e.g. private tag not being registered in the dictionary) will result in a DcmElement instance of derived type DcmOtherByteOtherWord.

Parameters

tag	attribute tag of the element to be created
privateCreator	private creator of the element, if element tag is private (default: NULL, i.e. non-private DICOM standard tag)

Returns

pointer to newly created element upon success, NULL pointer otherwise

newDicomElement() [2/3]

static OFCondition DcmItem::newDicomElement ( DcmElement *&  newElement, const DcmTagKey &  tag, const char *  privateCreator = NULL  )

static

creates new DICOM element from given attribute tag.

Creation of unknown attributes (e.g. private tag not being registered in the dictionary) will result in a DcmElement instance of derived type DcmOtherByteOtherWord.

Parameters

newElement	pointer to newly created element returned in this parameter upon success, NULL pointer otherwise
tag	attribute tag of the element to be created
privateCreator	private creator of the element, if element tag is private (default: NULL, i.e. non-private DICOM standard tag)

Returns

EC_Normal upon success, an error code otherwise

newDicomElement() [3/3]

static OFCondition DcmItem::newDicomElement ( DcmElement *&  newElement, DcmTag &  tag, const Uint32  length, DcmPrivateTagCache *  privateCreatorCache, OFBool &  readAsUN  )

staticprotected

creates new DICOM element from given attribute tag.

Helper function used by DICOM parser (friend of this class) and thus hidden from the public interface. DcmItem's readSubElement() uses this function when reading new elements from input data. This method internally sets the length of the new element, but does not allocate any memory for the element's value. Thus subsequent access to an element created by this method can lead to crashes. DcmItem instead initializes the value itself a bit later during the read process.

Parameters

newElement	pointer to newly created element returned in this parameter upon success, NULL pointer otherwise
tag	attribute tag of the element to be created. VR of tag may be updated within the method.
length	attribute value length of the element to be created
privateCreatorCache	cache object for private creator strings in the current dataset
readAsUN	flag indicating whether parser is currently handling UN element that must be read in implicit VR little endian; updated upon return

Returns

EC_Normal upon success, an error code otherwise

newDicomElementWithVR()

static OFCondition DcmItem::newDicomElementWithVR ( DcmElement *&  newElement, const DcmTag &  tag  )

static

creates new DICOM element from given attribute tag and VR.

Creation of unknown attributes (e.g. private tag not being registered in the dictionary) will result in a DcmElement instance of derived type DcmOtherByteOtherWord.

Parameters

newElement	pointer to newly created element returned in this parameter upon success, NULL pointer otherwise
tag	attribute tag and VR of the element to be created

Returns

EC_Normal upon success, an error code otherwise

nextInContainer()

virtual DcmObject* DcmItem::nextInContainer ( const DcmObject *  obj )

virtual

this method is only used in container classes, that is, DcmItem and DcmSequenceOfItems.

It returns a pointer to the next object in the list AFTER the given object. If the caller passes NULL, a pointer to the first object in the list is returned. If the given object is not found, the given object is the last one in the list or the list is empty, NULL is returned.

Parameters

obj	pointer to one object in the container; we are looking for the next entry after this one. NULL if looking for the first entry.

Returns

pointer to next object in container or NULL if not found

Reimplemented from DcmObject.

nextObject()

virtual OFCondition DcmItem::nextObject ( DcmStack &  stack, const OFBool  intoSub  )

virtual

this method enables a stack based, depth-first traversal of a complete hierarchical DICOM dataset (that is, classes derived from DcmItem or DcmSequenceOfItems).

With each call of this method, the next object in the tree is located and marked on the stack.

Parameters

stack	"cursor" for current position in the dataset. The stack will contain a pointer to each dataset, sequence, item and element from the main dataset down to the current element, and is updated upon each call to this method. An empty stack is equivalent to a stack containing a pointer to this object only.
intoSub	if true, the nextObject method will perform a hierarchical search through the dataset (depth-first), if false, only the current container object will be traversed (e.g., all elements of an item or all items of a sequence).

Returns

EC_Normal if value length is correct, an error code otherwise

Reimplemented from DcmObject.

operator=()

DcmItem& DcmItem::operator=

(

const DcmItem &

obj

)

assignment operator.

Private creator cache is not copied as it is also the case for clone().

Parameters

obj	the item to be copied

Returns

Reference to this object after assignment

print()

virtual void DcmItem::print ( STD_NAMESPACE ostream &  out, const size_t  flags = 0, const int  level = 0, const char *  pixelFileName = NULL, size_t *  pixelCounter = NULL  )

virtual

print all elements of the item to a stream

Parameters

out	output stream
flags	optional flag used to customize the output (see DCMTypes::PF_xxx)
level	current level of nested items. Used for indentation.
pixelFileName	not used
pixelCounter	not used

Implements DcmObject.

Reimplemented in DcmDirectoryRecord, DcmDataset, and DcmMetaInfo.

putAndInsertFloat32()

OFCondition DcmItem::putAndInsertFloat32	(	const DcmTag &	tag,
		const Float32	value,
		const unsigned long	pos = 0,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: FL, OF

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
pos	index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertFloat32Array()

OFCondition DcmItem::putAndInsertFloat32Array	(	const DcmTag &	tag,
		const Float32 *	value,
		const unsigned long	count,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: FL, OF

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
count	number of values (not bytes!) to be copied from 'value'
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertFloat64()

OFCondition DcmItem::putAndInsertFloat64	(	const DcmTag &	tag,
		const Float64	value,
		const unsigned long	pos = 0,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: FD, OD

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
pos	index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertFloat64Array()

OFCondition DcmItem::putAndInsertFloat64Array	(	const DcmTag &	tag,
		const Float64 *	value,
		const unsigned long	count,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: FD, OD

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
count	number of values (not bytes!) to be copied from 'value'
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertOFStringArray()

OFCondition DcmItem::putAndInsertOFStringArray	(	const DcmTag &	tag,
		const OFString &	value,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: AE, AS, CS, DA, DS, DT, IS, LO, LT, PN, SH, ST, TM, UC, UI, UR, UT

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element (might be empty)
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertSint16()

OFCondition DcmItem::putAndInsertSint16	(	const DcmTag &	tag,
		const Sint16	value,
		const unsigned long	pos = 0,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: SS, xs (US or SS)

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
pos	index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertSint16Array()

OFCondition DcmItem::putAndInsertSint16Array	(	const DcmTag &	tag,
		const Sint16 *	value,
		const unsigned long	count,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: SS, xs (US or SS)

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
count	number of values (not bytes!) to be copied from 'value'
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertSint32()

OFCondition DcmItem::putAndInsertSint32	(	const DcmTag &	tag,
		const Sint32	value,
		const unsigned long	pos = 0,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: SL

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
pos	index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertString() [1/2]

OFCondition DcmItem::putAndInsertString	(	const DcmTag &	tag,
		const char *	value,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OD, OF, OL, OW, PN, SH, SL, SS, ST, TM, UC, UI, UL, UR, US, UT

Parameters

tag	DICOM tag specifying the attribute to be created
value	string value to be set for the new element (might be empty or NULL)
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertString() [2/2]

OFCondition DcmItem::putAndInsertString	(	const DcmTag &	tag,
		const char *	value,
		const Uint32	length,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OD, OF, OL, OW, PN, SH, SL, SS, ST, TM, UC, UI, UL, UR, US, UT Please note that since the length of the string has to be specified explicitly, the string can contain more than one NULL byte.

Parameters

tag	DICOM tag specifying the attribute to be created
value	string value to be set for the new element (might be empty or NULL)
length	length of the string (number of characters without the trailing NULL byte)
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertTagKey()

OFCondition DcmItem::putAndInsertTagKey	(	const DcmTag &	tag,
		const DcmTagKey &	value,
		const unsigned long	pos = 0,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: AT

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
pos	index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertUint16()

OFCondition DcmItem::putAndInsertUint16	(	const DcmTag &	tag,
		const Uint16	value,
		const unsigned long	pos = 0,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: US, xs (US or SS)

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
pos	index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertUint16Array()

OFCondition DcmItem::putAndInsertUint16Array	(	const DcmTag &	tag,
		const Uint16 *	value,
		const unsigned long	count,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: AT, OW, US, ox (polymorph OB/OW or pixel data), xs (US or SS)

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element (might be NULL)
count	number of values (not bytes!) to be copied from 'value'
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertUint32()

OFCondition DcmItem::putAndInsertUint32	(	const DcmTag &	tag,
		const Uint32	value,
		const unsigned long	pos = 0,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: OL, UL

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
pos	index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertUint32Array()

OFCondition DcmItem::putAndInsertUint32Array	(	const DcmTag &	tag,
		const Uint32 *	value,
		const unsigned long	count,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: OL, UL

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element
count	number of values (not bytes!) to be copied from 'value'
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

putAndInsertUint8Array()

OFCondition DcmItem::putAndInsertUint8Array	(	const DcmTag &	tag,
		const Uint8 *	value,
		const unsigned long	count,
		const OFBool	replaceOld = OFTrue
	)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: OB, ox (polymorph OB/OW or pixel data)

Parameters

tag	DICOM tag specifying the attribute to be created
value	value to be set for the new element (might be NULL)
count	number of values (= bytes in this case) to be copied from 'value'
replaceOld	flag indicating whether to replace an existing element or not

Returns

EC_Normal upon success, an error code otherwise.

read()

virtual OFCondition DcmItem::read ( DcmInputStream &  inStream, const E_TransferSyntax  ixfer, const E_GrpLenEncoding  glenc = EGL_noChange, const Uint32  maxReadLength = DCM_MaxReadLength  )

virtual

This function reads the information of all attributes which are captured in the input stream and captures this information in elementList.

Each attribute is represented as an element in this list. If not all information for an attribute could be read from the stream, the function returns EC_StreamNotifyClient.

Parameters

inStream	The stream which contains the information.
ixfer	The transfer syntax which was used to encode the information in inStream.
glenc	Encoding type for group length; specifies what will be done with group length tags.
maxReadLength	Maximum read length for reading an attribute value.

Returns

status, EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDirectoryRecord, DcmDataset, and DcmMetaInfo.

readSubElement()

OFCondition DcmItem::readSubElement ( DcmInputStream &  inStream, DcmTag &  newTag, const Uint32  newLength, const E_TransferSyntax  xfer, const E_GrpLenEncoding  glenc, const Uint32  maxReadLength = DCM_MaxReadLength  )

protected

This function creates a new DcmElement object on the basis of the newTag and newLength information which was passed, inserts this new element into elementList, reads the actual data value which belongs to this element (attribute) from the inStream and also assigns this information to the object which was created at the beginning.

Parameters

inStream	The stream which contains the information.
newTag	The tag of the element of which the information is being read.
newLength	The length of the information which is being read.
xfer	The transfer syntax which was used to encode the information in inStream.
glenc	Encoding type for group length. Specifies what will be done with group length tags.
maxReadLength	Maximum read length for reading the attribute value.

Returns

status, EC_Normal if successful, an error code otherwise

readTagAndLength()

OFCondition DcmItem::readTagAndLength ( DcmInputStream &  inStream, const E_TransferSyntax  xfer, DcmTag &  tag, Uint32 &  length, Uint32 &  bytesRead  )

protected

This function reads tag and length information from inStream and returns this information to the caller.

When reading information, the transfer syntax which was passed is accounted for. If the transfer syntax shows an explicit value representation, the data type of this object is also read from the stream. In general, this function follows the rules which are specified in the DICOM standard (see DICOM standard (year 2000) part 5, section 7) (or the corresponding section in a later version of the standard) concerning the encoding of a dataset.

Parameters

inStream	The stream which contains the information.
xfer	The transfer syntax which was used to encode the information in inStream.
tag	Contains in the end the tag that was read.
length	Contains in the end the length value that was read.
bytesRead	Contains in the end the amount of bytes which were read from inStream.

Returns

status, EC_Normal if successful, an error code otherwise

readUntilTag()

virtual OFCondition DcmItem::readUntilTag ( DcmInputStream &  inStream, const E_TransferSyntax  ixfer, const E_GrpLenEncoding  glenc = EGL_noChange, const Uint32  maxReadLength = DCM_MaxReadLength, const DcmTagKey &  stopParsingAtElement = DCM_UndefinedTagKey  )

virtual

This function reads the information of all attributes which are captured in the input stream and captures this information in elementList, up to the attribute tag stopParsingAtElement.

Each attribute is represented as an element in this list. If not all information for an attribute could be read from the stream, the function returns EC_StreamNotifyClient.

Parameters

inStream	The stream which contains the information.
ixfer	The transfer syntax which was used to encode the information in inStream.
glenc	Encoding type for group length; specifies what will be done with group length tags.
maxReadLength	Maximum read length for reading an attribute value.
stopParsingAtElement	parsing of the input stream is stopped when this tag key or any higher tag is encountered.

Returns

status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmDataset.

remove() [1/3]

virtual DcmElement* DcmItem::remove ( const unsigned long  num )

virtual

remove element from list.

If found, the element is not deleted but returned to the caller who is responsible for further management of the DcmElement object.

Parameters

num	index number of element, must be < card()

Returns

pointer to DcmElement if found, NULL otherwise

remove() [2/3]

virtual DcmElement* DcmItem::remove ( DcmObject *  elem )

virtual

remove element from list.

If found, the element is not deleted but returned to the caller who is responsible for further management of the DcmElement object.

Parameters

elem	pointer to element (as type DcmObject *) to be removed from list

Returns

pointer to element (as type DcmElement *) if found, NULL otherwise

remove() [3/3]

virtual DcmElement* DcmItem::remove ( const DcmTagKey &  tag )

virtual

remove element from list.

If found, the element is not deleted but returned to the caller who is responsible for further management of the DcmElement object.

Parameters

tag	attribute tag of element to be removed

Returns

pointer to DcmElement if found, NULL otherwise

search()

virtual OFCondition DcmItem::search ( const DcmTagKey &  xtag, DcmStack &  resultStack, E_SearchMode  mode = ESM_fromHere, OFBool  searchIntoSub = OFTrue  )

virtual

a complex, stack-based, hierarchical search method.

It allows for a search for a DICOM object with a given attribute within a given container, hierarchically, from a starting position identified through a cursor stack.

Parameters

xtag	the DICOM attribute tag we are searching for
resultStack	Depending on the search mode (see below), this parameter either serves as an input and output parameter, or as an output parameter only (the latter being the default). When used as an input parameter, the cursor stack defines the start position for the search within a hierarchical DICOM dataset. Upon successful return, the stack contains the position of the element found, in the form of a pointer to each dataset, sequence, item and element from the main dataset down to the found element.
mode	search mode, controls how the search stack is handled. In the default mode, ESM_fromHere, the stack is ignored on input, and the search starts in the object for which this method is called. In the other modes, the stack is used both as an input and an output parameter and defines the starting point for the search.
searchIntoSub	if true, the search will be performed hierarchically descending into the sequences and items of the dataset. If false, only the current container (sequence or item) will be traversed.

Returns

EC_Normal if found, EC_TagNotFound if not found, an error code is something went wrong.

Reimplemented from DcmObject.

Reimplemented in DcmDirectoryRecord.

searchSubFromHere()

OFCondition DcmItem::searchSubFromHere ( const DcmTagKey &  tag, DcmStack &  resultStack, OFBool  searchIntoSub  )

private

helper function for search().

May only be called if elementList is non-empty. Performs hierarchical search for given tag and pushes pointer of sub-element on result stack if found

Parameters

tag	tag key to be searched
resultStack	upon successful return, pointer to element pushed onto this stack
searchIntoSub	flag indicating whether recursive search is desired

Returns

EC_Normal if tag found and stack modified, EC_TagNotFound if tag not found and stack unmodified

tagExists()

OFBool DcmItem::tagExists	(	const DcmTagKey &	key,
		OFBool	searchIntoSub = OFFalse
	)

check if an element with the given attribute tag exists in the dataset

Parameters

key	tag key to be searched
searchIntoSub	if true, do hierarchical search within sequences, if false only search through this dataset

Returns

true if tag found, false otherwise

Referenced by I2DOutputPlug::checkAndInventType1Attrib(), and I2DOutputPlug::checkAndInventType2Attrib().

tagExistsWithValue()

OFBool DcmItem::tagExistsWithValue	(	const DcmTagKey &	key,
		OFBool	searchIntoSub = OFFalse
	)

check if an element with the given attribute tag exists in the dataset and has a non-empty value

Parameters

key	tag key to be searched
searchIntoSub	if true, do hierarchical search within sequences, if false only search through this dataset

Returns

true if tag found and element non-empty, false otherwise

transferEnd()

virtual void DcmItem::transferEnd ( )

virtual

finalize the transfer state of this object.

This method must be called when reading/writing this object from/to a stream has been completed.

Reimplemented from DcmObject.

Reimplemented in DcmMetaInfo.

transferInit()

virtual void DcmItem::transferInit ( )

virtual

initialize the transfer state of this object.

This method must be called before this object is written to a stream or read (parsed) from a stream.

Reimplemented from DcmObject.

Reimplemented in DcmMetaInfo.

updateSpecificCharacterSet()

void DcmItem::updateSpecificCharacterSet ( OFCondition &  status, const DcmSpecificCharacterSet &  converter  )

protected

update the SpecificCharacterSet (0008,0005) element depending on the given parameters.

The current value of this element is either replaced or a new element is inserted or the existing element is deleted.

Parameters

status	error status of previous operations (might also be updated)
converter	character set converter used to convert element values

verify()

virtual OFCondition DcmItem::verify ( const OFBool  autocorrect = OFFalse )

virtual

check the currently stored element value

Parameters

autocorrect

correct value length if OFTrue

Returns

status, EC_Normal if value length is correct, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDirectoryRecord.

write()

virtual OFCondition DcmItem::write ( DcmOutputStream &  outStream, const E_TransferSyntax  oxfer, const E_EncodingType  enctype, DcmWriteCache *  wcache  )

virtual

write object to a stream

Parameters

outStream	DICOM output stream
oxfer	output transfer syntax
enctype	encoding types (undefined or explicit length)
wcache	pointer to write cache object, may be NULL

Returns

status, EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDataset, and DcmMetaInfo.

writeJson()

virtual OFCondition DcmItem::writeJson ( STD_NAMESPACE ostream &  out, DcmJsonFormat &  format  )

virtual

write object in JSON format

Parameters

out	output stream to which the JSON document is written
format	used to format and customize the output

Returns

status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmObject.

Reimplemented in DcmDataset, and DcmMetaInfo.

Referenced by DcmDataset::writeJson().

writeSignatureFormat()

virtual OFCondition DcmItem::writeSignatureFormat ( DcmOutputStream &  outStream, const E_TransferSyntax  oxfer, const E_EncodingType  enctype, DcmWriteCache *  wcache  )

virtual

special write method for creation of digital signatures

Parameters

outStream	DICOM output stream
oxfer	output transfer syntax
enctype	encoding types (undefined or explicit length)
wcache	pointer to write cache object, may be NULL

Returns

status, EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDataset.

writeXML()

virtual OFCondition DcmItem::writeXML ( STD_NAMESPACE ostream &  out, const size_t  flags = 0  )

virtual

write object in XML format

Parameters

out	output stream to which the XML document is written
flags	optional flag used to customize the output (see DCMTypes::XF_xxx)

Returns

status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmObject.

Reimplemented in DcmDirectoryRecord, DcmDataset, and DcmMetaInfo.

Related Definitions

operator<

OFBool operator< ( const DcmItem &  lhs, const DcmItem &  rhs  )

friend

Checks whether left hand side item is smaller than right hand side item.

Uses DcmItem's compare() method in order to perform the comparison. See DcmItem::compare() for details.

Parameters

lhs	left hand side of the comparison
rhs	right hand side of the comparison

Returns

OFTrue if lhs is smaller than rhs, OFFalse otherwise

operator<=

OFBool operator<= ( const DcmItem &  lhs, const DcmItem &  rhs  )

friend

Checks whether left hand side item is smaller than or equal to right hand side item.

Uses DcmItem's compare() method in order to perform the comparison. See DcmItem::compare() for details.

Parameters

lhs	left hand side of the comparison
rhs	right hand side of the comparison

Returns

OFTrue if lhs is smaller than rhs or both are equal, OFFalse otherwise

operator>

OFBool operator> ( const DcmItem &  lhs, const DcmItem &  rhs  )

friend

Checks whether left hand side item is greater than right hand side item.

Uses DcmItem's compare() method in order to perform the comparison. See DcmItem::compare() for details.

Parameters

lhs	left hand side of the comparison
rhs	right hand side of the comparison

Returns

OFTrue if lhs is greater than rhs, OFFalse otherwise

operator>=

OFBool operator>= ( const DcmItem &  lhs, const DcmItem &  rhs  )

friend

Checks whether left hand side element is greater than or equal to right hand side element.

Uses DcmElement's compare() method in order to perform the comparison. See DcmElement::compare() for details.

Parameters

lhs	left hand side of the comparison
rhs	right hand side of the comparison

Returns

OFTrue if lhs is greater than rhs or both are equal, OFFalse otherwise

Member Data Documentation

fStartPosition

offile_off_t DcmItem::fStartPosition

protected

used during reading.

Contains the position in the stream where the item started (needed for calculating the remaining number of bytes available for a fixed-length item).

lastElementComplete

OFBool DcmItem::lastElementComplete

protected

flag used during suspended I/O.

Indicates whether the last element was completely or only partially read/written during the last call to read/write.

---

The documentation for this class was generated from the following file:

• dcmdata/include/dcmtk/dcmdata/dcitem.h
