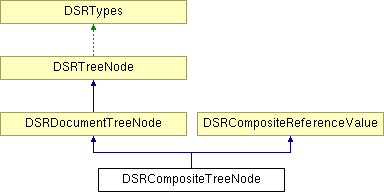

Inheritance diagram for DSRCompositeTreeNode:
Public Member Functions | |
| DSRCompositeTreeNode (const E_RelationshipType relationshipType) | |
| constructor | |
| virtual | ~DSRCompositeTreeNode () |
| destructor | |
| virtual void | clear () |
| clear all member variables. | |
| virtual OFBool | isValid () const |
| check whether the content item is valid. | |
| virtual OFCondition | print (STD_NAMESPACE ostream &stream, const size_t flags) const |
| print content item. | |
| virtual OFCondition | writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const |
| write content item in XML format | |
Protected Member Functions | |
| virtual OFCondition | readContentItem (DcmItem &dataset) |
| read content item (value) from dataset | |
| virtual OFCondition | writeContentItem (DcmItem &dataset) const |
| write content item (value) to dataset | |
| virtual OFCondition | readXMLContentItem (const DSRXMLDocument &doc, DSRXMLCursor cursor) |
| read content item specific XML data | |
| virtual OFCondition | renderHTMLContentItem (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags) const |
| render content item (value) in HTML/XHTML format | |
Private Member Functions | |
| DSRCompositeTreeNode (const DSRCompositeTreeNode &) | |
| DSRCompositeTreeNode & | operator= (const DSRCompositeTreeNode &) |
Definition at line 46 of file dsrcomtn.h.
| DSRCompositeTreeNode::DSRCompositeTreeNode | ( | const E_RelationshipType | relationshipType | ) |
constructor
| relationshipType | type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot. |
| virtual void DSRCompositeTreeNode::clear | ( | ) | [virtual] |
clear all member variables.
Please note that the content item might become invalid afterwards.
Reimplemented from DSRCompositeReferenceValue.
| virtual OFBool DSRCompositeTreeNode::isValid | ( | ) | const [virtual] |
check whether the content item is valid.
The content item is valid if the two base classes are valid.
Reimplemented from DSRCompositeReferenceValue.
| virtual OFCondition DSRCompositeTreeNode::print | ( | STD_NAMESPACE ostream & | stream, | |
| const size_t | flags | |||
| ) | const [virtual] |
print content item.
A typical output looks like this: contains COMPOSITE:=(BasicTextSR,"1.2.3")
| stream | output stream to which the content item should be printed | |
| flags | flag used to customize the output (see DSRTypes::PF_xxx) |
Reimplemented from DSRCompositeReferenceValue.
| virtual OFCondition DSRCompositeTreeNode::writeXML | ( | STD_NAMESPACE ostream & | stream, | |
| const size_t | flags | |||
| ) | const [virtual] |
write content item in XML format
| stream | output stream to which the XML document is written | |
| flags | flag used to customize the output (see DSRTypes::XF_xxx) |
Reimplemented from DSRCompositeReferenceValue.
| virtual OFCondition DSRCompositeTreeNode::readContentItem | ( | DcmItem & | dataset | ) | [protected, virtual] |
read content item (value) from dataset
| dataset | DICOM dataset from which the content item should be read |
Reimplemented from DSRDocumentTreeNode.
| virtual OFCondition DSRCompositeTreeNode::writeContentItem | ( | DcmItem & | dataset | ) | const [protected, virtual] |
write content item (value) to dataset
| dataset | DICOM dataset to which the content item should be written |
Reimplemented from DSRDocumentTreeNode.
| virtual OFCondition DSRCompositeTreeNode::readXMLContentItem | ( | const DSRXMLDocument & | doc, | |
| DSRXMLCursor | cursor | |||
| ) | [protected, virtual] |
read content item specific XML data
| doc | document containing the XML file content | |
| cursor | cursor pointing to the starting node |
Reimplemented from DSRDocumentTreeNode.
| virtual OFCondition DSRCompositeTreeNode::renderHTMLContentItem | ( | STD_NAMESPACE ostream & | docStream, | |
| STD_NAMESPACE ostream & | annexStream, | |||
| const size_t | nestingLevel, | |||
| size_t & | annexNumber, | |||
| const size_t | flags | |||
| ) | const [protected, virtual] |
render content item (value) in HTML/XHTML format
| docStream | output stream to which the main HTML/XHTML document is written | |
| annexStream | output stream to which the HTML/XHTML document annex is written | |
| nestingLevel | current nesting level. Used to render section headings. | |
| annexNumber | reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added. | |
| flags | flag used to customize the output (see DSRTypes::HF_xxx) |
Reimplemented from DSRDocumentTreeNode.
