DcmItem Class Reference

a class representing a list of DICOM elements in which each element has a different tag and elements are maintained in increasing order of tags. More...

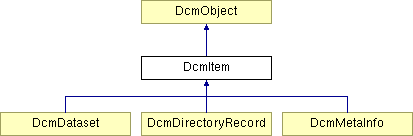

Inheritance diagram for DcmItem:

DcmObject DcmDataset DcmDirectoryRecord DcmMetaInfo List of all members.

Public Member Functions

 DcmItem ()
 default constructor
 DcmItem (const DcmTag &tag, const Uint32 len=0)
 constructor.
 DcmItem (const DcmItem &old)
 copy constructor
DcmItemoperator= (const DcmItem &obj)
 assignment operator.
virtual ~DcmItem ()
 destructor
virtual DcmObjectclone () const
 clone method
virtual OFCondition copyFrom (const DcmObject &rhs)
 Virtual object copying.
virtual DcmEVR ident () const
 get type identifier
virtual unsigned long getVM ()
 get value multiplicity
virtual unsigned long card () const
 get cardinality of this item
virtual OFBool isLeaf () const
 check if this element is a leaf node in a dataset tree.
virtual void print (STD_NAMESPACE ostream &out, const size_t flags=0, const int level=0, const char *pixelFileName=NULL, size_t *pixelCounter=NULL)
 print all elements of the item to a stream
virtual Uint32 calcElementLength (const E_TransferSyntax xfer, const E_EncodingType enctype)
 calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.
virtual Uint32 getLength (const E_TransferSyntax xfer=EXS_LittleEndianImplicit, const E_EncodingType enctype=EET_UndefinedLength)
 calculate the value length (without attribute tag, VR and length field) of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.
virtual void transferInit ()
 initialize the transfer state of this object.
virtual void transferEnd ()
 finalize the transfer state of this object.
virtual OFBool canWriteXfer (const E_TransferSyntax newXfer, const E_TransferSyntax oldXfer)
 check if this DICOM object can be encoded in the given transfer syntax.
virtual OFCondition read (DcmInputStream &inStream, const E_TransferSyntax ixfer, const E_GrpLenEncoding glenc=EGL_noChange, const Uint32 maxReadLength=DCM_MaxReadLength)
 This function reads the information of all attributes which are captured in the input stream and captures this information in elementList.
virtual OFCondition write (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
 write object to a stream
virtual OFCondition writeXML (STD_NAMESPACE ostream &out, const size_t flags=0)
 write object in XML format
virtual OFCondition writeSignatureFormat (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
 special write method for creation of digital signatures
virtual OFBool containsUnknownVR () const
 returns true if the object contains an element with Unknown VR at any nesting level
virtual OFBool containsExtendedCharacters (const OFBool checkAllStrings=OFFalse)
 check if this object contains non-ASCII characters at any nesting level
virtual OFBool isAffectedBySpecificCharacterSet () const
 check if this object is affected by SpecificCharacterSet at any nesting level.
virtual OFCondition insert (DcmElement *elem, OFBool replaceOld=OFFalse, OFBool checkInsertOrder=OFFalse)
 insert a new element into the list of elements maintained by this item.
virtual DcmElementgetElement (const unsigned long num)
 access an element from the item.
virtual OFCondition nextObject (DcmStack &stack, const OFBool intoSub)
 this method enables a stack based, depth-first traversal of a complete hierarchical DICOM dataset (that is, classes derived from DcmItem or DcmSequenceOfItems).
virtual DcmObjectnextInContainer (const DcmObject *obj)
 this method is only used in container classes, that is, DcmItem and DcmSequenceOfItems.
virtual DcmElementremove (const unsigned long num)
 remove element from list.
virtual DcmElementremove (DcmObject *elem)
 remove element from list.
virtual DcmElementremove (const DcmTagKey &tag)
 remove element from list.
virtual OFBool isEmpty (const OFBool normalize=OFTrue)
 check if this item is empty
virtual OFCondition clear ()
 clear (remove) attribute value
virtual OFCondition verify (const OFBool autocorrect=OFFalse)
 check the currently stored element value
virtual OFCondition search (const DcmTagKey &xtag, DcmStack &resultStack, E_SearchMode mode=ESM_fromHere, OFBool searchIntoSub=OFTrue)
 a complex, stack-based, hierarchical search method.
virtual OFCondition loadAllDataIntoMemory ()
 this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory.
virtual OFCondition computeGroupLengthAndPadding (const E_GrpLenEncoding glenc, const E_PaddingEncoding padenc=EPD_noChange, const E_TransferSyntax xfer=EXS_Unknown, const E_EncodingType enctype=EET_ExplicitLength, const Uint32 padlen=0, const Uint32 subPadlen=0, Uint32 instanceLength=0)
 This function takes care of group length and padding elements in the current element list according to what is specified in glenc and padenc.
OFBool tagExists (const DcmTagKey &key, OFBool searchIntoSub=OFFalse)
 check if an element with the given attribute tag exists in the dataset
OFBool tagExistsWithValue (const DcmTagKey &key, OFBool searchIntoSub=OFFalse)
 check if an element with the given attribute tag exists in the dataset and has a non-empty value (i.e., length > 0)
OFCondition findAndGetElement (const DcmTagKey &tagKey, DcmElement *&element, const OFBool searchIntoSub=OFFalse, const OFBool createCopy=OFFalse)
 find element and get a pointer to it (or copy it).
OFCondition findAndGetElements (const DcmTagKey &tagKey, DcmStack &resultStack)
 find all elements matching a particular tag and return references to them on a stack.
OFCondition findAndGetString (const DcmTagKey &tagKey, const char *&value, const OFBool searchIntoSub=OFFalse)
 find element and get value as a reference to a C string.
OFCondition findAndGetOFString (const DcmTagKey &tagKey, OFString &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
 find element and get value as a C++ string (only one component).
OFCondition findAndGetOFStringArray (const DcmTagKey &tagKey, OFString &value, const OFBool searchIntoSub=OFFalse)
 find element and get value as a C++ string (all components).
OFCondition findAndGetUint8 (const DcmTagKey &tagKey, Uint8 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
 find element and get value as an unsigned 8-bit integer.
OFCondition findAndGetUint8Array (const DcmTagKey &tagKey, const Uint8 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
 find element and get value as an array of unsigned 8-bit integers.
OFCondition findAndGetUint16 (const DcmTagKey &tagKey, Uint16 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
 find element and get value as an unsigned 16-bit integer.
OFCondition findAndGetUint16Array (const DcmTagKey &tagKey, const Uint16 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
 find element and get value as an array of unsigned 16-bit integers.
OFCondition findAndGetSint16 (const DcmTagKey &tagKey, Sint16 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
 find element and get value as a signed 16-bit integer.
OFCondition findAndGetSint16Array (const DcmTagKey &tagKey, const Sint16 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
 find element and get value as an array of signed 16-bit integers.
OFCondition findAndGetUint32 (const DcmTagKey &tagKey, Uint32 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
 find element and get value as an unsigned 32-bit integer.
OFCondition findAndGetUint32Array (const DcmTagKey &tagKey, const Uint32 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
 find element and get value as an array of unsigned 32-bit integers.
OFCondition findAndGetSint32 (const DcmTagKey &tagKey, Sint32 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
 find element and get value as a signed 32-bit integer.
OFCondition findAndGetSint32Array (const DcmTagKey &tagKey, const Sint32 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
 find element and get value as an array of signed 32-bit integers.
OFCondition findAndGetLongInt (const DcmTagKey &tagKey, long int &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
 find element and get value as a (signed) long integer.
OFCondition findAndGetFloat32 (const DcmTagKey &tagKey, Float32 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
 find element and get value as a 32-bit floating point.
OFCondition findAndGetFloat32Array (const DcmTagKey &tagKey, const Float32 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
 find element and get value as an array of 32-bit floating point values.
OFCondition findAndGetFloat64 (const DcmTagKey &tagKey, Float64 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
 find element and get value as a 64-bit floating point.
OFCondition findAndGetFloat64Array (const DcmTagKey &tagKey, const Float64 *&value, unsigned long *count=NULL, const OFBool searchIntoSub=OFFalse)
 find element and get value as an array of 64-bit floating point values.
OFCondition findAndGetSequence (const DcmTagKey &seqTagKey, DcmSequenceOfItems *&sequence, const OFBool searchIntoSub=OFFalse, const OFBool createCopy=OFFalse)
 looks up and returns a given sequence.
OFCondition findAndGetSequenceItem (const DcmTagKey &seqTagKey, DcmItem *&item, const signed long itemNum=0, const OFBool createCopy=OFFalse)
 looks up and returns a given sequence item, if it exists.
OFCondition findOrCreateSequenceItem (const DcmTag &seqTag, DcmItem *&item, const signed long itemNum=0)
 looks up the given sequence in the current dataset and returns the given item.
OFCondition findAndInsertCopyOfElement (const DcmTagKey &tagKey, DcmItem *destItem, const OFBool replaceOld=OFTrue)
 find element, create a copy and insert it into the given destination dataset.
OFCondition findAndDeleteElement (const DcmTagKey &tagKey, const OFBool allOccurrences=OFFalse, const OFBool searchIntoSub=OFFalse)
 find element, remove it from the dataset and free the associated memory.
OFCondition findAndDeleteSequenceItem (const DcmTagKey &seqTagKey, const signed long itemNum)
 looks up the given sequence in the current dataset and deletes the given item.
OFCondition putAndInsertString (const DcmTag &tag, const char *value, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertOFStringArray (const DcmTag &tag, const OFString &value, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertUint8Array (const DcmTag &tag, const Uint8 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertUint16 (const DcmTag &tag, const Uint16 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertUint16Array (const DcmTag &tag, const Uint16 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertSint16 (const DcmTag &tag, const Sint16 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertSint16Array (const DcmTag &tag, const Sint16 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertUint32 (const DcmTag &tag, const Uint32 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertSint32 (const DcmTag &tag, const Sint32 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertFloat32 (const DcmTag &tag, const Float32 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition putAndInsertFloat64 (const DcmTag &tag, const Float64 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
 create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition insertEmptyElement (const DcmTag &tag, const OFBool replaceOld=OFTrue)
 create a new element (with no value) and insert it into the dataset/item.
OFCondition insertSequenceItem (const DcmTag &seqTag, DcmItem *item, const signed long itemNum=-2)
 looks up the given sequence in the current dataset and inserts the given item.

Protected Member Functions

OFCondition readTagAndLength (DcmInputStream &inStream, const E_TransferSyntax xfer, DcmTag &tag, Uint32 &length, Uint32 &bytesRead)
 This function reads tag and length information from inStream and returns this information to the caller.
OFCondition readSubElement (DcmInputStream &inStream, DcmTag &newTag, const Uint32 newLength, const E_TransferSyntax xfer, const E_GrpLenEncoding glenc, const Uint32 maxReadLength=DCM_MaxReadLength)
 This function creates a new DcmElement object on the basis of the newTag and newLength information which was passed, inserts this new element into elementList, reads the actual data value which belongs to this element (attribute) from the inStream and also assigns this information to the object which was created at the beginning.
E_TransferSyntax checkTransferSyntax (DcmInputStream &inStream)
 This function reads the first 6 bytes from the input stream and determines the transfer syntax which was used to code the information in the stream.
void checkAndUpdateVR (DcmItem &item, DcmTag &tag)
 check whether the given tag requires some special handling regarding the VR (i.e.

Protected Attributes

DcmListelementList
 the list of elements maintained by this object
OFBool lastElementComplete
 flag used during suspended I/O.
offile_off_t fStartPosition
 used during reading.

Private Member Functions

OFCondition searchSubFromHere (const DcmTagKey &tag, DcmStack &resultStack, OFBool searchIntoSub)
 helper function for search().

Static Private Member Functions

static OFBool foundVR (const Uint8 *atposition)
 helper function that interprets the given pointer as a pointer to an array of two characters and checks whether these two characters form a valid standard DICOM VR.

Private Attributes

DcmPrivateTagCache privateCreatorCache
 cache for private creator tags and names

Detailed Description

a class representing a list of DICOM elements in which each element has a different tag and elements are maintained in increasing order of tags.

In particular, a sequence item.

Definition at line 51 of file dcitem.h.


Constructor & Destructor Documentation

DcmItem::DcmItem ( const DcmTag tag,
const Uint32  len = 0
)

constructor.

Create new item from given tag and length.

Parameters:
tag DICOM tag for the new element
len value length for the new element

DcmItem::DcmItem ( const DcmItem old  )

copy constructor

Parameters:
old item to be copied


Member Function Documentation

DcmItem& DcmItem::operator= ( const DcmItem obj  )

assignment operator.

Private creator cache is not copied as it is also the case for clone().

Parameters:
the item to be copied

virtual DcmObject* DcmItem::clone (  )  const [inline, virtual]

clone method

Returns:
deep copy of this object

Implements DcmObject.

Reimplemented in DcmDataset, DcmDirectoryRecord, and DcmMetaInfo.

Definition at line 86 of file dcitem.h.

References DcmItem().

virtual OFCondition DcmItem::copyFrom ( const DcmObject rhs  )  [virtual]

Virtual object copying.

This method can be used for DcmObject and derived classes to get a deep copy of an object. Internally the assignment operator is called if the given DcmObject parameter is of the same type as "this" object instance. If not, an error is returned. This function permits copying an object by value in a virtual way which therefore is different to just calling the assignment operator of DcmElement which could result in slicing the object.

Parameters:
rhs - [in] The instance to copy from. Has to be of the same class type as "this" object
Returns:
EC_Normal if copying was successful, error otherwise

Implements DcmObject.

Reimplemented in DcmDataset, DcmDirectoryRecord, and DcmMetaInfo.

virtual DcmEVR DcmItem::ident (  )  const [virtual]

get type identifier

Returns:
type identifier of this class (EVR_item)

Implements DcmObject.

Reimplemented in DcmDataset, DcmDirectoryRecord, and DcmMetaInfo.

virtual unsigned long DcmItem::getVM (  )  [virtual]

get value multiplicity

Returns:
always returns 1 (according to the DICOM standard)

Implements DcmObject.

virtual unsigned long DcmItem::card (  )  const [virtual]

get cardinality of this item

Returns:
number of elements in this item

virtual OFBool DcmItem::isLeaf (  )  const [inline, virtual]

check if this element is a leaf node in a dataset tree.

All subclasses of DcmElement except for DcmSequenceOfItems are leaf nodes, while DcmSequenceOfItems, DcmItem, DcmDataset etc. are not.

Returns:
true if leaf node, false otherwise.

Implements DcmObject.

Definition at line 126 of file dcitem.h.

virtual void DcmItem::print ( STD_NAMESPACE ostream &  out,
const size_t  flags = 0,
const int  level = 0,
const char *  pixelFileName = NULL,
size_t *  pixelCounter = NULL
) [virtual]

print all elements of the item to a stream

Parameters:
out output stream
flags optional flag used to customize the output (see DCMTypes::PF_xxx)
level current level of nested items. Used for indentation.
pixelFileName not used
pixelCounter not used

Implements DcmObject.

Reimplemented in DcmDataset, DcmDirectoryRecord, and DcmMetaInfo.

virtual Uint32 DcmItem::calcElementLength ( const E_TransferSyntax  xfer,
const E_EncodingType  enctype
) [virtual]

calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.

For elements, the length includes the length of the tag, length field, VR field and the value itself, for items and sequences it returns the length of the complete item or sequence including delimitation tags if applicable. If length encodig is set to be explicit and the total item size is larger than the available 32-bit length field, then undefined length is returned. If "dcmWriteOversizedSeqsAndItemsImplicit" is disabled, also the internal DcmObject errorFlag is set to EC_SeqOrItemContentOverflow in case the item content (excluding tag header etc.) is already too large.

Parameters:
xfer transfer syntax for length calculation
enctype sequence encoding type for length calculation
Returns:
length of DICOM element

Implements DcmObject.

Reimplemented in DcmDataset, and DcmMetaInfo.

virtual Uint32 DcmItem::getLength ( const E_TransferSyntax  xfer = EXS_LittleEndianImplicit,
const E_EncodingType  enctype = EET_UndefinedLength
) [virtual]

calculate the value length (without attribute tag, VR and length field) of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.

If length encodig is set to be explicit and the item content is larger than the available 32-bit length field, then undefined length is returned. If "dcmWriteOversizedSeqsAndItemsUndefined" is disabled, also the internal DcmObject errorFlag is set to EC_SeqOrItemContentOverflow.

Parameters:
xfer transfer syntax for length calculation
enctype sequence encoding type for length calculation
Returns:
value length of DICOM element

Implements DcmObject.

virtual void DcmItem::transferInit (  )  [virtual]

initialize the transfer state of this object.

This method must be called before this object is written to a stream or read (parsed) from a stream.

Reimplemented from DcmObject.

Reimplemented in DcmMetaInfo.

virtual void DcmItem::transferEnd (  )  [virtual]

finalize the transfer state of this object.

This method must be called when reading/writing this object from/to a stream has been completed.

Reimplemented from DcmObject.

Reimplemented in DcmMetaInfo.

virtual OFBool DcmItem::canWriteXfer ( const E_TransferSyntax  newXfer,
const E_TransferSyntax  oldXfer
) [virtual]

check if this DICOM object can be encoded in the given transfer syntax.

Parameters:
newXfer transfer syntax in which the DICOM object is to be encoded
oldXfer transfer syntax in which the DICOM object was read or created.
Returns:
true if object can be encoded in desired transfer syntax, false otherwise.

Implements DcmObject.

Reimplemented in DcmDataset.

virtual OFCondition DcmItem::read ( DcmInputStream inStream,
const E_TransferSyntax  ixfer,
const E_GrpLenEncoding  glenc = EGL_noChange,
const Uint32  maxReadLength = DCM_MaxReadLength
) [virtual]

This function reads the information of all attributes which are captured in the input stream and captures this information in elementList.

Each attribute is represented as an element in this list. If not all information for an attribute could be read from the stream, the function returns EC_StreamNotifyClient.

Parameters:
inStream The stream which contains the information.
ixfer The transfer syntax which was used to encode the information in inStream.
glenc Encoding type for group length; specifies what will be done with group length tags.
maxReadLength Maximum read length for reading an attribute value.
Returns:
status, EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDataset, DcmDirectoryRecord, and DcmMetaInfo.

virtual OFCondition DcmItem::write ( DcmOutputStream outStream,
const E_TransferSyntax  oxfer,
const E_EncodingType  enctype,
DcmWriteCache wcache
) [virtual]

write object to a stream

Parameters:
outStream DICOM output stream
oxfer output transfer syntax
enctype encoding types (undefined or explicit length)
wcache pointer to write cache object, may be NULL
Returns:
status, EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDataset, and DcmMetaInfo.

virtual OFCondition DcmItem::writeXML ( STD_NAMESPACE ostream &  out,
const size_t  flags = 0
) [virtual]

write object in XML format

Parameters:
out output stream to which the XML document is written
flags optional flag used to customize the output (see DCMTypes::XF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmObject.

Reimplemented in DcmDataset, DcmDirectoryRecord, and DcmMetaInfo.

virtual OFCondition DcmItem::writeSignatureFormat ( DcmOutputStream outStream,
const E_TransferSyntax  oxfer,
const E_EncodingType  enctype,
DcmWriteCache wcache
) [virtual]

special write method for creation of digital signatures

Parameters:
outStream DICOM output stream
oxfer output transfer syntax
enctype encoding types (undefined or explicit length)
wcache pointer to write cache object, may be NULL
Returns:
status, EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDataset.

virtual OFBool DcmItem::containsUnknownVR (  )  const [virtual]

returns true if the object contains an element with Unknown VR at any nesting level

Returns:
true if the object contains an element with Unknown VR, false otherwise

Reimplemented from DcmObject.

virtual OFBool DcmItem::containsExtendedCharacters ( const OFBool  checkAllStrings = OFFalse  )  [virtual]

check if this object contains non-ASCII characters at any nesting level

Parameters:
checkAllStrings if true, also check elements with string values not affected by SpecificCharacterSet (0008,0005), default: only check PN, LO, LT, SH, ST, UT
Returns:
true if object contains non-ASCII characters, false otherwise

Reimplemented from DcmObject.

virtual OFBool DcmItem::isAffectedBySpecificCharacterSet (  )  const [virtual]

check if this object is affected by SpecificCharacterSet at any nesting level.

In detail, it is checked whether this object contains any data elements that according to their VR are affected by the SpecificCharacterSet (0008,0005) element. This is true for the following VRs: PN, LO, LT, SH, ST and UT

Returns:
true if object is affected by SpecificCharacterSet, false otherwise

Reimplemented from DcmObject.

virtual OFCondition DcmItem::insert ( DcmElement elem,
OFBool  replaceOld = OFFalse,
OFBool  checkInsertOrder = OFFalse
) [virtual]

insert a new element into the list of elements maintained by this item.

The list of elements is always kept in ascending tag order.

Parameters:
elem element to be inserted, must not be contained in this or any other item. Will be deleted upon destruction of this item object.
replaceOld if true, this element replaces any other element with the same tag which may already be contained in the item. If false, insert fails if another element with the same tag is already present.
checkInsertOrder if true, a warning message is sent to the console if the element is not inserted at the end of the list. This is used in the read() method to detect datasets with out-of-order elements.
Returns:
status, EC_Normal if successful, an error code otherwise

Referenced by I2DOutputPlug::checkAndInventType1Attrib(), and I2DOutputPlug::checkAndInventType2Attrib().

virtual DcmElement* DcmItem::getElement ( const unsigned long  num  )  [virtual]

access an element from the item.

This method returns a pointer to one of the elements in the item, and not a copy.

Parameters:
num index number of element, must be < card()
Returns:
pointer to element if found, NULL if num >= card()

virtual OFCondition DcmItem::nextObject ( DcmStack stack,
const OFBool  intoSub
) [virtual]

this method enables a stack based, depth-first traversal of a complete hierarchical DICOM dataset (that is, classes derived from DcmItem or DcmSequenceOfItems).

With each call of this method, the next object in the tree is located and marked on the stack.

Parameters:
stack "cursor" for current position in the dataset. The stack will contain a pointer to each dataset, sequence, item and element from the main dataset down to the current element, and is updated upon each call to this method. An empty stack is equivalent to a stack containing a pointer to this object only.
intoSub if true, the nextObject method will perform a hierarchical search through the dataset (depth-first), if false, only the current container object will be traversed (e.g., all elements of an item or all items of a sequence).
Returns:
EC_Normal if value length is correct, an error code otherwise

Reimplemented from DcmObject.

virtual DcmObject* DcmItem::nextInContainer ( const DcmObject obj  )  [virtual]

this method is only used in container classes, that is, DcmItem and DcmSequenceOfItems.

It returns a pointer to the next object in the list AFTER the given object. If the caller passes NULL, a pointer to the first object in the list is returned. If the given object is not found, the given object is the last one in the list or the list is empty, NULL is returned.

Parameters:
obj pointer to one object in the container; we are looking for the next entry after this one. NULL if looking for the first entry.
Returns:
pointer to next object in container or NULL if not found

Reimplemented from DcmObject.

virtual DcmElement* DcmItem::remove ( const unsigned long  num  )  [virtual]

remove element from list.

If found, the element is not deleted but returned to the caller who is responsible for further management of the DcmElement object.

Parameters:
num index number of element, must be < card()
Returns:
pointer to DcmElement if found, NULL otherwise

virtual DcmElement* DcmItem::remove ( DcmObject elem  )  [virtual]

remove element from list.

If found, the element is not deleted but returned to the caller who is responsible for further management of the DcmElement object.

Parameters:
elem pointer to element (as type DcmObject *) to be removed from list
Returns:
pointer to element (as type DcmElement *) if found, NULL otherwise

virtual DcmElement* DcmItem::remove ( const DcmTagKey tag  )  [virtual]

remove element from list.

If found, the element is not deleted but returned to the caller who is responsible for further management of the DcmElement object.

Parameters:
tag attribute tag of element to be removed
Returns:
pointer to DcmElement if found, NULL otherwise

virtual OFBool DcmItem::isEmpty ( const OFBool  normalize = OFTrue  )  [virtual]

check if this item is empty

Parameters:
normalize not used for this class
Returns:
true if item is empty, i.e. has no elements, false otherwise

Reimplemented from DcmObject.

virtual OFCondition DcmItem::clear (  )  [virtual]

clear (remove) attribute value

Returns:
EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDataset.

virtual OFCondition DcmItem::verify ( const OFBool  autocorrect = OFFalse  )  [virtual]

check the currently stored element value

Parameters:
autocorrect correct value length if OFTrue
Returns:
status, EC_Normal if value length is correct, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDirectoryRecord.

virtual OFCondition DcmItem::search ( const DcmTagKey xtag,
DcmStack resultStack,
E_SearchMode  mode = ESM_fromHere,
OFBool  searchIntoSub = OFTrue
) [virtual]

a complex, stack-based, hierarchical search method.

It allows for a search for a DICOM object with a given attribute within a given container, hierarchically, from a starting position identified through a cursor stack.

Parameters:
xtag the DICOM attribute tag we are searching for
resultStack Depending on the search mode (see below), this parameter either serves as an input and output parameter, or as an output parameter only (the latter being the default). When used as an input parameter, the cursor stack defines the start position for the search within a hierarchical DICOM dataset. Upon successful return, the stack contains the position of the element found, in the form of a pointer to each dataset, sequence, item and element from the main dataset down to the found element.
mode search mode, controls how the search stack is handled. In the default mode, ESM_fromHere, the stack is ignored on input, and the search starts in the object for which this method is called. In the other modes, the stack is used both as an input and an output parameter and defines the starting point for the search.
searchIntoSub if true, the search will be performed hierarchically descending into the sequences and items of the dataset. If false, only the current container (sequence or item) will be traversed.
Returns:
EC_Normal if found, EC_TagNotFound if not found, an error code is something went wrong.

Reimplemented from DcmObject.

Reimplemented in DcmDirectoryRecord.

virtual OFCondition DcmItem::loadAllDataIntoMemory (  )  [virtual]

this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory.

After a call to this method, the file from which a dataset was read may safely be deleted or replaced. For large files, this method may obviously allocate large amounts of memory.

Returns:
EC_Normal if successful, an error code otherwise

Implements DcmObject.

virtual OFCondition DcmItem::computeGroupLengthAndPadding ( const E_GrpLenEncoding  glenc,
const E_PaddingEncoding  padenc = EPD_noChange,
const E_TransferSyntax  xfer = EXS_Unknown,
const E_EncodingType  enctype = EET_ExplicitLength,
const Uint32  padlen = 0,
const Uint32  subPadlen = 0,
Uint32  instanceLength = 0
) [virtual]

This function takes care of group length and padding elements in the current element list according to what is specified in glenc and padenc.

If required, this function does the following two things: a) it calculates the group length of all groups which are contained in this item and sets the calculated values in the corresponding group length elements and b) it inserts a corresponding padding element (or, in case of sequences: padding elements) with a corresponding correct size into the element list.

Parameters:
glenc Encoding type for group length; specifies what shall be done with group length tags.
padenc Encoding type for padding; specifies what shall be done with padding tags.
xfer The transfer syntax that shall be used.
enctype Encoding type for sequences; specifies how sequences will be handled.
padlen The length up to which the dataset shall be padded, if padding is desired.
subPadlen For sequences (ie sub elements), the length up to which item shall be padded, if padding is desired.
instanceLength Number of extra bytes added to the item/dataset length used when computing the padding; this parameter is for instance used to pass the length of the file meta header from the DcmFileFormat to the DcmDataset object.
Returns:
status, EC_Normal if successful, an error code otherwise

OFBool DcmItem::tagExists ( const DcmTagKey key,
OFBool  searchIntoSub = OFFalse
)

check if an element with the given attribute tag exists in the dataset

Parameters:
key tag key to be searched
searchIntoSub if true, do hierarchical search within sequences, if false only search through this dataset
Returns:
true if tag found, false otherwise

Referenced by I2DOutputPlug::checkAndInventType1Attrib(), and I2DOutputPlug::checkAndInventType2Attrib().

OFBool DcmItem::tagExistsWithValue ( const DcmTagKey key,
OFBool  searchIntoSub = OFFalse
)

check if an element with the given attribute tag exists in the dataset and has a non-empty value (i.e., length > 0)

Parameters:
key tag key to be searched
searchIntoSub if true, do hierarchical search within sequences, if false only search through this dataset
Returns:
true if tag found and element non-empty, false otherwise

OFCondition DcmItem::findAndGetElement ( const DcmTagKey tagKey,
DcmElement *&  element,
const OFBool  searchIntoSub = OFFalse,
const OFBool  createCopy = OFFalse
)

find element and get a pointer to it (or copy it).

Applicable to all DICOM value representations (VR). The result variable 'element' is automatically set to NULL if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
element variable in which the reference to (or copy of) the element is stored
searchIntoSub flag indicating whether to search into sequences or not
createCopy create a copy of the element if true, return a reference otherwise
Returns:
EC_Normal upon success, an error code otherwise.

Referenced by I2DOutputPlug::checkAndInventType1Attrib().

OFCondition DcmItem::findAndGetElements ( const DcmTagKey tagKey,
DcmStack resultStack
)

find all elements matching a particular tag and return references to them on a stack.

This functions always performs a deep search (i.e. searches into sequence of items).

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
resultStack stack where references to the elements are stored (added to). If no element is found, the stack is not modified (e.g. cleared).
Returns:
EC_Normal if at least one matching tag is found, an error code otherwise.

OFCondition DcmItem::findAndGetString ( const DcmTagKey tagKey,
const char *&  value,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as a reference to a C string.

Applicable to the following VRs: AE, AS, CS, DA, DS, DT, IS, LO, LT, PN, SH, ST, TM, UI, UT Since the getString() routine is called internally the resulting string reference represents the (possibly multi-valued) value as stored in the dataset, i.e. no normalization is performed. The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the reference to the element value is stored (might be NULL)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetOFString ( const DcmTagKey tagKey,
OFString value,
const unsigned long  pos = 0,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as a C++ string (only one component).

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OF, OW, PN, SH, SL, SS, ST, TM, UI, UL, US, UT Since the getOFString() routine is called internally the resulting string is normalized, i.e. leading and/or trailing spaces are removed according to the associated value representation, or the element value is converted to a character string (for non-string VRs) - see documentation in the corresponding header file. In contrast to the above and below function only the specified component (see parameter 'pos') is returned. The result variable 'value' is automatically set to an empty string if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
pos index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetOFStringArray ( const DcmTagKey tagKey,
OFString value,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as a C++ string (all components).

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OF, OW, PN, SH, SL, SS, ST, TM, UI, UL, US, UT Since the getOFStringArray() routine is called internally the resulting string is normalized, i.e. leading and/or trailing spaces are removed according to the associated value representation or the element values are converted to character strings (for non-string VRs) - see documentation in the corresponding header file. The result variable 'value' is automatically set to an empty string if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint8 ( const DcmTagKey tagKey,
Uint8 &  value,
const unsigned long  pos = 0,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an unsigned 8-bit integer.

Applicable to the following VRs: OB The result variable 'value' is automatically set to zero if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
pos index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint8Array ( const DcmTagKey tagKey,
const Uint8 *&  value,
unsigned long *  count = NULL,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an array of unsigned 8-bit integers.

Applicable to the following VRs: OB The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the reference to the element value is stored
count stores number of items in the result array (if not NULL)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint16 ( const DcmTagKey tagKey,
Uint16 &  value,
const unsigned long  pos = 0,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an unsigned 16-bit integer.

Applicable to the following VRs: OW, US The result variable 'value' is automatically set to zero if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
pos index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint16Array ( const DcmTagKey tagKey,
const Uint16 *&  value,
unsigned long *  count = NULL,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an array of unsigned 16-bit integers.

Applicable to the following VRs: AT, OW, US The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the reference to the element value is stored
count stores number of items in the result array (if not NULL)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetSint16 ( const DcmTagKey tagKey,
Sint16 &  value,
const unsigned long  pos = 0,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as a signed 16-bit integer.

Applicable to the following VRs: SS The result variable 'value' is automatically set to zero if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
pos index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetSint16Array ( const DcmTagKey tagKey,
const Sint16 *&  value,
unsigned long *  count = NULL,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an array of signed 16-bit integers.

Applicable to the following VRs: SS The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the reference to the element value is stored
count stores number of items in the result array (if not NULL)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint32 ( const DcmTagKey tagKey,
Uint32 &  value,
const unsigned long  pos = 0,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an unsigned 32-bit integer.

Applicable to the following VRs: UL The result variable 'value' is automatically set to zero if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
pos index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint32Array ( const DcmTagKey tagKey,
const Uint32 *&  value,
unsigned long *  count = NULL,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an array of unsigned 32-bit integers.

Applicable to the following VRs: UL The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the reference to the element value is stored
count stores number of items in the result array (if not NULL)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetSint32 ( const DcmTagKey tagKey,
Sint32 &  value,
const unsigned long  pos = 0,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as a signed 32-bit integer.

Applicable to the following VRs: IS, SL The result variable 'value' is automatically set to zero if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
pos index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetSint32Array ( const DcmTagKey tagKey,
const Sint32 *&  value,
unsigned long *  count = NULL,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an array of signed 32-bit integers.

Applicable to the following VRs: SL The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the reference to the element value is stored
count stores number of items in the result array (if not NULL)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetLongInt ( const DcmTagKey tagKey,
long int &  value,
const unsigned long  pos = 0,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as a (signed) long integer.

Applicable to the following VRs: IS, SL, SS, UL, US The result variable 'value' is automatically set to zero if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
pos index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetFloat32 ( const DcmTagKey tagKey,
Float32 &  value,
const unsigned long  pos = 0,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as a 32-bit floating point.

Applicable to the following VRs: FL, OF The result variable 'value' is automatically set to zero if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
pos index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetFloat32Array ( const DcmTagKey tagKey,
const Float32 *&  value,
unsigned long *  count = NULL,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an array of 32-bit floating point values.

Applicable to the following VRs: FL, OF The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the reference to the element value is stored
count stores number of items in the result array (if not NULL)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetFloat64 ( const DcmTagKey tagKey,
Float64 &  value,
const unsigned long  pos = 0,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as a 64-bit floating point.

Applicable to the following VRs: DS, FD The result variable 'value' is automatically set to zero if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the element value is stored
pos index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetFloat64Array ( const DcmTagKey tagKey,
const Float64 *&  value,
unsigned long *  count = NULL,
const OFBool  searchIntoSub = OFFalse
)

find element and get value as an array of 64-bit floating point values.

Applicable to the following VRs: FD The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
value variable in which the reference to the element value is stored
count stores number of items in the result array (if not NULL)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetSequence ( const DcmTagKey seqTagKey,
DcmSequenceOfItems *&  sequence,
const OFBool  searchIntoSub = OFFalse,
const OFBool  createCopy = OFFalse
)

looks up and returns a given sequence.

Applicable to the following VRs: SQ, (pixelSQ) The result variable 'sequence' is automatically set to NULL if an error occurs (e.g. if 'seqTagKey' does not refer to a sequence attribute).

Parameters:
seqTagKey DICOM tag specifying the sequence attribute to be searched for
sequence variable in which the reference to (or copy of) the sequence is stored
searchIntoSub flag indicating whether to search into sub-sequences or not
createCopy create a copy of the sequence if true, return a reference otherwise
Returns:
EC_Normal upon success, an error otherwise.

OFCondition DcmItem::findAndGetSequenceItem ( const DcmTagKey seqTagKey,
DcmItem *&  item,
const signed long  itemNum = 0,
const OFBool  createCopy = OFFalse
)

looks up and returns a given sequence item, if it exists.

Otherwise sets 'item' to NULL and returns EC_TagNotFound (specified sequence does not exist) or EC_IllegalParameter (specified item does not exist). Only the top-most level of the dataset/item is examined (i.e. no deep-search is performed). Applicable to the following VRs: SQ, (pixelSQ)

Parameters:
seqTagKey DICOM tag specifying the sequence attribute to be searched for
item variable in which the reference to (or copy of) the item is stored
itemNum number of the item to be searched for (0..n-1, -1 for last)
createCopy create a copy of the item if true, return a reference otherwise
Returns:
EC_Normal upon success, an error otherwise.

OFCondition DcmItem::findOrCreateSequenceItem ( const DcmTag seqTag,
DcmItem *&  item,
const signed long  itemNum = 0
)

looks up the given sequence in the current dataset and returns the given item.

If either the sequence or the item do not exist, they are created. If necessary, multiple empty items are inserted. Only the top-most level of the dataset/item is examined (i.e. no deep-search is performed). Applicable to the following VRs: SQ, (pixelSQ)

Parameters:
seqTag DICOM tag specifying the sequence attribute to be searched for (or to be created)
item variable in which the reference to the sequence item is stored
itemNum number of the item to be searched for (0..n-1, -1 for last, -2 for append new)
Returns:
EC_Normal upon success, an error otherwise.

OFCondition DcmItem::findAndInsertCopyOfElement ( const DcmTagKey tagKey,
DcmItem destItem,
const OFBool  replaceOld = OFTrue
)

find element, create a copy and insert it into the given destination dataset.

This functions never performs a deep search (i.e. does not search into sequence of items). Empty elements are also copied. However, if the given tag is not found in the current dataset, EC_TagNotFound is returned and the destination dataset remains unchanged. Applicable to all DICOM value representations (VR).

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
destItem destination dataset to which the copied element is inserted
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise

OFCondition DcmItem::findAndDeleteElement ( const DcmTagKey tagKey,
const OFBool  allOccurrences = OFFalse,
const OFBool  searchIntoSub = OFFalse
)

find element, remove it from the dataset and free the associated memory.

Applicable to all DICOM value representations (VR).

Parameters:
tagKey DICOM tag specifying the attribute to be searched for
allOccurrences flag indicating whether to delete all occurrences of the attribute tag or the first one only (implies 'searchIntoSub' to be true)
searchIntoSub flag indicating whether to search into sequences or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndDeleteSequenceItem ( const DcmTagKey seqTagKey,
const signed long  itemNum
)

looks up the given sequence in the current dataset and deletes the given item.

Applicable to the following VRs: SQ, (pixelSQ)

Parameters:
seqTagKey DICOM tag specifying the sequence attribute to be searched for
itemNum number of the item to be deleted (0..n-1, -1 for last)
Returns:
EC_Normal upon success, an error otherwise.

OFCondition DcmItem::putAndInsertString ( const DcmTag tag,
const char *  value,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OF, OW, PN, SH, SL, SS, ST, TM, UI, UL, US, UT

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element (might be empty or NULL)
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertOFStringArray ( const DcmTag tag,
const OFString value,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: AE, AS, CS, DA, DS, DT, IS, LO, LT, PN, SH, ST, TM, UI, UT

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element (might be empty)
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertUint8Array ( const DcmTag tag,
const Uint8 *  value,
const unsigned long  count,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: OB, ox (polymorph OB/OW or pixel data)

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element (might be NULL)
count number of values (= bytes in this case) to be copied from 'value'
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertUint16 ( const DcmTag tag,
const Uint16  value,
const unsigned long  pos = 0,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: US, xs (US or SS)

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element
pos index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertUint16Array ( const DcmTag tag,
const Uint16 *  value,
const unsigned long  count,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: AT, OW, US, ox (polymorph OB/OW or pixel data), xs (US or SS)

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element (might be NULL)
count number of values (not bytes!) to be copied from 'value'
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertSint16 ( const DcmTag tag,
const Sint16  value,
const unsigned long  pos = 0,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: SS, xs (US or SS)

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element
pos index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertSint16Array ( const DcmTag tag,
const Sint16 *  value,
const unsigned long  count,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: SS, xs (US or SS)

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element
count number of values (not bytes!) to be copied from 'value'
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertUint32 ( const DcmTag tag,
const Uint32  value,
const unsigned long  pos = 0,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: UL

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element
pos index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertSint32 ( const DcmTag tag,
const Sint32  value,
const unsigned long  pos = 0,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: SL

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element
pos index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertFloat32 ( const DcmTag tag,
const Float32  value,
const unsigned long  pos = 0,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: FL, OF

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element
pos index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::putAndInsertFloat64 ( const DcmTag tag,
const Float64  value,
const unsigned long  pos = 0,
const OFBool  replaceOld = OFTrue
)

create a new element, put specified value to it and insert the element into the dataset/item.

Applicable to the following VRs: FD

Parameters:
tag DICOM tag specifying the attribute to be created
value value to be set for the new element
pos index of the value to be set (0..vm). A value can be appended to the end of or inserted within the existing value field.
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::insertEmptyElement ( const DcmTag tag,
const OFBool  replaceOld = OFTrue
)

create a new element (with no value) and insert it into the dataset/item.

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OF, OW, PN, SH, SL, SQ, SS, ST, TM, UI, UL, US, UT

Parameters:
tag DICOM tag specifying the attribute to be created
replaceOld flag indicating whether to replace an existing element or not
Returns:
EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::insertSequenceItem ( const DcmTag seqTag,
DcmItem item,
const signed long  itemNum = -2
)

looks up the given sequence in the current dataset and inserts the given item.

If the sequence does not exist, it is created. If necessary, multiple empty items are inserted before the specified item position. Only the top-most level of the dataset/item is examined (i.e. no deep-search is performed). Applicable to the following VRs: SQ, (pixelSQ)

Parameters:
seqTag DICOM tag specifying the sequence attribute to be searched for (or to be created)
item item to be inserted into the sequence, must not be contained in this or any other sequence. Will be deleted upon destruction of the sequence object.
itemNum position of the item (0..n-1, -1 = before last, -2 = after last)
Returns:
EC_Normal upon success, an error otherwise (delete 'item' manually!).

OFCondition DcmItem::readTagAndLength ( DcmInputStream inStream,
const E_TransferSyntax  xfer,
DcmTag tag,
Uint32 &  length,
Uint32 &  bytesRead
) [protected]

This function reads tag and length information from inStream and returns this information to the caller.

When reading information, the transfer syntax which was passed is accounted for. If the transfer syntax shows an explicit value representation, the data type of this object is also read from the stream. In general, this function follows the rules which are specified in the DICOM standard (see DICOM standard (year 2000) part 5, section 7) (or the corresponding section in a later version of the standard) concerning the encoding of a dataset.

Parameters:
inStream The stream which contains the information.
xfer The transfer syntax which was used to encode the information in inStream.
tag Contains in the end the tag that was read.
length Contains in the end the length value that was read.
bytesRead Contains in the end the amount of bytes which were read from inStream.
Returns:
status, EC_Normal if successful, an error code otherwise

OFCondition DcmItem::readSubElement ( DcmInputStream inStream,
DcmTag newTag,
const Uint32  newLength,
const E_TransferSyntax  xfer,
const E_GrpLenEncoding  glenc,
const Uint32  maxReadLength = DCM_MaxReadLength
) [protected]

This function creates a new DcmElement object on the basis of the newTag and newLength information which was passed, inserts this new element into elementList, reads the actual data value which belongs to this element (attribute) from the inStream and also assigns this information to the object which was created at the beginning.

Parameters:
inStream The stream which contains the information.
newTag The tag of the element of which the information is being read.
newLength The length of the information which is being read.
xfer The transfer syntax which was used to encode the information in inStream.
glenc Encoding type for group length. Specifies what will be done with group length tags.
maxReadLength Maximum read length for reading the attribute value.
Returns:
status, EC_Normal if successful, an error code otherwise

E_TransferSyntax DcmItem::checkTransferSyntax ( DcmInputStream inStream  )  [protected]

This function reads the first 6 bytes from the input stream and determines the transfer syntax which was used to code the information in the stream.

The decision is based on two questions: a) Did we encounter a valid tag? and b) Do the last 2 bytes which were read from the stream represent a valid VR? In certain special cases, where the transfer syntax cannot be determined without doubt, we want to guess the most likely transfer syntax (see code).

Parameters:
inStream The stream which contains the coded information.
Returns:
The transfer syntax which was determined.

void DcmItem::checkAndUpdateVR ( DcmItem item,
DcmTag tag
) [protected]

check whether the given tag requires some special handling regarding the VR (i.e.

in case it is undefined and multiple values are possible). If required, the VR of the given element tag is then updated according to the DICOM standard, e.g. the VR of PixelPaddingValue (if undefined) is set to 'SS' or 'US' depending on the value of PixelRepresentation.

Parameters:
item dataset or item that can be used to lookup other element values
tag tag of the element to be checked and updated (if required)

OFCondition DcmItem::searchSubFromHere ( const DcmTagKey tag,
DcmStack resultStack,
OFBool  searchIntoSub
) [private]

helper function for search().

May only be called if elementList is non-empty. Performs hierarchical search for given tag and pushes pointer of sub-element on result stack if found

Parameters:
tag tag key to be searched
resultStack upon successful return, pointer to element pushed onto this stack
searchIntoSub flag indicating whether recursive search is desired
Returns:
EC_Normal if tag found and stack modified, EC_TagNotFound if tag not found and stack unmodified

static OFBool DcmItem::foundVR ( const Uint8 *  atposition  )  [static, private]

helper function that interprets the given pointer as a pointer to an array of two characters and checks whether these two characters form a valid standard DICOM VR.

Parameters:
atposition pointer to array of (at least) two bytes interpreted as VR
Returns:
true if standard VR, false otherwise


Member Data Documentation

OFBool DcmItem::lastElementComplete [protected]

flag used during suspended I/O.

Indicates whether the last element was completely or only partially read/written during the last call to read/write.

Definition at line 1014 of file dcitem.h.

offile_off_t DcmItem::fStartPosition [protected]

used during reading.

Contains the position in the stream where the item started (needed for calculating the remaining number of bytes available for a fixed-length item).

Definition at line 1020 of file dcitem.h.


The documentation for this class was generated from the following file:


Generated on 6 Jan 2011 for OFFIS DCMTK Version 3.6.0 by Doxygen 1.5.1
