DSRCompositeReferenceValue Class Reference

Class for composite reference values. More...

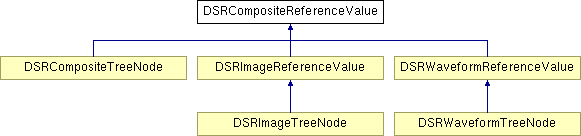

Inheritance diagram for DSRCompositeReferenceValue:

DSRCompositeTreeNode DSRImageReferenceValue DSRWaveformReferenceValue DSRImageTreeNode DSRWaveformTreeNode List of all members.

Public Member Functions

 DSRCompositeReferenceValue ()
 default contructor
 DSRCompositeReferenceValue (const OFString &sopClassUID, const OFString &sopInstanceUID)
 constructor.
 DSRCompositeReferenceValue (const DSRCompositeReferenceValue &referenceValue)
 copy constructor
virtual ~DSRCompositeReferenceValue ()
 destructor
DSRCompositeReferenceValue & operator= (const DSRCompositeReferenceValue &referenceValue)
 assignment operator
virtual void clear ()
 clear all internal variables.
virtual OFBool isValid () const
 check whether the current reference value is valid.
virtual OFBool isEmpty () const
 check whether the current reference value is empty.
virtual OFCondition print (STD_NAMESPACE ostream &stream, const size_t flags) const
 print reference value.
virtual OFCondition readXML (const DSRXMLDocument &doc, DSRXMLCursor cursor)
 read reference value from XML document
virtual OFCondition writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const
 write reference value in XML format
virtual OFCondition readSequence (DcmItem &dataset, const OFString &type)
 read referenced SOP sequence from dataset.
virtual OFCondition writeSequence (DcmItem &dataset) const
 write referenced SOP sequence to dataset.
virtual OFCondition renderHTML (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, size_t &annexNumber, const size_t flags) const
 render composite reference value in HTML/XHTML format
const OFString & getSOPClassUID () const
 get SOP class UID
const OFString & getSOPInstanceUID () const
 get SOP instance UID
const DSRCompositeReferenceValue & getValue () const
 get reference to composite reference value
OFCondition getValue (DSRCompositeReferenceValue &referenceValue) const
 get copy of composite reference value
OFCondition setValue (const DSRCompositeReferenceValue &referenceValue)
 set composite reference value.
OFCondition setReference (const OFString &sopClassUID, const OFString &sopInstanceUID)
 set SOP class UID and SOP instance UID value.
OFCondition setSOPClassUID (const OFString &sopClassUID)
 set SOP class UID value.
OFCondition setSOPInstanceUID (const OFString &sopInstanceUID)
 set SOP instance UID value.

Protected Member Functions

DSRCompositeReferenceValue * getValuePtr ()
 get pointer to reference value
virtual OFCondition readItem (DcmItem &dataset)
 read reference value from dataset
virtual OFCondition writeItem (DcmItem &dataset) const
 write reference value to dataset
virtual OFBool checkSOPClassUID (const OFString &sopClassUID) const
 check the specified SOP class UID for validity.
virtual OFBool checkSOPInstanceUID (const OFString &sopInstanceUID) const
 check the specified SOP instance UID for validity.

Protected Attributes

OFString SOPClassUID
 reference SOP class UID (VR=UI, type 1)
OFString SOPInstanceUID
 reference SOP instance UID (VR=UI, type 1)

Friends

class DSRContentItem

Detailed Description

Class for composite reference values.

Definition at line 47 of file dsrcomvl.h.

Constructor & Destructor Documentation

DSRCompositeReferenceValue::DSRCompositeReferenceValue ( const OFString &  sopClassUID,
const OFString &  sopInstanceUID
)

constructor.

The UID pair is only set if it passed the validity check (see setValue()).

Parameters:
sopClassUID referenced SOP class UID of the composite object. (VR=UI, type 1)
sopInstanceUID referenced SOP instance UID of the composite object. (VR=UI, type 1)

DSRCompositeReferenceValue::DSRCompositeReferenceValue ( const DSRCompositeReferenceValue &  referenceValue  )

copy constructor

Parameters:
referenceValue reference value to be copied (not checked !)

Member Function Documentation

DSRCompositeReferenceValue& DSRCompositeReferenceValue::operator= ( const DSRCompositeReferenceValue &  referenceValue  )

assignment operator

Parameters:
referenceValue reference value to be copied (not checked !)
Returns:
reference to this reference value after 'referenceValue' has been copied

virtual void DSRCompositeReferenceValue::clear (  )  [virtual]

clear all internal variables.

Since an empty reference value is invalid the reference becomes invalid afterwards.

Reimplemented in DSRCompositeTreeNode, DSRImageTreeNode, DSRImageReferenceValue, DSRWaveformTreeNode, and DSRWaveformReferenceValue.

virtual OFBool DSRCompositeReferenceValue::isValid (  )  const [virtual]

check whether the current reference value is valid.

The reference value is valid if SOP class UID and SOP instance UID are valid (see checkSOP...UID() for details).

Returns:
OFTrue if reference value is valid, OFFalse otherwise

Reimplemented in DSRCompositeTreeNode, DSRImageTreeNode, DSRImageReferenceValue, and DSRWaveformTreeNode.

virtual OFBool DSRCompositeReferenceValue::isEmpty (  )  const [virtual]

check whether the current reference value is empty.

Checks whether both UIDs of the reference value are empty.

Returns:
OFTrue if value is empty, OFFalse otherwise

virtual OFCondition DSRCompositeReferenceValue::print ( STD_NAMESPACE ostream &  stream,
const size_t  flags
) const [virtual]

print reference value.

The output of a typical composite reference value looks like this: (BasicTextSR,"1.2.3"). If the SOP class UID is unknown the UID is printed instead of the related name.

Parameters:
stream output stream to which the reference value should be printed
flags flag used to customize the output (see DSRTypes::PF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRCompositeTreeNode, DSRImageTreeNode, DSRImageReferenceValue, DSRWaveformTreeNode, and DSRWaveformReferenceValue.

virtual OFCondition DSRCompositeReferenceValue::readXML ( const DSRXMLDocument &  doc,
DSRXMLCursor  cursor
) [virtual]

read reference value from XML document

Parameters:
doc document containing the XML file content
cursor cursor pointing to the starting node
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

virtual OFCondition DSRCompositeReferenceValue::writeXML ( STD_NAMESPACE ostream &  stream,
const size_t  flags
) const [virtual]

write reference value in XML format

Parameters:
stream output stream to which the XML document is written
flags flag used to customize the output (see DSRTypes::XF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRCompositeTreeNode, DSRImageTreeNode, DSRImageReferenceValue, DSRWaveformTreeNode, and DSRWaveformReferenceValue.

virtual OFCondition DSRCompositeReferenceValue::readSequence ( DcmItem &  dataset,
const OFString &  type
) [virtual]

read referenced SOP sequence from dataset.

The number of items within the sequence is checked. If error/warning output are enabled a warning message is printed if the sequence is absent or contains more than one item.

Parameters:
dataset DICOM dataset from which the sequence should be read
type value type of the sequence (valid value: "1", "2", something else) This parameter is used for checking purpose, any difference is reported.
Returns:
status, EC_Normal if successful, an error code otherwise

virtual OFCondition DSRCompositeReferenceValue::writeSequence ( DcmItem &  dataset  )  const [virtual]

write referenced SOP sequence to dataset.

If the value is empty an empty sequence (without any items) is written.

Parameters:
dataset DICOM dataset to which the sequence should be written
Returns:
status, EC_Normal if successful, an error code otherwise

virtual OFCondition DSRCompositeReferenceValue::renderHTML ( STD_NAMESPACE ostream &  docStream,
STD_NAMESPACE ostream &  annexStream,
size_t &  annexNumber,
const size_t  flags
) const [virtual]

render composite reference value in HTML/XHTML format

Parameters:
docStream output stream to which the main HTML/XHTML document is written
annexStream output stream to which the HTML/XHTML document annex is written
annexNumber reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added.
flags flag used to customize the output (see DSRTypes::HF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

const OFString& DSRCompositeReferenceValue::getSOPClassUID (  )  const [inline]

get SOP class UID

Returns:
current SOP class UID (might be invalid or an empty string)

Definition at line 162 of file dsrcomvl.h.

References SOPClassUID.

const OFString& DSRCompositeReferenceValue::getSOPInstanceUID (  )  const [inline]

get SOP instance UID

Returns:
current SOP instance UID (might be invalid or an empty string)

Definition at line 170 of file dsrcomvl.h.

References SOPInstanceUID.

const DSRCompositeReferenceValue& DSRCompositeReferenceValue::getValue (  )  const [inline]

get reference to composite reference value

Returns:
reference to composite reference value

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

Definition at line 178 of file dsrcomvl.h.

OFCondition DSRCompositeReferenceValue::getValue ( DSRCompositeReferenceValue &  referenceValue  )  const

get copy of composite reference value

Parameters:
referenceValue reference to variable in which the value should be stored
Returns:
status, EC_Normal if successful, an error code otherwise

OFCondition DSRCompositeReferenceValue::setValue ( const DSRCompositeReferenceValue &  referenceValue  )

set composite reference value.

Before setting the reference it is checked (see checkXXX()). If the value is invalid the current value is not replaced and remains unchanged.

Parameters:
referenceValue value to be set
Returns:
status, EC_Normal if successful, an error code otherwise

OFCondition DSRCompositeReferenceValue::setReference ( const OFString &  sopClassUID,
const OFString &  sopInstanceUID
)

set SOP class UID and SOP instance UID value.

Before setting the values they are checked (see checkXXX()). If the value pair is invalid the current value pair is not replaced and remains unchanged.

Parameters:
sopClassUID referenced SOP class UID to be set
sopInstanceUID referenced SOP instance UID to be set
Returns:
status, EC_Normal if successful, an error code otherwise

OFCondition DSRCompositeReferenceValue::setSOPClassUID ( const OFString &  sopClassUID  )

set SOP class UID value.

Before setting the value is is checked (see checkSOPClassUID()). If the value is invalid the current value is not replaced and remains unchanged.

Parameters:
sopClassUID SOP class UID to be set
Returns:
status, EC_Normal if successful, an error code otherwise

OFCondition DSRCompositeReferenceValue::setSOPInstanceUID ( const OFString &  sopInstanceUID  )

set SOP instance UID value.

Before setting the value is is checked (see checkSOPInstanceUID()). If the value is invalid the current value is not replaced and remains unchanged.

Parameters:
sopInstanceUID SOP instance UID to be set
Returns:
status, EC_Normal if successful, an error code otherwise

DSRCompositeReferenceValue* DSRCompositeReferenceValue::getValuePtr (  )  [inline, protected]

get pointer to reference value

Returns:
pointer to reference value (never NULL)

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

Definition at line 229 of file dsrcomvl.h.

virtual OFCondition DSRCompositeReferenceValue::readItem ( DcmItem &  dataset  )  [protected, virtual]

read reference value from dataset

Parameters:
dataset DICOM dataset from which the value should be read
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

virtual OFCondition DSRCompositeReferenceValue::writeItem ( DcmItem &  dataset  )  const [protected, virtual]

write reference value to dataset

Parameters:
dataset DICOM dataset to which the value should be written
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

virtual OFBool DSRCompositeReferenceValue::checkSOPClassUID ( const OFString &  sopClassUID  )  const [protected, virtual]

check the specified SOP class UID for validity.

The only check that is currently performed is that the UID is not empty. Derived classes might overwrite this method for more specific tests (e.g. allowing only particular SOP classes).

Parameters:
sopClassUID SOP class UID to be checked
Returns:
OFTrue if SOP class UID is valid, OFFalse otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

virtual OFBool DSRCompositeReferenceValue::checkSOPInstanceUID ( const OFString &  sopInstanceUID  )  const [protected, virtual]

check the specified SOP instance UID for validity.

The only check that is currently performed is that the UID is not empty. Derived classes might overwrite this method for more specific tests.

Parameters:
sopInstanceUID SOP instance UID to be checked
Returns:
OFTrue if SOP instance UID is valid, OFFalse otherwise

The documentation for this class was generated from the following file:

Generated on 6 Jan 2011 for OFFIS DCMTK Version 3.6.0 by Doxygen 1.5.1
