Template class to rotate monochrome images (on pixel data level). More...

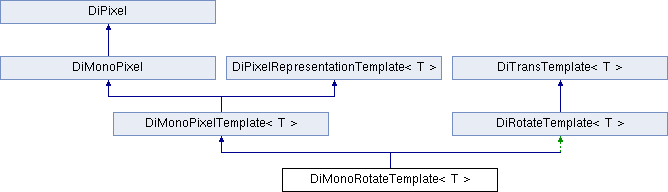

Inheritance diagram for DiMonoRotateTemplate< T >:

Public Member Functions
	DiMonoRotateTemplate (const DiMonoPixel *pixel, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int degree)
	constructor
	~DiMonoRotateTemplate ()
	destructor
Private Member Functions
void	rotate (const T *pixel, const int degree)
	rotate pixel data

Detailed Description

Template class to rotate monochrome images (on pixel data level).

by steps of 90 degrees

Constructor & Destructor Documentation

template<class T >

DiMonoRotateTemplate< T >::DiMonoRotateTemplate	(	const DiMonoPixel *	pixel,
		const Uint16	src_cols,
		const Uint16	src_rows,
		const Uint16	dest_cols,
		const Uint16	dest_rows,
		const Uint32	frames,
		const int	degree
	)		`[inline]`

constructor

Parameters:

pixel	pointer to intermediate pixel representation
src_cols	width of clipping area
src_rows	height of clipping area
dest_cols	width of destination image (scaled image)
dest_rows	height of destination image
frames	number of frames
degree	angle by which the pixel data should be rotated

template<class T >

void DiMonoRotateTemplate< T >::rotate	(	const T *	pixel,
		const int	degree
	)		`[inline, private]`

rotate pixel data

Parameters:

pixel	pointer to pixel data to be rotated
degree	angle by which the pixel data should be rotated

The documentation for this class was generated from the following file:
