Abstract base class to handle monochrome pixel data. More...

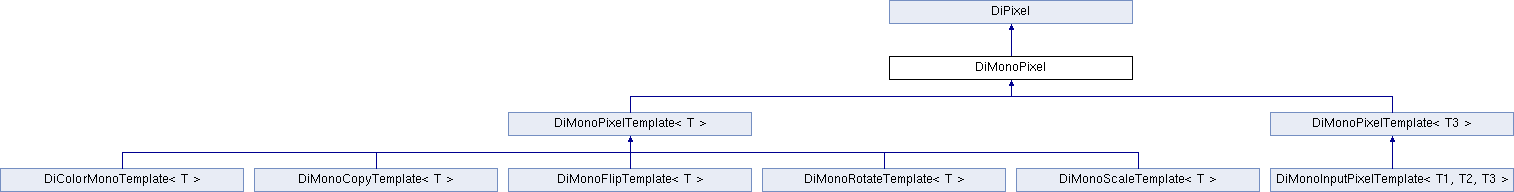

Inheritance diagram for DiMonoPixel:

Public Member Functions
	DiMonoPixel (const unsigned long count)
	constructor
	DiMonoPixel (const DiInputPixel pixel, DiMonoModality modality)
	constructor
	DiMonoPixel (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor
virtual	~DiMonoPixel ()
	destructor
int	getPlanes () const
	get number of planes
virtual int	getMinMaxValues (double &min, double &max) const =0
	get minimum and maximum pixel values (abstract)
virtual int	getMinMaxWindow (const int idx, double &center, double &width)=0
	get automatically computed min-max window (abstract)
virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)=0
	get automatically computed Region of Interest (ROI) window (abstract)
virtual int	getHistogramWindow (const double thresh, double &center, double &width)=0
	get automatically computed histogram window (abstract)
unsigned int	getBits () const
	get number of bits per pixel
double	getAbsMinimum () const
	get absolute minimum pixel value.
double	getAbsMaximum () const
	get absolute maximum pixel value.
double	getAbsMaxRange () const
	get absolute pixel range
const char *	getModalityLutExplanation () const
	get modality LUT explanation string
DiMonoModality *	addReferenceToModality ()
	add a reference to the internally managed modality transform object
int	isPotentiallySigned () const
	check whether pixel data is 'potentially' signed.
Protected Member Functions
	DiMonoPixel (const DiPixel pixel, DiMonoModality modality)
	constructor
	DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count)
	constructor
Protected Attributes
DiMonoModality *	Modality
	pointer to modality transform object
Private Member Functions
	DiMonoPixel (const DiMonoPixel &)
DiMonoPixel &	operator= (const DiMonoPixel &)

Detailed Description

Abstract base class to handle monochrome pixel data.

Constructor & Destructor Documentation

DiMonoPixel::DiMonoPixel ( const unsigned long count )

constructor

Parameters:

count number of pixels

DiMonoPixel::DiMonoPixel	(	const DiInputPixel *	pixel,
		DiMonoModality *	modality
	)

constructor

Parameters:

pixel	pointer to input pixel data
modality	pointer to object managing modality transform

DiMonoPixel::DiMonoPixel	(	DiMonoOutputPixel *	pixel,
		DiMonoModality *	modality
	)

constructor

Parameters:

pixel	pointer to output pixel data used for intermediate representation
modality	pointer to object managing modality transform

DiMonoPixel::DiMonoPixel	(	const DiPixel *	pixel,
		DiMonoModality *	modality
	)		`[protected]`

constructor

Parameters:

pixel	pointer to intermediate pixel data (not necessarily monochrome)
modality	pointer to object managing modality transform

DiMonoPixel::DiMonoPixel	(	const DiMonoPixel *	pixel,
		const unsigned long	count
	)		`[protected]`

constructor

Parameters:

pixel	pointer to intermediate monochrome pixel data
count	number of pixels

Member Function Documentation

DiMonoModality* DiMonoPixel::addReferenceToModality ( )

add a reference to the internally managed modality transform object

Returns:: pointer to modality transform object (might be NULL)

double DiMonoPixel::getAbsMaximum ( ) const [inline]

get absolute maximum pixel value.

The result depends on former transforms.

Returns:: absolute maximum value

double DiMonoPixel::getAbsMaxRange ( ) const [inline]

get absolute pixel range

Returns:: absolute pixel range

double DiMonoPixel::getAbsMinimum ( ) const [inline]

get absolute minimum pixel value.

The result depends on former transforms.

Returns:: absolute minimum value

unsigned int DiMonoPixel::getBits ( ) const [inline]

get number of bits per pixel

Returns:: number of bits

virtual int DiMonoPixel::getHistogramWindow	(	const double	thresh,
		double &	center,
		double &	width
	)		`[pure virtual]`

get automatically computed histogram window (abstract)

Parameters:

thresh	ignore certain percentage of pixels at lower and upper boundaries
center	reference to storage area for window center value
width	reference to storage area for window width value

Returns:: status, true if successful, false otherwise

Implemented in DiMonoPixelTemplate< T >, and DiMonoPixelTemplate< T3 >.

virtual int DiMonoPixel::getMinMaxValues	(	double &	min,
		double &	max
	)		const `[pure virtual]`

get minimum and maximum pixel values (abstract)

Parameters:

min	reference to storage area for minimum pixel value
max	reference to storage area for maximum pixel value

Returns:: status, true if successful, false otherwise

Implemented in DiMonoPixelTemplate< T >, and DiMonoPixelTemplate< T3 >.

virtual int DiMonoPixel::getMinMaxWindow	(	const int	idx,
		double &	center,
		double &	width
	)		`[pure virtual]`

get automatically computed min-max window (abstract)

Parameters:

idx	ignore global min/max pixel values if > 0
center	reference to storage area for window center value
width	reference to storage area for window width value

Returns:: status, true if successful, false otherwise

Implemented in DiMonoPixelTemplate< T >, and DiMonoPixelTemplate< T3 >.

const char* DiMonoPixel::getModalityLutExplanation ( ) const [inline]

get modality LUT explanation string

Returns:: modality LUT explanation

int DiMonoPixel::getPlanes ( ) const [inline, virtual]

get number of planes

Returns:: number of planes (here 1, monochrome)

Implements DiPixel.

virtual int DiMonoPixel::getRoiWindow	(	const unsigned long	left_pos,
		const unsigned long	top_pos,
		const unsigned long	width,
		const unsigned long	height,
		const unsigned long	columns,
		const unsigned long	rows,
		const unsigned long	frame,
		double &	voiCenter,
		double &	voiWidth
	)		`[pure virtual]`

get automatically computed Region of Interest (ROI) window (abstract)

Parameters:

left_pos	x-coordinate of the top left-hand corner of the ROI (starting from 0)
top_pos	y-coordinate of the top left-hand corner of the ROI (starting from 0)
width	width in pixels of the rectangular ROI (minimum: 1)
height	height in pixels of the rectangular ROI (minimum: 1)
columns	number of columns (width) of the associated image
rows	number of rows (height) of the associated image
frame	index of the frame to be used for the calculation
voiCenter	reference to storage area for window center value
voiWidth	reference to storage area for window width value

Returns:: status, true if successful, false otherwise

Implemented in DiMonoPixelTemplate< T >, and DiMonoPixelTemplate< T3 >.

int DiMonoPixel::isPotentiallySigned ( ) const [inline]

check whether pixel data is 'potentially' signed.

This check is necessary to interpret possibly folowing LUT descriptors correctly (see supplement 33)

Returns:: true if pixel data is potentially signed, false otherwise

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/dimopx.h
