DSRTextTreeNode Class Reference

Class for content item TEXT. More...

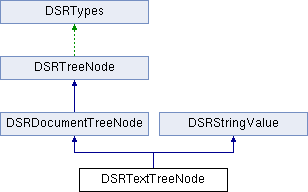

Inheritance diagram for DSRTextTreeNode:

List of all members.

Public Member Functions
	DSRTextTreeNode (const E_RelationshipType relationshipType)
	constructor
	DSRTextTreeNode (const E_RelationshipType relationshipType, const OFString &stringValue)
	constructor
virtual	~DSRTextTreeNode ()
	destructor
virtual void	clear ()
	clear all member variables.
virtual OFBool	isValid () const
	check whether the content item is valid.
virtual OFBool	isShort (const size_t flags) const
	check whether the content is short.
virtual OFCondition	print (STD_NAMESPACE ostream &stream, const size_t flags) const
	print content item.
virtual OFCondition	writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const
	write content item in XML format
Protected Member Functions
virtual OFCondition	readContentItem (DcmItem &dataset)
	read content item (value) from dataset
virtual OFCondition	writeContentItem (DcmItem &dataset) const
	write content item (value) to dataset
virtual OFCondition	readXMLContentItem (const DSRXMLDocument &doc, DSRXMLCursor cursor)
	read content item specific XML data
virtual OFCondition	renderHTMLContentItem (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags) const
	render content item (value) in HTML/XHTML format
Private Member Functions
	DSRTextTreeNode (const DSRTextTreeNode &)
DSRTextTreeNode &	operator= (const DSRTextTreeNode &)

---

Detailed Description

Class for content item TEXT.

---

Constructor & Destructor Documentation

DSRTextTreeNode::DSRTextTreeNode

(

const E_RelationshipType

relationshipType

)

constructor

Parameters:

relationshipType

type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.

DSRTextTreeNode::DSRTextTreeNode	(	const E_RelationshipType	relationshipType,
		const OFString &	stringValue
	)

constructor

Parameters:

relationshipType	type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.
stringValue	initial string value to be set

---

Member Function Documentation

virtual void DSRTextTreeNode::clear

(

)

[virtual]

clear all member variables.

Please note that the content item might become invalid afterwards.

Reimplemented from DSRDocumentTreeNode.

virtual OFBool DSRTextTreeNode::isShort

(

const size_t

flags

)

const [virtual]

check whether the content is short.

A text is short if the length is <= 40 characters.

Parameters:

flags

flag used to customize the output (see DSRTypes::HF_xxx)

Returns:

OFTrue if the content is short, OFFalse otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFBool DSRTextTreeNode::isValid

(

)

const [virtual]

check whether the content item is valid.

The content item is valid if the two base classes and the concept name are valid.

Returns:

OFTrue if tree node is valid, OFFalse otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::print	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const [virtual]

print content item.

A typical output looks like this: contains TEXT:(,,"Text Code")="This is a Text." If the 'flag' PF_shortenLongItemValues is set the text is limited to 40 characters (incl. trailing "...").

Parameters:

stream	output stream to which the content item should be printed
flags	flag used to customize the output (see DSRTypes::PF_xxx)

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::readContentItem

(

DcmItem &

dataset

)

[protected, virtual]

read content item (value) from dataset

Parameters:

dataset

DICOM dataset from which the content item should be read

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::readXMLContentItem	(	const DSRXMLDocument &	doc,
		DSRXMLCursor	cursor
	)		[protected, virtual]

read content item specific XML data

Parameters:

doc	document containing the XML file content
cursor	cursor pointing to the starting node

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::renderHTMLContentItem	(	STD_NAMESPACE ostream &	docStream,
		STD_NAMESPACE ostream &	annexStream,
		const size_t	nestingLevel,
		size_t &	annexNumber,
		const size_t	flags
	)		const [protected, virtual]

render content item (value) in HTML/XHTML format

Parameters:

docStream	output stream to which the main HTML/XHTML document is written
annexStream	output stream to which the HTML/XHTML document annex is written
nestingLevel	current nesting level. Used to render section headings.
annexNumber	reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added.
flags	flag used to customize the output (see DSRTypes::HF_xxx)

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::writeContentItem

(

DcmItem &

dataset

)

const [protected, virtual]

write content item (value) to dataset

Parameters:

dataset

DICOM dataset to which the content item should be written

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRTextTreeNode::writeXML	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const [virtual]

write content item in XML format

Parameters:

stream	output stream to which the XML document is written
flags	flag used to customize the output (see DSRTypes::XF_xxx)

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

---

The documentation for this class was generated from the following file:

• dcmsr/include/dcmtk/dcmsr/dsrtextn.h
