a class representing a list of DICOM elements in which each element has a different tag and elements are maintained in increasing order of tags. More...

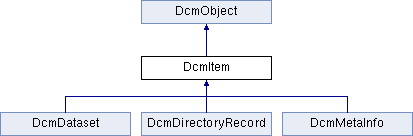

Inheritance diagram for DcmItem:

Public Member Functions
	DcmItem ()
	default constructor
	DcmItem (const DcmTag &tag, const Uint32 len=0)
	constructor.
	DcmItem (const DcmItem &old)
	copy constructor
DcmItem &	operator= (const DcmItem &obj)
	assignment operator.
virtual	~DcmItem ()
	destructor
virtual DcmObject *	clone () const
	clone method
virtual OFCondition	copyFrom (const DcmObject &rhs)
	Virtual object copying.
virtual DcmEVR	ident () const
	get type identifier
virtual unsigned long	getVM ()
	get value multiplicity
virtual unsigned long	card () const
	get cardinality of this item
virtual OFBool	isLeaf () const
	check if this element is a leaf node in a dataset tree.
virtual void	print (STD_NAMESPACE ostream &out, const size_t flags=0, const int level=0, const char pixelFileName=NULL, size_t pixelCounter=NULL)
	print all elements of the item to a stream
virtual Uint32	calcElementLength (const E_TransferSyntax xfer, const E_EncodingType enctype)
	calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.
virtual Uint32	getLength (const E_TransferSyntax xfer=EXS_LittleEndianImplicit, const E_EncodingType enctype=EET_UndefinedLength)
	calculate the value length (without attribute tag, VR and length field) of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.
virtual void	transferInit ()
	initialize the transfer state of this object.
virtual void	transferEnd ()
	finalize the transfer state of this object.
virtual DcmItem *	getParentItem ()
	get parent item of this object, i.e. the item/dataset in which the surrounding sequence element is stored.
virtual OFBool	canWriteXfer (const E_TransferSyntax newXfer, const E_TransferSyntax oldXfer)
	check if this DICOM object can be encoded in the given transfer syntax.
virtual OFCondition	read (DcmInputStream &inStream, const E_TransferSyntax ixfer, const E_GrpLenEncoding glenc=EGL_noChange, const Uint32 maxReadLength=DCM_MaxReadLength)
	This function reads the information of all attributes which are captured in the input stream and captures this information in elementList.
virtual OFCondition	write (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	write object to a stream
virtual OFCondition	writeXML (STD_NAMESPACE ostream &out, const size_t flags=0)
	write object in XML format
virtual OFCondition	writeSignatureFormat (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	special write method for creation of digital signatures
virtual OFBool	containsUnknownVR () const
	returns true if the object contains an element with Unknown VR at any nesting level
virtual OFBool	containsExtendedCharacters (const OFBool checkAllStrings=OFFalse)
	check if this object contains non-ASCII characters at any nesting level.
virtual OFBool	isAffectedBySpecificCharacterSet () const
	check if this object is affected by SpecificCharacterSet at any nesting level.
virtual OFCondition	convertCharacterSet (const OFString &fromCharset, const OFString &toCharset, const OFBool transliterate=OFFalse, const OFBool updateCharset=OFFalse)
	convert all element values that are contained in this item and that are affected by SpecificCharacterSet from the given source character set to the given destination character set.
virtual OFCondition	convertCharacterSet (const OFString &toCharset, const OFBool transliterate=OFFalse, const OFBool ignoreCharset=OFFalse)
	convert all element values that are contained in this item and that are affected by SpecificCharacterSet to the given destination character set.
virtual OFCondition	convertCharacterSet (DcmSpecificCharacterSet &converter)
	convert all element values that are contained in this item and that are affected by SpecificCharacterSet from the currently selected source character set to the currently selected destination character set
virtual OFCondition	convertToUTF8 ()
	convert all element values that are contained in this item and that are affected by SpecificCharacterSet to UTF-8 (Unicode).
virtual OFCondition	insert (DcmElement *elem, OFBool replaceOld=OFFalse, OFBool checkInsertOrder=OFFalse)
	insert a new element into the list of elements maintained by this item.
virtual DcmElement *	getElement (const unsigned long num)
	access an element from the item.
virtual OFCondition	nextObject (DcmStack &stack, const OFBool intoSub)
	this method enables a stack based, depth-first traversal of a complete hierarchical DICOM dataset (that is, classes derived from DcmItem or DcmSequenceOfItems).
virtual DcmObject *	nextInContainer (const DcmObject *obj)
	this method is only used in container classes, that is, DcmItem and DcmSequenceOfItems.
virtual DcmElement *	remove (const unsigned long num)
	remove element from list.
virtual DcmElement *	remove (DcmObject *elem)
	remove element from list.
virtual DcmElement *	remove (const DcmTagKey &tag)
	remove element from list.
virtual OFBool	isEmpty (const OFBool normalize=OFTrue)
	check if this item is empty
virtual OFCondition	clear ()
	clear (remove) all attributes from item and delete them from memory.
virtual OFCondition	verify (const OFBool autocorrect=OFFalse)
	check the currently stored element value
virtual OFCondition	search (const DcmTagKey &xtag, DcmStack &resultStack, E_SearchMode mode=ESM_fromHere, OFBool searchIntoSub=OFTrue)
	a complex, stack-based, hierarchical search method.
virtual OFCondition	loadAllDataIntoMemory ()
	this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory.
virtual void	compactElements (const Uint32 maxLength)
	iterate over all elements and remove those element values from memory which exceed a given length and which can be loaded from file when needed again.
virtual OFCondition	computeGroupLengthAndPadding (const E_GrpLenEncoding glenc, const E_PaddingEncoding padenc=EPD_noChange, const E_TransferSyntax xfer=EXS_Unknown, const E_EncodingType enctype=EET_ExplicitLength, const Uint32 padlen=0, const Uint32 subPadlen=0, Uint32 instanceLength=0)
	This function takes care of group length and padding elements in the current element list according to what is specified in glenc and padenc.
OFBool	tagExists (const DcmTagKey &key, OFBool searchIntoSub=OFFalse)
	check if an element with the given attribute tag exists in the dataset
OFBool	tagExistsWithValue (const DcmTagKey &key, OFBool searchIntoSub=OFFalse)
	check if an element with the given attribute tag exists in the dataset and has a non-empty value
OFCondition	findAndGetElement (const DcmTagKey &tagKey, DcmElement *&element, const OFBool searchIntoSub=OFFalse, const OFBool createCopy=OFFalse)
	find element and get a pointer to it (or copy it).
OFCondition	findAndGetElements (const DcmTagKey &tagKey, DcmStack &resultStack)
	find all elements matching a particular tag and return references to them on a stack.
OFCondition	findAndGetString (const DcmTagKey &tagKey, const char *&value, const OFBool searchIntoSub=OFFalse)
	find element and get value as a reference to a C string.
OFCondition	findAndGetString (const DcmTagKey &tagKey, const char *&value, Uint32 &length, const OFBool searchIntoSub=OFFalse)
	find element and get value as a reference to a C string.
OFCondition	findAndGetOFString (const DcmTagKey &tagKey, OFString &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a C++ string (only one component).
OFCondition	findAndGetOFStringArray (const DcmTagKey &tagKey, OFString &value, const OFBool searchIntoSub=OFFalse)
	find element and get value as a C++ string (all components).
OFCondition	findAndGetUint8 (const DcmTagKey &tagKey, Uint8 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as an unsigned 8-bit integer.
OFCondition	findAndGetUint8Array (const DcmTagKey &tagKey, const Uint8 &value, unsigned long count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of unsigned 8-bit integers.
OFCondition	findAndGetUint16 (const DcmTagKey &tagKey, Uint16 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as an unsigned 16-bit integer.
OFCondition	findAndGetUint16Array (const DcmTagKey &tagKey, const Uint16 &value, unsigned long count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of unsigned 16-bit integers.
OFCondition	findAndGetSint16 (const DcmTagKey &tagKey, Sint16 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a signed 16-bit integer.
OFCondition	findAndGetSint16Array (const DcmTagKey &tagKey, const Sint16 &value, unsigned long count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of signed 16-bit integers.
OFCondition	findAndGetUint32 (const DcmTagKey &tagKey, Uint32 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as an unsigned 32-bit integer.
OFCondition	findAndGetUint32Array (const DcmTagKey &tagKey, const Uint32 &value, unsigned long count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of unsigned 32-bit integers.
OFCondition	findAndGetSint32 (const DcmTagKey &tagKey, Sint32 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a signed 32-bit integer.
OFCondition	findAndGetSint32Array (const DcmTagKey &tagKey, const Sint32 &value, unsigned long count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of signed 32-bit integers.
OFCondition	findAndGetLongInt (const DcmTagKey &tagKey, long int &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a (signed) long integer.
OFCondition	findAndGetFloat32 (const DcmTagKey &tagKey, Float32 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a 32-bit floating point.
OFCondition	findAndGetFloat32Array (const DcmTagKey &tagKey, const Float32 &value, unsigned long count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of 32-bit floating point values.
OFCondition	findAndGetFloat64 (const DcmTagKey &tagKey, Float64 &value, const unsigned long pos=0, const OFBool searchIntoSub=OFFalse)
	find element and get value as a 64-bit floating point.
OFCondition	findAndGetFloat64Array (const DcmTagKey &tagKey, const Float64 &value, unsigned long count=NULL, const OFBool searchIntoSub=OFFalse)
	find element and get value as an array of 64-bit floating point values.
OFCondition	findAndGetSequence (const DcmTagKey &seqTagKey, DcmSequenceOfItems *&sequence, const OFBool searchIntoSub=OFFalse, const OFBool createCopy=OFFalse)
	looks up and returns a given sequence.
OFCondition	findAndGetSequenceItem (const DcmTagKey &seqTagKey, DcmItem *&item, const signed long itemNum=0, const OFBool createCopy=OFFalse)
	looks up and returns a given sequence item, if it exists.
OFCondition	findOrCreateSequenceItem (const DcmTag &seqTag, DcmItem *&item, const signed long itemNum=0)
	looks up the given sequence in the current dataset and returns the given item.
OFCondition	findAndInsertCopyOfElement (const DcmTagKey &tagKey, DcmItem *destItem, const OFBool replaceOld=OFTrue)
	find element, create a copy and insert it into the given destination dataset.
OFCondition	findAndDeleteElement (const DcmTagKey &tagKey, const OFBool allOccurrences=OFFalse, const OFBool searchIntoSub=OFFalse)
	find element, remove it from the dataset and free the associated memory.
OFCondition	findAndDeleteSequenceItem (const DcmTagKey &seqTagKey, const signed long itemNum)
	looks up the given sequence in the current dataset and deletes the given item.
OFCondition	putAndInsertString (const DcmTag &tag, const char *value, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertString (const DcmTag &tag, const char *value, const Uint32 length, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertOFStringArray (const DcmTag &tag, const OFString &value, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertUint8Array (const DcmTag &tag, const Uint8 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertUint16 (const DcmTag &tag, const Uint16 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertUint16Array (const DcmTag &tag, const Uint16 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertSint16 (const DcmTag &tag, const Sint16 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertSint16Array (const DcmTag &tag, const Sint16 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertUint32 (const DcmTag &tag, const Uint32 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertSint32 (const DcmTag &tag, const Sint32 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertFloat32 (const DcmTag &tag, const Float32 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertFloat32Array (const DcmTag &tag, const Float32 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertFloat64 (const DcmTag &tag, const Float64 value, const unsigned long pos=0, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	putAndInsertFloat64Array (const DcmTag &tag, const Float64 *value, const unsigned long count, const OFBool replaceOld=OFTrue)
	create a new element, put specified value to it and insert the element into the dataset/item.
OFCondition	insertEmptyElement (const DcmTag &tag, const OFBool replaceOld=OFTrue)
	create a new element (with no value) and insert it into the dataset/item.
OFCondition	insertSequenceItem (const DcmTag &seqTag, DcmItem *item, const signed long itemNum=-2)
	looks up the given sequence in the current dataset and inserts the given item.
Protected Member Functions
OFCondition	readTagAndLength (DcmInputStream &inStream, const E_TransferSyntax xfer, DcmTag &tag, Uint32 &length, Uint32 &bytesRead)
	This function reads tag and length information from inStream and returns this information to the caller.
OFCondition	readSubElement (DcmInputStream &inStream, DcmTag &newTag, const Uint32 newLength, const E_TransferSyntax xfer, const E_GrpLenEncoding glenc, const Uint32 maxReadLength=DCM_MaxReadLength)
	This function creates a new DcmElement object on the basis of the newTag and newLength information which was passed, inserts this new element into elementList, reads the actual data value which belongs to this element (attribute) from the inStream and also assigns this information to the object which was created at the beginning.
E_TransferSyntax	checkTransferSyntax (DcmInputStream &inStream)
	This function reads the first 6 bytes from the input stream and determines the transfer syntax which was used to code the information in the stream.
void	checkAndUpdateVR (DcmItem &item, DcmTag &tag)
	check whether the given tag requires some special handling regarding the VR (i.e. in case it is undefined and multiple values are possible).
void	updateSpecificCharacterSet (OFCondition &status, const DcmSpecificCharacterSet &converter)
	update the SpecificCharacterSet (0008,0005) element depending on the given parameters.
virtual OFBool	checkForSpecificCharacterSet () const
	mode specifying whether the SpecificCharacterSet (0008,0005) element should be checked by convertCharacterSet() or not.
Protected Attributes
DcmList *	elementList
	the list of elements maintained by this object
OFBool	lastElementComplete
	flag used during suspended I/O.
offile_off_t	fStartPosition
	used during reading.
Private Member Functions
OFCondition	searchSubFromHere (const DcmTagKey &tag, DcmStack &resultStack, OFBool searchIntoSub)
	helper function for search().
Static Private Member Functions
static OFBool	foundVR (const Uint8 *atposition)
	helper function that interprets the given pointer as a pointer to an array of two characters and checks whether these two characters form a valid standard DICOM VR.
Private Attributes
DcmPrivateTagCache	privateCreatorCache
	cache for private creator tags and names

Detailed Description

a class representing a list of DICOM elements in which each element has a different tag and elements are maintained in increasing order of tags.

In particular, a sequence item.

Constructor & Destructor Documentation

DcmItem::DcmItem	(	const DcmTag &	tag,
		const Uint32	len = `0`
	)

constructor.

Create new item from given tag and length.

Parameters:

tag	DICOM tag for the new element
len	value length for the new element

DcmItem::DcmItem ( const DcmItem & old )

copy constructor

Parameters:

old	item to be copied

Member Function Documentation

virtual Uint32 DcmItem::calcElementLength	(	const E_TransferSyntax	xfer,
		const E_EncodingType	enctype
	)		`[virtual]`

calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.

For elements, the length includes the length of the tag, length field, VR field and the value itself, for items and sequences it returns the length of the complete item or sequence including delimitation tags if applicable. If length encodig is set to be explicit and the total item size is larger than the available 32-bit length field, then undefined length is returned. If "dcmWriteOversizedSeqsAndItemsImplicit" is disabled, also the internal DcmObject errorFlag is set to EC_SeqOrItemContentOverflow in case the item content (excluding tag header etc.) is already too large.

Parameters:

xfer	transfer syntax for length calculation
enctype	sequence encoding type for length calculation

Returns:: length of DICOM element

Implements DcmObject.

Reimplemented in DcmDataset, and DcmMetaInfo.

virtual OFBool DcmItem::canWriteXfer	(	const E_TransferSyntax	newXfer,
		const E_TransferSyntax	oldXfer
	)		`[virtual]`

check if this DICOM object can be encoded in the given transfer syntax.

Parameters:

newXfer	transfer syntax in which the DICOM object is to be encoded
oldXfer	transfer syntax in which the DICOM object was read or created.

Returns:: true if object can be encoded in desired transfer syntax, false otherwise.

Implements DcmObject.

Reimplemented in DcmDataset.

virtual unsigned long DcmItem::card ( ) const [virtual]

get cardinality of this item

Returns:: number of elements in this item

void DcmItem::checkAndUpdateVR	(	DcmItem &	item,
		DcmTag &	tag
	)		`[protected]`

check whether the given tag requires some special handling regarding the VR (i.e. in case it is undefined and multiple values are possible).

If required, the VR of the given element tag is then updated according to the DICOM standard, e.g. the VR of PixelPaddingValue (if undefined) is set to 'SS' or 'US' depending on the value of PixelRepresentation.

Parameters:

item	dataset or item that can be used to lookup other element values
tag	tag of the element to be checked and updated (if required)

virtual OFBool DcmItem::checkForSpecificCharacterSet ( ) const [inline, protected, virtual]

mode specifying whether the SpecificCharacterSet (0008,0005) element should be checked by convertCharacterSet() or not.

This method is reimplemented in derived classes.

Returns:: always returns OFFalse, i.e. SpecificCharacterSet should not be checked

Reimplemented in DcmDirectoryRecord, and DcmDataset.

E_TransferSyntax DcmItem::checkTransferSyntax ( DcmInputStream & inStream ) [protected]

This function reads the first 6 bytes from the input stream and determines the transfer syntax which was used to code the information in the stream.

The decision is based on two questions: a) Did we encounter a valid tag? and b) Do the last 2 bytes which were read from the stream represent a valid VR? In certain special cases, where the transfer syntax cannot be determined without doubt, we want to guess the most likely transfer syntax (see code).

Parameters:

inStream The stream which contains the coded information.

Returns:: The transfer syntax which was determined.

virtual OFCondition DcmItem::clear ( ) [virtual]

clear (remove) all attributes from item and delete them from memory.

Returns:: EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmDataset.

virtual DcmObject* DcmItem::clone ( ) const [inline, virtual]

clone method

Returns:: deep copy of this object

Implements DcmObject.

Reimplemented in DcmDirectoryRecord, DcmMetaInfo, and DcmDataset.

virtual void DcmItem::compactElements ( const Uint32 maxLength ) [virtual]

iterate over all elements and remove those element values from memory which exceed a given length and which can be loaded from file when needed again.

For all other elements, nothing is done.

Parameters:

maxLength maximum length (number of bytes) allowed without removing the value

virtual OFCondition DcmItem::computeGroupLengthAndPadding	(	const E_GrpLenEncoding	glenc,
		const E_PaddingEncoding	padenc = `EPD_noChange`,
		const E_TransferSyntax	xfer = `EXS_Unknown`,
		const E_EncodingType	enctype = `EET_ExplicitLength`,
		const Uint32	padlen = `0`,
		const Uint32	subPadlen = `0`,
		Uint32	instanceLength = `0`
	)		`[virtual]`

This function takes care of group length and padding elements in the current element list according to what is specified in glenc and padenc.

If required, this function does the following two things: a) it calculates the group length of all groups which are contained in this item and sets the calculated values in the corresponding group length elements and b) it inserts a corresponding padding element (or, in case of sequences: padding elements) with a corresponding correct size into the element list.

Parameters:

glenc	Encoding type for group length; specifies what shall be done with group length tags.
padenc	Encoding type for padding; specifies what shall be done with padding tags.
xfer	The transfer syntax that shall be used.
enctype	Encoding type for sequences; specifies how sequences will be handled.
padlen	The length up to which the dataset shall be padded, if padding is desired.
subPadlen	For sequences (ie sub elements), the length up to which item shall be padded, if padding is desired.
instanceLength	Number of extra bytes added to the item/dataset length used when computing the padding; this parameter is for instance used to pass the length of the file meta header from the DcmFileFormat to the DcmDataset object.

Returns:: status, EC_Normal if successful, an error code otherwise

virtual OFBool DcmItem::containsExtendedCharacters ( const OFBool checkAllStrings = OFFalse ) [virtual]

check if this object contains non-ASCII characters at any nesting level.

Please note that this check is pretty simple and only works for single-byte character sets that do include the 7-bit ASCII codes, e.g. for the ISO 8859 family. In other words: All character codes below 128 are considered to be ASCII codes and all others are considered to be non-ASCII.

Parameters:

checkAllStrings if true, also check elements with string values not affected by SpecificCharacterSet (0008,0005), default: only check PN, LO, LT, SH, ST, UT

Returns:: true if object contains non-ASCII characters, false otherwise

Reimplemented from DcmObject.

virtual OFBool DcmItem::containsUnknownVR ( ) const [virtual]

returns true if the object contains an element with Unknown VR at any nesting level

Returns:: true if the object contains an element with Unknown VR, false otherwise

Reimplemented from DcmObject.

virtual OFCondition DcmItem::convertCharacterSet	(	const OFString &	fromCharset,
		const OFString &	toCharset,
		const OFBool	transliterate = `OFFalse`,
		const OFBool	updateCharset = `OFFalse`
	)		`[virtual]`

convert all element values that are contained in this item and that are affected by SpecificCharacterSet from the given source character set to the given destination character set.

The defined terms for a particular character set can be found in the DICOM standard, e.g. "ISO_IR 100" for ISO 8859-1 (Latin 1) or "ISO_IR 192" for Unicode in UTF-8. An empty string denotes the default character repertoire, which is ASCII (7-bit). If multiple values are given for 'fromCharset' (separated by a backslash) code extension techniques are used and escape sequences may be encountered in the source string to switch between the specified character sets.

Parameters:

fromCharset	name of the source character set(s) used for the conversion
toCharset	name of the destination character set used for the conversion. Only a single value is permitted (i.e. no code extensions).
transliterate	mode specifying whether a character that cannot be represented in the destination character encoding is approximated through one or more characters that look similar to the original one
updateCharset	if OFTrue, the SpecificCharacterSet (0008,0005) element is updated, i.e. the current value is either replaced or a new element is inserted or the existing element is deleted. If OFFalse the SpecificCharacterSet element remains unchanged.

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmDirectoryRecord.

virtual OFCondition DcmItem::convertCharacterSet	(	const OFString &	toCharset,
		const OFBool	transliterate = `OFFalse`,
		const OFBool	ignoreCharset = `OFFalse`
	)		`[virtual]`

convert all element values that are contained in this item and that are affected by SpecificCharacterSet to the given destination character set.

If not disabled, the source character set is determined automatically from the value of the SpecificCharacterSet (0008,0005) element. The defined terms for the destination character set can be found in the DICOM standard, e.g. "ISO_IR 100" for ISO 8859-1 (Latin 1) or "ISO_IR 192" for Unicode in UTF-8. An empty string denotes the default character repertoire, which is ASCII (7-bit).

Parameters:

toCharset	name of the destination character set used for the conversion. Only a single value is permitted (i.e. no code extensions).
transliterate	mode specifying whether a character that cannot be represented in the destination character encoding is approximated through one or more characters that look similar to the original one
ignoreCharset	if OFTrue, the value of SpecificCharacterSet is ignored. Also see checkForSpecificCharacterSet().

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmDirectoryRecord.

virtual OFCondition DcmItem::convertCharacterSet ( DcmSpecificCharacterSet & converter ) [virtual]

convert all element values that are contained in this item and that are affected by SpecificCharacterSet from the currently selected source character set to the currently selected destination character set

Parameters:

converter character set converter to be used to convert the element values

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmObject.

Reimplemented in DcmDirectoryRecord.

virtual OFCondition DcmItem::convertToUTF8 ( ) [virtual]

convert all element values that are contained in this item and that are affected by SpecificCharacterSet to UTF-8 (Unicode).

The value of the SpecificCharacterSet (0008,0005) element is updated, set or deleted automatically if needed. The transliteration mode is disabled - see convertCharacterSet().

Returns:: status, EC_Normal if successful, an error code otherwise

virtual OFCondition DcmItem::copyFrom ( const DcmObject & rhs ) [virtual]

Virtual object copying.

This method can be used for DcmObject and derived classes to get a deep copy of an object. Internally the assignment operator is called if the given DcmObject parameter is of the same type as "this" object instance. If not, an error is returned. This function permits copying an object by value in a virtual way which therefore is different to just calling the assignment operator of DcmElement which could result in slicing the object.

Parameters:

rhs	- [in] The instance to copy from. Has to be of the same class type as "this" object

Returns:: EC_Normal if copying was successful, error otherwise

Implements DcmObject.

Reimplemented in DcmDirectoryRecord, DcmMetaInfo, and DcmDataset.

OFCondition DcmItem::findAndDeleteElement	(	const DcmTagKey &	tagKey,
		const OFBool	allOccurrences = `OFFalse`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element, remove it from the dataset and free the associated memory.

Applicable to all DICOM value representations (VR).

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
allOccurrences	flag indicating whether to delete all occurrences of the attribute tag or the first one only (implies 'searchIntoSub' to be true)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndDeleteSequenceItem	(	const DcmTagKey &	seqTagKey,
		const signed long	itemNum
	)

looks up the given sequence in the current dataset and deletes the given item.

Applicable to the following VRs: SQ, (pixelSQ)

Parameters:

seqTagKey	DICOM tag specifying the sequence attribute to be searched for
itemNum	number of the item to be deleted (0..n-1, -1 for last)

Returns:: EC_Normal upon success, an error otherwise.

OFCondition DcmItem::findAndGetElement	(	const DcmTagKey &	tagKey,
		DcmElement *&	element,
		const OFBool	searchIntoSub = `OFFalse`,
		const OFBool	createCopy = `OFFalse`
	)

find element and get a pointer to it (or copy it).

Applicable to all DICOM value representations (VR). The result variable 'element' is automatically set to NULL if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
element	variable in which the reference to (or copy of) the element is stored
searchIntoSub	flag indicating whether to search into sequences or not
createCopy	create a copy of the element if true, return a reference otherwise

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetElements	(	const DcmTagKey &	tagKey,
		DcmStack &	resultStack
	)

find all elements matching a particular tag and return references to them on a stack.

This functions always performs a deep search (i.e. searches into sequence of items).

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
resultStack	stack where references to the elements are stored (added to). If no element is found, the stack is not modified (e.g. cleared).

Returns:: EC_Normal if at least one matching tag is found, an error code otherwise.

OFCondition DcmItem::findAndGetFloat32	(	const DcmTagKey &	tagKey,
		Float32 &	value,
		const unsigned long	pos = `0`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as a 32-bit floating point.

Applicable to the following VRs: FL, OF The result variable 'value' is automatically set to zero if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetFloat32Array	(	const DcmTagKey &	tagKey,
		const Float32 *&	value,
		unsigned long *	count = `NULL`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an array of 32-bit floating point values.

Applicable to the following VRs: FL, OF The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetFloat64	(	const DcmTagKey &	tagKey,
		Float64 &	value,
		const unsigned long	pos = `0`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as a 64-bit floating point.

Applicable to the following VRs: DS, FD The result variable 'value' is automatically set to zero if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetFloat64Array	(	const DcmTagKey &	tagKey,
		const Float64 *&	value,
		unsigned long *	count = `NULL`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an array of 64-bit floating point values.

Applicable to the following VRs: FD The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetLongInt	(	const DcmTagKey &	tagKey,
		long int &	value,
		const unsigned long	pos = `0`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as a (signed) long integer.

Applicable to the following VRs: IS, SL, SS, UL, US The result variable 'value' is automatically set to zero if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetOFString	(	const DcmTagKey &	tagKey,
		OFString &	value,
		const unsigned long	pos = `0`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as a C++ string (only one component).

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OF, OW, PN, SH, SL, SS, ST, TM, UI, UL, US, UT Since the getOFString() routine is called internally the resulting string is normalized, i.e. leading and/or trailing spaces are removed according to the associated value representation, or the element value is converted to a character string (for non-string VRs) - see documentation in the corresponding header file. In contrast to the above and below function only the specified component (see parameter 'pos') is returned. The result variable 'value' is automatically set to an empty string if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetOFStringArray	(	const DcmTagKey &	tagKey,
		OFString &	value,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as a C++ string (all components).

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OF, OW, PN, SH, SL, SS, ST, TM, UI, UL, US, UT Since the getOFStringArray() routine is called internally the resulting string is normalized, i.e. leading and/or trailing spaces are removed according to the associated value representation or the element values are converted to character strings (for non-string VRs) - see documentation in the corresponding header file. The result variable 'value' is automatically set to an empty string if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetSequence	(	const DcmTagKey &	seqTagKey,
		DcmSequenceOfItems *&	sequence,
		const OFBool	searchIntoSub = `OFFalse`,
		const OFBool	createCopy = `OFFalse`
	)

looks up and returns a given sequence.

Applicable to the following VRs: SQ, (pixelSQ) The result variable 'sequence' is automatically set to NULL if an error occurs (e.g. if 'seqTagKey' does not refer to a sequence attribute).

Parameters:

seqTagKey	DICOM tag specifying the sequence attribute to be searched for
sequence	variable in which the reference to (or copy of) the sequence is stored
searchIntoSub	flag indicating whether to search into sub-sequences or not
createCopy	create a copy of the sequence if true, return a reference otherwise

Returns:: EC_Normal upon success, an error otherwise.

OFCondition DcmItem::findAndGetSequenceItem	(	const DcmTagKey &	seqTagKey,
		DcmItem *&	item,
		const signed long	itemNum = `0`,
		const OFBool	createCopy = `OFFalse`
	)

looks up and returns a given sequence item, if it exists.

Otherwise sets 'item' to NULL and returns EC_TagNotFound (specified sequence does not exist) or EC_IllegalParameter (specified item does not exist). Only the top-most level of the dataset/item is examined (i.e. no deep-search is performed). Applicable to the following VRs: SQ, (pixelSQ)

Parameters:

seqTagKey	DICOM tag specifying the sequence attribute to be searched for
item	variable in which the reference to (or copy of) the item is stored
itemNum	number of the item to be searched for (0..n-1, -1 for last)
createCopy	create a copy of the item if true, return a reference otherwise

Returns:: EC_Normal upon success, an error otherwise.

OFCondition DcmItem::findAndGetSint16	(	const DcmTagKey &	tagKey,
		Sint16 &	value,
		const unsigned long	pos = `0`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as a signed 16-bit integer.

Applicable to the following VRs: SS The result variable 'value' is automatically set to zero if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetSint16Array	(	const DcmTagKey &	tagKey,
		const Sint16 *&	value,
		unsigned long *	count = `NULL`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an array of signed 16-bit integers.

Applicable to the following VRs: SS The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetSint32	(	const DcmTagKey &	tagKey,
		Sint32 &	value,
		const unsigned long	pos = `0`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as a signed 32-bit integer.

Applicable to the following VRs: IS, SL The result variable 'value' is automatically set to zero if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetSint32Array	(	const DcmTagKey &	tagKey,
		const Sint32 *&	value,
		unsigned long *	count = `NULL`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an array of signed 32-bit integers.

Applicable to the following VRs: SL The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetString	(	const DcmTagKey &	tagKey,
		const char *&	value,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as a reference to a C string.

NB: The string is not copied! Applicable to the following VRs: AE, AS, CS, DA, DS, DT, IS, LO, LT, PN, SH, ST, TM, UI, UT Since the getString() routine is called internally the resulting string reference represents the (possibly multi-valued) value as stored in the dataset, i.e. no normalization is performed. The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored (might be NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetString	(	const DcmTagKey &	tagKey,
		const char *&	value,
		Uint32 &	length,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as a reference to a C string.

NB: The string is not copied! Applicable to the following VRs: AE, AS, CS, DA, DS, DT, IS, LO, LT, PN, SH, ST, TM, UI, UT Since the getString() routine is called internally the resulting string reference represents the (possibly multi-valued) value as stored in the dataset, i.e. no normalization is performed. The result variable 'value' is automatically set to NULL and 'length' is set to 0 if an error occurs. Please note that since the length is returned separately, the string value can contain more than one NULL byte.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored (might be NULL)
length	length of the string (number of characters without the trailing NULL byte)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint16	(	const DcmTagKey &	tagKey,
		Uint16 &	value,
		const unsigned long	pos = `0`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an unsigned 16-bit integer.

Applicable to the following VRs: OW, US The result variable 'value' is automatically set to zero if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint16Array	(	const DcmTagKey &	tagKey,
		const Uint16 *&	value,
		unsigned long *	count = `NULL`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an array of unsigned 16-bit integers.

Applicable to the following VRs: AT, OW, US The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint32	(	const DcmTagKey &	tagKey,
		Uint32 &	value,
		const unsigned long	pos = `0`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an unsigned 32-bit integer.

Applicable to the following VRs: UL The result variable 'value' is automatically set to zero if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint32Array	(	const DcmTagKey &	tagKey,
		const Uint32 *&	value,
		unsigned long *	count = `NULL`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an array of unsigned 32-bit integers.

Applicable to the following VRs: UL The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint8	(	const DcmTagKey &	tagKey,
		Uint8 &	value,
		const unsigned long	pos = `0`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an unsigned 8-bit integer.

Applicable to the following VRs: OB The result variable 'value' is automatically set to zero if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the element value is stored
pos	index of the value in case of multi-valued elements (0..vm-1)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndGetUint8Array	(	const DcmTagKey &	tagKey,
		const Uint8 *&	value,
		unsigned long *	count = `NULL`,
		const OFBool	searchIntoSub = `OFFalse`
	)

find element and get value as an array of unsigned 8-bit integers.

Applicable to the following VRs: OB The result variable 'value' is automatically set to NULL if an error occurs.

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
value	variable in which the reference to the element value is stored
count	stores number of items in the result array (if not NULL)
searchIntoSub	flag indicating whether to search into sequences or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::findAndInsertCopyOfElement	(	const DcmTagKey &	tagKey,
		DcmItem *	destItem,
		const OFBool	replaceOld = `OFTrue`
	)

find element, create a copy and insert it into the given destination dataset.

This functions never performs a deep search (i.e. does not search into sequence of items). Empty elements are also copied. However, if the given tag is not found in the current dataset, EC_TagNotFound is returned and the destination dataset remains unchanged. Applicable to all DICOM value representations (VR).

Parameters:

tagKey	DICOM tag specifying the attribute to be searched for
destItem	destination dataset to which the copied element is inserted
replaceOld	flag indicating whether to replace an existing element or not

Returns:: EC_Normal upon success, an error code otherwise

OFCondition DcmItem::findOrCreateSequenceItem	(	const DcmTag &	seqTag,
		DcmItem *&	item,
		const signed long	itemNum = `0`
	)

looks up the given sequence in the current dataset and returns the given item.

If either the sequence or the item do not exist, they are created. If necessary, multiple empty items are inserted. Only the top-most level of the dataset/item is examined (i.e. no deep-search is performed). Applicable to the following VRs: SQ, (pixelSQ)

Parameters:

seqTag	DICOM tag specifying the sequence attribute to be searched for (or to be created)
item	variable in which the reference to the sequence item is stored
itemNum	number of the item to be searched for (0..n-1, -1 for last, -2 for append new)

Returns:: EC_Normal upon success, an error otherwise.

static OFBool DcmItem::foundVR ( const Uint8 * atposition ) [static, private]

helper function that interprets the given pointer as a pointer to an array of two characters and checks whether these two characters form a valid standard DICOM VR.

Parameters:

atposition pointer to array of (at least) two bytes interpreted as VR

Returns:: true if standard VR, false otherwise

virtual DcmElement* DcmItem::getElement ( const unsigned long num ) [virtual]

access an element from the item.

This method returns a pointer to one of the elements in the item, and not a copy.

Parameters:

num	index number of element, must be < card()

Returns:: pointer to element if found, NULL if num >= card()

virtual Uint32 DcmItem::getLength	(	const E_TransferSyntax	xfer = `EXS_LittleEndianImplicit`,
		const E_EncodingType	enctype = `EET_UndefinedLength`
	)		`[virtual]`

calculate the value length (without attribute tag, VR and length field) of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.

If length encodig is set to be explicit and the item content is larger than the available 32-bit length field, then undefined length is returned. If "dcmWriteOversizedSeqsAndItemsUndefined" is disabled, also the internal DcmObject errorFlag is set to EC_SeqOrItemContentOverflow.

Parameters:

xfer	transfer syntax for length calculation
enctype	sequence encoding type for length calculation

Returns:: value length of DICOM element

Implements DcmObject.

virtual DcmItem* DcmItem::getParentItem ( ) [virtual]

get parent item of this object, i.e. the item/dataset in which the surrounding sequence element is stored.

Returns:: pointer to the parent item of this object (might be NULL)

Reimplemented from DcmObject.

virtual unsigned long DcmItem::getVM ( ) [virtual]

get value multiplicity

Returns:: always returns 1 (according to the DICOM standard)

Implements DcmObject.

virtual DcmEVR DcmItem::ident ( ) const [virtual]

get type identifier

Returns:: type identifier of this class (EVR_item)

Implements DcmObject.

Reimplemented in DcmDirectoryRecord, DcmMetaInfo, and DcmDataset.

virtual OFCondition DcmItem::insert	(	DcmElement *	elem,
		OFBool	replaceOld = `OFFalse`,
		OFBool	checkInsertOrder = `OFFalse`
	)		`[virtual]`

insert a new element into the list of elements maintained by this item.

The list of elements is always kept in ascending tag order.

Parameters:

elem	element to be inserted, must not be contained in this or any other item. Will be deleted upon destruction of this item object.
replaceOld	if true, this element replaces any other element with the same tag which may already be contained in the item. If false, insert fails if another element with the same tag is already present.
checkInsertOrder	if true, a warning message is sent to the console if the element is not inserted at the end of the list. This is used in the read() method to detect datasets with out-of-order elements.

Returns:: status, EC_Normal if successful, an error code otherwise

OFCondition DcmItem::insertEmptyElement	(	const DcmTag &	tag,
		const OFBool	replaceOld = `OFTrue`
	)

create a new element (with no value) and insert it into the dataset/item.

Applicable to the following VRs: AE, AS, AT, CS, DA, DS, DT, FL, FD, IS, LO, LT, OB, OF, OW, PN, SH, SL, SQ, SS, ST, TM, UI, UL, US, UT

Parameters:

tag	DICOM tag specifying the attribute to be created
replaceOld	flag indicating whether to replace an existing element or not

Returns:: EC_Normal upon success, an error code otherwise.

OFCondition DcmItem::insertSequenceItem	(	const DcmTag &	seqTag,
		DcmItem *	item,
		const signed long	itemNum = `-2`
	)

looks up the given sequence in the current dataset and inserts the given item.

If the sequence does not exist, it is created. If necessary, multiple empty items are inserted before the specified item position. Only the top-most level of the dataset/item is examined (i.e. no deep-search is performed). Applicable to the following VRs: SQ, (pixelSQ)

Parameters:

seqTag	DICOM tag specifying the sequence attribute to be searched for (or to be created)
item	item to be inserted into the sequence, must not be contained in this or any other sequence. Will be deleted upon destruction of the sequence object.
itemNum	position of the item (0..n-1, -1 = before last, -2 = after last)

Returns:: EC_Normal upon success, an error otherwise (delete 'item' manually!).

virtual OFBool DcmItem::isAffectedBySpecificCharacterSet ( ) const [virtual]

check if this object is affected by SpecificCharacterSet at any nesting level.

In detail, it is checked whether this object contains any data elements that according to their VR are affected by the SpecificCharacterSet (0008,0005) element. This is true for the following VRs: PN, LO, LT, SH, ST and UT

Returns:: true if object is affected by SpecificCharacterSet, false otherwise

Reimplemented from DcmObject.

virtual OFBool DcmItem::isEmpty ( const OFBool normalize = OFTrue ) [virtual]

check if this item is empty

Parameters:

normalize not used for this class

Returns:: true if item is empty, i.e. has no elements, false otherwise

Reimplemented from DcmObject.

virtual OFBool DcmItem::isLeaf ( ) const [inline, virtual]

check if this element is a leaf node in a dataset tree.

All subclasses of DcmElement except for DcmSequenceOfItems are leaf nodes, while DcmSequenceOfItems, DcmItem, DcmDataset etc. are not.

Returns:: true if leaf node, false otherwise.

Implements DcmObject.

virtual OFCondition DcmItem::loadAllDataIntoMemory ( ) [virtual]

this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory.

After a call to this method, the file from which a dataset was read may safely be deleted or replaced. For large files, this method may obviously allocate large amounts of memory.

Returns:: EC_Normal if successful, an error code otherwise

Implements DcmObject.

virtual DcmObject* DcmItem::nextInContainer ( const DcmObject * obj ) [virtual]

this method is only used in container classes, that is, DcmItem and DcmSequenceOfItems.

It returns a pointer to the next object in the list AFTER the given object. If the caller passes NULL, a pointer to the first object in the list is returned. If the given object is not found, the given object is the last one in the list or the list is empty, NULL is returned.

Parameters:

obj	pointer to one object in the container; we are looking for the next entry after this one. NULL if looking for the first entry.

Returns:: pointer to next object in container or NULL if not found

Reimplemented from DcmObject.

virtual OFCondition DcmItem::nextObject	(	DcmStack &	stack,
		const OFBool	intoSub
	)		`[virtual]`

this method enables a stack based, depth-first traversal of a complete hierarchical DICOM dataset (that is, classes derived from DcmItem or DcmSequenceOfItems).

With each call of this method, the next object in the tree is located and marked on the stack.

Parameters:

stack	"cursor" for current position in the dataset. The stack will contain a pointer to each dataset, sequence, item and element from the main dataset down to the current element, and is updated upon each call to this method. An empty stack is equivalent to a stack containing a pointer to this object only.
intoSub	if true, the nextObject method will perform a hierarchical search through the dataset (depth-first), if false, only the current container object will be traversed (e.g., all elements of an item or all items of a sequence).

Returns:: EC_Normal if value length is correct, an error code otherwise

Reimplemented from DcmObject.

DcmItem& DcmItem::operator= ( const DcmItem & obj )

assignment operator.

Private creator cache is not copied as it is also the case for clone().

Parameters:

the	item to be copied

virtual void DcmItem::print	(	STD_NAMESPACE ostream &	out,
		const size_t	flags = `0`,
		const int	level = `0`,
		const char *	pixelFileName = `NULL`,
		size_t *	pixelCounter = `NULL`
	)		`[virtual]`

print all elements of the item to a stream

Parameters:

out	output stream
flags	optional flag used to customize the output (see DCMTypes::PF_xxx)
level	current level of nested items. Used for indentation.
pixelFileName	not used
pixelCounter	not used

Implements DcmObject.

Reimplemented in DcmDirectoryRecord, DcmDataset, and DcmMetaInfo.

OFCondition DcmItem::putAndInsertFloat32	(	const DcmTag &	tag,
		const Float32	value,
		const unsigned long	pos = `0`,
		const OFBool	replaceOld = `OFTrue`
	)
