DSRPNameTreeNode Class Reference

Class for content item PNAME. More...

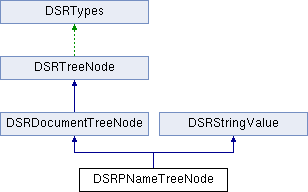

Inheritance diagram for DSRPNameTreeNode:

List of all members.

Public Member Functions
	DSRPNameTreeNode (const E_RelationshipType relationshipType)
	constructor
	DSRPNameTreeNode (const E_RelationshipType relationshipType, const OFString &stringValue)
	constructor
virtual	~DSRPNameTreeNode ()
	destructor
virtual void	clear ()
	clear all member variables.
virtual OFBool	isValid () const
	check whether the content item is valid.
virtual OFCondition	print (STD_NAMESPACE ostream &stream, const size_t flags) const
	print content item.
virtual OFCondition	writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const
	write content item in XML format
Static Public Member Functions
static OFString &	getValueFromXMLNodeContent (const DSRXMLDocument &doc, DSRXMLCursor cursor, OFString &nameValue)
	get DICOM Person Name from XML elements.
Protected Member Functions
virtual OFCondition	readContentItem (DcmItem &dataset)
	read content item (value) from dataset
virtual OFCondition	writeContentItem (DcmItem &dataset) const
	write content item (value) to dataset
virtual OFCondition	readXMLContentItem (const DSRXMLDocument &doc, DSRXMLCursor cursor)
	read content item specific XML data
virtual OFCondition	renderHTMLContentItem (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags) const
	render content item (value) in HTML/XHTML format
Private Member Functions
	DSRPNameTreeNode (const DSRPNameTreeNode &)
DSRPNameTreeNode &	operator= (const DSRPNameTreeNode &)

---

Detailed Description

Class for content item PNAME.

---

Constructor & Destructor Documentation

DSRPNameTreeNode::DSRPNameTreeNode

(

const E_RelationshipType

relationshipType

)

constructor

Parameters:

relationshipType

type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.

DSRPNameTreeNode::DSRPNameTreeNode	(	const E_RelationshipType	relationshipType,
		const OFString &	stringValue
	)

constructor

Parameters:

relationshipType	type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.
stringValue	initial string value to be set

---

Member Function Documentation

virtual void DSRPNameTreeNode::clear

(

)

[virtual]

clear all member variables.

Please note that the content item might become invalid afterwards.

Reimplemented from DSRDocumentTreeNode.

static OFString& DSRPNameTreeNode::getValueFromXMLNodeContent	(	const DSRXMLDocument &	doc,
		DSRXMLCursor	cursor,
		OFString &	nameValue
	)		[static]

get DICOM Person Name from XML elements.

The five components of a DICOM Person Name (PN) are expected to be stored in the XML elements "prefix", "first", "middle", "last" and "suffix" as created by writeXML().

Parameters:

doc	document containing the XML file content
cursor	cursor pointing to the starting node
nameValue	reference to string object in which the value should be stored

Returns:

reference to string object (might be empty)

virtual OFBool DSRPNameTreeNode::isValid

(

)

const [virtual]

check whether the content item is valid.

The content item is valid if the two base classes and the concept name are valid.

Returns:

OFTrue if tree node is valid, OFFalse otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::print	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const [virtual]

print content item.

A typical output looks like this: contains PNAME:(,,"Code")="Riesmeier^Joerg"

Parameters:

stream	output stream to which the content item should be printed
flags	flag used to customize the output (see DSRTypes::PF_xxx)

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::readContentItem

(

DcmItem &

dataset

)

[protected, virtual]

read content item (value) from dataset

Parameters:

dataset

DICOM dataset from which the content item should be read

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::readXMLContentItem	(	const DSRXMLDocument &	doc,
		DSRXMLCursor	cursor
	)		[protected, virtual]

read content item specific XML data

Parameters:

doc	document containing the XML file content
cursor	cursor pointing to the starting node

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::renderHTMLContentItem	(	STD_NAMESPACE ostream &	docStream,
		STD_NAMESPACE ostream &	annexStream,
		const size_t	nestingLevel,
		size_t &	annexNumber,
		const size_t	flags
	)		const [protected, virtual]

render content item (value) in HTML/XHTML format

Parameters:

docStream	output stream to which the main HTML/XHTML document is written
annexStream	output stream to which the HTML/XHTML document annex is written
nestingLevel	current nesting level. Used to render section headings.
annexNumber	reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added.
flags	flag used to customize the output (see DSRTypes::HF_xxx)

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::writeContentItem

(

DcmItem &

dataset

)

const [protected, virtual]

write content item (value) to dataset

Parameters:

dataset

DICOM dataset to which the content item should be written

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::writeXML	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const [virtual]

write content item in XML format

Parameters:

stream	output stream to which the XML document is written
flags	flag used to customize the output (see DSRTypes::XF_xxx)

Returns:

status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

---

The documentation for this class was generated from the following file:

• dcmsr/include/dcmtk/dcmsr/dsrpnmtn.h
