Class for content item NUM. More...

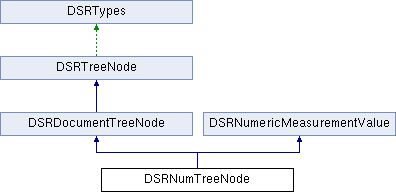

Inheritance diagram for DSRNumTreeNode:
Public Member Functions | |
| DSRNumTreeNode (const E_RelationshipType relationshipType) | |
| constructor | |
| virtual | ~DSRNumTreeNode () |
| destructor | |
| virtual void | clear () |
| clear all member variables. | |
| virtual OFBool | isValid () const |
| check whether the content item is valid. | |
| virtual OFCondition | print (STD_NAMESPACE ostream &stream, const size_t flags) const |
| print content item. | |
| virtual OFCondition | writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const |
| write content item in XML format | |
Protected Member Functions | |
| virtual OFCondition | readContentItem (DcmItem &dataset) |
| read content item (value) from dataset | |
| virtual OFCondition | writeContentItem (DcmItem &dataset) const |
| write content item (value) to dataset | |
| virtual OFCondition | readXMLContentItem (const DSRXMLDocument &doc, DSRXMLCursor cursor) |
| read content item specific XML data | |
| virtual OFCondition | renderHTMLContentItem (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags) const |
| render content item (value) in HTML/XHTML format | |
Private Member Functions | |
| DSRNumTreeNode (const DSRNumTreeNode &) | |
| DSRNumTreeNode & | operator= (const DSRNumTreeNode &) |
Detailed Description
Class for content item NUM.
Constructor & Destructor Documentation
| DSRNumTreeNode::DSRNumTreeNode | ( | const E_RelationshipType | relationshipType | ) |
constructor
- Parameters:
-
relationshipType type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.
Member Function Documentation
| virtual void DSRNumTreeNode::clear | ( | ) | [virtual] |
clear all member variables.
Please note that the content item might become invalid afterwards.
Reimplemented from DSRDocumentTreeNode.
| virtual OFBool DSRNumTreeNode::isValid | ( | ) | const [virtual] |
check whether the content item is valid.
The content item is valid if the two base classes and the concept name are valid.
- Returns:
- OFTrue if tree node is valid, OFFalse otherwise
Reimplemented from DSRDocumentTreeNode.
| virtual OFCondition DSRNumTreeNode::print | ( | STD_NAMESPACE ostream & | stream, |
| const size_t | flags | ||
| ) | const [virtual] |
print content item.
A typical output looks like this: contains NUM:(,,"Diameter")="3" (cm,99_OFFIS_DCMTK, "Length Unit")
- Parameters:
-
stream output stream to which the content item should be printed flags flag used to customize the output (see DSRTypes::PF_xxx)
- Returns:
- status, EC_Normal if successful, an error code otherwise
Reimplemented from DSRDocumentTreeNode.
| virtual OFCondition DSRNumTreeNode::readContentItem | ( | DcmItem & | dataset | ) | [protected, virtual] |
read content item (value) from dataset
- Parameters:
-
dataset DICOM dataset from which the content item should be read
- Returns:
- status, EC_Normal if successful, an error code otherwise
Reimplemented from DSRDocumentTreeNode.
| virtual OFCondition DSRNumTreeNode::readXMLContentItem | ( | const DSRXMLDocument & | doc, |
| DSRXMLCursor | cursor | ||
| ) | [protected, virtual] |
read content item specific XML data
- Parameters:
-
doc document containing the XML file content cursor cursor pointing to the starting node
- Returns:
- status, EC_Normal if successful, an error code otherwise
Reimplemented from DSRDocumentTreeNode.
| virtual OFCondition DSRNumTreeNode::renderHTMLContentItem | ( | STD_NAMESPACE ostream & | docStream, |
| STD_NAMESPACE ostream & | annexStream, | ||
| const size_t | nestingLevel, | ||
| size_t & | annexNumber, | ||
| const size_t | flags | ||
| ) | const [protected, virtual] |
render content item (value) in HTML/XHTML format
- Parameters:
-
docStream output stream to which the main HTML/XHTML document is written annexStream output stream to which the HTML/XHTML document annex is written nestingLevel current nesting level. Used to render section headings. annexNumber reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added. flags flag used to customize the output (see DSRTypes::HF_xxx)
- Returns:
- status, EC_Normal if successful, an error code otherwise
Reimplemented from DSRDocumentTreeNode.
| virtual OFCondition DSRNumTreeNode::writeContentItem | ( | DcmItem & | dataset | ) | const [protected, virtual] |
write content item (value) to dataset
- Parameters:
-
dataset DICOM dataset to which the content item should be written
- Returns:
- status, EC_Normal if successful, an error code otherwise
Reimplemented from DSRDocumentTreeNode.
| virtual OFCondition DSRNumTreeNode::writeXML | ( | STD_NAMESPACE ostream & | stream, |
| const size_t | flags | ||
| ) | const [virtual] |
write content item in XML format
- Parameters:
-
stream output stream to which the XML document is written flags flag used to customize the output (see DSRTypes::XF_xxx)
- Returns:
- status, EC_Normal if successful, an error code otherwise
Reimplemented from DSRDocumentTreeNode.
The documentation for this class was generated from the following file:
- dcmsr/include/dcmtk/dcmsr/dsrnumtn.h
