Class for composite reference values. More...

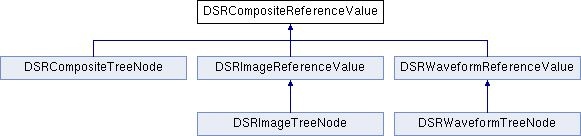

Inheritance diagram for DSRCompositeReferenceValue:

Public Member Functions
	DSRCompositeReferenceValue ()
	default contructor
	DSRCompositeReferenceValue (const OFString &sopClassUID, const OFString &sopInstanceUID)
	constructor.
	DSRCompositeReferenceValue (const DSRCompositeReferenceValue &referenceValue)
	copy constructor
virtual	~DSRCompositeReferenceValue ()
	destructor
DSRCompositeReferenceValue &	operator= (const DSRCompositeReferenceValue &referenceValue)
	assignment operator
virtual void	clear ()
	clear all internal variables.
virtual OFBool	isValid () const
	check whether the current reference value is valid.
virtual OFBool	isEmpty () const
	check whether the current reference value is empty.
virtual OFCondition	print (STD_NAMESPACE ostream &stream, const size_t flags) const
	print reference value.
virtual OFCondition	readXML (const DSRXMLDocument &doc, DSRXMLCursor cursor)
	read reference value from XML document
virtual OFCondition	writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const
	write reference value in XML format
virtual OFCondition	readSequence (DcmItem &dataset, const OFString &type)
	read referenced SOP sequence from dataset.
virtual OFCondition	writeSequence (DcmItem &dataset) const
	write referenced SOP sequence to dataset.
virtual OFCondition	renderHTML (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, size_t &annexNumber, const size_t flags) const
	render composite reference value in HTML/XHTML format
const OFString &	getSOPClassUID () const
	get SOP class UID
const OFString &	getSOPInstanceUID () const
	get SOP instance UID
const DSRCompositeReferenceValue &	getValue () const
	get reference to composite reference value
OFCondition	getValue (DSRCompositeReferenceValue &referenceValue) const
	get copy of composite reference value
OFCondition	setValue (const DSRCompositeReferenceValue &referenceValue)
	set composite reference value.
OFCondition	setReference (const OFString &sopClassUID, const OFString &sopInstanceUID)
	set SOP class UID and SOP instance UID value.
OFCondition	setSOPClassUID (const OFString &sopClassUID)
	set SOP class UID value.
OFCondition	setSOPInstanceUID (const OFString &sopInstanceUID)
	set SOP instance UID value.
Protected Member Functions
DSRCompositeReferenceValue *	getValuePtr ()
	get pointer to reference value
virtual OFCondition	readItem (DcmItem &dataset)
	read reference value from dataset
virtual OFCondition	writeItem (DcmItem &dataset) const
	write reference value to dataset
virtual OFBool	checkSOPClassUID (const OFString &sopClassUID) const
	check the specified SOP class UID for validity.
virtual OFBool	checkSOPInstanceUID (const OFString &sopInstanceUID) const
	check the specified SOP instance UID for validity.
Protected Attributes
OFString	SOPClassUID
	reference SOP class UID (VR=UI, type 1)
OFString	SOPInstanceUID
	reference SOP instance UID (VR=UI, type 1)
Friends
class	DSRContentItem

Detailed Description

Class for composite reference values.

Constructor & Destructor Documentation

DSRCompositeReferenceValue::DSRCompositeReferenceValue	(	const OFString &	sopClassUID,
		const OFString &	sopInstanceUID
	)

constructor.

The UID pair is only set if it passed the validity check (see setValue()).

Parameters:

sopClassUID	referenced SOP class UID of the composite object. (VR=UI, type 1)
sopInstanceUID	referenced SOP instance UID of the composite object. (VR=UI, type 1)

DSRCompositeReferenceValue::DSRCompositeReferenceValue ( const DSRCompositeReferenceValue & referenceValue )

copy constructor

Parameters:

referenceValue reference value to be copied (not checked !)

Member Function Documentation

virtual OFBool DSRCompositeReferenceValue::checkSOPClassUID ( const OFString & sopClassUID ) const [protected, virtual]

check the specified SOP class UID for validity.

The only check that is currently performed is that the UID is not empty. Derived classes might overwrite this method for more specific tests (e.g. allowing only particular SOP classes).

Parameters:

sopClassUID SOP class UID to be checked

Returns:: OFTrue if SOP class UID is valid, OFFalse otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

virtual OFBool DSRCompositeReferenceValue::checkSOPInstanceUID ( const OFString & sopInstanceUID ) const [protected, virtual]

check the specified SOP instance UID for validity.

The only check that is currently performed is that the UID is not empty. Derived classes might overwrite this method for more specific tests.

Parameters:

sopInstanceUID SOP instance UID to be checked

Returns:: OFTrue if SOP instance UID is valid, OFFalse otherwise

virtual void DSRCompositeReferenceValue::clear ( ) [virtual]

clear all internal variables.

Since an empty reference value is invalid the reference becomes invalid afterwards.

Reimplemented in DSRImageReferenceValue, DSRWaveformReferenceValue, DSRCompositeTreeNode, DSRImageTreeNode, and DSRWaveformTreeNode.

const OFString& DSRCompositeReferenceValue::getSOPClassUID ( ) const [inline]

get SOP class UID

Returns:: current SOP class UID (might be invalid or an empty string)

const OFString& DSRCompositeReferenceValue::getSOPInstanceUID ( ) const [inline]

get SOP instance UID

Returns:: current SOP instance UID (might be invalid or an empty string)

const DSRCompositeReferenceValue& DSRCompositeReferenceValue::getValue ( ) const [inline]

get reference to composite reference value

Returns:: reference to composite reference value

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

OFCondition DSRCompositeReferenceValue::getValue ( DSRCompositeReferenceValue & referenceValue ) const

get copy of composite reference value

Parameters:

referenceValue reference to variable in which the value should be stored

Returns:: status, EC_Normal if successful, an error code otherwise

DSRCompositeReferenceValue* DSRCompositeReferenceValue::getValuePtr ( ) [inline, protected]

get pointer to reference value

Returns:: pointer to reference value (never NULL)

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

virtual OFBool DSRCompositeReferenceValue::isEmpty ( ) const [virtual]

check whether the current reference value is empty.

Checks whether both UIDs of the reference value are empty.

Returns:: OFTrue if value is empty, OFFalse otherwise

virtual OFBool DSRCompositeReferenceValue::isValid ( ) const [virtual]

check whether the current reference value is valid.

The reference value is valid if SOP class UID and SOP instance UID are valid (see checkSOP...UID() for details).

Returns:: OFTrue if reference value is valid, OFFalse otherwise

Reimplemented in DSRImageReferenceValue, DSRCompositeTreeNode, DSRImageTreeNode, and DSRWaveformTreeNode.

DSRCompositeReferenceValue& DSRCompositeReferenceValue::operator= ( const DSRCompositeReferenceValue & referenceValue )

assignment operator

Parameters:

referenceValue reference value to be copied (not checked !)

Returns:: reference to this reference value after 'referenceValue' has been copied

virtual OFCondition DSRCompositeReferenceValue::print	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const `[virtual]`

print reference value.

The output of a typical composite reference value looks like this: (BasicTextSR,"1.2.3"). If the SOP class UID is unknown the UID is printed instead of the related name.

Parameters:

stream	output stream to which the reference value should be printed
flags	flag used to customize the output (see DSRTypes::PF_xxx)

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, DSRWaveformReferenceValue, DSRImageTreeNode, DSRWaveformTreeNode, and DSRCompositeTreeNode.

virtual OFCondition DSRCompositeReferenceValue::readItem ( DcmItem & dataset ) [protected, virtual]

read reference value from dataset

Parameters:

dataset DICOM dataset from which the value should be read

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

virtual OFCondition DSRCompositeReferenceValue::readSequence	(	DcmItem &	dataset,
		const OFString &	type
	)		`[virtual]`

read referenced SOP sequence from dataset.

The number of items within the sequence is checked. If error/warning output are enabled a warning message is printed if the sequence is absent or contains more than one item.

Parameters:

dataset	DICOM dataset from which the sequence should be read
type	value type of the sequence (valid value: "1", "2", something else) This parameter is used for checking purpose, any difference is reported.

Returns:: status, EC_Normal if successful, an error code otherwise

virtual OFCondition DSRCompositeReferenceValue::readXML	(	const DSRXMLDocument &	doc,
		DSRXMLCursor	cursor
	)		`[virtual]`

read reference value from XML document

Parameters:

doc	document containing the XML file content
cursor	cursor pointing to the starting node

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

virtual OFCondition DSRCompositeReferenceValue::renderHTML	(	STD_NAMESPACE ostream &	docStream,
		STD_NAMESPACE ostream &	annexStream,
		size_t &	annexNumber,
		const size_t	flags
	)		const `[virtual]`

render composite reference value in HTML/XHTML format

Parameters:

docStream	output stream to which the main HTML/XHTML document is written
annexStream	output stream to which the HTML/XHTML document annex is written
annexNumber	reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added.
flags	flag used to customize the output (see DSRTypes::HF_xxx)

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

OFCondition DSRCompositeReferenceValue::setReference	(	const OFString &	sopClassUID,
		const OFString &	sopInstanceUID
	)

set SOP class UID and SOP instance UID value.

Before setting the values they are checked (see checkXXX()). If the value pair is invalid the current value pair is not replaced and remains unchanged.

Parameters:

sopClassUID	referenced SOP class UID to be set
sopInstanceUID	referenced SOP instance UID to be set

Returns:: status, EC_Normal if successful, an error code otherwise

OFCondition DSRCompositeReferenceValue::setSOPClassUID ( const OFString & sopClassUID )

set SOP class UID value.

Before setting the value is is checked (see checkSOPClassUID()). If the value is invalid the current value is not replaced and remains unchanged.

Parameters:

sopClassUID SOP class UID to be set

Returns:: status, EC_Normal if successful, an error code otherwise

OFCondition DSRCompositeReferenceValue::setSOPInstanceUID ( const OFString & sopInstanceUID )

set SOP instance UID value.

Before setting the value is is checked (see checkSOPInstanceUID()). If the value is invalid the current value is not replaced and remains unchanged.

Parameters:

sopInstanceUID SOP instance UID to be set

Returns:: status, EC_Normal if successful, an error code otherwise

OFCondition DSRCompositeReferenceValue::setValue ( const DSRCompositeReferenceValue & referenceValue )

set composite reference value.

Before setting the reference it is checked (see checkXXX()). If the value is invalid the current value is not replaced and remains unchanged.

Parameters:

referenceValue value to be set

Returns:: status, EC_Normal if successful, an error code otherwise

virtual OFCondition DSRCompositeReferenceValue::writeItem ( DcmItem & dataset ) const [protected, virtual]

write reference value to dataset

Parameters:

dataset DICOM dataset to which the value should be written

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, and DSRWaveformReferenceValue.

virtual OFCondition DSRCompositeReferenceValue::writeSequence ( DcmItem & dataset ) const [virtual]

write referenced SOP sequence to dataset.

If the value is empty an empty sequence (without any items) is written.

Parameters:

dataset DICOM dataset to which the sequence should be written

Returns:: status, EC_Normal if successful, an error code otherwise

virtual OFCondition DSRCompositeReferenceValue::writeXML	(	STD_NAMESPACE ostream &	stream,
		const size_t	flags
	)		const `[virtual]`

write reference value in XML format

Parameters:

stream	output stream to which the XML document is written
flags	flag used to customize the output (see DSRTypes::XF_xxx)

Returns:: status, EC_Normal if successful, an error code otherwise

Reimplemented in DSRImageReferenceValue, DSRWaveformReferenceValue, DSRImageTreeNode, DSRWaveformTreeNode, and DSRCompositeTreeNode.

The documentation for this class was generated from the following file:

dcmsr/include/dcmtk/dcmsr/dsrcomvl.h
