Template class to flip monochrome images (on pixel data level) horizontally and vertically. More...

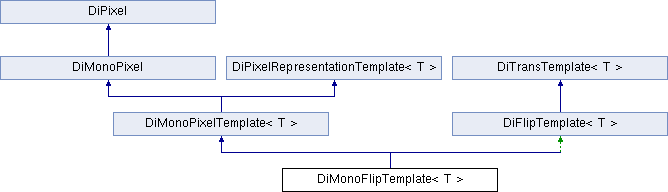

Inheritance diagram for DiMonoFlipTemplate< T >:

Public Member Functions
	DiMonoFlipTemplate (const DiMonoPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert)
	constructor More...

	~DiMonoFlipTemplate ()
	destructor

Public Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const unsigned long count)
	constructor More...

	DiMonoPixelTemplate (const DiInputPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixelTemplate (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoPixelTemplate ()
	destructor

EP_Representation	getRepresentation () const
	get integer representation More...

const void *	getData () const
	get pointer to internal pixel data More...

void *	getDataPtr ()
	get pointer to internal pixel data More...

void *	getDataArrayPtr ()
	get reference to pointer to internal pixel data. More...

int	getMinMaxValues (double &min, double &max) const
	get minimum and maximum pixel values More...

int	getMinMaxWindow (const int idx, double &center, double &width)
	get automatically computed min-max window More...

virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)
	get automatically computed Region of Interest (ROI) window More...

int	getHistogramWindow (const double thresh, double &center, double &width)
	get automatically computed histogram window More...

Public Member Functions inherited from DiMonoPixel
	DiMonoPixel (const unsigned long count)
	constructor More...

	DiMonoPixel (const DiInputPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoPixel ()
	destructor

int	getPlanes () const
	get number of planes More...

virtual int	getMinMaxValues (double &min, double &max) const =0
	get minimum and maximum pixel values (abstract) More...

virtual int	getMinMaxWindow (const int idx, double &center, double &width)=0
	get automatically computed min-max window (abstract) More...

virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)=0
	get automatically computed Region of Interest (ROI) window (abstract) More...

virtual int	getHistogramWindow (const double thresh, double &center, double &width)=0
	get automatically computed histogram window (abstract) More...

unsigned int	getBits () const
	get number of bits per pixel More...

double	getAbsMinimum () const
	get absolute minimum pixel value. More...

double	getAbsMaximum () const
	get absolute maximum pixel value. More...

double	getAbsMaxRange () const
	get absolute pixel range More...

const char *	getModalityLutExplanation () const
	get modality LUT explanation string More...

DiMonoModality *	addReferenceToModality ()
	add a reference to the internally managed modality transform object More...

int	isPotentiallySigned () const
	check whether pixel data is 'potentially' signed. More...

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor More...

virtual	~DiPixel ()
	destructor

virtual EP_Representation	getRepresentation () const =0
	get integer representation (abstract) More...

virtual int	getPlanes () const =0
	get number of planes (abstract). More...

virtual const void *	getData () const =0
	get pointer to pixel data (abstract). More...

virtual void *	getDataPtr ()=0
	get pointer to pixel data (abstract). More...

virtual void *	getDataArrayPtr ()=0
	get pointer to array of pixel data (abstract). More...

unsigned long	getCount () const
	get number of pixels More...

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element More...

Public Member Functions inherited from DiPixelRepresentationTemplate< T >
	DiPixelRepresentationTemplate ()
	default constructor

virtual	~DiPixelRepresentationTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not More...

Private Member Functions
void	flip (const T *pixel, const int horz, const int vert)
	choose flipping algorithm depending on given parameters More...

Additional Inherited Members
Protected Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const DiPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count)
	constructor More...

void	determineMinMax (T minvalue=0, T maxvalue=0, const int mode=0x1)
	determine minimum and maximum pixel values More...

Protected Member Functions inherited from DiMonoPixel
	DiMonoPixel (const DiPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count)
	constructor More...

virtual EP_Representation	getRepresentation () const
	determine integer representation for template type T More...

Protected Member Functions inherited from DiFlipTemplate< T >
void	flipHorz (const T src[], T dest[])
	flip source image horizontally and store result in destination image More...

void	flipVert (const T src[], T dest[])
	flip source image vertically and store result in destination image More...

void	flipHorzVert (const T src[], T dest[])
	flip source image horizontally and vertically and store result in destination image More...

	DiFlipTemplate (DiPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert)
	constructor. More...

	DiFlipTemplate (const int planes, const Uint16 columns, const Uint16 rows, const Uint32 frames)
	constructor. More...

virtual	~DiFlipTemplate ()
	destructor

void	flipData (const T src[], T dest[], const int horz, const int vert)
	choose algorithm depending on flipping mode More...

Protected Member Functions inherited from DiTransTemplate< T >
	DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0)
	constructor More...

virtual	~DiTransTemplate ()
	destructor

void	copyPixel (const T src[], T dest[])
	copy pixel data More...

void	fillPixel (T *dest[], const T value)
	fill pixel data with specified value More...

void	clearPixel (T *dest[])
	clear pixel data (set values to 0) More...

Protected Attributes inherited from DiMonoPixelTemplate< T >
T *	Data
	pointer to pixel data

Protected Attributes inherited from DiMonoPixel
DiMonoModality *	Modality
	pointer to modality transform object

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Protected Attributes inherited from DiTransTemplate< T >
int	Planes
	number of planes

Uint16	Src_X
	width of source image

Uint16	Src_Y
	height of source image

const Uint16	Dest_X
	width of destination image

const Uint16	Dest_Y
	height of destination image

const Uint32	Frames
	number of frames

const int	Bits
	number of bits per plane/pixel

Detailed Description

template<class T>
class DiMonoFlipTemplate< T >

Template class to flip monochrome images (on pixel data level) horizontally and vertically.

Constructor & Destructor Documentation

◆ DiMonoFlipTemplate()

template<class T >

DiMonoFlipTemplate< T >::DiMonoFlipTemplate	(	const DiMonoPixel *	pixel,
		const Uint16	columns,
		const Uint16	rows,
		const Uint32	frames,
		const int	horz,
		const int	vert
	)

inline

constructor

Parameters

pixel	pointer to intermediate pixel representation
columns	number of columns
rows	number of rows
frames	number of frames
horz	flip horizontally if true
vert	flip vertically if true

References DiMonoFlipTemplate< T >::flip(), DiPixel::getCount(), and DiPixel::getData().

Member Function Documentation

◆ flip()

template<class T >

void DiMonoFlipTemplate< T >::flip	(	const T *	pixel,
		const int	horz,
		const int	vert
	)

inlineprivate

choose flipping algorithm depending on given parameters

Parameters

pixel	pointer to pixel data which should be flipped
horz	flip horizontally if true
vert	flip vertically if true

References DiMonoPixelTemplate< T >::Data, DiFlipTemplate< T >::flipHorz(), DiFlipTemplate< T >::flipHorzVert(), DiFlipTemplate< T >::flipVert(), and DiPixel::getCount().

Referenced by DiMonoFlipTemplate< T >::DiMonoFlipTemplate().

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/dimoflt.h
