DiTransTemplate< T > Class Template Reference

Template class building the base for other transformations. More...

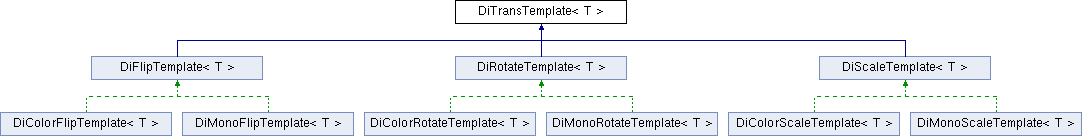

Inheritance diagram for DiTransTemplate< T >:

Protected Member Functions
	DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0)
	constructor More...
virtual	~DiTransTemplate ()
	destructor
void	copyPixel (const T *src[], T *dest[])
	copy pixel data More...
void	fillPixel (T *dest[], const T value)
	fill pixel data with specified value More...
void	clearPixel (T *dest[])
	clear pixel data (set values to 0) More...

Protected Attributes
int	Planes
	number of planes
Uint16	Src_X
	width of source image
Uint16	Src_Y
	height of source image
const Uint16	Dest_X
	width of destination image
const Uint16	Dest_Y
	height of destination image
const Uint32	Frames
	number of frames
const int	Bits
	number of bits per plane/pixel

Detailed Description

template<class T>
class DiTransTemplate< T >

Template class building the base for other transformations.

(e.g. scaling, flipping)

Constructor & Destructor Documentation

DiTransTemplate()

template<class T >

DiTransTemplate< T >::DiTransTemplate ( const int  planes, const Uint16  src_x, const Uint16  src_y, const Uint16  dest_x, const Uint16  dest_y, const Uint32  frames, const int  bits = 0  )

inlineprotected

constructor

Parameters

planes	number of planes
src_x	width of source image
src_y	height of source image
dest_x	width of destination image (after transformation)
dest_y	height of destination image
frames	number of frames
bits	number of bits per plane/pixel (optional)

Member Function Documentation

clearPixel()

template<class T >

void DiTransTemplate< T >::clearPixel ( T *  dest[] )

inlineprotected

clear pixel data (set values to 0)

Parameters

dest	array of pointers to destination image pixels

References DiTransTemplate< T >::Dest_X, DiTransTemplate< T >::Dest_Y, DiTransTemplate< T >::Frames, and DiTransTemplate< T >::Planes.

copyPixel()

template<class T >

void DiTransTemplate< T >::copyPixel ( const T *  src[], T *  dest[]  )

inlineprotected

copy pixel data

Parameters

src	array of pointers to source image pixels
dest	array of pointers to destination image pixels

References DiTransTemplate< T >::Dest_X, DiTransTemplate< T >::Dest_Y, DiTransTemplate< T >::Frames, and DiTransTemplate< T >::Planes.

Referenced by DiFlipTemplate< T >::flipData(), and DiRotateTemplate< T >::rotateData().

fillPixel()

template<class T >

void DiTransTemplate< T >::fillPixel ( T *  dest[], const T  value  )

inlineprotected

fill pixel data with specified value

Parameters

dest	array of pointers to destination image pixels
value	value to be filled in destination array

References DiTransTemplate< T >::Dest_X, DiTransTemplate< T >::Dest_Y, DiTransTemplate< T >::Frames, and DiTransTemplate< T >::Planes.

---

The documentation for this class was generated from the following file:

• dcmimgle/include/dcmtk/dcmimgle/ditranst.h
