Template class to handle ARGB pixel data. More...

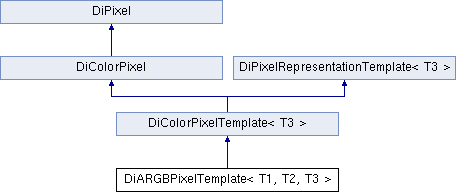

Inheritance diagram for DiARGBPixelTemplate< T1, T2, T3 >:
Public Member Functions | |
| DiARGBPixelTemplate (const DiDocument *docu, const DiInputPixel *pixel, DiLookupTable *palette[3], EI_Status &status, const unsigned long planeSize, const int bits) | |
| constructor More... | |
| virtual | ~DiARGBPixelTemplate () |
| destructor | |
| Public Member Functions inherited from DiColorPixelTemplate< T3 > | |
| DiColorPixelTemplate (const DiDocument *docu, const DiInputPixel *pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0) | |
| constructor More... | |
| virtual | ~DiColorPixelTemplate () |
| destructor | |
| EP_Representation | getRepresentation () const |
| get integer representation More... | |
| const void * | getData () const |
| get pointer to internal array of pixel data. More... | |
| void * | getDataPtr () |
| get pointer to internal array of pixel data. More... | |
| void * | getDataArrayPtr () |
| get pointer to internal array of pixel data. More... | |
| OFBool | getPixelData (void *data, const unsigned long count, const unsigned long fcount, const unsigned long frames, const int planar) const |
| fill given memory block with pixel data (all three image planes, RGB) More... | |
| unsigned long | createDIB (void *&data, const unsigned long size, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits, const int mode, const int upsideDown, const int padding) const |
| create true color (24/32 bit) bitmap for MS Windows. More... | |
| unsigned long | createAWTBitmap (void *&data, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits) const |
| create true color (32 bit) bitmap for Java (AWT default format). More... | |
| Public Member Functions inherited from DiColorPixel | |
| DiColorPixel (const DiDocument *docu, const DiInputPixel *pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0) | |
| constructor More... | |
| virtual | ~DiColorPixel () |
| destructor | |
| int | getPlanes () const |
| get number of planes More... | |
| int | getPlanarConfiguration () const |
| get planar configuration of the original pixel data More... | |
| virtual OFBool | getPixelData (void *data, const unsigned long count, const unsigned long fcount, const unsigned long frames, const int planar) const =0 |
| fill given memory block with pixel data (all three image planes, RGB) More... | |
| virtual unsigned long | createDIB (void *&data, const unsigned long size, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits, const int mode, const int upsideDown, const int padding) const =0 |
| create true color (24/32 bit) bitmap for MS Windows. More... | |
| virtual unsigned long | createAWTBitmap (void *&data, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits) const =0 |
| create true color (32 bit) bitmap for Java (AWT default format). More... | |
| Public Member Functions inherited from DiPixel | |
| DiPixel (const unsigned long count, const unsigned long inputCount=0) | |
| constructor More... | |
| virtual | ~DiPixel () |
| destructor | |
| virtual EP_Representation | getRepresentation () const =0 |
| get integer representation (abstract) More... | |
| virtual int | getPlanes () const =0 |
| get number of planes (abstract). More... | |
| virtual const void * | getData () const =0 |
| get pointer to pixel data (abstract). More... | |
| virtual void * | getDataPtr ()=0 |
| get pointer to pixel data (abstract). More... | |
| virtual void * | getDataArrayPtr ()=0 |
| get pointer to array of pixel data (abstract). More... | |
| unsigned long | getCount () const |
| get number of pixels More... | |
| unsigned long | getInputCount () const |
| get number of pixels stored in the 'PixelData' element More... | |
| Public Member Functions inherited from DiPixelRepresentationTemplate< T3 > | |
| DiPixelRepresentationTemplate () | |
| default constructor | |
| virtual | ~DiPixelRepresentationTemplate () |
| destructor | |
| int | isSigned () const |
| check whether template type T is signed or not More... | |
Private Member Functions | |
| void | convert (const T1 *pixel, DiLookupTable *palette[3], const unsigned long planeSize, const int bits) |
| convert input pixel data to intermediate representation More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from DiColorPixelTemplate< T3 > | |
| DiColorPixelTemplate (const DiColorPixel *pixel, const unsigned long count) | |
| constructor More... | |
| int | Init (const void *pixel) |
| initialize internal memory More... | |
| Protected Member Functions inherited from DiColorPixel | |
| DiColorPixel (const DiColorPixel *pixel, const unsigned long count) | |
| constructor More... | |
| virtual EP_Representation | getRepresentation () const |
| determine integer representation for template type T More... | |
| Protected Attributes inherited from DiColorPixelTemplate< T3 > | |
| T3 * | Data [3] |
| pointer to pixel data (3 components) | |
| Protected Attributes inherited from DiColorPixel | |
| int | PlanarConfiguration |
| planar configuration of the original pixel data (0 = color-by-pixel, 1 = color-by-plane) | |
| Protected Attributes inherited from DiPixel | |
| unsigned long | Count |
| number of pixels | |
| unsigned long | InputCount |
| number of pixels in the input buffer | |
Detailed Description
template<class T1, class T2, class T3>
class DiARGBPixelTemplate< T1, T2, T3 >
class DiARGBPixelTemplate< T1, T2, T3 >
Template class to handle ARGB pixel data.
Constructor & Destructor Documentation
◆ DiARGBPixelTemplate()
template<class T1 , class T2 , class T3 >
|
inline |
constructor
- Parameters
-
docu pointer to DICOM document pixel pointer to input pixel representation palette pointer to RGB color palette status reference to status variable planeSize number of pixels in a plane bits number of bits per sample
References DiARGBPixelTemplate< T1, T2, T3 >::convert(), DiPixel::Count, EIS_Normal, DiInputPixel::getData(), and DiInputPixel::getPixelStart().
Member Function Documentation
◆ convert()
template<class T1 , class T2 , class T3 >
|
inlineprivate |
convert input pixel data to intermediate representation
- Parameters
-
pixel pointer to input pixel data palette pointer to RGB color palette planeSize number of pixels in a plane bits number of bits per sample
References DiPixel::Count, DiColorPixelTemplate< T3 >::Data, DiColorPixelTemplate< T3 >::Init(), DiPixel::InputCount, DicomImageClass::maxval(), and DiColorPixel::PlanarConfiguration.
Referenced by DiARGBPixelTemplate< T1, T2, T3 >::DiARGBPixelTemplate().
The documentation for this class was generated from the following file:
- dcmimage/include/dcmtk/dcmimage/diargpxt.h
