DiColorPixel Class Reference

Abstract base class to handle color pixel data. More...

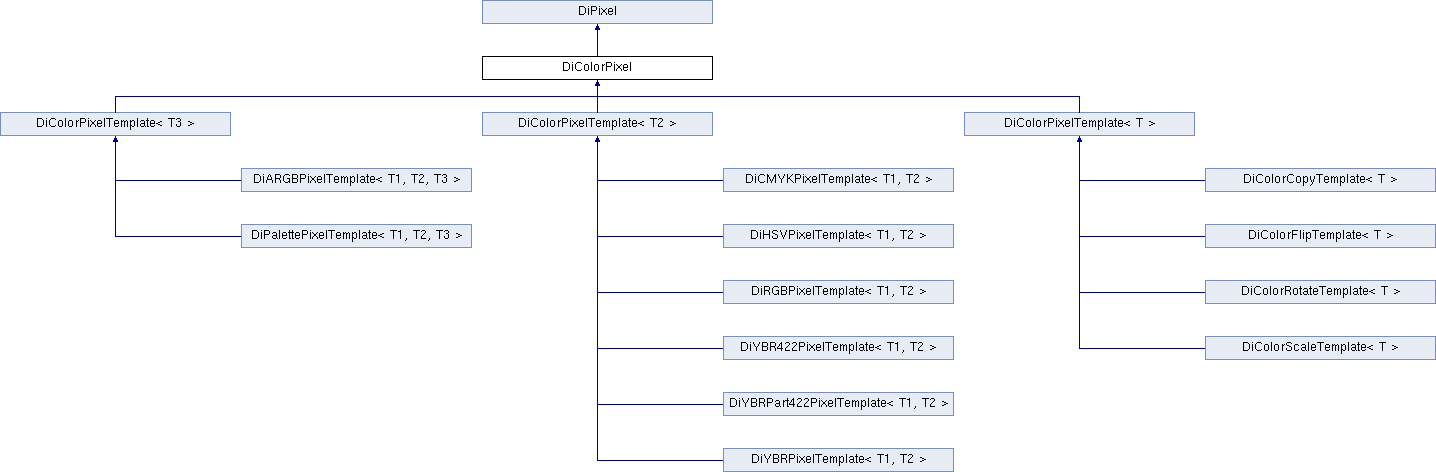

Inheritance diagram for DiColorPixel:

Public Member Functions
	DiColorPixel (const DiDocument *docu, const DiInputPixel *pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
	constructor More...
virtual	~DiColorPixel ()
	destructor
int	getPlanes () const
	get number of planes More...
int	getPlanarConfiguration () const
	get planar configuration of the original pixel data More...
virtual OFBool	getPixelData (void *data, const unsigned long count, const unsigned long fcount, const unsigned long frames, const int planar) const =0
	fill given memory block with pixel data (all three image planes, RGB) More...
virtual unsigned long	createDIB (void *&data, const unsigned long size, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits, const int mode, const int upsideDown, const int padding) const =0
	create true color (24/32 bit) bitmap for MS Windows. More...
virtual unsigned long	createAWTBitmap (void *&data, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits) const =0
	create true color (32 bit) bitmap for Java (AWT default format). More...
Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor More...
virtual	~DiPixel ()
	destructor
virtual EP_Representation	getRepresentation () const =0
	get integer representation (abstract) More...
virtual int	getPlanes () const =0
	get number of planes (abstract). More...
virtual const void *	getData () const =0
	get pointer to pixel data (abstract). More...
virtual void *	getDataPtr ()=0
	get pointer to pixel data (abstract). More...
virtual void *	getDataArrayPtr ()=0
	get pointer to array of pixel data (abstract). More...
unsigned long	getCount () const
	get number of pixels More...
unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element More...

Protected Member Functions
	DiColorPixel (const DiColorPixel *pixel, const unsigned long count)
	constructor More...

Protected Attributes
int	PlanarConfiguration
	planar configuration of the original pixel data (0 = color-by-pixel, 1 = color-by-plane)
Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels
unsigned long	InputCount
	number of pixels in the input buffer

Detailed Description

Abstract base class to handle color pixel data.

Constructor & Destructor Documentation

DiColorPixel() [1/2]

DiColorPixel::DiColorPixel	(	const DiDocument *	docu,
		const DiInputPixel *	pixel,
		const Uint16	samples,
		EI_Status &	status,
		const Uint16	sample_rate = 0
	)

constructor

Parameters

docu	pointer to the DICOM document
pixel	pointer to input pixel data
samples	number of expected samples per pixel (for checking purposes)
status	status of the image object (reference variable)
sample_rate	dummy parameter (used for derived classes only)

DiColorPixel() [2/2]

DiColorPixel::DiColorPixel ( const DiColorPixel *  pixel, const unsigned long  count  )

protected

constructor

Parameters

pixel	pointer to intermediate color pixel data
count	number of pixels

Member Function Documentation

createAWTBitmap()

virtual unsigned long DiColorPixel::createAWTBitmap ( void *&  data, const Uint16  width, const Uint16  height, const unsigned long  frame, const int  fromBits, const int  toBits  ) const

pure virtual

create true color (32 bit) bitmap for Java (AWT default format).

Parameters

data	resulting pointer to bitmap data (set to NULL if an error occurred)
width	number of columns of the image
height	number of rows of the image
frame	index of frame to be converted (starting from 0)
fromBits	number of bits per sample used for internal representation of the image
toBits	number of bits per sample used for the output bitmap (<= 8)

Returns

number of bytes allocated by the bitmap, or 0 if an error occurred

Implemented in DiColorPixelTemplate< T >, DiColorPixelTemplate< T3 >, and DiColorPixelTemplate< T2 >.

createDIB()

virtual unsigned long DiColorPixel::createDIB ( void *&  data, const unsigned long  size, const Uint16  width, const Uint16  height, const unsigned long  frame, const int  fromBits, const int  toBits, const int  mode, const int  upsideDown, const int  padding  ) const

pure virtual

create true color (24/32 bit) bitmap for MS Windows.

Parameters

data	untyped pointer memory buffer (set to NULL if not allocated externally)
size	size of the memory buffer in bytes (if 0 'data' is set to NULL)
width	number of columns of the image
height	number of rows of the image
frame	index of frame to be converted (starting from 0)
fromBits	number of bits per sample used for internal representation of the image
toBits	number of bits per sample used for the output bitmap (<= 8)
mode	color output mode (24 or 32 bits, see dcmimgle/dcmimage.h for details)
upsideDown	specifies the order of lines in the images (0 = top-down, bottom-up otherwise)
padding	align each line to a 32-bit address if true

Returns

number of bytes allocated by the bitmap, or 0 if an error occurred

Implemented in DiColorPixelTemplate< T >, DiColorPixelTemplate< T3 >, and DiColorPixelTemplate< T2 >.

getPixelData()

virtual OFBool DiColorPixel::getPixelData ( void *  data, const unsigned long  count, const unsigned long  fcount, const unsigned long  frames, const int  planar  ) const

pure virtual

fill given memory block with pixel data (all three image planes, RGB)

Parameters

data	pointer to memory block (array of 8 or 16 bit values, OB/OW)
count	number of T-size entries allocated in the 'data' array
fcount	number of pixels per frame
frames	total number of frames present in intermediate representation
planar	flag indicating whether data shall be stored color-by-pixel or color-by-plane

Returns

OFTrue if successful, OFFalse otherwise

Implemented in DiColorPixelTemplate< T >, DiColorPixelTemplate< T3 >, and DiColorPixelTemplate< T2 >.

getPlanarConfiguration()

int DiColorPixel::getPlanarConfiguration ( ) const

inline

get planar configuration of the original pixel data

Returns

planar configuration (0 = color-by-pixel, 1 = color-by-plane)

getPlanes()

int DiColorPixel::getPlanes ( ) const

inlinevirtual

get number of planes

Returns

number of planes (here 3, color)

Implements DiPixel.

---

The documentation for this class was generated from the following file:

• dcmimage/include/dcmtk/dcmimage/dicopx.h
