Base class for color images. More...

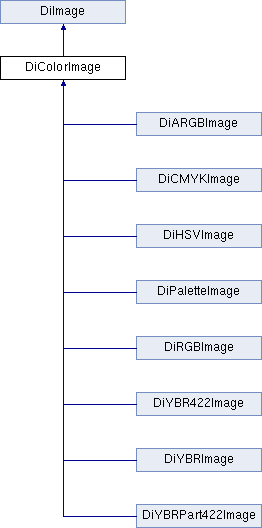

Inheritance diagram for DiColorImage:

Public Member Functions
	DiColorImage (const DiDocument *docu, const EI_Status status, const int spp, const OFBool rgb=OFTrue)
	constructor More...

virtual	~DiColorImage ()
	destructor

virtual EP_Interpretation	getInternalColorModel () const
	get color model of internal pixel representation. More...

virtual unsigned long	getOutputDataSize (const int bits=0) const
	get number of bytes required for the rendered output of a single frame More...

const void *	getOutputData (const unsigned long frame, const int bits, const int planar=0)
	get pixel data with specified format. More...

int	getOutputData (void *buffer, const unsigned long size, const unsigned long frame, const int bits, const int planar=0)
	get pixel data with specified format. More...

const void *	getOutputPlane (const int plane) const
	get pixel data of specified plane. More...

void	deleteOutputData ()
	delete internally handled output memory buffer Save memory if data is no longer needed.

DiImage *	createImage (const unsigned long fstart, const unsigned long fcount) const
	create copy of current image object More...

DiImage *	createScale (const signed long left_pos, const signed long top_pos, const unsigned long src_cols, const unsigned long src_rows, const unsigned long dest_cols, const unsigned long dest_rows, const int interpolate, const int aspect, const Uint16 pvalue) const
	create scaled copy of specified (clipping) area of the current image object. More...

int	flip (const int horz, const int vert)
	flip current image (horizontally and/or vertically) More...

DiImage *	createFlip (const int horz, const int vert) const
	create a flipped copy of the current image More...

int	rotate (const int degree)
	rotate current image (by steps of 90 degrees) More...

DiImage *	createRotate (const int degree) const
	create a rotated copy of the current image. More...

DiImage *	createMono (const double red, const double green, const double blue) const
	create monochrome copy of the current image More...

const DiPixel *	getInterData () const
	get pointer to intermediate pixel data representation More...

const DiColorPixel *	getColorInterData () const
	get pointer to intermediate pixel data representation More...

unsigned long	createDIB (void *&data, const unsigned long size, const unsigned long frame, const int bits, const int upsideDown, const int padding=1)
	create true color (24/32 bit) bitmap for MS Windows. More...

unsigned long	createAWTBitmap (void *&data, const unsigned long frame, const int bits)
	create true color (32 bit) bitmap for Java (AWT default format). More...

int	writeImageToDataset (DcmItem &dataset, const int mode, const int planar)
	write current image and related attributes to DICOM dataset. More...

int	writePPM (STD_NAMESPACE ostream &stream, const unsigned long frame, const int bits)
	write pixel data to PPM file. More...

int	writePPM (FILE *stream, const unsigned long frame, const int bits)
	write pixel data to PPM file. More...

int	writeRawPPM (FILE *stream, const unsigned long frame, const int bits)
	write pixel data to raw PPM file More...

int	writeBMP (FILE *stream, const unsigned long frame, const int bits)
	write pixel data to BMP file More...

Public Member Functions inherited from DiImage
	DiImage (const DiDocument *docu, const EI_Status status, const int spp)
	constructor More...

virtual	~DiImage ()
	destructor

virtual int	processNextFrames (const unsigned long fcount)
	process next couple of frames More...

EI_Status	getStatus () const
	get status of the image object More...

Uint32	getNumberOfFrames () const
	get number of frames More...

Uint32	getFirstFrame () const
	get index of first frame More...

Uint32	getTotalNumberOfFrames () const
	get total number of frames More...

Uint32	getRepresentativeFrame () const
	get representative frame More...

double	getFrameTime () const
	get frame time More...

Uint16	getRows () const
	get number of rows More...

Uint16	getColumns () const
	get number of columns More...

double	getPixelWidth () const
	get pixel's width More...

double	getPixelHeight () const
	get pixel's height More...

double	getRowColumnRatio () const
	get pixel's rows/column ratio More...

double	getColumnRowRatio () const
	get pixel's column/rows ratio More...

int	setRowColumnRatio (const double ratio)
	set pixel's rows/column ratio More...

int	setColumnRowRatio (const double ratio)
	set pixel's column/rows ratio More...

EP_Polarity	getPolarity () const
	get polarity. More...

int	setPolarity (const EP_Polarity polarity)
	set polarity. More...

virtual int	getBits (const int bits=0) const
	get number of bits per sample. More...

virtual DiOverlay *	getOverlayPtr (const unsigned int)
	get pointer to the object managing the overlay planes More...

virtual DiMonoImage *	getMonoImagePtr ()
	get pointer to monochrome image object More...

int	writeFrameToDataset (DcmItem &dataset, const unsigned long frame=0, const int bits=0, const int planar=0)
	render pixel data of given frame and write image related attributes to DICOM dataset. More...

Protected Member Functions
	DiColorImage (const DiColorImage *image, const unsigned long fstart, const unsigned long fcount)
	constructor, copy More...

	DiColorImage (const DiColorImage *image, const signed long left_pos, const signed long top_pos, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const int interpolate=0, const int aspect=0)
	constructor, scale/clip More...

	DiColorImage (const DiColorImage *image, const int horz, const int vert)
	constructor, flip More...

	DiColorImage (const DiColorImage *image, const int degree)
	constructor, rotate More...

int	checkInterData (const int mode=1)
	check intermediate pixel representation for consistency More...

const void *	getData (void *buffer, const unsigned long size, const unsigned long frame, const int bits, const int planar)
	get pixel data with specified format. More...

virtual void	updateImagePixelModuleAttributes (DcmItem &dataset)
	update Image Pixel Module attributes in the given dataset. More...

Protected Member Functions inherited from DiImage
	DiImage (const DiDocument *docu, const EI_Status status)
	constructor More...

	DiImage (const DiImage *image, const unsigned long fstart, const unsigned long fcount)
	constructor, copy More...

	DiImage (const DiImage *image, const Uint16 width, const Uint16 height, const int aspect=0)
	constructor, scale/clip More...

	DiImage (const DiImage *image, const int degree=0)
	constructor, rotate More...

	DiImage (const DiImage *image, const unsigned long frame, const int stored, const int alloc)
	constructor, createMonoOutput More...

void	deleteInputData ()
	delete internally handled object for the input pixel data conversion

void	checkPixelExtension ()
	check and possibly correct values for pixel spacing, aspect ratio etc.

void	convertPixelData ()
	create input pixel data representation from DICOM dataset structures

int	detachPixelData ()
	detach pixel data. More...

Protected Attributes
const OFBool	RGBColorModel
	flag, indicating whether the intermediate representation uses the RGB color model

DiColorPixel *	InterData
	points to intermediate pixel data representation (object)

Protected Attributes inherited from DiImage
EI_Status	ImageStatus
	copy of status variable declared in class 'DicomImage'

const DiDocument *	Document
	points to special object, which encapsulates the dcmdata module

Uint32	FirstFrame
	first frame to be processed

Uint32	NumberOfFrames
	number of frames in case of multi-frame images (otherwise '1')

Uint32	TotalNumberOfFrames
	total number of frames stored in the dataset

Uint32	RepresentativeFrame
	number of representative frame, type 3 attribute (default '0')

double	FrameTime
	nominal time between individual frames (0 if absent)

Uint16	Rows
	number of rows (in pixel)

Uint16	Columns
	number of columns (in pixel)

double	PixelWidth
	width of each pixel according to 'PixelSpacing/AspectRatio'

double	PixelHeight
	height of each pixel according to 'PixelSpacing/AspectRatio'

Uint16	BitsAllocated
	number of bits allocated for each pixel

Uint16	BitsStored
	number of bits stored for each pixel (see 'BitsPerSample')

Uint16	HighBit
	position of highest stored bit

int	BitsPerSample
	actual number of bits per sample (depth)

int	SamplesPerPixel
	number of samples per pixel (1, 3 or 4)

EP_Polarity	Polarity
	polarity (normal or reverse)

int	hasSignedRepresentation
	is 'true' if pixel data is signed

int	hasPixelSpacing
	is 'true' if attribute 'PixelSpacing' is present

int	hasImagerPixelSpacing
	is 'true' if attribute 'ImagerPixelSpacing' is present

int	hasNominalScannedPixelSpacing
	is 'true' if attribute 'hasNominalScannedPixelSpacing' is present

int	hasPixelAspectRatio
	is 'true' if attribute 'PixelAspectRatio' is present

int	isOriginal
	is 'false' if derived from original image data (e.g. scaled)

DiInputPixel *	InputData
	points to intermediate pixel representation (template object)

DcmFileCache	FileCache
	file cache object used for partial read

Uint32	CurrentFragment
	current pixel item fragment (for encapsulated pixel data)

Private Attributes
DiColorOutputPixel *	OutputData
	points to current output data (object)

Detailed Description

Base class for color images.

Constructor & Destructor Documentation

◆ DiColorImage() [1/5]

DiColorImage::DiColorImage	(	const DiDocument *	docu,
		const EI_Status	status,
		const int	spp,
		const OFBool	rgb = `OFTrue`
	)

constructor

Parameters

docu	pointer to the DICOM document
status	status of the image object
spp	sample per pixel (1, 3 or 4 depending on the color model)
rgb	specifies whether internal image representation is in RGB format

◆ DiColorImage() [2/5]

DiColorImage::DiColorImage	(	const DiColorImage *	image,
		const unsigned long	fstart,
		const unsigned long	fcount
	)

protected

constructor, copy

Parameters

image	pointer to reference image
fstart	first frame to be processed
fcount	number of frames

◆ DiColorImage() [3/5]

DiColorImage::DiColorImage	(	const DiColorImage *	image,
		const signed long	left_pos,
		const signed long	top_pos,
		const Uint16	src_cols,
		const Uint16	src_rows,
		const Uint16	dest_cols,
		const Uint16	dest_rows,
		const int	interpolate = `0`,
		const int	aspect = `0`
	)

protected

constructor, scale/clip

Parameters

image	pointer to reference image
left_pos	x coordinate of top left corner of area to be scaled (referring to image origin, negative values create a border around the image)
top_pos	y coordinate of top left corner of area to be scaled
src_cols	width of area to be scaled
src_rows	height of area to be scaled
dest_cols	width of scaled image (in pixels)
dest_rows	height of scaled image (in pixels)
interpolate	specifies whether scaling algorithm should use interpolation (if necessary). default: no interpolation (0), preferred interpolation algorithm (if applicable): 1 = pbmplus algorithm, 2 = c't algorithm, 3 = bilinear magnification, 4 = bicubic magnification
aspect	specifies whether pixel aspect ratio should be taken into consideration (if true, width OR height should be 0, i.e. this component will be calculated automatically)

◆ DiColorImage() [4/5]

DiColorImage::DiColorImage	(	const DiColorImage *	image,
		const int	horz,
		const int	vert
	)

protected

constructor, flip

Parameters

image	pointer to reference image
horz	flip horizontally if true
vert	flip vertically if true

◆ DiColorImage() [5/5]

DiColorImage::DiColorImage	(	const DiColorImage *	image,
		const int	degree
	)

protected

constructor, rotate

Parameters

image	pointer to reference image
degree	angle by which the image shall be rotated

Member Function Documentation

◆ checkInterData()

int DiColorImage::checkInterData ( const int mode = 1 )

protected

check intermediate pixel representation for consistency

Parameters

mode	check number of pixels stored in the dataset if true

Returns: status, true if successful, false otherwise

◆ createAWTBitmap()

unsigned long DiColorImage::createAWTBitmap	(	void *&	data,
		const unsigned long	frame,
		const int	bits
	)

virtual

create true color (32 bit) bitmap for Java (AWT default format).

Memory is not handled internally - must be deleted from calling program.

Parameters

data	resulting pointer to bitmap data (set to NULL if an error occurred)
frame	index of frame to be converted (default: first frame)
bits	number of bits per pixel used for the output bitmap (32)

Returns: number of bytes allocated by the bitmap, or 0 if an error occurred

Implements DiImage.

◆ createDIB()

unsigned long DiColorImage::createDIB	(	void *&	data,
		const unsigned long	size,
		const unsigned long	frame,
		const int	bits,
		const int	upsideDown,
		const int	padding = `1`
	)

virtual

create true color (24/32 bit) bitmap for MS Windows.

memory is not handled internally - must be deleted from calling program.

Parameters

data	untyped pointer memory buffer (set to NULL if not allocated externally)
size	size of the memory buffer in bytes (if 0 'data' is set to NULL)
frame	index of frame to be converted (starting from 0)
bits	number of bits per pixel used for the output bitmap (24 or 32)
upsideDown	specifies the order of lines in the images (0 = top-down, bottom-up otherwise)
padding	align each line to a 32-bit address if true (default)

Returns: number of bytes allocated by the bitmap, or 0 if an error occurred

Implements DiImage.

◆ createFlip()

DiImage* DiColorImage::createFlip	(	const int	horz,
		const int	vert
	)		const

virtual

create a flipped copy of the current image

Parameters

horz	flip horizontally if true
vert	flip vertically if true

Returns: pointer to new DiImage object (NULL if an error occurred)

Implements DiImage.

◆ createImage()

DiImage* DiColorImage::createImage	(	const unsigned long	fstart,
		const unsigned long	fcount
	)		const

virtual

create copy of current image object

Parameters

fstart	first frame to be processed
fcount	number of frames

Returns: pointer to new DicomImage object (NULL if an error occurred)

Implements DiImage.

◆ createMono()

DiImage* DiColorImage::createMono	(	const double	red,
		const double	green,
		const double	blue
	)		const

virtual

create monochrome copy of the current image

Parameters

red	coefficient by which the red component is weighted
green	coefficient by which the green component is weighted
blue	coefficient by which the blue component is weighted

Returns: pointer to new DiImage object (NULL if an error occurred)

Implements DiImage.

◆ createRotate()

DiImage* DiColorImage::createRotate ( const int degree ) const

virtual

create a rotated copy of the current image.

Parameters

degree angle by which the image shall be rotated

Returns: pointer to new DiImage object (NULL if an error occurred)

Implements DiImage.

◆ createScale()

DiImage* DiColorImage::createScale	(	const signed long	left_pos,
		const signed long	top_pos,
		const unsigned long	src_cols,
		const unsigned long	src_rows,
		const unsigned long	dest_cols,
		const unsigned long	dest_rows,
		const int	interpolate,
		const int	aspect,
		const Uint16	pvalue
	)		const

virtual

create scaled copy of specified (clipping) area of the current image object.

Parameters

left_pos	x coordinate of top left corner of area to be scaled (referring to image origin, negative values create a border around the image)
top_pos	y coordinate of top left corner of area to be scaled
src_cols	width of area to be scaled
src_rows	height of area to be scaled
dest_cols	width of scaled image (in pixels)
dest_rows	height of scaled image (in pixels)
interpolate	specifies whether scaling algorithm should use interpolation (if necessary). default: no interpolation (0), preferred interpolation algorithm (if applicable): 1 = pbmplus algorithm, 2 = c't algorithm, 3 = bilinear magnification, 4 = bicubic magnification
aspect	specifies whether pixel aspect ratio should be taken into consideration (if true, width OR height should be 0, i.e. this component will be calculated automatically)
pvalue	dummy parameter (only used for monochrome images)

Returns: pointer to new DiImage object (NULL if an error occurred)

Implements DiImage.

◆ flip()

int DiColorImage::flip	(	const int	horz,
		const int	vert
	)

virtual

flip current image (horizontally and/or vertically)

Parameters

horz	flip horizontally if true
vert	flip vertically if true

Returns: true if successful (1 = flipped at least direction, 2 = not flipped, because of image resolution - width and/or height equal to 1), false otherwise

Implements DiImage.

◆ getColorInterData()

const DiColorPixel* DiColorImage::getColorInterData ( ) const

inline

get pointer to intermediate pixel data representation

Returns: pointer to intermediate pixel data

◆ getData()

const void* DiColorImage::getData	(	void *	buffer,
		const unsigned long	size,
		const unsigned long	frame,
		const int	bits,
		const int	planar
	)

protected

get pixel data with specified format.

(memory is handled externally)

Parameters

buffer	untyped pointer to the externally allocated memory buffer
size	size of the memory buffer in bytes (will be checked)
frame	number of frame to be rendered
bits	number of bits for the output pixel data (depth)
planar	flag, 0 = color-by-pixel and 1 = color-by-plane

Returns: untyped pointer to the pixel data if successful, NULL otherwise

◆ getInterData()

const DiPixel* DiColorImage::getInterData ( ) const

inlinevirtual

get pointer to intermediate pixel data representation

Returns: pointer to intermediate pixel data

Implements DiImage.

◆ getInternalColorModel()

virtual EP_Interpretation DiColorImage::getInternalColorModel ( ) const

inlinevirtual

get color model of internal pixel representation.

Returns: returns EPI_RGB or EPI_YBR_Full depending on the 'rgb' flag in the constructor

Implements DiImage.

References EPI_RGB, and EPI_YBR_Full.

◆ getOutputData() [1/2]

const void* DiColorImage::getOutputData	(	const unsigned long	frame,
		const int	bits,
		const int	planar = `0`
	)

virtual

get pixel data with specified format.

(memory is handled internally) The standard color model of the pixel data is RGB, but if the flag "rgb" is OFFalse and the original color model was YCbCr_Full or YCbCr_Full_422 YCbCr_Full is used instead.

Parameters

frame	number of frame to be rendered
bits	number of bits per sample for the output pixel data (depth)
planar	0 = color-by-pixel (R1G1B1...R2G2B2...R3G3B3...), 1 = color-by-plane (R1R2R3...G1G2G3...B1B2B3...)

Returns: untyped pointer to the pixel data if successful, NULL otherwise

Implements DiImage.

◆ getOutputData() [2/2]

int DiColorImage::getOutputData	(	void *	buffer,
		const unsigned long	size,
		const unsigned long	frame,
		const int	bits,
		const int	planar = `0`
	)

virtual

get pixel data with specified format.

(memory is handled externally) The standard color model of the pixel data is RGB, but if the flag "rgb" is OFFalse and the original color model was YCbCr_Full or YCbCr_Full_422 YCbCr_Full is used instead.

Parameters

buffer	untyped pointer to the externally allocated memory buffer
size	size of the memory buffer in bytes (will be checked)
frame	number of frame to be rendered
bits	number of bits per sample for the output pixel data (depth)
planar	0 = color-by-pixel (R1G1B1...R2G2B2...R3G3B3...) 1 = color-by-plane (R1R2R3...G1G2G3...B1B2B3...)

Returns: status, true if successful, false otherwise

Implements DiImage.

◆ getOutputDataSize()

virtual unsigned long DiColorImage::getOutputDataSize ( const int bits = 0 ) const

virtual

get number of bytes required for the rendered output of a single frame

Parameters

bits	number of bits for the output pixel data (depth)

Returns: number of bytes if successful, 0 otherwise

Implements DiImage.

◆ getOutputPlane()

const void* DiColorImage::getOutputPlane ( const int plane ) const

virtual

get pixel data of specified plane.

(memory is handled internally)

Parameters

plane index of color plane

Returns: untyped pointer to the pixel data if successful, NULL otherwise

Implements DiImage.

◆ rotate()

int DiColorImage::rotate ( const int degree )

virtual

rotate current image (by steps of 90 degrees)

Parameters

degree angle by which the image shall be rotated (-360, -270, -180, -90, 0, 90, 180, 270, 360)

Returns: true if successful (1 = rotated by at least 90 degrees, 2 = not rotated, because of image resolution or angle), false otherwise

Reimplemented from DiImage.

◆ updateImagePixelModuleAttributes()

virtual void DiColorImage::updateImagePixelModuleAttributes ( DcmItem & dataset )

protectedvirtual

update Image Pixel Module attributes in the given dataset.

Removes color palette lookup tables. Used in writeXXXToDataset() routines.

Parameters

dataset reference to DICOM image dataset

Reimplemented from DiImage.

◆ writeBMP()

int DiColorImage::writeBMP	(	FILE *	stream,
		const unsigned long	frame,
		const int	bits
	)

virtual

write pixel data to BMP file

Parameters

stream	open C output stream
frame	index of frame used for output (default: first frame = 0)
bits	number of bits used for output of pixel data (24 or 32, default (0) = 24)

Returns: true if successful, false otherwise

Reimplemented from DiImage.

◆ writeImageToDataset()

int DiColorImage::writeImageToDataset	(	DcmItem &	dataset,
		const int	mode,
		const int	planar
	)

virtual

write current image and related attributes to DICOM dataset.

Parameters

dataset	reference to DICOM dataset where the image attributes are stored
mode	dummy parameter (only used for monochrome images)
planar	flag, whether the output data (for multi-planar images) should be planar or not

Returns: true if successful, false otherwise

Implements DiImage.

◆ writePPM() [1/2]

int DiColorImage::writePPM	(	STD_NAMESPACE ostream &	stream,
		const unsigned long	frame,
		const int	bits
	)

virtual

write pixel data to PPM file.

pixel data is written in ASCII format.

Parameters

stream	open C++ output stream
frame	index of frame used for output
bits	number of bits used for output of pixel data

Returns: true if successful, false otherwise

Implements DiImage.

◆ writePPM() [2/2]

int DiColorImage::writePPM	(	FILE *	stream,
		const unsigned long	frame,
		const int	bits
	)

virtual

write pixel data to PPM file.

pixel data is written in ASCII format.

Parameters

stream	open C output stream
frame	index of frame used for output
bits	number of bits used for output of pixel data

Returns: true if successful, false otherwise

Implements DiImage.

◆ writeRawPPM()

int DiColorImage::writeRawPPM	(	FILE *	stream,
		const unsigned long	frame,
		const int	bits
	)

virtual

write pixel data to raw PPM file

Parameters

stream	open C output stream
frame	index of frame used for output
bits	number of bits used for output of pixel data

Returns: true if successful, false otherwise

Implements DiImage.

The documentation for this class was generated from the following file:

dcmimage/include/dcmtk/dcmimage/dicoimg.h

Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DiColorImage() [1/5]

◆ DiColorImage() [2/5]

◆ DiColorImage() [3/5]

◆ DiColorImage() [4/5]

◆ DiColorImage() [5/5]

Member Function Documentation

◆ checkInterData()

◆ createAWTBitmap()

◆ createDIB()

◆ createFlip()

◆ createImage()

◆ createMono()

◆ createRotate()

◆ createScale()

◆ flip()

◆ getColorInterData()

◆ getData()

◆ getInterData()

◆ getInternalColorModel()

◆ getOutputData() [1/2]

◆ getOutputData() [2/2]

◆ getOutputDataSize()

◆ getOutputPlane()

◆ rotate()

◆ updateImagePixelModuleAttributes()

◆ writeBMP()

◆ writeImageToDataset()

◆ writePPM() [1/2]

◆ writePPM() [2/2]

◆ writeRawPPM()
