Abstract base class to handle color pixel data. More...

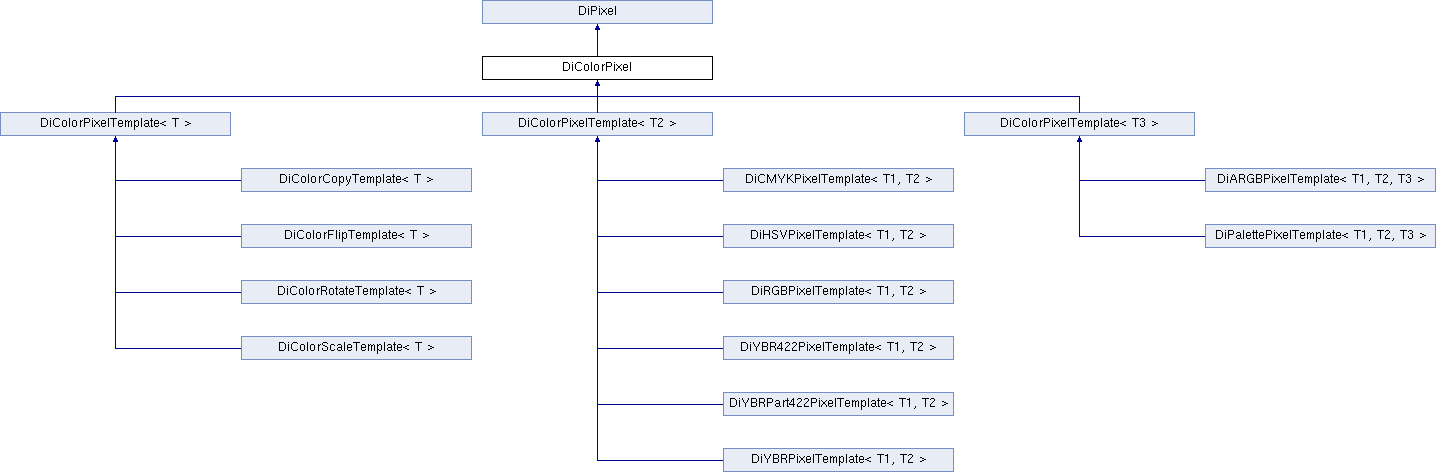

Inheritance diagram for DiColorPixel:
Public Member Functions | |
| DiColorPixel (const DiDocument *docu, const DiInputPixel *pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0) | |
| constructor More... | |
| virtual | ~DiColorPixel () |
| destructor | |
| int | getPlanes () const |
| get number of planes More... | |
| int | getPlanarConfiguration () const |
| get planar configuration of the original pixel data More... | |
| virtual OFBool | getPixelData (void *data, const unsigned long count, const unsigned long fcount, const unsigned long frames, const int planar) const =0 |
| fill given memory block with pixel data (all three image planes, RGB) More... | |
| virtual unsigned long | createDIB (void *&data, const unsigned long size, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits, const int mode, const int upsideDown, const int padding) const =0 |
| create true color (24/32 bit) bitmap for MS Windows. More... | |
| virtual unsigned long | createAWTBitmap (void *&data, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits) const =0 |
| create true color (32 bit) bitmap for Java (AWT default format). More... | |
| Public Member Functions inherited from DiPixel | |
| DiPixel (const unsigned long count, const unsigned long inputCount=0) | |
| constructor More... | |
| virtual | ~DiPixel () |
| destructor | |
| virtual EP_Representation | getRepresentation () const =0 |
| get integer representation (abstract) More... | |
| virtual const void * | getData () const =0 |
| get pointer to pixel data (abstract). More... | |
| virtual void * | getDataPtr ()=0 |
| get pointer to pixel data (abstract). More... | |
| virtual void * | getDataArrayPtr ()=0 |
| get pointer to array of pixel data (abstract). More... | |
| unsigned long | getCount () const |
| get number of pixels More... | |
| unsigned long | getInputCount () const |
| get number of pixels stored in the 'PixelData' element More... | |
Protected Member Functions | |
| DiColorPixel (const DiColorPixel *pixel, const unsigned long count) | |
| constructor More... | |
Protected Attributes | |
| int | PlanarConfiguration |
| planar configuration of the original pixel data (0 = color-by-pixel, 1 = color-by-plane) | |
| Protected Attributes inherited from DiPixel | |
| unsigned long | Count |
| number of pixels | |
| unsigned long | InputCount |
| number of pixels in the input buffer | |
Detailed Description
Abstract base class to handle color pixel data.
Constructor & Destructor Documentation
◆ DiColorPixel() [1/2]
| DiColorPixel::DiColorPixel | ( | const DiDocument * | docu, |
| const DiInputPixel * | pixel, | ||
| const Uint16 | samples, | ||
| EI_Status & | status, | ||
| const Uint16 | sample_rate = 0 |
||
| ) |
constructor
- Parameters
-
docu pointer to the DICOM document pixel pointer to input pixel data samples number of expected samples per pixel (for checking purposes) status status of the image object (reference variable) sample_rate dummy parameter (used for derived classes only)
◆ DiColorPixel() [2/2]
|
protected |
constructor
- Parameters
-
pixel pointer to intermediate color pixel data count number of pixels
Member Function Documentation
◆ createAWTBitmap()
|
pure virtual |
create true color (32 bit) bitmap for Java (AWT default format).
- Parameters
-
data resulting pointer to bitmap data (set to NULL if an error occurred) width number of columns of the image height number of rows of the image frame index of frame to be converted (starting from 0) fromBits number of bits per sample used for internal representation of the image toBits number of bits per sample used for the output bitmap (<= 8)
- Returns
- number of bytes allocated by the bitmap, or 0 if an error occurred
Implemented in DiColorPixelTemplate< T >, DiColorPixelTemplate< T2 >, and DiColorPixelTemplate< T3 >.
◆ createDIB()
|
pure virtual |
create true color (24/32 bit) bitmap for MS Windows.
- Parameters
-
data untyped pointer memory buffer (set to NULL if not allocated externally) size size of the memory buffer in bytes (if 0 'data' is set to NULL) width number of columns of the image height number of rows of the image frame index of frame to be converted (starting from 0) fromBits number of bits per sample used for internal representation of the image toBits number of bits per sample used for the output bitmap (<= 8) mode color output mode (24 or 32 bits, see dcmimgle/dcmimage.h for details) upsideDown specifies the order of lines in the images (0 = top-down, bottom-up otherwise) padding align each line to a 32-bit address if true
- Returns
- number of bytes allocated by the bitmap, or 0 if an error occurred
Implemented in DiColorPixelTemplate< T >, DiColorPixelTemplate< T2 >, and DiColorPixelTemplate< T3 >.
◆ getPixelData()
|
pure virtual |
fill given memory block with pixel data (all three image planes, RGB)
- Parameters
-
data pointer to memory block (array of 8 or 16 bit values, OB/OW) count number of T-size entries allocated in the 'data' array fcount number of pixels per frame frames total number of frames present in intermediate representation planar flag indicating whether data shall be stored color-by-pixel or color-by-plane
- Returns
- OFTrue if successful, OFFalse otherwise
Implemented in DiColorPixelTemplate< T >, DiColorPixelTemplate< T2 >, and DiColorPixelTemplate< T3 >.
◆ getPlanarConfiguration()
|
inline |
get planar configuration of the original pixel data
- Returns
- planar configuration (0 = color-by-pixel, 1 = color-by-plane)
◆ getPlanes()
|
inlinevirtual |
The documentation for this class was generated from the following file:
- dcmimage/include/dcmtk/dcmimage/dicopx.h
