Template class to flip monochrome images (on pixel data level) horizontally and vertically. More...

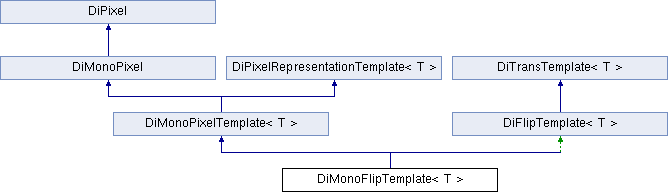

Inheritance diagram for DiMonoFlipTemplate< T >:
Public Member Functions | |
| DiMonoFlipTemplate (const DiMonoPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert) | |
| constructor More... | |
| ~DiMonoFlipTemplate () | |
| destructor | |
| Public Member Functions inherited from DiMonoPixelTemplate< T > | |
| DiMonoPixelTemplate (const unsigned long count) | |
| constructor More... | |
| DiMonoPixelTemplate (const DiInputPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| DiMonoPixelTemplate (DiMonoOutputPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| virtual | ~DiMonoPixelTemplate () |
| destructor | |
| EP_Representation | getRepresentation () const |
| get integer representation More... | |
| const void * | getData () const |
| get pointer to internal pixel data More... | |
| void * | getDataPtr () |
| get pointer to internal pixel data More... | |
| void * | getDataArrayPtr () |
| get reference to pointer to internal pixel data. More... | |
| int | getMinMaxValues (double &min, double &max) const |
| get minimum and maximum pixel values More... | |
| int | getMinMaxWindow (const int idx, double ¢er, double &width) |
| get automatically computed min-max window More... | |
| virtual int | getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth) |
| get automatically computed Region of Interest (ROI) window More... | |
| int | getHistogramWindow (const double thresh, double ¢er, double &width) |
| get automatically computed histogram window More... | |
| Public Member Functions inherited from DiMonoPixel | |
| DiMonoPixel (const unsigned long count) | |
| constructor More... | |
| DiMonoPixel (const DiInputPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| DiMonoPixel (DiMonoOutputPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| virtual | ~DiMonoPixel () |
| destructor | |
| int | getPlanes () const |
| get number of planes More... | |
| unsigned int | getBits () const |
| get number of bits per pixel More... | |
| double | getAbsMinimum () const |
| get absolute minimum pixel value. More... | |
| double | getAbsMaximum () const |
| get absolute maximum pixel value. More... | |
| double | getAbsMaxRange () const |
| get absolute pixel range More... | |
| const char * | getModalityLutExplanation () const |
| get modality LUT explanation string More... | |
| DiMonoModality * | addReferenceToModality () |
| add a reference to the internally managed modality transform object More... | |
| int | isPotentiallySigned () const |
| check whether pixel data is 'potentially' signed. More... | |
| Public Member Functions inherited from DiPixel | |
| DiPixel (const unsigned long count, const unsigned long inputCount=0) | |
| constructor More... | |
| virtual | ~DiPixel () |
| destructor | |
| unsigned long | getCount () const |
| get number of pixels More... | |
| unsigned long | getInputCount () const |
| get number of pixels stored in the 'PixelData' element More... | |
| Public Member Functions inherited from DiPixelRepresentationTemplate< T > | |
| DiPixelRepresentationTemplate () | |
| default constructor | |
| virtual | ~DiPixelRepresentationTemplate () |
| destructor | |
| int | isSigned () const |
| check whether template type T is signed or not More... | |
Private Member Functions | |
| void | flip (const T *pixel, const int horz, const int vert) |
| choose flipping algorithm depending on given parameters More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from DiMonoPixelTemplate< T > | |
| DiMonoPixelTemplate (const DiPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count) | |
| constructor More... | |
| void | determineMinMax (T minvalue=0, T maxvalue=0, const int mode=0x1) |
| determine minimum and maximum pixel values More... | |
| Protected Member Functions inherited from DiMonoPixel | |
| DiMonoPixel (const DiPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count) | |
| constructor More... | |
| Protected Member Functions inherited from DiFlipTemplate< T > | |
| void | flipHorz (const T *src[], T *dest[]) |
| flip source image horizontally and store result in destination image More... | |
| void | flipVert (const T *src[], T *dest[]) |
| flip source image vertically and store result in destination image More... | |
| void | flipHorzVert (const T *src[], T *dest[]) |
| flip source image horizontally and vertically and store result in destination image More... | |
| DiFlipTemplate (DiPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert) | |
| constructor. More... | |
| DiFlipTemplate (const int planes, const Uint16 columns, const Uint16 rows, const Uint32 frames) | |
| constructor. More... | |
| virtual | ~DiFlipTemplate () |
| destructor | |
| void | flipData (const T *src[], T *dest[], const int horz, const int vert) |
| choose algorithm depending on flipping mode More... | |
| Protected Member Functions inherited from DiTransTemplate< T > | |
| DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0) | |
| constructor More... | |
| virtual | ~DiTransTemplate () |
| destructor | |
| void | copyPixel (const T *src[], T *dest[]) |
| copy pixel data More... | |
| void | fillPixel (T *dest[], const T value) |
| fill pixel data with specified value More... | |
| void | clearPixel (T *dest[]) |
| clear pixel data (set values to 0) More... | |
| Protected Attributes inherited from DiMonoPixelTemplate< T > | |
| T * | Data |
| pointer to pixel data | |
| Protected Attributes inherited from DiMonoPixel | |
| DiMonoModality * | Modality |
| pointer to modality transform object | |
| Protected Attributes inherited from DiPixel | |
| unsigned long | Count |
| number of pixels | |
| unsigned long | InputCount |
| number of pixels in the input buffer | |
| Protected Attributes inherited from DiTransTemplate< T > | |
| int | Planes |
| number of planes | |
| Uint16 | Src_X |
| width of source image | |
| Uint16 | Src_Y |
| height of source image | |
| const Uint16 | Dest_X |
| width of destination image | |
| const Uint16 | Dest_Y |
| height of destination image | |
| const Uint32 | Frames |
| number of frames | |
| const int | Bits |
| number of bits per plane/pixel | |
Detailed Description
template<class T>
class DiMonoFlipTemplate< T >
Template class to flip monochrome images (on pixel data level) horizontally and vertically.
Constructor & Destructor Documentation
◆ DiMonoFlipTemplate()
template<class T >
|
inline |
constructor
- Parameters
-
pixel pointer to intermediate pixel representation columns number of columns rows number of rows frames number of frames horz flip horizontally if true vert flip vertically if true
Member Function Documentation
◆ flip()
template<class T >
|
inlineprivate |
choose flipping algorithm depending on given parameters
- Parameters
-
pixel pointer to pixel data which should be flipped horz flip horizontally if true vert flip vertically if true
References DiMonoPixelTemplate< T >::Data, DiFlipTemplate< T >::flipHorz(), DiFlipTemplate< T >::flipHorzVert(), DiFlipTemplate< T >::flipVert(), and DiPixel::getCount().
The documentation for this class was generated from the following file:
- dcmimgle/include/dcmtk/dcmimgle/dimoflt.h
