Abstract base class to handle monochrome pixel data. More...

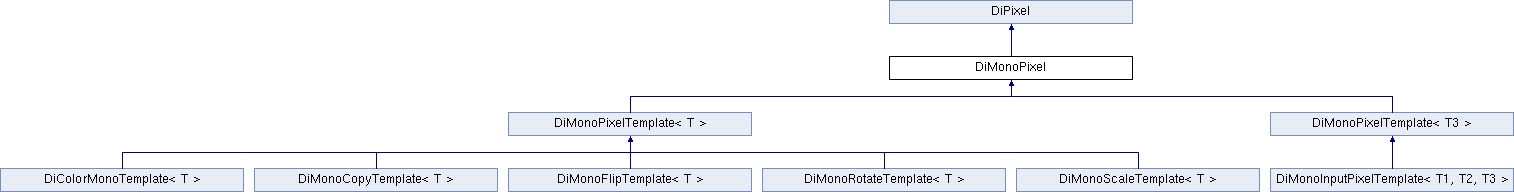

Inheritance diagram for DiMonoPixel:

Public Member Functions
	DiMonoPixel (const unsigned long count)
	constructor More...

	DiMonoPixel (const DiInputPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoPixel ()
	destructor

int	getPlanes () const
	get number of planes More...

virtual int	getMinMaxValues (double &min, double &max) const =0
	get minimum and maximum pixel values (abstract) More...

virtual int	getMinMaxWindow (const int idx, double &center, double &width)=0
	get automatically computed min-max window (abstract) More...

virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)=0
	get automatically computed Region of Interest (ROI) window (abstract) More...

virtual int	getHistogramWindow (const double thresh, double &center, double &width)=0
	get automatically computed histogram window (abstract) More...

unsigned int	getBits () const
	get number of bits per pixel More...

double	getAbsMinimum () const
	get absolute minimum pixel value. More...

double	getAbsMaximum () const
	get absolute maximum pixel value. More...

double	getAbsMaxRange () const
	get absolute pixel range More...

const char *	getModalityLutExplanation () const
	get modality LUT explanation string More...

DiMonoModality *	addReferenceToModality ()
	add a reference to the internally managed modality transform object More...

int	isPotentiallySigned () const
	check whether pixel data is 'potentially' signed. More...

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor More...

virtual	~DiPixel ()
	destructor

virtual EP_Representation	getRepresentation () const =0
	get integer representation (abstract) More...

virtual const void *	getData () const =0
	get pointer to pixel data (abstract). More...

virtual void *	getDataPtr ()=0
	get pointer to pixel data (abstract). More...

virtual void *	getDataArrayPtr ()=0
	get pointer to array of pixel data (abstract). More...

unsigned long	getCount () const
	get number of pixels More...

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element More...

Protected Member Functions
	DiMonoPixel (const DiPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count)
	constructor More...

Protected Attributes
DiMonoModality *	Modality
	pointer to modality transform object

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Detailed Description

Abstract base class to handle monochrome pixel data.

Constructor & Destructor Documentation

◆ DiMonoPixel() [1/5]

DiMonoPixel::DiMonoPixel ( const unsigned long count )

constructor

Parameters

count number of pixels

◆ DiMonoPixel() [2/5]

DiMonoPixel::DiMonoPixel	(	const DiInputPixel *	pixel,
		DiMonoModality *	modality
	)

constructor

Parameters

pixel	pointer to input pixel data
modality	pointer to object managing modality transform

◆ DiMonoPixel() [3/5]

DiMonoPixel::DiMonoPixel	(	DiMonoOutputPixel *	pixel,
		DiMonoModality *	modality
	)

constructor

Parameters

pixel	pointer to output pixel data used for intermediate representation
modality	pointer to object managing modality transform

◆ DiMonoPixel() [4/5]

DiMonoPixel::DiMonoPixel	(	const DiPixel *	pixel,
		DiMonoModality *	modality
	)

protected

constructor

Parameters

pixel	pointer to intermediate pixel data (not necessarily monochrome)
modality	pointer to object managing modality transform

◆ DiMonoPixel() [5/5]

DiMonoPixel::DiMonoPixel	(	const DiMonoPixel *	pixel,
		const unsigned long	count
	)

protected

constructor

Parameters

pixel	pointer to intermediate monochrome pixel data
count	number of pixels

Member Function Documentation

◆ addReferenceToModality()

DiMonoModality* DiMonoPixel::addReferenceToModality ( )

add a reference to the internally managed modality transform object

Returns: pointer to modality transform object (might be NULL)

◆ getAbsMaximum()

double DiMonoPixel::getAbsMaximum ( ) const

inline

get absolute maximum pixel value.

The result depends on former transforms.

Returns: absolute maximum value

◆ getAbsMaxRange()

double DiMonoPixel::getAbsMaxRange ( ) const

inline

get absolute pixel range

Returns: absolute pixel range

◆ getAbsMinimum()

double DiMonoPixel::getAbsMinimum ( ) const

inline

get absolute minimum pixel value.

The result depends on former transforms.

Returns: absolute minimum value

◆ getBits()

unsigned int DiMonoPixel::getBits ( ) const

inline

get number of bits per pixel

Returns: number of bits

◆ getHistogramWindow()

virtual int DiMonoPixel::getHistogramWindow	(	const double	thresh,
		double &	center,
		double &	width
	)

pure virtual

get automatically computed histogram window (abstract)

Parameters

thresh	ignore certain percentage of pixels at lower and upper boundaries
center	reference to storage area for window center value
width	reference to storage area for window width value

Returns: status, true if successful, false otherwise

Implemented in DiMonoPixelTemplate< T >, and DiMonoPixelTemplate< T3 >.

◆ getMinMaxValues()

virtual int DiMonoPixel::getMinMaxValues	(	double &	min,
		double &	max
	)		const

pure virtual

get minimum and maximum pixel values (abstract)

Parameters

min	reference to storage area for minimum pixel value
max	reference to storage area for maximum pixel value

Returns: status, true if successful, false otherwise

Implemented in DiMonoPixelTemplate< T >, and DiMonoPixelTemplate< T3 >.

◆ getMinMaxWindow()

virtual int DiMonoPixel::getMinMaxWindow	(	const int	idx,
		double &	center,
		double &	width
	)

pure virtual

get automatically computed min-max window (abstract)

Parameters

idx	ignore global min/max pixel values if > 0
center	reference to storage area for window center value
width	reference to storage area for window width value

Returns: status, true if successful, false otherwise

Implemented in DiMonoPixelTemplate< T >, and DiMonoPixelTemplate< T3 >.

◆ getModalityLutExplanation()

const char* DiMonoPixel::getModalityLutExplanation ( ) const

inline

get modality LUT explanation string

Returns: modality LUT explanation

◆ getPlanes()

int DiMonoPixel::getPlanes ( ) const

inlinevirtual

get number of planes

Returns: number of planes (here 1, monochrome)

Implements DiPixel.

◆ getRoiWindow()

virtual int DiMonoPixel::getRoiWindow	(	const unsigned long	left_pos,
		const unsigned long	top_pos,
		const unsigned long	width,
		const unsigned long	height,
		const unsigned long	columns,
		const unsigned long	rows,
		const unsigned long	frame,
		double &	voiCenter,
		double &	voiWidth
	)

pure virtual

get automatically computed Region of Interest (ROI) window (abstract)

Parameters

left_pos	x-coordinate of the top left-hand corner of the ROI (starting from 0)
top_pos	y-coordinate of the top left-hand corner of the ROI (starting from 0)
width	width in pixels of the rectangular ROI (minimum: 1)
height	height in pixels of the rectangular ROI (minimum: 1)
columns	number of columns (width) of the associated image
rows	number of rows (height) of the associated image
frame	index of the frame to be used for the calculation
voiCenter	reference to storage area for window center value
voiWidth	reference to storage area for window width value

Returns: status, true if successful, false otherwise

Implemented in DiMonoPixelTemplate< T >, and DiMonoPixelTemplate< T3 >.

◆ isPotentiallySigned()

int DiMonoPixel::isPotentiallySigned ( ) const

inline

check whether pixel data is 'potentially' signed.

This check is necessary to interpret possibly following LUT descriptors correctly (see supplement 33)

Returns: true if pixel data is potentially signed, false otherwise

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/dimopx.h
