Template class to copy monochrome pixel data. More...

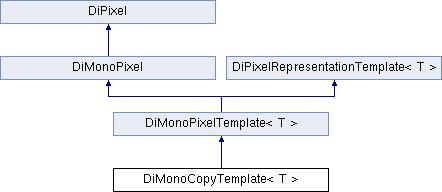

Inheritance diagram for DiMonoCopyTemplate< T >:

Public Member Functions
	DiMonoCopyTemplate (const DiMonoPixel *pixel, const unsigned long fstart, const unsigned long fcount, const unsigned long fsize)
	constructor More...

	~DiMonoCopyTemplate ()
	destructor

Public Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const unsigned long count)
	constructor More...

	DiMonoPixelTemplate (const DiInputPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixelTemplate (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoPixelTemplate ()
	destructor

EP_Representation	getRepresentation () const
	get integer representation More...

const void *	getData () const
	get pointer to internal pixel data More...

void *	getDataPtr ()
	get pointer to internal pixel data More...

void *	getDataArrayPtr ()
	get reference to pointer to internal pixel data. More...

int	getMinMaxValues (double &min, double &max) const
	get minimum and maximum pixel values More...

int	getMinMaxWindow (const int idx, double &center, double &width)
	get automatically computed min-max window More...

virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)
	get automatically computed Region of Interest (ROI) window More...

int	getHistogramWindow (const double thresh, double &center, double &width)
	get automatically computed histogram window More...

Public Member Functions inherited from DiMonoPixel
	DiMonoPixel (const unsigned long count)
	constructor More...

	DiMonoPixel (const DiInputPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoPixel ()
	destructor

int	getPlanes () const
	get number of planes More...

unsigned int	getBits () const
	get number of bits per pixel More...

double	getAbsMinimum () const
	get absolute minimum pixel value. More...

double	getAbsMaximum () const
	get absolute maximum pixel value. More...

double	getAbsMaxRange () const
	get absolute pixel range More...

const char *	getModalityLutExplanation () const
	get modality LUT explanation string More...

DiMonoModality *	addReferenceToModality ()
	add a reference to the internally managed modality transform object More...

int	isPotentiallySigned () const
	check whether pixel data is 'potentially' signed. More...

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor More...

virtual	~DiPixel ()
	destructor

unsigned long	getCount () const
	get number of pixels More...

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element More...

Public Member Functions inherited from DiPixelRepresentationTemplate< T >
	DiPixelRepresentationTemplate ()
	default constructor

virtual	~DiPixelRepresentationTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not More...

Private Member Functions
void	copy (const T *pixel)
	copy specified amount of pixel data More...

Additional Inherited Members
Protected Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const DiPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count)
	constructor More...

void	determineMinMax (T minvalue=0, T maxvalue=0, const int mode=0x1)
	determine minimum and maximum pixel values More...

Protected Member Functions inherited from DiMonoPixel
	DiMonoPixel (const DiPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count)
	constructor More...

Protected Attributes inherited from DiMonoPixelTemplate< T >
T *	Data
	pointer to pixel data

Protected Attributes inherited from DiMonoPixel
DiMonoModality *	Modality
	pointer to modality transform object

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Detailed Description

template<class T>
class DiMonoCopyTemplate< T >

Template class to copy monochrome pixel data.

Constructor & Destructor Documentation

◆ DiMonoCopyTemplate()

template<class T >

DiMonoCopyTemplate< T >::DiMonoCopyTemplate	(	const DiMonoPixel *	pixel,
		const unsigned long	fstart,
		const unsigned long	fcount,
		const unsigned long	fsize
	)

inline

constructor

Parameters

pixel	pointer to monochrome intermediate representation of pixel data
fstart	first frame to be copied
fcount	number of frames to be copied
fsize	size of one frame (in bytes)

References DiMonoCopyTemplate< T >::copy(), and DiPixel::getCount().

Member Function Documentation

◆ copy()

template<class T >

void DiMonoCopyTemplate< T >::copy ( const T * pixel )

inlineprivate

copy specified amount of pixel data

Parameters

pixel array of pixel data to be copied

References OFBitmanipTemplate< T >::copyMem(), DiMonoPixelTemplate< T >::Data, and DiPixel::getCount().

Referenced by DiMonoCopyTemplate< T >::DiMonoCopyTemplate().

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/dimocpt.h
