DiPixelRepresentationTemplate< T > Class Template Reference

Template class to determine pixel representation. More...

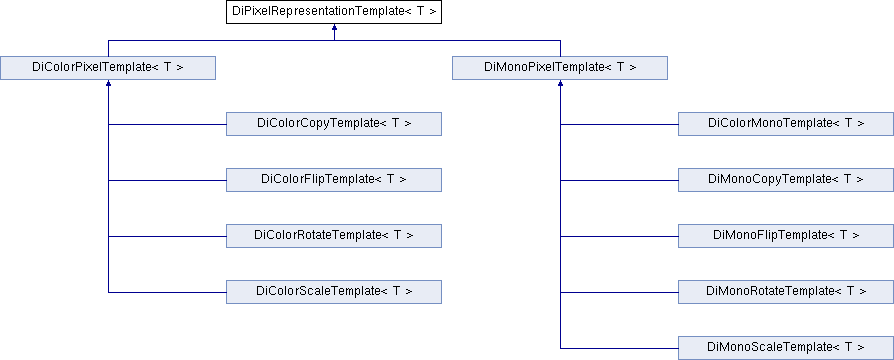

Inheritance diagram for DiPixelRepresentationTemplate< T >:

Public Member Functions
	DiPixelRepresentationTemplate ()
	default constructor
virtual	~DiPixelRepresentationTemplate ()
	destructor
int	isSigned () const
	check whether template type T is signed or not More...

Protected Member Functions
virtual EP_Representation	getRepresentation () const
	determine integer representation for template type T More...

Detailed Description

template<class T>
class DiPixelRepresentationTemplate< T >

Template class to determine pixel representation.

Size of basic structure, sign-extension

Member Function Documentation

getRepresentation()

template<class T>

DCMTK_EXPLICIT_SPECIALIZATION EP_Representation DiPixelRepresentationTemplate< T >::getRepresentation ( ) const

inlineprotectedvirtual

determine integer representation for template type T

Returns

integer representation

Reimplemented in DiInputPixelTemplate< T1, T2 >, DiMonoOutputPixelTemplate< T1, T2, T3 >, DiColorPixelTemplate< T >, DiColorPixelTemplate< T2 >, DiColorPixelTemplate< T3 >, DiMonoPixelTemplate< T >, DiMonoPixelTemplate< T3 >, and DiColorOutputPixelTemplate< T1, T2 >.

Referenced by DiPixelRepresentationTemplate< T3 >::getRepresentation(), DiColorOutputPixelTemplate< T1, T2 >::getRepresentation(), DiMonoPixelTemplate< T3 >::getRepresentation(), DiColorPixelTemplate< T3 >::getRepresentation(), DiMonoOutputPixelTemplate< T1, T2, T3 >::getRepresentation(), DiInputPixelTemplate< T1, T2 >::getRepresentation(), and DiPixelRepresentationTemplate< T3 >::~DiPixelRepresentationTemplate().

isSigned()

template<class T>

DCMTK_EXPLICIT_SPECIALIZATION int DiPixelRepresentationTemplate< T >::isSigned ( ) const

inline

check whether template type T is signed or not

Returns

true if signed, false otherwise

Referenced by DiPixelRepresentationTemplate< T3 >::isSigned(), DiScaleTemplate< T >::isSigned(), and DiPixelRepresentationTemplate< T3 >::~DiPixelRepresentationTemplate().

---

The documentation for this class was generated from the following file:

• dcmimgle/include/dcmtk/dcmimgle/dipxrept.h
