Template class to convert color image to monochrome images. More...

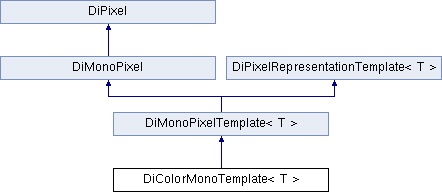

Inheritance diagram for DiColorMonoTemplate< T >:

Public Member Functions
	DiColorMonoTemplate (const DiColorPixel pixel, DiMonoModality modality, const double red, const double green, const double blue)
	constructor More...

virtual	~DiColorMonoTemplate ()
	destructor

Public Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const unsigned long count)
	constructor More...

	DiMonoPixelTemplate (const DiInputPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixelTemplate (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoPixelTemplate ()
	destructor

EP_Representation	getRepresentation () const
	get integer representation More...

const void *	getData () const
	get pointer to internal pixel data More...

void *	getDataPtr ()
	get pointer to internal pixel data More...

void *	getDataArrayPtr ()
	get reference to pointer to internal pixel data. More...

int	getMinMaxValues (double &min, double &max) const
	get minimum and maximum pixel values More...

int	getMinMaxWindow (const int idx, double &center, double &width)
	get automatically computed min-max window More...

virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)
	get automatically computed Region of Interest (ROI) window More...

int	getHistogramWindow (const double thresh, double &center, double &width)
	get automatically computed histogram window More...

Public Member Functions inherited from DiMonoPixel
	DiMonoPixel (const unsigned long count)
	constructor More...

	DiMonoPixel (const DiInputPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoPixel ()
	destructor

int	getPlanes () const
	get number of planes More...

unsigned int	getBits () const
	get number of bits per pixel More...

double	getAbsMinimum () const
	get absolute minimum pixel value. More...

double	getAbsMaximum () const
	get absolute maximum pixel value. More...

double	getAbsMaxRange () const
	get absolute pixel range More...

const char *	getModalityLutExplanation () const
	get modality LUT explanation string More...

DiMonoModality *	addReferenceToModality ()
	add a reference to the internally managed modality transform object More...

int	isPotentiallySigned () const
	check whether pixel data is 'potentially' signed. More...

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor More...

virtual	~DiPixel ()
	destructor

unsigned long	getCount () const
	get number of pixels More...

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element More...

Public Member Functions inherited from DiPixelRepresentationTemplate< T >
	DiPixelRepresentationTemplate ()
	default constructor

virtual	~DiPixelRepresentationTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not More...

Private Member Functions
void	convert (const T *pixel[3], const double red, const double green, const double blue)
	convert color pixel data to monochrome format More...

Additional Inherited Members
Protected Member Functions inherited from DiMonoPixelTemplate< T >
	DiMonoPixelTemplate (const DiPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count)
	constructor More...

void	determineMinMax (T minvalue=0, T maxvalue=0, const int mode=0x1)
	determine minimum and maximum pixel values More...

Protected Member Functions inherited from DiMonoPixel
	DiMonoPixel (const DiPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count)
	constructor More...

Protected Attributes inherited from DiMonoPixelTemplate< T >
T *	Data
	pointer to pixel data

Protected Attributes inherited from DiMonoPixel
DiMonoModality *	Modality
	pointer to modality transform object

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Detailed Description

template<class T>
class DiColorMonoTemplate< T >

Template class to convert color image to monochrome images.

(on pixel data level)

Constructor & Destructor Documentation

◆ DiColorMonoTemplate()

template<class T >

DiColorMonoTemplate< T >::DiColorMonoTemplate	(	const DiColorPixel *	pixel,
		DiMonoModality *	modality,
		const double	red,
		const double	green,
		const double	blue
	)

inline

constructor

Parameters

pixel	intermediate representation of color pixel data
modality	pointer to object managing modality transform
red	coefficient of red pixel component
green	coefficient of green pixel component
blue	coefficient of blue pixel component

References DiColorMonoTemplate< T >::convert(), and DiPixel::getCount().

Member Function Documentation

◆ convert()

template<class T >

void DiColorMonoTemplate< T >::convert	(	const T *	pixel[3],
		const double	red,
		const double	green,
		const double	blue
	)

inlineprivate

convert color pixel data to monochrome format

Parameters

pixel	intermediate representation of color pixel data
red	coefficient of red pixel component
green	coefficient of green pixel component
blue	coefficient of blue pixel component

References DiPixel::Count, and DiMonoPixelTemplate< T >::Data.

Referenced by DiColorMonoTemplate< T >::DiColorMonoTemplate().

The documentation for this class was generated from the following file:

dcmimage/include/dcmtk/dcmimage/dicomot.h
