DiColorImage Class Reference

Base class for color images. More...

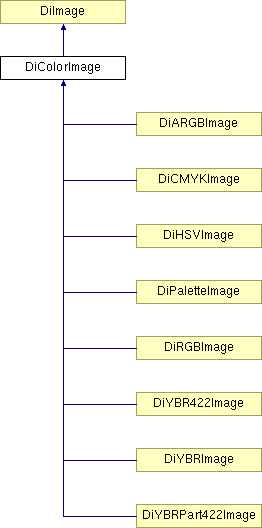

Inheritance diagram for DiColorImage:


Public Member Functions
	DiColorImage (const DiDocument *docu, const EI_Status status, const int spp, const OFBool rgb=OFTrue)
	constructor
virtual	~DiColorImage ()
	destructor
virtual EP_Interpretation	getInternalColorModel () const
	get color model of internal pixel representation.
virtual unsigned long	getOutputDataSize (const int bits=0) const
	get number of bytes required for the rendered output of a single frame
const void *	getOutputData (const unsigned long frame, const int bits, const int planar=0)
	get pixel data with specified format.
int	getOutputData (void *buffer, const unsigned long size, const unsigned long frame, const int bits, const int planar=0)
	get pixel data with specified format.
const void *	getOutputPlane (const int plane) const
	get pixel data of specified plane.
void	deleteOutputData ()
	delete internally handled output memory buffer Save memory if data is no longer needed.
DiImage *	createImage (const unsigned long fstart, const unsigned long fcount) const
	create copy of current image object
DiImage *	createScale (const signed long left_pos, const signed long top_pos, const unsigned long src_cols, const unsigned long src_rows, const unsigned long dest_cols, const unsigned long dest_rows, const int interpolate, const int aspect, const Uint16 pvalue) const
	create scaled copy of specified (clipping) area of the current image object.
int	flip (const int horz, const int vert)
	flip current image (horizontally and/or vertically)
DiImage *	createFlip (const int horz, const int vert) const
	create a flipped copy of the current image
int	rotate (const int degree)
	rotate current image (by steps of 90 degrees)
DiImage *	createRotate (const int degree) const
	create a rotated copy of the current image.
DiImage *	createMono (const double red, const double green, const double blue) const
	create monochrome copy of the current image
const DiPixel *	getInterData () const
	get pointer to intermediate pixel data representation
const DiColorPixel *	getColorInterData () const
	get pointer to intermediate pixel data representation
unsigned long	createDIB (void *&data, const unsigned long size, const unsigned long frame, const int bits, const int upsideDown, const int padding=1)
	create true color (24/32 bit) bitmap for MS Windows.
unsigned long	createAWTBitmap (void *&data, const unsigned long frame, const int bits)
	create true color (32 bit) bitmap for Java (AWT default format).
int	writeImageToDataset (DcmItem &dataset, const int mode, const int planar)
	write current image and related attributes to DICOM dataset.
int	writePPM (STD_NAMESPACE ostream &stream, const unsigned long frame, const int bits)
	write pixel data to PPM file.
int	writePPM (FILE *stream, const unsigned long frame, const int bits)
	write pixel data to PPM file.
int	writeRawPPM (FILE *stream, const unsigned long frame, const int bits)
	write pixel data to raw PPM file
int	writeBMP (FILE *stream, const unsigned long frame, const int bits)
	write pixel data to BMP file
Protected Member Functions
	DiColorImage (const DiColorImage *image, const unsigned long fstart, const unsigned long fcount)
	constructor, copy
	DiColorImage (const DiColorImage *image, const signed long left_pos, const signed long top_pos, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const int interpolate=0, const int aspect=0)
	constructor, scale/clip
	DiColorImage (const DiColorImage *image, const int horz, const int vert)
	constructor, flip
	DiColorImage (const DiColorImage *image, const int degree)
	constructor, rotate
int	checkInterData (const int mode=1)
	check intermediate pixel representation for consistency
const void *	getData (void *buffer, const unsigned long size, const unsigned long frame, const int bits, const int planar)
	get pixel data with specified format.
virtual void	updateImagePixelModuleAttributes (DcmItem &dataset)
	update Image Pixel Module attributes in the given dataset.
Protected Attributes
const OFBool	RGBColorModel
	flag, indicating whether the intermediate representation uses the RGB color model
DiColorPixel *	InterData
	points to intermediate pixel data representation (object)
Private Member Functions
	DiColorImage (const DiColorImage &)
DiColorImage &	operator= (const DiColorImage &)
Private Attributes
DiColorOutputPixel *	OutputData
	points to current output data (object)

Detailed Description

Base class for color images.

Definition at line 52 of file dicoimg.h.

Constructor & Destructor Documentation

DiColorImage::DiColorImage	(	const DiDocument *	docu,
		const EI_Status	status,
		const int	spp,
		const OFBool	rgb = `OFTrue`
	)

constructor

Parameters:

	docu	pointer to the DICOM document
	status	status of the image object
	spp	sample per pixel (1, 3 or 4 depending on the color model)
	rgb	specifies whether internal image representation is in RGB format

DiColorImage::DiColorImage	(	const DiColorImage *	image,
		const unsigned long	fstart,
		const unsigned long	fcount
	)			`[protected]`

constructor, copy

Parameters:

	image	pointer to reference image
	fstart	first frame to be processed
	fcount	number of frames

DiColorImage::DiColorImage	(	const DiColorImage *	image,
		const signed long	left_pos,
		const signed long	top_pos,
		const Uint16	src_cols,
		const Uint16	src_rows,
		const Uint16	dest_cols,
		const Uint16	dest_rows,
		const int	interpolate = `0`,
		const int	aspect = `0`
	)			`[protected]`

constructor, scale/clip

Parameters:

	image	pointer to reference image
	left_pos	x coordinate of top left corner of area to be scaled (referring to image origin, negative values create a border around the image)
	top_pos	y coordinate of top left corner of area to be scaled
	src_cols	width of area to be scaled
	src_rows	height of area to be scaled
	dest_cols	width of scaled image (in pixels)
	dest_rows	height of scaled image (in pixels)
	interpolate	specifies whether scaling algorithm should use interpolation (if necessary). default: no interpolation (0), preferred interpolation algorithm (if applicable): 1 = pbmplus algorithm, 2 = c't algorithm, 3 = bilinear magnification, 4 = bicubic magnification
	aspect	specifies whether pixel aspect ratio should be taken into consideration (if true, width OR height should be 0, i.e. this component will be calculated automatically)

DiColorImage::DiColorImage	(	const DiColorImage *	image,
		const int	horz,
		const int	vert
	)			`[protected]`

constructor, flip

Parameters:

	image	pointer to reference image
	horz	flip horizontally if true
	vert	flip vertically if true

DiColorImage::DiColorImage	(	const DiColorImage *	image,
		const int	degree
	)			`[protected]`

constructor, rotate

Parameters:

	image	pointer to reference image
	degree	angle by which the image shall be rotated

Member Function Documentation

virtual EP_Interpretation DiColorImage::getInternalColorModel ( ) const [inline, virtual]

get color model of internal pixel representation.

Returns:: returns EPI_RGB or EPI_YBR_Full depending on the 'rgb' flag in the constructor

Implements DiImage.

Definition at line 78 of file dicoimg.h.

References RGBColorModel.

virtual unsigned long DiColorImage::getOutputDataSize ( const int bits = 0 ) const [virtual]

get number of bytes required for the rendered output of a single frame

Parameters:

bits

number of bits for the output pixel data (depth)

Returns:: number of bytes if successful, 0 otherwise

Implements DiImage.

const void* DiColorImage::getOutputData	(	const unsigned long	frame,
		const int	bits,
		const int	planar = `0`
	)			`[virtual]`

get pixel data with specified format.

(memory is handled internally) The standard color model of the pixel data is RGB, but if the flag "rgb" is OFFalse and the original color model was YCbCr_Full or YCbCr_Full_422 YCbCr_Full is used instead.

Parameters:

	frame	number of frame to be rendered
	bits	number of bits per sample for the output pixel data (depth)
	planar	0 = color-by-pixel (R1G1B1...R2G2B2...R3G3B3...), 1 = color-by-plane (R1R2R3...G1G2G3...B1B2B3...)

Returns:: untyped pointer to the pixel data if successful, NULL otherwise

Implements DiImage.

int DiColorImage::getOutputData	(	void *	buffer,
		const unsigned long	size,
		const unsigned long	frame,
		const int	bits,
		const int	planar = `0`
	)			`[virtual]`

get pixel data with specified format.

(memory is handled externally) The standard color model of the pixel data is RGB, but if the flag "rgb" is OFFalse and the original color model was YCbCr_Full or YCbCr_Full_422 YCbCr_Full is used instead.

Parameters:

	buffer	untyped pointer to the externally allocated memory buffer
	size	size of the memory buffer in bytes (will be checked)
	frame	number of frame to be rendered
	bits	number of bits per sample for the output pixel data (depth)
	planar	0 = color-by-pixel (R1G1B1...R2G2B2...R3G3B3...) 1 = color-by-plane (R1R2R3...G1G2G3...B1B2B3...)

Returns:: status, true if successful, false otherwise

Implements DiImage.

const void* DiColorImage::getOutputPlane ( const int plane ) const [virtual]

get pixel data of specified plane.

(memory is handled internally)

Parameters:

plane

index of color plane

Returns:: untyped pointer to the pixel data if successful, NULL otherwise

Implements DiImage.

DiImage* DiColorImage::createImage	(	const unsigned long	fstart,
		const unsigned long	fcount
	)			const `[virtual]`

create copy of current image object

Parameters:

	fstart	first frame to be processed
	fcount	number of frames

Returns:: pointer to new DicomImage object (NULL if an error occurred)

Implements DiImage.

DiImage* DiColorImage::createScale	(	const signed long	left_pos,
		const signed long	top_pos,
		const unsigned long	src_cols,
		const unsigned long	src_rows,
		const unsigned long	dest_cols,
		const unsigned long	dest_rows,
		const int	interpolate,
		const int	aspect,
		const Uint16	pvalue
	)			const `[virtual]`

create scaled copy of specified (clipping) area of the current image object.

Parameters:

	left_pos	x coordinate of top left corner of area to be scaled (referring to image origin, negative values create a border around the image)
	top_pos	y coordinate of top left corner of area to be scaled
	src_cols	width of area to be scaled
	src_rows	height of area to be scaled
	dest_cols	width of scaled image (in pixels)
	dest_rows	height of scaled image (in pixels)
	interpolate	specifies whether scaling algorithm should use interpolation (if necessary). default: no interpolation (0), preferred interpolation algorithm (if applicable): 1 = pbmplus algorithm, 2 = c't algorithm, 3 = bilinear magnification, 4 = bicubic magnification
	aspect	specifies whether pixel aspect ratio should be taken into consideration (if true, width OR height should be 0, i.e. this component will be calculated automatically)
	pvalue	dummy parameter (only used for monochrome images)

Returns:: pointer to new DiImage object (NULL if an error occurred)

Implements DiImage.

int DiColorImage::flip	(	const int	horz,
		const int	vert
	)			`[virtual]`

flip current image (horizontally and/or vertically)

Parameters:

	horz	flip horizontally if true
	vert	flip vertically if true

Returns:: true if successful (1 = flipped at least direction, 2 = not flipped, because of image resolution - width and/or height equal to 1), false otherwise

Implements DiImage.

DiImage* DiColorImage::createFlip	(	const int	horz,
		const int	vert
	)			const `[virtual]`

create a flipped copy of the current image

Parameters:

	horz	flip horizontally if true
	vert	flip vertically if true

Returns:: pointer to new DiImage object (NULL if an error occurred)

Implements DiImage.

int DiColorImage::rotate ( const int degree ) [virtual]

rotate current image (by steps of 90 degrees)

Parameters:

degree

angle by which the image shall be rotated (-360, -270, -180, -90, 0, 90, 180, 270, 360)

Returns:: true if successful (1 = rotated by at least 90 degrees, 2 = not rotated, because of image resolution or angle), false otherwise

Reimplemented from DiImage.

DiImage* DiColorImage::createRotate ( const int degree ) const [virtual]

create a rotated copy of the current image.

Parameters:

degree

angle by which the image shall be rotated

Returns:: pointer to new DiImage object (NULL if an error occurred)

Implements DiImage.

DiImage* DiColorImage::createMono	(	const double	red,
		const double	green,
		const double	blue
	)			const `[virtual]`

create monochrome copy of the current image

Parameters:

	red	coefficient by which the red component is weighted
	green	coefficient by which the green component is weighted
	blue	coefficient by which the blue component is weighted

Returns:: pointer to new DiImage object (NULL if an error occurred)

Implements DiImage.

const DiPixel* DiColorImage::getInterData ( ) const [inline, virtual]

get pointer to intermediate pixel data representation

Returns:: pointer to intermediate pixel data

Implements DiImage.

Definition at line 237 of file dicoimg.h.

References InterData.

const DiColorPixel* DiColorImage::getColorInterData ( ) const [inline]

get pointer to intermediate pixel data representation

Returns:: pointer to intermediate pixel data

Definition at line 246 of file dicoimg.h.

References InterData.

unsigned long DiColorImage::createDIB	(	void *&	data,
		const unsigned long	size,
		const unsigned long	frame,
		const int	bits,
		const int	upsideDown,
		const int	padding = `1`
	)			`[virtual]`

create true color (24/32 bit) bitmap for MS Windows.

memory is not handled internally - must be deleted from calling program.

Parameters:

	data	untyped pointer memory buffer (set to NULL if not allocated externally)
	size	size of the memory buffer in bytes (if 0 'data' is set to NULL)
	frame	index of frame to be converted (starting from 0)
	bits	number of bits per pixel used for the output bitmap (24 or 32)
	upsideDown	specifies the order of lines in the images (0 = top-down, bottom-up otherwise)
	padding	align each line to a 32-bit address if true (default)

Returns:: number of bytes allocated by the bitmap, or 0 if an error occured

Implements DiImage.

unsigned long DiColorImage::createAWTBitmap	(	void *&	data,
		const unsigned long	frame,
		const int	bits
	)			`[virtual]`

create true color (32 bit) bitmap for Java (AWT default format).

Memory is not handled internally - must be deleted from calling program.

Parameters:

	data	resulting pointer to bitmap data (set to NULL if an error occurred)
	frame	index of frame to be converted (default: first frame)
	bits	number of bits per pixel used for the output bitmap (32)

Returns:: number of bytes allocated by the bitmap, or 0 if an error occured

Implements DiImage.

int DiColorImage::writeImageToDataset	(	DcmItem &	dataset,
		const int	mode,
		const int	planar
	)			`[virtual]`

write current image and related attributes to DICOM dataset.

Parameters:

	dataset	reference to DICOM dataset where the image attributes are stored
	mode	dummy parameter (only used for monochrome images)
	planar	flag, whether the output data (for multi-planar images) should be planar or not

Returns:: true if successful, false otherwise

Implements DiImage.

int DiColorImage::writePPM	(	STD_NAMESPACE ostream &	stream,
		const unsigned long	frame,
		const int	bits
	)			`[virtual]`

write pixel data to PPM file.

pixel data is written in ASCII format.

Parameters:

	stream	open C++ output stream
	frame	index of frame used for output
	bits	number of bits used for output of pixel data

Returns:: true if successful, false otherwise

Implements DiImage.

int DiColorImage::writePPM	(	FILE *	stream,
		const unsigned long	frame,
		const int	bits
	)			`[virtual]`

write pixel data to PPM file.

pixel data is written in ASCII format.

Parameters:

	stream	open C output stream
	frame	index of frame used for output
	bits	number of bits used for output of pixel data

Returns:: true if successful, false otherwise

Implements DiImage.

int DiColorImage::writeRawPPM	(	FILE *	stream,
		const unsigned long	frame,
		const int	bits
	)			`[virtual]`

write pixel data to raw PPM file

Parameters:

	stream	open C output stream
	frame	index of frame used for output
	bits	number of bits used for output of pixel data

Returns:: true if successful, false otherwise

Implements DiImage.

int DiColorImage::writeBMP	(	FILE *	stream,
		const unsigned long	frame,
		const int	bits
	)			`[virtual]`

write pixel data to BMP file

Parameters:

	stream	open C output stream
	frame	index of frame used for output (default: first frame = 0)
	bits	number of bits used for output of pixel data (24 or 32, default (0) = 24)

Returns:: true if successful, false otherwise

Reimplemented from DiImage.

int DiColorImage::checkInterData ( const int mode = 1 ) [protected]

check intermediate pixel representation for consistency

Parameters:

mode

check number of pixels stored in the dataset if true

const void* DiColorImage::getData	(	void *	buffer,
		const unsigned long	size,
		const unsigned long	frame,
		const int	bits,
		const int	planar
	)			`[protected]`

get pixel data with specified format.

(memory is handled externally)

Parameters:

	buffer	untyped pointer to the externally allocated memory buffer
	size	size of the memory buffer in bytes (will be checked)
	frame	number of frame to be rendered
	bits	number of bits for the output pixel data (depth)
	planar	flag, 0 = color-by-pixel and 1 = color-by-plane

Returns:: untyped pointer to the pixel data if successful, NULL otherwise

virtual void DiColorImage::updateImagePixelModuleAttributes ( DcmItem & dataset ) [protected, virtual]

update Image Pixel Module attributes in the given dataset.

Removes color palette lookup tables. Used in writeXXXToDataset() routines.

Parameters:

dataset

reference to DICOM image dataset

Reimplemented from DiImage.

The documentation for this class was generated from the following file:

dcmimage/include/dcmtk/dcmimage/dicoimg.h

Generated on 6 Jan 2011 for OFFIS DCMTK Version 3.6.0 by Doxygen 1.5.1

DiColorImage Class Reference

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
