DSRPNameTreeNode Class Reference

Class for content item PNAME. More...

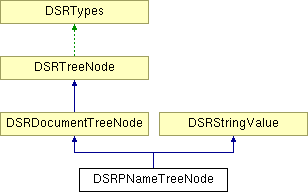

Inheritance diagram for DSRPNameTreeNode:

DSRDocumentTreeNode DSRStringValue DSRTreeNode DSRTypes List of all members.

Public Member Functions

 DSRPNameTreeNode (const E_RelationshipType relationshipType)
 constructor
 DSRPNameTreeNode (const E_RelationshipType relationshipType, const OFString &stringValue)
 constructor
virtual ~DSRPNameTreeNode ()
 destructor
virtual void clear ()
 clear all member variables.
virtual OFBool isValid () const
 check whether the content item is valid.
virtual OFCondition print (STD_NAMESPACE ostream &stream, const size_t flags) const
 print content item.
virtual OFCondition writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const
 write content item in XML format

Static Public Member Functions

static OFStringgetValueFromXMLNodeContent (const DSRXMLDocument &doc, DSRXMLCursor cursor, OFString &nameValue)
 get DICOM Person Name from XML elements.

Protected Member Functions

virtual OFCondition readContentItem (DcmItem &dataset)
 read content item (value) from dataset
virtual OFCondition writeContentItem (DcmItem &dataset) const
 write content item (value) to dataset
virtual OFCondition readXMLContentItem (const DSRXMLDocument &doc, DSRXMLCursor cursor)
 read content item specific XML data
virtual OFCondition renderHTMLContentItem (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags) const
 render content item (value) in HTML/XHTML format

Private Member Functions

 DSRPNameTreeNode (const DSRPNameTreeNode &)
DSRPNameTreeNodeoperator= (const DSRPNameTreeNode &)

Detailed Description

Class for content item PNAME.

Definition at line 46 of file dsrpnmtn.h.


Constructor & Destructor Documentation

DSRPNameTreeNode::DSRPNameTreeNode ( const E_RelationshipType  relationshipType  )

constructor

Parameters:
relationshipType type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.

DSRPNameTreeNode::DSRPNameTreeNode ( const E_RelationshipType  relationshipType,
const OFString stringValue
)

constructor

Parameters:
relationshipType type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.
stringValue initial string value to be set


Member Function Documentation

virtual void DSRPNameTreeNode::clear (  )  [virtual]

clear all member variables.

Please note that the content item might become invalid afterwards.

Reimplemented from DSRDocumentTreeNode.

virtual OFBool DSRPNameTreeNode::isValid (  )  const [virtual]

check whether the content item is valid.

The content item is valid if the two base classes and the concept name are valid.

Returns:
OFTrue if tree node is valid, OFFalse otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::print ( STD_NAMESPACE ostream &  stream,
const size_t  flags
) const [virtual]

print content item.

A typical output looks like this: contains PNAME:(,,"Code")="Riesmeier^Joerg"

Parameters:
stream output stream to which the content item should be printed
flags flag used to customize the output (see DSRTypes::PF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::writeXML ( STD_NAMESPACE ostream &  stream,
const size_t  flags
) const [virtual]

write content item in XML format

Parameters:
stream output stream to which the XML document is written
flags flag used to customize the output (see DSRTypes::XF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

static OFString& DSRPNameTreeNode::getValueFromXMLNodeContent ( const DSRXMLDocument doc,
DSRXMLCursor  cursor,
OFString nameValue
) [static]

get DICOM Person Name from XML elements.

The five components of a DICOM Person Name (PN) are expected to be stored in the XML elements "prefix", "first", "middle", "last" and "suffix" as created by writeXML().

Parameters:
doc document containing the XML file content
cursor cursor pointing to the starting node
nameValue reference to string object in which the value should be stored
Returns:
reference to string object (might be empty)

virtual OFCondition DSRPNameTreeNode::readContentItem ( DcmItem dataset  )  [protected, virtual]

read content item (value) from dataset

Parameters:
dataset DICOM dataset from which the content item should be read
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::writeContentItem ( DcmItem dataset  )  const [protected, virtual]

write content item (value) to dataset

Parameters:
dataset DICOM dataset to which the content item should be written
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::readXMLContentItem ( const DSRXMLDocument doc,
DSRXMLCursor  cursor
) [protected, virtual]

read content item specific XML data

Parameters:
doc document containing the XML file content
cursor cursor pointing to the starting node
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRPNameTreeNode::renderHTMLContentItem ( STD_NAMESPACE ostream &  docStream,
STD_NAMESPACE ostream &  annexStream,
const size_t  nestingLevel,
size_t &  annexNumber,
const size_t  flags
) const [protected, virtual]

render content item (value) in HTML/XHTML format

Parameters:
docStream output stream to which the main HTML/XHTML document is written
annexStream output stream to which the HTML/XHTML document annex is written
nestingLevel current nesting level. Used to render section headings.
annexNumber reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added.
flags flag used to customize the output (see DSRTypes::HF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.


The documentation for this class was generated from the following file:


Generated on 6 Jan 2011 for OFFIS DCMTK Version 3.6.0 by Doxygen 1.5.1
