DSRDateTimeTreeNode Class Reference

Class for content item DATETIME. More...

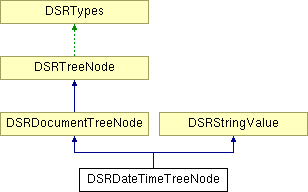

Inheritance diagram for DSRDateTimeTreeNode:

DSRDocumentTreeNode DSRStringValue DSRTreeNode DSRTypes List of all members.

Public Member Functions

 DSRDateTimeTreeNode (const E_RelationshipType relationshipType)
 constructor
 DSRDateTimeTreeNode (const E_RelationshipType relationshipType, const OFString &stringValue)
 constructor
virtual ~DSRDateTimeTreeNode ()
 destructor
virtual void clear ()
 clear all member variables.
virtual OFBool isValid () const
 check whether the content item is valid.
virtual OFCondition print (STD_NAMESPACE ostream &stream, const size_t flags) const
 print content item.
virtual OFCondition writeXML (STD_NAMESPACE ostream &stream, const size_t flags) const
 write content item in XML format.

Static Public Member Functions

static OFStringgetValueFromXMLNodeContent (const DSRXMLDocument &doc, DSRXMLCursor cursor, OFString &dateTimeValue, const OFBool clearString=OFTrue)
 get DICOM datetime value from given XML element.

Protected Member Functions

virtual OFCondition readContentItem (DcmItem &dataset)
 read content item (value) from dataset
virtual OFCondition writeContentItem (DcmItem &dataset) const
 write content item (value) to dataset
virtual OFCondition readXMLContentItem (const DSRXMLDocument &doc, DSRXMLCursor cursor)
 read content item specific XML data
virtual OFCondition renderHTMLContentItem (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const size_t nestingLevel, size_t &annexNumber, const size_t flags) const
 render content item (value) in HTML/XHTML format

Private Member Functions

 DSRDateTimeTreeNode (const DSRDateTimeTreeNode &)
DSRDateTimeTreeNodeoperator= (const DSRDateTimeTreeNode &)

Detailed Description

Class for content item DATETIME.

Definition at line 46 of file dsrdtitn.h.


Constructor & Destructor Documentation

DSRDateTimeTreeNode::DSRDateTimeTreeNode ( const E_RelationshipType  relationshipType  )

constructor

Parameters:
relationshipType type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.

DSRDateTimeTreeNode::DSRDateTimeTreeNode ( const E_RelationshipType  relationshipType,
const OFString stringValue
)

constructor

Parameters:
relationshipType type of relationship to the parent tree node. Should not be RT_invalid or RT_isRoot.
stringValue initial string value to be set


Member Function Documentation

virtual void DSRDateTimeTreeNode::clear (  )  [virtual]

clear all member variables.

Please note that the content item might become invalid afterwards.

Reimplemented from DSRDocumentTreeNode.

virtual OFBool DSRDateTimeTreeNode::isValid (  )  const [virtual]

check whether the content item is valid.

The content item is valid if the two base classes and the concept name are valid.

Returns:
OFTrue if tree node is valid, OFFalse otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRDateTimeTreeNode::print ( STD_NAMESPACE ostream &  stream,
const size_t  flags
) const [virtual]

print content item.

A typical output looks like this: contains DATETIME:(,,"Code")="2000101012000000"

Parameters:
stream output stream to which the content item should be printed
flags flag used to customize the output (see DSRTypes::PF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRDateTimeTreeNode::writeXML ( STD_NAMESPACE ostream &  stream,
const size_t  flags
) const [virtual]

write content item in XML format.

Uses ISO formatted date/time value.

Parameters:
stream output stream to which the XML document is written
flags flag used to customize the output (see DSRTypes::XF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

static OFString& DSRDateTimeTreeNode::getValueFromXMLNodeContent ( const DSRXMLDocument doc,
DSRXMLCursor  cursor,
OFString dateTimeValue,
const OFBool  clearString = OFTrue
) [static]

get DICOM datetime value from given XML element.

The DICOM DateTime (DT) value is expected to be stored in ISO format as created by writeXML().

Parameters:
doc document containing the XML file content
cursor cursor pointing to the corresponding node
dateTimeValue reference to string object in which the value should be stored
clearString flag specifying whether to clear the 'dateTimeValue' or not
Returns:
reference to string object (might be empty)

virtual OFCondition DSRDateTimeTreeNode::readContentItem ( DcmItem dataset  )  [protected, virtual]

read content item (value) from dataset

Parameters:
dataset DICOM dataset from which the content item should be read
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRDateTimeTreeNode::writeContentItem ( DcmItem dataset  )  const [protected, virtual]

write content item (value) to dataset

Parameters:
dataset DICOM dataset to which the content item should be written
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRDateTimeTreeNode::readXMLContentItem ( const DSRXMLDocument doc,
DSRXMLCursor  cursor
) [protected, virtual]

read content item specific XML data

Parameters:
doc document containing the XML file content
cursor cursor pointing to the starting node
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.

virtual OFCondition DSRDateTimeTreeNode::renderHTMLContentItem ( STD_NAMESPACE ostream &  docStream,
STD_NAMESPACE ostream &  annexStream,
const size_t  nestingLevel,
size_t &  annexNumber,
const size_t  flags
) const [protected, virtual]

render content item (value) in HTML/XHTML format

Parameters:
docStream output stream to which the main HTML/XHTML document is written
annexStream output stream to which the HTML/XHTML document annex is written
nestingLevel current nesting level. Used to render section headings.
annexNumber reference to the variable where the current annex number is stored. Value is increased automatically by 1 after a new entry has been added.
flags flag used to customize the output (see DSRTypes::HF_xxx)
Returns:
status, EC_Normal if successful, an error code otherwise

Reimplemented from DSRDocumentTreeNode.


The documentation for this class was generated from the following file:


Generated on 6 Jan 2011 for OFFIS DCMTK Version 3.6.0 by Doxygen 1.5.1
