DJLSEncoderBase Class Reference

abstract codec class for JPEG-LS encoders. More...

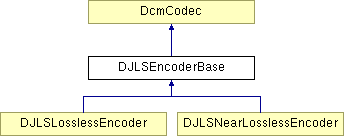

Inheritance diagram for DJLSEncoderBase:

DcmCodec DJLSLosslessEncoder DJLSNearLosslessEncoder List of all members.

Public Member Functions

 DJLSEncoderBase ()
 default constructor
virtual ~DJLSEncoderBase ()
 destructor
virtual OFCondition decode (const DcmRepresentationParameter *fromRepParam, DcmPixelSequence *pixSeq, DcmPolymorphOBOW &uncompressedPixelData, const DcmCodecParameter *cp, const DcmStack &objStack) const
 decompresses the given pixel sequence and stores the result in the given uncompressedPixelData element.
virtual OFCondition decodeFrame (const DcmRepresentationParameter *fromParam, DcmPixelSequence *fromPixSeq, const DcmCodecParameter *cp, DcmItem *dataset, Uint32 frameNo, Uint32 &startFragment, void *buffer, Uint32 bufSize, OFString &decompressedColorModel) const
 decompresses a single frame from the given pixel sequence and stores the result in the given buffer.
virtual OFCondition encode (const Uint16 *pixelData, const Uint32 length, const DcmRepresentationParameter *toRepParam, DcmPixelSequence *&pixSeq, const DcmCodecParameter *cp, DcmStack &objStack) const
 compresses the given uncompressed DICOM image and stores the result in the given pixSeq element.
virtual OFCondition encode (const E_TransferSyntax fromRepType, const DcmRepresentationParameter *fromRepParam, DcmPixelSequence *fromPixSeq, const DcmRepresentationParameter *toRepParam, DcmPixelSequence *&toPixSeq, const DcmCodecParameter *cp, DcmStack &objStack) const
 transcodes (re-compresses) the given compressed DICOM image and stores the result in the given toPixSeq element.
virtual OFBool canChangeCoding (const E_TransferSyntax oldRepType, const E_TransferSyntax newRepType) const
 checks if this codec is able to convert from the given current transfer syntax to the given new transfer syntax
virtual OFCondition determineDecompressedColorModel (const DcmRepresentationParameter *fromParam, DcmPixelSequence *fromPixSeq, const DcmCodecParameter *cp, DcmItem *dataset, OFString &decompressedColorModel) const
 determine color model of the decompressed image

Private Member Functions

virtual E_TransferSyntax supportedTransferSyntax () const=0
 returns the transfer syntax that this particular codec is able to encode
OFCondition losslessRawEncode (const Uint16 *pixelData, const Uint32 length, DcmItem *dataset, const DJLSRepresentationParameter *djrp, DcmPixelSequence *&pixSeq, const DJLSCodecParameter *djcp, double &compressionRatio) const
 lossless encoder that compresses the complete pixel cell (very much like the RLE encoder in module dcmdata).
OFCondition losslessCookedEncode (const Uint16 *pixelData, const Uint32 length, DcmItem *dataset, const DJLSRepresentationParameter *djrp, DcmPixelSequence *&pixSeq, const DJLSCodecParameter *djcp, double &compressionRatio, Uint16 nearLosslessDeviation) const
 lossless encoder that moves Overlays to (60xx,3000) and only compresses the stored bits of the pixel cell.
OFCondition adjustOverlays (DcmItem *dataset, DicomImage &image) const
 for all overlay groups create (60xx,3000) Overlay Data.
OFCondition updateLossyCompressionRatio (DcmItem *dataset, double ratio) const
 create Lossy Image Compression and Lossy Image Compression Ratio.
OFCondition updateDerivationDescription (DcmItem *dataset, const DJLSRepresentationParameter *djrp, double ratio) const
 create Derivation Description.
OFCondition compressRawFrame (const Uint8 *framePointer, Uint16 bitsAllocated, Uint16 columns, Uint16 rows, Uint16 samplesPerPixel, Uint16 planarConfiguration, const OFString &photometricInterpretation, DcmPixelSequence *pixelSequence, DcmOffsetList &offsetList, unsigned long &compressedSize, const DJLSCodecParameter *djcp) const
 perform the lossless raw compression of a single frame
OFCondition compressCookedFrame (DcmPixelSequence *pixelSequence, DicomImage *dimage, const OFString &photometricInterpretation, DcmOffsetList &offsetList, unsigned long &compressedSize, const DJLSCodecParameter *djcp, Uint32 frame, Uint16 nearLosslessDeviation) const
 perform the lossless cooked compression of a single frame
OFCondition convertToUninterleaved (Uint8 *target, const Uint8 *source, Uint16 components, Uint32 width, Uint32 height, Uint16 bitsAllocated) const
 Convert an image from sample interleaved to uninterleaved.
OFCondition convertToSampleInterleaved (Uint8 *target, const Uint8 *source, Uint16 components, Uint32 width, Uint32 height, Uint16 bitsAllocated) const
 Convert an image from uninterleaved to sample interleaved.

Detailed Description

abstract codec class for JPEG-LS encoders.

This abstract class contains most of the application logic needed for a dcmdata codec object that implements a JPEG-LS encoder This class only supports compression, it neither implements decoding nor transcoding.

Definition at line 47 of file djcodece.h.

Member Function Documentation

virtual OFCondition DJLSEncoderBase::decode ( const DcmRepresentationParameter *  fromRepParam,
DcmPixelSequence *  pixSeq,
DcmPolymorphOBOW &  uncompressedPixelData,
const DcmCodecParameter *  cp,
const DcmStack &  objStack
) const [virtual]

decompresses the given pixel sequence and stores the result in the given uncompressedPixelData element.

Parameters:
fromRepParam current representation parameter of compressed data, may be NULL
pixSeq compressed pixel sequence
uncompressedPixelData uncompressed pixel data stored in this element
cp codec parameters for this codec
objStack stack pointing to the location of the pixel data element in the current dataset.
Returns:
EC_Normal if successful, an error code otherwise.

Implements DcmCodec.

virtual OFCondition DJLSEncoderBase::decodeFrame ( const DcmRepresentationParameter *  fromParam,
DcmPixelSequence *  fromPixSeq,
const DcmCodecParameter *  cp,
DcmItem *  dataset,
Uint32  frameNo,
Uint32 &  startFragment,
void *  buffer,
Uint32  bufSize,
OFString &  decompressedColorModel
) const [virtual]

decompresses a single frame from the given pixel sequence and stores the result in the given buffer.

Parameters:
fromParam representation parameter of current compressed representation, may be NULL.
fromPixSeq compressed pixel sequence
cp codec parameters for this codec
dataset pointer to dataset in which pixel data element is contained
frameNo number of frame, starting with 0 for the first frame
startFragment index of the compressed fragment that contains all or the first part of the compressed bitstream for the given frameNo. Upon successful return this parameter is updated to contain the index of the first compressed fragment of the next frame. When unknown, zero should be passed. In this case the decompression algorithm will try to determine the index by itself, which will always work if frames are decompressed in increasing order from first to last, but may fail if frames are decompressed in random order, multiple fragments per frame and multiple frames are present in the dataset, and the offset table is empty.
buffer pointer to buffer where frame is to be stored
bufSize size of buffer in bytes
decompressedColorModel upon successful return, the color model of the decompressed image (which may be different from the one used in the compressed images) is returned in this parameter.
Returns:
EC_Normal if successful, an error code otherwise.

Implements DcmCodec.

virtual OFCondition DJLSEncoderBase::encode ( const Uint16 *  pixelData,
const Uint32  length,
const DcmRepresentationParameter *  toRepParam,
DcmPixelSequence *&  pixSeq,
const DcmCodecParameter *  cp,
DcmStack &  objStack
) const [virtual]

compresses the given uncompressed DICOM image and stores the result in the given pixSeq element.

Parameters:
pixelData pointer to the uncompressed image data in OW format and local byte order
length of the pixel data field in bytes
toRepParam representation parameter describing the desired compressed representation (e.g. JPEG quality)
pixSeq compressed pixel sequence (pointer to new DcmPixelSequence object allocated on heap) returned in this parameter upon success.
cp codec parameters for this codec
objStack stack pointing to the location of the pixel data element in the current dataset.
Returns:
EC_Normal if successful, an error code otherwise.

Implements DcmCodec.

virtual OFCondition DJLSEncoderBase::encode ( const E_TransferSyntax  fromRepType,
const DcmRepresentationParameter *  fromRepParam,
DcmPixelSequence *  fromPixSeq,
const DcmRepresentationParameter *  toRepParam,
DcmPixelSequence *&  toPixSeq,
const DcmCodecParameter *  cp,
DcmStack &  objStack
) const [virtual]

transcodes (re-compresses) the given compressed DICOM image and stores the result in the given toPixSeq element.

Parameters:
fromRepType current transfer syntax of the compressed image
fromRepParam current representation parameter of compressed data, may be NULL
fromPixSeq compressed pixel sequence
toRepParam representation parameter describing the desired new compressed representation (e.g. JPEG quality)
toPixSeq compressed pixel sequence (pointer to new DcmPixelSequence object allocated on heap) returned in this parameter upon success.
cp codec parameters for this codec
objStack stack pointing to the location of the pixel data element in the current dataset.
Returns:
EC_Normal if successful, an error code otherwise.

Implements DcmCodec.

virtual OFBool DJLSEncoderBase::canChangeCoding ( const E_TransferSyntax  oldRepType,
const E_TransferSyntax  newRepType
) const [virtual]

checks if this codec is able to convert from the given current transfer syntax to the given new transfer syntax

Parameters:
oldRepType current transfer syntax
newRepType desired new transfer syntax
Returns:
true if transformation is supported by this codec, false otherwise.

Implements DcmCodec.

virtual OFCondition DJLSEncoderBase::determineDecompressedColorModel ( const DcmRepresentationParameter *  fromParam,
DcmPixelSequence *  fromPixSeq,
const DcmCodecParameter *  cp,
DcmItem *  dataset,
OFString &  decompressedColorModel
) const [virtual]

determine color model of the decompressed image

Parameters:
fromParam representation parameter of current compressed representation, may be NULL
fromPixSeq compressed pixel sequence
cp codec parameters for this codec
dataset pointer to dataset in which pixel data element is contained
dataset pointer to DICOM dataset in which this pixel data object is located. Used to access photometric interpretation.
decompressedColorModel upon successful return, the color model of the decompressed image (which may be different from the one used in the compressed images) is returned in this parameter
Returns:
EC_Normal if successful, an error code otherwise

Implements DcmCodec.

virtual E_TransferSyntax DJLSEncoderBase::supportedTransferSyntax (  )  const [private, pure virtual]

returns the transfer syntax that this particular codec is able to encode

Returns:
supported transfer syntax

Implemented in DJLSLosslessEncoder, and DJLSNearLosslessEncoder.

OFCondition DJLSEncoderBase::losslessRawEncode ( const Uint16 *  pixelData,
const Uint32  length,
DcmItem *  dataset,
const DJLSRepresentationParameter *  djrp,
DcmPixelSequence *&  pixSeq,
const DJLSCodecParameter *  djcp,
double &  compressionRatio
) const [private]

lossless encoder that compresses the complete pixel cell (very much like the RLE encoder in module dcmdata).

Parameters:
pixelData pointer to the uncompressed image data in OW format and local byte order
length of the pixel data field in bytes
dataset pointer to dataset containing image pixel module
djrp representation parameter
pixSeq pixel sequence to write to
djcp codec parameter
compressionRatio compression ratio returned upon success
Returns:
EC_Normal if successful, an error code otherwise.

OFCondition DJLSEncoderBase::losslessCookedEncode ( const Uint16 *  pixelData,
const Uint32  length,
DcmItem *  dataset,
const DJLSRepresentationParameter *  djrp,
DcmPixelSequence *&  pixSeq,
const DJLSCodecParameter *  djcp,
double &  compressionRatio,
Uint16  nearLosslessDeviation
) const [private]

lossless encoder that moves Overlays to (60xx,3000) and only compresses the stored bits of the pixel cell.

Parameters:
pixelData pointer to the uncompressed image data in OW format and local byte order
length of the pixel data field in bytes
dataset pointer to dataset containing image pixel module
djrp representation parameter
pixSeq pixel sequence to write to
djcp codec parameter
compressionRatio compression ratio returned upon success
nearLosslessDeviation maximum deviation for near-lossless encoding
Returns:
EC_Normal if successful, an error code otherwise.

OFCondition DJLSEncoderBase::adjustOverlays ( DcmItem *  dataset,
DicomImage &  image
) const [private]

for all overlay groups create (60xx,3000) Overlay Data.

Parameters:
dataset dataset to be modified
image DicomImage object for this dataset
Returns:
EC_Normal if successful, an error code otherwise

OFCondition DJLSEncoderBase::updateLossyCompressionRatio ( DcmItem *  dataset,
double  ratio
) const [private]

create Lossy Image Compression and Lossy Image Compression Ratio.

Parameters:
dataset dataset to be modified
ratio image compression ratio > 1. This is the real effective ratio between compressed and uncompressed image, i. e. 30 means a 30:1 lossy compression.
Returns:
EC_Normal if successful, an error code otherwise

OFCondition DJLSEncoderBase::updateDerivationDescription ( DcmItem *  dataset,
const DJLSRepresentationParameter *  djrp,
double  ratio
) const [private]

create Derivation Description.

Parameters:
dataset dataset to be modified
djrp representation parameter passed to encode()
ratio image compression ratio > 1. This is the real effective ratio between compressed and uncompressed image, i. e. 30 means a 30:1 lossy compression.
Returns:
EC_Normal if successful, an error code otherwise

OFCondition DJLSEncoderBase::compressRawFrame ( const Uint8 *  framePointer,
Uint16  bitsAllocated,
Uint16  columns,
Uint16  rows,
Uint16  samplesPerPixel,
Uint16  planarConfiguration,
const OFString &  photometricInterpretation,
DcmPixelSequence *  pixelSequence,
DcmOffsetList &  offsetList,
unsigned long &  compressedSize,
const DJLSCodecParameter *  djcp
) const [private]

perform the lossless raw compression of a single frame

Parameters:
framePointer pointer to start of frame
bitsAllocated number of bits allocated per pixel
columns frame width
rows frame height
samplesPerPixel image samples per pixel
planarConfiguration image planar configuration
photometricInterpretation photometric interpretation of the DICOM dataset
pixelSequence object in which the compressed frame is stored
offsetList list of frame offsets updated in this parameter
compressedSize size of compressed frame returned in this parameter
djcp parameters for the codec
Returns:
EC_Normal if successful, an error code otherwise

OFCondition DJLSEncoderBase::compressCookedFrame ( DcmPixelSequence *  pixelSequence,
DicomImage *  dimage,
const OFString &  photometricInterpretation,
DcmOffsetList &  offsetList,
unsigned long &  compressedSize,
const DJLSCodecParameter *  djcp,
Uint32  frame,
Uint16  nearLosslessDeviation
) const [private]

perform the lossless cooked compression of a single frame

Parameters:
pixelSequence object in which the compressed frame is stored
dimage DicomImage instance used to process frame
photometricInterpretation photometric interpretation of the DICOM dataset
offsetList list of frame offsets updated in this parameter
compressedSize size of compressed frame returned in this parameter
djcp parameters for the codec
frame frame index
nearLosslessDeviation maximum deviation for near-lossless encoding
Returns:
EC_Normal if successful, an error code otherwise

OFCondition DJLSEncoderBase::convertToUninterleaved ( Uint8 *  target,
const Uint8 *  source,
Uint16  components,
Uint32  width,
Uint32  height,
Uint16  bitsAllocated
) const [private]

Convert an image from sample interleaved to uninterleaved.

Parameters:
target A buffer where the converted image will be stored
source The image buffer to be converted
components Color components used in the image
width The width of the image
height The height of the image
bitsAllocated The number of bits allocated in the image.
Returns:
EC_Normal if succesful, an error code otherwise

OFCondition DJLSEncoderBase::convertToSampleInterleaved ( Uint8 *  target,
const Uint8 *  source,
Uint16  components,
Uint32  width,
Uint32  height,
Uint16  bitsAllocated
) const [private]

Convert an image from uninterleaved to sample interleaved.

Parameters:
target A buffer where the converted image will be stored
source The image buffer to be converted
components Color components used in the image
width The width of the image.
height The height of the image.
bitsAllocated The number of bits allocated in the image.
Returns:
EC_Normal if succesful, an error code otherwise

The documentation for this class was generated from the following file:

Generated on 6 Jan 2011 for OFFIS DCMTK Version 3.6.0 by Doxygen 1.5.1
