Class for checking the relationship content constraints of an SR IOD (abstract) More...

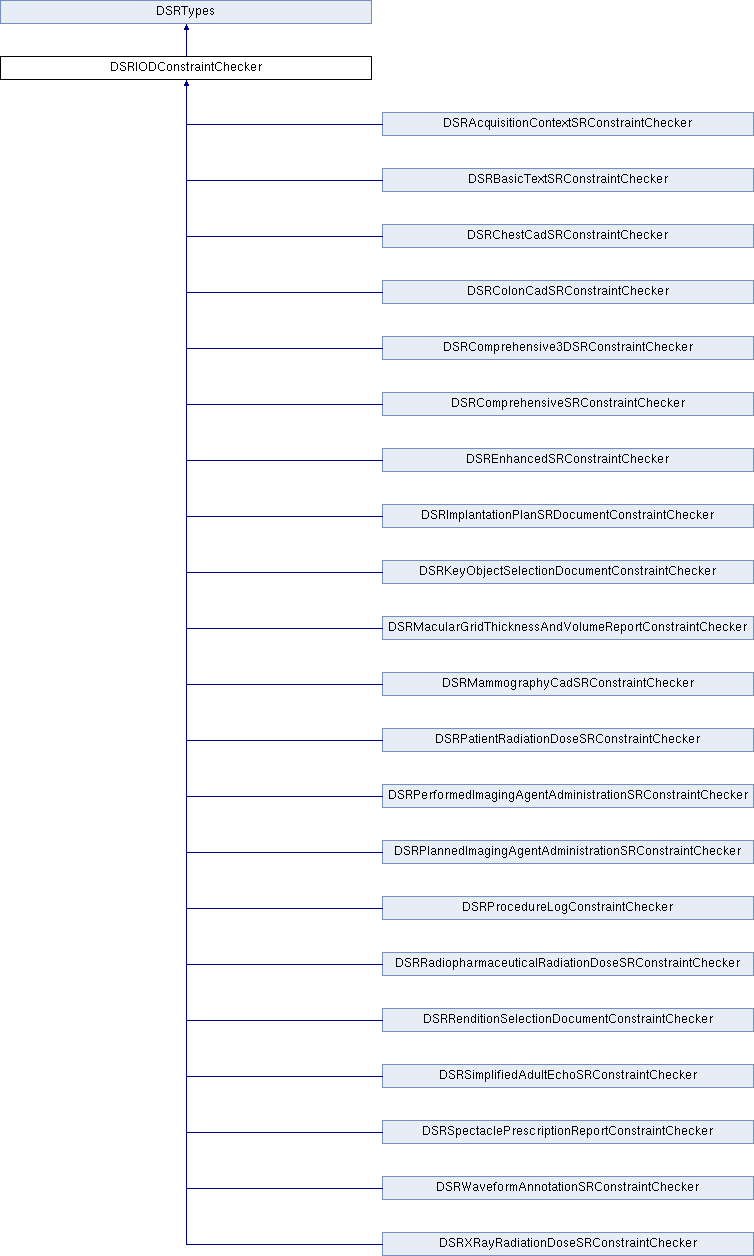

Inheritance diagram for DSRIODConstraintChecker:

Public Member Functions
	DSRIODConstraintChecker ()
	default constructor

virtual	~DSRIODConstraintChecker ()
	destructor

virtual OFBool	isByReferenceAllowed () const =0
	check whether by-reference relationships are allowed for this SR IOD (abstract) More...

virtual OFBool	isTemplateSupportRequired () const =0
	check whether this SR IOD requires template support (abstract) More...

virtual OFCondition	getRootTemplateIdentification (OFString &templateIdentifier, OFString &mappingResource) const =0
	get identifier and mapping resource of the root template (if any) More...

virtual E_DocumentType	getDocumentType () const =0
	get the associated document type of the SR IOD (abstract) More...

virtual OFBool	checkContentRelationship (const E_ValueType sourceValueType, const E_RelationshipType relationshipType, const E_ValueType targetValueType, const OFBool byReference=OFFalse) const =0
	check whether specified content relationship is allowed for this IOD (abstract) More...

Public Member Functions inherited from DSRTypes
virtual	~DSRTypes ()
	destructor. More...

Additional Inherited Members
Public Types inherited from DSRTypes
enum	E_DocumentType { DT_invalid , DT_unknown = DT_invalid , DT_BasicTextSR , DT_EnhancedSR , DT_ComprehensiveSR , DT_KeyObjectSelectionDocument , DT_MammographyCadSR , DT_ChestCadSR , DT_ColonCadSR , DT_ProcedureLog , DT_XRayRadiationDoseSR , DT_EnhancedXRayRadiationDoseSR , DT_SpectaclePrescriptionReport , DT_MacularGridThicknessAndVolumeReport , DT_ImplantationPlanSRDocument , DT_Comprehensive3DSR , DT_RadiopharmaceuticalRadiationDoseSR , DT_ExtensibleSR , DT_AcquisitionContextSR , DT_SimplifiedAdultEchoSR , DT_PatientRadiationDoseSR , DT_PerformedImagingAgentAdministrationSR , DT_PlannedImagingAgentAdministrationSR , DT_RenditionSelectionDocument , DT_WaveformAnnotationSR , DT_last = DT_WaveformAnnotationSR }
	SR document types (DICOM IOD) More...

enum	E_RelationshipType { RT_invalid , RT_unknown , RT_isRoot , RT_contains , RT_hasObsContext , RT_hasAcqContext , RT_hasConceptMod , RT_hasProperties , RT_inferredFrom , RT_selectedFrom , RT_last = RT_selectedFrom }
	SR relationship types. More...

enum	E_ValueType { VT_invalid , VT_Text , VT_Code , VT_Num , VT_DateTime , VT_Date , VT_Time , VT_UIDRef , VT_PName , VT_SCoord , VT_SCoord3D , VT_TCoord , VT_Composite , VT_Image , VT_Waveform , VT_Container , VT_byReference , VT_includedTemplate , VT_last = VT_includedTemplate }
	SR value types. More...

enum	E_PresentationStateType { PT_invalid , PT_unknown = PT_invalid , PT_Grayscale , PT_Color , PT_PseudoColor , PT_Blending , PT_XAXRFGrayscale , PT_GrayscalePlanarMPR , PT_CompositingPlanarMPR , PT_AdvancedBlending , PT_VolumeRendering , PT_SegmentedVolumeRendering , PT_MultipleVolumeRendering , PT_VariableModalityLUT , PT_last = PT_VariableModalityLUT }
	Softcopy presentation state types. More...

enum	E_GraphicType { GT_invalid , GT_unknown = GT_invalid , GT_Point , GT_Multipoint , GT_Polyline , GT_Circle , GT_Ellipse , GT_last = GT_Ellipse }
	SR graphic types. More...

enum	E_GraphicType3D { GT3_invalid , GT3_unknown = GT3_invalid , GT3_Point , GT3_Multipoint , GT3_Polyline , GT3_Polygon , GT3_Ellipse , GT3_Ellipsoid , GT3_last = GT3_Ellipsoid }
	SR graphic types (3D). More...

enum	E_TemporalRangeType { TRT_invalid , TRT_unknown = TRT_invalid , TRT_Point , TRT_Multipoint , TRT_Segment , TRT_Multisegment , TRT_Begin , TRT_End , TRT_last = TRT_End }
	SR temporal range types. More...

enum	E_ContinuityOfContent { COC_invalid , COC_Separate , COC_Continuous , COC_last = COC_Continuous }
	SR continuity of content flag. More...

enum	E_PreliminaryFlag { PF_invalid , PF_Preliminary , PF_Final , PF_last = PF_Final }
	SR document preliminary flag. More...

enum	E_CompletionFlag { CF_invalid , CF_Partial , CF_Complete , CF_last = CF_Complete }
	SR document completion flag. More...

enum	E_VerificationFlag { VF_invalid , VF_Unverified , VF_Verified , VF_last = VF_Verified }
	SR document verification flag. More...

enum	E_CharacterSet { CS_invalid , CS_unknown = CS_invalid , CS_ASCII , CS_default = CS_ASCII , CS_Latin1 , CS_Latin2 , CS_Latin3 , CS_Latin4 , CS_Cyrillic , CS_Arabic , CS_Greek , CS_Hebrew , CS_Latin5 , CS_Latin9 , CS_Thai , CS_Japanese , CS_Korean , CS_ChineseISO , CS_ChineseGB18030 , CS_ChineseGBK , CS_UTF8 , CS_last = CS_UTF8 }
	Specific character set. More...

enum	E_CodeValueType { CVT_auto , CVT_Short , CVT_Long , CVT_URN }
	Code value type. More...

enum	E_AddMode { AM_afterCurrent , AM_beforeCurrent , AM_belowCurrent , AM_belowCurrentBeforeFirstChild }
	Add node mode. More...

Static Public Member Functions inherited from DSRTypes
static const char *	documentTypeToSOPClassUID (const E_DocumentType documentType)
	convert SR document type to SOP class UID More...

static const char *	documentTypeToModality (const E_DocumentType documentType)
	convert SR document type to modality More...

static const char *	documentTypeToReadableName (const E_DocumentType documentType)
	convert SR document type to readable name. More...

static const char *	documentTypeToDocumentTitle (const E_DocumentType documentType, OFString &documentTitle)
	convert SR document type to document title. More...

static OFBool	requiresEnhancedEquipmentModule (const E_DocumentType documentType)
	check whether a given SR document type requires the Enhanced General Equipment Module More...

static OFBool	requiresTimezoneModule (const E_DocumentType documentType)
	check whether a given SR document type requires the Timezone Module More...

static OFBool	requiresSynchronizationModule (const E_DocumentType documentType)
	check whether a given SR document type requires the Synchronization Module More...

static OFBool	usesSRDocumentSeriesModule (const E_DocumentType documentType)
	check whether a given SR document type uses the SR Document Series Module (instead of the Key Object Document Series Module) More...

static OFBool	usesKeyObjectDocumentSeriesModule (const E_DocumentType documentType)
	check whether a given SR document type uses the Key Object Document Series Module (instead of the SR Document Series Module) More...

static OFBool	usesSRDocumentGeneralModule (const E_DocumentType documentType)
	check whether a given SR document type uses the SR Document General Module (instead of the Key Object Document Module) More...

static OFBool	usesKeyObjectDocumentModule (const E_DocumentType documentType)
	check whether a given SR document type uses the Key Object Document Module (instead of the SR Document General Module) More...

static const char *	relationshipTypeToDefinedTerm (const E_RelationshipType relationshipType)
	convert relationship type to DICOM defined term More...

static const char *	relationshipTypeToReadableName (const E_RelationshipType relationshipType)
	convert relationship type to readable name. More...

static const char *	valueTypeToDefinedTerm (const E_ValueType valueType)
	convert value type to DICOM defined term More...

static const char *	valueTypeToXMLTagName (const E_ValueType valueType)
	convert value type to XML tag name More...

static const char *	valueTypeToReadableName (const E_ValueType valueType)
	convert value type to readable name. More...

static const char *	presentationStateTypeToShortName (const E_PresentationStateType pstateType)
	convert presentation state type to short name. More...

static const char *	graphicTypeToEnumeratedValue (const E_GraphicType graphicType)
	convert graphic type to DICOM enumerated value More...

static const char *	graphicTypeToReadableName (const E_GraphicType graphicType)
	convert graphic type to readable name. More...

static const char *	graphicType3DToEnumeratedValue (const E_GraphicType3D graphicType)
	convert graphic type (3D) to DICOM enumerated value More...

static const char *	graphicType3DToReadableName (const E_GraphicType3D graphicType)
	convert graphic type (3D) to readable name. More...

static const char *	temporalRangeTypeToEnumeratedValue (const E_TemporalRangeType temporalRangeType)
	convert temporal range type to DICOM enumerated value More...

static const char *	temporalRangeTypeToReadableName (const E_TemporalRangeType temporalRangeType)
	convert temporal range type to readable name. More...

static const char *	continuityOfContentToEnumeratedValue (const E_ContinuityOfContent continuityOfContent)
	convert continuity of content flag to DICOM enumerated value More...

static const char *	preliminaryFlagToEnumeratedValue (const E_PreliminaryFlag preliminaryFlag)
	convert preliminary flag to DICOM enumerated value More...

static const char *	completionFlagToEnumeratedValue (const E_CompletionFlag completionFlag)
	convert completion flag to DICOM enumerated value More...

static const char *	verificationFlagToEnumeratedValue (const E_VerificationFlag verificationFlag)
	convert verification flag to DICOM enumerated value More...

static const char *	characterSetToDefinedTerm (const E_CharacterSet characterSet)
	convert character set to DICOM defined term More...

static const char *	characterSetToHTMLName (const E_CharacterSet characterSet)
	convert character set to HTML name. More...

static const char *	characterSetToXMLName (const E_CharacterSet characterSet)
	convert character set to XML name. More...

static E_DocumentType	sopClassUIDToDocumentType (const OFString &sopClassUID)
	convert SOP class UID to SR document type More...

static E_RelationshipType	definedTermToRelationshipType (const OFString &definedTerm)
	convert DICOM defined term to relationship type More...

static E_ValueType	definedTermToValueType (const OFString &definedTerm)
	convert DICOM defined term to value type More...

static E_PresentationStateType	sopClassUIDToPresentationStateType (const OFString &sopClassUID)
	convert SOP class UID to presentation state type More...

static E_ValueType	xmlTagNameToValueType (const OFString &xmlTagName)
	convert XML tag name to value type More...

static E_GraphicType	enumeratedValueToGraphicType (const OFString &enumeratedValue)
	convert DICOM enumerated value to graphic type More...

static E_GraphicType3D	enumeratedValueToGraphicType3D (const OFString &enumeratedValue)
	convert DICOM enumerated value to graphic type (3D) More...

static E_TemporalRangeType	enumeratedValueToTemporalRangeType (const OFString &enumeratedValue)
	convert DICOM enumerated value to temporal range type More...

static E_ContinuityOfContent	enumeratedValueToContinuityOfContent (const OFString &enumeratedValue)
	convert DICOM enumerated value to continuity of content flag More...

static E_PreliminaryFlag	enumeratedValueToPreliminaryFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to preliminary flag More...

static E_CompletionFlag	enumeratedValueToCompletionFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to completion flag More...

static E_VerificationFlag	enumeratedValueToVerificationFlag (const OFString &enumeratedValue)
	convert DICOM enumerated value to verification flag More...

static E_CharacterSet	definedTermToCharacterSet (const OFString &definedTerm)
	convert DICOM defined term to character set. More...

static OFBool	isDocumentTypeSupported (const E_DocumentType documentType)
	check whether specified SR document type is supported by this library More...

static const OFString &	currentDate (OFString &dateString)
	get current date in DICOM 'DA' format. More...

static const OFString &	currentTime (OFString &timeString)
	get current time in DICOM 'TM' format. More...

static const OFString &	currentDateTime (OFString &dateTimeString)
	get current date and time in DICOM 'DT' format. More...

static const OFString &	localTimezone (OFString &timezoneString)
	get local timezone in DICOM format. More...

static const OFString &	dicomToReadableDate (const OFString &dicomDate, OFString &readableDate)
	convert DICOM date string to readable format. More...

static const OFString &	dicomToReadableTime (const OFString &dicomTime, OFString &readableTime)
	convert DICOM time string to readable format. More...

static const OFString &	dicomToReadableDateTime (const OFString &dicomDateTime, OFString &readableDateTime)
	convert DICOM date time string to readable format. More...

static const OFString &	dicomToReadablePersonName (const OFString &dicomPersonName, OFString &readablePersonName)
	convert DICOM person name to readable format. More...

static const OFString &	dicomToXMLPersonName (const OFString &dicomPersonName, OFString &xmlPersonName, const OFBool writeEmptyValue=OFFalse)
	convert DICOM person name to XML format. More...

static const char *	numberToString (const size_t number, char *stringValue, size_t stringLength)
	convert unsigned integer number to character string More...

static size_t	stringToNumber (const char *stringValue)
	convert string to unsigned integer number More...

static const OFString &	convertToPrintString (const OFString &sourceString, OFString &printString)
	convert character string to print string. More...

static const OFString &	convertToHTMLString (const OFString &sourceString, OFString &markupString, const size_t flags=0, const OFBool newlineAllowed=OFFalse)
	convert character string to HTML mnenonic string. More...

static const OFString &	convertToXMLString (const OFString &sourceString, OFString &markupString)
	convert character string to XML mnenonic string. More...

static OFBool	checkForValidReference (const OFString &stringValue)
	check string for valid reference (as used for by-reference relationships). More...

static DSRIODConstraintChecker *	createIODConstraintChecker (const E_DocumentType documentType)
	create specified SR IOD content relationship constraint checker object. More...

static DSRDocumentTreeNode *	createDocumentTreeNode (const E_RelationshipType relationshipType, const E_ValueType valueType)
	create specified document tree node. More...

static OFCondition	addElementToDataset (OFCondition &result, DcmItem &dataset, DcmElement delem, const OFString &vm, const OFString &type, const char moduleName=NULL)
	add given element to the dataset. More...

static void	removeAttributeFromSequence (DcmSequenceOfItems &sequence, const DcmTagKey &tagKey)
	remove given attribute from the sequence. More...

static OFCondition	getElementFromDataset (DcmItem &dataset, DcmElement &delem)
	get element from dataset More...

static const char *	getStringValueFromElement (const DcmElement &delem)
	get string value from element More...

static const OFString &	getStringValueFromElement (const DcmElement &delem, OFString &stringValue)
	get string value from element. More...

static OFCondition	getStringValueFromElement (const DcmElement &delem, OFString &stringValue, const signed long pos)
	get string value from element More...

static const OFString &	getPrintStringFromElement (const DcmElement &delem, OFString &stringValue)
	get string value from element and convert to "print" format. More...

static const OFString &	getMarkupStringFromElement (const DcmElement &delem, OFString &stringValue, const OFBool convertNonASCII=OFFalse)
	get string value from element and convert to HTML/XML. More...

static OFCondition	getStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const signed long pos=0)
	get string value from dataset More...

static OFCondition	putStringValueToDataset (DcmItem &dataset, const DcmTag &tag, const OFString &stringValue, const OFBool allowEmpty=OFTrue)
	put string value to dataset More...

static OFBool	checkElementValue (DcmElement delem, const DcmTagKey &tagKey, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char moduleName=NULL, const OFBool acceptViolation=OFFalse)
	check element value for correct value multiplicity and type. More...

static OFBool	checkElementValue (DcmElement &delem, const OFString &vm, const OFString &type, const OFCondition &searchCond=EC_Normal, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	check element value for correct value multiplicity and type. More...

static OFCondition	getAndCheckElementFromDataset (DcmItem &dataset, DcmElement &delem, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	get element from dataset and check it for correct value multiplicity and type. More...

static OFCondition	getAndCheckStringValueFromDataset (DcmItem &dataset, const DcmTagKey &tagKey, OFString &stringValue, const OFString &vm, const OFString &type, const char *moduleName=NULL, const OFBool acceptViolation=OFFalse)
	get string value from dataset and check it for correct value multiplicity and type. More...

static void	printInvalidContentItemMessage (const char action, const DSRDocumentTreeNode node, const char *location=NULL)
	print the warning message that the current content item is invalid/incomplete. More...

static void	printContentItemErrorMessage (const char action, const OFCondition &result, const DSRDocumentTreeNode node, const char *location=NULL)
	print an error message for the current content item. More...

static void	printUnknownValueWarningMessage (const char valueName, const char readValue=NULL, const char *action="Reading")
	print a warning message that an unknown/unsupported value has been determined More...

static OFBool	writeStringValueToXML (STD_NAMESPACE ostream &stream, const OFString &stringValue, const OFString &tagName, const OFBool writeEmptyValue=OFFalse)
	write string value to XML output stream. More...

static OFBool	writeStringFromElementToXML (STD_NAMESPACE ostream &stream, DcmElement &delem, const OFString &tagName, const OFBool writeEmptyValue=OFFalse)
	write string value from DICOM element to XML output stream. More...

static size_t	createHTMLAnnexEntry (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &annexStream, const OFString &referenceText, size_t &annexNumber, const size_t flags=0)
	create an HTML annex entry with hyperlinks. More...

static size_t	createHTMLFootnote (STD_NAMESPACE ostream &docStream, STD_NAMESPACE ostream &footnoteStream, size_t &footnoteNumber, const size_t nodeID, const size_t flags=0)
	create an HTML footnote with hyperlinks More...

static OFCondition	appendStream (STD_NAMESPACE ostream &mainStream, OFOStringStream &tempStream, const char *heading=NULL)
	append one output stream to another. More...

Static Public Attributes inherited from DSRTypes
static const size_t	RF_readDigitalSignatures
	read digital signatures from dataset

static const size_t	RF_acceptUnknownRelationshipType
	accept unknown/missing relationship type

static const size_t	RF_acceptInvalidContentItemValue
	accept invalid content item value (e.g. violation of VR or VM definition)

static const size_t	RF_ignoreRelationshipConstraints
	ignore relationship constraints for this document class

static const size_t	RF_ignoreContentItemErrors
	do not abort on content item errors (e.g. missing value type specific attributes)

static const size_t	RF_skipInvalidContentItems
	do not abort when detecting an invalid content item, skip invalid sub-tree instead

static const size_t	RF_showCurrentlyProcessedItem
	show the currently processed content item (e.g. "1.2.3")

static const size_t	HF_neverExpandChildrenInline
	external: never expand child nodes inline

static const size_t	HF_alwaysExpandChildrenInline
	external: always expand child nodes inline

static const size_t	HF_renderInlineCodes
	external: render codes even if they appear inline

static const size_t	HF_useCodeDetailsTooltip
	external: render code details as a tooltip (not with HTML 3.2)

static const size_t	HF_renderConceptNameCodes
	external: render concept name codes (default: code meaning only)

static const size_t	HF_renderNumericUnitCodes
	external: render the code of the numeric measurement unit

static const size_t	HF_useCodeMeaningAsUnit
	external: use code meaning for the numeric measurement unit (default: code value)

static const size_t	HF_renderPatientTitle
	external: use patient information as document title (default: document type)

static const size_t	HF_renderNoDocumentHeader
	external: render no general document information (header)

static const size_t	HF_renderDcmtkFootnote
	external: render dcmtk/dcmsr comment at the end of the document

static const size_t	HF_renderFullData
	external: render the full data of all content items

static const size_t	HF_renderSectionTitlesInline
	external: render section titles inline (default: separate paragraph)

static const size_t	HF_copyStyleSheetContent
	external: copy Cascading Style Sheet (CSS) content to HTML file

static const size_t	HF_HTML32Compatibility
	external: output compatible to HTML version 3.2 (default: 4.01)

static const size_t	HF_XHTML11Compatibility
	external: output compatible to XHTML version 1.1 (default: HTML 4.01)

static const size_t	HF_addDocumentTypeReference
	external: add explicit reference to HTML document type (DTD)

static const size_t	HF_omitGeneratorMetaElement
	external: omit generator meta element referring to the DCMTK

static const size_t	HF_renderItemsSeparately
	internal: render items separately (for container with SEPARATE flag)

static const size_t	HF_renderItemInline
	internal: expand items inline when they are short and have no child nodes

static const size_t	HF_currentlyInsideAnnex
	internal: content item is rendered fully inside the annex

static const size_t	HF_createFootnoteReferences
	internal: create footnote references

static const size_t	HF_convertNonASCIICharacters
	internal: convert non-ASCII characters (> #127) to &#nnn;

static const size_t	HF_renderAllCodes
	shortcut: render all codes

static const size_t	HF_internalUseOnly
	shortcut: filter all flags that are only used internally

static const size_t	XF_writeEmptyTags
	write: write all tags even if their value is empty

static const size_t	XF_writeTemplateIdentification
	write: write template identification information (TID and mapping resource)

static const size_t	XF_alwaysWriteItemIdentifier
	write: always write item identifier "id", not only when item is referenced

static const size_t	XF_codeComponentsAsAttribute
	write: encode code value, coding scheme designator and coding scheme version as attribute instead of element text

static const size_t	XF_relationshipTypeAsAttribute
	write: encode relationship type as attribute instead of element text

static const size_t	XF_valueTypeAsAttribute
	write: encode value type as attribute instead of element text

static const size_t	XF_templateIdentifierAsAttribute
	write: encode template identifier as attribute instead of element text

static const size_t	XF_useDcmsrNamespace
	write: add DCMSR namespace declaration to the XML output

static const size_t	XF_addSchemaReference
	write: add Schema reference to XML document

static const size_t	XF_validateSchema
	read: validate content of XML document against Schema

static const size_t	XF_templateElementEnclosesItems
	read/write: template identification element encloses content items

static const size_t	XF_addCommentsForIncludedTemplate
	write: add comments with details at beginning/end of included template (might be useful for debugging purposes)

static const size_t	XF_acceptEmptyStudySeriesInstanceUID
	read: accept empty Study/Series/SOP Instance UID attribute values (must be filled later)

static const size_t	XF_encodeEverythingAsAttribute
	shortcut: combines all XF_xxxAsAttribute write flags (see above)

static const size_t	PF_printItemPosition
	print item position ("1.2.3") instead of line indentation

static const size_t	PF_shortenLongItemValues
	shorten long item value (e.g. long texts)

static const size_t	PF_printSOPInstanceUID
	print SOP instance UID of referenced objects

static const size_t	PF_printConceptNameCodes
	print coding scheme designator/version and code value of concept names

static const size_t	PF_printNoDocumentHeader
	print no general document information (header)

static const size_t	PF_printTemplateIdentification
	print template identification (TID and mapping resource)

static const size_t	PF_useANSIEscapeCodes
	use ANSI escape codes for output

static const size_t	PF_printLongSOPClassName
	print long SOP class name of referenced objects (default: short name for images)

static const size_t	PF_printSOPClassUID
	print SOP class UID of referenced objects (instead of the name)

static const size_t	PF_printInvalidCodes
	print code triple for invalid codes (instead of the text "invalid code")

static const size_t	PF_printNodeID
	print node ID at the beginning of each line (might be useful for debugging purposes)

static const size_t	PF_indicateEnhancedEncodingMode
	indicate with a "*" that the "enhanced encoding mode" is used for codes

static const size_t	PF_printAnnotation
	print annotation of a content item (optional, e.g. user-defined information)

static const size_t	PF_hideIncludedTemplateNodes
	do not print internal "included template" nodes (position counter is still increased)

static const size_t	PF_dontCountIncludedTemplateNodes
	do not count internal "included template" nodes (only with PF_hideIncludedTemplateNodes)

static const size_t	PF_printEmptyCodes
	print text "empty code" for empty codes (instead of "invalid code")

static const size_t	PF_printAllCodes
	shortcut: print all codes (combines all PF_printXxxCodes flags, see above)

static const size_t	CM_updatePositionString
	update the position string using the node ID

static const size_t	CM_updateNodeID
	update the node ID using the position string

static const size_t	CM_resetReferenceTargetFlag
	reset the reference target flag for all nodes

static const size_t	CB_maskPrintFlags
	bit mask (filter) for valid print flags (see PF_xxx)

static const size_t	CB_maskReadFlags
	bit mask (filter) for valid read flags (see RF_xxx)

Detailed Description

Class for checking the relationship content constraints of an SR IOD (abstract)

Member Function Documentation

◆ checkContentRelationship()

virtual OFBool DSRIODConstraintChecker::checkContentRelationship	(	const E_ValueType	sourceValueType,
		const E_RelationshipType	relationshipType,
		const E_ValueType	targetValueType,
		const OFBool	byReference = `OFFalse`
	)		const

pure virtual

check whether specified content relationship is allowed for this IOD (abstract)

Parameters

sourceValueType	value type of the source content item to be checked
relationshipType	type of relationship between source and target item
targetValueType	value type of the target content item to be checked
byReference	optional flag indicating whether the node/relationship should be added by-value (default) or by-reference

Returns: OFTrue if content relationship is allowed, OFFalse otherwise

◆ getDocumentType()

virtual E_DocumentType DSRIODConstraintChecker::getDocumentType ( ) const

pure virtual

get the associated document type of the SR IOD (abstract)

Returns: document type (see DSRTypes::E_DocumentType)

◆ getRootTemplateIdentification()

virtual OFCondition DSRIODConstraintChecker::getRootTemplateIdentification	(	OFString &	templateIdentifier,
		OFString &	mappingResource
	)		const

pure virtual

get identifier and mapping resource of the root template (if any)

Parameters

templateIdentifier	identifier of the root template (might be empty)
mappingResource	mapping resource that defines the root template (might be empty)

Returns: status, EC_Normal if successful, an error code otherwise

◆ isByReferenceAllowed()

virtual OFBool DSRIODConstraintChecker::isByReferenceAllowed ( ) const

pure virtual

check whether by-reference relationships are allowed for this SR IOD (abstract)

Returns: OFTrue if by-reference relationships are allowed, OFFalse otherwise

◆ isTemplateSupportRequired()

virtual OFBool DSRIODConstraintChecker::isTemplateSupportRequired ( ) const

pure virtual

check whether this SR IOD requires template support (abstract)

Returns: OFTrue if template support is required, OFFalse otherwise

The documentation for this class was generated from the following file:

dcmsr/include/dcmtk/dcmsr/dsriodcc.h

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ checkContentRelationship()

◆ getDocumentType()

◆ getRootTemplateIdentification()

◆ isByReferenceAllowed()

◆ isTemplateSupportRequired()
