Class for managing sets of dicom attributes (e.g. macros and modules). More...

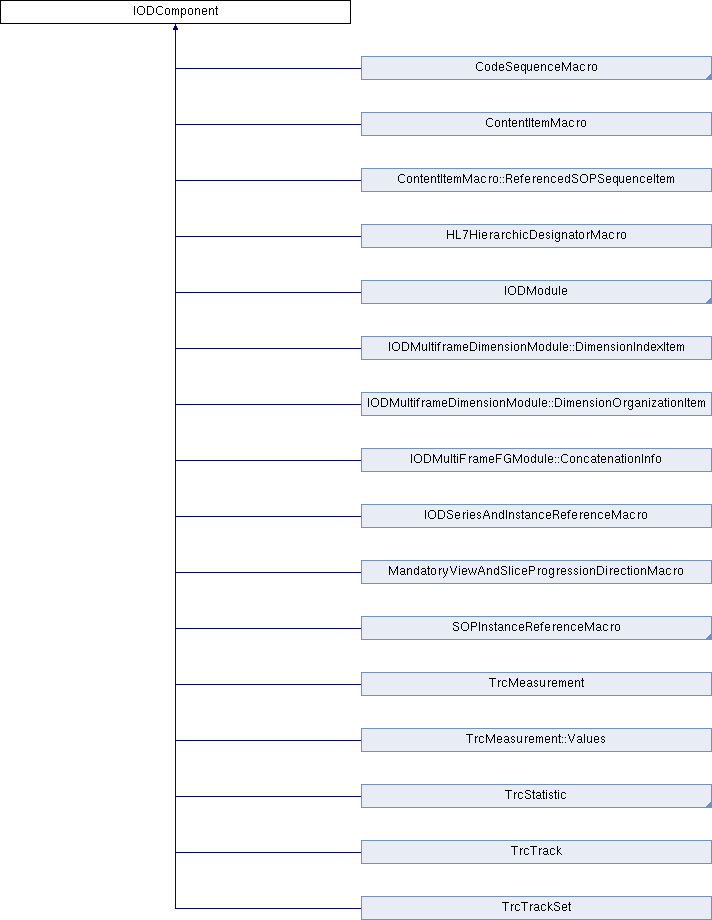

Inheritance diagram for IODComponent:

Public Member Functions
	IODComponent (OFshared_ptr< DcmItem > item, OFshared_ptr< IODRules > rules, IODComponent *parent=NULL)
	Constructor. More...

	IODComponent (IODComponent *parent=NULL)
	Constructor, creates rules and item from scratch. More...

IODComponent &	operator= (const IODComponent &rhs)
	Assignment operator, copies contained item and rule set from rhs to "this" attribute set. More...

	IODComponent (const IODComponent &rhs)
	Copy constructor, copies reference to contained item and rule set to "this" attribute set. More...

virtual	~IODComponent ()
	Virtual Destructor.

void	clearData ()
	Clear all attributes from the data that are handled by this module. More...

virtual void	inventMissing ()
	Set missing values by inventing "default values". More...

virtual void	resetRules ()=0
	Resets rules to their original values.

OFshared_ptr< IODRules >	getRules ()
	Get rules handled by this module. More...

virtual void	makeOptional ()
	Make component optional by turning all attributes requirement types of it to type 3. More...

virtual OFString	getName () const =0
	Get name of component. More...

DcmItem &	getData ()
	Get the data handled by this module. More...

virtual OFCondition	read (DcmItem &source, const OFBool clearOldData=OFTrue)
	Read attributes from given item into this class. More...

virtual OFCondition	write (DcmItem &destination)
	Write attributes from this class into given item. More...

virtual OFCondition	check (const OFBool quiet=OFFalse)
	Check whether this component's data satisfies the underlying rules. More...

virtual int	compare (const IODComponent &rhs) const
	Comparison operator for IOD Components. More...

Static Public Member Functions
static OFCondition	read (DcmItem &source, IODRules &rules, DcmItem &destination, const OFString &componentName)
	Static helper function that reads attributes from given item into destination item, as determined by the provided rules and component name. More...

static OFCondition	write (DcmItem &source, IODRules &rules, DcmItem &destination, const OFString &componentName)
	Static helper function that writes attributes from given item into destination item, as determined by the provided rules and component name. More...

Protected Attributes
OFshared_ptr< DcmItem >	m_Item
	Shared pointer to the data handled by this class. More...

OFshared_ptr< IODRules >	m_Rules
	Rules describing the attributes governed by this class.

IODComponent *	m_Parent
	The parent component (may be NULL) of this class.

Detailed Description

Class for managing sets of dicom attributes (e.g. macros and modules).

The data is hold in a container (DcmItem) that can be shared with other components, i.e. different modules that hold their data in a common container. In order to know which attributes in the container should be actually handled by a component, the component also has a set of rules, which can also be shared between different components (e.g. all modules of an IOD can share the same set of rules). For each attribute there is one rule in the rule set, denoting the requirement type (1,2,3,1C,2C), the VM, and besides others also the name of the component that the attribute belongs to (e.g. "PatientModule"). Since the component knows its own name, it can decide which attributes in the data container it is responsible for. This class is meant to support nested substructures but so far only writes attributes on a single level (including sequences). Also, in this context the class carries a parent relationship which is not used at the moment.

Constructor & Destructor Documentation

IODComponent::IODComponent	(	OFshared_ptr< DcmItem >	item,
		OFshared_ptr< IODRules >	rules,
		IODComponent *	parent = `NULL`
	)

Constructor.

Parameters

item	The item to be used for data storage. If NULL, the class creates an empty data container.
rules	The rule set for this class. If NULL, the class creates an empty rule set.
parent	The parent of the IOD component (NULL if none or unknown)

IODComponent::IODComponent ( IODComponent * parent = NULL )

Constructor, creates rules and item from scratch.

Parameters

parent The parent of the IOD component (NULL if none or unknown)

IODComponent::IODComponent ( const IODComponent & rhs )

Copy constructor, copies reference to contained item and rule set to "this" attribute set.

Parameters

rhs	The component to be assigned

Member Function Documentation

virtual OFCondition IODComponent::check ( const OFBool quiet = OFFalse )

virtual

Check whether this component's data satisfies the underlying rules.

Parameters

quiet If OFTrue, not error / warning messages will be produced. Only the returned error code will indicate error or OK. Per default, logging output is produced (OFFalse).

Returns: EC_Normal if rules are satisfied, error otherwise

Reimplemented in CodeWithModifiers, TrcTractographyResultsModule, and TrcTrack.

void IODComponent::clearData ( )

Clear all attributes from the data that are handled by this module.

An attribute is considered belonging to the module if there are rules marked as belonging to this module via the rule's module name.

Referenced by DcmIODImage< IODImagePixelModule< Uint8 > >::clearData().

virtual int IODComponent::compare ( const IODComponent & rhs ) const

virtual

Comparison operator for IOD Components.

Parameters

rhs	The right hand side of the comparison

Returns: 0, if the given object is equal to this object, other value otherwise

Reimplemented in ImageSOPInstanceReferenceMacro, and CodeWithModifiers.

DcmItem& IODComponent::getData ( )

inline

Get the data handled by this module.

Returns: The item containing the data of this module

virtual OFString IODComponent::getName ( ) const

pure virtual

Get name of component.

Returns: Name of the module

Implemented in MandatoryViewAndSliceProgressionDirectionMacro, HL7HierarchicDesignatorMacro, IODSeriesAndInstanceReferenceMacro, IODSeriesAndInstanceReferenceMacro, SOPInstanceReferenceMacro, IODMultiframeDimensionModule, TrcTrackSetStatistic, CodeWithModifiers, TrcMeasurement, ContentItemMacro, IODCommonInstanceReferenceModule, IODDoubleFloatingPointImagePixelModule, IODMultiFrameFGModule::ConcatenationInfo, TrcTracksStatistic, IODMultiframeDimensionModule::DimensionIndexItem, ContentItemMacro::ReferencedSOPSequenceItem, IODEnhGeneralEquipmentModule, IODGeneralEquipmentModule, IODCommonInstanceReferenceModule, TrcMeasurement::Values, CodeSequenceMacro, IODEnhUSImageModule, IODImagePixelModule< T >, TrcTrackSet, IODFloatingPointImagePixelModule, TrcTractographyResultsModule, IODMultiframeDimensionModule::DimensionOrganizationItem, IODGeneralImageModule, IODEnhancedUSSeriesModule, IODGeneralSeriesModule, IODGeneralStudyModule, IODSOPCommonModule, TrcTrack, DPMParametricMapImageModule, IODUSFoRModule, IODImagePixelBase, IODPatientStudyModule, IODSynchronizationModule, IODPatientModule, IODSegmentationSeriesModule, IODAcquisitionContextModule, IODMultiFrameFGModule, DPMParametricMapSeriesModule, and IODFoRModule.

OFshared_ptr<IODRules> IODComponent::getRules ( )

inline

Get rules handled by this module.

Returns: The rules

virtual void IODComponent::inventMissing ( )

virtual

Set missing values by inventing "default values".

Automatically called during write() in IODComponent; does nothing in this base class implementation but can be overwritten by derived classes if default values are desired.

Reimplemented in TrcTrackSet, IODGeneralSeriesModule, IODSOPCommonModule, and IODGeneralStudyModule.

virtual void IODComponent::makeOptional ( )

virtual

Make component optional by turning all attributes requirement types of it to type 3.

In order to reset to the attribute's original types, resetRules() can be used.

IODComponent& IODComponent::operator= ( const IODComponent & rhs )

Assignment operator, copies contained item and rule set from rhs to "this" attribute set.

Performs deep copy, i.e. the contained item and the rule set are copied. The parent component is set to NULL.

Parameters

rhs	The IODComponent to be assigned

Returns: Reference to this module

virtual OFCondition IODComponent::read	(	DcmItem &	source,
		const OFBool	clearOldData = `OFTrue`
	)

virtual

Read attributes from given item into this class.

Parameters

source	The source to read from
clearOldData	If OFTrue, old data is cleared before reading. Otherwise old data is overwritten (or amended)

Returns: EC_Normal if reading was successful, error otherwise

Reimplemented in MandatoryViewAndSliceProgressionDirectionMacro, ImageSOPInstanceReferenceMacro, IODSeriesAndInstanceReferenceMacro, IODSeriesAndInstanceReferenceMacro, IODMultiframeDimensionModule, CodeWithModifiers, TrcTrackSetStatistic, ContentItemMacro, TrcMeasurement, IODCommonInstanceReferenceModule, IODDoubleFloatingPointImagePixelModule, TrcTracksStatistic, ContentItemMacro::ReferencedSOPSequenceItem, IODEnhUSImageModule, TrcTrackSet, TrcTrack, IODGeneralSeriesModule, IODCommonInstanceReferenceModule, IODGeneralStudyModule, IODEnhancedUSSeriesModule, DPMParametricMapImageModule, IODImagePixelModule< T >, IODFloatingPointImagePixelModule, DPMParametricMapSeriesModule, TrcStatistic, and TrcTractographyResultsModule.

Referenced by DcmIODImage< IODImagePixelModule< Uint8 > >::read().

static OFCondition IODComponent::read	(	DcmItem &	source,
		IODRules &	rules,
		DcmItem &	destination,
		const OFString &	componentName
	)

static

Static helper function that reads attributes from given item into destination item, as determined by the provided rules and component name.

The rules are only applied when reading from the source (which may result in warning messages on the logger), but if they could be found they are taken over into the destination item no matter whether the element validates against the rule.

Parameters

source	The item to read from
rules	The rules that provide the attributes and requirements for these attributes
destination	The destination to write to
componentName	The name of the module/component to write

Returns: EC_Normal if reading was successful, error otherwise

virtual OFCondition IODComponent::write ( DcmItem & destination )

virtual

Write attributes from this class into given item.

Parameters

destination The item to write to

Returns: EC_Normal if writing was successful, error otherwise

Reimplemented in MandatoryViewAndSliceProgressionDirectionMacro, ImageSOPInstanceReferenceMacro, IODSeriesAndInstanceReferenceMacro, IODSeriesAndInstanceReferenceMacro, IODMultiframeDimensionModule, CodeWithModifiers, TrcTrackSetStatistic, ContentItemMacro, TrcMeasurement, IODCommonInstanceReferenceModule, IODDoubleFloatingPointImagePixelModule, TrcTracksStatistic, ContentItemMacro::ReferencedSOPSequenceItem, TrcTrackSet, IODEnhUSImageModule, TrcTrack, IODGeneralSeriesModule, IODCommonInstanceReferenceModule, IODGeneralStudyModule, IODEnhancedUSSeriesModule, DPMParametricMapImageModule, IODImagePixelModule< T >, IODFloatingPointImagePixelModule, DPMParametricMapSeriesModule, TrcStatistic, and TrcTractographyResultsModule.

Referenced by DcmIODImage< IODImagePixelModule< Uint8 > >::write().

static OFCondition IODComponent::write	(	DcmItem &	source,
		IODRules &	rules,
		DcmItem &	destination,
		const OFString &	componentName
	)

static

Static helper function that writes attributes from given item into destination item, as determined by the provided rules and component name.

The rules are only applied when writing to the destination (which may result in warning messages on the logger, and the whole call returning with an error). During reading from the source item the elements read are not validated against the rules.

Parameters

source	The item to read from
rules	The rules that provide the attributes and requirements for these attributes
destination	The destination to write to
componentName	The name of the module/component to write

Returns: EC_Normal if reading was successful, error otherwise

Member Data Documentation

OFshared_ptr<DcmItem> IODComponent::m_Item

protected

Shared pointer to the data handled by this class.

The item may contain more attributes than this class is actually responsible for

The documentation for this class was generated from the following file:

dcmiod/include/dcmtk/dcmiod/modbase.h
