Template class to handle Palette color pixel data. More...

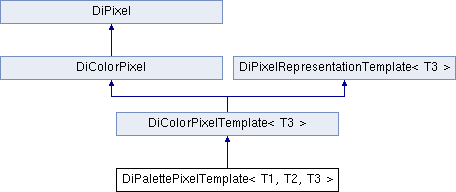

Inheritance diagram for DiPalettePixelTemplate< T1, T2, T3 >:

Public Member Functions
	DiPalettePixelTemplate (const DiDocument docu, const DiInputPixel pixel, DiLookupTable *palette[3], EI_Status &status)
	constructor More...

virtual	~DiPalettePixelTemplate ()
	destructor

Public Member Functions inherited from DiColorPixelTemplate< T3 >
	DiColorPixelTemplate (const DiDocument docu, const DiInputPixel pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
	constructor More...

virtual	~DiColorPixelTemplate ()
	destructor

EP_Representation	getRepresentation () const
	get integer representation More...

const void *	getData () const
	get pointer to internal array of pixel data. More...

void *	getDataPtr ()
	get pointer to internal array of pixel data. More...

void *	getDataArrayPtr ()
	get pointer to internal array of pixel data. More...

OFBool	getPixelData (void *data, const unsigned long count, const unsigned long fcount, const unsigned long frames, const int planar) const
	fill given memory block with pixel data (all three image planes, RGB) More...

unsigned long	createDIB (void *&data, const unsigned long size, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits, const int mode, const int upsideDown, const int padding) const
	create true color (24/32 bit) bitmap for MS Windows. More...

unsigned long	createAWTBitmap (void *&data, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits) const
	create true color (32 bit) bitmap for Java (AWT default format). More...

Public Member Functions inherited from DiColorPixel
	DiColorPixel (const DiDocument docu, const DiInputPixel pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
	constructor More...

virtual	~DiColorPixel ()
	destructor

int	getPlanes () const
	get number of planes More...

int	getPlanarConfiguration () const
	get planar configuration of the original pixel data More...

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor More...

virtual	~DiPixel ()
	destructor

unsigned long	getCount () const
	get number of pixels More...

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element More...

Public Member Functions inherited from DiPixelRepresentationTemplate< T3 >
	DiPixelRepresentationTemplate ()
	default constructor

virtual	~DiPixelRepresentationTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not More...

Private Member Functions
void	convert (const T1 pixel, DiLookupTable palette[3])
	convert input pixel data to intermediate representation More...

Additional Inherited Members
Protected Member Functions inherited from DiColorPixelTemplate< T3 >
	DiColorPixelTemplate (const DiColorPixel *pixel, const unsigned long count)
	constructor More...

int	Init (const void *pixel)
	initialize internal memory More...

Protected Member Functions inherited from DiColorPixel
	DiColorPixel (const DiColorPixel *pixel, const unsigned long count)
	constructor More...

Protected Attributes inherited from DiColorPixelTemplate< T3 >
T3 *	Data [3]
	pointer to pixel data (3 components)

Protected Attributes inherited from DiColorPixel
int	PlanarConfiguration
	planar configuration of the original pixel data (0 = color-by-pixel, 1 = color-by-plane)

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Detailed Description

template<class T1, class T2, class T3>
class DiPalettePixelTemplate< T1, T2, T3 >

Template class to handle Palette color pixel data.

Constructor & Destructor Documentation

template<class T1 , class T2 , class T3 >

DiPalettePixelTemplate< T1, T2, T3 >::DiPalettePixelTemplate	(	const DiDocument *	docu,
		const DiInputPixel *	pixel,
		DiLookupTable *	palette[3],
		EI_Status &	status
	)

inline

constructor

Parameters

docu	pointer to DICOM document
pixel	pointer to input pixel representation
palette	pointer to RGB color palette
status	reference to status variable

References DiPalettePixelTemplate< T1, T2, T3 >::convert(), DiPixel::Count, EIS_InvalidValue, EIS_Normal, DiInputPixel::getData(), DiInputPixel::getPixelStart(), and DiColorPixel::PlanarConfiguration.

Member Function Documentation

template<class T1 , class T2 , class T3 >

void DiPalettePixelTemplate< T1, T2, T3 >::convert	(	const T1 *	pixel,
		DiLookupTable *	palette[3]
	)

inlineprivate

convert input pixel data to intermediate representation

Parameters

pixel	pointer to input pixel data
palette	pointer to RGB color palette

References DiPixel::Count, DiColorPixelTemplate< T3 >::Data, DiColorPixelTemplate< T3 >::Init(), and DiPixel::InputCount.

Referenced by DiPalettePixelTemplate< T1, T2, T3 >::DiPalettePixelTemplate().

The documentation for this class was generated from the following file:

dcmimage/include/dcmtk/dcmimage/dipalpxt.h
