Template class to rotate monochrome images (on pixel data level). More...

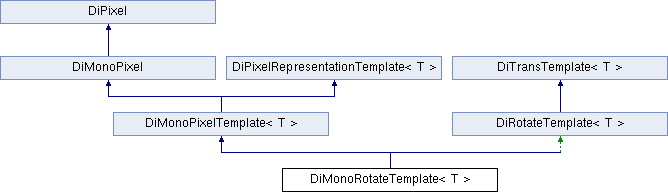

Inheritance diagram for DiMonoRotateTemplate< T >:Public Member Functions | |
| DiMonoRotateTemplate (const DiMonoPixel *pixel, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int degree) | |
| constructor More... | |
| ~DiMonoRotateTemplate () | |
| destructor | |
| Public Member Functions inherited from DiMonoPixelTemplate< T > | |
| DiMonoPixelTemplate (const unsigned long count) | |
| constructor More... | |
| DiMonoPixelTemplate (const DiInputPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| DiMonoPixelTemplate (DiMonoOutputPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| virtual | ~DiMonoPixelTemplate () |
| destructor | |
| EP_Representation | getRepresentation () const |
| get integer representation More... | |
| const void * | getData () const |
| get pointer to internal pixel data More... | |
| void * | getDataPtr () |
| get pointer to internal pixel data More... | |
| void * | getDataArrayPtr () |
| get reference to pointer to internal pixel data. More... | |
| int | getMinMaxValues (double &min, double &max) const |
| get minimum and maximum pixel values More... | |
| int | getMinMaxWindow (const int idx, double ¢er, double &width) |
| get automatically computed min-max window More... | |
| virtual int | getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth) |
| get automatically computed Region of Interest (ROI) window More... | |
| int | getHistogramWindow (const double thresh, double ¢er, double &width) |
| get automatically computed histogram window More... | |
| Public Member Functions inherited from DiMonoPixel | |
| DiMonoPixel (const unsigned long count) | |
| constructor More... | |
| DiMonoPixel (const DiInputPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| DiMonoPixel (DiMonoOutputPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| virtual | ~DiMonoPixel () |
| destructor | |
| int | getPlanes () const |
| get number of planes More... | |
| unsigned int | getBits () const |
| get number of bits per pixel More... | |
| double | getAbsMinimum () const |
| get absolute minimum pixel value. More... | |
| double | getAbsMaximum () const |
| get absolute maximum pixel value. More... | |
| double | getAbsMaxRange () const |
| get absolute pixel range More... | |
| const char * | getModalityLutExplanation () const |
| get modality LUT explanation string More... | |
| DiMonoModality * | addReferenceToModality () |
| add a reference to the internally managed modality transform object More... | |
| int | isPotentiallySigned () const |
| check whether pixel data is 'potentially' signed. More... | |
| Public Member Functions inherited from DiPixel | |
| DiPixel (const unsigned long count, const unsigned long inputCount=0) | |
| constructor More... | |
| virtual | ~DiPixel () |
| destructor | |
| unsigned long | getCount () const |
| get number of pixels More... | |
| unsigned long | getInputCount () const |
| get number of pixels stored in the 'PixelData' element More... | |
| Public Member Functions inherited from DiPixelRepresentationTemplate< T > | |
| DiPixelRepresentationTemplate () | |
| default constructor | |
| virtual | ~DiPixelRepresentationTemplate () |
| destructor | |
| int | isSigned () const |
| check whether template type T is signed or not More... | |
Private Member Functions | |
| void | rotate (const T *pixel, const int degree) |
| rotate pixel data More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from DiMonoPixelTemplate< T > | |
| DiMonoPixelTemplate (const DiPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count) | |
| constructor More... | |
| void | determineMinMax (T minvalue=0, T maxvalue=0, const int mode=0x1) |
| determine minimum and maximum pixel values More... | |
| Protected Member Functions inherited from DiMonoPixel | |
| DiMonoPixel (const DiPixel *pixel, DiMonoModality *modality) | |
| constructor More... | |
| DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count) | |
| constructor More... | |
| Protected Member Functions inherited from DiRotateTemplate< T > | |
| void | rotateLeft (const T *src[], T *dest[]) |
| rotate source image left and store result in destination image More... | |
| void | rotateRight (const T *src[], T *dest[]) |
| rotate source image right and store result in destination image More... | |
| void | rotateTopDown (const T *src[], T *dest[]) |
| rotate source image top-down and store result in destination image More... | |
| DiRotateTemplate (DiPixel *pixel, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int degree) | |
| constructor. More... | |
| DiRotateTemplate (const int planes, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames) | |
| constructor. More... | |
| virtual | ~DiRotateTemplate () |
| destructor | |
| void | rotateData (const T *src[], T *dest[], const int degree) |
| choose algorithm depending on rotation angle More... | |
| Protected Member Functions inherited from DiTransTemplate< T > | |
| DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0) | |
| constructor More... | |
| virtual | ~DiTransTemplate () |
| destructor | |
| void | copyPixel (const T *src[], T *dest[]) |
| copy pixel data More... | |
| void | fillPixel (T *dest[], const T value) |
| fill pixel data with specified value More... | |
| void | clearPixel (T *dest[]) |
| clear pixel data (set values to 0) More... | |
| Protected Attributes inherited from DiMonoPixelTemplate< T > | |
| T * | Data |
| pointer to pixel data | |
| Protected Attributes inherited from DiMonoPixel | |
| DiMonoModality * | Modality |
| pointer to modality transform object | |
| Protected Attributes inherited from DiPixel | |
| unsigned long | Count |
| number of pixels | |
| unsigned long | InputCount |
| number of pixels in the input buffer | |
| Protected Attributes inherited from DiTransTemplate< T > | |
| int | Planes |
| number of planes | |
| Uint16 | Src_X |
| width of source image | |
| Uint16 | Src_Y |
| height of source image | |
| const Uint16 | Dest_X |
| width of destination image | |
| const Uint16 | Dest_Y |
| height of destination image | |
| const Uint32 | Frames |
| number of frames | |
| const int | Bits |
| number of bits per plane/pixel | |
Template class to rotate monochrome images (on pixel data level).
by steps of 90 degrees
|
inline |
constructor
| pixel | pointer to intermediate pixel representation |
| src_cols | width of clipping area |
| src_rows | height of clipping area |
| dest_cols | width of destination image (scaled image) |
| dest_rows | height of destination image |
| frames | number of frames |
| degree | angle by which the pixel data should be rotated |
References DiPixel::getCount(), DiPixel::getData(), and DiMonoRotateTemplate< T >::rotate().
|
inlineprivate |
rotate pixel data
| pixel | pointer to pixel data to be rotated |
| degree | angle by which the pixel data should be rotated |
References DiMonoPixelTemplate< T >::Data, DiPixel::getCount(), DiRotateTemplate< T >::rotateLeft(), DiRotateTemplate< T >::rotateRight(), and DiRotateTemplate< T >::rotateTopDown().
Referenced by DiMonoRotateTemplate< T >::DiMonoRotateTemplate().
