Template class to convert monochrome pixel data to intermediate representation. More...

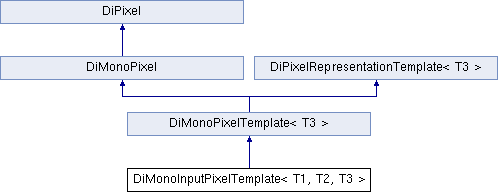

Inheritance diagram for DiMonoInputPixelTemplate< T1, T2, T3 >:

Public Member Functions
	DiMonoInputPixelTemplate (DiInputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoInputPixelTemplate ()
	destructor

Public Member Functions inherited from DiMonoPixelTemplate< T3 >
	DiMonoPixelTemplate (const unsigned long count)
	constructor More...

	DiMonoPixelTemplate (const DiInputPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixelTemplate (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoPixelTemplate ()
	destructor

EP_Representation	getRepresentation () const
	get integer representation More...

const void *	getData () const
	get pointer to internal pixel data More...

void *	getDataPtr ()
	get pointer to internal pixel data More...

void *	getDataArrayPtr ()
	get reference to pointer to internal pixel data. More...

int	getMinMaxValues (double &min, double &max) const
	get minimum and maximum pixel values More...

int	getMinMaxWindow (const int idx, double &center, double &width)
	get automatically computed min-max window More...

virtual int	getRoiWindow (const unsigned long left_pos, const unsigned long top_pos, const unsigned long width, const unsigned long height, const unsigned long columns, const unsigned long rows, const unsigned long frame, double &voiCenter, double &voiWidth)
	get automatically computed Region of Interest (ROI) window More...

int	getHistogramWindow (const double thresh, double &center, double &width)
	get automatically computed histogram window More...

Public Member Functions inherited from DiMonoPixel
	DiMonoPixel (const unsigned long count)
	constructor More...

	DiMonoPixel (const DiInputPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (DiMonoOutputPixel pixel, DiMonoModality modality)
	constructor More...

virtual	~DiMonoPixel ()
	destructor

int	getPlanes () const
	get number of planes More...

unsigned int	getBits () const
	get number of bits per pixel More...

double	getAbsMinimum () const
	get absolute minimum pixel value. More...

double	getAbsMaximum () const
	get absolute maximum pixel value. More...

double	getAbsMaxRange () const
	get absolute pixel range More...

const char *	getModalityLutExplanation () const
	get modality LUT explanation string More...

DiMonoModality *	addReferenceToModality ()
	add a reference to the internally managed modality transform object More...

int	isPotentiallySigned () const
	check whether pixel data is 'potentially' signed. More...

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor More...

virtual	~DiPixel ()
	destructor

unsigned long	getCount () const
	get number of pixels More...

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element More...

Public Member Functions inherited from DiPixelRepresentationTemplate< T3 >
	DiPixelRepresentationTemplate ()
	default constructor

virtual	~DiPixelRepresentationTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not More...

Private Member Functions
int	initOptimizationLUT (T3 *&lut, const unsigned long ocnt)
	initialize optimization LUT More...

void	modlut (DiInputPixel *input)
	perform modality LUT transform More...

void	rescale (DiInputPixel *input, const double slope=1.0, const double intercept=0.0)
	perform rescale slope/intercept transform More...

Additional Inherited Members
Protected Member Functions inherited from DiMonoPixelTemplate< T3 >
	DiMonoPixelTemplate (const DiPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixelTemplate (const DiMonoPixel *pixel, const unsigned long count)
	constructor More...

void	determineMinMax (T3minvalue=0, T3maxvalue=0, const int mode=0x1)
	determine minimum and maximum pixel values More...

Protected Member Functions inherited from DiMonoPixel
	DiMonoPixel (const DiPixel pixel, DiMonoModality modality)
	constructor More...

	DiMonoPixel (const DiMonoPixel *pixel, const unsigned long count)
	constructor More...

Protected Attributes inherited from DiMonoPixelTemplate< T3 >
T3 *	Data
	pointer to pixel data

Protected Attributes inherited from DiMonoPixel
DiMonoModality *	Modality
	pointer to modality transform object

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Detailed Description

template<class T1, class T2, class T3>
class DiMonoInputPixelTemplate< T1, T2, T3 >

Template class to convert monochrome pixel data to intermediate representation.

Constructor & Destructor Documentation

template<class T1 , class T2 , class T3 >

DiMonoInputPixelTemplate< T1, T2, T3 >::DiMonoInputPixelTemplate	(	DiInputPixel *	pixel,
		DiMonoModality *	modality
	)

inline

constructor

Parameters

pixel	pointer to input pixel representation
modality	pointer to modality transform object

References DiPixel::Count, DiMonoPixelTemplate< T3 >::Data, DiMonoPixelTemplate< T3 >::determineMinMax(), DiMonoModality::getMaxValue(), DiMonoModality::getMinValue(), DiMonoModality::getRescaleIntercept(), DiMonoModality::getRescaleSlope(), DiMonoModality::hasLookupTable(), DiMonoModality::hasRescaling(), DiPixel::InputCount, DiMonoPixel::Modality, DiMonoInputPixelTemplate< T1, T2, T3 >::modlut(), DiMonoInputPixelTemplate< T1, T2, T3 >::rescale(), and OFBitmanipTemplate< T >::zeroMem().

Member Function Documentation

template<class T1 , class T2 , class T3 >

int DiMonoInputPixelTemplate< T1, T2, T3 >::initOptimizationLUT	(	T3 *&	lut,
		const unsigned long	ocnt
	)

inlineprivate

initialize optimization LUT

Parameters

lut	reference to storage area for lookup table
ocnt	number of LUT entries (will be check as optimization criteria)

Returns: status, true if successful (LUT has been created), false otherwise

References DiPixel::InputCount.

Referenced by DiMonoInputPixelTemplate< T1, T2, T3 >::modlut(), and DiMonoInputPixelTemplate< T1, T2, T3 >::rescale().

template<class T1 , class T2 , class T3 >

void DiMonoInputPixelTemplate< T1, T2, T3 >::modlut ( DiInputPixel * input )

inlineprivate

perform modality LUT transform

Parameters

input pointer to input pixel representation

References DiPixel::Count, DiMonoPixelTemplate< T3 >::Data, DiInputPixel::getAbsMaxRange(), DiInputPixel::getAbsMinimum(), DiBaseLUT::getCount(), DiPixel::getCount(), DiInputPixel::getData(), DiInputPixel::getDataPtr(), DiBaseLUT::getFirstEntry(), DiBaseLUT::getFirstValue(), DiBaseLUT::getLastEntry(), DiBaseLUT::getLastValue(), DiInputPixel::getPixelStart(), DiMonoModality::getTableData(), DiBaseLUT::getValue(), DiMonoInputPixelTemplate< T1, T2, T3 >::initOptimizationLUT(), DiPixel::InputCount, DiMonoPixel::Modality, and DiInputPixel::removeDataReference().

Referenced by DiMonoInputPixelTemplate< T1, T2, T3 >::DiMonoInputPixelTemplate().

template<class T1 , class T2 , class T3 >

void DiMonoInputPixelTemplate< T1, T2, T3 >::rescale	(	DiInputPixel *	input,
		const double	slope = `1.0`,
		const double	intercept = `0.0`
	)

inlineprivate

perform rescale slope/intercept transform

Parameters

input	pointer to input pixel representation
slope	rescale slope value (optional)
intercept	rescale intercept value (optional)

References DiPixel::Count, DiMonoPixelTemplate< T3 >::Data, DiInputPixel::getAbsMaxRange(), DiInputPixel::getAbsMinimum(), DiPixel::getCount(), DiInputPixel::getData(), DiInputPixel::getDataPtr(), DiInputPixel::getPixelStart(), DiMonoInputPixelTemplate< T1, T2, T3 >::initOptimizationLUT(), DiPixel::InputCount, and DiInputPixel::removeDataReference().

Referenced by DiMonoInputPixelTemplate< T1, T2, T3 >::DiMonoInputPixelTemplate().

The documentation for this class was generated from the following file:

dcmimgle/include/dcmtk/dcmimgle/dimoipxt.h
