DiHSVPixelTemplate< T1, T2 > Class Template Reference

Template class to handle HSV pixel data. More...

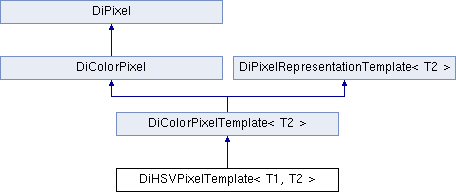

+ Inheritance diagram for DiHSVPixelTemplate< T1, T2 >:

Public Member Functions

 DiHSVPixelTemplate (const DiDocument *docu, const DiInputPixel *pixel, EI_Status &status, const unsigned long planeSize, const int bits)
 constructor More...

virtual ~DiHSVPixelTemplate ()
 destructor

- Public Member Functions inherited from DiColorPixelTemplate< T2 >
 DiColorPixelTemplate (const DiDocument *docu, const DiInputPixel *pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
 constructor More...

virtual ~DiColorPixelTemplate ()
 destructor

EP_Representation getRepresentation () const
 get integer representation More...

const void * getData () const
 get pointer to internal array of pixel data. More...

void * getDataPtr ()
 get pointer to internal array of pixel data. More...

void * getDataArrayPtr ()
 get pointer to internal array of pixel data. More...

OFBool getPixelData (void *data, const unsigned long count, const unsigned long fcount, const unsigned long frames, const int planar) const
 fill given memory block with pixel data (all three image planes, RGB) More...

unsigned long createDIB (void *&data, const unsigned long size, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits, const int mode, const int upsideDown, const int padding) const
 create true color (24/32 bit) bitmap for MS Windows. More...

unsigned long createAWTBitmap (void *&data, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits) const
 create true color (32 bit) bitmap for Java (AWT default format). More...

- Public Member Functions inherited from DiColorPixel
 DiColorPixel (const DiDocument *docu, const DiInputPixel *pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
 constructor More...

virtual ~DiColorPixel ()
 destructor

int getPlanes () const
 get number of planes More...

int getPlanarConfiguration () const
 get planar configuration of the original pixel data More...

- Public Member Functions inherited from DiPixel
 DiPixel (const unsigned long count, const unsigned long inputCount=0)
 constructor More...

virtual ~DiPixel ()
 destructor

unsigned long getCount () const
 get number of pixels More...

unsigned long getInputCount () const
 get number of pixels stored in the 'PixelData' element More...

- Public Member Functions inherited from DiPixelRepresentationTemplate< T2 >
 DiPixelRepresentationTemplate ()
 default constructor

virtual ~DiPixelRepresentationTemplate ()
 destructor

int isSigned () const
 check whether template type T is signed or not More...


Private Member Functions

void convert (const T1 *pixel, const unsigned long planeSize, const int bits)
 convert input pixel data to intermediate representation More...

void convertValue (T2 &red, T2 &green, T2 &blue, const T2 hue, const T2 saturation, const T2 value, const T2 maxvalue)
 convert a single HSV value to RGB


Additional Inherited Members

- Protected Member Functions inherited from DiColorPixelTemplate< T2 >
 DiColorPixelTemplate (const DiColorPixel *pixel, const unsigned long count)
 constructor More...

int Init (const void *pixel)
 initialize internal memory More...

- Protected Member Functions inherited from DiColorPixel
 DiColorPixel (const DiColorPixel *pixel, const unsigned long count)
 constructor More...

- Protected Attributes inherited from DiColorPixelTemplate< T2 >
T2 * Data [3]
 pointer to pixel data (3 components)

- Protected Attributes inherited from DiColorPixel
int PlanarConfiguration
 planar configuration of the original pixel data (0 = color-by-pixel, 1 = color-by-plane)

- Protected Attributes inherited from DiPixel
unsigned long Count
 number of pixels

unsigned long InputCount
 number of pixels in the input buffer


Detailed Description

template<class T1, class T2>
class DiHSVPixelTemplate< T1, T2 >

Template class to handle HSV pixel data.

Constructor & Destructor Documentation

template<class T1 , class T2 >
DiHSVPixelTemplate< T1, T2 >::DiHSVPixelTemplate ( const DiDocument docu,
const DiInputPixel pixel,
EI_Status status,
const unsigned long  planeSize,
const int  bits
)
inline

constructor

Parameters
docupointer to DICOM document
pixelpointer to input pixel representation
statusreference to status variable
planeSizenumber of pixels in a plane
bitsnumber of bits per sample

References DiHSVPixelTemplate< T1, T2 >::convert(), DiPixel::Count, EIS_Normal, DiInputPixel::getData(), and DiInputPixel::getPixelStart().

Member Function Documentation

template<class T1 , class T2 >
void DiHSVPixelTemplate< T1, T2 >::convert ( const T1 *  pixel,
const unsigned long  planeSize,
const int  bits
)
inlineprivate

convert input pixel data to intermediate representation

Parameters
pixelpointer to input pixel data
planeSizenumber of pixels in a plane
bitsnumber of bits per sample

References DiHSVPixelTemplate< T1, T2 >::convertValue(), DiPixel::Count, DiColorPixelTemplate< T2 >::Data, DiColorPixelTemplate< T2 >::Init(), DiPixel::InputCount, DicomImageClass::maxval(), and DiColorPixel::PlanarConfiguration.

Referenced by DiHSVPixelTemplate< T1, T2 >::DiHSVPixelTemplate().


The documentation for this class was generated from the following file:
