DiColorScaleTemplate< T > Class Template Reference

Template class to scale color images (on pixel data level). More...

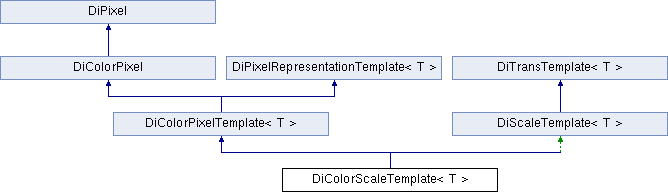

+ Inheritance diagram for DiColorScaleTemplate< T >:

Public Member Functions

 DiColorScaleTemplate (const DiColorPixel *pixel, const Uint16 columns, const Uint16 rows, const signed long left_pos, const signed long top_pos, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int bits, const int interpolate)
 constructor More...

virtual ~DiColorScaleTemplate ()
 destructor

- Public Member Functions inherited from DiColorPixelTemplate< T >
 DiColorPixelTemplate (const DiDocument *docu, const DiInputPixel *pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
 constructor More...

virtual ~DiColorPixelTemplate ()
 destructor

EP_Representation getRepresentation () const
 get integer representation More...

const void * getData () const
 get pointer to internal array of pixel data. More...

void * getDataPtr ()
 get pointer to internal array of pixel data. More...

void * getDataArrayPtr ()
 get pointer to internal array of pixel data. More...

OFBool getPixelData (void *data, const unsigned long count, const unsigned long fcount, const unsigned long frames, const int planar) const
 fill given memory block with pixel data (all three image planes, RGB) More...

unsigned long createDIB (void *&data, const unsigned long size, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits, const int mode, const int upsideDown, const int padding) const
 create true color (24/32 bit) bitmap for MS Windows. More...

unsigned long createAWTBitmap (void *&data, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits) const
 create true color (32 bit) bitmap for Java (AWT default format). More...

- Public Member Functions inherited from DiColorPixel
 DiColorPixel (const DiDocument *docu, const DiInputPixel *pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
 constructor More...

virtual ~DiColorPixel ()
 destructor

int getPlanes () const
 get number of planes More...

int getPlanarConfiguration () const
 get planar configuration of the original pixel data More...

- Public Member Functions inherited from DiPixel
 DiPixel (const unsigned long count, const unsigned long inputCount=0)
 constructor More...

virtual ~DiPixel ()
 destructor

unsigned long getCount () const
 get number of pixels More...

unsigned long getInputCount () const
 get number of pixels stored in the 'PixelData' element More...

- Public Member Functions inherited from DiPixelRepresentationTemplate< T >
 DiPixelRepresentationTemplate ()
 default constructor

virtual ~DiPixelRepresentationTemplate ()
 destructor

int isSigned () const
 check whether template type T is signed or not More...


Private Member Functions

void scale (const T *pixel[3], const int interpolate)
 scale pixel data More...


Additional Inherited Members

- Protected Member Functions inherited from DiColorPixelTemplate< T >
 DiColorPixelTemplate (const DiColorPixel *pixel, const unsigned long count)
 constructor More...

int Init (const void *pixel)
 initialize internal memory More...

- Protected Member Functions inherited from DiColorPixel
 DiColorPixel (const DiColorPixel *pixel, const unsigned long count)
 constructor More...

- Protected Member Functions inherited from DiScaleTemplate< T >
 DiScaleTemplate (const int planes, const Uint16 columns, const Uint16 rows, const signed long left_pos, const signed long top_pos, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int bits=0)
 constructor, scale clipping area. More...

 DiScaleTemplate (const int planes, const Uint16 src_cols, const Uint16 src_rows, const Uint16 dest_cols, const Uint16 dest_rows, const Uint32 frames, const int bits=0)
 constructor, scale whole image. More...

virtual ~DiScaleTemplate ()
 destructor

int isSigned () const
 check whether template type T is signed or not More...

void scaleData (const T *src[], T *dest[], const int interpolate, const T value=0)
 choose scaling/clipping algorithm depending on specified parameters. More...

- Protected Member Functions inherited from DiTransTemplate< T >
 DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0)
 constructor More...

virtual ~DiTransTemplate ()
 destructor

void copyPixel (const T *src[], T *dest[])
 copy pixel data More...

void fillPixel (T *dest[], const T value)
 fill pixel data with specified value More...

void clearPixel (T *dest[])
 clear pixel data (set values to 0) More...

- Protected Attributes inherited from DiColorPixelTemplate< T >
T * Data [3]
 pointer to pixel data (3 components)

- Protected Attributes inherited from DiColorPixel
int PlanarConfiguration
 planar configuration of the original pixel data (0 = color-by-pixel, 1 = color-by-plane)

- Protected Attributes inherited from DiPixel
unsigned long Count
 number of pixels

unsigned long InputCount
 number of pixels in the input buffer

- Protected Attributes inherited from DiScaleTemplate< T >
const signed long Left
 left coordinate of clipping area

const signed long Top
 top coordinate of clipping area

const Uint16 Columns
 width of source image

const Uint16 Rows
 height of source image

- Protected Attributes inherited from DiTransTemplate< T >
int Planes
 number of planes

Uint16 Src_X
 width of source image

Uint16 Src_Y
 height of source image

const Uint16 Dest_X
 width of destination image

const Uint16 Dest_Y
 height of destination image

const Uint32 Frames
 number of frames

const int Bits
 number of bits per plane/pixel


Detailed Description

template<class T>
class DiColorScaleTemplate< T >

Template class to scale color images (on pixel data level).

Constructor & Destructor Documentation

template<class T >
DiColorScaleTemplate< T >::DiColorScaleTemplate ( const DiColorPixel pixel,
const Uint16  columns,
const Uint16  rows,
const signed long  left_pos,
const signed long  top_pos,
const Uint16  src_cols,
const Uint16  src_rows,
const Uint16  dest_cols,
const Uint16  dest_rows,
const Uint32  frames,
const int  bits,
const int  interpolate
)
inline

constructor

Parameters
pixelpointer to intermediate pixel representation
columnswidth of source image
rowsheight of source image
left_posleft coordinate of clipping area
top_postop coordinate of clipping area
src_colswidth of clipping area
src_rowsheight of clipping area
dest_colswidth of destination image (scaled image)
dest_rowsheight of destination image
framesnumber of frames
bitsnumber of bits per plane/pixel
interpolateuse of interpolation when scaling

References DiPixel::getCount(), DiPixel::getData(), and DiColorScaleTemplate< T >::scale().

Member Function Documentation

template<class T >
void DiColorScaleTemplate< T >::scale ( const T *  pixel[3],
const int  interpolate
)
inlineprivate

scale pixel data

Parameters
pixelpointer to pixel data (3 components9 to be scaled
interpolateuse of interpolation when scaling

References DiColorPixelTemplate< T >::Data, DiColorPixelTemplate< T >::Init(), and DiScaleTemplate< T >::scaleData().

Referenced by DiColorScaleTemplate< T >::DiColorScaleTemplate().


The documentation for this class was generated from the following file:
