Template class to flip color images (on pixel data level) horizontally and vertically. More...

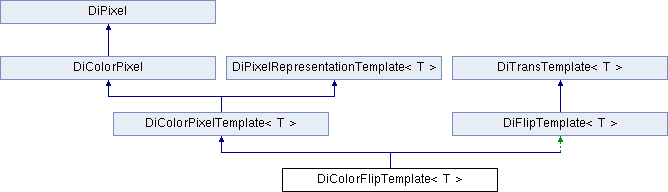

Inheritance diagram for DiColorFlipTemplate< T >:

Public Member Functions
	DiColorFlipTemplate (const DiColorPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert)
	constructor More...

	~DiColorFlipTemplate ()
	destructor

Public Member Functions inherited from DiColorPixelTemplate< T >
	DiColorPixelTemplate (const DiDocument docu, const DiInputPixel pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
	constructor More...

virtual	~DiColorPixelTemplate ()
	destructor

EP_Representation	getRepresentation () const
	get integer representation More...

const void *	getData () const
	get pointer to internal array of pixel data. More...

void *	getDataPtr ()
	get pointer to internal array of pixel data. More...

void *	getDataArrayPtr ()
	get pointer to internal array of pixel data. More...

OFBool	getPixelData (void *data, const unsigned long count, const unsigned long fcount, const unsigned long frames, const int planar) const
	fill given memory block with pixel data (all three image planes, RGB) More...

unsigned long	createDIB (void *&data, const unsigned long size, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits, const int mode, const int upsideDown, const int padding) const
	create true color (24/32 bit) bitmap for MS Windows. More...

unsigned long	createAWTBitmap (void *&data, const Uint16 width, const Uint16 height, const unsigned long frame, const int fromBits, const int toBits) const
	create true color (32 bit) bitmap for Java (AWT default format). More...

Public Member Functions inherited from DiColorPixel
	DiColorPixel (const DiDocument docu, const DiInputPixel pixel, const Uint16 samples, EI_Status &status, const Uint16 sample_rate=0)
	constructor More...

virtual	~DiColorPixel ()
	destructor

int	getPlanes () const
	get number of planes More...

int	getPlanarConfiguration () const
	get planar configuration of the original pixel data More...

Public Member Functions inherited from DiPixel
	DiPixel (const unsigned long count, const unsigned long inputCount=0)
	constructor More...

virtual	~DiPixel ()
	destructor

unsigned long	getCount () const
	get number of pixels More...

unsigned long	getInputCount () const
	get number of pixels stored in the 'PixelData' element More...

Public Member Functions inherited from DiPixelRepresentationTemplate< T >
	DiPixelRepresentationTemplate ()
	default constructor

virtual	~DiPixelRepresentationTemplate ()
	destructor

int	isSigned () const
	check whether template type T is signed or not More...

Private Member Functions
void	flip (const T *pixel[3], const int horz, const int vert)
	choose flipping algorithm depending on given parameters More...

Additional Inherited Members
Protected Member Functions inherited from DiColorPixelTemplate< T >
	DiColorPixelTemplate (const DiColorPixel *pixel, const unsigned long count)
	constructor More...

int	Init (const void *pixel)
	initialize internal memory More...

Protected Member Functions inherited from DiColorPixel
	DiColorPixel (const DiColorPixel *pixel, const unsigned long count)
	constructor More...

Protected Member Functions inherited from DiFlipTemplate< T >
void	flipHorz (const T src[], T dest[])
	flip source image horizontally and store result in destination image More...

void	flipVert (const T src[], T dest[])
	flip source image vertically and store result in destination image More...

void	flipHorzVert (const T src[], T dest[])
	flip source image horizontally and vertically and store result in destination image More...

	DiFlipTemplate (DiPixel *pixel, const Uint16 columns, const Uint16 rows, const Uint32 frames, const int horz, const int vert)
	constructor. More...

	DiFlipTemplate (const int planes, const Uint16 columns, const Uint16 rows, const Uint32 frames)
	constructor. More...

virtual	~DiFlipTemplate ()
	destructor

void	flipData (const T src[], T dest[], const int horz, const int vert)
	choose algorithm depending on flipping mode More...

Protected Member Functions inherited from DiTransTemplate< T >
	DiTransTemplate (const int planes, const Uint16 src_x, const Uint16 src_y, const Uint16 dest_x, const Uint16 dest_y, const Uint32 frames, const int bits=0)
	constructor More...

virtual	~DiTransTemplate ()
	destructor

void	copyPixel (const T src[], T dest[])
	copy pixel data More...

void	fillPixel (T *dest[], const T value)
	fill pixel data with specified value More...

void	clearPixel (T *dest[])
	clear pixel data (set values to 0) More...

Protected Attributes inherited from DiColorPixelTemplate< T >
T *	Data [3]
	pointer to pixel data (3 components)

Protected Attributes inherited from DiColorPixel
int	PlanarConfiguration
	planar configuration of the original pixel data (0 = color-by-pixel, 1 = color-by-plane)

Protected Attributes inherited from DiPixel
unsigned long	Count
	number of pixels

unsigned long	InputCount
	number of pixels in the input buffer

Protected Attributes inherited from DiTransTemplate< T >
int	Planes
	number of planes

Uint16	Src_X
	width of source image

Uint16	Src_Y
	height of source image

const Uint16	Dest_X
	width of destination image

const Uint16	Dest_Y
	height of destination image

const Uint32	Frames
	number of frames

const int	Bits
	number of bits per plane/pixel

Detailed Description

template<class T>
class DiColorFlipTemplate< T >

Template class to flip color images (on pixel data level) horizontally and vertically.

Constructor & Destructor Documentation

template<class T >

DiColorFlipTemplate< T >::DiColorFlipTemplate	(	const DiColorPixel *	pixel,
		const Uint16	columns,
		const Uint16	rows,
		const Uint32	frames,
		const int	horz,
		const int	vert
	)

inline

constructor

Parameters

pixel	pointer to intermediate pixel representation
columns	number of columns
rows	number of rows
frames	number of frames
horz	flip horizontally if true
vert	flip vertically if true
