abstract base class for all DICOM elements More...

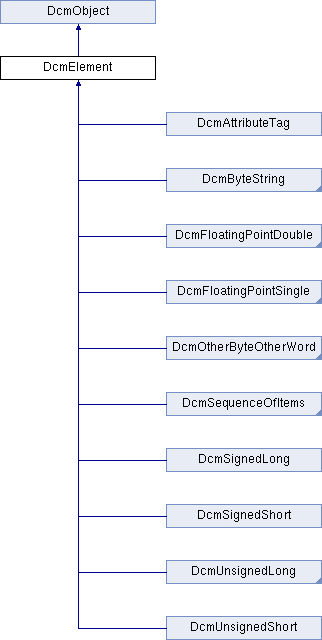

Inheritance diagram for DcmElement:

Public Member Functions
	DcmElement (const DcmTag &tag, const Uint32 len=0)
	constructor. More...

	DcmElement (const DcmElement &old)
	copy constructor More...

virtual	~DcmElement ()
	destructor

DcmElement &	operator= (const DcmElement &obj)
	assignment operator More...

virtual int	compare (const DcmElement &rhs) const =0
	comparison operator that compares the normalized value of this element with a given element of the same type (e.g. More...

virtual OFCondition	copyFrom (const DcmObject &rhs)
	Virtual object copying. More...

virtual Uint32	calcElementLength (const E_TransferSyntax xfer, const E_EncodingType enctype)
	calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences. More...

virtual Uint32	getLength (const E_TransferSyntax=EXS_LittleEndianImplicit, const E_EncodingType=EET_UndefinedLength)
	calculate the value length (without attribute tag, VR and length field) of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences. More...

virtual OFBool	isLeaf () const
	check if this element is a leaf node in a dataset tree. More...

OFBool	valueLoaded () const
	check if value of this element is loaded into main memory More...

virtual void	transferInit ()
	initialize the transfer state of this object. More...

virtual OFBool	canWriteXfer (const E_TransferSyntax newXfer, const E_TransferSyntax oldXfer)
	check if this DICOM object can be encoded in the given transfer syntax. More...

virtual OFCondition	read (DcmInputStream &inStream, const E_TransferSyntax ixfer, const E_GrpLenEncoding glenc=EGL_noChange, const Uint32 maxReadLength=DCM_MaxReadLength)
	This function reads the data value of an attribute which is captured in the input stream and captures this information in this. More...

virtual OFCondition	write (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	This function writes this element's value to the outstream which was passed. More...

virtual OFCondition	writeXML (STD_NAMESPACE ostream &out, const size_t flags=0)
	write object in XML format More...

virtual OFCondition	writeJson (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write object in JSON format More...

virtual OFCondition	writeSignatureFormat (DcmOutputStream &outStream, const E_TransferSyntax oxfer, const E_EncodingType enctype, DcmWriteCache *wcache)
	special write method for creation of digital signatures More...

virtual OFCondition	clear ()
	clear (remove) attribute value More...

virtual OFCondition	checkValue (const OFString &vm="1-n", const OFBool oldFormat=OFFalse)
	check whether stored value conforms to the VR and to the specified VM More...

virtual OFCondition	loadAllDataIntoMemory ()
	this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory. More...

virtual OFCondition	getUint8 (Uint8 &val, const unsigned long pos=0)
	retrieve a single value of type Uint8. More...

virtual OFCondition	getSint16 (Sint16 &val, const unsigned long pos=0)
	retrieve a single value of type Sint16. More...

virtual OFCondition	getUint16 (Uint16 &val, const unsigned long pos=0)
	retrieve a single value of type Uint16. More...

virtual OFCondition	getSint32 (Sint32 &val, const unsigned long pos=0)
	retrieve a single value of type Sint32. More...

virtual OFCondition	getUint32 (Uint32 &val, const unsigned long pos=0)
	retrieve a single value of type Uint32. More...

virtual OFCondition	getFloat32 (Float32 &val, const unsigned long pos=0)
	retrieve a single value of type Float32. More...

virtual OFCondition	getFloat64 (Float64 &val, const unsigned long pos=0)
	retrieve a single value of type Float64. More...

virtual OFCondition	getTagVal (DcmTagKey &val, const unsigned long pos=0)
	retrieve a single value of type DcmTagKey. More...

virtual OFCondition	getOFString (OFString &str, const unsigned long pos, OFBool normalize=OFTrue)
	retrieve a single value of type string. More...

virtual OFCondition	getOFStringArray (OFString &value, OFBool normalize=OFTrue)
	get entire element value as a character string. More...

virtual OFCondition	getString (char *&val)
	get a pointer to the element value of the current element as type string. More...

virtual OFCondition	getString (char *&val, Uint32 &len)
	get a pointer to the element value of the current element as type string. More...

virtual OFCondition	getUint8Array (Uint8 *&val)
	get a pointer to the element value of the current element as type string. More...

virtual OFCondition	getSint16Array (Sint16 *&val)
	get a pointer to the element value of the current element as type Sint16. More...

virtual OFCondition	getUint16Array (Uint16 *&val)
	get a pointer to the element value of the current element as type Uint16. More...

virtual OFCondition	getSint32Array (Sint32 *&val)
	get a pointer to the element value of the current element as type Sint32. More...

virtual OFCondition	getUint32Array (Uint32 *&val)
	get a pointer to the element value of the current element as type Uint32. More...

virtual OFCondition	getFloat32Array (Float32 *&val)
	get a pointer to the element value of the current element as type Float32. More...

virtual OFCondition	getFloat64Array (Float64 *&val)
	get a pointer to the element value of the current element as type Float64. More...

OFCondition	detachValueField (OFBool copy=OFFalse)
	detach the value field from the DICOM element (i.e., this object). More...

virtual OFCondition	putOFStringArray (const OFString &val)
	replace the element value by a copy of the given string (which is possibly multi-valued). More...

virtual OFCondition	putString (const char *val)
	replace the element value by a copy of the given string (which is possibly multi-valued). More...

virtual OFCondition	putString (const char *val, const Uint32 len)
	replace the element value by a copy of the given string (which is possibly multi-valued). More...

virtual OFCondition	putSint16 (const Sint16 val, const unsigned long pos=0)
	insert into the element value a copy of the given Sint16 value. More...

virtual OFCondition	putUint16 (const Uint16 val, const unsigned long pos=0)
	insert into the element value a copy of the given Uint16 value. More...

virtual OFCondition	putSint32 (const Sint32 val, const unsigned long pos=0)
	insert into the element value a copy of the given Sint32 value. More...

virtual OFCondition	putUint32 (const Uint32 val, const unsigned long pos=0)
	insert into the element value a copy of the given Uint32 value. More...

virtual OFCondition	putFloat32 (const Float32 val, const unsigned long pos=0)
	insert into the element value a copy of the given Float32 value. More...

virtual OFCondition	putFloat64 (const Float64 val, const unsigned long pos=0)
	insert into the element value a copy of the given Float64 value. More...

virtual OFCondition	putTagVal (const DcmTagKey &attrTag, const unsigned long pos=0)
	insert into the element value a copy of the given DcmTagKey value. More...

virtual OFCondition	putUint8Array (const Uint8 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint8 array (which is possibly multi-valued). More...

virtual OFCondition	putSint16Array (const Sint16 *vals, const unsigned long num)
	replace the element value by a copy of the given Sint16 array (which is possibly multi-valued). More...

virtual OFCondition	putUint16Array (const Uint16 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint16 array (which is possibly multi-valued). More...

virtual OFCondition	putSint32Array (const Sint32 *vals, const unsigned long num)
	replace the element value by a copy of the given Sint32 array (which is possibly multi-valued). More...

virtual OFCondition	putUint32Array (const Uint32 *vals, const unsigned long num)
	replace the element value by a copy of the given Uint32 array (which is possibly multi-valued). More...

virtual OFCondition	putFloat32Array (const Float32 *vals, const unsigned long num)
	replace the element value by a copy of the given Float32 array (which is possibly multi-valued). More...

virtual OFCondition	putFloat64Array (const Float64 *vals, const unsigned long num)
	replace the element value by a copy of the given Float64 array (which is possibly multi-valued). More...

virtual OFCondition	getPartialValue (void targetBuffer, const Uint32 offset, Uint32 numBytes, DcmFileCache cache=NULL, E_ByteOrder byteOrder=gLocalByteOrder)
	Copy numBytes bytes of data from the attribute value in byteOrder byte order to targetBuffer, starting at byte offset offset of the attribute value. More...

virtual OFCondition	createUint8Array (const Uint32 numBytes, Uint8 *&bytes)
	create an empty Uint8 array of given number of bytes and set it. More...

virtual OFCondition	createUint16Array (const Uint32 numWords, Uint16 *&words)
	create an empty Uint16 array of given number of words and set it. More...

virtual OFCondition	createValueFromTempFile (DcmInputStreamFactory *factory, const Uint32 length, const E_ByteOrder byteOrder)
	replace the attribute value with the content of the given temporary file. More...

virtual void	compact ()
	remove the attribute value from memory if the attribute value can be loaded from file when needed again. More...

virtual OFCondition	getUncompressedFrameSize (DcmItem *dataset, Uint32 &frameSize) const
	compute uncompressed frame size of a single frame of this image. More...

virtual OFCondition	getUncompressedFrame (DcmItem dataset, Uint32 frameNo, Uint32 &startFragment, void buffer, Uint32 bufSize, OFString &decompressedColorModel, DcmFileCache *cache=NULL)
	access single frame without decompressing or loading a complete multi-frame object. More...

virtual OFCondition	getDecompressedColorModel (DcmItem *dataset, OFString &decompressedColorModel)
	determine color model of the decompressed image More...

Public Member Functions inherited from DcmObject
	DcmObject (const DcmTag &tag, const Uint32 len=0)
	constructor. More...

	DcmObject (const DcmObject &obj)
	copy constructor More...

virtual	~DcmObject ()
	destructor

virtual DcmObject *	clone () const =0
	clone method More...

DcmObject &	operator= (const DcmObject &obj)
	copy assignment operator More...

virtual DcmEVR	ident () const =0
	return identifier for this class. More...

DcmEVR	getVR () const
	return the value representation assigned to this object. More...

OFBool	isaString () const
	check if this element is a string type, based on the VR. More...

virtual OFBool	isNested () const
	check if this element is nested in a sequence of items, i.e. not a top-level or stand-alone element More...

virtual void	print (STD_NAMESPACE ostream &out, const size_t flags=0, const int level=0, const char pixelFileName=NULL, size_t pixelCounter=NULL)=0
	print object to a stream More...

E_TransferState	transferState () const
	return the current transfer (read/write) state of this object. More...

virtual void	transferEnd (void)
	finalize the transfer state of this object. More...

DcmItem *	getRootItem ()
	get root dataset/item (top-level) that contains this object. More...

virtual DcmItem *	getParentItem ()
	get parent item of this object. More...

DcmObject *	getParent ()
	get parent of this object. More...

const DcmObject *	getParent () const
	get parent of this object. More...

void	setParent (DcmObject *parent)
	set parent of this object. More...

Uint16	getGTag () const
	return the group number of the attribute tag for this object More...

Uint16	getETag () const
	return the element number of the attribute tag for this object More...

const DcmTag &	getTag () const
	return const reference to the attribute tag for this object More...

void	setGTag (Uint16 gtag)
	assign group tag (but not element tag) of the attribute tag for this object. More...

virtual OFCondition	setVR (DcmEVR)
	assign a new Value Representation (VR) to this object. More...

virtual unsigned long	getVM ()=0
	return value multiplicity of the current object More...

virtual OFBool	isSignable () const
	returns true if the current object may be included in a digital signature More...

virtual OFBool	containsUnknownVR () const
	returns true if the object contains an element with Unknown VR at any nesting level More...

virtual OFBool	containsExtendedCharacters (const OFBool checkAllStrings=OFFalse)
	check if this object contains non-ASCII characters More...

virtual OFBool	isAffectedBySpecificCharacterSet () const
	check if this object is affected by SpecificCharacterSet More...

virtual OFCondition	convertCharacterSet (DcmSpecificCharacterSet &converter)
	convert this object from the currently selected source character set to the currently selected destination character set (if affected by SpecificCharacterSet) More...

virtual OFBool	isEmpty (const OFBool normalize=OFTrue)
	check if this object is empty More...

virtual OFCondition	verify (const OFBool autocorrect=OFFalse)=0
	check the currently stored element value More...

virtual DcmObject *	nextInContainer (const DcmObject *obj)
	this method is only used in container classes derived from this class, that is, DcmItem and DcmSequenceOfItems. More...

virtual OFCondition	nextObject (DcmStack &stack, const OFBool intoSub)
	this method enables a stack based, depth-first traversal of a complete hierarchical DICOM dataset (that is, classes derived from DcmItem or DcmSequenceOfItems). More...

virtual OFCondition	search (const DcmTagKey &xtag, DcmStack &resultStack, E_SearchMode mode=ESM_fromHere, OFBool searchIntoSub=OFTrue)
	a complex, stack-based, hierarchical search method. More...

Uint32	getLengthField () const
	return the current value of the Length field (which is different from the functionality of the public getLength() method). More...

Static Public Member Functions
static int	scanValue (const OFString &value, const OFString &vr, const size_t pos=0, const size_t num=OFString_npos)
	scan string value for conformance with given value representation (VR) More...

static unsigned long	determineVM (const char *str, const size_t len)
	determine the number of values stored in a string, i.e. the value multiplicity (VM) More...

static size_t	getValueFromString (const char *str, const size_t pos, const size_t len, OFString &val)
	get the first value stored in the given string. More...

static OFCondition	checkVM (const unsigned long vmNum, const OFString &vmStr)
	check for correct value multiplicity (VM) More...

Protected Member Functions
void *	getValue (const E_ByteOrder newByteOrder=gLocalByteOrder)
	This function returns this element's value. More...

OFCondition	changeValue (const void *value, const Uint32 position, const Uint32 num)
	insert into the element value a copy of the given raw value. More...

OFCondition	putValue (const void *value, const Uint32 length)
	replace the element value by a copy of the given raw data block More...

OFCondition	createEmptyValue (const Uint32 length)
	create a new, empty value field of given size. More...

OFCondition	loadValue (DcmInputStream *inStream=NULL)
	This function reads the data value of an attribute and stores the information which was read in this. More...

virtual void	postLoadValue ()
	performs clean-up functions after loading an attribute value into main memory. More...

virtual Uint8 *	newValueField ()
	This function creates a byte array of Length bytes and returns this array. More...

void	swapValueField (size_t valueWidth)
	swaps the content of the value field (if loaded) from big-endian to little-endian or back More...

virtual void	writeXMLStartTag (STD_NAMESPACE ostream &out, const size_t flags, const char *attrText=NULL)
	write element start tag in XML format More...

virtual void	writeXMLEndTag (STD_NAMESPACE ostream &out, const size_t flags)
	write element end tag in XML format More...

virtual void	writeJsonOpener (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write element start tag in JSON format More...

virtual void	writeJsonCloser (STD_NAMESPACE ostream &out, DcmJsonFormat &format)
	write element end tag in JSON format More...

E_ByteOrder	getByteOrder () const
	return the current byte order of the value field More...

void	setByteOrder (E_ByteOrder val)
	set the current byte order of the value field More...

Protected Member Functions inherited from DcmObject
void	printNestingLevel (STD_NAMESPACE ostream &out, const size_t flags, const int level)
	print line indentation, e.g. a couple of spaces for each nesting level. More...

void	printInfoLineStart (STD_NAMESPACE ostream &out, const size_t flags, const int level, DcmTag *tag=NULL)
	print beginning of the info line. More...

void	printInfoLineEnd (STD_NAMESPACE ostream &out, const size_t flags, const unsigned long printedLength=0xffffffff, DcmTag *tag=NULL)
	print end of the info line. More...

virtual void	printInfoLine (STD_NAMESPACE ostream &out, const size_t flags, const int level=0, const char info=NULL, DcmTag tag=NULL, const OFBool isInfo=OFTrue)
	print given text with element information. More...

virtual OFCondition	writeTagAndLength (DcmOutputStream &outStream, const E_TransferSyntax oxfer, Uint32 &writtenBytes) const
	write tag, VR and length field to the given output stream More...

virtual Uint32	getTagAndLengthSize (const E_TransferSyntax oxfer) const
	return the number of bytes needed to serialize the tag, VR and length information of the current object using the given transfer syntax. More...

const char *	getTagName ()
	return the DICOM attribute tag name for this object. More...

void	setTagVR (DcmEVR vr)
	set the VR for this attribute More...

E_TransferState	getTransferState () const
	return the current transfer state of this object during serialization/deserialization More...

void	setTransferState (E_TransferState newState)
	set the current transfer state of this object during serialization/deserialization More...

Uint32	getTransferredBytes () const
	return the number of transferred bytes for this object during serialization/deserialization More...

void	setTransferredBytes (Uint32 val)
	set the number of transferred bytes for this object during serialization/deserialization More...

void	incTransferredBytes (Uint32 val)
	add to the number of transferred bytes for this object during serialization/deserialization More...

void	setLengthField (Uint32 val)
	set the current value of the Length field More...

Private Attributes
E_ByteOrder	fByteOrder
	current byte order of attribute value in memory

DcmInputStreamFactory *	fLoadValue
	required information to load value later

Uint8 *	fValue
	value of the element

Friends
OFBool	operator< (const DcmElement &lhs, const DcmElement &rhs)
	Checks whether left hand side element is smaller than right hand side element. More...

OFBool	operator> (const DcmElement &lhs, const DcmElement &rhs)
	Checks whether left hand side element is greater than right hand side element. More...

OFBool	operator<= (const DcmElement &lhs, const DcmElement &rhs)
	Checks whether left hand side element is smaller than or equal to right hand side element. More...

OFBool	operator>= (const DcmElement &lhs, const DcmElement &rhs)
	Checks whether left hand side element is greater than or equal to right hand side element. More...

Additional Inherited Members
Static Protected Member Functions inherited from DcmObject
static OFCondition	writeTag (DcmOutputStream &outStream, const DcmTag &tag, const E_TransferSyntax oxfer)
	static helper function that writes a given attribute tag to a binary output stream using the byte order indicated by the transfer syntax. More...

Protected Attributes inherited from DcmObject
OFCondition	errorFlag
	error flag for this object.

Detailed Description

abstract base class for all DICOM elements

Constructor & Destructor Documentation

DcmElement::DcmElement	(	const DcmTag &	tag,
		const Uint32	len = `0`
	)

constructor.

Create new element from given tag and length.

Parameters

tag	DICOM tag for the new element
len	value length for the new element

DcmElement::DcmElement ( const DcmElement & old )

copy constructor

Parameters

old	element to be copied

Member Function Documentation

virtual Uint32 DcmElement::calcElementLength	(	const E_TransferSyntax	xfer,
		const E_EncodingType	enctype
	)

virtual

calculate the length of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.

For elements, the length includes the length of the tag, length field, VR field and the value itself, for items and sequences it returns the length of the complete item or sequence including delimitation tags if applicable. Never returns undefined length.

Parameters

xfer	transfer syntax for length calculation
enctype	sequence encoding type for length calculation

Returns: length of DICOM element

Implements DcmObject.

Reimplemented in DcmPixelData, DcmSequenceOfItems, DcmFileFormat, and DcmPixelSequence.

virtual OFBool DcmElement::canWriteXfer	(	const E_TransferSyntax	newXfer,
		const E_TransferSyntax	oldXfer
	)

virtual

check if this DICOM object can be encoded in the given transfer syntax.

Parameters

newXfer	transfer syntax in which the DICOM object is to be encoded
oldXfer	transfer syntax in which the DICOM object was read or created.

Returns: true if object can be encoded in desired transfer syntax, false otherwise.

Implements DcmObject.

Reimplemented in DcmPixelData, DcmSequenceOfItems, DcmPixelSequence, DcmFileFormat, and DcmOtherByteOtherWord.

OFCondition DcmElement::changeValue	(	const void *	value,
		const Uint32	position,
		const Uint32	num
	)

protected

insert into the element value a copy of the given raw value.

If the attribute is multi-valued, all other values remain untouched. Only works for fixed-size VRs, not for strings.

Parameters

value	new value to be inserted
position	position for insert operation. Value: pos <= getVM(), i.e. a value can be appended to the end of the current element or inserted within the existing value field.
num	number of bytes for each value in the value field.

Returns: EC_Normal upon success, an error code otherwise

virtual OFCondition DcmElement::checkValue	(	const OFString &	vm = `"1-n"`,
		const OFBool	oldFormat = `OFFalse`
	)

virtual

check whether stored value conforms to the VR and to the specified VM

Parameters

vm	value multiplicity (according to the data dictionary) to be checked for. (See DcmElement::checkVM() for a list of valid values.) Interpreted as cardinality (number of items) for sequence attributes.
oldFormat	support old ACR/NEMA format for certain VRs (DA, TM, PN) if OFTrue

Returns: status of the check, EC_Normal if value is correct, an error code otherwise

Reimplemented in DcmSequenceOfItems, DcmAttributeTag, DcmOtherByteOtherWord, DcmFloatingPointDouble, DcmFloatingPointSingle, DcmSignedLong, DcmSignedShort, DcmUnsignedLong, DcmUnsignedShort, DcmOtherLong, DcmDecimalString, DcmShortString, DcmIntegerString, DcmLongString, DcmOtherDouble, DcmOtherFloat, DcmPersonName, DcmTime, DcmApplicationEntity, DcmAgeString, DcmCodeString, DcmDate, DcmDateTime, DcmUnlimitedCharacters, DcmUniversalResourceIdentifierOrLocator, DcmUniqueIdentifier, DcmUnlimitedText, DcmShortText, and DcmLongText.

static OFCondition DcmElement::checkVM	(	const unsigned long	vmNum,
		const OFString &	vmStr
	)

static

check for correct value multiplicity (VM)

Parameters

vmNum	value multiplicity of the value to be checked. For empty values (vmNum=0), the status of the check is always EC_Normal (i.e. no error).
vmStr	value multiplicity (according to the data dictionary) to be checked for. (valid values: "1", "1-2", "1-3", "1-8", "1-99", "1-n", "2", "2-n", "2-2n", "3", "3-n", "3-3n", "4", "5", "5-n", "6", "7", "7-7n", "8", "9", "16", "24", "32", "256")

Returns: status of the check, EC_ValueMultiplicityViolated in case of error

virtual OFCondition DcmElement::clear ( )

virtual

clear (remove) attribute value

Returns: EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmSequenceOfItems, DcmByteString, DcmFileFormat, and DcmUnsignedLongOffset.

virtual void DcmElement::compact ( )

virtual

remove the attribute value from memory if the attribute value can be loaded from file when needed again.

Otherwise do nothing.

virtual int DcmElement::compare ( const DcmElement & rhs ) const

pure virtual

comparison operator that compares the normalized value of this element with a given element of the same type (e.g.

an DcmUnsignedShort with a DcmUnsignedShort). The tag of the element is also considered as the first component that is compared, followed by the object types (VR, i.e. DCMTK'S EVR). DcmElement's default implementation does only compare the tag and EVR while the derived classes implement the value comparisons by comparing all the components that make up the value, preferably in the order declared in the object (if applicable).

Parameters

rhs	the right hand side of the comparison

Returns: 0 if the object values are equal. -1 if either the value of the first component that does not match is lower in this object than in rhs, or all compared components match but this object has fewer components than rhs. Also returned if rhs cannot be casted to this object type or both objects are of different VR (i.e. the DcmEVR returned by the element's ident() call are different). 1 if either the value of the first component that does not match is greater in this object than in rhs object, or all compared components match but the this component is longer.

Implemented in DcmByteString, DcmSequenceOfItems, DcmAttributeTag, DcmFloatingPointDouble, DcmFloatingPointSingle, DcmSignedLong, DcmUnsignedLong, DcmOtherByteOtherWord, DcmSignedShort, and DcmUnsignedShort.

virtual OFCondition DcmElement::copyFrom ( const DcmObject & rhs )

virtual

Virtual object copying.

This method can be used for DcmObject and derived classes to get a deep copy of an object. Internally the assignment operator is called if the given DcmObject parameter is of the same type as "this" object instance. If not, an error is returned. This function permits copying an object by value in a virtual way which therefore is different to just calling the assignment operator of DcmElement which could result in slicing the object.

Parameters

rhs	- [in] The instance to copy from. Has to be of the same class type as "this" object

Returns: EC_Normal if copying was successful, error otherwise

Implements DcmObject.

Reimplemented in DcmPixelData, DcmByteString, DcmSequenceOfItems, DcmAttributeTag, DcmOtherByteOtherWord, DcmFloatingPointDouble, DcmFloatingPointSingle, DcmSignedLong, DcmSignedShort, DcmUnsignedLong, DcmUnsignedShort, DcmPixelSequence, DcmFileFormat, DcmCharString, DcmPixelItem, DcmOverlayData, DcmOtherLong, DcmUnsignedLongOffset, DcmDecimalString, DcmOtherDouble, DcmOtherFloat, DcmShortString, DcmIntegerString, DcmLongString, DcmPersonName, DcmTime, DcmUniversalResourceIdentifierOrLocator, DcmApplicationEntity, DcmAgeString, DcmCodeString, DcmDate, DcmDateTime, DcmUnlimitedCharacters, DcmUnlimitedText, DcmShortText, DcmUniqueIdentifier, DcmLongText, and DcmPolymorphOBOW.

OFCondition DcmElement::createEmptyValue ( const Uint32 length )

protected

create a new, empty value field of given size.

Parameters

length size of new value field in bytes

Returns: EC_Normal if successful, an error code otherwise.

virtual OFCondition DcmElement::createUint16Array	(	const Uint32	numWords,
		Uint16 *&	words
	)

virtual

create an empty Uint16 array of given number of words and set it.

All array elements are initialized with a value of 0 (using 'memzero'). This method is only applicable to OW data.

Parameters

numWords	number of words (16 bit) to be created
words	stores the pointer to the resulting buffer

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmPixelData, DcmOtherByteOtherWord, and DcmPolymorphOBOW.

virtual OFCondition DcmElement::createUint8Array	(	const Uint32	numBytes,
		Uint8 *&	bytes
	)

virtual

create an empty Uint8 array of given number of bytes and set it.

All array elements are initialized with a value of 0 (using 'memzero'). This method is only applicable to certain VRs, e.g. OB.

Parameters

numBytes	number of bytes (8 bit) to be created
bytes	stores the pointer to the resulting buffer

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmPixelData, DcmOtherByteOtherWord, and DcmPolymorphOBOW.

virtual OFCondition DcmElement::createValueFromTempFile	(	DcmInputStreamFactory *	factory,
		const Uint32	length,
		const E_ByteOrder	byteOrder
	)

virtual

replace the attribute value with the content of the given temporary file.

The temporary file is not opened/loaded until the attribute value is accessed, very much like large attributes that remain in file during a read operation.

Parameters

factory	a factory object that is able to create an input stream to the temporary file at the right location.
length	attribute value length, in bytes. Must be even length. The length is not checked against the real length of the temporary file, which might be written or completed after the call to this method.
byteOrder	byte order in the temporary file

Returns: EC_Normal upon success, an error code otherwise.

Reimplemented in DcmPixelData.

OFCondition DcmElement::detachValueField ( OFBool copy = OFFalse )

detach the value field from the DICOM element (i.e., this object).

After detaching the calling part of the application has total control over the element value, especially the value must be deleted from the heap after use. The DICOM element remains a copy of the value if the copy parameter is OFTrue; otherwise the value is erased in the DICOM element.

Parameters

copy	if true, copy value field before detaching; if false, do not retain a copy.

Returns: EC_Normal upon success, an error code otherwise

static unsigned long DcmElement::determineVM	(	const char *	str,
		const size_t	len
	)

static

determine the number of values stored in a string, i.e. the value multiplicity (VM)

Parameters

str	character string
len	length of the string (number of characters without the trailing NULL byte)

Returns: number of values separated by backslash characters in the given string

E_ByteOrder DcmElement::getByteOrder ( ) const

inlineprotected

return the current byte order of the value field

Returns: current byte order of the value field

virtual OFCondition DcmElement::getDecompressedColorModel	(	DcmItem *	dataset,
		OFString &	decompressedColorModel
	)

virtual

determine color model of the decompressed image

Parameters

dataset	pointer to DICOM dataset in which this pixel data object is located. Used to access photometric interpretation.
decompressedColorModel	upon successful return, the color model of the decompressed image (which may be different from the one used in the compressed images) is returned in this parameter

Returns: EC_Normal if successful, an error code otherwise

Reimplemented in DcmPixelData.

virtual OFCondition DcmElement::getFloat32	(	Float32 &	val,
		const unsigned long	pos = `0`
	)

virtual

retrieve a single value of type Float32.

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	value returned in this parameter upon success
pos	position in multi-valued attribute, default 0

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmFloatingPointSingle.

virtual OFCondition DcmElement::getFloat32Array ( Float32 *& val )

virtual

get a pointer to the element value of the current element as type Float32.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmFloatingPointSingle.

virtual OFCondition DcmElement::getFloat64	(	Float64 &	val,
		const unsigned long	pos = `0`
	)

virtual

retrieve a single value of type Float64.

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	value returned in this parameter upon success
pos	position in multi-valued attribute, default 0

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmFloatingPointDouble, and DcmDecimalString.

virtual OFCondition DcmElement::getFloat64Array ( Float64 *& val )

virtual

get a pointer to the element value of the current element as type Float64.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmFloatingPointDouble.

virtual Uint32 DcmElement::getLength	(	const E_TransferSyntax	= `EXS_LittleEndianImplicit`,
		const E_EncodingType	= `EET_UndefinedLength`
	)

inlinevirtual

calculate the value length (without attribute tag, VR and length field) of this DICOM element when encoded with the given transfer syntax and the given encoding type for sequences.

Never returns undefined length.

Parameters

xfer	transfer syntax for length calculation
enctype	sequence encoding type for length calculation

Returns: value length of DICOM element

Implements DcmObject.

Reimplemented in DcmPixelData, DcmSequenceOfItems, and DcmByteString.

References DcmObject::getLengthField().

Referenced by I2DOutputPlug::checkAndInventType1Attrib().

virtual OFCondition DcmElement::getOFString	(	OFString &	str,
		const unsigned long	pos,
		OFBool	normalize = `OFTrue`
	)

virtual

retrieve a single value of type string.

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

str	value returned in this parameter upon success
pos	position in multi-valued attribute
normalize	true if string is to be normalized (e.g. trailing space characters to be trimmed)

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmOtherByteOtherWord, DcmByteString, DcmAttributeTag, DcmFloatingPointDouble, DcmFloatingPointSingle, DcmSignedLong, DcmSignedShort, DcmUnsignedLong, DcmUnsignedShort, DcmDecimalString, DcmUniqueIdentifier, DcmIntegerString, DcmUniversalResourceIdentifierOrLocator, DcmUnlimitedText, DcmShortText, DcmLongText, DcmShortString, DcmLongString, DcmPersonName, DcmTime, DcmApplicationEntity, DcmCodeString, DcmDate, DcmDateTime, and DcmUnlimitedCharacters.

virtual OFCondition DcmElement::getOFStringArray	(	OFString &	value,
		OFBool	normalize = `OFTrue`
	)

virtual

get entire element value as a character string.

In case of VM > 1 the individual values are separated by a backslash ('\'). This method implements a general approach by concatenating the results of getOFString() for each value component. Derived class may implement more sophisticated methods.

Parameters

value	variable in which the result value is stored
normalize	normalize each element value prior to concatenation

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented in DcmOtherByteOtherWord, DcmByteString, DcmUniversalResourceIdentifierOrLocator, DcmUnlimitedText, DcmShortText, and DcmLongText.

virtual OFCondition DcmElement::getPartialValue	(	void *	targetBuffer,
		const Uint32	offset,
		Uint32	numBytes,
		DcmFileCache *	cache = `NULL`,
		E_ByteOrder	byteOrder = `gLocalByteOrder`
	)

virtual

Copy numBytes bytes of data from the attribute value in byteOrder byte order to targetBuffer, starting at byte offset offset of the attribute value.

This method does not cause the complete attribute value to be read into main memory. Subsequent calls for the same partial value may cause repeated access to file if the attribute value is kept in file.

Parameters

targetBuffer	pointer to target buffer, must not be NULL. Buffer size must be at least numBytes bytes.
offset	byte offset within the attribute value from where to start copying
numBytes	number of bytes to copy.
cache	file cache object that may be passed to multiple subsequent calls to this method for the same file; the file cache will then keep a file handle open, thus improving performance. Optional, may be NULL
byteOrder	byte order desired byte order of attribute value in memory buffer. Default is the local byte order of the machine.

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmSequenceOfItems.

Referenced by DiInputPixelTemplate< T1, T2 >::convert().

virtual OFCondition DcmElement::getSint16	(	Sint16 &	val,
		const unsigned long	pos = `0`
	)

virtual

retrieve a single value of type Sint16.

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	value returned in this parameter upon success
pos	position in multi-valued attribute, default 0

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmSignedShort.

virtual OFCondition DcmElement::getSint16Array ( Sint16 *& val )

virtual

get a pointer to the element value of the current element as type Sint16.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmSignedShort.

virtual OFCondition DcmElement::getSint32	(	Sint32 &	val,
		const unsigned long	pos = `0`
	)

virtual

retrieve a single value of type Sint32.

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	value returned in this parameter upon success
pos	position in multi-valued attribute, default 0

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmSignedLong, and DcmIntegerString.

virtual OFCondition DcmElement::getSint32Array ( Sint32 *& val )

virtual

get a pointer to the element value of the current element as type Sint32.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmSignedLong.

virtual OFCondition DcmElement::getString ( char *& val )

virtual

get a pointer to the element value of the current element as type string.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmByteString.

virtual OFCondition DcmElement::getString	(	char *&	val,
		Uint32 &	len
	)

virtual

get a pointer to the element value of the current element as type string.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success
len	length of the returned value (number of characters)

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmByteString.

virtual OFCondition DcmElement::getTagVal	(	DcmTagKey &	val,
		const unsigned long	pos = `0`
	)

virtual

retrieve a single value of type DcmTagKey.

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	value returned in this parameter upon success
pos	position in multi-valued attribute, default 0

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmAttributeTag.

virtual OFCondition DcmElement::getUint16	(	Uint16 &	val,
		const unsigned long	pos = `0`
	)

virtual

retrieve a single value of type Uint16.

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	value returned in this parameter upon success
pos	position in multi-valued attribute, default 0

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmOtherByteOtherWord, and DcmUnsignedShort.

virtual OFCondition DcmElement::getUint16Array ( Uint16 *& val )

virtual

get a pointer to the element value of the current element as type Uint16.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmOtherByteOtherWord, DcmAttributeTag, DcmPolymorphOBOW, and DcmUnsignedShort.

virtual OFCondition DcmElement::getUint32	(	Uint32 &	val,
		const unsigned long	pos = `0`
	)

virtual

retrieve a single value of type Uint32.

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	value returned in this parameter upon success
pos	position in multi-valued attribute, default 0

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmUnsignedLong.

virtual OFCondition DcmElement::getUint32Array ( Uint32 *& val )

virtual

get a pointer to the element value of the current element as type Uint32.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmUnsignedLong.

virtual OFCondition DcmElement::getUint8	(	Uint8 &	val,
		const unsigned long	pos = `0`
	)

virtual

retrieve a single value of type Uint8.

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	value returned in this parameter upon success
pos	position in multi-valued attribute, default 0

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmOtherByteOtherWord.

Referenced by DcmIODUtil::copyFromUint8Array().

virtual OFCondition DcmElement::getUint8Array ( Uint8 *& val )

virtual

get a pointer to the element value of the current element as type string.

Requires element to be of corresponding VR, otherwise an error is returned. This method does not copy, but returns a pointer to the element value, which remains under control of this object and is valid only until the next read, write or put operation.

Parameters

val	pointer to value returned in this parameter upon success

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmOtherByteOtherWord, and DcmPolymorphOBOW.

virtual OFCondition DcmElement::getUncompressedFrame	(	DcmItem *	dataset,
		Uint32	frameNo,
		Uint32 &	startFragment,
		void *	buffer,
		Uint32	bufSize,
		OFString &	decompressedColorModel,
		DcmFileCache *	cache = `NULL`
	)

virtual

access single frame without decompressing or loading a complete multi-frame object.

The frame is copied into the buffer passed by the caller which must be large enough to contain a complete frame.

Parameters

dataset	pointer to DICOM dataset in which this pixel data object is located. Used to access rows, columns, samples per pixel etc.
frameNo	numer of frame, starting with 0 for the first frame.
startFragment	index of the compressed fragment that contains all or the first part of the compressed bitstream for the given frameNo. Upon successful return this parameter is updated to contain the index of the first compressed fragment of the next frame. When unknown, zero should be passed. In this case the decompression algorithm will try to determine the index by itself, which will always work if frames are decompressed in increasing order from first to last, but may fail if frames are decompressed in random order, multiple fragments per frame and multiple frames are present in the dataset, and the offset table is empty.
buffer	pointer to buffer allocated by the caller. The buffer must be large enough for one frame of this image.
bufSize	size of buffer, in bytes
decompressedColorModel	upon successful return, the color model of the decompressed image (which may be different from the one used in the compressed images) is returned in this parameter.
cache	file cache object that may be passed to multiple subsequent calls to this method for the same file; the file cache will then keep a file handle open, thus improving performance. Optional, may be NULL

Returns: EC_Normal if successful, an error code otherwise

Reimplemented in DcmPixelData.

virtual OFCondition DcmElement::getUncompressedFrameSize	(	DcmItem *	dataset,
		Uint32 &	frameSize
	)		const

virtual

compute uncompressed frame size of a single frame of this image.

Note that the value returned by this method does not include the pad byte to even size needed for a buffer into which a frame is to be loaded.

Parameters

dataset	dataset in which this pixel data element is contained
frameSize	frame size in bytes (without padding) returned in this parameter upon success

Returns: EC_Normal if successful, an error code otherwise

void* DcmElement::getValue ( const E_ByteOrder newByteOrder = gLocalByteOrder )

protected

This function returns this element's value.

The returned value corresponds to the byte ordering (little or big endian) that was passed.

Parameters

newByteOrder The byte ordering that shall be accounted for (little or big endian).

static size_t DcmElement::getValueFromString	(	const char *	str,
		const size_t	pos,
		const size_t	len,
		OFString &	val
	)

static

get the first value stored in the given string.

The individual values are separated by a backslash. Successive calls of this function allow for extracting all stored values.

Parameters

str	character string
pos	position of the first character in the string to search from
len	length of the string (number of characters without the trailing NULL byte)
val	variable in which the result is stored (empty string in case of error)

Returns: position to be used for the next search, identical to 'pos' in case of error

virtual OFBool DcmElement::isLeaf ( ) const

inlinevirtual

check if this element is a leaf node in a dataset tree.

All subclasses of DcmElement except for DcmSequenceOfItems are leaf nodes, while DcmSequenceOfItems, DcmItem, DcmDataset etc. are not.

Returns: true if leaf node, false otherwise.

Implements DcmObject.

Reimplemented in DcmSequenceOfItems.

virtual OFCondition DcmElement::loadAllDataIntoMemory ( )

virtual

this method loads all attribute values maintained by this object and all sub-objects (in case of a container such as DcmDataset) into memory.

After a call to this method, the file from which a dataset was read may safely be deleted or replaced. For large files, this method may obviously allocate large amounts of memory.

Returns: EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmSequenceOfItems, and DcmPixelData.

OFCondition DcmElement::loadValue ( DcmInputStream * inStream = NULL )

protected

This function reads the data value of an attribute and stores the information which was read in this.

The information is either read from the inStream or (if inStream is NULL) from a different stream which was created earlier and which is accessible through the fLoadValue member variable. Note that if not all information for an attribute could be read from the stream, the function returns EC_StreamNotifyClient.

Parameters

inStream The stream which contains the information.

Returns: status, EC_Normal if successful, an error code otherwise

virtual Uint8* DcmElement::newValueField ( )

protectedvirtual

This function creates a byte array of Length bytes and returns this array.

In case Length is odd, an array of Length+1 bytes will be created and Length will be increased by 1.

Returns: pointer to created byte array

Reimplemented in DcmByteString.

DcmElement& DcmElement::operator= ( const DcmElement & obj )

assignment operator

Parameters

obj	element to be assigned/copied

Returns: reference to this object

virtual void DcmElement::postLoadValue ( )

protectedvirtual

performs clean-up functions after loading an attribute value into main memory.

In particular, if dcmEnableAutomaticInputDataCorrection is enabled, silently fixes odd length elements.

Reimplemented in DcmOtherByteOtherWord, and DcmByteString.

virtual OFCondition DcmElement::putFloat32	(	const Float32	val,
		const unsigned long	pos = `0`
	)

virtual

insert into the element value a copy of the given Float32 value.

If the attribute is multi-valued, all other values remain untouched. Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	new value to be inserted
pos	position for insert operation. Value: pos <= getVM(), i.e. a value can be appended to the end of the current element or inserted within the existing value field.

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmFloatingPointSingle.

virtual OFCondition DcmElement::putFloat32Array	(	const Float32 *	vals,
		const unsigned long	num
	)

virtual

replace the element value by a copy of the given Float32 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

vals	new attribute value
num	number of values in array vals

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmFloatingPointSingle.

virtual OFCondition DcmElement::putFloat64	(	const Float64	val,
		const unsigned long	pos = `0`
	)

virtual

insert into the element value a copy of the given Float64 value.

If the attribute is multi-valued, all other values remain untouched. Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	new value to be inserted
pos	position for insert operation. Value: pos <= getVM(), i.e. a value can be appended to the end of the current element or inserted within the existing value field.

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmFloatingPointDouble.

virtual OFCondition DcmElement::putFloat64Array	(	const Float64 *	vals,
		const unsigned long	num
	)

virtual

replace the element value by a copy of the given Float64 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

vals	new attribute value
num	number of values in array vals

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmFloatingPointDouble.

virtual OFCondition DcmElement::putOFStringArray ( const OFString & val )

virtual

replace the element value by a copy of the given string (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	new attribute value

Returns: EC_Normal upon success, an error code otherwise

virtual OFCondition DcmElement::putSint16	(	const Sint16	val,
		const unsigned long	pos = `0`
	)

virtual

insert into the element value a copy of the given Sint16 value.

If the attribute is multi-valued, all other values remain untouched. Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	new value to be inserted
pos	position for insert operation. Value: pos <= getVM(), i.e. a value can be appended to the end of the current element or inserted within the existing value field.

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmSignedShort.

virtual OFCondition DcmElement::putSint16Array	(	const Sint16 *	vals,
		const unsigned long	num
	)

virtual

replace the element value by a copy of the given Sint16 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

vals	new attribute value
num	number of values in array vals

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmSignedShort.

virtual OFCondition DcmElement::putSint32	(	const Sint32	val,
		const unsigned long	pos = `0`
	)

virtual

insert into the element value a copy of the given Sint32 value.

If the attribute is multi-valued, all other values remain untouched. Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	new value to be inserted
pos	position for insert operation. Value: pos <= getVM(), i.e. a value can be appended to the end of the current element or inserted within the existing value field.

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmSignedLong.

virtual OFCondition DcmElement::putSint32Array	(	const Sint32 *	vals,
		const unsigned long	num
	)

virtual

replace the element value by a copy of the given Sint32 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

vals	new attribute value
num	number of values in array vals

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmSignedLong.

virtual OFCondition DcmElement::putString ( const char * val )

virtual

replace the element value by a copy of the given string (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	new attribute value

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmOtherByteOtherWord, DcmByteString, DcmAttributeTag, DcmFloatingPointDouble, DcmFloatingPointSingle, DcmSignedLong, DcmSignedShort, DcmUnsignedLong, DcmUnsignedShort, and DcmUniqueIdentifier.

Referenced by I2DOutputPlug::checkAndInventType1Attrib(), and I2DOutputPlug::checkAndInventType2Attrib().

virtual OFCondition DcmElement::putString	(	const char *	val,
		const Uint32	len
	)

virtual

replace the element value by a copy of the given string (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	new attribute value
len	length of the new attribute value (number of characters)

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmOtherByteOtherWord, DcmByteString, DcmAttributeTag, DcmFloatingPointDouble, DcmFloatingPointSingle, DcmSignedLong, DcmSignedShort, DcmUnsignedLong, DcmUnsignedShort, and DcmUniqueIdentifier.

virtual OFCondition DcmElement::putTagVal	(	const DcmTagKey &	attrTag,
		const unsigned long	pos = `0`
	)

virtual

insert into the element value a copy of the given DcmTagKey value.

If the attribute is multi-valued, all other values remain untouched. Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

attrTag	new value to be inserted
pos	position for insert operation. Value: pos <= getVM(), i.e. a value can be appended to the end of the current element or inserted within the existing value field.

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmAttributeTag.

virtual OFCondition DcmElement::putUint16	(	const Uint16	val,
		const unsigned long	pos = `0`
	)

virtual

insert into the element value a copy of the given Uint16 value.

If the attribute is multi-valued, all other values remain untouched. Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	new value to be inserted
pos	position for insert operation. Value: pos <= getVM(), i.e. a value can be appended to the end of the current element or inserted within the existing value field.

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmUnsignedShort.

virtual OFCondition DcmElement::putUint16Array	(	const Uint16 *	vals,
		const unsigned long	num
	)

virtual

replace the element value by a copy of the given Uint16 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

vals	new attribute value
num	number of values in array vals

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmPixelData, DcmOtherByteOtherWord, DcmAttributeTag, DcmPolymorphOBOW, and DcmUnsignedShort.

virtual OFCondition DcmElement::putUint32	(	const Uint32	val,
		const unsigned long	pos = `0`
	)

virtual

insert into the element value a copy of the given Uint32 value.

If the attribute is multi-valued, all other values remain untouched. Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

val	new value to be inserted
pos	position for insert operation. Value: pos <= getVM(), i.e. a value can be appended to the end of the current element or inserted within the existing value field.

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmUnsignedLong.

virtual OFCondition DcmElement::putUint32Array	(	const Uint32 *	vals,
		const unsigned long	num
	)

virtual

replace the element value by a copy of the given Uint32 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

vals	new attribute value
num	number of values in array vals

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmUnsignedLong.

virtual OFCondition DcmElement::putUint8Array	(	const Uint8 *	vals,
		const unsigned long	num
	)

virtual

replace the element value by a copy of the given Uint8 array (which is possibly multi-valued).

Requires element to be of corresponding VR, otherwise an error is returned.

Parameters

vals	new attribute value
num	number of values in array vals

Returns: EC_Normal upon success, an error code otherwise

Reimplemented in DcmPixelData, DcmOtherByteOtherWord, and DcmPolymorphOBOW.

OFCondition DcmElement::putValue	(	const void *	value,
		const Uint32	length
	)

protected

replace the element value by a copy of the given raw data block

Parameters

value	new attribute value
length	length of new attribute value in bytes

Returns: EC_Normal upon success, an error code otherwise

virtual OFCondition DcmElement::read	(	DcmInputStream &	inStream,
		const E_TransferSyntax	ixfer,
		const E_GrpLenEncoding	glenc = `EGL_noChange`,
		const Uint32	maxReadLength = `DCM_MaxReadLength`
	)

virtual

This function reads the data value of an attribute which is captured in the input stream and captures this information in this.

If not all information for an attribute could be read from the stream, the function returns EC_StreamNotifyClient. Note that if certain conditions are met, this function does not actually load the data value but creates and stores an object that enables us to load this information later.

Parameters

inStream	The stream which contains the information.
ixfer	The transfer syntax which was used to encode the information in inStream.
glenc	Encoding type for group length; specifies what will be done with group length tags.
maxReadLength	Maximum read length for reading an attribute value.

Returns: status, EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmPixelData, DcmSequenceOfItems, DcmPixelSequence, DcmFileFormat, and DcmPolymorphOBOW.

static int DcmElement::scanValue	(	const OFString &	value,
		const OFString &	vr,
		const size_t	pos = `0`,
		const size_t	num = `OFString_npos`
	)

static

scan string value for conformance with given value representation (VR)

Parameters

value	string value to be scanned
vr	two-character identifier of the VR to be checked (lower case)
pos	position of the first character to be scanned in 'value'
num	number of characters to be scanned in 'value' (default: all)

Returns: numeric identifier of the VR found, 16 in case of unknown VR

void DcmElement::setByteOrder ( E_ByteOrder val )

inlineprotected

set the current byte order of the value field

Parameters

val	byte order of the value field

void DcmElement::swapValueField ( size_t valueWidth )

protected

swaps the content of the value field (if loaded) from big-endian to little-endian or back

Parameters

valueWidth width (in bytes) of each element value

virtual void DcmElement::transferInit ( )

virtual

initialize the transfer state of this object.

This method must be called before this object is written to a stream or read (parsed) from a stream.

Reimplemented from DcmObject.

Reimplemented in DcmPixelData, DcmSequenceOfItems, and DcmPolymorphOBOW.

OFBool DcmElement::valueLoaded ( ) const

inline

check if value of this element is loaded into main memory

Returns: true if value is present in memory, false if value still resides in file

References DcmObject::getLengthField().

virtual OFCondition DcmElement::write	(	DcmOutputStream &	outStream,
		const E_TransferSyntax	oxfer,
		const E_EncodingType	enctype,
		DcmWriteCache *	wcache
	)

virtual

This function writes this element's value to the outstream which was passed.

When writing information, the byte ordering (little or big endian) of the transfer syntax which was passed will be accounted for. In case the outstream does not provide enough space for all bytes of the current element's value, only a certain part of the value will be written to the stream. This element's transfer state indicates if the all bytes of value have already been written to the stream (ERW_ready), if the writing is still in progress and more bytes need to be written to the stream (ERW_inWork) or if the writing of the bytes of this element's value has not even begun yet (ERW_init). The member variable fTransferredBytes indicates how many bytes (starting from byte 0) of this element's value have already been written to the stream. This function will return EC_Normal, if the entire value of this element has been written to the stream, it will return EC_StreamNotifyClient, if there is no more space in the buffer and not all bytes of this element's value have been written, and it will return some other (error) value if there was an error.

Parameters

outStream	The stream the information will be written to.
oxfer	The transfer syntax which shall be used.
enctype	encoding types (undefined or explicit length) (actually unused)
wcache	pointer to write cache object, may be NULL

Returns: status, EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmPixelData, DcmSequenceOfItems, DcmPixelSequence, DcmFileFormat, DcmByteString, DcmOtherByteOtherWord, and DcmPolymorphOBOW.

virtual OFCondition DcmElement::writeJson	(	STD_NAMESPACE ostream &	out,
		DcmJsonFormat &	format
	)

virtual

write object in JSON format

Parameters

out	output stream to which the JSON document is written
format	used to format and customize the output

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmObject.

Reimplemented in DcmByteString, DcmSequenceOfItems, DcmFileFormat, DcmPersonName, DcmOtherByteOtherWord, DcmAttributeTag, DcmDecimalString, DcmCharString, DcmIntegerString, DcmOtherLong, DcmOtherDouble, DcmOtherFloat, DcmShortString, and DcmLongString.

virtual void DcmElement::writeJsonCloser	(	STD_NAMESPACE ostream &	out,
		DcmJsonFormat &	format
	)

protectedvirtual

write element end tag in JSON format

Parameters

out	output stream to which the JSON document is written
format	used to format the output

virtual void DcmElement::writeJsonOpener	(	STD_NAMESPACE ostream &	out,
		DcmJsonFormat &	format
	)

protectedvirtual

write element start tag in JSON format

Parameters

out	output stream to which the JSON document is written
format	used to format the output

virtual OFCondition DcmElement::writeSignatureFormat	(	DcmOutputStream &	outStream,
		const E_TransferSyntax	oxfer,
		const E_EncodingType	enctype,
		DcmWriteCache *	wcache
	)

virtual

special write method for creation of digital signatures

Parameters

outStream	DICOM output stream
oxfer	output transfer syntax
enctype	encoding types (undefined or explicit length)
wcache	pointer to write cache object, may be NULL

Returns: status, EC_Normal if successful, an error code otherwise

Implements DcmObject.

Reimplemented in DcmPixelData, DcmSequenceOfItems, DcmPixelSequence, DcmOtherByteOtherWord, DcmByteString, DcmPixelItem, and DcmPolymorphOBOW.

virtual OFCondition DcmElement::writeXML	(	STD_NAMESPACE ostream &	out,
		const size_t	flags = `0`
	)

virtual

write object in XML format

Parameters

out	output stream to which the XML document is written
flags	optional flag used to customize the output (see DCMTypes::XF_xxx)

Returns: status, EC_Normal if successful, an error code otherwise

Reimplemented from DcmObject.

Reimplemented in DcmPixelData, DcmSequenceOfItems, DcmFileFormat, DcmPixelSequence, DcmPersonName, DcmOtherByteOtherWord, DcmAttributeTag, DcmDecimalString, DcmPixelItem, DcmOtherLong, DcmOtherDouble, and DcmOtherFloat.

virtual void DcmElement::writeXMLEndTag	(	STD_NAMESPACE ostream &	out,
		const size_t	flags
	)

protectedvirtual

write element end tag in XML format

Parameters

out	output stream to which the XML end tag is written
flags	flag used to customize the output (not yet used)

virtual void DcmElement::writeXMLStartTag	(	STD_NAMESPACE ostream &	out,
		const size_t	flags,
		const char *	attrText = `NULL`
	)

protectedvirtual

write element start tag in XML format

Parameters

out	output stream to which the XML start tag is written
flags	flag used to customize the output (not yet used)
attrText	extra attribute text to be added to the element tag

Related Definitions

OFBool operator<	(	const DcmElement &	lhs,
		const DcmElement &	rhs
	)

friend

Checks whether left hand side element is smaller than right hand side element.

Uses DcmElement's compare() method in order to perform the comparison. See DcmElement::compare() for details.

Parameters

lhs	left hand side of the comparison
rhs	right hand side of the comparison

Returns: OFTrue if lhs is smaller than rhs, OFFalse otherwise

OFBool operator<=	(	const DcmElement &	lhs,
		const DcmElement &	rhs
	)

friend

Checks whether left hand side element is smaller than or equal to right hand side element.

Uses DcmElement's compare() method in order to perform the comparison. See DcmElement::compare() for details.

Parameters

lhs	left hand side of the comparison
rhs	right hand side of the comparison

Returns: OFTrue if lhs is smaller than rhs or both are equal, OFFalse otherwise

OFBool operator>	(	const DcmElement &	lhs,
		const DcmElement &	rhs
	)

friend

Checks whether left hand side element is greater than right hand side element.

Uses DcmElement's compare() method in order to perform the comparison. See DcmElement::compare() for details.

Parameters

lhs	left hand side of the comparison
rhs	right hand side of the comparison

Returns: OFTrue if lhs is greater than rhs, OFFalse otherwise

OFBool operator>=	(	const DcmElement &	lhs,
		const DcmElement &	rhs
	)

friend

Checks whether left hand side element is greater than or equal to right hand side element.

Uses DcmElement's compare() method in order to perform the comparison. See DcmElement::compare() for details.

Parameters

lhs	left hand side of the comparison
rhs	right hand side of the comparison

Returns: OFTrue if lhs is greater than rhs or both are equal, OFFalse otherwise

The documentation for this class was generated from the following file:

dcmdata/include/dcmtk/dcmdata/dcelem.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Related Definitions
