Template class to handle YCbCr Full 4:2:2 pixel data. More...

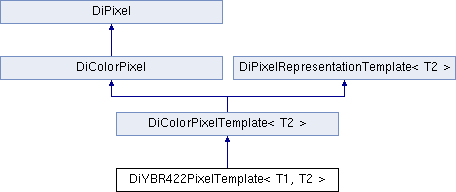

Inheritance diagram for DiYBR422PixelTemplate< T1, T2 >:

Public Member Functions
	DiYBR422PixelTemplate (const DiDocument docu, const DiInputPixel pixel, EI_Status &status, const int bits, const OFBool rgb)
	constructor
virtual	~DiYBR422PixelTemplate ()
	destructor
Private Member Functions
void	convert (const T1 *pixel, const int bits, const OFBool rgb)
	convert input pixel data to intermediate representation
void	convertValue (T2 &red, T2 &green, T2 &blue, const T2 y, const T2 cb, const T2 cr, const T2 maxvalue)
	convert a single YCbCr value to RGB

Detailed Description

Template class to handle YCbCr Full 4:2:2 pixel data.

Constructor & Destructor Documentation

template<class T1 , class T2 >

DiYBR422PixelTemplate< T1, T2 >::DiYBR422PixelTemplate	(	const DiDocument *	docu,
		const DiInputPixel *	pixel,
		EI_Status &	status,
		const int	bits,
		const OFBool	rgb
	)		`[inline]`

constructor

Parameters:

docu	pointer to DICOM document
pixel	pointer to input pixel representation
status	reference to status variable
bits	number of bits per sample
rgb	flag, convert color model to RGB only if true

template<class T1 , class T2 >

void DiYBR422PixelTemplate< T1, T2 >::convert	(	const T1 *	pixel,
		const int	bits,
		const OFBool	rgb
	)		`[inline, private]`

convert input pixel data to intermediate representation

Parameters:

pixel	pointer to input pixel data
bits	number of bits per sample
rgb	flag, convert color model to RGB only if true

The documentation for this class was generated from the following file:
