DiRGBPixelTemplate< T1, T2 > Class Template Reference

Template class to handle RGB pixel data. More...

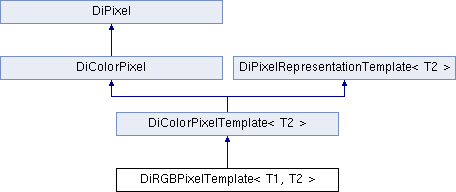

Inheritance diagram for DiRGBPixelTemplate< T1, T2 >:

List of all members.

Public Member Functions
	DiRGBPixelTemplate (const DiDocument *docu, const DiInputPixel *pixel, EI_Status &status, const unsigned long planeSize, const int bits)
	constructor
virtual	~DiRGBPixelTemplate ()
	destructor
Private Member Functions
void	convert (const T1 *pixel, const unsigned long planeSize, const int bits)
	convert input pixel data to intermediate representation

---

Detailed Description

template<class T1, class T2>
class DiRGBPixelTemplate< T1, T2 >

Template class to handle RGB pixel data.

---

Constructor & Destructor Documentation

template<class T1 , class T2 >

DiRGBPixelTemplate< T1, T2 >::DiRGBPixelTemplate	(	const DiDocument *	docu,
		const DiInputPixel *	pixel,
		EI_Status &	status,
		const unsigned long	planeSize,
		const int	bits
	)		[inline]

constructor

Parameters:

docu	pointer to DICOM document
pixel	pointer to input pixel representation
status	reference to status variable
planeSize	number of pixel in a single plane
bits	number of bits per sample

---

Member Function Documentation

template<class T1 , class T2 >

void DiRGBPixelTemplate< T1, T2 >::convert	(	const T1 *	pixel,
		const unsigned long	planeSize,
		const int	bits
	)		[inline, private]

convert input pixel data to intermediate representation

Parameters:

pixel	pointer to input pixel data
planeSize	number of pixels in a plane
bits	number of bits per sample

---

The documentation for this class was generated from the following file:

• dcmimage/include/dcmtk/dcmimage/dirgbpxt.h
