Template class to convert monochrome pixel data to intermediate representation. More...

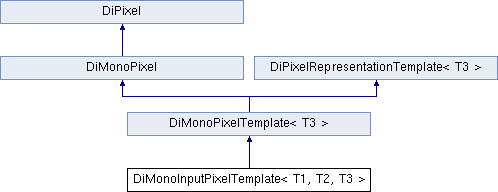

Inheritance diagram for DiMonoInputPixelTemplate< T1, T2, T3 >:

Public Member Functions
	DiMonoInputPixelTemplate (DiInputPixel pixel, DiMonoModality modality)
	constructor
virtual	~DiMonoInputPixelTemplate ()
	destructor
Private Member Functions
int	initOptimizationLUT (T3 *&lut, const unsigned long ocnt)
	initialize optimization LUT
void	modlut (DiInputPixel *input)
	perform modality LUT transform
void	rescale (DiInputPixel *input, const double slope=1.0, const double intercept=0.0)
	perform rescale slope/intercept transform

Detailed Description

Template class to convert monochrome pixel data to intermediate representation.

Constructor & Destructor Documentation

template<class T1 , class T2 , class T3 >

DiMonoInputPixelTemplate< T1, T2, T3 >::DiMonoInputPixelTemplate	(	DiInputPixel *	pixel,
		DiMonoModality *	modality
	)		`[inline]`

constructor

Parameters:

pixel	pointer to input pixel representation
modality	pointer to modality transform object

template<class T1 , class T2 , class T3 >

int DiMonoInputPixelTemplate< T1, T2, T3 >::initOptimizationLUT	(	T3 *&	lut,
		const unsigned long	ocnt
	)		`[inline, private]`

initialize optimization LUT

Parameters:

lut	reference to storage area for lookup table
ocnt	number of LUT entries (will be check as optimization criteria)

Returns:: status, true if successful (LUT has been created), false otherwise

template<class T1 , class T2 , class T3 >

void DiMonoInputPixelTemplate< T1, T2, T3 >::modlut ( DiInputPixel * input ) [inline, private]

perform modality LUT transform

Parameters:

input pointer to input pixel representation

template<class T1 , class T2 , class T3 >

void DiMonoInputPixelTemplate< T1, T2, T3 >::rescale	(	DiInputPixel *	input,
		const double	slope = `1.0`,
		const double	intercept = `0.0`
	)		`[inline, private]`

perform rescale slope/intercept transform

Parameters:

input	pointer to input pixel representation
slope	rescale slope value (optional)
intercept	rescale intercept value (optional)

The documentation for this class was generated from the following file:
